en

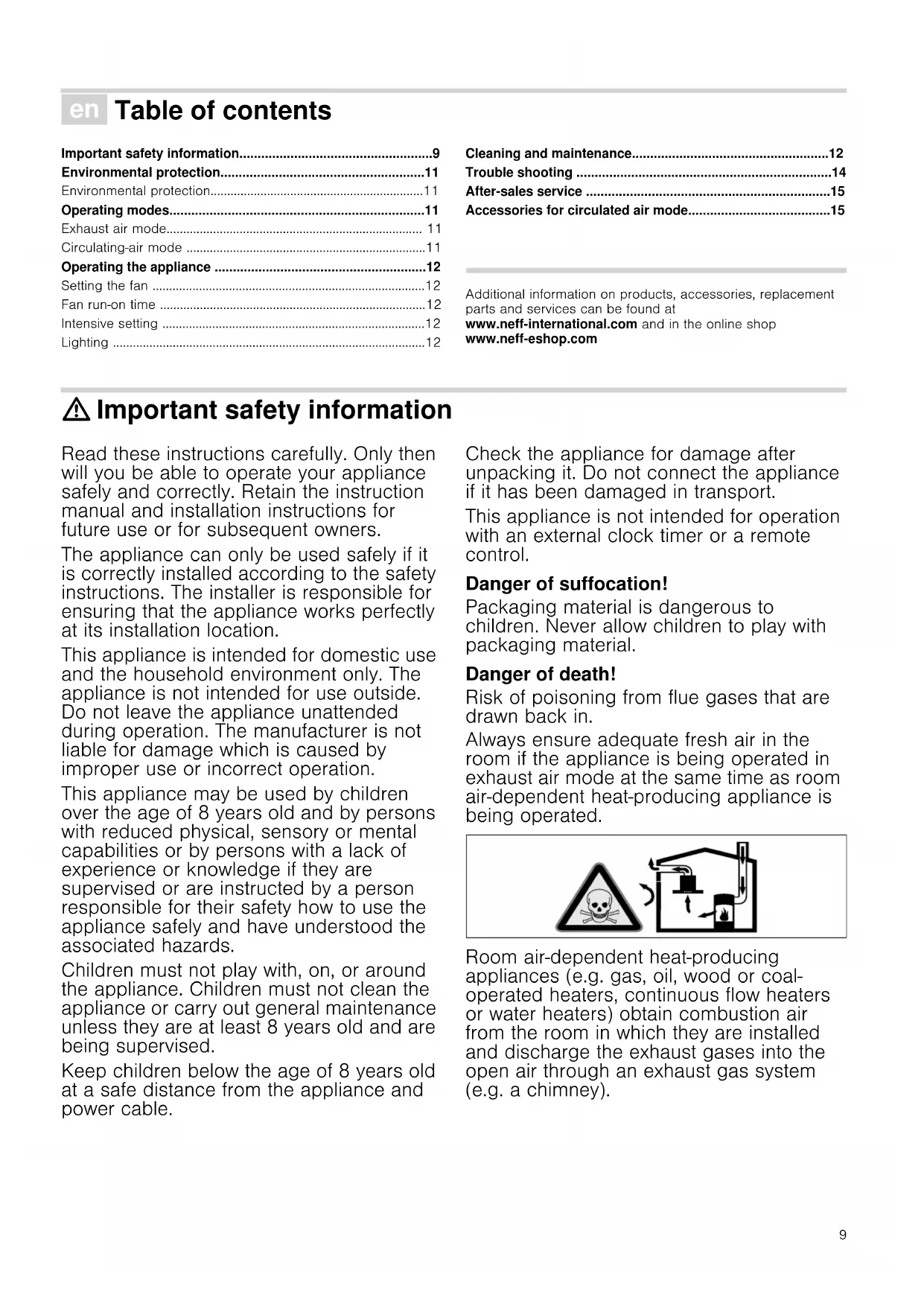

Table of contents

Important safety information....9

Environmental protection....11

Environmental protection....11

Operating modes....11

Exhaust air mode.... 11

Circulating-air mode 11

Operating the appliance ....12

Setting the fan ....12

Fan run-on time 12

Intensive setting ....12

Lighting 12

Cleaning and maintenance....12

Trouble shooting ....14

After-sales service ....15

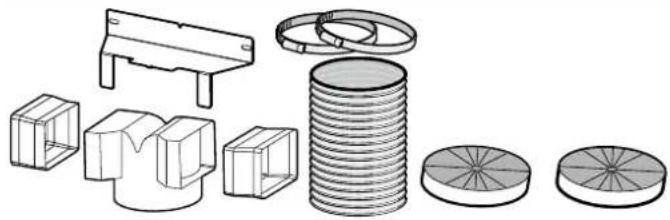

Accessories for circulated air mode....15

Additional information on products, accessories, replacement parts and services can be found at

www.neff-international.com and in the online shop

www.neff-eshop.com

⚠️ Important safety information

Read these instructions carefully. Only then will you be able to operate your appliance safely and correctly. Retain the instruction manual and installation instructions for future use or for subsequent owners.

The appliance can only be used safely if it is correctly installed according to the safety instructions. The installer is responsible for ensuring that the appliance works perfectly at its installation location.

This appliance is intended for domestic use and the household environment only. The appliance is not intended for use outside. Do not leave the appliance unattended during operation. The manufacturer is not liable for damage which is caused by improper use or incorrect operation.

This appliance may be used by children over the age of 8 years old and by persons with reduced physical, sensory or mental capabilities or by persons with a lack of experience or knowledge if they are supervised or are instructed by a person responsible for their safety how to use the appliance safely and have understood the associated hazards.

Children must not play with, on, or around the appliance. Children must not clean the appliance or carry out general maintenance unless they are at least 8 years old and are being supervised.

Keep children below the age of 8 years old at a safe distance from the appliance and power cable.

Check the appliance for damage after unpacking it. Do not connect the appliance if it has been damaged in transport.

This appliance is not intended for operation with an external clock timer or a remote control.

Danger of suffocation!

Packaging material is dangerous to children. Never allow children to play with packaging material.

Danger of death!

Risk of poisoning from flue gases that are drawn back in.

Always ensure adequate fresh air in the room if the appliance is being operated in exhaust air mode at the same time as room air-dependent heat-producing appliance is being operated.

Safety warning symbol and diagram showing a skull hazard and a fire extinguisher with airflow arrows

Room air-dependent heat-producing appliances (e.g. gas, oil, wood or coal-operated heaters, continuous flow heaters or water heaters) obtain combustion air from the room in which they are installed and discharge the exhaust gases into the open air through an exhaust gas system (e.g. a chimney).

In combination with an activated vapour extractor hood, room air is extracted from the kitchen and neighbouring rooms - a partial vacuum is produced if not enough fresh air is supplied. Toxic gases from the chimney or the extraction shaft are sucked back into the living space.

■ Adequate incoming air must therefore always be ensured.
■ An incoming/exhaust air wall box alone will not ensure compliance with the limit. Safe operation is possible only when the partial vacuum in the place where the heat-producing appliance is installed does not exceed 4 Pa (0.04 mbar). This can be achieved when the air needed for combustion is able to enter through openings that cannot be sealed, for example in doors, windows, incoming/exhaust air wall boxes or by other technical means.

Simple line drawing of a house with a checkmark and airflow indicators (no text or symbols)

In any case, consult your responsible Master Chimney Sweep. He is able to assess the house's entire ventilation setup and will suggest the suitable ventilation measures to you.

Unrestricted operation is possible if the vapour extractor hood is operated exclusively in the circulating-air mode.

Risk of fire!

■ Grease deposits in the grease filter may catch fire.

Clean the grease filter at least every 2 months.

Never operate the appliance without the grease filter.

■ Grease deposits in the grease filter may catch fire. Never work with naked flames close to the appliance (e.g. flambéing). Do not install the appliance near a heat-producing appliance for solid fuel (e.g. wood or coal) unless a closed, non-removable cover is available. There must be no flying sparks.

• Hot oil and fat can ignite very quickly. Never leave hot fat or oil unattended. Never use water to put out burning oil or fat. Switch off the hotplate. Extinguish flames carefully using a lid, fire blanket or something similar.
• When gas burners are in operation without any cookware placed on them, they can build up a lot of heat. A ventilation appliance installed above the cooker may become damaged or catch fire. Only operate the gas burners with cookware on them.
• Operating several gas burners at the same time gives rise to a great deal of heat. A ventilation appliance installed above the cooker may become damaged or catch fire. Never operate two gas burners simultaneously on the highest flame for longer than 15 minutes. One large burner of more than 5 kW (wok) is equivalent to the power of two gas burners.

Risk of burns!

The accessible parts become very hot when in operation. Never touch hot parts. Keep children at a safe distance.

Risk of injury!

■ Components inside the appliance may have sharp edges. Wear protective gloves.
■ Items placed on the appliance may fall down. Do not place any objects on the appliance.

Risk of electric shock!

• A defective appliance may cause electric shock. Never switch on a defective appliance. Unplug the appliance from the mains or switch off the circuit breaker in the fuse box. Contact the after-sales service.
  ■ Incorrect repairs are dangerous. Repairs may only be carried out and damaged power cables replaced by one of our trained after-sales technicians. If the appliance is defective, unplug the appliance from the mains or switch off the circuit breaker in the fuse box. Contact the after-sales service.
• Do not use any high-pressure cleaners or steam cleaners, which can result in an electric shock.

Causes of damage

Caution!

Risk of damage due to corrosion. Always switch on the appliance while cooking to avoid condensation. Condensate can produce corrosion damage.

Always replace faulty bulbs to prevent the remaining bulbs from overloading.

Risk of damage due to ingress of humidity into the electronic circuitry. Never clean operator controls with a wet cloth.

Surface damage due to incorrect cleaning. Clean stainless steel surfaces in the direction of the grain only. Do not use any stainless steel cleaners for operator controls.

Surface damage due to strong or abrasive cleaning agents. Never use strong and abrasive cleaning agents.

Risk of damage from returning condensate. Install the exhaust duct in such a way that it falls away from the appliance slightly (1° slope).

Environmental protection

Unpack the appliance and dispose of the packaging in an environmentally-responsible manner.

Environmental protection

This appliance is labelled in accordance with the European Directive 2012/19/EU concerning used electrical and electronic appliances (WEEE – waste electrical and electronic equipment). The guideline determines the framework for the return and recycling of used appliances as applicable.

Operating modes

This appliance can be used in exhaust-air mode or circulating-air mode.

Exhaust air mode

The air which is drawn in is cleaned by the grease filters and conveyed to the exterior by a pipe system.

Note: The exhaust air must not be conveyed into a functioning smoke or exhaust gas flue or into a shaft which is used to ventilate installation rooms which contain heat-producing appliances.

■ Before conveying the exhaust air into a non-functioning smoke or exhaust gas flue, obtain the consent of the heating engineer responsible.
If the exhaust air is conveyed through the outer wall, a telescopic wall box should be used.

Circulating-air mode

The air which is drawn in is cleaned by the grease filters and an activated carbon filter and conveyed back into the kitchen.

Note: To bind odours in circulating-air mode, you must install an activated carbon filter. The different options for operating the appliance in circulating-air mode can be found in the brochure. Alternatively, ask your dealer. The required accessories are available from specialist outlets, from customer service or from the Online Shop. The accessory numbers can be found at the end of the instructions for use.

Operating the appliance

These instructions apply to several appliance variants. It is possible that individual features are described which do not apply to your appliance.

Note: Switch on the extractor hood when you start cooking and switch it off again several minutes after you have finished cooking. This is the most effective way of removing the kitchen fumes.

Control panel

0 Fan off

1 Fan speed 1

2 Fan speed 2

√ Fan run-on

3 Fan speed 3

P Intensive setting

☀ Light on/off

Setting the fan

Note: Always adjust the fan strength to meet current conditions. If there is a large build-up of steam or fumes, select a high fan setting.

Switching on

Press button 1, 2 or 3.

To confirm the setting, the 0 button and the set fan speed light up.

Switching off the appliance

Press the 0 button.

Fan run-on time

The fan run-on is possible in any fan speed.

1. First, press the button for the required fan speed 1, 2 or 3.
2. To activate the fan run-on, press and hold the ⏻ button for 2 seconds.
   To confirm the setting, the 0 button and the set fan speed flash.
3. To end the fan run-on early, press the 0 button.

Notes

The run-on time for all fan speeds is 30 minutes. Once this time has elapsed, the ventilation and lighting automatically switch off.
■ The fan speed can be changed during the run-on time.

Intensive setting

You can use the intensive setting if there is a large build-up of odours and fumes/vapours.

1. To activate the intensive setting, press and hold the P button for 2 seconds.
   To confirm the setting, the 0 button lights up and the P button flashes.
2. To end the intensive setting early, press the 0 button.

Note: The time of the intensive setting is 10 minutes. Once this time has elapsed, the appliance switches back to the fan setting that was previously set.

Lighting

The lighting can be switched on and off independently of the ventilation.

Press the 🔊 button.

Setting the brightness

When switching on the lights, press and hold the ⚙ button for 2 seconds. The brightness is reduced.

Note: When switching on the lights again, the brightness is set to maximum once again.

Cleaning and maintenance

Risk of burns!

The appliance becomes hot during operation. Allow the appliance to cool down before cleaning.

Risk of electric shock!

Penetrating moisture may result in an electric shock. Clean the appliance using a damp cloth only. Before cleaning, pull out the mains plug or switch off the circuit breaker in the fuse box.

Risk of electric shock!

Do not use any high-pressure cleaners or steam cleaners, which can result in an electric shock.

Risk of injury!

Components inside the appliance may have sharp edges. Wear protective gloves.

Cleaning agents

Observe the information in the table to ensure that the different surfaces are not damaged by using the wrong type of cleaning agent. Do not use

■ harsh or abrasive cleaning agents,
■ cleaning agents with a high concentration of alcohol,
■ hard scouring pads or sponges,
■ high-pressure cleaners or steam cleaners.

Wash new sponge cloths thoroughly before use.

Follow all instructions and warnings included with the cleaning agents.

Area Cleaning agents

Stainless steel Hot soapy water:
	Clean with a dish cloth and dry with a soft cloth.
	Clean stainless steel surfaces in the direction of the grain only.
	Special stainless steel cleaning products are available from our after-sales service or from specialist retailers. Apply a very thin layer of the cleaning product with a soft cloth.
Painted surfaces Hot soapy water:
	Clean using a damp dish cloth and dry with a soft cloth/towel.
	Do not use any stainless steel cleaners.
Aluminium and plastic	Glass cleaner:
	Clean with a soft cloth.
Glass Glass cleaner:
	Clean with a soft cloth. Do not use a glass scraper.
Operating controls Hot soapy water:
	Clean using a damp dish cloth and dry with a soft cloth.
	Risk of damage to the electronics from penetrating moisture. Never clean operator controls with a wet cloth.
	Do not use any stainless steel cleaners.

Cleaning the metal mesh grease filters

Risk of fire!

Grease deposits in the grease filter may catch fire.

Clean the grease filter at least every 2 months.

Never operate the appliance without the grease filter.

Notes

• Do not use any aggressive, acidic or alkaline cleaning agents.
  ■ When cleaning the metal mesh grease filters, also clean the holder for the metal mesh grease filters in the appliance using a damp cloth.
  ■ The metal mesh grease filters can be cleaned in the dishwasher or by hand.

In the dishwasher:

Note: If the metal mesh grease filters are cleaned in the dishwasher, slight discolouration may occur. This has no effect on the function of the metal mesh grease filters.

• Do not clean heavily soiled metal mesh grease filters together with utensils.
  ■ Place the metal mesh grease filters loosely in the dishwasher. The metal mesh grease filters must not be wedged in.

By hand:

Note: You can use a special grease solvent for stubborn dirt. It can be ordered via the Online Shop.

■ Soak the metal mesh grease filters in a hot soapy solution.
■ Clean the filters with a brush and then rinse them thoroughly.
■ Leave the metal mesh grease filters to drain.

Removing metal mesh grease filter

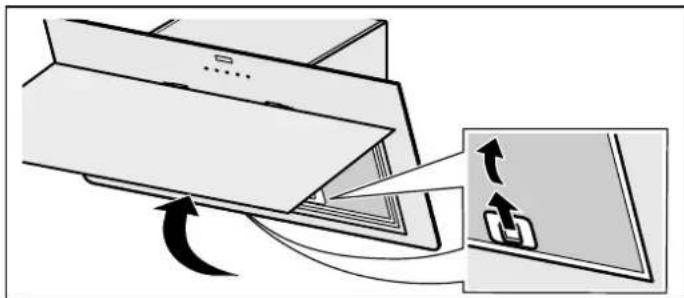

1. Fold the filter cover upwards.

Notes

The opening angle of the filter cover is restricted to approx. 80°. Do not open the filter cover any further, otherwise the hinges may be damaged.
■ The filter cover locks in any position.

1. Remove the two metal grease filters under the filter cover and the metal grease filter on the underside of the appliance. Unfasten the lock, fold the metal filter forwards and remove it from the bracket.

Note: Grease can accumulate at the bottom of the metal grease filter. Hold the metal grease filter level, otherwise grease will drip out.

Diagram showing a computer monitor with an open screen and a close-up of its screen (no text or symbols present)

1. Clean the metal grease filter.
2. After removing the filters, clean the inside of the appliance.
3. Clean the filter cover.

Installing the metal mesh grease filter

1. Insert the two metal grease filters under the filter cover with the lock facing downwards.
   Insert the metal grease filters on the underside of the appliance.
2. Fold the metal grease filters inwards, locking them in place.
3. Close the filter cover.

Changing the activated charcoal filter (only in circulating-air mode)

In order to guarantee efficient odour filtration, the filter must be serviced regularly.

The activated charcoal filters must be replaced at least every 4 months.

Notes

The activated charcoal filters are not included in the delivery. The activated charcoal filters can be obtained from specialist retailers, from our after-sales service or from the Online Shop.
■ The activated charcoal filters cannot be cleaned or reactivated.

1. Remove metal grease filter: See above.

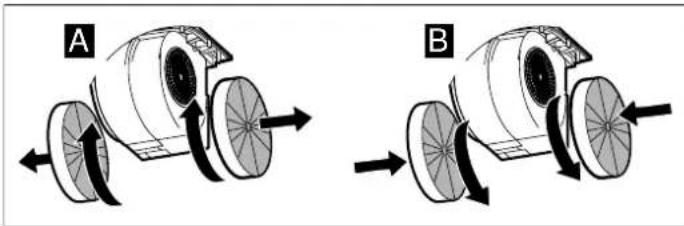

2. Turn the old activated charcoal filter and pull away from the bracket. A
3. Push the new activated charcoal filter onto the bracket and turn. B

Two mechanical diagrams labeled A and B showing a rotating device with arrows indicating motion (no text or symbols beyond labels)

1. Fit the metal grease filter: See above.

Trouble shooting

Malfunctions often have simple explanations. Please read the following notes before calling the after-sales service.

Risk of electric shock!

Incorrect repairs are dangerous. Repairs may only be carried out and damaged power cables replaced by one of our trained after-sales technicians. If the appliance is defective, unplug the appliance from the mains or switch off the circuit breaker in the fuse box. Contact the after-sales service.

Malfunction table

Problem Possible cause Solution
The appliance does not work	The plug is not plugged in.	Connect the appliance to the electricity supply
	Power cut Check whether other kitchen appliances are working
	Faulty fuse Check in the fuse box to make sure that the fuse for the appliance is OK
The button illumination does not work.	The control unit is faulty.	Call the after-sales service.
The lighting does not work.	The bulbs are faulty.	For information on changing the bulbs, see the "Replacing Bulbs" section.

Replacing bulbs

Risk of electric shock!

When changing the bulbs, the bulb socket contacts are live. Before changing the bulb, unplug the appliance from the mains or switch off the circuit breaker in the fuse box.

Important Only use a bulb of the same type and same power (see also the bulb holder or rating plate).

Replacing halogen bulbs

Note: When inserting halogen bulbs, do not touch the glass tube. Use a clean cloth to insert the halogen bulbs.

1. Carefully remove the bulb ring using a suitable tool.
2. Pull out the bulb and replace it with a bulb of the same type.

Illustration of hands using a tool to adjust or install a circular component (no text or symbols visible)

Illustration of a hand holding a folded paper or cloth (no text or symbols visible)

1. Insert the bulb cover.
2. Insert the mains plug or switch on the fuse again.
   Replace the bulb with one of the same type:

Voltage: 12 V

Power: max. 20 W

Socket: G4

After-sales service

Our after-sales service is there for you if your appliance needs to be repaired. We will always find the right solution in order to avoid unnecessary visits from a service technician.

When calling us, please give the product number (E no.) and the production number (FD no.) so that we can provide you with the correct advice. The rating plate with these numbers can be found inside the appliance (remove the metal mesh grease filter to gain access).

You can make a note of the numbers of your appliance and the telephone number of the after-sales service in the space below to save time should it be required.

E no. FD no.

After-sales service

Please be aware that a visit by an after-sales engineer will be charged if a problem turns out to be the result of operator error, even during the warranty period.

Please find the contact data of all countries in the enclosed customer service list.

To book an engineer visit and product advice

GB 0844 8928989

Calls from a BT landline will be charged at up to 3 pence per minute. A call set-up fee of up to 6 pence may apply.

IE 01450 2655

0.03 € per minute at peak. Off peak 0.0088 € per minute.

Rely on the professionalism of the manufacturer. You can therefore be sure that the repair is carried out by trained service technicians who carry original spare parts for your appliances.

Accessories for circulated air mode

(not included in the delivery)

Z5135X5

Illustration of various mechanical components including a bench, cylindrical parts, and segmented circular parts (no text or symbols)

Z5135X4

Illustration of three circular components with radial blades, one top-down view and two separate circular bases (no text or symbols)

Z5135X1

Safety warning symbol and diagram showing hazard, smoke, and electrical circuit with arrows indicating airflow or safety.

Simple line drawing of a gas stove with a checkmark and airflow indicators (no text or symbols)

Diagram showing a computer monitor with an open screen and a close-up of the screen's internal components (no text or symbols)

Illustration of hands using a tool to adjust or install a circular component (no text or symbols visible)

Illustration of a hand holding a folded paper or cloth (no text or symbols visible)

Illustration of various mechanical components including a chair, ring, cube, and segmented cylindrical parts (no text or symbols)

Z5135X4

Diagram showing three circular components with internal patterns, no text or symbols present

Z5135X1

Table des matières

Safety warning symbol and diagram showing a skull hazard and a fire extinguisher with airflow arrows

Simple line drawing of a checkmark and a schematic diagram of a building with pipes and valves (no text or symbols)

Diagram showing a computer monitor with an open screen and a close-up of the screen's internal components (no text or symbols)

Two mechanical diagrams labeled A and B showing a rotating device with arrows indicating motion (no text or symbols beyond labels)

Two-step illustration showing hands using a tool to adjust or apply a component, no text or symbols present.

Illustration of various mechanical components including a bench, gears, cubes, and circular parts (no text or symbols)

Z5135X4

Technical illustration of a kitchen appliance with three circular components (no text or symbols)

Z5135X1

it

Indice

Safety warning symbol showing a skull crossed out of a triangular sign and a house with smoke and fire.

Simple line drawing of a checkmark and a fire hydrant with pipes (no text or symbols)

Diagram showing a computer monitor with an open screen and a close-up of the screen's cable (no text or symbols present)

Two mechanical diagrams labeled A and B showing a rotating device with arrows indicating motion (no text or symbols beyond labels)

Illustration of hands holding a small object with a tool, no text or symbols present

Illustration of a hand holding a folded paper or plastic sheet (no text or symbols visible)

Illustration of various mechanical components including a chair, ring, cube, and segmented cylindrical parts (no text or symbols)

Z5135X4

Diagram showing three circular components with internal patterns, no text or symbols present

Z5135X1

nl

Inhoudsopgave

Safety warning symbol and diagram showing hazard, smoke, and fire hazard with arrows indicating airflow or safety instructions.

Simple line drawing of a house with airflow indicators and a checkmark (no text or symbols)

Diagram showing a computer monitor with an open screen and a close-up of its screen (no text or symbols present)

Two mechanical diagrams labeled A and B showing a rotating device with arrows indicating motion (no text or symbols beyond labels)

Illustration of hands holding a small object with a tool, no text or symbols present

Illustration of a hand holding a piece of paper or fabric, no text or symbols present

Illustration of various mechanical parts including a bench, gears, and cutouts (no text or symbols)

Z5135X4

Diagram showing three circular components with radial lines, one top-down view and two separate circular shapes (no text or symbols)

Z5135X1

Safety warning symbol and diagram showing a skull collision and fire extinguisher circuit with airflow arrows

Simple line drawing of a checkmark and a schematic diagram of a gasifier (no text or symbols)

Diagram showing a computer monitor with an open screen and a close-up of its screen (no text or symbols present)

Two mechanical diagrams labeled A and B showing a rotating device with arrows indicating motion (no text or symbols beyond labels)

Illustration of hands holding a small mechanical component with a tool (no text or symbols visible)

Illustration of a hand holding a piece of paper or tape, no text or symbols present

Illustration of various mechanical parts including a bench, cylindrical components, and segmented circular parts (no text or symbols)

Z5135X4

Illustration of a kitchen appliance with a woven basket and two circular segments (no text or symbols)

Z5135X1

Constructa Neff

Vertriebs-GmbH

Carl-Wery-Straße 34

D-81739 München
