USER MANUAL D99T48N0 NEFF

installation instructions

Operating Instructions

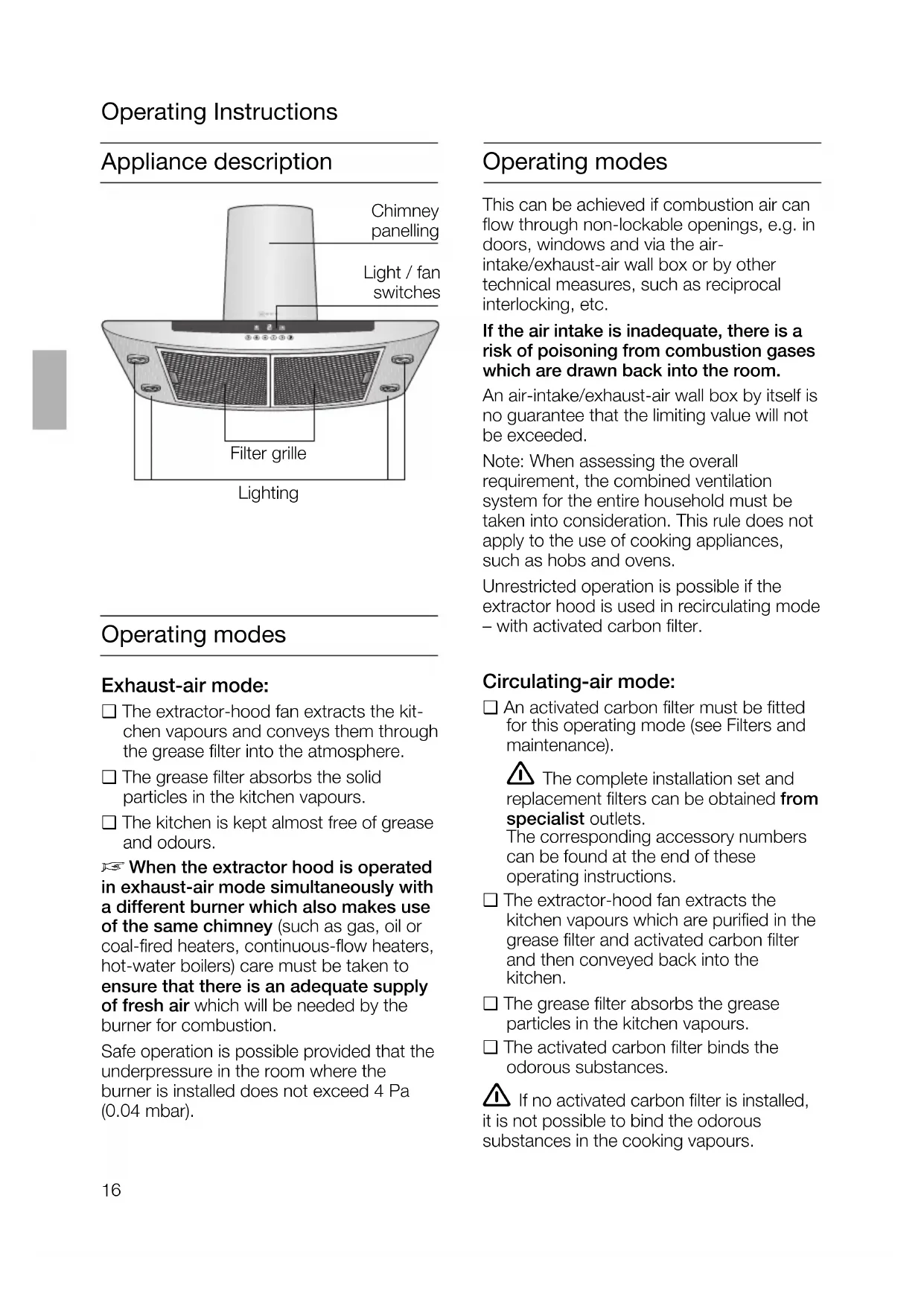

❑ The extractor-hood fan extracts the kit-

chen vapours and conveys them through

the grease filter into the atmosphere.

❑ The grease filter absorbs the solid

particles in the kitchen vapours.

❑ The kitchen is kept almost free of grease

D When the extractor hood is operated

in exhaust-air mode simultaneously with

a different burner which also makes use

of the same chimney (such as gas, oil or

coal-fired heaters, continuous-flow heaters,

hot-water boilers) care must be taken to

ensure that there is an adequate supply

of fresh air which will be needed by the

burner for combustion.

Safe operation is possible provided that the

underpressure in the room where the

burner is installed does not exceed 4 Pa

This can be achieved if combustion air can

flow through non-lockable openings, e.g. in

doors, windows and via the air-

intake/exhaust-air wall box or by other

technical measures, such as reciprocal

If the air intake is inadequate, there is a

risk of poisoning from combustion gases

which are drawn back into the room.

An air-intake/exhaust-air wall box by itself is

no guarantee that the limiting value will not

Note: When assessing the overall

requirement, the combined ventilation

system for the entire household must be

taken into consideration. This rule does not

apply to the use of cooking appliances,

such as hobs and ovens.

Unrestricted operation is possible if the

extractor hood is used in recirculating mode

– with activated carbon filter.

Circulating-air mode:

❑ An activated carbon filter must be fitted

for this operating mode (see Filters and

 The complete installation set and

replacement filters can be obtained from

The corresponding accessory numbers

can be found at the end of these

operating instructions.

❑ The extractor-hood fan extracts the

kitchen vapours which are purified in the

grease filter and activated carbon filter

and then conveyed back into the

❑ The grease filter absorbs the grease

particles in the kitchen vapours.

❑ The activated carbon filter binds the

 If no activated carbon filter is installed,

it is not possible to bind the odorous

substances in the cooking vapours.

Before using for the first time

Important notes: ❑ The Instructions for Use apply to severalversions of this appliance. Accordingly,you may find descriptions of individualfeatures that do not apply to your specific appliance.❑ This extractor hood complies with all relevant safety regulations.Repairs should be carried out by qualified technicians only.Improper repairs may put the user atconsiderable risk.  Do not flambé food directly under the extractor hood.Risk of grease filter catching fire due ! to flames.

 The hotplates must always be covered with a utensil.  Restrictions apply to the use of the extractor hood over a solid-fuel burner(coal, wood, etc.). (See Installation instructions).Gas hobs / Gas cookers  Do not use all the gas hotplates simultaneously for a prolonged period (max. 15 minutes) at maximum thermalload, otherwise there is a risk of burns if thehousing surfaces are touched or a risk ofdamage to the extractor hood. If the extractor hood is situated over a gas hob,operate the hood at maximum setting ifthree or more gas hotplates are operatedsimultaneously.❑ Before using your appliance for the firsttime, please read these Instructions forUse carefully. They contain importantinformation concerning your personalsafety as well as on use and care of theappliance.❑ Please retain the operating and installation instructions for a subsequentowner.  Do not use the appliance if damaged.

 The appliance is not intended for use by young children or infirmed persons without supervision.Young children should be supervised toensure they do not play with the appliance.  If the connecting cable for this appliance is damaged, the cable must bereplaced by the manufacturer or his customer service or a similarly qualified person in order to prevent serious injury tothe user.  The appliance may be connected to the mains by a qualified technician only.  Dispose of packaging materials properly (see Installation instructions).  This extractor hood is designed for domestic use only.  Light bulbs must always be fitted when the extractor hood is in use.  Defective bulbs should be replaced immediately to prevent the remaining bulbsfrom overloading.  Never operate the extractor hood without a grease filter.  Overheated fat or oil can easily catch fire. If you are cooking with fat or oil, e.g. chips,etc., never leave the cooker unattended.18

Maximum power is obtained at the

intensive setting. It is only required for short

❑ Keep pressing the + button until a

appears in the display.

❑ If the intensive setting is not cancelled by

hand, the fan will automatically switch

back to step } after 10 minutes.

The fan runs for 10 minutes at the

selected setting and

a button to switch the

❑ The light can be switched on at any

time, even though the fan is switched off.

❑ Adjusting the brightness:

desired brightness is obtained.

Switching on the light automatically, e.g.

❑ Fan and light must be switched off.

Simultaneously press the – and

❑ After approx. 3 seconds the light

switches on to acknowledge the setting.

Repeat the process with the light switched

❑ After approx. 3 seconds the light

switches off to acknowledge the setting.

❑ When a button is pressed, this is verified

by an acoustic signal.

Switching off the acoustic signal:

❑ Simultaneously press buttons 0 and +

until a signal is emitted after approx. 3

Switching on the acoustic signal:

❑ Repeat the process.

Switching the fan ON

The fan speed is increased by one step.

❑ Press the – button.

The fan speed is reduced by one step.

❑ Keep pressing the – button until the fan

 The most effective method of removing

vapours produced during cooking is to:

❑ Switch the ventilator ON

as soon as you begin cooking.

❑ Switch the ventilator OFF

a few minutes after you have finished

Metal filters are used to trap the greasy

element of the vapours that develop

The filter mats are made from non-

As the filter becomes more and more

saturated with grease, not only does the

risk of it catching fire increase but the

efficiency of the extractor hood can also be

By cleaning the metal grease filters at

appropriate intervals, the possibility of them

catching fire as a result of a build-up of heat

such as occurs when deep-fat frying or

roasting is taking place, is reduced.

Saturation indicator:

U When the grease filters reach saturation

point, an acoustic signal is sounded for 10

seconds after the fan has switched off, and

appears in the display. The grease

filters should be cleaned straight away.

Cleaning the metal grease filters:

❑ The filters can be cleaned in a dish-

washer. It is however possible that they

will become slightly discoloured.

Metal filters that are saturated with

grease should not be washed together

with other dishes etc.

❑ When cleaning the filters by hand, soak

them in hot soapy water first of all.

Do not use aggressive, acidic or caustic

Then brush the filters clean, rinse them

thoroughly and leave the water to drain off.

Removing and inserting the metal grease

Warning: The halogen bulbs must be

switched off and cool.

1. Pull down the catch on the grease filters

in the direction of the arrow and fold

down the grease filters.

Filters and maintenance

2. Detach the grease filters.

3. Clean the grease filter.

4. Insert the clean filters back into the

Saturation indicator:

When the activated carbon filter reaches

saturation point, an acoustic signal is

sounded for 10 seconds after the fan has

display. The activated carbon filter should

be replaced straight away.

Warning: The halogen bulbs must be

switched off and cool.

1. Remove the metal filters.

2. Press the catches at both sides of the

filter inwards and lift the carbon filter

Filters and maintenance

3. Engage the catches at both sides.

4. Insert the metal grease filters (see

"Removing and inserting the metal

3. Insert the metal grease filters.

Replacing the activated carbon filter:

❑ A replacement filter can be obtained

from any authorized dealer (see optional

❑ Use original filters only.

By doing so you will obtain maximum

performance from your extractor hood.

Disposing of the old activated carbon

❑ There are no pollutants in the activated

carbon filters. They can therefore be

disposed of as part of your normal

Activated carbon filter:

As the filter becomes more and more

saturated with grease, there is an increased

risk of fire and the function of the extractor

hood may be impaired.

Change the activated carbon filter promptly

to prevent the risk of fire from the

accumulation of heat when deep-fat frying

Inserting the filter:

Warning: The halogen bulbs must be

switched off and cool.

1. Remove the metal-mesh filters

(see "Removing and inserting the metal-

2. Insert the activated carbon filter.21

Isolate the extractor hood by pulling out

the mains plug or switching off the fuse.

❑ When cleaning the grease filters, remove

grease deposits from accessible parts of

the housing. This prevents the risk of fire

and ensures that the extractor hood

continues operating at maximum

❑ Clean the extractor hood with a hot soap

solution or a mild window cleaner.

❑ Do not scrape off dried-on dirt but wipe

off with a damp cloth.

❑ Do not use scouring agents or abrasive

❑ Note: Do not use alcohol (spirit) on

plastic surfaces, as dull marks may

Caution: Ensure that the kitchen is ade-

quately ventilated. Avoid naked flames!

 Clean the operating buttons with a mild

soapy solution and a soft, damp cloth only.

Do not use stainless-steel cleaner to clean

the operating buttons.

Stainless steel surfaces:

❑ Use a mild non-abrasive stainless steel

❑ Clean the surface in the same direction

as it has been ground and polished.

 Do not use any of the following to clean

stainless steel surfaces: abrasive sponges,

cleaning agents containing sand, soda, acid

Aluminium and plastic surfaces:

❑ Use a soft, non-linting window cloth or

❑ Do not use dry cloths.

❑ Use a mild window cleaning agent.

❑ Do not use aggressive, acidic or caustic

❑ Do not use abrasive agents.

4. Re-insert the bulb ring.

5. Restore the power by inserting the mains

plug or switching on the fuse.

Note: If the light does not function, check

that the bulbs have been inserted correctly.

Replacing the light bulbs

1. Switch off the extractor hood and pull

out the mains plug or switch off the

electricity supply at the fuse box.

 When switched on, the halogen bulbs

become very hot. Even for some time after

the bulbs have been switched off there is

still a risk of burns.

2. Remove the bulb ring with a screwdriver

max. 20 Watt, G4 bulbholder).

Caution: Plug-in bulbholder.

Take hold of the bulb with a clean cloth.22

If you encounter a problem

appears in the display:

❑ See "Filters and maintenance" Section.

If is not possible to operate the extractor

❑ Disconnect the extractor hood from the

mains electricity supply by pulling out the

plug or switching it off at the main fuse

Wait for approx. 1 minute and then

If you have any questions or if a fault

occurs, please call Customer Service.

(See list of Customer Service

When you call, please quote the following:

Setting the saturation indicator

If it becomes necessary to change the

operating mode (exhaust-air/recirculating

mode), the saturation indicator for the filters

must also be altered (see Installation

E-Nr. FD Enter the relevant numbers into the box

above. The E-Nr. (product no.) and FD

(production date) are shown on the

nameplate which can be seen inside the

extractor hood after the filter frame has

Important information

Installation Instructions:

Additional information concerning gas

 When installing gas hotplates, comply

with the relevant national statutory

regulations (e.g. in Germany: Technische

Regeln Gasinstallation TRGI).

 Always comply with the currently valid

regulations and installation instructions

supplied by the gas appliance

 Only one side of the extractor hood

may be installed next to a high-sided unit

or high wall. Gap at least 50 mm.

 Minimum distance on gas hotplates

between the upper edge of the trivet

and lower edge of the extractor

hood: 650 mm, Fig. 1.

 Old appliances are not worthless

rubbish. Valuable raw materials can be

reclaimed by recycling old appliances.

Before disposing of your old appliance,

 You received your new appliance in a

protective shipping carton. All packaging

materials are environmentally friendly and

recyclable. Please contribute to a better

environment by disposing of packaging

materials in an environmentally-friendly

Please ask your dealer or inquire at your

local authority about current means of

 The extractor hood can be used in

exhaust air or circulating air mode.

 Always mount the extractor hood over

the centre of the hob.

 Minimum distance between electric

hob and bottom edge of extractor hood:

The extractor hood must not be

installed over a solid fuel cooker – a

potential fire hazard (e.g. flying sparks) –

unless the cooker features a closed,

non-removable cover and all national

regulations are observed.

 The smaller the gap between the

extractor hood and hotplates, the greater

the likelihood that droplets will form on the

underside of the extractor hood.24

Prior to installation

The exhaust air is discharged upwards

through a ventilation shaft or directly

through the outside wall into the open.

D Exhaust air should neither be directed

into a smoke or exhaust flue that is

currently used for other purposes, nor into

a shaft that is used for ventilating rooms in

which stoves or fireplaces are also located.

Exhaust air may be discharged in

accordance with official and statutory

regulations only (e.g. national building

Local authority regulations must be

observed when discharging air into smoke

or exhaust flues that are not otherwise in

D When the extractor hood is operated

in exhaust-air mode simultaneously with

a different burner which also makes use

of the same chimney (such as gas, oil or

coal-fired heaters, continuous-flow heaters,

hot-water boilers) care must be taken to

ensure that there is an adequate supply

of fresh air which will be needed by the

burner for combustion.

Safe operation is possible provided that the

underpressure in the room where the

burner is installed does not exceed 4 Pa

This can be achieved if combustion air can

flow through non-lockable openings, e.g. in

doors, windows and via the air-

intake/exhaust-air wall box or by other

technical measures, such as reciprocal

If the air intake is inadequate, there is a

risk of poisoning from combustion gases

which are drawn back into the room.

An air-intake/exhaust-air wall box by itself

is no guarantee that the limiting value will

Note: When assessing the overall

requirement, the combined ventilation

system for the entire household must be

taken into consideration. This rule does not

apply to the use of cooking appliances,

such as hobs and ovens.

Unrestricted operation is possible if the

extractor hood is used in recirculating

mode – with activated carbon filter.

If the exhaust air is going to be

discharged into the open, a telescopic

wall box should be fitted into the outside

Prior to installation

For optimum extractor hood efficiency:

Short, smooth air exhaust pipe.

As few bends in the pipe as possible.

Diameter of pipe to be as large as

possible and no tight bends in pipe.

If long, rough exhaust-air pipes,

many pipe bends or smaller pipe

diameters are used, the air extraction

rate will no longer be at an optimum

level and there will be an increase in

Internal diameter: 150 mm (at least

Flat ducts must have an internal cross-

section that equates to that of round

There should be no sharp bends.

If pipes have different diameters:

Insert sealing strip.

For exhaust-air mode, ensure that

there is an adequate supply of fresh air.

Circulating-air mode

❑ With activated carbon filter if exhaust-air

mode is not possible.

❑ Attach the exhaust-air pipe to the

installation set can

Mount the pipe directly onto the air

Connecting a l 120 mm exhaust-air

❑ Attach the reducing connector directly

Prior to installation

❑ The wall must be flat and perpendicular.

❑ Ensure that the wall is capable of

providing a firm hold for mounting

Electrical connection

WARNING: THIS APPLIANCE MUST BE EARTHED IMPORTANT: Fitting a Different Plug:

The wires in the mains lead are coloured in

accordance with the following code:

Green and Yellow – Earth

If you fit your own plug, the colours of

these wires may not correspond with the

identifying marks on the plug terminals.

This is what you have to do:

1. Connect the green and yellow (Earth)

wire to the terminal in the plug marked

‘E’ or with the symbol ( ), or

coloured green or green and yellow.

2. Connect the blue (Neutral) wire to the

terminal in the plug marked ‘N’ or

3. Connect the brown (Live) wire to the

terminal marked ‘L’, or coloured red.

The extractor hood should only be

connected to an earthed socket that has

been installed according to relevant

If possible, site the earthed socket directly

behind the chimney panelling.

Are to be found on the name plate inside

the appliance after removal of the filter

 Before undertaking any repairs,

always disconnect the extractor hood from

the electricity supply.

Length of the connecting cable: 1.30 m.

If it is necessary to wire the extractor

hood directly into the mains:

The extractor hood should only be

connected to the electricity supply by a

properly qualified electrician.

A separator must be installed in the house-

hold circuit. A suitable separator is a switch

that has a contact gap of more than 3 mm

and interrupts all poles. Such devices

include circuit breakers and contactors.

 If the connecting cable for this applian-

ce is damaged, the cable must be replaced

by the manufacturer or his customer

service or a similarly qualified person in

order to prevent serious injury to the user.

This extractor hood corresponds to EC

regulations concerning RF interference

Changing over from exhaust-

air to recirculating mode

Changing the electronic control system

to recirculating mode:

The standard factory setting is for

operation in exhaust-air mode.

To change the mode, the extractor hood

must have been connected up and

should be switched off.

1. Press and hold the 0 button.

{ is displayed, press the

ã is displayed. When this

has taken place, release the buttons.

ã goes out shortly afterwards.

The electronic control system will then

have been set to recirculating mode.

By repeating steps 1 and 2, you can

change the electronic control system

back to exhaust-air mode (

30,0 32,0 We reserve the right to construction changes within the context of technical development.27

This extractor hood is intended to be

mounted onto the kitchen wall.

1. Remove the grease filter (refer to

Operating Instructions).

2. Draw a line on the wall from the ceiling

to the lower edge of the hood at the

centre of the location where the hood is

going to be mounted.

3. Use the template to mark the points on

the wall where the screws will be moun-

ted. In order to make it easier to hook

the hood onto the screws, draw the out-

line of the area where the hood will be

 Ensure that the minimum distance

between the hob and the extractor hood is

maintained – 550 mm for an electric hob

and 650 mm for a gas hob. The bottom

edge of the template equates to the lower

edge of the extractor hood.

4. Drill 2x 8 mm ø holes for the upper fixing

bracket and 2x 8 mm ø holes for the

lower fixing bracket and press in wall

plugs flush with the wall.

Note: Take into account any special

accessories that are going to be fitted.

5. Screw on the upper and the two lower

6. Attach the extractor hood.

Adjust the height and align horizontally

with the adjusting screws.

 Check that the 4 lower fixing holes

have been correctly marked. If required,

Installation 12. Remove the protective film from thetwo flue ducts.  Avoid damage to the sensitive surface.13. Insert the upper flue duct (slots downwards) into the lower flue duct.  Protect the cover panels from scratches, for example by laying thetemplate used for marking the wall overthe top edge of the lower section.14. Insert the complete flue duct at anangle and swivel to the rear.15. Carefully pull the upper flue ductupwards and screw the sides to thefixing bracket with 2 screws.16. Insert the grease filter (refer to Operating Instructions).

07. Remove the extractor hood. Drill the 4 lower 8 mm ø fixing holes and press in the wall plugs flush with the wall.08. Attach the extractor hood and screwinto position with the remaining 4 screws.09. Stick protective film over the holes ofthe 2 lower mounting bolts in the protective grid.

10. Connect up the air outlet pipe.11. Connect the hood to the electricitysupply.

Ventilation intensive:

Printed in Germany 1204 Es.
