Household use only Thank you very much for buying this SHARP product. Before using your SHARP refrigerator, please read this operation manual to ensure that you gain the maximum benefi t from it. This refrigerator is for household only, with ambient temperature between +5°C and +43°C.• The refrigerator should not be subjected to temperatures of -10°C or below for a long period of time.

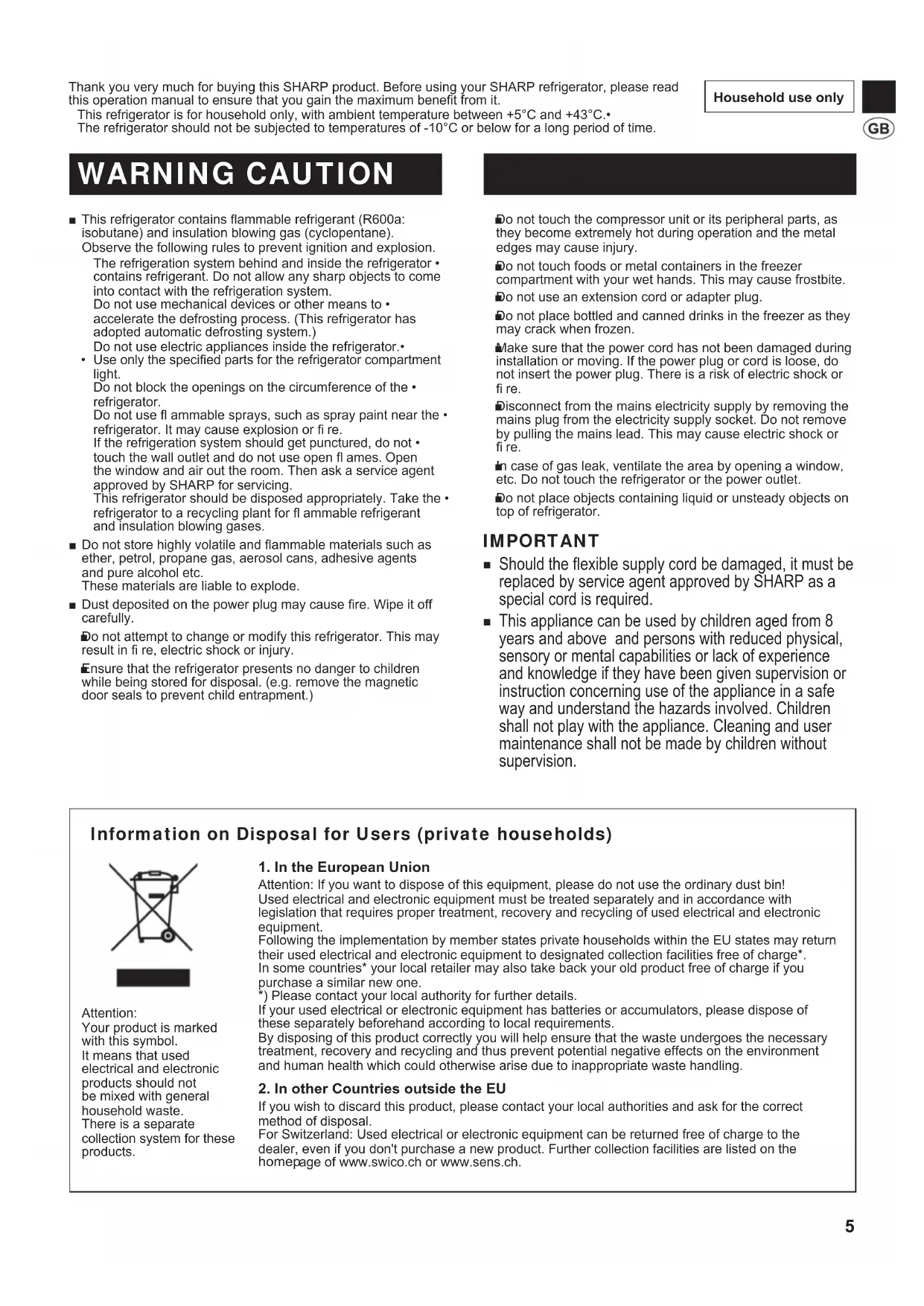

WARNING CAUTION This refrigerator contains fl ammable refrigerant (R600a: ■ isobutane) and insulation blowing gas (cyclopentane). Observe the following rules to prevent ignition and explosion.The refrigeration system behind and inside the refrigerator • contains refrigerant. Do not allow any sharp objects to come into contact with the refrigeration system.Do not use mechanical devices or other means to • accelerate the defrosting process. (This refrigerator has adopted automatic defrosting system.)Do not use electric appliances inside the refrigerator.• Use only the specifi ed parts for the refrigerator compartment • light.Do not block the openings on the circumference of the • refrigerator.Do not use fl ammable sprays, such as spray paint near the • refrigerator. It may cause explosion or fi re.If the refrigeration system should get punctured, do not • touch the wall outlet and do not use open fl ames. Open the window and air out the room. Then ask a service agent approved by SHARP for servicing.This refrigerator should be disposed appropriately. Take the • refrigerator to a recycling plant for fl ammable refrigerant and insulation blowing gases. Do not store highly volatile and fl ammable materials such as ■ ether, petrol, propane gas, aerosol cans, adhesive agents and pure alcohol etc.These materials are liable to explode. Dust deposited on the power plug may cause fi re. Wipe it off ■ carefully.Do not attempt to change or modify this refrigerator. This may ■result in fi re, electric shock or injury.Ensure that the refrigerator presents no danger to children ■while being stored for disposal. (e.g. remove the magnetic door seals to prevent child entrapment.) Do not touch the compressor unit or its peripheral parts, as ■they become extremely hot during operation and the metal edges may cause injury.Do not touch foods or metal containers in the freezer ■compartment with your wet hands. This may cause frostbite.Do not use an extension cord or adapter plug. ■Do not place bottled and canned drinks in the freezer as they ■may crack when frozen.Make sure that the power cord has not been damaged during ■installation or moving. If the power plug or cord is loose, do not insert the power plug. There is a risk of electric shock or fi re.Disconnect from the mains electricity supply by removing the ■mains plug from the electricity supply socket. Do not remove by pulling the mains lead. This may cause electric shock or fi re. In case of gas leak, ventilate the area by opening a window, ■etc. Do not touch the refrigerator or the power outlet.Do not place objects containing liquid or unsteady objects on ■top of refrigerator. IMPORTANT

Should the fl exible supply cord be damaged, it must be

replaced by service agent approved by SHARP as a

special cord is required.

This appliance can be used by children aged from 8

years and above and persons with reduced physical,

sensory or mental capabilities or lack of experience

and knowledge if they have been given supervision or

instruction concerning use of the appliance in a safe

way and understand the hazards involved. Children

shall not play with the appliance. Cleaning and user

maintenance shall not be made by children without

Information on Disposal for Users (private households)

1. In the European Union Attention: If you want to dispose of this equipment, please do not use the ordinary dust bin!Used electrical and electronic equipment must be treated separately and in accordance with legislation that requires proper treatment, recovery and recycling of used electrical and electronic equipment.Following the implementation by member states private households within the EU states may return their used electrical and electronic equipment to designated collection facilities free of charge*. In some countries* your local retailer may also take back your old product free of charge if you purchase a similar new one.*) Please contact your local authority for further details.If your used electrical or electronic equipment has batteries or accumulators, please dispose of these separately beforehand according to local requirements.By disposing of this product correctly you will help ensure that the waste undergoes the necessary treatment, recovery and recycling and thus prevent potential negative effects on the environment and human health which could otherwise arise due to inappropriate waste handling. 2. In other Countries outside the EU If you wish to discard this product, please contact your local authorities and ask for the correct method of disposal.For Switzerland: Used electrical or electronic equipment can be returned free of charge to the dealer, even if you don't purchase a new product. Further collection facilities are listed on the homep age of www.swico.ch or www.sens.ch.Attention: Your product is marked with this symbol. It means that used electrical and electronic products should not be mixed with general household waste. There is a separate collection system for these products. (B486)W1.indb5(B486)W1.indb5 2013/10/2813:44:392013/10/2813:44:396

WARNING Do not install the refrigerator in a damp or wet location as ■this may cause damage to the insulation and a leakage. Condensation may also build on the outer cabinet and cause rust. 1 Keep adequate ventilation space around the refrigerator.The fi gure shows the minimum • required space for installing the refrigerator. The measurement condition of power consumption is conducted under a different space dimension. By keeping greater space, • the refrigerator may be operated under a less amount of power consumption.If using the refrigerator in the smaller space dimension • than the below fi gure, it may cause the temperature rise in the unit, loud noise and failure. The space between the rear of the refrigerator and the • wall should be 60mm or more and less than 75mm. If the space is wider than 75mm, you may get injured by touching compressor and its peripheral parts which are extremely hot during the operation. 2 Use the two front adjustable feet, to ensure that the refrigerator is positioned fi rmly and fl at on the fl oor.

Before using your refrigerator Clean the inside parts with a cloth soaked in warm water.If soapy water is used, wipe it off thoroughly with water. INSTALLATION

3 When right and left doors are not properly aligned, adjust using the adjustable feet. NOTE Position your refrigerator so that the plug is accessible.• Keep your refrigerator out of direct sunlight.• Do not place next to heat generating appliance.• Do not place directly on the ground. Provide suitable stand.• To insert the power plug when the door is opened, door alarm • sounds but it is not abnormal. This sound stops when closing the door.When the left door is raised.When the right door is raised.Lower the foot at right side.Lower the foot at left side.(Until the adjustable foot on the other side is slightly off-ground.) 4 Remove the 4 screws of the cabinet lower part, and then set the foot cover (supplied inside the refrigerator compartment) with removed 4 screws.Screw (4 screws)Screw Foot cover Free standing type This refrigerator is provided with an indicator of temperature in the refrigerator compartment to allow you to control the average temperature in the coldest zone. Coldest zone The symbol indicates the coldest zone in the refrigerator compartment.(The door pocket positioned at the same height isn't the coldest zone.) Checking the temperature in the coldest zone You can carry out regular checks to ensure the temperature in the coldest zone is correct and, if necessary, adjust the refrigerator temp. control.To maintain a correct temperature inside the appliance, check that the indicator of temperature is always BLUE.If the indicator of temperature turns WHITE, the temperature is too high; in this case, increase the refrigerator temp. control setting and wait for 6 hours before checking the indicator of temperature again. NOTE The internal temperature of the refrigerator depends on various • factors such as the ambient temperature of the room, the amount of food stored and the frequency of door opening.When fresh food has been introduced or the door has been left • open for some time, it is normal for the indicator of temperature to turn WHITE. BLUE WHITECorrect setting Temperature too high, adjust the refrigerator temp. control.Symbol INDICATOR OF TEMPERATURE

90mm or more 60mm or more 60mm or moreAdjustable foot1180 mm1500 mmOverall space required in use (B486)W1.indb6(B486)W1.indb6 2013/10/2813:44:402013/10/2813:44:407

SJ-F790ST SJ-F740ST Door pocket1.

Adjustable glass shelf2.

Bottle pocket (left)4.

Freezer case (small)6.

Hybrid cooling panel11. The panel is cooled from the rear, thus indirectly cooling the refrigerator compartment. In this way, food is refrigerated gently, without exposing it to cold air fl ow. Light12.

Bottle pocket (right)17.

Ice cube maker18. When the ice cubes are made, turn the lever clockwise to empty the ice into the Ice storage box. Do not overfi ll the tray. Ice storage box19.

Magnetic door seal20.

Control panel and electronic display21. The preset temperature is displayed. • (It is not an actual temperature in the compartment.)The display of the refrigerator compartment and the • freezer compartment can be changed by pressing the CHOOSE button.Refrigerator compartment preset temperatureFreezer compartment preset temperature NOTE The LED lamp and the temperature display will turn off when there is no operation for 1 minute. (When either of buttons is pressed, it lights again.) More food can be stored by taking out the

internal accessories with duly cooling.

Partition DESCRIPTION LeverIce storage boxR lamp (lighting) LED display CHOOSE buttonIt suggests “Refrigerator”.F lamp (lighting) LED display CHOOSE buttonIt suggests “Freezer”.How to removeTo remove the partition, pull it to the front while pushing the claw.Partition Push How to setInsert the four projections into the upper parts. Claw

(B486)W1.indb7(B486)W1.indb7 2013/10/2813:44:412013/10/2813:44:418

OPERATION Controlling Temperature The refrigerator controls its temperature automatically. However, if needed, adjust the temperature as follows. Refrigerator compartment

1 Press the CHOOSE button and make the R lamp to light. 2 Press the / button and select the desired temperature. [

: increase, : decrease ]

3 Press the " " button.Adjustable between 0°C and 6°C in steps of 1°C.When the refrigerator provides excessive cooling.When the refrigerator provides excessive cooling.For keeping foods fresher tasting. When the refrigerator does not provide suffi cient cooling. Deodorizing unit A built-in unit which requires no manual operation because it automatically starts operating when the refrigerator is powered on.

Defrosting The defrosting system incorporates a fully automatic energy • effi cient defrosting system.The defrost water collects in the evaporating pan, where it is • evaporated by the heat of the compressor, etc.The evaporating pan does not require cleaning or • maintenance.Lighting Freezer compartment

1 Press the CHOOSE button and make the F lamp to light. 2 Press the / button and select the desired temperature. [

: increase, : decrease ]

3 Press the " " button.Adjustable between -13°C and -21°C in steps of 1°C.When frozen food or ice cream is not stored.For normal freezing.For making ice rapidly or fast freezing. Door Alarm When the refrigerator or freezer door is left open, the dooralarm will sound.The door alarm will sound 1 minute after opening the door and • again after 1 minute (once in each case).If the door is left open for approx. 3 minutes, the alarm will • sound continuously. To cancel operation Press the " " button continuously 3 seconds or more while holding down the CHOOSE button.It is the same method also when restarting the operation.LightingIt shows the door alarm stop. (B486)W1.indb8(B486)W1.indb8 2013/10/2813:44:432013/10/2813:44:439

STORING FOOD IN OUT Refrigeration reduces the rate of food spoilage.

To maximize the shelf life of perishable food products, ensure

that the food is of the freshest possible quality.

The following is a general guide to help promote longer food

To minimize moisture loss, fruit and vegetables should be

loosely enclosed in a plastic material e.g. wrap, bags (do not

seal) and place in the vegetable crisper or the fruit case.

If you store a lot of vegetables, dew may form. This has no

effect on the operation or the performance. Use a dry cloth to

Dairy Products & Eggs

Most dairy products have a use by date on the outer packaging •

which informs the recommended temperature and shelf life of

Eggs should be stored in the Egg holder.•

Meats / Fish / Poultry

Place on a plate or dish and cover with paper or plastic wrap.•

For larger cuts of meat, fi sh, or poultry, place to the rear of the •

Ensure all cooked food is wrapped securely or placed in an •

NOTE Evenly place the • food on the shelves to allow the cooling air to circulate effi ciently.Hot foods should be cooled before • storing. Storing hot foods increases the temperature in the unit and increases the risk of food spoilage.Do not block the outlet and inlet of the • cool air circulating circuit with foods or containers; otherwise the foods will not be evenly cooled throughout the refrigerator.Keep the door securely closed.• Do not place food directly in front of cold air

outlet. This may lead to the food freezing.

Quality of foods should be fresh.•

Freeze small quantities of food at a time to freeze them •

Food should be properly sealed, sealed tightly or covered.•

Evenly place the food in the freezer.•

Label bags or containers to keep an inventory of freezing food.•

Vegetables are improper ●

in this case. They may be

Meat, Fish, Poultry etc.

(B486)W1.indb9(B486)W1.indb9 2013/10/2813:44:462013/10/2813:44:4610

WARNING Unplug the refrigerator fi rst to prevent electric shock. ■ Do not splash water directly on the outer cabinet or the ■interior. This may lead to rusting and deterioration of the electrical insulation.

IMPORTANT To prevent cracking on inside surfaces and plastic

components, follow these tips. Wipe any food oils adhered to plastic components.• Some household chemicals may cause damage, so use only • diluted washing-up liquid (soapy water).If undiluted detergent is used or soapy water is not wiped off • thoroughly, cracking of plastic parts can result. 1 Remove the accessories e.g. shelves from the cabinet and door. Wash them in warm soapy dishwashing water; rinse in clean water and dry. 2 Clean the inside with a cloth soaked in warm soapy dishwashing water. Then, use cold water to wipe off soapy water. 3 Wipe the exterior with a soft cloth each time it is soiled. 4 Clean the Magnetic door seal with a toothbrush and warm soapy dishwashing water. 5 Wipe the control panel with the dry cloth. NOTE To prevent damage to your refrigerator, do not use heavy duty • cleansers or solvents (lacquer, paint, polishing powder, benzine, boiled water, etc.).If the power supply is disconnected, please wait for at least • 5 minutes before re-connecting power. The glass shelves weigh approximately 3 kg each. Hold fi rmly • when removing from the cabinet or carrying.Do not drop objects inside the refrigerator or strike the inner wall. • This may cause the inner surface to crack. Replacing method of the lamp bulb

Unplug the refrigerator fi rst to prevent electric shock.1. Remove the light cover.2. Replace the lamp bulb with the same type.3.

CAUTION Do not touch the aluminum board around the lamp. The edge face of the metal may cause injury. When transporting Wipe up water in the evaporating pan. Before wiping up the • water, wait more than 1 hour after pulling out the plug because refrigeration cycle equipment is extremely hot. (The evaporating pan is located on the rear of the product.)The casters allow the refrigerator to • move back and forth.Carry the refrigerator by holding the handles located on the • rear and bottom. Switching off your refrigerator If you switch your refrigerator off when you are going away for an extended period, remove all food, clean the interior thoroughly. Remove the power cord plug from the power socket and leave all doors open. Lamp cap E14, MAX 15W, 4 pieces

CARE AND CLEANING CastersEvaporating panLight coverLamp bulbAluminum board (B486)W1.indb10(B486)W1.indb10 2013/10/2813:44:482013/10/2813:44:4811

Before you call for service, check the following points.

The outside of the cabinet is hot

It is normal. The hot pipe is in the cabinet in order to prevent dew generation.

When there is refrigerator noise. It is normal for the refrigerator to produce the following sounds.

Loud noise produced by the compressor when operation starts •

--- Sound becomes quieter after a while.

Loud noise produced once a day by the compressor •

--- Operating sound produced immediately after automatic defrost operation.

Sound of fl owing fl uid (gurgling sound, fi zzing sound) •

--- Sound of refrigerant fl owing in pipes (sound may become louder from time to time).

Cracking or crunching sound, squeaking sound •

--- Sound produced by expansion and contraction of inner walls and internal parts during

Frosting or dew generation occurs

inside or outside the refrigerator.

This may occur in one of the following cases. Use a wet cloth for wiping frost and a dry

cloth for wiping dew.

When the ambient humidity is high.•

When the door is frequently opened and closed.•

When foods containing plenty of moisture is stored. (Wrapping is required.)•

Foods in the refrigerator

Is the refrigerator operated for a long time with refrigerator temp. control set at 0°C?•

Is the refrigerator operated for a long time with freezer temp. control set at -21°C?•

Low ambient temperatures may cause placed foods to freeze even if the refrigerator •

temp. control is set to 6°C.

It smells in the compartment. Wrapping is required for the foods with strong smell.•

Deodorizing unit cannot remove all of the smell.•

The control panel does not

This may occur in one of the following cases.

The panel or your fi nger is soiled with dripping, oil and etc.•

When you touch the panel with gloved hand, adhesive bandage on your fi nger, nail or •

Sticker or tape is affi xed on the keys.•

Touch position is slightly off from the keys.•

Operate time is not enough for the keys to work.•

IF YOU STILL REQUIRE SERVICE Refer to your nearest service agent approved by SHARP.

BEFORE YOU CALL FOR SERVICE Tips for saving energy

Keep the ventilation space as much as possible around the ■

Keep your refrigerator out of direct sunlight, and do not ■

place next to heat generating appliance.

Open your refrigerator door as briefl y as possible. ■

Hot foods should be cooled before storing. ■

Place the food evenly on the shelves to allow the cooling air ■

to circulate effi ciently.

The amount of power consumption of this model is

measured according to the international standard

of the refrigerator performance under the following

All accessories in the freezer •

compartment are taken out as

indicated on the fi gure.

Space dimensions.• 300mm 90mm 300mm 60mm

In Europe represented by

SHARP ELECTRONICS EUROPE LTD.

4 Furzeground Way, Stockley Park,
