Munet Smart PMN300W - Docking station PEAQ - Free user manual and instructions

Product Type	Docking station / Connected speaker
Brand	PEAQ
Model	Munet Smart PMN300W
Connectivity	WiFi (IEEE 802.11b/g), Bluetooth 2.1+EDR
Output power	2 x 8 Watts RMS (THD 10%)
Signal-to-noise ratio	≥ 70 dB
Frequency response	90 Hz to 20 kHz
USB port	5 V, 500 mA (for software update)
AUX input	3.5 mm AUX IN jack
Power supply	DC 9V, 2.5 A power adapter
Main features	Multiroom streaming up to 14 speakers, wired, Bluetooth and WiFi connection modes, Munet App (iOS/Android)
Maintenance and cleaning	Disconnect before cleaning, use a dry cloth, do not immerse in water
Safety	Do not open the casing, do not expose to water, use only the provided adapter
Included accessories	Power adapter, 3.5 mm audio cable, case, quick start guide
Repairability	Repairs only by qualified personnel
General information	Compatible with iOS 5.0+ and Android 10.1+, compatible with all MuNet PEAQ products

Frequently Asked Questions - Munet Smart PMN300W PEAQ

How to connect the speaker via Bluetooth?

Plug the power adapter into the speaker and a power outlet. Enable Bluetooth on your audio source (phone, tablet). Search for devices and select 'My Munet xxxxxx' (where xxxxxx is the WiFi MAC address). Enter the password '0000' if necessary. Only one Bluetooth connection is possible at a time.

How to connect the speaker via WiFi?

Place the speaker within range of your WiFi router. Plug in the adapter. On your audio source, connect to the temporary network 'My Munet xxxxxx' (no password). Open the configuration page (automatic on iOS, or enter http://192.168.1.1 on Android). Follow the instructions to connect the speaker to your WiFi network. Then download the Munet App to control the speaker.

What to do if the LED indicator blinks red?

A blinking red light indicates a connection problem or error. Check that the speaker is properly plugged in and that your WiFi network is working. If the light stays solid red, the speaker is in power off mode. See the 'LED Indicator' section of the manual for more details.

Can I connect multiple Munet speakers together?

Yes, up to 14 Munet speakers can be connected wirelessly via WiFi and controlled by the Munet App. Each speaker must be added to the WiFi network by following the WiFi connection setup procedure.

How to reset the speaker?

The manual does not mention a specific reset procedure. In case of problem, unplug the power adapter for a few seconds and plug it back in. If the problem persists, contact customer service.

What is the Bluetooth range?

The Bluetooth range is about 10 meters in open space. Walls and other structures may reduce this range.

Can I use the speaker without the Munet App?

Yes, you can use the speaker in wired (AUX) or Bluetooth mode without installing the app. The app is required for multiroom features and WiFi setup.

What to do if the speaker does not turn on?

Check that the power adapter is properly connected to the speaker and to a working power outlet. Try another outlet. If the light does not come on, the adapter or speaker may be defective. Contact the retailer.

How to update the speaker's software?

The update is done via the Munet App. During the update, the LED blinks alternately blue, purple, red, purple. Do not cut the internet connection or power for at least 10 minutes.

How to clean the speaker?

Unplug the adapter before cleaning. Use a dry, soft cloth. Do not immerse any parts in water and do not use chemical products. Avoid touching the connectors.

USER MANUAL Munet Smart PMN300W PEAQ

PEAQ MUNET SMART PMN300-BW

DE Bedienungsanleitung
EL Odyiec xponoc
EN Instruction manual
ES Manual de instrucciones
FR Mode d'emploi
HU Kezelési leirás

IT Manuale dell'utente
NL Gebruiksaanwijzing
PL Instrukcia obstrugi
PT Instruções de'utilisation
SV Bruksanvising
TR Kullanim kilavuzu

Deutsch 3-12

EAnvika 13-22

English 23 - 32

Espanol 34-42

Francais 43 - 52

Magyar 53 - 62

Italiano 63-72

Nederland73-82

Polski 83-92

Portugues 93 - 102

Svenska 103-112

Türkce 113-122

WiFi Mac Address Label

This MUNET SMART speaker features WiFi and Bluetooth connectivity. Under ideal setup conditions, up to 14 MUNET speakers can be managed wirelessly via a single iOS/Android App:

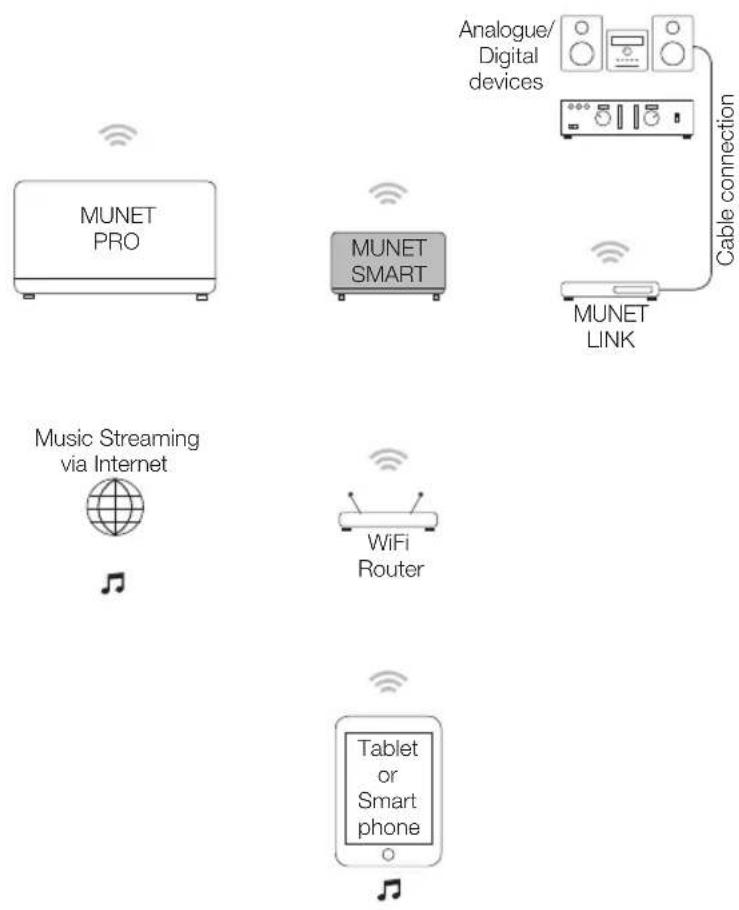

Example setup

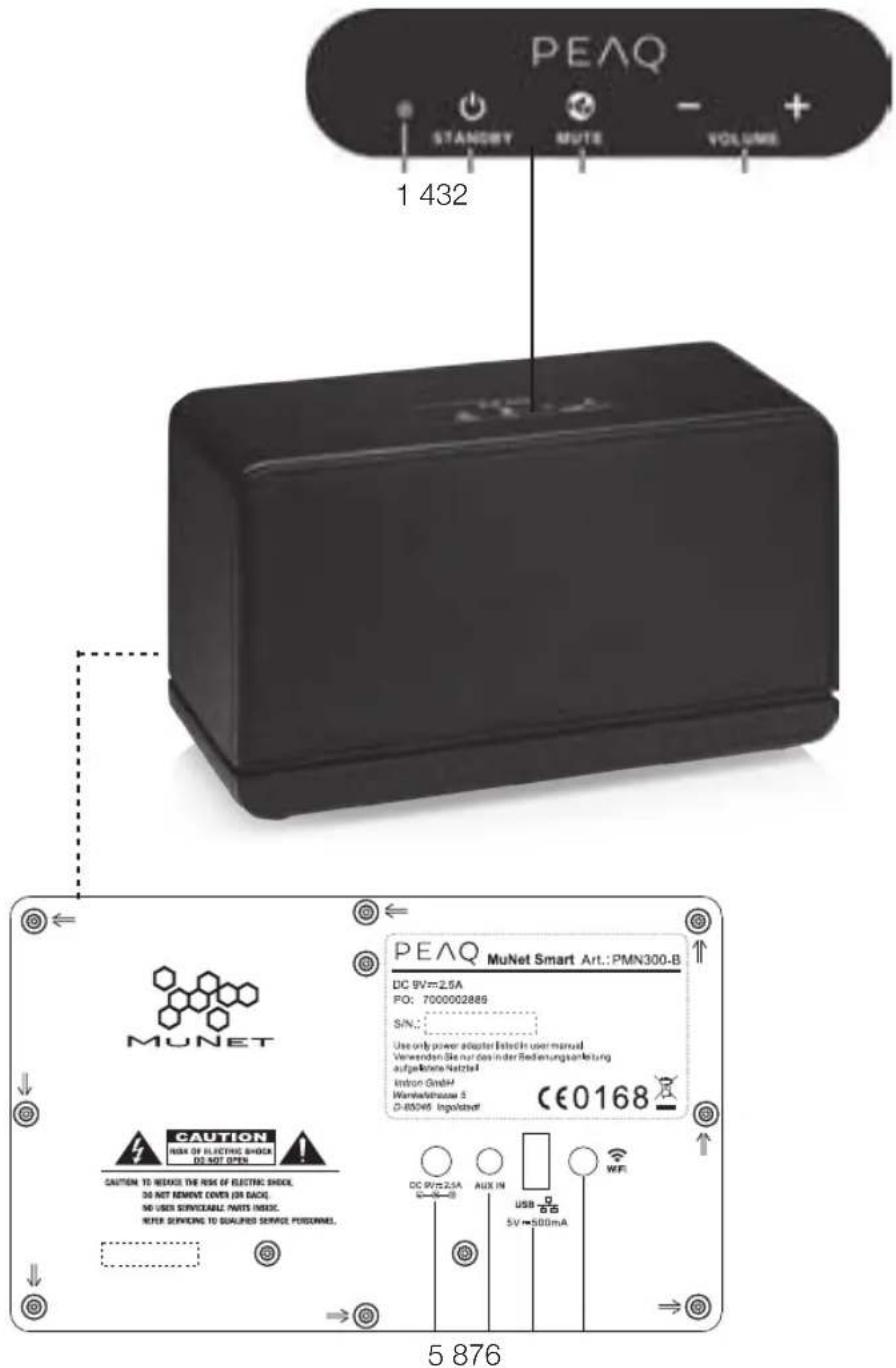

Components

1. Indicator light
2. Standby Key
3. Mute 6key
4. Volume +/- key
5. Power inlet DC9V=2.5A

1. AUX IN socket
2. USB socket 5 V=500 mA (for software update)
3. WiFi button

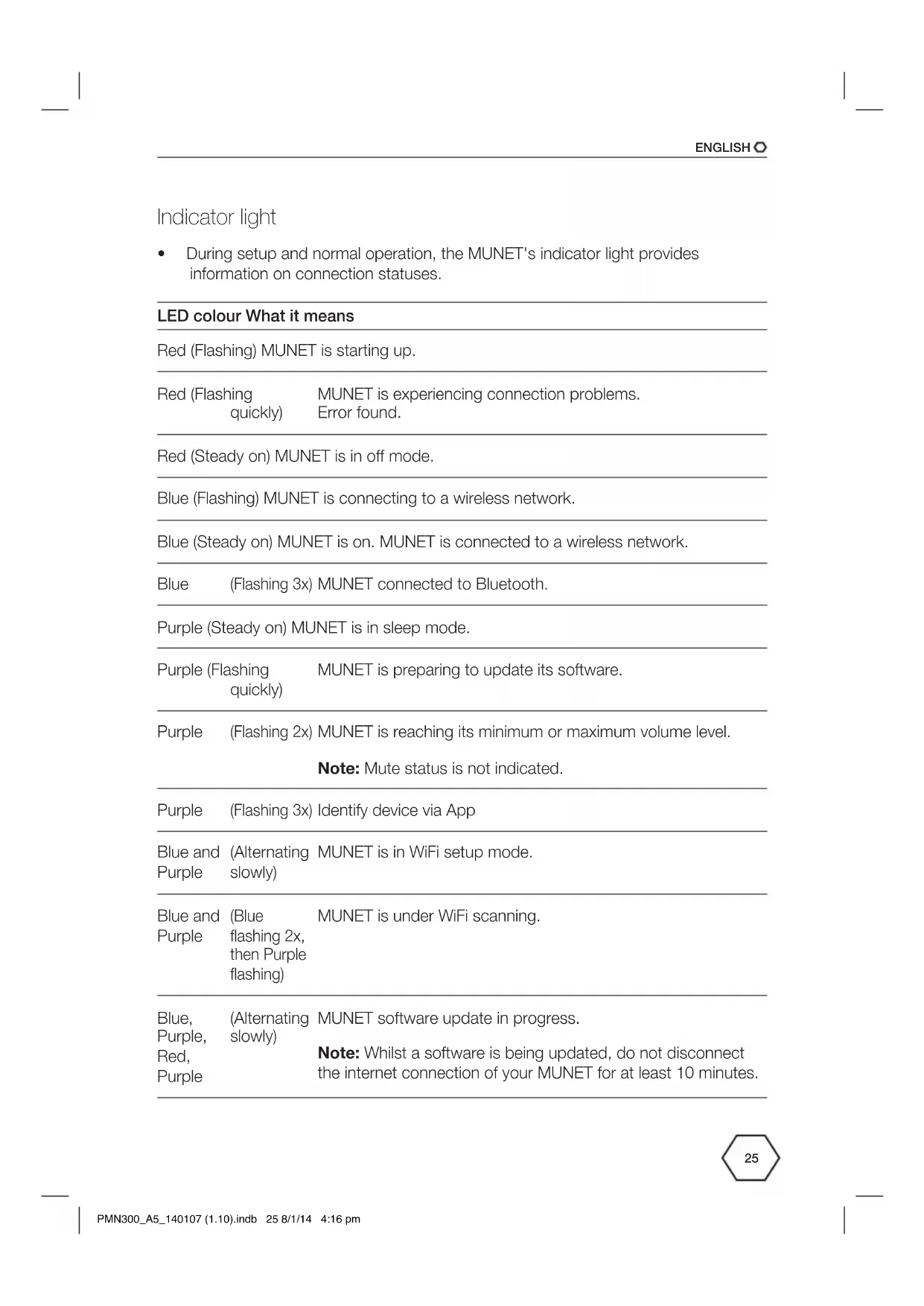

Indicator light

• During setup and normal operation, the MUNET's indicator light provides information on connection statuses.

LED colour What it means

Red (Flashing) MUNET is starting up.

Red (Flashing MUNET is experiencing connection problems. quickly) Error found.

Red (Steady on) MUNET is in off mode.

Blue (Flashing) MUNET is connecting to a wireless network.

Blue (Steady on) MUNET is on. MUNET is connected to a wireless network.

Blue (Flashing 3x) MUNET connected to Bluetooth.

Purple (Steady on) MUNET is in sleep mode.

Purple (Flashing MUNET is preparing to update its software. quickly)

Purple (Flashing 2x) MUNET is reaching its minimum or maximum volume level.

Note: Mute status is not indicated.

Purple (Flashing 3x) Identify device via App

Blue and (Alternating MUNET is in WiFi setup mode. Purple slowly)

Blue and (Blue MUNET is under WiFi scanning. Purple flashing 2x, then Purple flashing)

Blue, (Alternating MUNET software update in progress. Purple, slowly)

Red, Note: Whilst a software is being updated, do not disconnect Purple the internet connection of your MUNET for at least 10 minutes.

Connection modes

• The MUNET can easily be connected to an external audio source by 3 different ways. With wired or Bluetooth connection, MUNET can act as audio source. Under ideal setup conditions, among them a suitable WiFi connection, up to 14 MUNET speakers can stream your music, everywhere throughout your house.

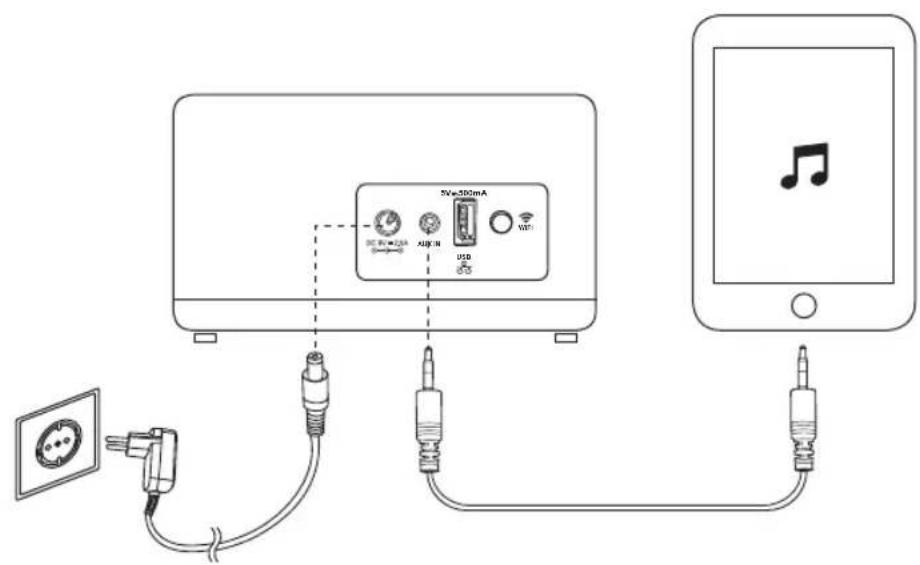

Wired connection

1. Connect the supplied adaptor to the power inlet. Connect the adaptor to a suitable wall outlet.
2. Connect the supplied audio cable to the AUX IN socket and to an external audio source (e.g. mobile phone).
3. Start playing music from the audio source.

Note:

No installation of the Munet App required.

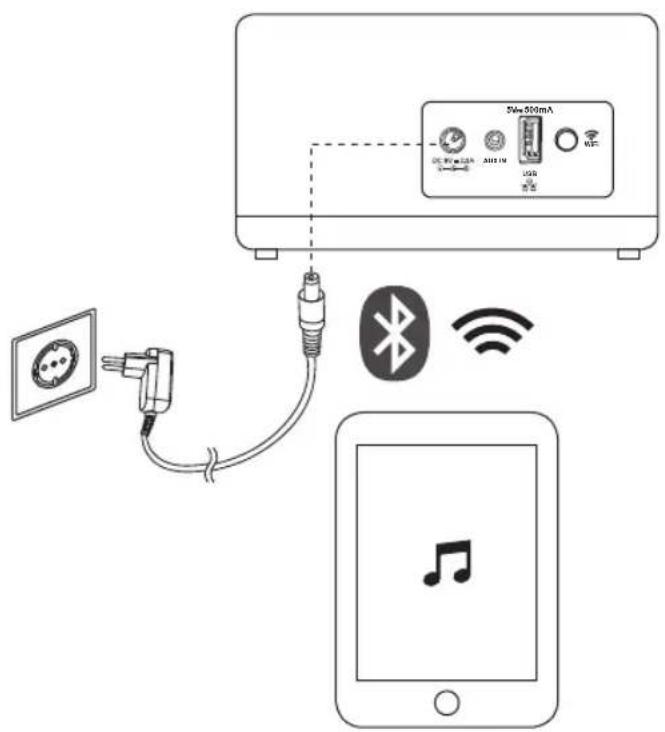

Bluetooth connection

1. Connect the supplied adaptor to the power inlet. Connect the adaptor to a suitable wall outlet.
2. Activate Bluetooth on audio source (e.g. mobile phone). Browse for devices and select "My Munet xxxxxx *".
3. Establish connection. If necessary, enter password 0000.
4. If necessary, select "My Munet xxxxxx *" as audio output device.

Notes:

No installation of the Munet App required.
Only one Bluetooth connection is possible at a time.
- In order to connect another audio source with Bluetooth, the previous connected device must be disconnected.

• For “xxxxxx” use the WiFi Mac address of the individual speaker.

WiFi connection

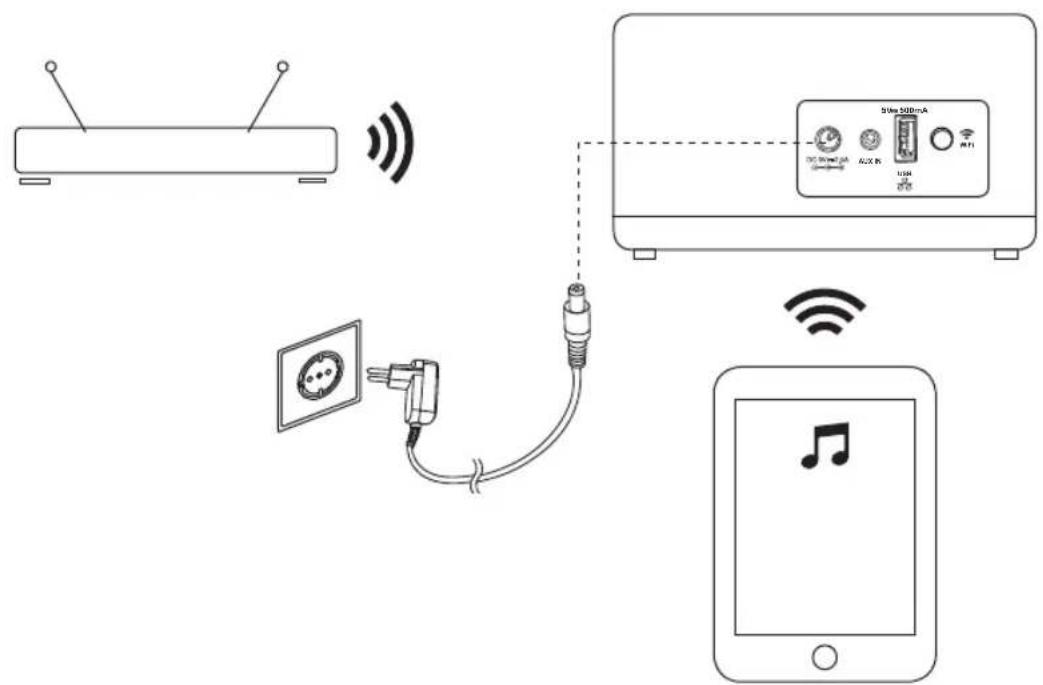

Preparation

1. Place the MUNET speaker in range of your WiFi router.
2. Connect the supplied adaptor to the power inlet. Connect the adaptor to a suitable wall outlet.
3. Activate WiFi on audio source (e.g. mobile phone).
4. Open the list of available WiFi networks on your audio source.

WiFi connection

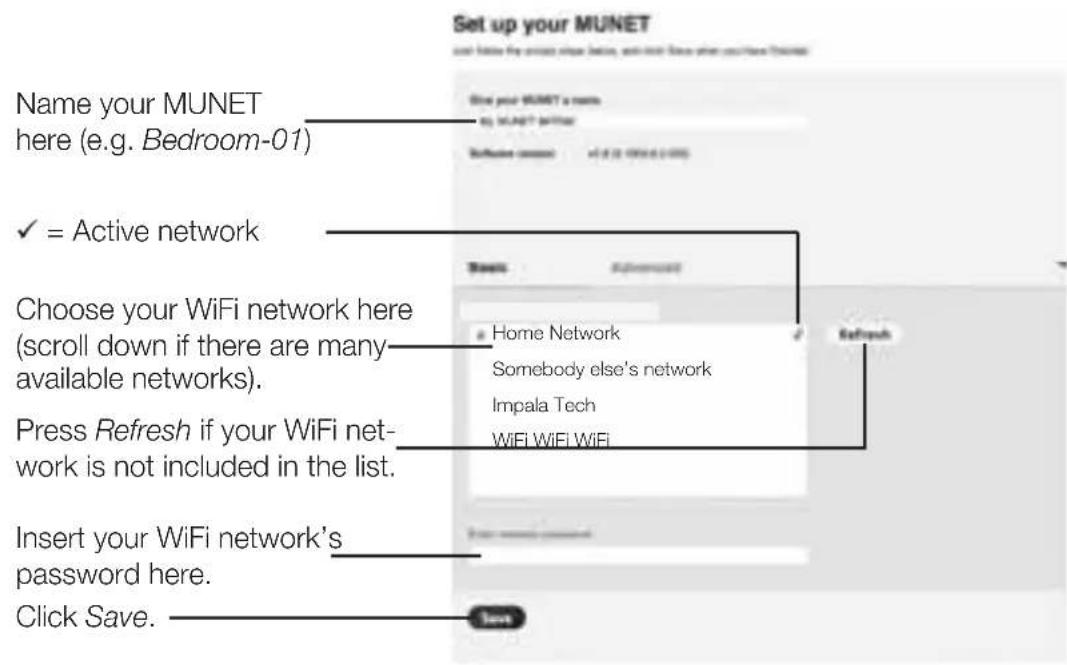

Establishing the WiFi connection

1. Open the WiFi connection on your audio source (e.g. mobile or tablet).
2. Connect to your designated MUNET device.
3. Join the temporary WiFi Network "My Munet xxxxxx *". No password is required.

4a. For iOS devices: The network setup page will open up automatically:
4b. For Android devices: Enter the following address into your web browser: http://192.168.1.1. The network setup page will open up:

1. Your MUNET is now paired with the WiFi network.
2. Download the MUNET App from the Apple App Store (iOS) or from Google Play (Android) to control the speaker.

Adding another MUNET device to the WiFi network

Repeat above steps 1 to 5 under Establishing the WiFi connection.

• For “xxxxxx” use the WiFi Mac address of the individual speaker.

Technical data

Adaptor

Input: 100 - 240 V ,50/60 Hz,0.75 A

Output: 9V,2.5A

Speaker output power: 2 × 8 Watt (RMS@THD10%)

Signal-to-noise ratio: ≥70 dB

Frequency response: 90 Hz - 20kHz

USB socket: 5 V, 500 mA

AUDIO-IN socket: 3.5mm

Streaming capabilities: up to 14 devices (@ 256 kbit/s AAC tracks)

Bluetooth version: Bluetooth version 2.1 + EDR

Supported Bluetooth profiles: AVRCP 1.0, A2DP 1.0

Operating range: Up to approx. 10 metres (measured in open space).

Wall and structures may affect range of appliance)

Bluetooth and wireless system requirements

IEEE 802.11b/g
Apple iOS 5.0 or above
Android 10.1 or above

All PEAQ MuNet products are compatible with each other

Bluetooth is a registered trademark of Bluetooth SIG, Inc.

Important safety instructions

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

1. Follow all safety instructions in order to prevent damage being caused by incorrect use! Comply with all safety warning on the appliance.
2. Please keep the user manual for further use. If you pass this appliance on to third parties, you must also deliver this user manual with it.
3. Use the appliance for the intended use only. The appliance is not suitable for commercial use. This appliance has been designed for exclusively for household use. Do not use the appliance outdoors or in a bathroom.
4. No liability for any damage that occurs can be accepted in the event of improper use or incorrect handling.
5. Before connecting the appliance to the mains power supply, check that the power supply voltage and current rating corresponds with the power supply details shown on the appliance rating label.
6. Never use an appliance that is damaged! Disconnect the appliance from the mains and contact your supplier if it is damaged.
7. Danger of electric shock! Never try to repair the appliance yourself. In the event of any malfunction, repairs are to be conducted by qualified personnel only.
8. Warning! Never immerse electrical parts of the appliance in water or any other fluids when cleaning or during operation. Never hold the appliance under flowing water.
9. The appliance should not be used near water - for example, near a bathtub, wash bowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool.
10. Do not operate the appliance with wet hands or while standing on a wet floor. Never touch the mains plug with wet or moist hands.
11. Do not open the appliance casing under any circumstances. Do not insert any foreign objects into the inside of the casing.
12. Never use accessories which are not recommended by the manufacturer. They could pose a safety risk to the user and might damage the appliance. You must therefore use original accessories only.
13. The appliance is only suitable for use at moderate degrees of latitude. Do not use in the tropics or in particularly humid climates.
14. Keep the appliance away from any hot surfaces and open flames. Always operate the appliance on a level, stable, clean and dry surface. Protect the appliance against heat and cold, dust, direct sunlight, moisture, dripping and splashing water.
15. Do not place heavy objects on top of the appliance. Do not place objects with open flames, e.g. candles, on top or beside the appliance. Do not place objects filled with water, e.g. vases on or near the appliance.

16. Do not pull the power adaptor out of the electrical outlet by the connection cord and do not wrap the connection cord around the appliance.

17. Connect the power adaptor to an easily reachable electrical outlet so that in case of an emergency the appliance can be unplugged immediately. Pull the power adaptor out of the electrical outlet to completely switch off the appliance. Use the power adaptor as the disconnection device.

18. Disconnect the power adaptor from the electrical outlet when not in use and before cleaning.
19. Only use this appliance with the supplied power adaptor.
20. Lay the cables in such a way that nobody can inadvertently pull them or trip over them.
21. The appliance is powered when connected to the power adaptor.
22. Attention! In the event of a malfunction as a result of electrostatic discharge and momentary electrical surges, unplug the appliance and plug it in again.
23. Make sure that no electrical wires, water, gas or other lines are located around the installation location.

Disposal

The crossed-out wheeled bin logo requires the separate collection of waste electric and electronic equipment (WEEE). Electric and electronic equipment may contain dangerous and hazardous substances.

Do not dispose of this appliance as unsorted municipal waste. Return it to a designated collection point for the recycling of WEEE. By doing so, you will help to conserve resources and protect the environment. Contact your retailer or local authorities for more information.

Primer uso

Entree:100a240V\~,50/60Hz,0,75A

Sortie:9V,2.5A

Prise AUDIO-IN:3,5mm

Product: Wireless Audio Streaming Speaker

is in conformity with the following directives: /
