Product type	Built-in oven
Model	7101 542
Brand	Foster
Dimensions (H x W x D)	Approximately 595 x 595 x 550 mm (standard size)
Weight	Approximately 30 kg
Power supply	See rating plate (e.g., 230 V, 50 Hz)
Maximum power	Not specified, estimated ~2500 W
Cooking type	Conventional, fan-assisted, grill, rotisserie (depending on model)
Heating elements	Top heating element (grill), bottom heating element + circular with fan
Thermostat	Adjustable from 50 °C to 200 °C (grill) or max
Self-cleaning panels	Yes, microporous catalytic enamel for self-cleaning at >200 °C
Timer	Analog and electronic with programming of cooking start and end, countdown timer
Interior lighting	25 W lamp, E14 base, high temperature resistant (300 °C)
Door	Removable for cleaning, tempered glass
Cooking levels	Several positions (see indicative table)
Cooling fan	Yes, turns on at about 60 °C
Safety	Accessible hot zones, caution children; automatic shut-off
Installation	Built-in under hob or in column, fixing with screws and bushings
Electrical connection	Requires compliant grounding, cable H05RR-F 3x1.5 mm² (min.)

Frequently Asked Questions - 7101 542 Foster

How to clean the oven walls?

Use water and mild soap, rinse thoroughly. Do not use abrasive, acidic, or chlorine-based products. For self-cleaning walls, operate at 200 °C for 60 min empty to remove grease.

How to change the oven lamp?

First unplug the appliance. Place a cloth in the oven, unscrew the glass protector, then the old lamp (25 W, E14, high temperature). Replace it, screw the protector back on, and plug in again.

How to remove the oven door for cleaning?

Open the door fully, lift the two levers, close the door to the first notch, then lift it upwards and outwards. To reassemble, insert the hinges into the slots and lower the levers.

What cooking modes are available?

This oven offers conventional cooking (top and bottom heat), fan-assisted (forced hot air), grill, and rotisserie (depending on equipment). It also has a defrost function with cold air.

How to program the electronic timer?

Press the button briefly several times to access settings: 1x for start time, 2x for end time, 3x for timer, 4x for clock. Turn the knob to adjust. Confirm with a press.

What to do if the oven does not heat up?

Check that the timer is not in programming mode (AUTO icons). Make sure the control knob is in a valid position. Check the power supply (circuit breaker). If the problem persists, consult a professional.

How to use the defrost function?

Select a fan-assisted cooking mode and set the thermostat to 0. The fan will circulate cold air to quickly defrost food. Preheating is not necessary.

What accessories are included?

The oven is usually supplied with a grid, a baking tray, and possibly a rotisserie spit. Check the packaging. The cooking levels are indicated in the manual.

How to install the oven in a cabinet?

Respect the built-in dimensions (see manual). The cabinet must be made of heat-resistant material. Center the oven, insert the bushings into the front holes and fix with the provided screws without forcing.

What to do if the indicator light does not turn off?

The indicator shows that the oven is heating. It turns off when the set temperature is reached. If it never turns off, the thermostat may be defective. Contact after-sales service.

USER MANUAL 7101 542 Foster

We thank you and congratulate you on your choice. This new carefully designed product, manufactured with the highest quality materials, has been carefully tested to satisfy all your cooking demands. We would therefore request you to read and follow these easy instructions which will allow you to obtain excellent results right from the start.

THE MANUFACTURER

FR

CHER CLIENT,

Technical line drawing of a front view of an oven or rack unit with a circular vent and ventilation grille (no text or symbols)

АЖНО!

The oven's data plate is accessible even with the oven fully installed. The plate is visible simply by opening the door. Always quote the details from it to identify the appliance when ordering spare parts.

IMPORTANTE!

First use	pag.6
Self-cleaning panel	8
Respect for the environment	10
Control panel	12-14
Instructions for use:
- conventional cooking	14
- fan cooking	16
- grill cooking	18
Thermostat	20
Cooking timer 20
Electronic timer	24
Light replacement	28
Removing the oven door	30

INDEX

Electrical connections 34

POUR L'INSTALLATEUR

MANUFACTURER SHALL NOT IN ANY WAY BE HELD RESPONSIBLE FOR WHATEVER INJURIES OR DAMAGES ARE CAUSED BY INCORRECT INSTALLATION OR BY

UNSUITABLE, WRONG OR

ABSURD USE.

THIS APPLIANCE IS NOT

INTENDED FOR USE BY

PERSONS (INCLUDING CHILDREN) WITH REDUCED PHYSICAL, SENSORY OR MENTAL CAPABILITIES, OR LACK OF EXPERIENCE AND KNOWLEDGE, UNLESS THEY HAVE BEEN GIVEN SUPERVISION OR INSTRUCTION CONCERNING USE OF THE APPLIANCE BY A PERSON RESPONSIBLE FOR THEIR SAFETY. CHILDREN SHOULD BE SUPERVISED TO ENSURE THAT THEY

DO NOT PLAY WITH THE

APPLIANCE...

CHILDREN SHOULD NOT

CLEAN OR PERFORM MAINTENANCE

WITHOUT SUPERVISION. DO NOT PLACE TIN FOIL, PANS OR SIMILAR IN CONTACT WITH THE INNER BASE OF THE OVEN TO

COOK. THE HEATING ACTION OF THE

LOWER RESISTANCE CAUSES THE LOWER PART OF THE OVEN TO OVERHEAT,

LEADING TO DAMAGE AND EVEN SERIOUS CONSEQUENCES (FIRE RISK) ALSO TO THE UNIT IN WHICH THE OVEN IS INSTALLED.

CE PRODUIT ESTCONÇU

EXCLUSIVEMENT POURUSAGE

UE.LECONSTRUCTEUR

DÉCLINETOUTERESPONSABILITÉ

POUR DOMMAGES ET BLESSURESCAUSÉES

PARHINTINSTALLATIONINCORRECTEOUPAR

UNUSAGEIMPROPRE ERRONÉOUABSURDE.

L'APPAREIL NE DOIT PASEIRE ATTUICT PAR DESPERSONS

UTILISE FAR DESPERSONNES (ETANTENCHINOSDIPOOANT

(ENFANTSINCLUS)DISPOSANTDE

CAPACTESPHYSIQUES,

SENSORIELLES OU MENTALES RÉDUITES, OU PAR DES PERSONNES N'AYANTPAS L'EXPÉRIENCE OU LESCONNAISSANCES REQUISES,SICEN'ESTSOUSLASURVEILLANCE

D'UNE PERSONNERESPONSABLE DE LEUR SÉCURITEOUAPRÉSAVOIRREÇUDECELLE-CI

LESINSTRUCTIONSRELATIVESÀL'UTILISATION DE L'APPAREIL. LES ENFANTS DOIVENT ÊTRE SURVEILLÉS, AFIN DE S'ASSURER QU'ILSNE JOUENTPASAVECL'APPAREIL.

LENETTOYAGEETL'ENTRETIEN

NE DOIVENTPASETRE

EFFECTUESPAR DES

ENFANTSSANSLASUPERVISION D'UNADULTE. INTERDICTION DEPOSERDUPAPIER ALUMINIUM, DESCASSEROLES OHI

AUTRES, AUCONTACT DE LA BASE INTERNE DU FOUR POUR CUISINER. LERÉCHAUFFEMENT INFÉRIEUR

PROVOQUE LASURCHAUITE DELA PARTIEINTÉRIEURE DUFOUR;CELA PEUTENTRAÎNER SADÉTÉRIORATION VOIREDESCONSEQUENCES GRAVES

(RISQUE D'INCENDIE) POUR LE MEUBLE DESUPPORT DUFOUR

DE

INDEX

DIESES PRODUKT IST ALS HAUSHALTSGERÄT

OF MENTALE VERMOGENS, OF METGEBREK

AANER VARINGENKENNIS, TENZIJZIJLEIDING OF

INSTRUCTIES HEBBENONTVANGEN

BETREFFENDEHETGEBRUIK VANHETAPPARAAT

DOOR MIDDEL VAN EEN PERSOON DIE VOOR

HUN VEILIGHEID VERANTWOORDELIJKIS.

KINDERENMOETENWORDENGECONTROLEERD

OM TE GARANDEREN DAT ZIJ NIET MET HET

APPARAATSPELEN.

RX A DEXREINIGINGXENATXX

ONDERHOUDMAGNIETWORDENX

UITGEVOERDNOORXKINDERENX

ZONDERXTOEZICHT.NETISWERBODENX

ALUMINTUMFOLIE, PANNENX

OFDERGELIJKEINAANRAKING XTEATENX

KOMENMETDEINTERNE BASISX VANDEVENOMTEKOVEN DEVERWARMEN

VANDEOVENOMTEKOKEN.DEVERWARMEN DEWERKINGYVARE Y

DEWERRKINGAVADE X ONDERSTEWERSTAND

VEROORZAAKTDEOVERVERHITTINGXVANX

HETONDERSTEXGEDEELTEVANDIDVEN,X

WAARDOORXDEZEXBESCHADIGIIXNX

WORDENXEN XDITXKANXZELERXSTIGEX

GEVOLGENHEBBEN(BRANDGEVAAR),OOKX

VOORXHEXMEUBELXWAAROPXDEX

OVENGEPLAATSTISOX

ESTEXPRODUTOXX

FOICONCEBIDOXXX

ARAUMAUTILIZAÇÃOX DEX TIPOX

DOMÉSTICA.X OX FABRICANTEX

DECLINATODASX

ASRESPONSABILIDADESNOCASODEEVENT

UAISX DANOSX ACOISASX OUX PESSOASX

DERIVADOSDEX

UMAINSTALAÇÃOINCORRECTA OUDEUSOX

IMPRÓPRIO, ERRÓNEOQUABSURDO.

OAPARELHONAODEVESERUSADOX

PORX PESSOASX (INCLUSIVEX

Clean the oven thoroughly with soapy water and rinse well. To remove the lateral frames from smooth-walled ovens, proceed as shown in the figure.

Operate the oven for about 30 minutes at maximum temperature to burn off all traces of grease which might otherwise create unpleasant smells when cooking.

Do not use rough abrasives or sharp metal scrapers to clean the glass door of the oven because they could scratch the surface and cause the glass to shatter.

FR

Technical line drawing of a mechanical assembly with no visible text or symbols

Важно:

Do not use steam cleaners to clean the appliance.

As a safety precaution, before cleaning the oven, always disconnect the plug from the power socket or the power cable from the oven. Do not use acid or alkaline substances to clean the oven (lemon juice, vinegar, salt, tomatoes etc.).

Do not use chlorine based products, acids or abrasive products to clean the painted surfaces of the oven.

Important

Our smooth walled ovens can be fitted with self cleaning panels to cover the inside walls.

These special panels are simply hooked on to the walls before the side frames are fitted. They are coated in a special, micro-porous catalytic enamel which oxidises and gradually vaporises splashes of grease and oil at cooking temperatures above 200^ C. If the oven is not clean after cooking fatty foods, operate the empty oven for 60 minutes (max.) at maximum temperature.

Never wash or clean self cleaning panels with abrasive, acid, or alkaline products.

FR

PANNEAUX AUTONETTOYANTS CATALYTIQUES

Line drawing of an open oven with a circular vent and lid, showing internal structure (no text or symbols)

DE

The documentation provided I with this oven has been printed on chlorine free bleached paper or recycled paper to show respect for the environment.

The packaging has also been designed to avoid environmental impact. Packaging material is ecological and can be reused or recycled.

By recycling the packaging, you will hel save raw materials as well as reducing the bulk of domestic and industrial waste.

RESPECT DE L'ENVIRONNEMENT

Abstract recycling symbol composed of five curved arrows forming a circular pattern (no text or labels)

DE

UMWELTVERTRÄGLI CHKEIT

Top heating element (small, low power grill). Thermostat setting from 50°C to 200°C.

Bottom heating element + Circular heating element with fan. Thermostat setting from 50°C to MAX. ATTENTION: Accessible parts may become very hot during use. Children should be kept at a distance.

INDICATIVE Table for positioning foods based on functions, temperatures and cooking times

Conventional cooking uses top and bottom heat to cook a single dish. Place the food in the oven only once cooking temperature has been reached, i.e. when the heating indicator goes out. If you want to increase top or bottom temperature towards the end of the cooking cycle, set the temperature control to the right position. It is advisable to open the oven door as little as possible during cooking.

Diagram of airflow or ventilation through a circular chamber with directional arrows (no text or labels)

DE

For this type of cooking a fan positioned at the back allows the circulation of hot air inside the oven, creating uniform heat. In this way cooking is more rapid than conventional cooking. It is a suitable method for cooking dishes on more than one shelf, especially when the food is of different types (fish, meat etc.)

FR

CUISSON VENTILEE

By selecting one of the fan 1 cooking functions and setting the thermostat to zero, the fan allows cold air to circulate inside the oven. In this way frozen food can be rapidly defrosted.

DECONGELATION

It is not essential to preheat the oven, but you are advised to do so when cooking pastries.

Technical line drawing of a dual-chamber electronic device with no visible text or symbols

DE

UMLUFT BACKEN

Use the grill to grill or brown foods.

Some ovens may be equipped with an electric motor, spit and skewers for turning on the spit. Place the shelf with the food to be cooked in the 1^st or 2nd position from the top.

Pre-heat the oven for 5 minutes.

Turn the thermostat to a temperature between 50^ and 200^ .

FR

CUISSON AU GRIL

COOLING FAN (if supplied)

The fan is positioned on the upper part of the oven and I create a circle of cooling air on the inside of the furniture and I through the door of the oven.

It is turned on when the temperature of the outer shell of the oven reaches 60^ C.

By switching on the oven with the thermostat at 200°C the fan starts working after approx.10 min.

It is turned off when the temperature of the outer shell of the oven descends under 60^ C.

By switching off the oven with the thermostat at 200^ C the fan stops working after approx. 30 min.

VENTILATEUR DE REFROIDISSEMENT

Push the knob out and turn it anticlockwise to set the clock. First, turn the cooking selector to the required cooking function, and the thermostat to the desired cooking temperature. Then, to set end of cooking TME, turn the cooking timer to the left and to the desired time. A buzzer sounds at the end of the timed cooking period, and the oven switches itself off. Push the timer knob in to silence the buzzer. To set only the start of cooking, leave the knob in the manual position.

FR

FIN DE CUISSON ANALOGIQUE

Press the duration ☐ key and the end of coking ☐ key simultaneously, then press the +/- keys to set the time.

MANUAL OPERATION

To start cooking without setting end of cooking time 2, press the manual key

SETTING ONLY THE DURATION OF COOKING IN SEMI-AUTOMATIC MODE

To set the duration of cooking, press the duration key and press the +/- keys to set the duration of cooking. A buzzer sounds when the cooking period finishes, and the oven switches itself off. Turn the thermostat and selector knobs back to 0 position and press the manual key.

SETTING ONLY THE END OF COOKING TIME IN SEMI-AUTOMATIC MODE

To set the end of coking time, press the end of cooking key and press the +/- keys to set the time at which you want the oven to switch off. A A buzzer sounds when the clock reaches the set time, and the oven switches itself off. Turn the thermostat and selector knobs back to 0 position and press the manual key.

FR

TEMPORISATEUR ELECTRONIQUE A 6 TOUCHES

FONCTIONNEMENT MANUEL

To set the end of coking time, press the duration key and press the +/- keys to set the duration of cooking. Press the end of cooking key and press the +/- keys to set the time at which you want the oven to switch off. When you finish setting these times, the AUTO symbol flashes and the buzzer sounds.. Press any key to silence it.

FR

FONCTIONNEMENT AUTOMATIQUE

Press the alarm timer key and press the +/- keys to set the required duration of cooking. The buzzer sounds when the cooking time ends. Press any key to silence it.

MINUTEUR

You cannot program in a cooking period which starts earlier than the time displayed on the clock. If you try to do so, the buzzer sounds and the AUTO symbol flasher. Simply change the duration or cooking; time to correct the error.

ERREURS DE PROGRAMMATION

To cancel a coking programme, simply press the manual key.

ANNULATION DU PROGRAMME

REEMPLACEMENT DE LA LAMPE DU FOUR

The oven light must have these precise features:

a) it must be able to resist high temperatures (up to 300^ C)
b) power supply: see V/Hz indicated on data plate.
c) power 25W.
d) E 14 connection.

Before proceeding, disconnect the appliance from the power line to avoid the possibility of elec tric shock.

• to prevent damage, place a tea cloth in the oven
• unscrew the glass cover of the light
• unscrew the old light bulb and replace it with the new one
• put back the glass cover and remove the tea cloth
• connect the appliance to the main electricity supply

IMPORTANT:

Black-and-white illustration of a traditional Chinese bell with decorative patterns and a circular arrow (no text or symbols)

DE

The oven door can be removed quickly and easily. To do so, proceed as follows: - Open the door fully.

- Lift the two levers shown in fig.

- Close the door as far as the first stop (caused by the raised levers).

- Lift the door upwards and outwards to remove it from its mountings.

To replace fit the door, fit the hinges in their mountings and lower the two levers.

FR

DEMONTAGE DE LA PORTE DU FOUR

Pure technical line drawing of a mechanical assembly or bracket (no text or symbols)

Line drawing of a hand holding a tool interacting with a window frame (no text or symbols)

DE

AUSBAUEN DER OFENTÜR

The oven can be installed under work top or in cooking column. Figure shows the installation dimensions. Make sure that surrounding materials are heat resistant. Align the oven centrally with respect to the side walls of the units surrounding it and fix it in place with the screws and Allen screws provided

Insert the bushings provided in the holes in the face

Close-up of a hand holding a small white object near a dark panel (no visible text or symbols)

Close-up of a hand holding a screwdriver, no visible text or symbols

Use the four screws provided to fasten the bushings to the cabin, taking care not to over tighten and break the bushing.

Technical line drawing of an oven with labeled dimensions in millimeters

Line drawing of a kitchen interior showing an oven and cabinet (no text or symbols)

See the accompanying instructions for combining the oven with multifunctional gas or gas-electric cookers.

Technical line drawing of a solar panel installation with components and wiring (no text or symbols)

Technical line drawing of a mechanical device with a magnified inset showing a component (no text or symbols)

Py

Before connecting the oven to the mains power supply, make sure that:

- The supply voltage corresponds to the specifications on the data plate: on the front of the oven.

- The mains supply has an efficient earth (ground) connection complying with all applicable laws and regulations.

Correct earthing (grounding) is a legal requirement.

The power cable should never reach a temperature 50^ C above ambient temperature at any point along its length.

If a fixed appliance is not t provided with a power cable and plug, or some other device permitting it to be disconnected from the mains electricity supply, with a gap between the contacts big enough to

FR

BRANCHEMENT ELECTRIQUE

Technical diagram of a mechanical assembly with labeled components (no readable text or symbols)

DE

STROMANSCHLUSS

ES

CONEXIÓN ELÉCTRICA

Technical diagram of an electronic device with labeled components and a compass indicating polarity

~ 230V 1 2 3 4 B PE IL N ~ 230V 3 1 2 3 4 D PE IL1 IL2 IL3 ~ 400V 2N 1 2 3 4 B PE IL1 IL2 M ~ 400V 3N 1 2 3 4 5 PE IL1 IL2 IL3 M

230V \~ *3 x 4 mm²

230V 3 \~ *4 x 2,5 mm²

400V 2N \~ *4 x 2,5 mm²

400V 3N \~ *5 x 1,5 mm ^2

Py

guarantee class III overvoltage protection, then such a device must be fitted to the power supply in compliance with the regulations governing electrical installations. The omnipolar plug or switch must be easy to reach when the appliance is installed.

The unit becomes very hot during use. Be careful not to touch the heating elements inside the oven.

If the oven came with a meat probe, use only the probe recommended for this oven.

The different cooking levels where grids and drip pans can be placed are shown in the table on page 14.

FR

N.B. The manufacturer declines all responsibility for damage or injury if the above instructions and normal safety precautions are not respected.

The contents of this manual are generic and not all the functions described may be available on your product.

The manufacturer declines all responsibility for possible inaccuracies contained in this pamphlet, due to printing or copying errors. We reserve the right to make on our own products those changes to be considered necessary or useful, without jeopardizing the essential characteristics.

Diagram of a clock face with Chinese characters and numerical markings around it, likely for technical or educational purposes.

CLOCK ALARM

STARTTIME END TIME

Diagram of a clock face with labeled parts and directional arrows, likely for technical or educational purposes.

CLOCK ALARM

STARTTIME END TIME

Diagram of a clock face with labeled parts and directional arrows, likely illustrating a technical or mechanical setup.

CLOCK ALARM

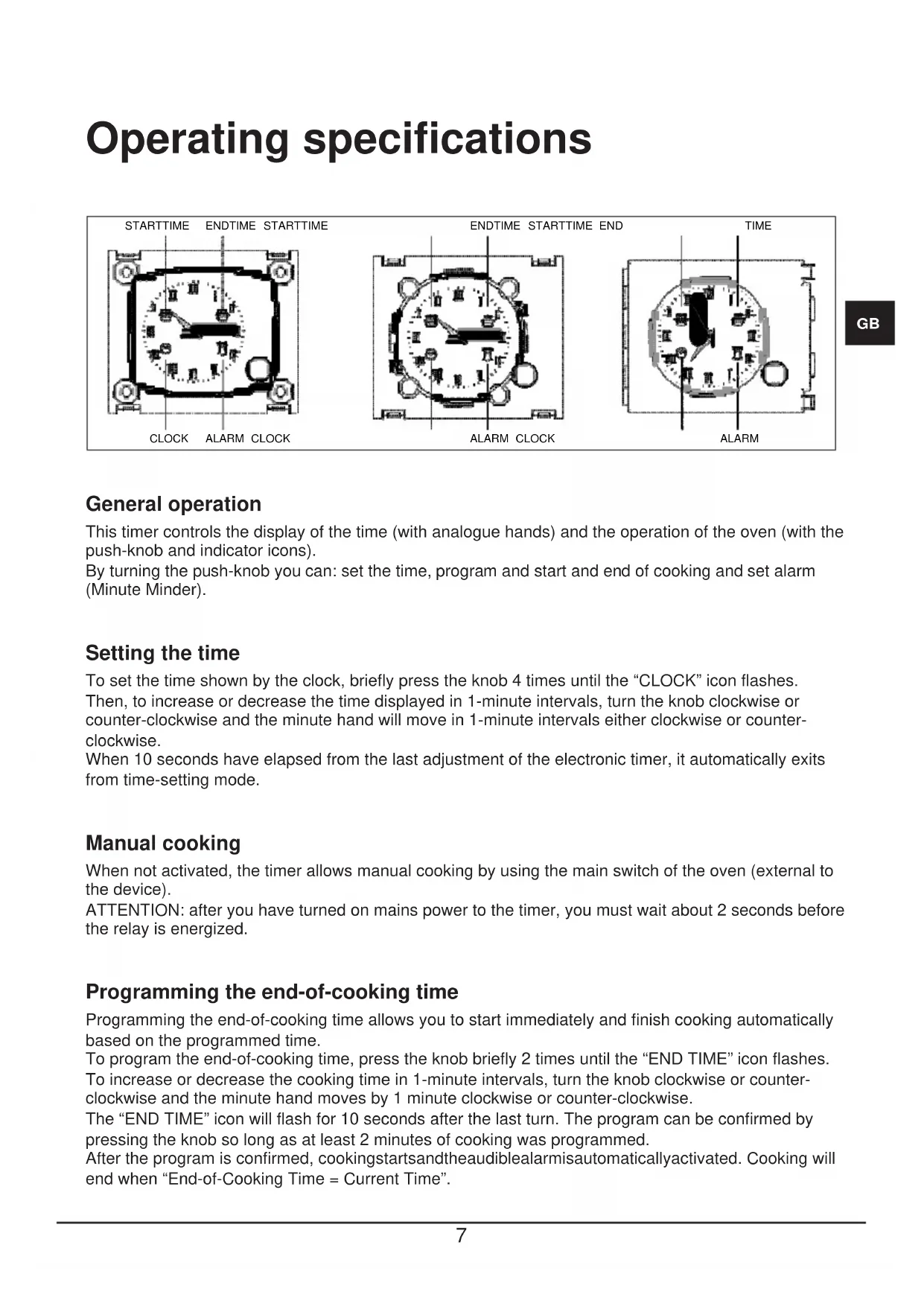

Operating specifications

STARTTIME ENDTIME STARTTIME

Diagram of a clock face with Chinese numerals and directional arrows, likely for electrical or mechanical design reference.

CLOCK ALARM CLOCK

ENDTIME STARTTIME END

Diagram of a clock face with directional arrows and labeled time markers, likely for digital display or control.

ALARM CLOCK

TIME

Diagram of a clock face with labeled parts and directional arrows, likely illustrating a technical or mechanical setup.

ALARM

General operation

This timer controls the display of the time (with analogue hands) and the operation of the oven (with the push-knob and indicator icons).

By turning the push-knob you can: set the time, program and start and end of cooking and set alarm (Minute Minder).

Setting the time

To set the time shown by the clock, briefly press the knob 4 times until the "CLOCK" icon flashes.

Then, to increase or decrease the time displayed in 1-minute intervals, turn the knob clockwise or counter-clockwise and the minute hand will move in 1-minute intervals either clockwise or counterclockwise.

When 10 seconds have elapsed from the last adjustment of the electronic timer, it automatically exits from time-setting mode.

Manual cooking

When not activated, the timer allows manual cooking by using the main switch of the oven (external to the device).

ATTENTION: after you have turned on mains power to the timer, you must wait about 2 seconds before the relay is energized.

Programming the end-of-cooking time

Programming the end-of-cooking time allows you to start immediately and finish cooking automatically based on the programmed time.

To program the end-of-cooking time, press the knob briefly 2 times until the "END TIME" icon flashes. To increase or decrease the cooking time in 1-minute intervals, turn the knob clockwise or counterclockwise and the minute hand moves by 1 minute clockwise or counter-clockwise.

The “END TIME” icon will flash for 10 seconds after the last turn. The program can be confirmed by pressing the knob so long as at least 2 minutes of cooking was programmed.

After the program is confirmed, cookingstartsandtheaudiblealarmisautomaticallyactivated. Cooking will end when "End-of-Cooking Time = Current Time".

To display the program set, briefly press and release the knob and the hands and icons will show the program set.

At the end of cooking, the "END TIME" icon flashes and the alarm beeps. After 1 minute, the alarm is disabled and the "END TIME" icon continues flashing until you press the knob.

To cancel the program before the end, press the button for 3 seconds: the program will be cancelled and the timer returns to manual cooking mode.

Programming the start-of-cooking and end-of-cooking times

Program the start-of-cooking time allows you to start and end cooking automatically based on the times programmed.

To program the start-of-cooking time, briefly press the knob 1 time until the “START TIME” icon starts flashing.

To increase or decrease the start-of-cooking time in 1-minute intervals, turn the knob clockwise or counter-clockwise and the minute hand moves 1 minute clockwise or counter-clockwise.

The “START TIME” icon will continue to flash for 10 seconds after the last turn. If, within this time, you do not turn or press the knob, the hands automatically return to displaying the time and the program is cancelled. If you press the knob, the start-of-cooking time is stored (the “START TIME” icon turns steady on), so long as you have programmed at least 1 minute of delay, and goes to setting the end-of-cooking time (the “END TIME” icon goes from off to flashing).

To program the end-of-cooking time, follow the procedure in the related paragraph.

Cooking will start when "Start Time = Current Time".

Programming the minute minder

Programming the Minute Minder gives you a simple alarm at the end of the programmed time without activating cooking (Minute Minder mode).

To schedule an “alarm” without cooking (Minute Minder mode), briefly press the knob 3 times until the “ALARM” icon flashes. Then, turn the knob, and the setting of the Minute Minder is the same as the end-of-cooking time (see corresponding paragraph).

The Minute Minder can only be used when there is no program running.

Displaying the program set

The programmer allows the display of the program set.

To view the program set, briefly press and release the knob and the controller displays the program set, moving the hands to the time set and highlighting the steps with the flashing of the related icons.

The controller will automatically return to displaying the current time and continues running the program set.

Deleting the program set

The controller allows cancelling the program.

To cancel the program set, press the knob for a few seconds until the related icons turn off and there is a beep.

The controller automatically returns to manual cooking mode.

Power failure signal

The timer does not cancel the program in the case of a power failure.

The timer signals each power failure of the mains by making the “CLOCK” icon flash, so the user can check that the time is correct.

In this case, briefly press the knob to disable the signal.

GB

Diagram of a clock face with Chinese numerals and directional arrows, likely for digital display or reading.

CLOCK ALARM

ENDTIME STARTTIME END

Diagram of a clock face with directional arrows and measurement markings, likely for electrical or mechanical design reference.

CLOCK ALARM

TIME

Diagram of a clock face with labeled parts and directional arrows, likely illustrating a technical or mechanical setup.

CLOCK ALARM

Diagram of a clock face with Chinese numerals and directional arrows, likely for electrical or mechanical design reference.

CLOCK ALARM

STARTTIME END TIME

Diagram of a clock face with Chinese numerals and hands, showing time and duration markings around the dial.

CLOCK ALARM

STARTTIME END TIME

Diagram of a clock face with visible numbers and a pointer, likely for digital display or measurement purposes.

CLOCK ALARM

Allgemeine Funktion

Diagram of a clock face with Chinese numerals and directional arrows, likely for digital display or reading purposes.

CLOCK ALARM

STARTTIME END TIME

Diagram of a clock face with labeled parts and directional arrows, likely for technical or educational purposes.

CLOCK ALARM

STARTTIME END TIME

Diagram of a clock face with visible numbers and a pointer, likely for digital display or measurement purposes.

CLOCK ALARM

Diagram of a clock face with Chinese numerals and directional arrows, likely for electrical or mechanical design reference.

CLOCK ALARM

STARTTIME END TIME

Diagram of a clock face with labeled parts and directional arrows, likely for technical or educational purposes.

CLOCK ALARM

STARTTIME END TIME

Diagram of a clock face with labeled parts and directional arrows, likely illustrating a technical or mechanical layout.

CLOCK ALARM

Funcionamento geral

Diagram of a clock face with Chinese numerals and directional arrows, likely for electrical or mechanical design reference.

CLOCK ALARM

STARTTIME END TIME

Diagram of a clock face with labeled parts and directional arrows, likely for technical or educational purposes.

CLOCK ALARM

STARTTIME END TIME

Diagram of a clock face with labeled parts and directional arrows, likely illustrating a technical or mechanical setup.

CLOCK ALARM

Algemene werking

Diagram of a clock face with Chinese characters and numerical markings around it, enclosed in a square frame with corner connectors.

CLOCK ALARM

STARTTIME END TIME

Diagram of a clock face with labeled parts and directional arrows, likely for technical or educational purposes.

CLOCK ALARM

STARTTIME END TIME

Diagram of a clock face with directional arrows and labeled components, including a central dial indicator.

CLOCK ALARM
