USER MANUAL EVOV 580NCS CANDY

INSTRUCTION BOOK EVOV 580NC Vented Tumble Dryer

Environmental Issues

Installation of the Discharge Hose

Controls and Indicators

Selecting the Programme

Delay Start Function

Cancelling and Resetting the Programme

Cleaning and Routine Maintenance

Technical Specifications

INDEXINTRODUCTION Use

Please check that the following items are

delivered with the appliance:

● Instruction manual

● Vent kit and instructions

Remove the machine from

its packaging close to the

final location of the

1- Cut carefully around the

base of the packaging and

2- Remove the polythene

sleeve and lift the dryer off

the polystyrene base.

Please read and follow these instructions carefully and operate the machine accordingly. This

booklet provides important guidelines for safe use, installation, maintenance and some useful

advice for best results when using your machine.

Keep all documentation in a safe place for future reference or for any future owners.

Delivery Information

UNPACKING THE PRODUCT Dispose of the packaging safely. Make

sure it is out of the reach of children,it is a

potential source of danger.

Failure to comply with the above can

compromise the safety of the appliance. You

may be charged for a service call if a problem

with your machine is caused by misuse.

Check that no damage has occurred to the

machine during transit. If it has, call for service

● This appliance is not intended for use by persons (including children) with reduced physical,

sensory or mental capabilities,or lack of experience and knowledge, unless they have been given

supervision or instruction concerning use of the appliance by a person responsible for their safety.

● Children should be supervised to ensure that they do not play with the appliance.

● WARNING Misuse of a tumble dryer may create a fire hazard.

●This machine is solely for domestic use, i.e. to dry household textiles and garments.

●This machine should only be used for its intended purpose as described in this manual. Ensure

that the instructions for installation and use are fully understood before operating the appliance.

● Do not touch the appliance when hands or feet are damp or wet.

● Do not lean on the door when loading the machine or use the door to lift or move the machine.

●Do not allow children to play with the machine or its controls.

● WARNING Do not use the product if the fluff filter is not in position or is damaged; fluff could be

● WARNING Where the hot surface symbol is located the temperature rise during operation

of the tumble dryer may be in excess of 60 degrees C.

● Remove the plug from the electricity supply. Always remove the plug before cleaning the

● Do not continue to use this machine if it appears to be faulty.

● Lint and fluff must not be allowed to collect on the floor around the outside of the machine.

● The drum inside may be very hot. Always allow the dryer to complete the cool down period before

removing the laundry.SAFETY REMINDERS EN 4

This appliance is marked according

t o t h e E u r o p e a n d i r e c t i v e

2002/96/EC on Waste Electrical and

Electronic Equipment (WEEE).

By ensuring this product is disposed of correctly,

you will help prevent potential negative

consequences for the environment and human

health, which could otherwise be caused by

inappropriate waste handling of this product.

The symbol on the product indicates that this

product may not be treated as household waste.

Instead it shall be handed over to the applicable

collection point for the recycling of electrical and

electronic equipment.

For more detailed information about treatment,

recovery and recycling of this product, please

contact your local city office,your household

waste disposal service or the shop where you

purchased the product. Disposal must be

carried out in accordance with local

environmental regulations for waste disposal.

European Directive 2002/96/EC

● To ensure the continued safe and efficient

operation of this appliance we recommend that

any servicing or repairs are only carried out by

an authorised GIAS service engineer.

If the appliance is not running properly or

breaks down, switch it off and disconnect the

plug from the socket. Consult GIAS Service for

● All packaging materials used are

environmentally-friendly and recyclable.

Please help dispose of the packaging via

environmentally-friendly means. Your local

council will be able to give you details of current

● To ensure safety when disposing of an old

tumble dryer disconnect the mains plug from

the socket, cut the mains power cable and

destroy this together with the plug. To prevent

children shutting themselves in the machine

break the door hinges or the door lock.

Environmental Issues

● Check that the product has no visible signs of

damage before use. If damaged do not use and

please call GIAS Service.

● Do not use adapters, multiple connectors

● Never install the dryer against curtains and be

sure to prevent items from falling or collecting

● The appliance must not be installed behind a

lockable door, a sliding door or a door with a

hinge on the opposite side to that of the tumble

●Do not dry unwashed items in the tumble dryer.

● WARNING Do not tumble dry fabrics treated

with dry cleaning fluids.

●WARNING Foam rubber materials can, under

certain circumstances, when heated become

ignited by spontaneous combustion. Items

such as foam rubber (latex foam), shower caps,

waterproof textiles, rubber backed articles and

clothes or pillows fitted with foam rubber pads

MUST NOT be dried in the tumble dryer.

● Always refer to the laundry care labels for

directions on suitability for drying.

● Clothes should be spin dried or thoroughly

wrung before they are put into the tumble dryer.

Clothes that are dripping wet should not be put

● Lighters and matches must not be left in

pockets and NEVER use flammable liquids

● Glass fibre curtains should NEVER be put in

this machine. Skin irritation may occur if other

garments are contaminated with the glass

● Items that have been soiled with substances

such as cooking oil, acetone, alcohol, petrol,

kerosene, spot removers, turpentine, waxes

and wax removers should be washed in hot

water with an extra amount of detergent before

being dried in the tumble dryer.

● Fabric softeners, or similar products, should

be used as specified by the fabric softener

The LaundryINSTALLATION EN 5

Electrical Requirements

If the mains cord on this appliance is

damaged, it must be replaced by a special cord

which is ONLY obtainable from the spares

service. It must be installed by a competent

You may be charged for a service call if a

problem with your machine is caused by

incorrect installation.

Once the machine is in

place the feet should

be adjusted to ensure

Adequate ventilation must be provided in the

room where the tumble dryer is located to

prevent gases from appliances burning other

fuels, including open fires, being drawn into the

room during operation of the tumble dryer.

● Exhaust air must not be discharged into a flue

which is used for exhausting fumes from

appliances burning gas or other fuels.

● Check regularly that the air flowing through

the dryer is not restricted.

● Check the fluff filter after use, and clean, if

●The inlet and outlets should be kept free from

obstructions. To ensure adequate ventilation

the space between the bottom of the machine

and the floor must not be obstructed. There

should be a gap of at least 12mm between the

machine and any obstructions.

● Prevent items from falling or collecting behind

the dryer as these may obstruct the air inlet and

● NEVER install the dryer up against curtains.

VENTILATION Do not plug the machine in and switch it on

at the mains until the installation is completed.For

your safety, this dryer must be correctly installed.

If there is any doubt about installation, call GIAS Service for advice.

Dieser Trockner ist für eine Netzspannung von

sowie deren Nachfolgebes-timmungen überein.VENTILATION It is essential to use a venting hose to carry the hot moist air away from the dryer unless the dryer is

situated in a open space with a good air flowaround it. Recirculation of the moist air will prevent the

efficient operation of the dryer.

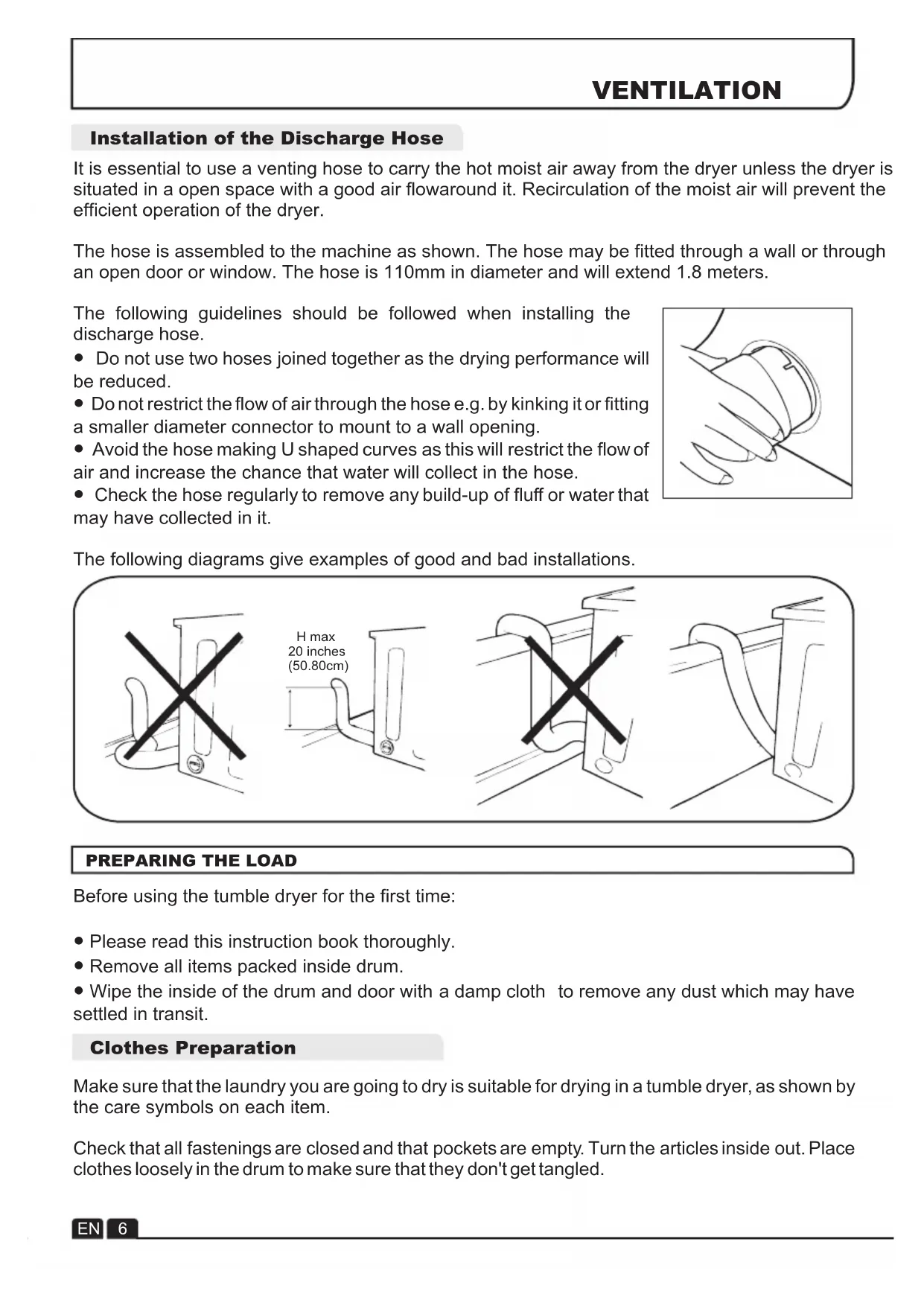

The hose is assembled to the machine as shown. The hose may be fitted through a wall or through

an open door or window. The hose is 110mm in diameter and will extend 1.8 meters.

The following guidelines should be followed when installing the

● Do not use two hoses joined together as the drying performance will

● Do not restrict the flow of air through the hose e.g. by kinking it or fitting

a smaller diameter connector to mount to a wall opening.

● Avoid the hose making U shaped curves as this will restrict the flow of

air and increase the chance that water will collect in the hose.

● Check the hose regularly to remove any build-up of fluff or water that

may have collected in it.

The following diagrams give examples of good and bad installations.

Installation of the Discharge Hose

PREPARING THE LOAD Before using the tumble dryer for the first time:

● Please read this instruction book thoroughly.

● Remove all items packed inside drum.

● Wipe the inside of the drum and door with a damp cloth to remove any dust which may have

Make sure that the laundry you are going to dry is suitable for drying in a tumble dryer, as shown by

the care symbols on each item.

Check that all fastenings are closed and that pockets are empty. Turn the articles inside out. Place

clothes loosely in the drum to make sure that they don't get tangled.

● Synthetics Max. 4 kg

Sort the Load as Follows

Maximum Drying Weight

Do not overload the drum, large items

when wet can exceed the maximum admissible

clothes load (for example: sleeping bags, duvets). ● By care symbols

These can be found on the collar or inside

Suitable for tumble drying.

Tumble drying at high temperature.

Tumble drying at low temperature only.

If the item does not have a care label it must be

assumed that it is not suitable for tumble

● By amount and thickness

Whenever the load is bigger than the dryer

capacity, separate clothes according to

thickness (e.g. towels from thin underwear).

Cottons/linen: Towels, cotton jersey, bed and

Synthetics: Blouses, shirts, overalls, etc.

made of polyester or polyamid, as well as for

cotton/synthetic mixes.

Sort into: iron dry, cupboard dry, etc. For

delicate articles press the button to select

low drying temperature.

Woollens, silk, delicate fabrics, nylon stockings,

delicate embroidery, fabrics with metallic dec-

orations, garments with PVC or leather

trimmings, training shoes, bulky items such as

Do Not Tumble Dry: IMPORTANT: Do not dry articles which have been treated with a dry cleaning fluid or

rubber clothes (danger of fire or explosion).

During the last 15 minutes the load is always tumbled in cool air. Only put into the tumble dryer laundry which

has been thoroughly wrung or spin-dried. The

drier the laundry the shorter the drying time thus

● Try to dry the maximum weight of laundry, this

will save time and electricity.

● Check that the filter is clean before every

● Exceed the maximum weight, this will waste

time and electricity.

● Put dripping wet items into the tumble dryer,

this may damage the appliance.

Energy SavingCONTROLS AND INDICATORS EN 8

Programme Selector – Select the required

Delay Start button – Allows the user to

delay the start of the drying cycle (see details

of Operation on page 10)

Start/Pause button – Press to

commence the selected drying programme

Acrylics Synthetics button – Press

to reduce the heat level for delicate items,

the indicator above the button will light up. To

change the heat setting the programme must

Low Heat – Indicator light ON High Heat – Indicator light OFF Filter Care indicator – lights when the

filter needs cleaning

DRY – When the programme is selected the

DRY indicator will flash, when the programme

starts the DRY indicator will light up.

– Indicator lights when there is a short

time left until completion of the programme. At

this stage of the drying cycle the machine

enters the Cool Down phase.

The length of the Cool Down phase varies

between 10 and 15 minutes depending on the

END – Indicator lights when the programme

Control Panel and Indicator Lights

The Candy Sensor Dry machine gives many

options for drying the laundry to suit all

The table on the next page lists the program-

mes and the function of each programme.

Note: The sensor may not detect a small load of

small articles. For small loads and separate

items or pre-dried fabrics with low moisture

content, use the timed programmes.

Set the programme between 30 and 75 minutes

depending on the load size and dryness

required, and select high or low heat depending

upon the fabric type.

If the sensor does not detect the item the dryer

will only operate for 10 minutes before going

If the load is too large or too wet to tumble dry

the dryer will automatically go into cooldown

after approximately 3 hours.

SELECTING THE PROGRAMME Start/Pause

DESCRIPTION Select the degree of dryness that you require. This ranges from

for bath towels and bathrobes, through for items that will be

put away without ironing, to the programme that leaves the laundry

suitable for ironing.

A gentle programme specially created to get woollens softer after

air-drying.This delicate warm air cycle, lasting 12 minutes, can

also be used to get woollens 'refreshed' after being stored in the

The programme provides a conditioning and anticrease

function. The dryer will heat the load for 9 minutes followed by a 3

minute cool down period and is especially good for garments

which may have been left for some time prior to ironing, in a linen

basket for example. Garments may also become stiffened when

dried outside on a washing line or inside on radiators.

This programme relaxes the creases in the fabric making ironing

The 40’ Rapid programme allows a drying cycle to be completed

quickly. This is an ideal programme for having dry, refreshed and

ready-to-wear clothes in less than 40'. This special programme

constantly monitors the dryness and temperature in the drum

thanks to the sensor using, using the exact time and energy you

need! The machine finishes the cycle when the cupboard dry level

is reached. The stated cycle length could vary according to fabric

types, load size and residual moisture in the garments.The

maximum load is 2kg and the programme is suitable for all types of

fabric where tumble drying is appropriate.

150' minutes of drying

120' minutes of drying

90' minutes of drying

75' minutes of drying

60' minutes of drying

45' minutes of drying

30' minutes of drying

Tumbling the laundry in cool air for 20 minutes

EN 9DOOR and FILTER EN 10

OPERATION Opening the Door

Pull on handle to open

WARNING! When the tumble dryer is in

use the drum and door may be VERY HOT.

Never stop a tumble dryer before the end of the

drying cycle unless all items are quickly

removed and spread out so that the heat is

Filter Care Indicator

filter needs cleaning.

If the laundry is not

drying check that the

filter is not clogged.The

indicator will also light

when the venting hose

is blocked or kinked.

DO NOT USE WATER TO CLEAN THE FILTER.

IMPORTANT: To maintain the efficiency of the

dryer check that the fluff filter is clean before

1.Pull the filter up-

2. Open filter as shown.

3.Gently remove lint

using a soft brush or

1. Open the door and load the drum with

laundry. Ensure that garments do not hinder

closure of the door.

2. Gently close the door pushing it slowly until

you hear the door 'click' shut.

3. Turn the Programme Selector dial to select

the required drying programme (see Program-

4. If drying synthetics, acrylics or delicate items,

Press the button to reduce the heat level.

The light next to the push button will light up

when the machine is in low heat setting. To

deselect in the first few minutes of the

programme, press the button , after this

time reset the machine to change the setting.

automatically and the DRY indicator will be

6. If the door is opened during the programme to

check the laundry, it is necessary to press to

recommence drying after the door has been

7. When the cycle is nearing completion the

machine will enter the cool down phase, the

clothes will be tumbled in cool air allowing the

8. When the programme is complete the END

indicator will light.

9. Following the completion of the cycle the

drum will rotate intermittently to minimize

creasing. This will continue until the machine is

switched OFF or the door is Opened.IMPORTANT Always switch off and

remove the plug from the electricity supply

before cleaning this appliance.

For electrical data refer to the rating label

on the front of the dryer cabinet (with the door

Technical Specifications

● Clean the filter after every drying cycle.

● After each period of use, wipe the inside of

the drum and leave the door open for a while to

allow circulation of air to dry it.

● Wipe the outside of the machine and the

door with a soft cloth.

● DO NOT use abrasive pads or cleaning

● To prevent the door sticking or the build up of

fluff, clean the inner door and gasket with a

damp cloth after every drying cycle.

WARNING! The Drum, door and load may

CLEANING AND ROUTINE MAINTENANCE EN 11

Delay Start Function

The Delay Start Function allows the user to delay the start of the drying cycle by 3, 6 or 9 hours.

When the function is first selected the display will show a delay of 3 hours, subsequent presses of

the button will increase the delay to 6 or 9 hours.

To commence the programme press and the appliance will complete the drying cycle at the

end of this time. The 3, 6 or 9 hour indicator light will flash to indicate that the start delay is in

Cancelling and Resetting the Programme

To cancel a programme press the button for 3 seconds. The DRY light will flash to indicate that

-EASY-CARE TEXTILETROUBLESHOOTING What Might be the Cause of...

Defects you can remedy yourself

Before calling GIAS Service for technical

advice please run through the following

checklist. A charge will be made if the machine

is found to be working or has been installed

incorrectly or used incorrectly.

If the problem persists after completing the

recommended checks, please call GIAS Service, they may be able to assist you over

Drying time is too long/clothes are not dry

● Have you selected the correct drying

● Were the clothes too wet? Were the clothes

thoroughly wrung or spindried?

● Does the filter need cleaning?

● Is the dryer overloaded?

● Is the venting hose kinked or blocked?

● Has the option been selected from a

The dryer does not operate…

● Is there a working electricity supply to the

dryer? Check using another appliance such as

● Is the plug properly connected to the mains

● Is there a power failure?

● Has the fuse blown?

● Is the door fully closed?

● Is the dryer switched on, both at the mains

supply and at the machine?

● Has the drying time or the programme been

● Has the machine been switched on again

after opening the door?

● Switch off the dryer and contact GIAS Service for advice.

The Indicator is on…

● Does the filter need cleaning?

● Is the venting hose kinked or blocked?

CUSTOMER SERVICE Should there still be a problem with your dryer

after completing all the recommended checks,

please call GIAS Service for advice.

They may be able to assist you over the

telephone or arrange for a suitable appointment

for an engineer to call under the terms of your

guarantee. However, a charge may be made if

any of the following applies to your machine:

● Is found to be in working order.

● Has not been installed in accordance with the

installation instructions.

● Has been used incorrectly.

For service and repairs call your local GIAS Service engineer.

The manufacturer declines all responsibility

in the event of any printing mistakes in this

booklet. The manufacturer also reserves the

right to make appropriate modifications to

its products without changing the essential

characteristics.INDEX FR

Start/Pause-knap – tryk for at

for at reducere varmeniveauet.

programma is afgelopen.
