Desire 1959056 - Machine à café RUSSELL HOBBS - Free user manual and instructions

USER MANUAL Desire 1959056 RUSSELL HOBBS

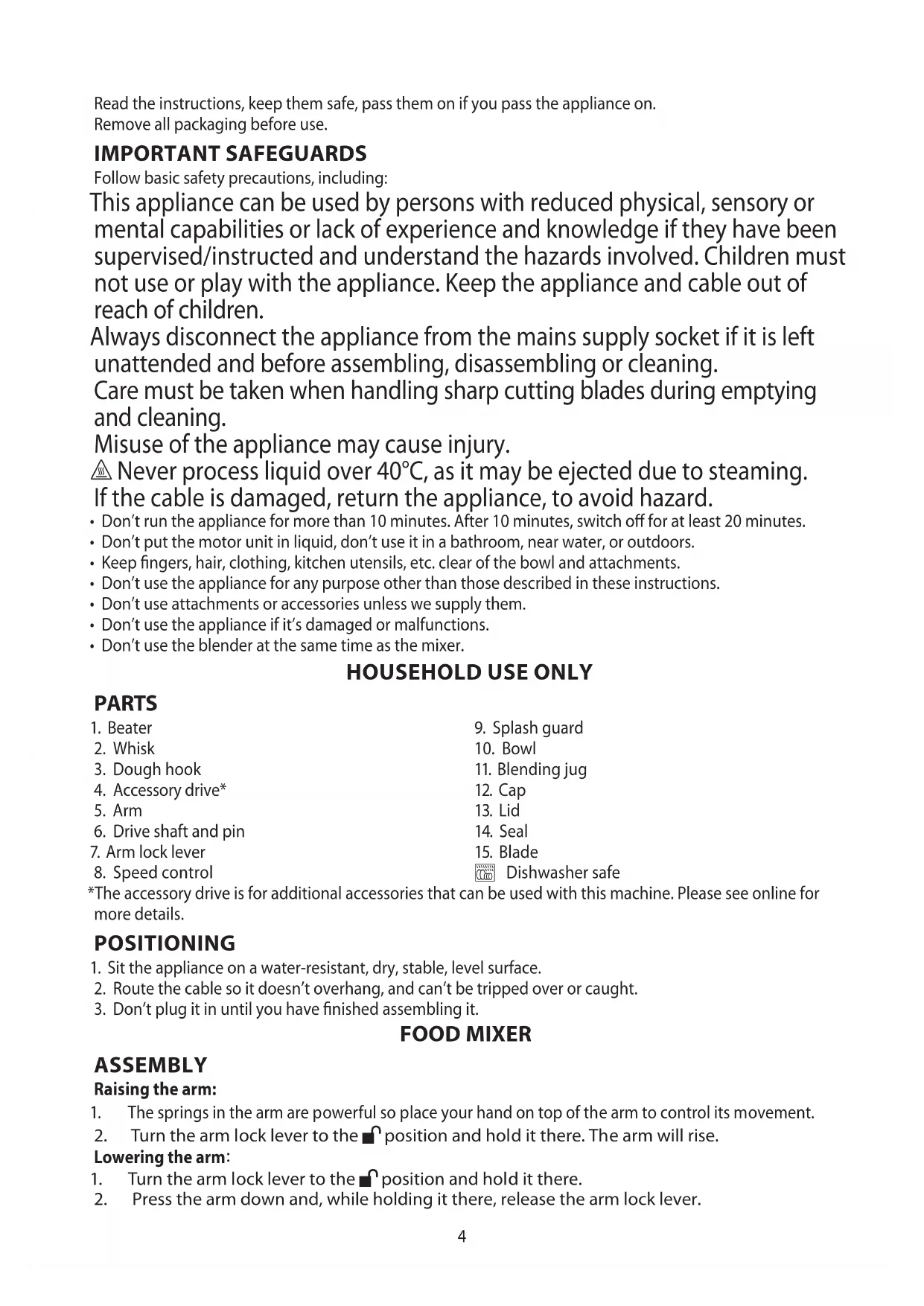

Read the instructions, keep them safe, pass them on if you pass the appliance on.

Remove all packaging before use.

IMPORTANT SAFEGUARDS Follow basic safety precautions, including:

This appliance can be used by persons with reduced physical, sensory or

mental capabilities or lack of experience and knowledge if they have been

supervised/instructed and understand the hazards involved. Children must

not use or play with the appliance. Keep the appliance and cable out of

Always disconnect the appliance from the mains supply socket if it is left

unattended and before assembling, disassembling or cleaning.

Care must be taken when handling sharp cutting blades during emptying

Misuse of the appliance may cause injury.

h Never process liquid over 40°C, as it may be ejected due to steaming.

If the cable is damaged, return the appliance, to avoid hazard.

• Don’t run the appliance for more than 10 minutes. After 10 minutes, switch off for at least 20 minutes.

• Don’t put the motor unit in liquid, don’t use it in a bathroom, near water, or outdoors.

• Keep fingers, hair, clothing, kitchen utensils, etc. clear of the bowl and attachments.

• Don’t use the appliance for any purpose other than those described in these instructions.

• Don’t use attachments or accessories unless we supply them.

• Don’t use the appliance if it’s damaged or malfunctions.

• Don’t use the blender at the same time as the mixer.

6. Drive shaft and pin

*The accessory drive is for additional accessories that can be used with this machine. Please see online for

1. Sit the appliance on a water-resistant, dry, stable, level surface.

2. Route the cable so it doesn’t overhang, and can’t be tripped over or caught.

3. Don’t plug it in until you have finished assembling it.

FOOD MIXER ASSEMBLY Raising the arm:

1. The springs in the arm are powerful so place your hand on top of the arm to control its movement.

2. Turn the arm lock lever to the Uposition and hold it there. The arm will rise.

1. Turn the arm lock lever to the Uposition and hold it there.

2. Press the arm down and, while holding it there, release the arm lock lever.5

Raise the arm before fitting or removing the bowl. Use only the bowl supplied.

1. Fit the bowl into the recess in the base and turn it clockwise until it locks.

2. To remove, turn it anti-clockwise then lift it off the base.

Fitting/removing attachments

Switch off, unplug and raise the arm before fitting or removing attachments.

1. Align the slot in the attachment with the pin on the drive shaft (Fig A).

2. Push the attachment onto the drive shaft then turn it anti-clockwise to lock it (Fig B).

To remove an attachment, push it upwards slightly then turn it clockwise and pull it off the shaft.

The splash guard protects you from spills or splashes during mixing while still allowing you to add

ingredients. Switch off and unplug your mixer before fitting/removing the splash guard.

With the bowl in position and the arm in the lowered position:

1. Slide the splash guard between the arm and the bowl.

2. Align it so that the opening is on the right hand side (Fig C).

• Always remove the splash guard before raising the arm.

1. Check that the speed control is set to O.

2. Put the plug into the power socket (switch the socket on, if its switchable).

3. Turn the speed control clockwise to the speed you want.

4. The range is from 1 (low) to 10 (high). Turn the speed control back to O to turn the motor off.

5. To operate the motor in short bursts, turn the speed control to the Y position. Release the control to

Attachment Speed Use for

Whisk 7-10 beating/aerating cream, egg whites, batter, light mixes

Beater 4-7 creaming butter and sugar, medium cake mixes

Dough hook 1-3 heavy mixtures, bread, pastry

1. Slide off the blending jug drive cover (Fig D).

2. Insert the jug into the drive opening with the t mark on the jug aligned with the Umark

on the mixer (Fig E).

3. Twist the jug clockwise until the t mark on the jug is aligned with the Lmark on the mixer

1. Check that the speed control is set to O.

2. Put the plug into the power socket (switch the socket on, if its switchable).

3. Turn the speed control clockwise to the speed you want.

4. The range is from 1 (low) to 10 (high). Turn the speed control back to O to turn the motor off.

5. To operate the motor in short bursts, turn the speed control to the Y position. Release the control to

6. If you need to add other ingredients during blending, turn the cap anticlockwise and lift it off. Add

the ingredients then replace the cap and turn it clockwise to lock it.

7. When you have finished blending, turn the speed control to O and wait for the blades to stop before

removing the lid from the jug or the jug from the mixer.

8. To remove the jug, twist it anticlockwise until the

mark is aligned with the

CARE AND MAINTENANCE Switch off (O) and unplug before cleaning.

1. Clean as soon after use as possible to prevent residues setting inside the bowl.

2. Wash the bowl, splash guard and attachments in warm soapy water, rinse, and dry.

3. You may put the bowl and attachments in a dishwasher, but note: the harsh environment inside the

dishwasher will affect the surface finishes. The damage should be cosmetic only, and should not

affect the operation of the appliance.

4. Wipe the outside surfaces of the appliance with a clean damp cloth.

1. Wash the blending jug, cap and lid in warm sopay water. Rinse and dry.

2. You may wash the jug, cap and lid in a dishwasher. However, we recommend that you remove the

blade before washing in a dishwasher.

To remove the blade:

1. Turn the jug upside down.

2. Twist the blade clockwise in the direction of the

3. Carefully lift out the blade unit (Fig J). Take care, the blades have very sharp edges.

4. Remove the seal and carefully wash the blade and seal in warm soapy water. Rinse and dry.

5. Refit the seal to the blade then lower the blade into the jug and twist it as far as it will go

anticlockwise in the direction of the Lsymbol (Fig H). Make sure the seal is fitted and the blade is fully

tightened otherwise the jug may leak during use.

MIXER RECIPES PIZZA DOUGH dough hook

• 1 sachet active dried yeast (about 2½ tsp)

Put the flour in the bowl. Mix the other ingredients in a jug. Select speed 1, and slowly add the liquid. As

the dough ball forms, increase speed to 2, and knead for a couple of minutes, till the dough ball is smooth.

Remove, split into 2-4 pieces, and roll into pizza bases (circles or rectangles) on a floured surface. Lay them

on a baking sheet or pizza tray, spread with tomato purée and add your desired toppings. Top with dried

herbs, torn mozzarella and a drizzle of olive oil. Bake in a preheated oven at 200°C/400°F/gas 6 for 15-20

minutes, till the toppings are bubbling and golden brown.

CURRANT LOAF dough hook

• 500g wholemeal flour

• 150g butter (softened)

Put the flour in the bowl, add the softened butter, and mix on speed 1. When the butter and flour start to

blend, add the sugar, salt, currants, peel and baking powder. Leave it mixing while you beat the eggs and

milk together, then add the egg/milk mixture to the bowl. Select speed 2 and mix till combined. Put into a

greased loaf tin and bake in a preheated oven at 180°C/350°F/gas 4 for 35 minutes. Cool on a wire rack

before slicing. Serve toasted with butter.

BASIC WHITE BREAD dough hook

• 600g strong white bread flour

• 1 sachet active dried yeast (about 2½ tsp)

• 15ml sunflower oil or butter

Mix as for pizza dough, then cover and leave in a warm place till doubled in size (30-40 minutes). Punch

down to remove air, knead lightly on a floured board, shape it into a loaf, or put it in a tin, cover, and leave

in a warm place to rise for another 30 minutes. Bake in a preheated oven at 200°C/400°F/gas 6 for 25-30

minutes, till golden brown and hollow sounding on the bottom.7

Melt the butter in a pan over a low heat. Stir in the flour and cocoa, then the milk and stir till thickened

slightly. Remove from the heat, let it cool, then beat in the egg yolks. Put the whites in the bowl, mix at

speed 6 for a few seconds, add the sugar and whisk till soft peaks form. Fold in the sauce. Pour the mixture

into a greased 1.2 litre (2 pint) dish. Bake, in the oven, in a roasting tin half filled with boiling water, at

190°C/375°F/gas 5 for 40-45 minutes, till well risen.

• 100g self raising flour

Cream the butter, sugar and vanilla at speed 5 for 1-2 minutes till light, pale and fluffy, add the egg, and

whisk till combined. Sift the flours together then gradually add them to the mixture. Remove the bowl,

form the mixture into balls, and flatten them. Bake on a greased tray, in a preheated oven at 180°C/350°F/

gas 4 for 12-15 minutes. Cool on the tray, then on a wire rack.

CLASSIC VICTORIA SPONGE CAKE whisk

• 1 drop vanilla essence

Grease two 18cm (7”) straight sided sandwich tins. Line the bases with greased greaseproof paper. Cream

the butter and sugar at speed 3 till light and fluffy, gradually add the eggs, then the vanilla, then the flour.

Increase speed to 4 once the ingredients start to incorporate. Divide the mixture between the tins and

level the surfaces. Bake in the centre of a preheated oven at 180°C/350°F/gas 4 for about 25 minutes. Cool

CHOCOLATE CAKE beater

• 50g butter, softened

• 100g cooking chocolate, melted

• 125g self raising flour

• 30ml light vegetable oil (sunflower, etc.)

Dissolve the cocoa in the boiling water and leave to cool. Cream the butter and sugar for a few seconds at 1,

add half the egg, then half the flour, gradually increasing the speed to 3, add the remaining egg and flour,

mix till smooth, add the other ingredients and mix till smooth. Put in a dish, cover with foil and steam for 1

hour, or till a skewer pushed into the cake comes out clean.

FARMHOUSE FRUIT CAKE beater

• 75g each of sultanas and raisins

Grease a 20cm (8”) cake tin. Line with greaseproof paper. Preheat the oven to 180°C/350°F/gas 4. Put the

butter, sugar, dried fruits and spices in the bowl, and beat at speed 3 till combined. Add the eggs and milk

and beat for a few seconds. Gradually add the flour, beating till well mixed. Bake in the cake tin for about

1½ hours. Cool in the tin for 15 minutes then turn on to a wire rack.

SPONGE MIXTURE beater

Grease and line a deep 23cm (9”) round cake tin. Preheat the oven to 190°C/375°F/gas 5. Put everything

into the bowl, mix at speed 1 for 30 seconds, then at speed 3 for 3 minutes, till combined. Pour the mixture

into the cake tin, and bake in the centre of the oven for 50-60 minutes, till a skewer pushed into the cake

comes out clean. Cool on a wire tray. Vary the basic recipe by adding 100g raisins, chopped nuts, or grated

• 2 vegetable or chicken stock cubes

• salt and pepper to taste

Blend the leeks and potatoes for a couple of seconds (you want them lumpy, not mushy).

Transfer to a pan, and add the water and stock cubes.

Bring to the boil, stirring, reduce the heat, cover the pan and simmer for 20 minutes.

Let the mixture cool for about 30 minutes, then blend at high speed, till it’s smooth and silky.

Return the mixture to the pan and heat to serving temperature (don’t let it boil).

Taste, adjust the seasoning, and serve with crusty bread.

W ENVIRONMENTAL PROTECTION To avoid environmental and health problems due to hazardous substances in electrical and

electronic goods, appliances marked with this symbol mustn’t be disposed of with unsorted municipal

waste, but recovered, reused, or recycled.9

en de kabel buiten het bereik van kinderen.

Always disconnect the appliance from the mains supply socket if it is left

unattended and before assembling, disassembling or cleaning.

Care must be taken when handling sharp cutting blades during emptying

• Don’t run the appliance for more than 10 minutes. After 10 minutes, switch off for at least 20 minutes.

9. Coperchio anti-schizzi

Coperchio anti-schizzi
