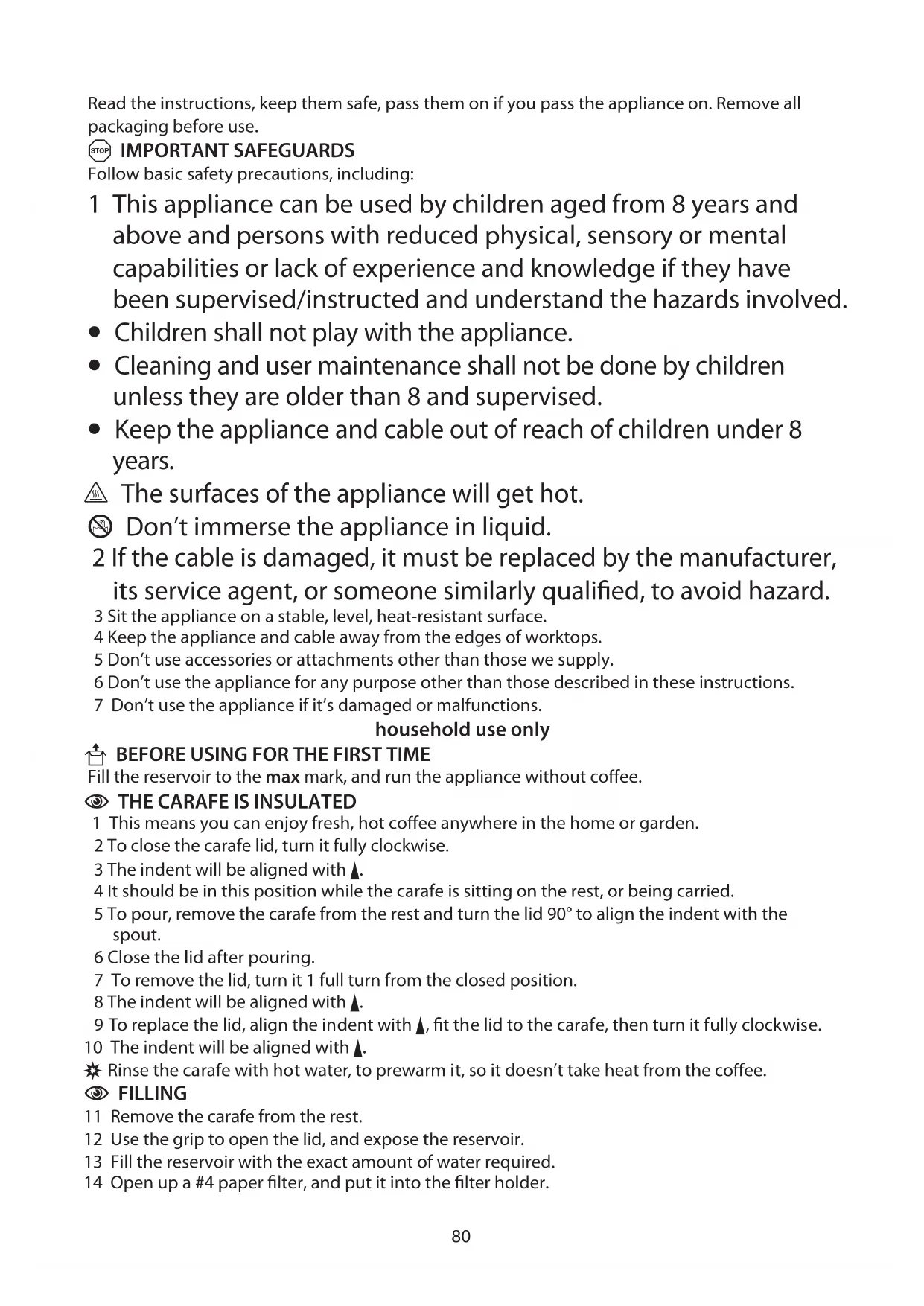

Read the instructions, keep them safe, pass them on if you pass the appliance on. Remove all

packaging before use.

A IMPORTANT SAFEGUARDS Follow basic safety precautions, including:

1 This appliance can be used by children aged from 8 years and

above and persons with reduced physical, sensory or mental

capabilities or lack of experience and knowledge if they have

been supervised/instructed and understand the hazards involved.

•Children shall not play with the appliance.

•Cleaning and user maintenance shall not be done by children

unless they are older than 8 and supervised.

•Keep the appliance and cable out of reach of children under 8

h The surfaces of the appliance will get hot.

l Don’t immerse the appliance in liquid.

2 If the cable is damaged, it must be replaced by the manufacturer,

its service agent, or someone similarly qualified, to avoid hazard.

3 Sit the appliance on a stable, level, heat-resistant surface.

4 Keep the appliance and cable away from the edges of worktops.

5 Don’t use accessories or attachments other than those we supply.

6 Don’t use the appliance for any purpose other than those described in these instructions.

7 Don’t use the appliance if it’s damaged or malfunctions.

U BEFORE USING FOR THE FIRST TIME Fill the reservoir to the max mark, and run the appliance without coffee.

C THE CARAFE IS INSULATED

1 This means you can enjoy fresh, hot coffee anywhere in the home or garden.

2 To close the carafe lid, turn it fully clockwise.

3 The indent will be aligned with (.

4 It should be in this position while the carafe is sitting on the rest, or being carried.

5 To pour, remove the carafe from the rest and turn the lid 90° to align the indent with the

6 Close the lid after pouring.

7 To remove the lid, turn it 1 full turn from the closed position.

8 The indent will be aligned with (.

9 To replace the lid, align the indent with (, fit the lid to the carafe, then turn it fully clockwise.

10 The indent will be aligned with (.

, Rinse the carafe with hot water, to prewarm it, so it doesn’t take heat from the coffee.

11 Remove the carafe from the rest.

12 Use the grip to open the lid, and expose the reservoir.

13 Fill the reservoir with the exact amount of water required.

14 Open up a #4 paper filter, and put it into the filter holder.81

15 Put 1 scoop of filter-ground coffee into the filter for each cup.

16 Close the lid, and press down to lock it.

17 Replace the carafe on the rest.

18 Put the plug into the power socket.

• The appliance will beep. 12:00 will flash on the display.

19 Ignore the clock.

20 If you’re making less than 5 cups of coffee, press the B button.

21 A will show on the display.

22 It slows the brewing process, so your coffee will have the same strength as coffee from a full

23 Press the 2 button. The button will glow.

24 Shortly afterwards, coffee will start to drip into the carafe.

, The coffee grounds will retain water, so the amount of liquid in the carafe will be slightly less

than the amount of water in the reservoir.

25 If you want to stop the coffee maker while it’s brewing, press the 2 button.

26 The status light will change colour to show how fresh the coffee is.

blue = brewing / 0-30 minutes since brewing

blue (flashing) = 30-60 minutes since brewing

27 After 1 hour, the hotplate will switch off.

28 If left for much more than an hour, chemical changes in the coffee liquor start to affect the

flavour. It’s best to pour it away and make a fresh pot.

29 The clock will retain its settings until the coffee maker is unplugged.

30 It’s a 24 hour clock.

31 Set the clock to the correct time.

• Use the h and min buttons to set the correct hour and minute.

32 Set the timer to the time you want to start brewing.

• Press the T button.

• Use the h and min buttons to set the correct hour and minute.

, If you don’t press either the h or min buttons within 5 seconds, the coffee maker will revert to

“normal”, and the time will show. You’ll have to press the T button, and start again.

33 If you’re making less than 5 cups of coffee, press the B button.

34 A will show on the display.

35 Press the AUTO button.

36 AUTO will show on the display.

37 At the time you set, the 2 button will glow, and the coffee maker will start up.

38 To cancel the timer before brewing has started, press the button again.

¬ dishwasher – top rack82

39 If you forget what time you’ve set it to, press and hold the T button, then release it.

40 You can remove the carafe at any time. To prevent the filter holder overflowing, replace the

carafe on the rest within about 20 seconds.

41 If you’re making 5 cups or more, you may use the A function to make the brew slightly

stronger. Just press the B button once.

42 A will show on the display.

C CARE AND MAINTENANCE

43 Unplug the appliance and let it cool.

44 Tip the contents of the filter holder into the bin.

45 Clean the outside surfaces of the appliance with a damp cloth.

46 Hand wash the carafe and filter holder.

47 Turn the filter holder to bring the slot in its rim towards the lid, then lower the filter holder

back into the coffee maker.

48 Close the lid, and press down to lock it.

¬ You may wash these parts in the top rack of a dishwasher.

, If you use a dishwasher, the harsh environment inside the dishwasher will affect the surface

•The damage should be cosmetic only, and should not affect the operation of the appliance.

49 To prevent scale building up, use the self clean function at least monthly in normal water

areas, more often in hard water areas.

50 Ensure the kitchen is well ventilated, as heating vinegar causes an unpleasant smell.

51 This operation will take 45-60 minutes.

52 Mix 6 cups of white vinegar with 4 cups of water in the carafe.

53 Pour the mixture into the reservoir.

55 Replace the carafe on the hotplate.

56 Put the plug into the power socket.

57 Press the E button.

58 E will show on the display.

59 Part of the mixture will come through. The remainder will soak in the boiler for 30 minutes,

60 At the end of the operation, the appliance will beep, then switch itself off.

61 Fill the reservoir to the max mark, and run the appliance without coffee.

62 Do this 2 or 3 times, till the vinegar smell has gone.

, Products returned under guarantee with faults due to scale will be subject to a repair charge.

W ENVIRONMENTAL PROTECTION To avoid environmental and health problems due to hazardous substances in electrical and

electronic goods, appliances marked with this symbol mustn’t be disposed of with unsorted

municipal waste, but recovered, reused, or recycled.

instructions – more detailed instructions are available on our website:
