USER MANUAL DW6 42 FI TEKA

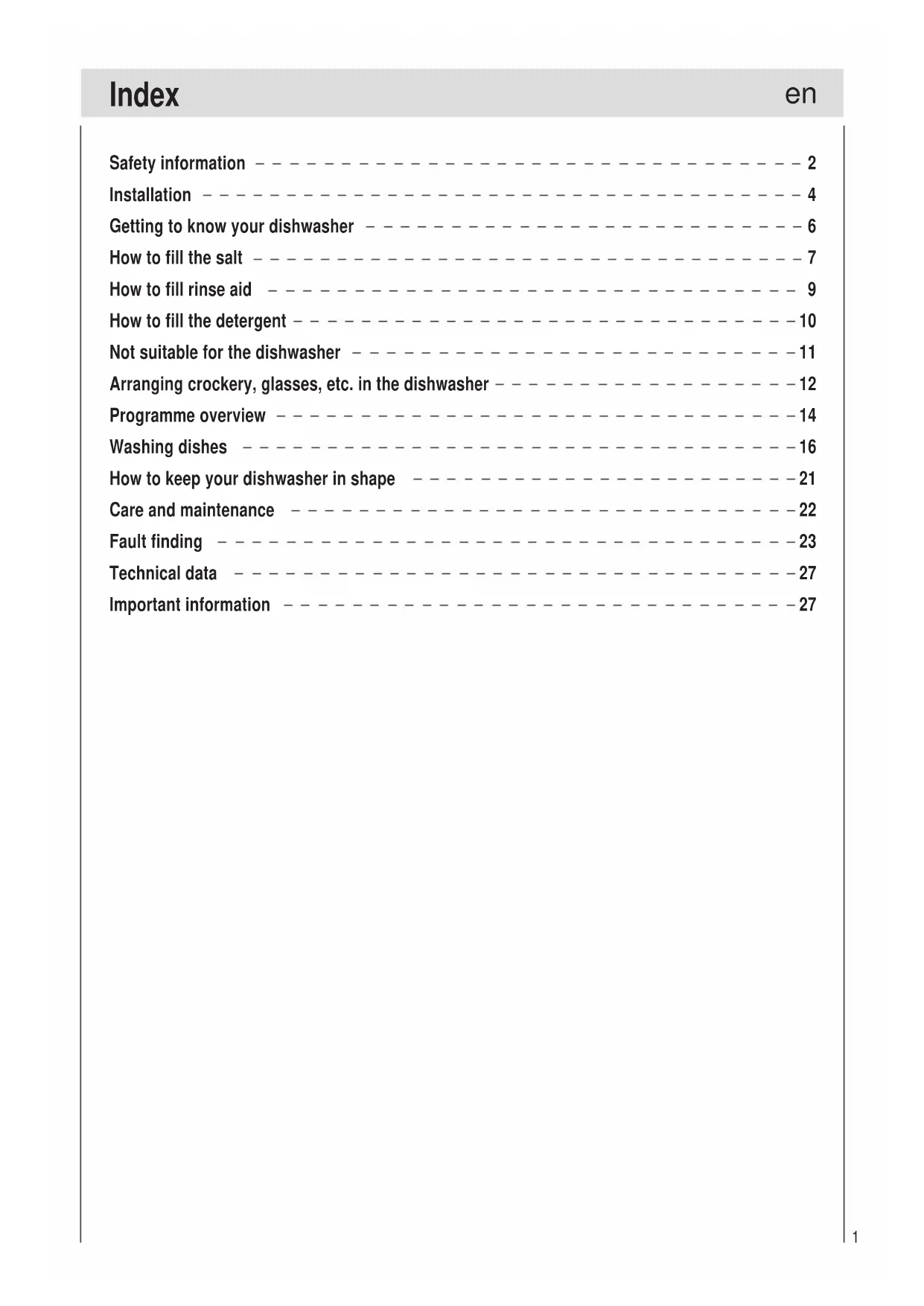

Safety information Installation Getting to know your dishwasher How to fill the salt How to fill rinse aid How to fill the detergent Not suitable for the dishwasher Arranging crockery, glasses, etc. in the dishwasher Programme overview Washing dishes How to keep your dishwasher in shape Care and maintenance Fault finding Technical data Important information

The dishwasher must only be used by adults for the washing of household dishes and cooking utensils. This appliance cannot be installed outdoor, not even if the area in which it is installed is covered by a roof; it is also very dangerous to leave it exposed to the rain and elements. Do not place any heavy objects or stand on the door when it is open. The appliance could tip forward. The water inside the dishwasher is not suitable for drinking. Do not use solvents of any kind inside your dishwasher. They could cause an explosion danger. Open the door very carefully if the dishwasher is operating. There is a risk of water squirting out. During normal use Do not touch the heating element during or after a wash cycle. Fundamental rules to follow when using the appliance: - Never touch the dishwasher when barefoot or with wet hands or feet; - We discourage the use of extension cords and multiple sockets; - If the appliance is not operating properly or maintenance must be performed, disconnect the appliance from the power supply. Place the dishwasher and connect it up in accordance with the installation instructions. The dishwasher must not be connected to the electricity supply while installation is being carried out. Ensure that the domestic wiring is properly earthed. The mains electricity supply must conform to the details shown on the dishwasher nameplate. Do not connect the dishwasher to the electricity supply via an extension cable. Built-under and built-in appliances should always be installed under a continuous work surface which is attached to the adjacent cupboards, in order to ensure that the appliance is entirely stable. After the appliance has been installed,the mains plug should still be easily accessible. The plastic housing on the water inlet contains an electrically operated valve.The connecting wires are inside the inlet hose.Do not cut through this hose and do not immerse the plastic housing in water. During installation, the power supply cord must not be excessively or dangerously bent or flattened. During installation For Switzerland only: There are no restrictions on installing the appliance between wooden or plastic walls as part of a fitted kitchen. If the appliance is not plugged into a wall socket, it must be connected to the mains via a separator for all poles within the domestic wiring system. This device must have a gap of at least 3mm between open contacts, in order to conform with relevant safety regulations. At time of delivery Check packaging and dishwasher immediately for signs of transport damage. If the appliance is damaged, do not put it into use but contact your supplier or customer service without delay. Please dispose of packaging materials properly.3 If your family includes children This appliance is not intended for use by persons (including children) with reduced physical,sensory or mental capcabilities, or lack of experience and knowledge,unless they have been given supervi- sion or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they to not play with the appliance. Keep detergents out of the reach of children, who must also be kept away from the dishwasher when it is open. If a fault occurs If the appliance malfunctions, turn off water supply to the appliance and disconnect the plug from the wall socket. Then, consult the section entitled, "Fault finding" .If you cannot solve the problem, con- tact a service center. Only specialised personnel are authorised to make repairs. If the supply cord is damaged ,it must be replaced by the manufacture ,its service agent of similarly qualified persons in order to avoid a hazard. To maintain the EFFICIENCY and SAFETY of this appliance,we recommend: - call only the Service Centers authorized by the manufacturer. - always use original Spare Parts. When disposing of old appliances Appliances which are no longer being used must be made inoperable by cutting the power supply cord and removing the door lock. Take the appliance to a designated waste disposal center. Warning Children could get locked in the appliance (risk of suffocation) or get stuck in other positions. Therefore: Remove the mains plug, cut the mains wire and set aside. Damage the door lock so that the door can no longer be closed. Dangerous voltage en4 Cold water connection Connect the water supply hose to a threaded 3/4 (gas) connector, making sure that it is fastened tightly in place (see fig.A). Some models are fitted with an "Aquastop" water supply hose (see fig.B) in which the small filter is already housed in the threaded end. If the water pipes are new or have not been used for an ex- tended period of time, let the water run to make sure that the water is clear and free of impurities. If this precaution is not taken, there is a risk that the water inlet can get blocked and damage the appliance. Positioning the appliance Change the appliance in the desired location. The back should rest against the wall behind it, and the sides, along the adjacent cabinets or wall. The dishwasher is equipped with water supply and drain hoses that can be positioned to the right or the left to facilitate proper installation. fig.A Anti-Flooding protection If dishwasher is equipped with a system that stops the supply of water in the event of a problem with the water supply hose, or leaks within the unit, in order to prevent damage to your home. If for any reason the box containing the electrical components happens to get damaged, remove the plug for the appliance from the socket immediately. In order to guarantee that the anti-flooding feature operates properly, the "A" box with water supply hose must be attached to the water supply tap as shown in fig.B. No other type of connection is acceptable. The water supply hose must not, under any circumstances, be cut, as it contains electrical parts which are live. If the length of the hose is not adequate to make a proper connection, the hose must be replaced with one which is long enough. This hose is available upon request from specialised retailers and service center. fig.B Levelling the appliance Once the appliance is positioned, adjust the feet (screwing them in or out) to adjust the dishwasher, making it level. In any case, the appliance should not be inclined more than 2˚. If the appli- ance is levelled, it will help ensure proper performance. Installation Warning The appliance is to be connected to the water mains using new hose-sets and that old hose-sets should not be reused. en5 Drain hose connection Insert the drain hose into a drain pipe with a minimum diameter of 4cm, or let it run into the sink, making sure to avoid bending or crimping it. If necessary, fit a syphon trap (U-bend) with a connecting piece for the drain hose (fig.C). The free end of the hose must be at a height between 40 and 100 cm and must not be immersed in water. fig.C Attention: The connecting piece for syphon trap (U-bend) must be solidly fastened to the wall to prevent the drain hose from moving and allowing water to spill outside the drain. Electrical Connection After making sure that the voltage and frequency values for the current in the home correspond to those on the rating plate (located on the stainless steel inner door of the appliance) and that the electrical system is correct for the maximum voltage on the rating plate, insert the plug into an electrical socket which is earthed properly (the earthing of the appliance is a safety requirement mandated by law). If the electrical socket to which the appliance must be connected is not appropriate for the plug, replace the whole cable, rather than using adaptors or the similar like as they could cause overheating and burns. Caution: The dishwasher plug must be accessible even when the appli- ance is installed as a built-in unit so that maintenance can be done safely. enGetting to know your dishwasher Close-up view (control panel)

ON-OFF Button " 1/2 " Button Delayed Start Button ON-OFF Indicator Time-remaining Indicator

Upper Rack Rack Height Adjustor Top Spray Arm Lower Rack Washing Filter Detergent and Rinse Aid Dispenser Salt Container Cap Bottom Spray Arm Third Sprayer

hSalt The hardness of the water varies from place to place. If hard water is used in the dishwasher, deposits will form on the dishes and utensils. The appliance is equipped with a special softener that uses a salt specifically designed to eliminate lime and minerals from the water. How to fill the salt Loading the salt into the container Always use salt intended for use with dishwashers. The salt container is located beneath the lower rack and should be filled as follows:

When the low salt indicator “E” lights, you must fill the salt. Remove the lower rack and then unscrew and remove the cap from the salt container; If you are filling the container for the first time, fill it with water; Place the end of the funnel (supplied) into the hole and introduce about 2 kg of salt. It is normal for a small amount of water to come out of the salt container. Carefully screw the cap back on.

Important To prevent the formation of rust, load the salt just before beginning a wash cycle. enAdjusting salt consumption The dishwasher is designed to allow for adjusting the amount of salt consumed based on the hardness of the water used. This is intended to optimize and customize the level of salt consumption so that it remains at a minimum. To adjust salt consumption, proceed as follows: Unscrew the cap from the salt container; There is a ring on the container with an arrow on it (see figure to the side), If necessary, rotate the ring in an anticlockwise direction from the "-" setting towards the "+" sign, based on the hardness of the water being used. It is recommended that adjustments be made in accordance with the following table: Water Hardness Clarke degrees ºdH mmol/l Selector position Salt consumption (Grams/cycle) Autonomy (cycles/2kg)

enRinse aid This product makes dishes sparkle and helps them to dry without spotting. The dispenser is located on the inside panel of the door . Important Proper dosage of the rinse aid improves drying. If drops of water remain on the dishes or spotting occurs, the dosage adjuster should be turned to a higher setting. If the dishes have white streaks, turn the dosage adjuster to a lower setting. Loading the rinse aid Regardless of the type of detergent dispenser installed on your appliance, you must proceed as indicated below when loading the rinse aid. To open the dispenser, turn the "1" cap in an anti-clockwise direction and then pour in the rinse aid, making sure not to overfill. The amount of rinse aid used for each cycle can be regulated by turning the "2" dose adjuster, located beneath the "1" cap, with a screwdriver. There are 6 different settings; the normal dosage setting is

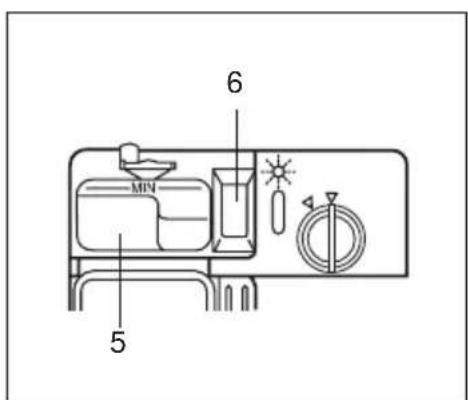

Detergent Detergent specifically intended for use with dishwashers must be used. The dispenser must be refilled before the start of each wash cycle following the instructions provided in the "Programme overview". The detergent dispenser is located on the inside panel of the door. Loading the detergent Notice: To facilitate closing the cover, remove any excess of detergent on the edges of the dispenser. To open the " 3 " cover on the dispenser, press the " 4 " button. The detergent for the wash cycle should be poured into the " 5 " compartment. The detergent for the pre-wash cycle should be poured into the “ 6 ” compartment. After the detergent has been placed in the dispenser, close the cover and press down until it clicks in place. How to fill the detergent

Notice: The usage of 3 in 1 or similar tablets is forbidden when Heat wash, Rapid Wash and Soak programmes are selected.11

Not suitable for the dishwasher What you should not put into the dishwasher Cutlery and tableware manufactured in whole or part from wood.They become faded and unsightly inappearance.Furthermore,the adhesives that are used are not suitable for the temperature that occurinside the dishwasher.Delicate decorative glassware and vases,special antique or irreplaceable china.The decorative patterns on such items will not be dishwasher-proof.Plastic objects that are not resistant to hot water, copper and pewter utensils are also not suitable.Decorative patterns printed or painted onto the surface of crockery, glasses, etc.,aluminium and silveritems tend to become discoloured or faded if washed in the diswasher. Some types of glass can becomeopaque in appearance after they have been washed many times in a dishwasher. Highly absorbentmaterials, such as sponges and towels,should never be placed in the dishwasher. Our recommendation In future, only purchase table or kitchenware that has been confirmed as being dishwasher-proof. Important Dishes or cutlery that have been soiled by tobacco ash, wax,Iubricating grease or paint, should not be put in the dishwasher. Damage to glassware and other dishes Possible causes type of glass or manufacturing processchemical composition of detergentwater temperature and duration of dishwasher programme.Use glassware or porcelain dishes that have been marked ‘dishwasher-proof’ by the manufacturer.Use a mild detergent that is described as ‘kind to dishes’. If necessary, seek further information fromdetergent manufacturers.Select a programme with a low temperature and a short duration as possible.To prevent damage, take glass and cutlery out of the dishwasher as soon as possible after theprogramme has ended. Suggested remedy12

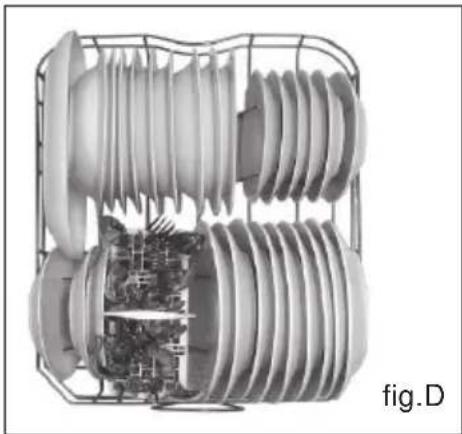

Arranging crockery, glasses, etc. in the dishwasher Before placing the dishes in the dishwasher, remove larger food particles to prevent the filter from be- coming clogged, which results in reduced performance. If the pots and pans have baked-on food that is extremely hard to remove, we recommend that they are soaked before washed. This will eliminate the need for extra wash cycles. Pull out the rack to load the dishwasher. How to use the lower rack We recommend that you place the most difficult to clean items on the bottom rack: pots, pans, lids, serving dishes and bowls, as shown in the figure to the right. It is preferable to place serving dishes and lids on the sides of the racks in order to avoid blocking the rotation of the top spray arm. Pots, serving bowls, etc. must always be placed face down (see fig.D) . Deep pots should be slanted to allow the water to flow out. fig.DNormal daily load Warning knives and other utensils with sharp points must be loaded in the basket with their points down or placed in a horizontal position.

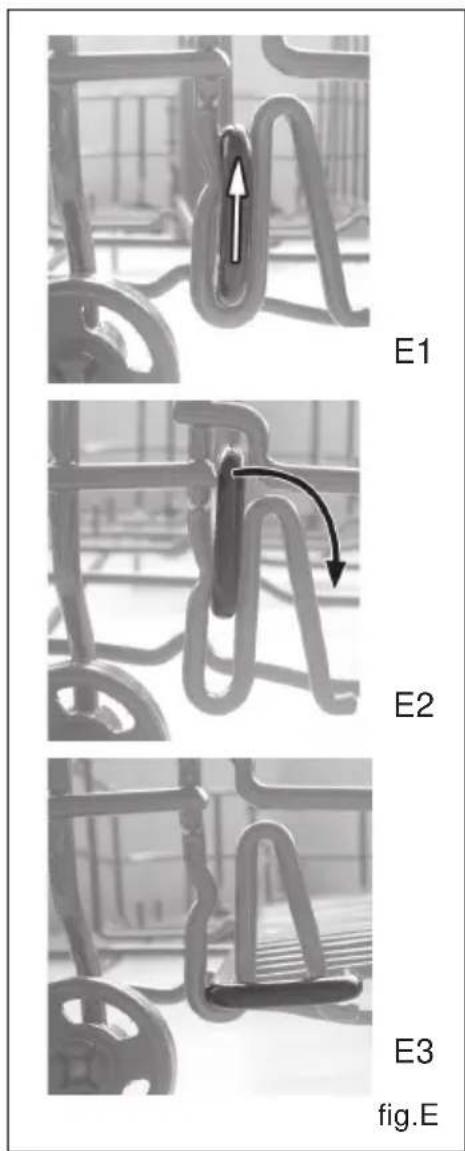

The lower rack features fold down tine rows (see fig.E) so that larger or more pots and pans can be loaded. fig.E13

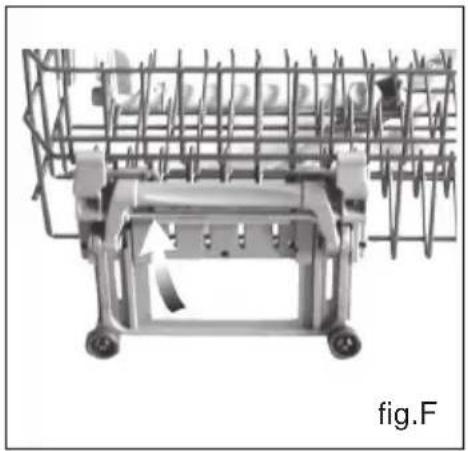

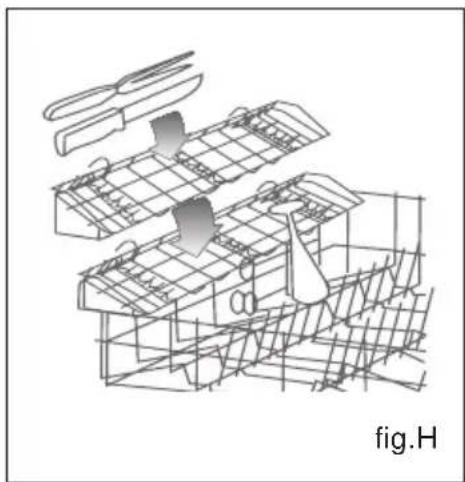

fig.G Shelf Lean tall glasses and those with long stems against the shelf- not against other items to be washed. Place glasses, cups and small bowls on the additional cup rack. The additional cup rack can be swivelled in or out as required (see fig.G). Knife rack The knife rack clips onto the side of the top basket, giving you the freedom to wash your large sharp knives separately and out of harm’s way (see fig.H). fig.H The upper rack is designed to hold more delicate and lighter dishware, such as glasses, cups and saucers, plates, small bowls and shallow pans (as long as they are not too dirty). How to use the upper rack fig.F Adjust the upper basket to the higher level and you have more space to accommodate those taller pans and trays in the bottom basket. Position the dishes and cookware so that they do not get moved by the spray of water. The upper rack can be adjusted for height by using the knobs located on the sides of the rack itself (see fig.F).Programme overview Wash programme Type of crokery e.g. china, pots/ pan s, cutiery, glasses, etc Amount of food remains Description of cycle Condi- tion of food remains 1/2 Load Pre-wash with hot water. Extended wash at 70°C. Rinses with cold water. Rinse with hot water. Drying. Pre-wash use cold water. Extended wash at 55°C. Rinse with cold water. Rinse with hot water. Drying. Short wash at 40°C. Cold rinse. Short cold wash to pre- vent food residue from drying on the dishes . Pre-wash use cold water. Extended wash at 50°C. Rinse with cold water. Rinse with hot water. Drying. Wash at 45°C. Rinse with cold water. Hot rinse. Drying. Soups, casseroles, sauces, potatoes, pasts, rice, eggs, roast or fried food. a lot a little stuck on hard Soups, potatoes, pasta, rice, eggs, roast or fried food. loosely attached Coffee,cakes, milk, sausage, cold drinks, salads Very little loosely attached Rinse off if the dishes have been stacked for several days in the dish- washer prior to washing. Type of food remains Non- delicate Mixed Intensive Wash Normal Wash Light Wash (EN50242) Glass ware Soak Rapid wash

Heat wash Hot rinse at 65°C. Drying. For dishes that need to be rinsed and dried only. 3 in 1Delayed Start Detergent Extended Wash Prewash Rinse Aid Duration in minutes Energy consump- tion in kWh Water consump- tion in litres Laboratory measured valve in accordance with European Standard EN50242

5gWashing dishes Programme selection The most appropriate programme can be identified by comparing the type of crockery, cutlery, etc., as well as the amount and condition of food remains, with the details contained in the wash cycle table.The corresponding programme sequence, duration and consumption details are shown in the right half of the overview. For example: Use the« normal» programme for dishes and utensils which have plenty of food remains stuck on hard. Earn savings If only a small number of dishes have been loaded into the dishwasher,selecting a programme that operates at the next lowest temperature will usually be sufficient. Programme data The stated programme data are based on standard operating conditions. The values can vary consider- ably according to: different amounts of dishes temperature of mains water supply pressure of mains water supply ambient temperature fluctuations in mains voltage machine-related factors (e.g. temperature, water volume,...)

enSwitching the dishwasher ON End of programme Six beeps will indicate that the wash cycle has finished.

Turn on the tap. Open the door. Set ON-OFF button “I” to ON. Press programme button “B” , programme indicator “ A” lights and the time-remaining indicator “ F ” dis- plays the time of the programme.. If the door is closed, the programme indicator “A” be- comes to light and the dishwasher beeps one time , then the programme starts automatically. Interrupping the programme A cycle that is underway can be modified if it has only been running for a short time. Otherwise, the detergent may have already been used, and the appliance may have already drained the wash water. If this is the case, the detergent dispenser must be refilled ( see the paragraph entitled, “ Loading the detergent ”). Open the door. Caution! There is a risk of water squirting out from inside the appliance. Do not open the door fully until spray arm has stopped rotating. When you open the door, the dishwasher will beep ten times every thirty seconds. If the appliance has already heated up or the hot water was switched ON and then the appliance door opened, leave the door ajar for several minutes and then close. Otherwise, the appliance door may open due to expansion. Switching the dishwasher OFF Several minutes after the programme has ended: Open the door. Set ON-OFF button “ I ” to OFF. Remove dishes, etc. when they have cooled down. IF G

BClose the door, the delayed start indicator “ G ” blinks , the time-remaining indicator “ F ” will blink and decrease, the programme will start until the delayed start indicator “ G ” goes out .

Delayed start programming You can delay the start of a programme in increments of 1 hour up to 24 hours. Switch dishwasher ON. Press programme button “ B ” to choose the desired programme. Immediately press the Delayed Start button “ G ”, the delayed start indicator lights, the delayed start time indicator “ F ” changes to “ ”. Press the Delayed Start button “ G ” as many times as necessary until the numerical display shows the required delay. To cancel the time delay setting, pressing the Delayed Start button until the delayed start indicator goes out. 1/2 Load Button This button “H” (see" Close-up View (Control Panel) ) makes it possible to wash dishes using only the upper rack if there are not enough dishes for a full load. This will allow you to save on water and energy consumption. To select 1/2 load: Select the programme ( see the paragraph entitled“ Switching the dishwaher ON”) Press the 1/2 load button “ H ” , 1/2 load indicator lights. If the door is closed, the programme starts automatically.

- Please keep in mind that the amount of detergent should also be adapted to the 1/2 load. To cancel the 1/2 load while underway Press programme button “ B ” and hold it in for about 3 seconds.19

3in1 function When using "3 in 1"combination products, the rinse-aid and salt lights are no longer useful. It may be helpful therefore to switch the rinse aid off (please note that only some dishwashers have this facility) and selecting the lowest possible setting for water hardness. If you decide to switch to the use of a standard detergent system we advise that you: 1: Refill both the salt and rinse aid compartments. 2: Switch the waterhardness setting to the highest possible position and run for three normal cycles without a load. 3: Readjust the waterhardness setting again according to the conditions for your region (For more infor- mation please refer to your instruction manual). Memory Function Module If the dishwasher is switched off through the ON/OFF button, or a current leak happens while the se- lected washing program is active, the program is not cancelled. The controls use a microprocessor device, to memorize the information about the selected washing program. Once the machine is again powered on, the dishwasher will be resumed from the point it was interrupted. Canceling or modifying a washing program cycle 1:To modify or cancel the carrying out of a washing cycle (being the door opened), it's necessary to reset the previous programming, by holding pushed the programme selector button “B” for at least 3 seconds, and the buzzer emits one short warning signal. 2:If the reset operation was successful, a drain phase is started. Once the drain phase is ended, the dishwasher stands waiting for a new programming 3:A cycle that is underway can be modified if it has only been running for a short time. Otherwise, the detergent may have already been used, and the appliance may have already drained the wash water. If this is the case, the detergent dispenser must be refilled.

Notice: Do not place the tablets in the tub or the cutlery basket as this will result in poorer wash results. The tablets should be placed in the detergent doser.Tabs With Classic Tabs you can put your dirtiest dishes straight into the dishwasher. The tab contains StainSoakers which dissolve instantly to soften really dried on food residues such as baked on egg and cheese sauces. The blue layer then works to break down and lift off food remains while the white layer cleans all traces of dirt away for a spotless and brilliant finish. For best results use with Rinse Aid and Special Salt. Directions: Simply unwrap one tab and place in the detergent dispenser of your dishwasher. For best results, use with Rinse Aid and Special Salt. 3in1 Tabs With powerful grease cutting action, 3in1 Tabs effectively remove tough stains, so you don't have to re- wash! The blue layer contains powerful detergent and Red StainSoaker speckles to soften and break down tough dried-on stains. The white layer, with its integrated salt function, softens the water and prevents limescale whilst remov- ing all traces of residue. The 3in1 tab contains a rinse aid ball to deliver a spotless, streak free brilliant shine. 3in1 tabs are pre-measured so there's never any guessing, measuring, mess or waste. Directions: Simply unwrap one tab and place in the detergent dispenser of your dishwasher. No need to add additional salt or rinse aid. 3in1 Tabs' salt-action is effective in soft, medium and hard water up to 26°„e (around 95% of households). 5in1 Tabs Are you looking for unbeatable cleaning performance from your dishwashing detergent? 5in1 Tabs have taken dishwashing to the next level with an extra cleaning power to remove encrusted stains for an ex- treme clean.

1. The tablet is formulated with powerful detergent and red StainSoaker speckles to help penetrate and

break down the toughest baked-on and dried-on stains, even tea stains.

2. Using a rinse aid function, the tab is developed for a spotless, streak-free sparkling shine.

3. In the white layer of the tablet, the 5in1 Salt-action prevents limescale deposits in your machine that can

result in residue on your glasses.

4. Protector Action helps prevent permanent glass corrosion, a source of cloudy glasses.

5. The tab gives extra cleaning power to help remove encrusted stains for a complete clean.

Directions: Simply unwrap one tab and place in the detergent dispenser of your dishwasher. 5in1 Salt- Action is effective in soft, medium and hard water up to 26°„ e (approximately 95% of households).

enHow to keep your dishwasher in shape After Every Wash After every wash, set the main switch “I” to off and leave the door slightly ajar so that moisture and odors are not trapped inside. Remove the plug Before cleaning or performing maintenance, always remove the plug from the socket. Do not run risks. No solvents or Abrasive Cleaning Products To clean the exterior and rubber parts of the dishwasher, do not use solvents or abrasive cleaning products. Rather, use only a cloth and warm soapy water. To remove spots or stains from the surface of the interior, use a cloth dampened with water and a little while vinegar, or cleaning product made specifically for dishwashers. Moving the Appliance If the appliance must be moved, try to keep it in a vertical position. If absolutely necessary, it can be positioned on its back. Seals One of the factors that cause odors to form in the dishwasher is food that remains trapped in the seals. Periodic cleaning with a damp sponge will prevent this from occurring. The door should not be left in the open position since this could present a tripping hazard. When You Go on Holiday When you go on holiday, it is recommended that you run a wash cycle with the dishwasher empty and then remove the plug from the socket, turn off the water supply and leave the door of the appliance slightly ajar. This will help the seals last longer and prevent odors from forming within the appliance.

enCare and maintenance Dishwasher salt Check the LOW SALT indicator “E”. Top up with salt, if required. Regular inspection and maintenance of your appliance helps to prevent problems from occurring.This saves time and aggravation.You should therefore carefully inspect the inside of your dishwasher from time to time. Overall condition of appliance Check that no grease or scale has accumulated on the inside of the dishwasher. If you discover any deposits: Clean the interior of the dishwasher thorughly with a detergent solution. Rinse-aid Check the LOW RINSE AID indicator “ D ”, on the front panel. Top up with rinse-aid,if required. Filters The filters “7”,“8” prevent larger particles of food in the water from reaching the pump.These particles may occasionally block the filters. When the appliance has finished washing, check the filters for particles of food and, if required, clean. After undoing the coarse micro-filter “7 ” , the filter unit “ 9” can be removed. Remove any particles of food and rinse the filters under running water. Insert the filter unit “ 8 ” and tighten the coarse micro-filter.

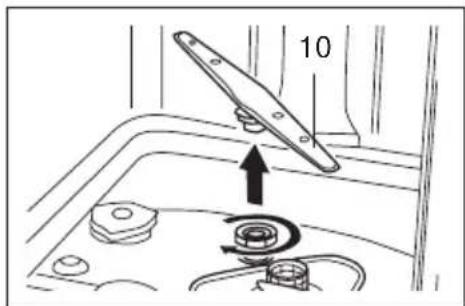

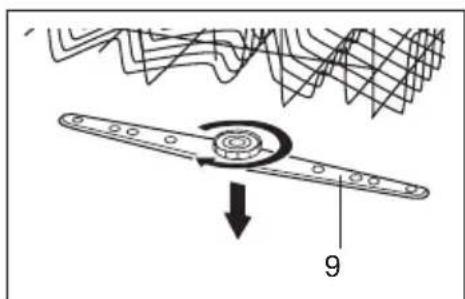

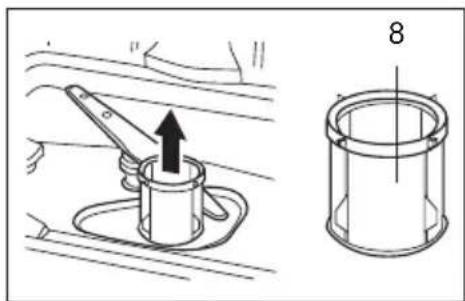

Inspect the nozzles in the spray arms for blocked holes due to remnants of food. If necessary, pull the lower arm “ 10 ” upwards and lift it off. Unscrew the upper spray arm “ 9 ”. Clean both spray arms under running water. Refit the spray arms. Ensure that the lower arm has locked into place and the upper one is screwed tight. Spray arms Lime and remnants of food in the washing water can block the nozzles in the spray arms “ 9 ” and “ 10 ” and the arm mountings.

10Resolving minor problems yourself Experience has shown that you can resolve most problems that rise during normal daily usage yourself,without having to call out a service engineer.Not only does this save costs,but it also means that theappliance is available for use again that much sooner. The following list of common occurrences andtheir remedies should help you identify the causes of most problems. Problems... ...when the appliance is switched on Appliance does not start up ...with the appliance itself Error display on the time-remaining indicator When “ ” (F) blinks. Have you checked whether: the door is closed properly. Fault finding Fault with fuse in mains electricity supply.Plug not inserted in wall socket.Appliance door not closed properly.Programme button has not been pressed.Water tap not turned on.Blocked strainer in water intake hose.- The strainer is situated in the Aquastop or supply-hose connection.

When “ ” (F) blinks. Have you checked whether: the drain hose is too low. Caution Do not forget that repairs should only be carried out by a qualifiedspecialist. Improper repairs can lead to considerable equipment dam-age as well as danger to the user.If you take all these checks and the dishwasher still does not function or your dish- washer have any other error display, you can power the dishwasher OFF, and wait a few minutes. You can power the dishwasher on, try it again , if the dishwasher still does not function and/or the problem persists, contact the nearest authorised service center and provide them with the following information: the nature of the problem. the model type number (Mod...) And the serial number (S/N...), which are indicated on the plate located on the side of the inner part of the door. Lower spray arm rotates with difficulty Spray arm is blocked by small items or food remains. Lid in detergent compartment cannot be closed Detergent compartment has been overfilled. Mechanism is clogged with remnants of detergent. Indicator lamps do not extinguish after washing has finished Main switch is still set to ON. Remnants of detergent stuck inside dispenser Compartment was damp when it was filled up with detergent. Compartment must be dry before detergent is added.

When “ ” (F) blinks. Have you checked whether: the drain hose is crimped or bent. the drain hose is too high. When “ ” (F) blinks. Have you checked whether: the water is turned on and the hose is connected properly; the water supply to the house is on and has sufficient pressure; the water supply hose is crimped or bent; the filter for the water supply hose is clogged. the drain hose is too low.Water remains inside appliance after programme has ended Blockage or kind in drainage hose. Pump is jammed. Filters are blocked. The programme is still running. Wait for the programme to end . ...during washing Unusual amount of foam is creased Normal washing up liquid has been poured into the rinse-aid container. Appliance stops suddenly while washing is taking place Cut off electricity supply to appliance. Water supply has been interrupted. Knocking sound can be heared while washing is taking place A spray arm is knocking against the dishes inside the appliance. Rattling sound can be heared while washing is taking place Crockery has not been stacked properly inside the appliance. Knocking sound coming from inlet valves This is caused by the way the water pipes have been laid and it has no effect upon the way the appliance functions. There is no remedy for this. Remove any spilled rinse aid with a cloth as it could otherwise lead to excessive foaming during the next washing cycle. ...with the dishes,cutlery, etc. Remnants of food are stuck to the dishes, cutlery,etc. Dishwasher was not loaded properly. Jets of water could not reach all parts of the dishes, etc. Too many items in the rack. Items in the rack were touching each other. Not enough detergent was added to dispenser. Selected wash programme was not intensive enough. Rotation of spray arm was obstructed by dishes, etc. Nozzles in spray arm are blocked by remnants of food. Filters are blocked. Filters have been incorrectly fitted. Waste-water pump is jammed.

enNot enough detergent was added to dispenser. Detergent has insuffcient bleaching properties. Use a detergent containing a chemical bleaching agent. Plastic items are discoloured Not enough detergent was added to dispenser compartment. Amount of rinse-aid was set too low. Although water is quite hard, no salt has been put in appliance. Water softener was set too low. Lid on salt container is not screwed tight. If you used a phosphate-free detergent , try a detergent containing phosphates and compare results. White stains are left on crockery, glasses have a milky appearance Selected programme did not include drying function. Amount of rinse-aid was set too low. Items were removed from dishwasher too soon. Dishes,cultlery,etc.have not been dried Amount of rinse-aid was set too low. Glasses have a dull appearance Detergent does not have a sufficient bleaching effect. Washing temperature was set too low. Tea stains or traces of lipstick have not been completely removed Cutlery is not sufficiently rustproof. Salt content in washing water is too high. Traces of rust on cutlery Unsuitable detergent was used. Glasses are not dishwasher-proof. Glasses become clouded and discoloured; coating cannot be wiped off Amount of rinse-aid set too high. Smears left behind on glasses and cutlery; glasses have acquired a metallic appearance - Lid on salt container is not screwed tight. - Too much salt was spilt while filling container.

Important information Notes on waste disposal Old appliances still have some residual value. An environment-friendly method of disposal will ensure that valuable raw materials can be recovered and used again. When an appliance has reached the end of its working life,unplug it from the mains.Cut through the mains cable and dispose of it together with the plug. Destroy the door locking mechanism. This will ensure that children at play cannot become locked inside and are not exposed to the risk of suffocation. Your new appliance was protected by suitable packaging while it was on its way to you. All materials used for this purpose are environment-friendly and can be recycled. Please make a contribution to protecting the environment by disposing of the packaging appropriately. Do not allow children to play with any parts of the packaging. There is a risk of suffocation by the cardboard boxes and the plastic wrapping. Up-to -date information concerning options for disposal can obtained from your retailer or local munici- pal administration. General information Measures must be taken to ensure that built-under and built-in units that are subsequently re-sited as free-standing appliances cannot topple over. This can be achieved by bolting the dishwasher to the wall or fitting it under a continuous work surface which is screwed to the adjacent cupboards.28

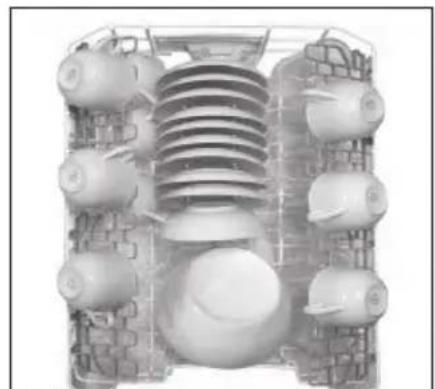

Height-adjustable top-basket must be inserted in the uppermost position. If the comparability tests do not comply fully with EN 50242, e.g., degree of soiling, type of dishes and cutlery, etc., contact the appliance manufacturer before starting the test. Fig.1 Fig.3Fig.2 Information on comparability tests implemented in compliance with EN 50242 Appliance loaded in accordance with standard specifications. Example of loaded dishwasher: See Fig 1 , 2 and 3. Capacity: 9 place settings Comparability programme: Light wash Rinse-aid setting: 5 Detergent: 25g+5g29
