USER MANUAL TE809F01DE SIEMENS

Included in delivery (see page 31)

80% Espresso 20% Milch10

electrical and electronic equipment

Congratulations on purchasing this fully

automatic espresso machine from Siemens.

These operating instructions describe vari-

ous appliance designs, which differ in detail.

Please also refer to the quick reference

guide. This can be kept in a special storage

compartment 22 until the appliance is used

Safety instructions 29

Included in delivery 31

Preparation using coffee beans 41

Preparation using ground coffee 42

Preparing milk froth and warm milk 43

Dispensing hot water 43

Maintenance and daily cleaning 44

Service Programmes 46

Tips on energy saving 50

Storing accessories 50

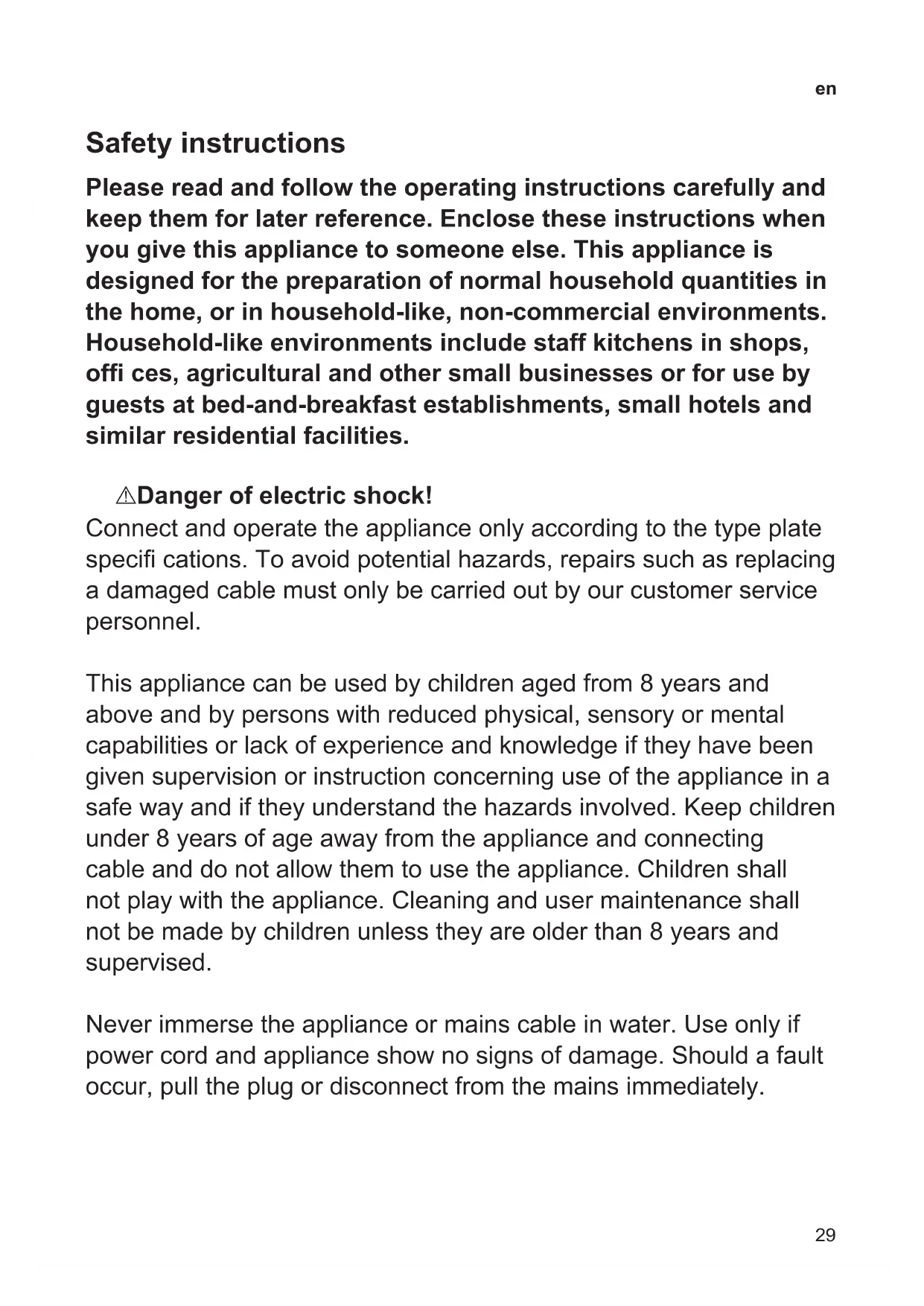

Please read and follow the operating instructions carefully and

keep them for later reference. Enclose these instructions when

you give this appliance to someone else. This appliance is

designed for the preparation of normal household quantities in

the home, or in household-like, non-commercial environments.

Household-like environments include staff kitchens in shops,

of ces, agricultural and other small businesses or for use by

guests at bed-and-breakfast establishments, small hotels and

similar residential facilities.

¡ Danger of electric shock!

Connect and operate the appliance only according to the type plate

speci cations. To avoid potential hazards, repairs such as replacing

a damaged cable must only be carried out by our customer service

This appliance can be used by children aged from 8 years and

above and by persons with reduced physical, sensory or mental

capabilities or lack of experience and knowledge if they have been

given supervision or instruction concerning use of the appliance in a

safe way and if they understand the hazards involved. Keep children

under 8 years of age away from the appliance and connecting

cable and do not allow them to use the appliance. Children shall

not play with the appliance. Cleaning and user maintenance shall

not be made by children unless they are older than 8 years and

Never immerse the appliance or mains cable in water. Use only if

power cord and appliance show no signs of damage. Should a fault

occur, pull the plug or disconnect from the mains immediately.30

The appliance contains permanent magnets that may in uence

electronic implants such as pacemakers or insulin pumps. Persons

with electronic implants should keep a minimum of 10 cm away from

the front of the appliance.

¡ Risk of suffocation!

Do not allow children to play with packaging material.

Store small parts safely as they can be easily swallowed.

Do not reach into the grinding unit. A misuse of the appliance can

potentially lead to injury.

The milk system becomes extremely hot. After use, allow to cool

down  rst before touching. After the use the heating element

surfaces and warming plate can be subjected to residual heat.31

1 Power on/off switch O / I

height-adjustable and swivelling

height-adjustable and removable

11 Removable water tank

12 Lid for water tank

13 Storage compartment for

(insertion aid for water lter)

17 Selector for grind setting

18 Powder compartment

(ground coffee / cleaning tablet)

19 Door to brewing unit

21 Eject lever for brewing unit

22 Storage compartment for

quick reference guide

c) Coffee grounds container

24 Cable storage compartment

25 Rating label (ENo.; FD)

26 Milk container, insulated with

27 Cup warming function

28 Button for cup warming function,

Included in delivery

(Figure A on the fold-out pages)

1 Fully automatic espresso machine

7 Milk container, insulated with

(Figures B, C, D, E and F on the fold-out pages)32

Before using for the

Fill the appropriate container using only

pure, cold, uncarbonated water and only

roasted beans (preferably espresso or cof-

fee bean blends for fully automatic coffee

machines). Do not use coffee beans that

have been glazed, caramelised or treated

with other additives containing sugar, since

they will block the brewing unit.

The water hardness setting can be adjusted

on this appliance. The factory setting for the

water hardness is 4. Check the hardness

of the water you use with the enclosed test

strip. If a value other than water hardness

4 is displayed, change the setting on the

appliance accordingly after switching on

(see “Menu settings – Water hardness”).

Setting up the appliance

● Place the fully automatic espresso

machine on a at, waterresistant surface

that can take its weight.

Important: Only use the appliance in

frost-free rooms. If the appliance has been

transported or stored at temperatures below

0 °C, wait at least 3 hours before operation.

● Pull out the mains plug from the cable

compartment 24 and plug it in. Adjust the

length of the cable by pushing it back in

and pulling it out. To do this, place the

appliance with its back ush with the edge

of the work surface and either pull the

cable downwards or push it upwards.

● Lift the lid of the water tank 12.

● Remove and rinse the water tank 11 and

ll it with fresh, cold water. Do not ll

above the “max” mark.

● Replace the water tank 11 and push it

rmly downwards into place.

● Close the water tank lid 12 again.

● Fill the bean container 15 with coffee

● Press the power switch 1 O / I. The

start button 8 lights up and the different

languages appear in the display 5.

The following languages can be selected:

● Use the buttons < and > 4 to select the

language in which you want the display

The selected language is highlighted.

● Press the start button 8. The language

you selected is saved.

● The brand logo lights up in the display 5.

The appliance now heats up and rinses.

Some water will run out of the coffee

● The appliance is ready for use when the

symbols for the drink selection and the

start button 8 light up in the display 5.

Info: The factory settings of the fully auto-

matic espresso machine are programmed

for optimal performance. The appliance

switches off automatically after a specic

time (see “Menu settings – Auto off after”).33

Note: If the appliance is being used for the

rst time, the service programme has been

run, or the appliance has not been oper-

ated for a long period, the rst beverage will

not have the full aroma and should not be

When the fully automatic espresso machine

is rst used, you will achieve a suitably thick

and stable “crema” only after the rst few

cups have been dispensed.

Power on/off switch O / I The power on/off switch 1 O / I is used

to switch the appliance on or off. The

appliance rinses automatically when it is

switched on and off.

The appliance will not rinse if:

● it is still warm when switched on.

● there was no coffee drawn before switch-

The appliance is ready for use when the

symbols for the drink selection and the start

button 8 light up in the display 5.

Customising button á

The appliance provides the option of saving

and calling up customised settings for

coffee drinks. Please refer to the section

“ Customising” for information on how to

save and call up these settings.

Service programmes button à

Press the à button 3 briey to call up the

selection of service programmes. Please

run the programme as described in “Service

Press and hold to activate or deactivate the

child-proof lock, see “Child-proof lock”.

Turn the rotary knob 6 to the left or right to

navigate through the display 5, or to adjust

parameters in the menu.

Selection buttons < and >

Press the selection buttons 4 < and > to

navigate up and down through the menu

levels (navigation line 5c).

The display 5 uses symbols to indicate

the selection options, coffee strength and

per-cup quantity, and uses text to indicate

settings, ongoing processes and messages.

The rotary knob 6 and selection buttons

4 can be used to change settings. The

selected setting is highlighted by a frame.

The status line 5a shows the name of the

type of drink, along with the strength setting

55 and per-cup quantity

The selection line 5b shows symbols for

The arrows in the navigation line 5c indicate

the direction in which more menu levels can

Please refer to “Displays” for more detailed

Press the start button 8 to begin drink prep-

aration or to start a service programme.

Press the start button 8 again during drink

preparation to stop the dispensing process

j button and settings

Use the j button 7 to display information

(press briey) and adjust settings (hold

down for at least 3 seconds).

Displaying information

The following information can be displayed

● when should the next service be

● how many drinks have been dispensed

since the espresso machine was

● Press the j button 7 briey and navigate

with the < and > buttons 4.

Change filter in 200

No. of milk mixes 15

Amount hot water 2 l

* appears only if the lter is activated.

Press the j button 7 briey to return to the

drink selection. If no button is pressed for

about 10 seconds, the appliance automati-

cally switches back to drink selection mode.

See “Menu settings”.

Adjusting the grinding unit

The rotary selector 17 adjusts the grind

settings from coarse to ne.

Adjust the grinding unit only while it is

running! Otherwise the appliance may be

damaged. Do not reach into the grinding

● While the grinding unit is running,

adjust the rotary selector 17 from

ne (a: Turn anticlockwise) to

coarse (b: Turn clockwise).

Info: The new setting will not become

apparent until after the second cup of

Note: If the message Adjust the grinding

unit to a coarser setting appears in the dis-

play, the grind setting for the coffee beans is

too ne. Adjust the grinding unit to a coarser

Tip: For dark roast coffee beans, choose a

The cup warmer 27 gets very hot.

The fully automatic espresso machine has

a cup warmer 27 that can be switched on or

off manually with button 28. When the cup

warmer 27 is on, button 28 lights up.

Tip: For optimal cup warming, place the

base of the cups on the cup warmer 27.

Various messages are shown in the

Water tank almost empty

Press the selection buttons < and > 4 to

select the following selection menus in the

Coffee strength (only for coffee drinks)

Select your personal per-cup quantity

80% Espresso 20% Milk36

Turn the rotary knob 6 to adjust the

following parameters within the menus:

Settings – Drink selection:

Settings – Coffee strength:

The longer the coffee is brewed, the

more bitter substances and undesired

aromas are released. This has a nega-

tive effect on the taste and makes the

coffee less easily digestible. So for extra

strong coffee, the TE809 has a special

aromaDouble Shot function. When half

the quantity has been prepared, coffee is

ground and brewed again so that only the

pleasant, aromatic scents are released. The

aromaDouble Shot function can be selected

for all coffee drinks except for Espresso with

a small per-cup quantity, 2 x Espresso and

The preset per-cup quantity can be individu-

ally adjusted to the size of the cup in use

by turning the rotary knob 6. The per-cup

quantity can be adjusted according to the

drink selected. An arrow in the

indicates whether the per-cup quantity

was increased or decreased. If you set for

example Coffee, the adjustment of the per-

cup quantity in ml, and in the case of a milk-

based coffee drink, for example Cappuccino,

the adjustment of the per-cup quantity

including the volume of milk (froth) in ml, is

Important: The selected amount in ml

is an approximate value and can vary

signicantly as a result of crema forming,

the grind setting or the type of milk used,

Settings – My coffee

In addition to selecting coffee strength and

per-cup quantity, you can choose the exact

mix of espresso and milk for your own

coffee setting My coffee:

● The setting can be dened in 20 % steps

by turning the rotary knob 6.

You can store up to 6 user proles in the

User settings menu. The required coffee and

hot water temperatures are saved in the

Important: The “Customising” settings

(á button 2) are not identical to those

under “Menu settings” (j button 7) and

Storing or changing the user

● Hold down the á button 2 for at least

● Select the required user using the selec-

tion button and press the start button 8.

The following selection appears in the

User settings: User 1

aromaIntense Espresso

● To change the user name, use the selec-

tion button to go to Edit name ▶ start and

press the start button 8.

The input eld appears in the display:

ABCDEFGHIJKLMNOPQRSTUVWXYZÄÅ

● Turn the rotary knob 6 to select a letter or

● Conrm by pressing the start button 8.

There are 6 characters available for the

To delete entries made, select the symbol

â and press the start button 8.

Note: Press the selection button > to save

your entry. Press the selection button < to

cut the process short.

Info: The entry can be overwritten at any

To delete the user, use the selection but-

ton Delete name ▶ start and press the start

● Use the selection button to select Coffee

temperature or Hot water temperature.

● Turn the rotary knob 6 to select the

● Press the á button 2.

The settings are saved.

The intense avour of the espresso or

coffee may be adapted to individual require-

ments by setting the brewing speed.

● Simply press the selection but-

ton aromaIntense Espresso or

● Finally, use the rotary knob 6 to select

either normal brewing speed, e. g.

Espresso standard or slow brewing speed

The settings are saved.

Calling up a user prole

● Press the á button 2 briey.

The user prole menu appears:

Select a profile ▶ start

● Turn the rotary knob 6 to select a user

prole and press the start button 8.

The drink selection menu appears:

● Set the drink, coffee strength, etc. (see

“Display settings”).38

● Dispense a drink (see “Preparation using

● The selected settings are saved.

á button 2 to exit the

Info: If you wish the appliance to exit the

menu automatically, you can set this as

described under “Menu settings –

The appliance can be locked to protect

children from scalding and burning.

● Hold down the à button 3 for at least

The display 5 shows a key; the child-proof

It is no longer possible to operate the

The cup warmer 27 is switched off.

● To deactivate the child-proof lock,

hold down the à button 3 for at least

3 seconds. The key disappears from the

● Hold down the j button 7 for at least

The different setting options are now

The different setting options can be selected

with the selection buttons < and > 4.

Note: The changes you have made are

saved automatically. It is not necessary

to conrm them additionally. If no entry is

made after approx. 2 minutes, the menu will

close automatically.

The following settings can be selected:

● Turn the rotary knob 6 to select the

aromaIntense Espresso

The intense avour of the espresso may

be adapted to individual requirements by

setting the brewing speed.

● Use the rotary knob 6 to select either

normal brewing speed Espresso standard

or slow brewing speed Espresso intensive.

Info: The brewing setting can also be

selected for Cappuccino and Macchiato. It

makes no change to the milk froth.39

The intense avour of the coffee may be

adapted to individual requirements by

setting the brewing speed.

● Use the rotary knob 6 to select either

normal brewing speed Coffee standard or

slow brewing speed Coffee intensive.

Info: The brewing setting can also be

selected for Caffe Latte and My Coffee. It

makes no change to the warm milk.

● Turn the rotary knob 6 to set the coffee

temperature. The setting applies to all

types of preparation, except the custom-

ised settings under “Customising”.

Hot water temperature

● Turn the rotary knob 6 to set the tem-

perature. The setting applies to all types

of preparation except the customised

settings under “Customising”.

● Here you can set whether the appliance

should exit the customising function auto-

matically automatic or manually manually.

● Turn the rotary knob 6 to enter the time

span after which the appliance should

automatically switch off following the last

A time between 5 minutes and 8 hours can

Here you can set the time span after which

the cup warmer 27 switches off again

● Set the required time by turning the rotary

The display 5 brightness can be set from

● Turn the rotary knob 6 to select the

● Turn the rotary knob 6 to select the

required water hardness 1, 2, 3 or 4.

Info: It is important to set the water

hardness correctly, so that the appliance

indicates accurately when the descaling

programme should be run. The factory

setting for the water hardness is 4.

You can check the water hardness using

the enclosed test strip or by asking your

local water supplier.

● Dip the test strip briey in water and

check the result after one minute.

Level Water hardness

A new water lter 29 must be rinsed before

● To do this, press the water lter 29 rmly

into the water tank 11 with the aid of the

measuring spoon 14. Fill the water tank

with water up to the “max” mark.

● Turn the rotary knob 6 to select start and

press the start button 8.

Place 1 l container under milk frother under

Place suction pipe in container ▶ start

● Place a container with a capacity of 1 litre

under the milk frother 10.

● Place the end of the suction pipe 10d in

● Press the start button 8. Water will now

ow through the lter 29 to rinse it.

● Next, empty the container.40

The appliance is ready for use again.

Info: Rinsing the lter 29 simultaneously

activates the setting for the “change lter”

You can nd detailed information about the

water lter in the enclosed lter instructions.

The lter 29 is no longer effective when the

Service - change filter display appears, or at

the latest after two months. It needs to be

replaced for reasons of hygiene and so that

there is no build-up of limescale (this could

damage the appliance).

Water lters are available from retail outlets

or from customer services (see the section

If no new lter 29 is used, turn the Water

filter setting to no.

Info: If the appliance has not been used

for a prolonged period (for example, when

you are on vacation), the existing lter 29

should be rinsed before the appliance is

used again. To do this, simply dispense a

● To avoid damage caused by frost during

transport and storage, the appliance must

be completely emptied rst.

Info: The appliance must be ready for use

and the water tank 11 lled.

● Press the start button 8. The appliance

automatically empties the pipe system

● Empty the water tank 11 and the

You can cancel your own settings and reset

the factory settings.

● To activate the factory settings, press the

Info: The appliance can also be reset to

the factory settings using a combination of

buttons. The appliance must be switched

● Hold down the selection buttons

> 4 and the on/off switch 1 O / I at the

same time for at least 5 seconds. Press

the start button 8. The factory settings

are now reactivated.41

This fully automatic espresso machine

grinds beans freshly for each brew. If pos-

sible, use only beans for fully automatic

coffee and espresso machines. For optimal

quality, deep-freeze the beans or store in

a cool place in sealed containers. Coffee

beans can be ground while frozen.

Important: Fill the water tank 11 with cold,

fresh water every day. The water tank 11

should always contain sufcient water for

operating the appliance.

Tip: Pre-warm cups, especially small, thick

espresso cups, on the cup warmer 27.

Different coffee drinks can be prepared

quite simply at the press of a button.

Note: With some settings, the coffee is

pre pared in two stages (see

“ aromaDouble Shot”). Wait until the

procedure is fully completed.

Drink preparation without milk

The appliance must be ready for use.

● Place the pre-warmed cup(s) under the

● Select the required 2 x Espresso,

2 x Coffee, Espresso or Coffee by turning

The display 5 shows the selected drink

along with the setting for coffee strength

and per-cup quantity for this drink.

You can change the settings (see “Display

settings”) or call up and customise settings

(see “Customising”).

● Press the start button 8.

The coffee is brewed and then dispensed

Drink preparation with milk

The appliance must be ready for use.

● Place the suction pipe 10d of the milk

frother 10 deep in the milk container 26.

● Swivel the coffee outlet 9 to the right until

it clicks into place.

● Place the pre-warmed cup or glass under

the coffee outlet 9 and milk frother 10.

● Select the required Caffe Latte,

Macchiato, Cappuccino or My coffee by

turning the rotary knob 6.

The display 5 shows the selected drink

along with the setting for coffee strength

and per-cup quantity for this drink.

You can change the settings (see “Display

settings”) or call up and customise settings

(see “Customising”).

● Press the start button 8.

First milk is delivered into the cup or glass.

Then the coffee is brewed and dispensed

into the cup or glass.

Important: Dried milk residue is difcult

to remove, so the milk frother 10 must be

cleaned with lukewarm water immediately

after use (see “Cleaning the milk system”).42

also be operated using ground coffee (not

instant coffee powder).

Note: The aromaDouble Shot function

cannot be used when coffee is prepared

using ground coffee.

Drink preparation without milk

The appliance must be ready for use.

● Place the pre-warmed cup(s) under the

● Select the required Espresso or Coffee by

turning the rotary knob 6.

● Open the powder compartment 18.

● Pour in no more than 2 level measuring

spoons 14 of ground coffee.

Do not use whole beans or instant coffee.

● Close the powder compartment 18.

● Press the start button 8.

The coffee is brewed and then dispensed

Note: Repeat the procedure for another cup

of coffee. If coffee is not dispensed within

90 seconds, the brewing chamber emp-

ties automatically to avoid an overow. The

Drink preparation with milk

The appliance must be ready for use.

● Place the suction pipe 10d of the milk

frother 10 deep in the milk container 26.

● Swivel the coffee outlet 9 to the right until

it clicks into place.

● Place the pre-warmed cup or glass under

the coffee outlet 9 and milk frother 10.

● Select the required Caffe Latte,

Macchiato, Cappuccino or My coffee by

turning the rotary knob 6.

● Open the powder compartment 18.

● Pour in no more than 2 level measuring

spoons 14 of ground coffee.

Do not use whole beans or instant coffee.

● Close the powder compartment 18.

● Press the start button 8.

First milk is delivered into the cup or glass.

Then the coffee is brewed and dispensed

into the cup or glass.

Important: Dried milk residue is difcult

to remove, so the milk frother 10 must be

cleaned with lukewarm water immediately

after use (see “Cleaning the milk system”).

Note: Repeat the procedure for another

cup of coffee / milk drink. If coffee is not

dispensed within 90 seconds, the brewing

chamber empties automatically to avoid an

overow. The appliance rinses.43

Preparing milk froth and

The milk frother 10 gets very hot. After use,

allow to cool down rst before touching.

The appliance must be ready for use.

● Place the suction pipe 10d of the milk

frother 10 deep in the milk container 26.

● Place the pre-warmed cup or glass under

the outlet of the milk frother 10.

● Select the required setting Milk froth or

Warm milk by turning the rotary knob 6.

● Press the start button 8.

Milk froth or warm milk ows from the outlet

of the milk frother 10.

Press the start button 8 again to cut the

Info: When preparing warm milk, you may

hear a whistling sound. This is caused by

the milk frother for technical reasons.

Tip: For optimal milk froth quality, use cold

milk with a fat content of at least 1.5 % if

Important: Dried milk residue is difcult

to remove, so the milk frother must be

cleaned with lukewarm water immediately

after use (see “Cleaning the milk system”).

Dispensing hot water

The milk frother 10 gets very hot. After use,

allow to cool down rst before touching.

The milk frother must be cleaned before

The appliance must be ready for use.

● Place the pre-warmed cup or glass under

the outlet of the milk frother 10.

● Select the required setting for Hot water

by turning the rotary knob 6.

● Press the start button 8.

Please remove suction hose ▶ start

● Remove the milk suction hose 10c and

press the start button 8.

Hot water runs out of the milk frother

Press the start button 8 again to cut the

Note: It is possible to set the temperature of

the hot water (see “Menu settings”).44

¡ Danger of electric shock!

Unplug the appliance before cleaning it.

Never submerse the appliance in water.

Do not use a steam cleaner.

● Wipe the outside of the appliance with a

● Do not use any cleaning agents that

contain alcohol or spirits.

● Do not use abrasive cloths or cleaning

● Always remove any limescale, coffee,

milk, cleaning or descaling uid residue

immediately. Such residue can cause

● New sponge cloths may contain salts.

Salts can cause rust lm on stainless

steel and must therefore be washed out

thoroughly before use.

● Pull the drip tray 23 with the coffee

grounds container 23c forwards and out.

Remove the panel 23a and grate 23b.

Empty and clean the drip tray and coffee

K Do not put the following items in the

dishwasher: Panel of drip tray 23a,

powder compartment 18, brewing unit

20, water tank 11, aroma cover 16 and

stainless steel milk container.

J The following parts may be cleaned

in the dishwasher: Drip tray 23, grate

23b, coffee grounds container 23c,

measuring spoon 14 and the individual

parts of the milk container cover.

● Remove powder compartment 18 and

rinse under running water.

● Wipe out the inside of the tray holders.

Important: Drip tray 23 and coffee

grounds container 23c should be emptied

and cleaned daily to prevent mould from

Note: If the appliance is cold when

switched on, or if it is switched off after

dispensing coffee, it rinses automatically.

In other words, the system cleans itself.

Important: If the appliance has not been

used for a prolonged period of time (e. g.

after a vacation), clean the entire appliance

thoroughly, including the milk system 10

and brewing unit 20.45

Cleaning the milk system

Important: The milk system 10 must be

cleaned immediately after use!

The milk system 10 can be pre-cleaned

automatically (see “Service programmes” or

Dismantling the milk system 10 for cleaning:

● Pull the milk system 10 forward out of the

● Turn the upper part 10a in an anti-

clockwise direction and remove from the

● Clean the individual parts with detergent

solution and a soft cloth.

● Rinse all parts with clean water and dry.

● Put all the parts back together. The milk

frother can then be clicked back into

place in the appliance.

Info: All parts of the milk frother 10 can also

be put in the dishwasher.

Cleaning the brewing unit (Fig. F)

(refer also to the quick reference guide)

In addition to the automatic cleaning

programme, the brewing unit 20 should be

removed regularly for cleaning.

● Switch the appliance off completely at the

power on/off switch 1 O / I ; no buttons

● Take hold of the door to the brewing unit

19 at the bottom and open it.

● Slide the red lock 20a on the brewing unit

20 completely to the left.

● Press the eject lever 21 down fully. The

brewing unit is released.

● Grasp the brewing unit 20 by the

recessed grips and remove carefully.46

● Remove the cover 20b of the brewing unit

and rinse the brewing unit 20 thoroughly

under running water.

● Thoroughly clean the brewing unit sieve

under the running water.

Important: Clean the brewing unit with-

out detergent and do not put it in the

● Wipe out the inside of the appliance

thoroughly with a damp cloth and remove

any coffee residues.

● Allow the brewing unit 20 and the inside

of the appliance to dry.

● Replace the cover 20b on the brewing

unit and reinsert the brewing unit 20 fully

● Press the eject lever 21 up fully.

● Slide the red lock 20a fully to the right

and close the door 19.

Tip: Refer also to the quick reference guide

in the storage compartment 22.

At regular intervals, the display 5 shows the

Short rinse milk system or

Service - calc‘nClean.

The appliance should be cleaned or descaled

immediately using the corresponding pro-

gramme. You have the option of combining

the processes Descale and Clean with the

calc‘nClean function (see “ calc‘nClean”).

If the service programme is not run as

instructed, the appliance may be damaged.

Follow the instructions for using the descal-

ing and cleaning agents for each service

programme. Never interrupt the service

Do not drink the liquids!

Never use vinegar, vinegar-based products,

citric acid or citric acid-based products!

Never put descaling tablets or other descal-

ing agents in the powder compartment 18!

Before starting the respective service

programme (descaling, cleaning or

calc‘nClean), remove the brewing unit,

clean as instructed and replace.

Specially developed and suitable

descaling and cleaning tablets are

available from retailers or customer

service (see “Accessories”).47

Cleaning the milk system

Duration: approx. 1 minute

Short rinse milk system ▶ start

The milk system 10 can be pre-cleaned

● Press the à button 3.

Short rinse milk system ▶ start

● Press the start button 8.

Place empty glass under milk frother and

place suction pipe in glass ▶ start

● Place an empty glass under the milk

system 10 and put the end of the pipe

● Press the start button 8. The milk system

is cleaned automatically.

● Now empty the glass and clean the

In addition to this, clean the milk system

thoroughly at regular intervals (by hand or

Duration: approx. 30 minutes.

The start button 8 ashes while the different

descaling processes are running.

The gures on the top right indicate the

progress of the programme.

Important: If there is a water lter 29 in

the water tank 11, it needs to be removed

before the service programme is run.

● Press the à button 3.

guide you through the programme.

● Empty the drip tray 23 and reinsert it.

Place 1 l container under milk frother

Place suction pipe in container ▶ start

● Place a container with 1 litre capacity

under the milk frother 10.

● Place the end of the suction pipe 10d in

● Press the start button 8.

Remove water filter ▶ start

Info: If the water lter 29 is activated, the

display will prompt you to remove the lter

29, then press the start button 8 again.48

Add 0.5 l water and descaler ▶ start

● Pour lukewarm water into the empty

water tank 11 up to the “0.5l” mark and

then dissolve 1 Siemens descaling tablet

TZ80002 in it. When using TZ60002,

2 tablets must be dissolved.

● Press the start button 8. The descaling

programme will now run for about

Not enough descaling fluid.

Refill fluid ▶ start

Info: If there is not enough descaling solu-

tion in the water tank 11, the corresponding

prompt is displayed. Pour in descaling solu-

tion and press the start button 8 again.

Clean and refill water tank ▶ start

● Rinse the water tank 11 and rell it with

fresh water up to the “max” mark.

● Press the start button 8. The descaling

programme now runs for about 1 minute

and rinses the appliance.

● Empty the drip tray 23 and reinsert it.

Replace the lter if one is being used.

The appliance is ready for use again.

Important: Wipe down the appliance

using a soft, damp cloth to immediately

remove any descaler residue. Such residue

can cause corrosion. New sponge cloths

may contain salts. Salts can cause rust

lm on stainless steel and must therefore

be washed out thoroughly before use.

Thoroughly clean the suction pipe 10d of

Duration: approx. 8 minutes.

The start button 8 ashes while the

different cleaning processes are running.

The gures on the top right indicate the

progress of the programme.

● Fill the water tank 11 up to the “max”

guide you through the programme.

● Empty the drip tray 23 and reinsert it.

● Swivel the coffee outlet 9 to the left until it

Open powder compartment

● Open the powder compartment 18.

Insert Siemens cleaning tablet and

close powder compartment

● Drop a Siemens cleaning tablet into the

drawer 18 and close it.

● Press the start button 8. The clean-

ing programme will now run for about

● Empty the drip tray 23 and reinsert it.

The appliance is ready for use again.

Duration: approx. 36 minutes.

calc‘nClean combines the separate

functions of descaling and cleaning.

If both programmes are due to be run

soon, the espresso machine automatically

suggests this service programme.

The start button 8 ashes while the

different calc‘nClean processes are running.

The gures on the top right indicate the

progress of the programme.

Important: If there is a water lter 29 in

the water tank 11, it needs to be removed

before the service programme is run.

● Press the à button 3.

guide you through the programme.

● Empty the drip tray 23 and reinsert it.

● Swivel the coffee outlet 9 to the right until

it clicks into place.

Place 1 l container under milk frother

Place suction pipe in container ▶ start

● Place a container with a capacity of at

least 1 l under the milk frother 10.

● Place the end of the suction pipe 10d in

● Press the start button 8.

Open powder compartment

● Open the powder compartment 18.

Insert Siemens cleaning tablet and

close powder compartment

● Drop a Siemens cleaning tablet in the

drawer 18 and close.

Remove water filter ▶ start

Info: If the water lter 29 is activated, the

display will prompt you to remove the lter

29, then press the start button 8 again.

Add 0.5 l water and descaler ▶ start

● Pour lukewarm water into the empty

water tank 11 up to the “0.5l” mark and

then dissolve 1 Siemens descaling tablet

TZ80002 in it. When using TZ60002,

2 tablets must be dissolved.

● Press the start button 8. The descaling

programme now runs for about

Not enough descaling fluid.

Refill fluid ▶ start

Info: If there is not enough descaling solu-

tion in the water tank 11, the corresponding

prompt is displayed. Pour in descaling solu-

tion and press the start button 8 again.

Clean and refill water tank ▶ start

● Rinse the water tank 11 and rell it with

fresh water up to the “max” mark.

● Press the start button 8. The descaling

programme now runs for about 1 minute

more, followed by the cleaning pro-

gramme for about 7 minutes, and rinses

● Empty the drip tray 23 and reinsert it.

Replace the lter if one is being used. The

appliance has completed descaling and

cleaning and is ready for use again.

Important: Wipe down the appliance

using a soft, damp cloth to immediately

remove any descaler residue. Such residue

can cause corrosion. New sponge cloths

may contain salts. Salts can cause rust

lm on stainless steel and must therefore

be washed out thoroughly before use.

Thoroughly clean the suction pipe 10d of

Note: If one of the service programmes is

interrupted, e. g. by a power outage, pro-

● Rinse the water tank 11 and rell it with

fresh water up to the “max” mark.

● Press the start button 8. The cleaning

programme now runs for about 3 minutes,

and rinses the appliance.

● Empty the drip tray 23 and reinsert it.

The appliance is ready for use again.

Tips on energy saving

● The display has a dimming function that

switches on automatically when the

appliance is not in use. The display is

illuminated dimly. Press any button or

the rotary knob to brighten the display

● If the appliance is not being used, switch

it off at the power on/off switch 1 O / I on

● If possible, do not interrupt coffee or milk

froth dispensing. Stopping a process

prematurely results in higher energy

consumption and the drip tray lls up

● Descale the appliance regularly to avoid

a build-up of limescale. Limescale residue

results in higher energy consumption.

¡ To avoid damage caused by frost

during transport and storage, the

appliance must be completely emp-

See “Menu settings – Transportation lock”

The espresso machine has special com-

partments for storing the accessories and

quick reference guide inside the appliance.

● To store the measuring spoon 14, remove

the water tank 11 and insert the spoon in

the shaped recess 13.

● To store the quick reference guide, open

the door to the brewing unit 19 and stow

away the quick reference guide in the

storage compartment 22 provided for this

The following accessories are available

from retailers or from customer service:

Accessories Ordering number

J Dispose of packaging in an

environ mentally-friendly manner. This

appliance is labelled in accordance

with European Directive 2012/19/

EU concerning used electrical and

electronic appliances (waste electrical

and electronic equipment – WEEE).

The guideline determines the frame-

work for the return and recycling

of used appliances as applicable

throughout the EU. Please ask your

specialist retailer about current

disposal facilities.

The guarantee conditions for this appliance

are as de ned by our representative in the

country in which it is sold. Details regarding

these conditions can be obtained from

the dealer from whom the appliance was

purchased. The bill of sale or receipt must

be produced when making any claim under

the terms of this guarantee.

Technical specications

Power connection (voltage – frequency) 220-240 V – 50/60 Hz

Heater wattage 1600 W Maximum static pump pressure 19 bar

Maximum water tank capacity (without lter) 2.4 l

Maximum capacity of the coffee bean container ~300 g

Length of power cable 100 cm

Dimensions (H x W x D) 389 x 301 x 458 mm

Weight, empty 10 –12 kg

Type of grinding unit Ceramic52

container is full, or the

grinding unit does not

Beans are not falling into

the grinding unit (beans

Gently tap the bean container

Change the type of coffee if

necessary. When the bean

is empty, wipe it with a

No tea water dispensed. The milk frother or its

Clean the milk frother or its

holder (see “Cleaning the milk

Too little or no milk froth,

or the milk frother does

not draw the milk in.

The milk frother or its

Clean the milk frother or its

holder (see “Cleaning the milk

Milk unsuitable for frothing. Use low-fat milk (1.5 % fat).

The milk frother is not

correctly assembled.

Moisten and assemble the milk

Build-up of limescale in the

Descale the appliance as

described in the instructions.

The selected per-cup

quantity is not reached.

Coffee dispensing slows

to a trickle or stops

Coffee is ground too nely.

Pre-ground coffee is too

Adjust the grinding unit to a

coarser setting. Use coarser pre-

Build-up of limescale in the

Descale the appliance as

described in the instructions.

Coffee has no “crema”. Unsuitable type of coffee. Use a type of coffee with a

higher proportion of robusta

The beans are no longer

The grinding setting is not

suitable for the beans.

Adjust the grinding setting to

Coffee is too “acidic”. The grinding setting is too

coarse or the pre-ground

coffee is too coarse.

Adjust the grinding unit to a ner

setting or use ner preground

Unsuitable type of coffee. Use a darker roast.

Coffee is too “bitter”. The grind setting is too ne

or the pre-ground coffee is

Adjust the grinding unit to a

coarser setting or use coarser

Unsuitable type of coffee. Change the type of coffee.

If you are unable to solve the problem, always call the hotline!

You will nd the telephone numbers at the back of these instructions.53

Problem Cause Solution

The coffee tastes “burnt”. Brewing temperature

Reduce the temperature,

see “Menu settings – Coffee

The grinding setting is

too ne or the preground

Adjust the grinding unit to a

coarser setting or use coarser

Unsuitable type of coffee. Change the type of coffee.

Please contact hotline

The appliance has a fault. Please contact the hotline.

The water lter does not

stay in position in the

The water lter is not

Firmly press the water lter

straight down into the tank

incorrectly inserted or the

new water lter has not

been rinsed according to

Insert the water tank correctly or

rinse the water lter according to

instructions and then switch on.

Carbonated water in the

Fill the water tank with fresh tap

The coffee grounds are

not compact and are too

The grinding setting is too

ne or too coarse, or not

ground coffee has been

Adjust the grinding unit to a

coarser or ner setting, or use

2 level measuring spoons of

Brewing unit is soiled. Clean brewing unit.

coffee in the brewing unit.

Clean brewing unit (pour in no

more than 2 level measuring

spoons of ground coffee).

Clean brewing unit (see “Mainte-

nance and daily cleaning”).

Coffee or milk froth quality

varies considerably.

Build-up of limescale in the

Descale the appliance as

described in the instructions.

Water dripped onto the

inner oor of the appli-

ance when the drip tray

Drip tray removed too

Wait a few seconds after the

last drink was dispensed before

removing the drip tray.

If you are unable to solve the problem, always call the hotline!

You will nd the telephone numbers at the back of these instructions.54

80% Espresso 20% Melk89

2 x Café Crème, Espresso of Café Crème.

Waterreservoir is onjuist

electrical and electronic equipment –

BSH Home Appliances FZE Round About 13,

www.siemens-home.com/ae

HEATHE RTON, Victoria 3202

mailto:bshau-as@bshg.com

www.siemens-home.com.au

European Trade Center Building,

Centrale Servicestation

Milton Keynes MK12 5PT To arrange an engineer visit,

to order spare parts or

accessories or for product

www.siemens-home.co.uk

Tel.: 0344 892 8999* *Calls are charged at the basic rate,please check with your telephone serviceprovider for exact charges

BSH Ikiakes Siskeves A.B.E.

Central Branch Service

BSH Home Appliances Limited

Unit 1 & 2, 3rd Floor

North Block, Skyway House

www.siemens-home.com/hr

mailto:alkatreszrendeles@bsh.hu

www.siemens-home.com/hu

IE Republic of Ireland

BSH Home Appliances Ltd.

Unit F4, Ballymount Drive

Ballymount Industrial Estate

Service Requests, Spares and

Industrial Park North

Mahakali Caves Road,

www.siemens-home.com/it

General Serviss Limited

.R.L. "Rialto-Studio"

www.siemens-home.com/pt

www.siemens-home.com/ro

gama-electronics.com

15th Road Randjespark
