USER MANUAL TE803509DE SIEMENS
Included in delivery (see page 31)
electrical and electronic equipment
Congratulations on purchasing this fully
automatic espresso machine from Siemens.
These operating instructions describe
various appliance designs, which differ in
Please also refer to the quick reference
guide. This can be kept in a special storage
compartment 22 until the appliance is used
Safety instructions 29
Included in delivery 31
Preparation using coffee beans 41
Preparation using ground coffee 42
Preparing milk froth and warm milk 42
Dispensing hot water 43
Maintenance and daily cleaning 43
Service Programmes 45
Tips on energy saving 49
Storing accessories 49
Please read and follow the operating instructions carefully and
keep them for later reference. Enclose these instructions when
you give this appliance to someone else. This appliance is
designed for the preparation of normal household quantities in
the home, or in household-like, non-commercial environments.
Household-like environments include staff kitchens in shops,
of ces, agricultural and other small businesses or for use by
guests at bed-and-breakfast establishments, small hotels and
similar residential facilities.
¡ Danger of electric shock!
Connect and operate the appliance only according to the type plate
speci cations. To avoid potential hazards, repairs such as replacing
a damaged cable must only be carried out by our customer service
This appliance can be used by children aged from 8 years and
above and by persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance in a
safe way and if they understand the hazards involved. Keep children
under 8 years of age away from the appliance and connecting
cable and do not allow them to use the appliance. Children shall
not play with the appliance. Cleaning and user maintenance shall
not be made by children unless they are older than 8 years and
Never immerse the appliance or mains cable in water. Use only if
power cord and appliance show no signs of damage. Should a fault
occur, pull the plug or disconnect from the mains immediately.loading-circle-131
1 Power on/off switch O / I
height-adjustable and swivelling
height-adjustable and removable
11 Removable water tank
12 Lid for water tank
13 Storage compartment for
(insertion aid for water lter)
17 Selector for grind setting
18 Powder compartment
(ground coffee / cleaning tablet)
19 Door to brewing unit
21 Eject lever for brewing unit
22 Storage compartment for
quick reference guide
c) Coffee grounds container
24 Cable storage compartment
25 Rating label (ENo.; FD)
26 Milk container, insulated
27 Cup warming function
28 Button for cup warming function,
Depending on the model:
are not present in all

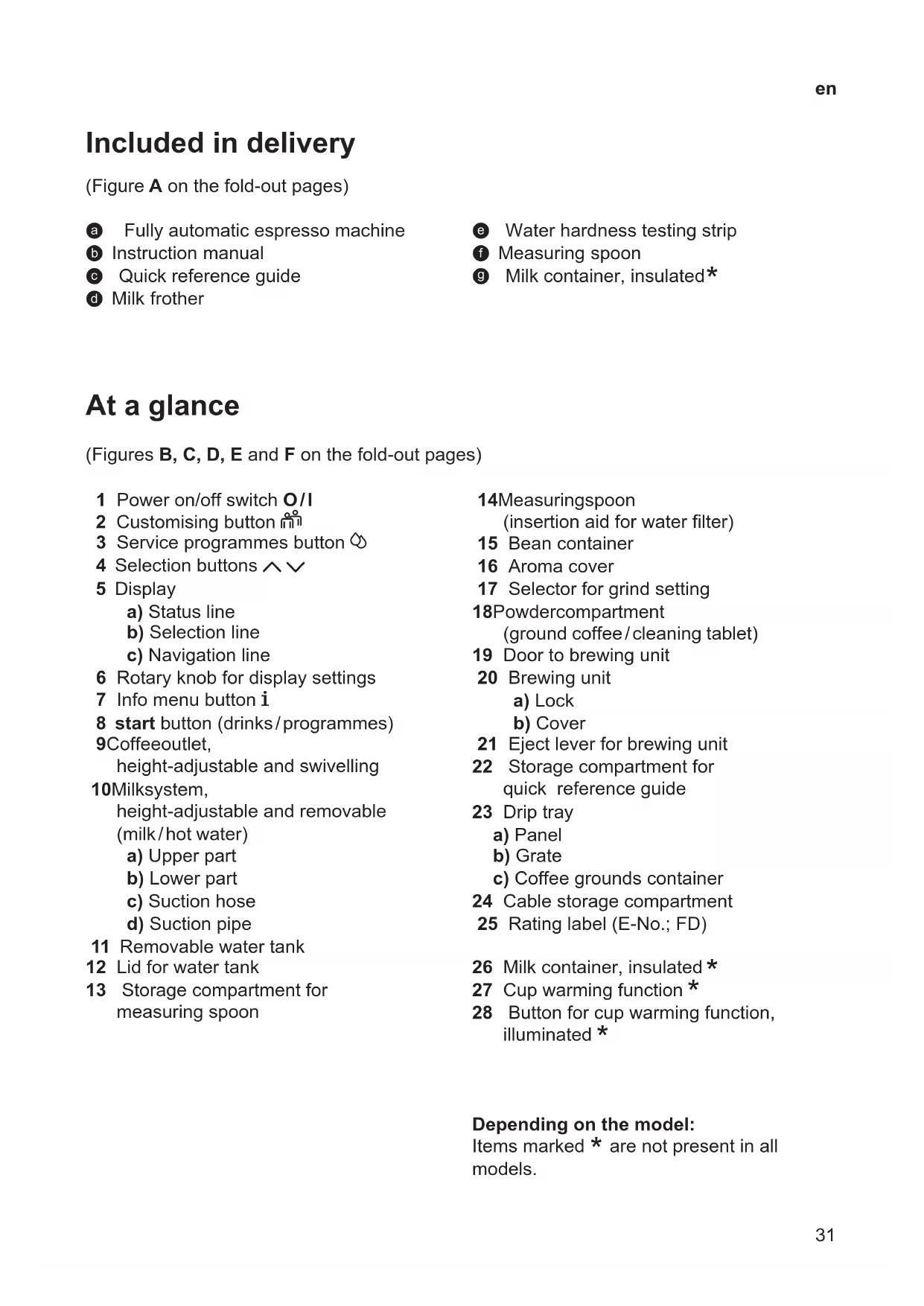

Included in delivery
(Figure A on the fold-out pages)
1 Fully automatic espresso machine
7 Milk container, insulated
(Figures B, C, D, E and F on the fold-out pages)32
Before using for the
Fill the appropriate container using only
pure, cold, uncarbonated water and only
roasted beans (preferably espresso or cof-
fee bean blends for fully automatic coffee
machines). Do not use coffee beans that
have been glazed, caramelised or treated
with other additives containing sugar, since
they will block the brewing unit.
The water hardness setting can be adjusted
on this appliance. The factory setting for the
water hardness is 4. Check the hardness
of the water you use with the enclosed test
strip. If a value other than water hardness 4
is displayed, change the setting on the
appliance accordingly after switching on
(see “Menu settings – Water hardness”).
Setting up the appliance
● Place the fully automatic espresso
machine on a at, waterresistant surface
that can take its weight.
Important: Only use the appliance in
frost-free rooms. If the appliance has been
transported or stored at temperatures below
0 °C, wait at least 3 hours before operation.
● Pull out the mains plug from the cable
compartment 24 and plug it in. Adjust the
length of the cable by pushing it back in
and pulling it out. To do this, place the
appliance with its back ush with the edge
of the work surface and either pull the
cable downwards or push it upwards.
● Lift the lid of the water tank 12.
● Remove and rinse the water tank 11 and
ll it with fresh, cold water. Do not ll
above the “max” mark.
● Replace the water tank 11 and push it
rmly downwards into place.
● Close the water tank lid 12 again.
● Fill the bean container 15 with coffee
● Press the power switch 1 O / I. The start
button 8 lights up and the different lan-
guages appear in the display 5.
The following languages can be selected:
TE8.. DE Deutsch English
● Use the buttons < and > 4 to select the
language in which you want the display
The selected language is highlighted.
● Press the start button 8. The language
you selected is saved.
● The brand logo lights up in the display 5.
The appliance now heats up and rinses.
Some water will run out of the coffee
en ● The appliance is ready for use when the symbols for the drink selection and the start button 8 light up in the display 5. Espresso
 à À Á Å Æ Info: The factory settings of the fully auto-matic espresso machine are programmed for optimal performance. The appliance switches off automatically after a specic time (see “Menu settings – AutoOffafter”).Note: If the appliance is being used for the rst time, the service programme has been run, or the appliance has not been oper-ated for a long period, the rst beverage will not have the full aroma and should not be consumed.When the fully automatic espresso machine is rst used, you will achieve a suitably thick and stable “crema” only after the rst few cups have been dispensed. Controls Power on/off switch O / IThe power on/off switch 1 O / I is used to switch the appliance on or off. The appliance rinses automatically when it is switched on and off.The appliance will not rinse if: ● it is still warm when switched on. ● there was no coffee drawn before switching off.The appliance is ready for use when the symbols for the drink selection and the start button 8 light up in the display 5. Customising button áThe appliance provides the option of saving and calling up customised settings for coffee drinks. Please refer to the section “ Customising” for information on how to save and call up these settings.Service programmes button à
Press the à button 3 briey to call up the selection of service programmes. Please run the programme as described in “Service Programmes”.Press and hold to activate or deactivate the child-proof lock, see “Child-proof lock”.Rotary knobTurn the rotary knob 6 to the left or right to navigate through the display 5, or to adjust parameters in the menu.Selection buttons < and > Press the selection buttons 4 < and > to navigate up and down through the menu levels (navigation line 5c).34
The display 5 uses symbols to indicate
the selection options, coffee strength and
per-cup quantity, and uses text to indicate
settings, ongoing processes and messages.
The rotary knob 6 and selection buttons 4
can be used to change settings.
The selected setting is highlighted by a
The status line 5a shows the name of the
type of drink, along with the strength setting
55 and per-cup quantity
The selection line 5b shows symbols for
The arrows in the navigation line 5c indicate
the direction in which more menu levels can
Please refer to “Displays” for more detailed
Press the start button 8 to begin drink prep-
aration or to start a service programme.
Press the start button 8 again during drink
preparation to stop the dispensing process
j button and settings
Use the j button 7 to display information
(press briey) and adjust settings (hold
down for at least 3 seconds).
Displaying information
The following information can be displayed
● when should the next service be
● how many drinks have been dispensed
since the espresso machine was
● Press the j button 7 briey and navigate
with the < and > buttons 4.
Change filter in 200
No. of milk mixes 15
* appears only if the lter is activated.
Press the j button 7 briey to return to the
drink selection. If no button is pressed for
about 10 seconds, the appliance automati-
cally switches back to drink selection mode.
See “Menu settings”.35
Adjusting the grinding unit
The rotary selector 17 adjusts the grind
settings from coarse to ne.
Adjust the grinding unit only while it is run-
ning! Otherwise the appliance may be dam-
aged. Do not reach into the grinding unit.
● While the grinding unit is running,
adjust the rotary selector 17 from
ne (a: Turn anticlockwise) to coarse
(b: Turn clockwise).
Info: The new setting will not become
apparent until after the second cup of
Note: If the message Please adjust
grinding unit to coarser setting!
appears in the display, the grind setting
for the coffee beans is too ne. Adjust the
grinding unit to a coarser setting.
Tip: For dark roast coffee beans, choose a
ner grind; for lighter beans a coarser grind.
The cup warmer 27 gets very hot.
The fully automatic espresso machine has
a cup warmer 27 that can be switched on or
off manually with button 28. When the cup
warmer 27 is on, button 28 lights up.
Tip: For optimal cup warming, place the
base of the cups on the cup warmer 27.
Various messages are shown in the
Press the selection buttons < and > 4 to select the following selection menus in the menu levels:Drink selection Espresso
 à À Á Å Æ Coffee strength (only for coffee drinks) Espresso
ååå aromaDouble Shot strong + 2x
ã aromaDouble Shot strong ++ aromaDouble Shot:The longer the coffee is brewed, the more bitter substances and undesired aromas are released. This has a nega-tive effect on the taste and makes the coffee less easily digestible. So for extra strong coffee, the TE8.. has a special aromaDouble Shot function. When half the quantity has been prepared, coffee is ground and brewed again so that only the pleasant, aromatic scents are released. The aromaDouble Shot function can be selected for all coffee drinks except for EspressoÀ with a small per-cup quantity,
2 x Espresso  and 2xCoffee Ã.37
be individually adjusted to the size of the
cup in use by turning the rotary knob 6. The
per-cup quantity can be adjusted accord-
ing to the drink selected. An arrow in the
symbol in the top right-hand corner of the
display indicates whether the per-cup quan-
tity was increased or decreased. If you set
for example Coffee Á, the adjustment of
the per-cup quantity in ml, and in the case
of a milk-based coffee drink, for example
, the adjustment of the per-
cup quantity including the volume of milk
(froth) in ml, is indicated.
Important: The selected amount in ml is
an approximate value and can vary sig-
nicantly as a result of crema forming, the
grind setting or the type of milk used, etc.
You can store up to 6 user proles in the
User settings menu. The required coffee
and hot water temperatures are saved in
Important: The “Customising” settings
(á button 2) are not identical to those
under “Menu settings” (
j button 7) and vice
Storing or changing the user
á button 2 for at least
● Select the required user using the selec-
tion button and press the start button 8.
The following selection appears in the dis-
User settings: User 1
● To change the user name, use the selec-
The input eld appears in the display:
● Turn the rotary knob 6 to select a letter or
● Conrm by pressing the start button 8.38
en There are 6 characters available for the user name.To delete entries made, select the symbol â and press the start button 8. Note: Press the selection button > to save your entry. Press the selection button < to cut the process short.Info: The entry can be overwritten at any time.To delete the user, use the selection button Delete name
start and press the start button 8.Saving temperatures ● Use the selection button to select Coffeetemp. or Hot water temp. ● Turn the rotary knob 6 to select the required setting. ● Press the á button 2. The settings are saved.Calling up a user prole ● Press the á button 2 briey. The user prole menu appears: Select a profile
Robert User 1 User 2 ● Turn the rotary knob 6 to select a user prole and press the start button 8.The drink selection menu appears: Macchiato
À Á Å Æ ● Set the drink, coffee strength, etc. (see “Display settings”). ● Dispense a drink (see “Preparation using coffee beans”). ● The selected settings are saved. ● Press the á button 2 to exit the customised menu.Info: If you wish the appliance to exit the menu automatically, you can set this as described under “Menu settings – Exit profile”.
Child-proof lock The appliance can be locked to protect children from scalding and burning. ● Hold down the à button 3 for at least 3 seconds.The display 5 shows a key; the child-proof lock is activated. Espresso
It is no longer possible to operate the appliance.Depending on the model: The cup warmer 27 is switched off. ● To deactivate the child-proof lock, hold down the à button 3 for at least 3 seconds. The key disappears from the display 5.39
● Hold down the j button 7 for at least
The different setting options are now
Hot water temp. <85°C Exit profile
The different setting options can be selected
with the selection buttons < and > 4.
Note: The changes you have made are
saved automatically. It is not necessary
to conrm them additionally. If no entry is
made after approx. 2 minutes, the menu will
close automatically.
The following settings can be selected:
● Turn the rotary knob 6 to select the
● Turn the rotary knob 6 to set the coffee
temperature. The setting applies to
all types of preparation, except the
customised settings under “Customising”.
● Turn the rotary knob 6 to set the
temperature. The setting applies to
all types of preparation except the
customised settings under “Customising”.
● Here you can set whether the appliance
should exit the customising function
automatically automatic or manually
● Turn the rotary knob 6 to enter the time
span after which the appliance should
automatically switch off following the last
A time between 5 minutes and 8 hours can
(depending on the model)
Here you can set the time span after which
the cup warmer 27 switches off again
● Set the required time by turning the rotary
The display 5 contrast can be set from –10
to +10. The factory setting is +0.
● Turn the rotary knob 6 to select the
● Turn the rotary knob 6 to select the
required water hardness 1, 2, 3 or 4.
Info: It is important to set the water hard-
ness correctly, so that the appliance indi-
cates accurately when the descaling pro-
gramme should be run. The factory setting
for the water hardness is 4.
You can check the water hardness using
the enclosed test strip or by asking your
local water supplier.
● Dip the test strip briey in water and
check the result after one minute.
Level Water hardness
A new water lter must be rinsed before it
● To do this, press the water lter rmly
into the water tank 11 with the aid of the
measuring spoon 14. Fill the water tank
with water up to the “max” mark.
● Turn the rotary knob 6 to select start
and press the start button 8.
Place suction pipe in container
● Place a container with a capacity of 1 litre
under the milk frother 10.
● Place the end of the suction pipe 10d in
● Press the start button 8. Water will now
ow through the lter to rinse it.
● Next, empty the container.
The appliance is ready for use again.
Info: Rinsing the lter simultaneously
activates the setting for the “change lter”
You can nd detailed information about the
water lter in the enclosed lter instructions.
The lter is no longer effective when the
Service - change filter display appears,
or at the latest after two months. It needs to
be replaced for reasons of hygiene and so
that there is no build-up of limescale (this
could damage the appliance).
Water lters are available from retail outlets
or from customer services (see the section
If no new lter is used, turn the Water
filter setting to no.
Info: If the appliance has not been used for
a prolonged period (for example, when you
are on vacation), the existing lter should
be rinsed before the appliance is used
again. To do this, simply dispense a cup of
● To avoid damage caused by frost during
transport and storage, the appliance must
be completely emptied rst.
Info: The appliance must be ready for use
and the water tank 11 lled.
● Press the start button 8. The appliance
automatically empties the pipe system
● Empty the water tank 11 and the drip
You can cancel your own settings and reset
the factory settings.
● To activate the factory settings, press the
Info: The appliance can also be reset to
the factory settings using a combination of
buttons. The appliance must be switched
● Hold down the selection buttons < and
> 4 and the on/off switch 1 O / I at the
same time for at least 5 seconds. Press
the start button 8. The factory settings
are now reactivated.41
coffee beans This fully automatic espresso machine grinds beans freshly for each brew. If pos-sible, use only beans for fully automatic coffee and espresso machines. For optimal quality, deep-freeze the beans or store in a cool place in sealed containers. Coffee beans can be ground while frozen. Important: Fill the water tank 11 with cold, fresh water every day. The water tank 11 should always contain sufcient water for operating the appliance.Tip (depending on the model): Pre-warm cups, especially small, thick espresso cups, on the cup warmer 27.Different coffee drinks can be prepared quite simply at the press of a button. Note: With some settings, the coffee is prepared in two stages (see “ aromaDouble Shot”). Wait until the procedure is fully completed.Drink preparation without milkThe appliance must be ready for use. ● Place the pre-warmed cup(s) under the coffee outlet 9. ● Select the required 2 xEspresso Â,
CoffeeÁ by turning the rotary knob 6. The display 5 shows the selected drink along with the setting for coffee strength and per-cup quantity for this drink. Espresso
 à À Á Å Æ You can change the settings (see “Display settings”) or call up and customise settings (see “Customising”). ● Press the start button 8. The coffee is brewed and then dispensed into the cup(s). Drink preparation with milkThe appliance must be ready for use. ● Place the suction pipe 10d of the milk frother 10 deep in the milk container 26. ● Swivel the coffee outlet 9 to the right until it clicks into place. ● Place the pre-warmed cup or glass under the coffee outlet 9 and milk frother 10. ● Select the required Macchiato
or Cappuccino Æ by turning the rotary knob 6.The display 5 shows the selected drink along with the setting for coffee strength and per-cup quantity for this drink. Cappuccino
À Á Å Æ È É You can change the settings (see “Display settings”) or call up and customise settings (see “Customising”). ● Press the start button 8. First milk is delivered into the cup or glass. Then the coffee is brewed and dispensed into the cup or glass.Important: Dried milk residue is difcult to remove, so the milk frother 10 must be cleaned with lukewarm water immediately after use (see “Cleaning the milk system”).42
also be operated using ground coffee (not
instant coffee powder).
Note: The aromaDouble Shot function
cannot be used when coffee is prepared
using ground coffee.
Drink preparation without milk
The appliance must be ready for use.
● Place the pre-warmed cup(s) under the
● Select the required Espresso À or
CoffeeÁ by turning the rotary knob 6.
● Open the powder compartment 18.
● Pour in no more than 2 level measuring
spoons 14 of ground coffee.
Do not use whole beans or instant coffee.
● Close the powder compartment 18.
● Press the start button 8.
The coffee is brewed and then dispensed
Note: Repeat the procedure for another cup
of coffee. If coffee is not dispensed within
90 seconds, the brewing chamber empties
automatically to avoid an overow. The
Drink preparation with milk
The appliance must be ready for use.
● Place the suction pipe 10d of the milk
frother 10 deep in the milk container 26.
● Swivel the coffee outlet 9 to the right until
it clicks into place.
● Place the pre-warmed cup or glass under
the coffee outlet 9 and milk frother 10.
● Select the required Macchiato
by turning the rotary
● Open the powder compartment 18.
● Pour in no more than 2 level measuring
spoons 14 of ground coffee.
Do not use whole beans or instant coffee.
● Close the powder compartment 18.
● Press the start button 8.
First milk is delivered into the cup or glass.
Then the coffee is brewed and dispensed
into the cup or glass.
Important: Dried milk residue is difcult
to remove, so the milk frother 10 must be
cleaned with lukewarm water immediately
after use (see “Cleaning the milk system”).
Note: Repeat the procedure for another
cup of coffee / milk drink. If coffee is not
dispensed within 90 seconds, the brewing
chamber empties automatically to avoid an
overow. The appliance rinses.
Preparing milk froth and
The milk frother 10 gets very hot. After use,
allow to cool down rst before touching.
The appliance must be ready for use.
● Place the suction pipe 10d of the milk
frother 10 deep in the milk container 26.
● Place the pre-warmed cup or glass under
the outlet of the milk frother 10.
● Select the required setting Milk froth
by turning the rotary
● Press the start button 8.
Milk froth or warm milk ows from the outlet
of the milk frother 10.
Press the start button 8 again to cut the
Info: When preparing warm milk, you may
hear a whistling sound. This is caused by
the milk frother for technical reasons.
Tip: For optimal milk froth quality, use cold
milk with a fat content of at least 1.5 % if
Important: Dried milk residue is difcult
to remove, so the milk frother 10 must be
cleaned with lukewarm water immediately
after use (see “Cleaning the milk system”).
Dispensing hot water
The milk frother 10 gets very hot. After use,
allow to cool down rst before touching.
The milk frother must be cleaned before
The appliance must be ready for use.
● Place the pre-warmed cup or glass under
the outlet of the milk frother 10.
● Select the required setting for Hot
by turning the rotary knob 6.
● Press the start button 8.
Please remove suction hose
● Remove the milk suction hose 10c and
press the start button 8.
Hot water runs out of the milk frother
Press the start button 8 again to cut the
Note: It is possible to set the temperature of
the hot water (see “Menu settings”).
¡ Danger of electric shock!
Unplug the appliance before cleaning it.
Never submerse the appliance in water.
Do not use a steam cleaner.
● Wipe the outside of the appliance with a
● Do not use any cleaning agents that
contain alcohol or spirits.
● Do not use abrasive cloths or cleaning
● Always remove any limescale, coffee,
milk, cleaning or descaling uid residue
immediately. Such residue can cause
● New sponge cloths may contain salts.
Salts can cause rust lm on stainless
steel and must therefore be washed out
thoroughly before use.
● Pull the drip tray 23 with the coffee
grounds container 23c forwards and out.
Remove the panel 23a and grate 23b.
Empty and clean the drip tray and coffee
K Do not put the following items in the
dishwasher: Panel of drip tray 23a,
powder compartment 18, brewing unit
20, water tank 11, aroma cover 16 and
stainless steel milk container.
J The following parts may be cleaned
in the dishwasher: Drip tray 23, grate
23b, coffee grounds container 23c,
measuring spoon 14 and the individual
parts of the milk container cover.44
● Remove powder compartment 18 and
rinse under running water.
● Wipe out the inside of the tray holders.
Important: Drip tray 23 and coffee
grounds container 23c should be emptied
and cleaned daily to prevent mould from
Note: If the appliance is cold when switched
on, or if it is switched off after dispensing
coffee, it rinses automatically. In other
words, the system cleans itself.
Important: If the appliance has not been
used for a prolonged period of time (e. g.
after a vacation), clean the entire appliance
thoroughly, including the milk system 10
and brewing unit 20.
Cleaning the milk system
Important: The milk system 10 must be
cleaned immediately after use!
The milk system 10 can be pre-cleaned
automatically (see “Service programmes” or
Dismantling the milk system 10 for cleaning:
● Pull the milk system 10 forward out of the
● Turn the upper part 10a in an anti-
clockwise direction and remove from the
● Clean the individual parts with detergent
solution and a soft cloth.
● Rinse all parts with clean water and dry.
● Put all the parts back together. The milk
frother can then be clicked back into
place in the appliance.
Info: All parts of the milk frother 10 can also
be put in the dishwasher.45
Cleaning the brewing unit (Fig. F)
(refer also to the quick reference guide)
In addition to the automatic cleaning
programme, the brewing unit 20 should be
removed regularly for cleaning.
● Switch the appliance off completely at the
power on/off switch 1 O / I ; no buttons
● Take hold of the door to the brewing unit
19 at the bottom and open it.
● Slide the red lock 20a on the brewing unit
20 completely to the left.
● Press the eject lever 21 down fully. The
brewing unit is released.
● Grasp the brewing unit 20 by the
recessed grips and remove carefully.
● Remove the cover 20b of the brewing unit
and rinse the brewing unit 20 thoroughly
under running water.
● Thoroughly clean the brewing unit sieve
under the running water.
Important: Clean the brewing unit with-
out detergent and do not put it in the
● Wipe out the inside of the appliance
thoroughly with a damp cloth and remove
any coffee residues.
● Allow the brewing unit 20 and the inside
of the appliance to dry.
● Replace the cover 20b on the brewing
unit and reinsert the brewing unit 20 fully
● Press the eject lever 21 up fully.
● Slide the red lock 20a fully to the right
and close the door 19.
Tip: Refer also to the quick reference guide
in the storage compartment 22.
At regular intervals, the display 5 shows the
Short rinse milk system or
Service - calc‘nClean.
The appliance should be cleaned or
descaled immediately using the corre-
sponding programme. You have the option
of combining the processes Descaling
and Cleaning with the calc‘nClean func-
tion (see “ calc‘nClean”). If the service pro-
gramme is not run as instructed, the appli-
ance may be damaged.
Follow the instructions for using the descal-
ing and cleaning agents for each service
programme. Never interrupt the service
Do not drink the liquids.
Never use vinegar, vinegar-based products,
citric acid or citric acid-based products.
Never put descaling tablets or other descal-
ing agents in the powder compartment 18.46
Before starting the respective service
programme (descaling, cleaning or
calc‘nClean), remove the brewing unit,
clean as instructed and replace.
Specially developed and suitable
descaling and cleaning tablets are
available from retailers or customer
service (see “Accessories”).
Cleaning the milk system
Duration: approx. 1 minute
Cleaning and service
The milk system 10 can be pre-cleaned
● Press the à button 3.
Short rinse milk system
● Press the start button 8.
Place glass under frother, place
suction pipe in glass
● Place an empty glass under the milk
system 10 and put the end of the pipe
● Press the start button 8. The milk system
is cleaned automatically.
● Now empty the glass and clean the
In addition to this, clean the milk system
thoroughly at regular intervals (by hand or
Duration: approx. 30 minutes.
Cleaning and service
The start button 8 ashes while the different
descaling processes are running.
The gures on the top right indicate the
progress of the programme.
Important: If there is a water lter in the
water tank 11, it needs to be removed
before the service programme is run.
● Press the à button 3.
guide you through the programme.
● Empty the drip tray 23 and reinsert it.
Place suction pipe in container
● Place a container with 1 litre capacity
under the milk frother 10.
● Place the end of the suction pipe 10d in
Info: If the water lter is activated, the dis-
play will prompt you to remove the lter,
then press the start button 8 again.47
Add 0.5 l water and descaler
● Pour lukewarm water into the empty
water tank 11 up to the “0.5 l” mark and
then dissolve 1 Siemens descaling tablet
TZ80002 in it. When using TZ60002,
2 tablets must be dissolved.
● Press the start button 8. The descaling
programme will now run for about
Not enough descaling fluid.
Info: If there is not enough descaling solu-
tion in the water tank 11, the corresponding
prompt is displayed. Pour in descaling solu-
tion and press the start button 8 again.
Clean and refill water tank
● Rinse the water tank 11 and rell it with
fresh water up to the “max” mark.
● Press the start button 8. The descaling
programme now runs for about 1 minute
and rinses the appliance.
● Empty the drip tray 23 and reinsert it.
Replace the lter if one is being used. The
appliance is ready for use again.
Important: Wipe down the appliance using
a soft, damp cloth to immediately remove
any descaler residue. Such residue can
cause corrosion. New sponge cloths may
contain salts. Salts can cause rust lm
on stainless steel and must therefore be
washed out thoroughly before use.
Thoroughly clean the suction pipe 10d of
Duration: approx. 8 minutes.
Cleaning and service
The start button 8 ashes while the differ-
ent cleaning processes are running. The
gures on the top right indicate the progress
● Fill the water tank 11 up to the “max”
guide you through the programme.
● Empty the drip tray 23 and reinsert it.
● Swivel the coffee outlet 9 to the left until it
Open powder compartment
● Open the powder compartment 18.
Insert Siemens cleaning tablet
● Drop a Siemens cleaning tablet into the
drawer 18 and close it.
● Press the start button 8. The clean-
ing programme will now run for about
● Empty the drip tray 23 and reinsert it.
The appliance is ready for use again.
Duration: approx. 36 minutes.
calc‘nClean combines the separate
functions of descaling and cleaning.
If both programmes are due to be run
soon, the espresso machine automatically
suggests this service programme.
Cleaning and service
The start button 8 ashes while the differ-
ent calc‘nClean processes are running. The
gures on the top right indicate the progress
Important: If there is a water lter in the
water tank 11, it needs to be removed
before the service programme is run.
● Press the à button 3.
guide you through the programme.
● Empty the drip tray 23 and reinsert it.
● Swivel the coffee outlet 9 to the right until
it clicks into place.
Place suction pipe in container
● Place a container with a capacity of at
least 1 l under the milk frother 10.
● Place the end of the suction pipe 10d in
● Press the start button 8.
Open powder compartment
● Open the powder compartment 18.
Insert Siemens cleaning tablet
● Drop a Siemens cleaning tablet in the
drawer 18 and close.
Info: If the water lter is activated, the dis-
play will prompt you to remove the lter,
then press the start button 8 again.
Add 0.5 l water and descaler
● Pour lukewarm water into the empty
water tank 11 up to the “0.5 l” mark and
then dissolve 1 Siemens descaling tablet
TZ80002 in it. When using TZ60002,
2 tablets must be dissolved.
● Press the start button 8. The descaling
programme now runs for about
Not enough descaling fluid.
Info: If there is not enough descaling solu-
tion in the water tank 11, the corresponding
prompt is displayed. Pour in descaling solu-
tion and press the start button 8 again.49
Clean and refill water tank
● Rinse the water tank 11 and rell it with
fresh water up to the “max” mark.
● Press the start button 8. The descaling
programme now runs for about 1 minute
more, followed by the cleaning pro-
gramme for about 7 minutes, and rinses
● Empty the drip tray 23 and reinsert it.
Replace the lter if one is being used.
The appliance has completed descaling and
cleaning and is ready for use again.
Important: Wipe down the appliance using
a soft, damp cloth to immediately remove
any descaler residue. Such residue can
cause corrosion. New sponge cloths may
contain salts. Salts can cause rust lm
on stainless steel and must therefore be
washed out thoroughly before use.
Thoroughly clean the suction pipe 10d of
Note: If one of the service programmes
is interrupted, e. g. by a power outage,
● Rinse the water tank 11 and rell it with
fresh water up to the “max” mark.
● Press the start button 8. The cleaning
programme now runs for about 3 minutes,
and rinses the appliance.
● Empty the drip tray 23 and reinsert it.
The appliance is ready for use again.
Tips on energy saving
● The display has a dimming function that
switches on automatically when the
appliance is not in use. The display is
illuminated dimly. Press any button or
the rotary knob to brighten the display
● If the appliance is not being used, switch
it off at the power on/off switch 1 O / I on
● If possible, do not interrupt coffee or milk
froth dispensing. Stopping a process
prematurely results in higher energy
consumption and the drip tray lls up
● Descale the appliance regularly to avoid
a build-up of limescale. Limescale residue
results in higher energy consumption.
¡ To avoid damage caused by frost
during transport and storage, the
appliance must be completely
See “Menu settings – Transport. lock.”
The espresso machine has special com-
partments for storing the accessories and
quick reference guide inside the appliance.
● To store the measuring spoon 14, remove
the water tank 11 and insert the spoon in
the shaped recess 13.
● To store the quick reference guide, open
the door to the brewing unit 19 and stow
away the quick reference guide in the
storage compartment 22 provided for this
The following accessories are available
from retailers or from customer service:
Accessories Ordering number
Technical specications
Power connection (voltage – frequency) 220-240 V – 50/60 Hz
Heater wattage 1600 W Maximum static pump pressure 19 bar
Maximum water tank capacity (without lter) 2.4 l
Maximum capacity of the coffee bean container ~300 g
Length of power cable 100 cm
Dimensions (H x W x D) 385 x 301 x 458 mm
Weight, empty 10–12 kg
Type of grinding unit Ceramic
J Dispose of packaging in an
environ mentally-friendly manner. This
appliance is labelled in accordance
with European Directive 2012/19/
EU concerning used electrical and
electronic appliances (waste electrical
and electronic equipment – WEEE).
The guideline determines the frame-
work for the return and recycling
of used appliances as applicable
throughout the EU. Please ask your
specialist retailer about current
disposal facilities.
The guarantee conditions for this appliance
are as de ned by our representative in the
country in which it is sold. Details regarding
these conditions can be obtained from
the dealer from whom the appliance was
purchased. The bill of sale or receipt must
be produced when making any claim under
the terms of this guarantee.
container 15 is full, or the
grinding unit does not
Beans are not falling into
the grinding unit (beans too
Gently tap the bean container
Change the type of coffee if
necessary. When the bean
15 is empty, wipe it
No tea water dispensed. The milk frother 10 or its
Clean the milk frother 10 or its
holder (see “Cleaning the milk
Too little or no milk froth,
or the milk frother 10 does
not draw the milk in.
The milk frother 10 or its
Clean the milk frother 10 or its
holder (see “Cleaning the milk
Milk unsuitable for frothing. Use low-fat milk (1.5 % fat).
The milk frother 10 is not
correctly assembled.
Moisten and assemble the milk
Build-up of limescale in the
Descale the appliance as
described in the instructions.
The selected per-cup
quantity is not reached.
Coffee dispensing slows
to a trickle or stops
Coffee is ground too nely.
Pre-ground coffee is too
Adjust the grinding unit to a
coarser setting. Use coarser
Build-up of limescale in the
Descale the appliance as
described in the instructions.
Coffee has no “crema”. Unsuitable type of coffee. Use a type of coffee with a
higher proportion of robusta
The beans are no longer
The grinding setting is not
suitable for the beans.
Adjust the grinding setting to
Coffee is too “acidic”. The grinding setting is too
coarse or the pre-ground
coffee is too coarse.
Adjust the grinding unit to a ner
setting or use ner preground
Unsuitable type of coffee. Use a darker roast.
Coffee is too “bitter”. The grind setting is too ne
or the pre-ground coffee is
Adjust the grinding unit to a
coarser setting or use coarser
Unsuitable type of coffee. Change the type of coffee.
If you are unable to solve the problem, always call the hotline!
You will nd the telephone numbers at the back of these instructions.52
Problem Cause Solution
The coffee tastes “burnt”. Brewing temperature too
Reduce the temperature, see
The grinding setting is
too ne or the preground
Adjust the grinding unit to a
coarser setting or use coarser
Unsuitable type of coffee. Change the type of coffee.
Please contact hotline
The appliance has a fault. Please contact the hotline.
The water lter does not
stay in position in the
The water lter is not
Firmly press the water lter
straight down into the tank
incorrectly inserted or the
new water lter has not
been rinsed according to
Insert the water tank correctly or
rinse the water lter according to
instructions and then switch on.
Carbonated water in the
Fill the water tank with fresh tap
The coffee grounds are
not compact and are too
The grinding setting is too
ne or too coarse, or not
enough ground coffee has
Adjust the grinding unit to a
coarser or ner setting, or use
2 level measuring spoons of
Brewing unit is soiled. Clean brewing unit.
coffee in the brewing unit.
Clean brewing unit (pour in no
more than 2 level measuring
spoons of ground coffee).
Clean brewing unit (see “Mainte-
nance and daily cleaning”).
Coffee or milk froth quality
varies considerably.
Build-up of limescale in the
Descale the appliance as
described in the instructions.
Water dripped onto the
inner oor of the appli-
ance when the drip tray
Drip tray removed too
Wait a few seconds after the
last drink was dispensed before
removing the drip tray.
If you are unable to solve the problem, always call the hotline!
You will nd the telephone numbers at the back of these instructions.53
electrical and electronic equipment –
BSH Home Appliances FZE Round About 13,
www.siemens-home.com/ae
HEATHERTON, Victoria 3202
mailto:bshau-as@bshg.com
www.siemens-home.com.au
European Trade Center Building,
Centrale Servicestation
BSH group is a Trademark Licensee of Siemens AG.
Manufacturer´s Service for Siemens Home Appliances.
CP-Kafpreso_Siemens_09_2015.indd 1 21.09.15 12:09FR France
Milton Keynes MK12 5PT To arrange an engineer visit,
to order spare parts or
accessories or for product
www.siemens-home.co.uk
Tel.: 0344 892 8999* *Calls are charged at the basic rate,please check with your telephone serviceprovider for exact charges
BSH Ikiakes Siskeves A.B.E.
Central Branch Service
BSH Home Appliances Limited
Unit 1 & 2, 3rd Floor
North Block, Skyway House
www.siemens-home.com/hr
mailto:alkatreszrendeles@bsh.hu
www.siemens-home.com/hu
IE Republic of Ireland
BSH Home Appliances Ltd.
Unit F4, Ballymount Drive
Ballymount Industrial Estate
Service Requests, Spares and
www.siemens-home.com/ie *0.03 € per minute at peak.Off peak 0.0088 € per minute. IL Israel,
C/S/B/ Home Appliance Ltd.
North Industrial Park
www.siemens-home.com/it
General Serviss Limited
S.R.L. "Rialto-Studio"
BSH Household Appliances
Arena House, 2nd Floor, Main Bldg,
Plot No. 103, Road No. 12,
www.siemens-home.com/in
BSH group is a Trademark Licensee of Siemens AG.
Manufacturer´s Service for Siemens Home Appliances.
CP-Kafpreso_Siemens_09_2015.indd 2 21.09.15 12:09NL Nederlande, Netherlands
www.siemens-home.com/pt
www.siemens-home.com/ro
gama-electronics.com
15th Road Randjespark
BSH group is a Trademark Licensee of Siemens AG.
Manufacturer´s Service for Siemens Home Appliances.
CP-Kafpreso_Siemens_09_2015.indd 3 21.09.15 12:09Garantiebedingungen
BSH group is a Trademark Licensee of Siemens AG. Manufacturer´s Service for Siemens Home Appliances.
