USER MANUAL KS36VNW30 SIEMENS

Free-standing appliance

en Table of Contents

Using the installation instructions 8

Installation location 8

Installing appliances

next to each other 9

Changing over the door hinges 9

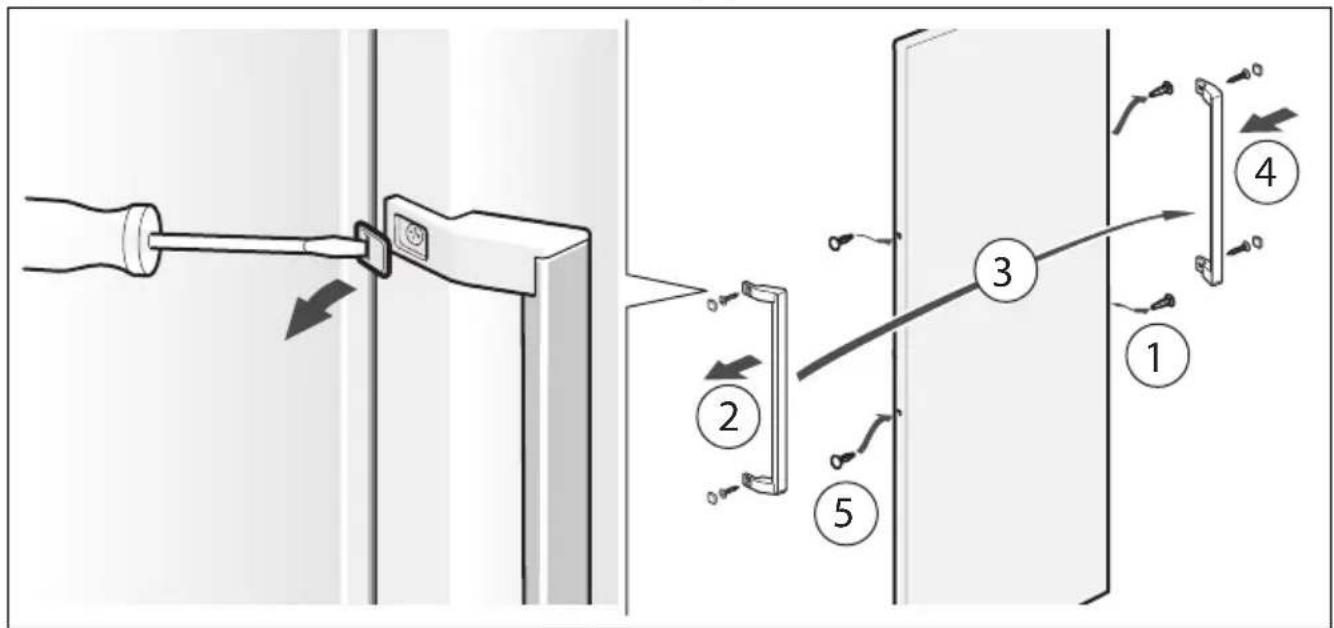

Changing the door handle 10

8 enTable of Content s enInstallation in structions

Free-standing appliance

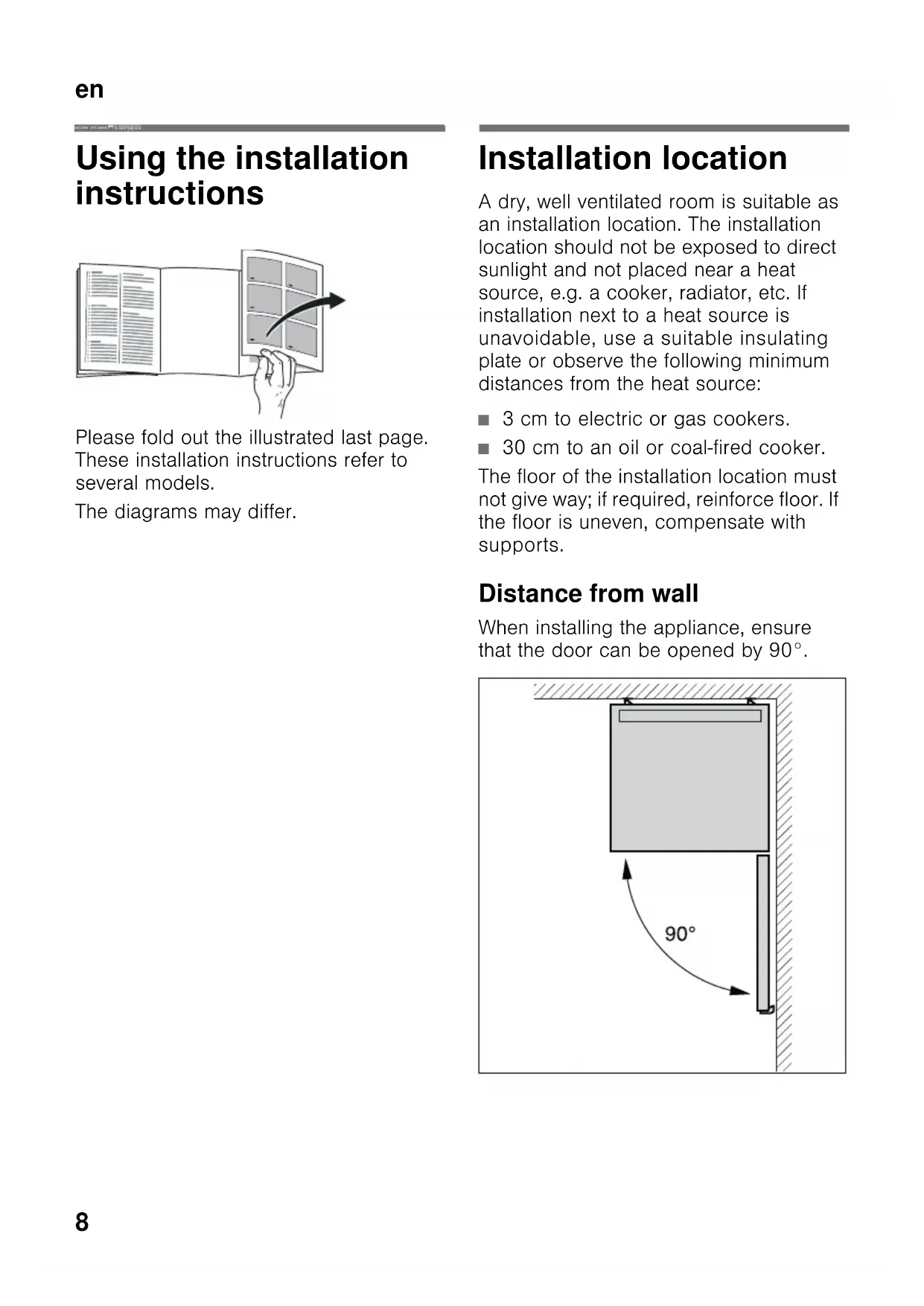

Using the installation

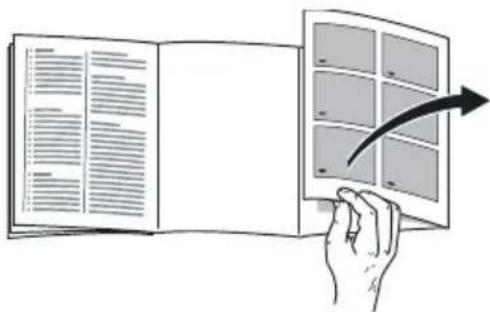

Please fold out the illustrated last page.

These installation instructions refer to

The diagrams may differ.

Installation location

A dry, well ventilated room is suitable as

an installation location. The installation

location should not be exposed to direct

sunlight and not placed near a heat

source, e.g. a cooker, radiator, etc. If

installation next to a heat source is

unavoidable, use a suitable insulating

plate or observe the following minimum

distances from the heat source:

■ 3 cm to electric or gas cookers.

■ 30 cm to an oil or coal-fired cooker.

The floor of the installation location must

not give way; if required, reinforce floor. If

the floor is uneven, compensate with

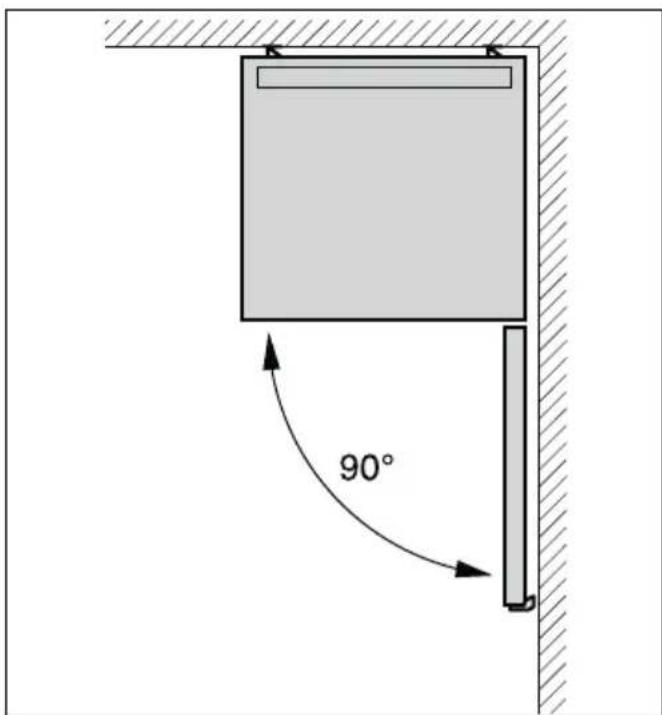

that the door can be opened by 90°.en

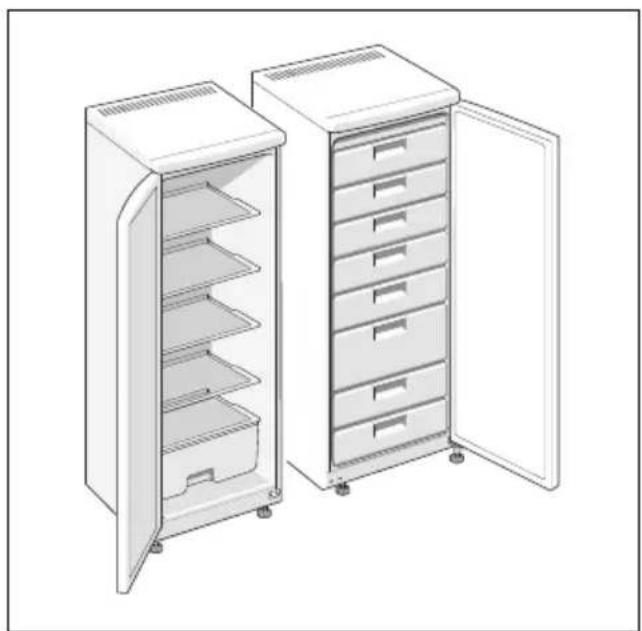

Installing appliances

When installing two appliances, ensure

that the refrigerator is on the left and the

freezer is on the right.

The right side panel of the refrigerator is

heated slightly. This prevents

condensation from forming between the

1. On the right side of the refrigerator

degrease the adhesive areas with

petroleum ether or spirit.

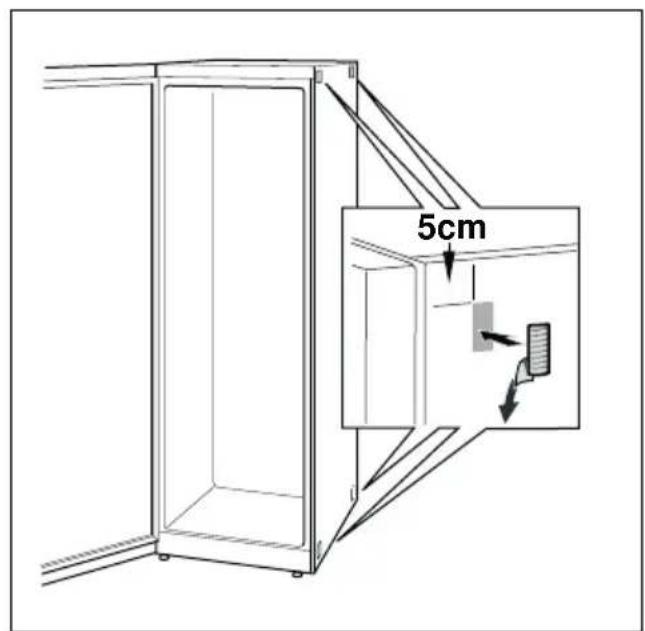

2. Stick spacers in all four corners at

a distance of 5 cm from the side

edges to ensure a minimum gap

between the appliances.

You can purchase a connection set from

We recommend that you have the door

hinges changed over by our customer

service. You can find out the costs for

changing over the door hinges from your

appropriate customer service.

While changing over the door hinges,

ensure that the appliance is not

connected to the power supply. Pull out

the mains plug beforehand. To prevent

damaging the back of the appliance,

place adequate padding underneath.

Carefully place the appliance on its back.

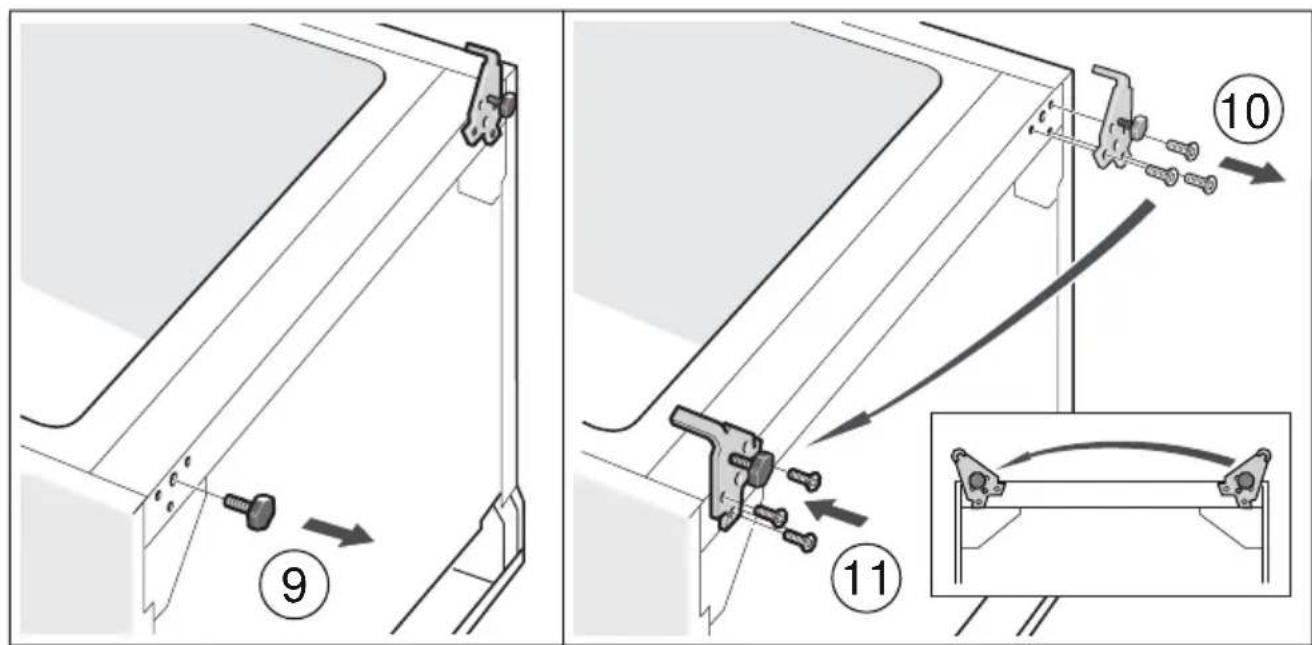

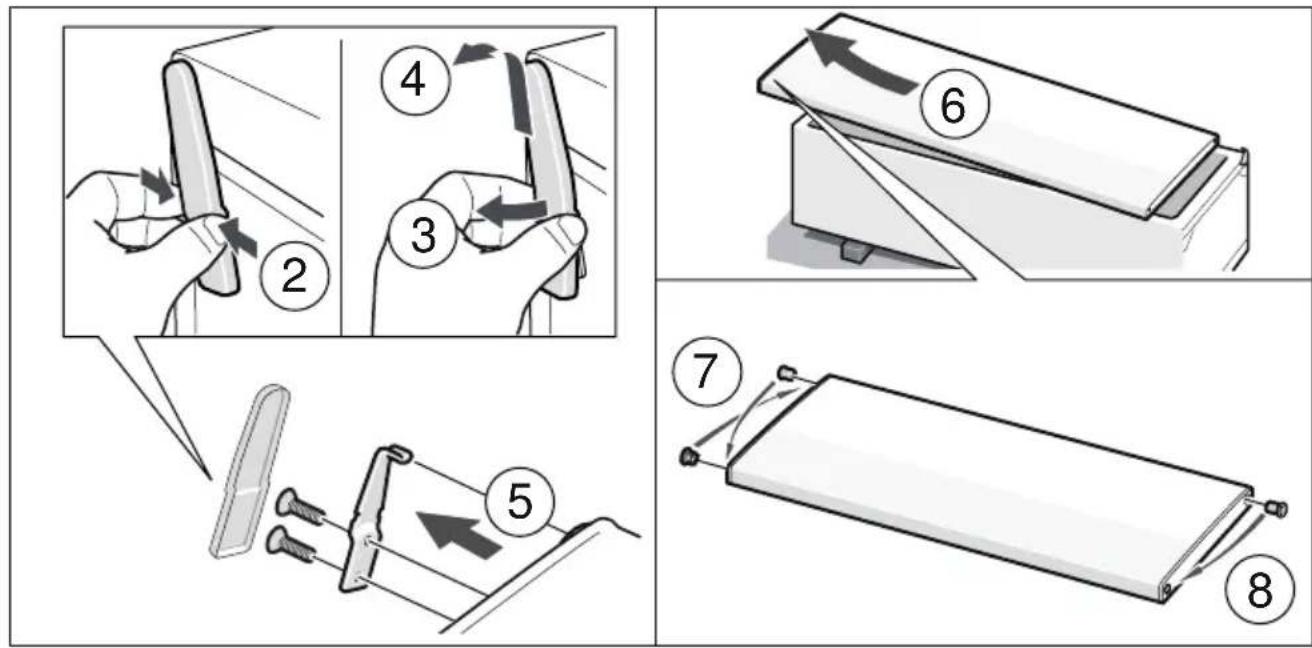

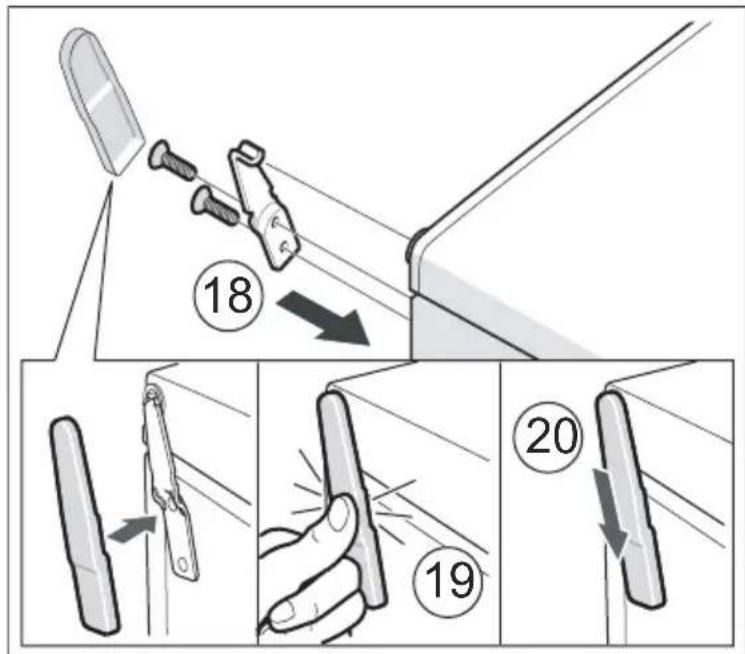

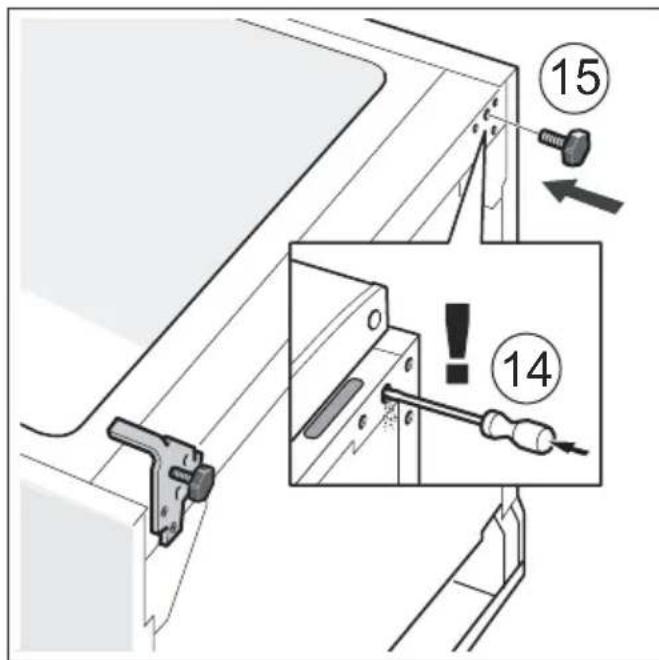

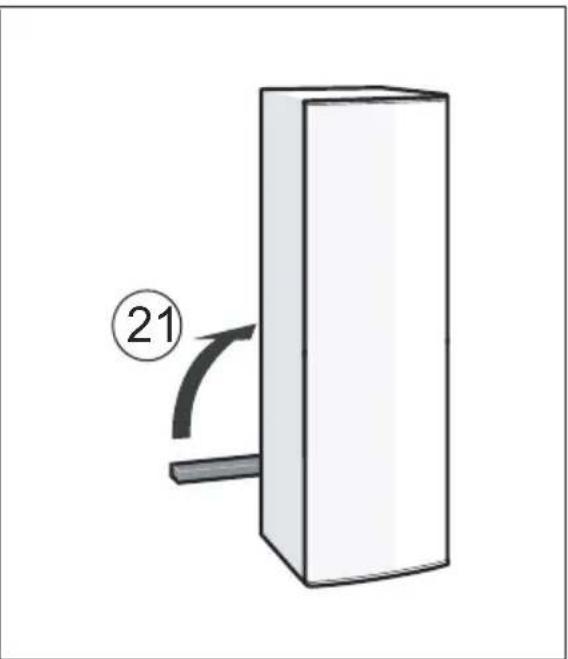

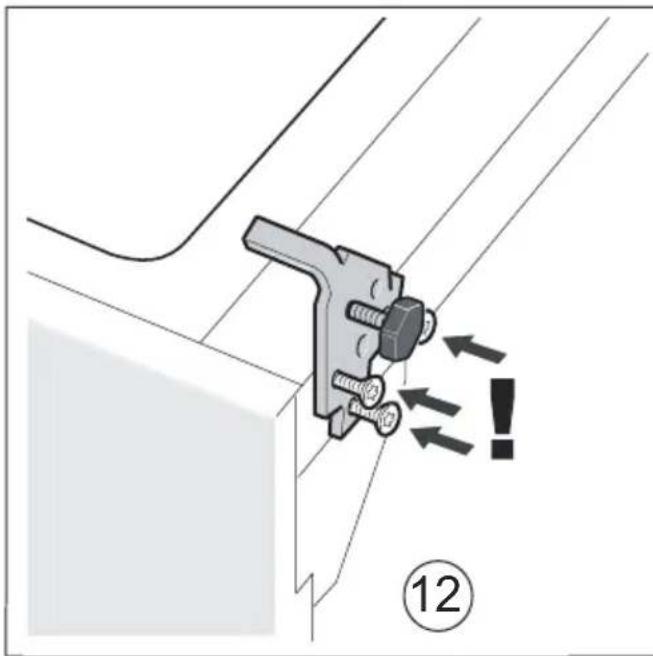

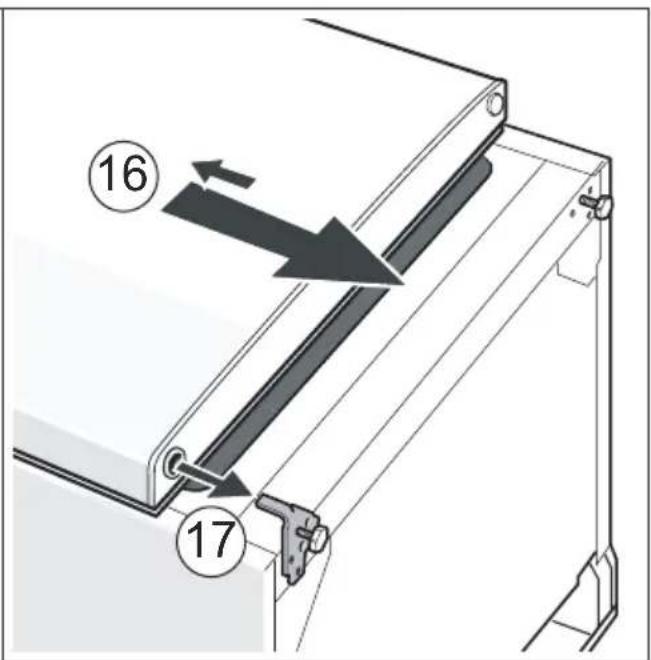

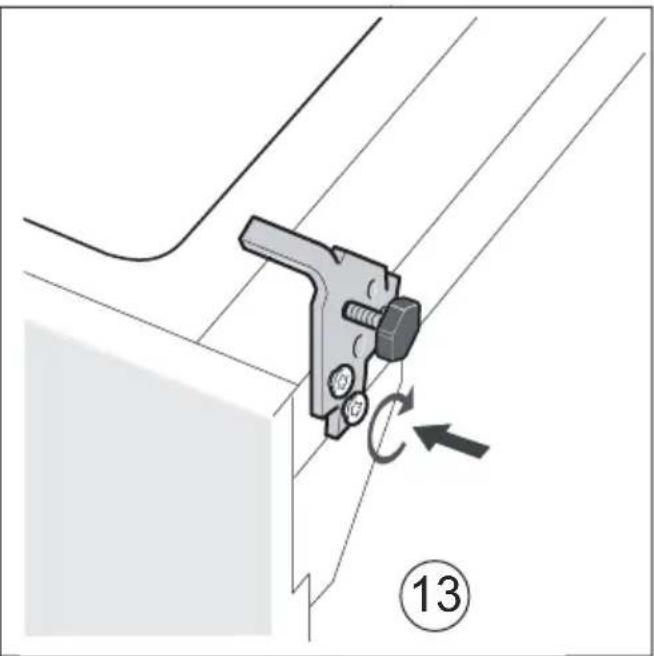

Change over the door hinges

in numerical sequence. Fig. 1

If the appliance is placed on its back,

ensure that the wall spacer is not fitted.en

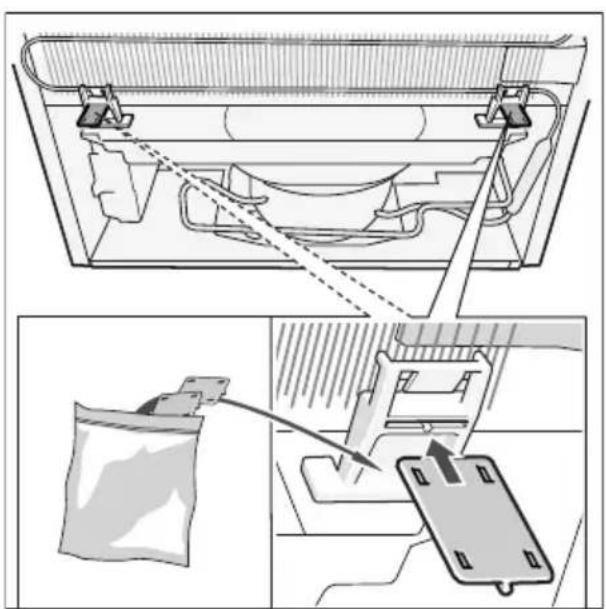

Fit wall spacers to obtain the indicated

energy absorption of the appliance.

A reduced wall gap will not restrict

the function of the appliance. The energy

absorption may then change slightly.

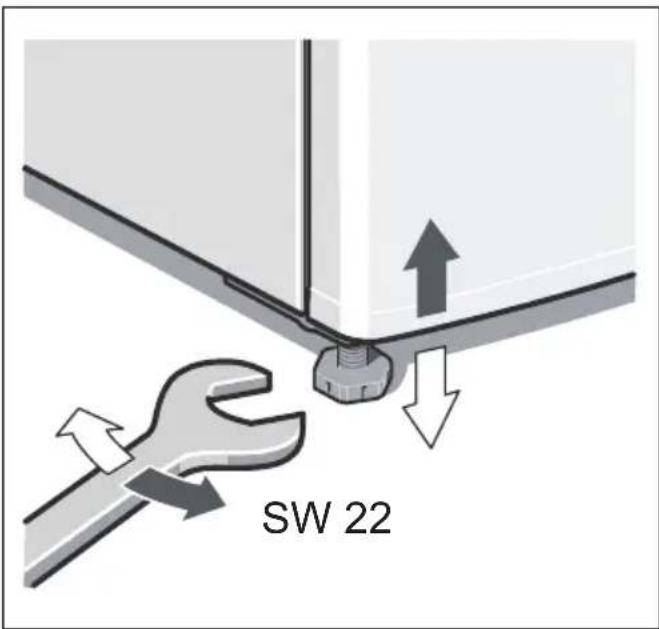

Aligning the appliance

Place the appliance in the designated

location and align. The appliance must

be level. If the floor is uneven, use

the front height-adjustable feet. Adjust

the height-adjustable feet with a wrench.

The appliance must be upright. Please

align it with a spirit level.
