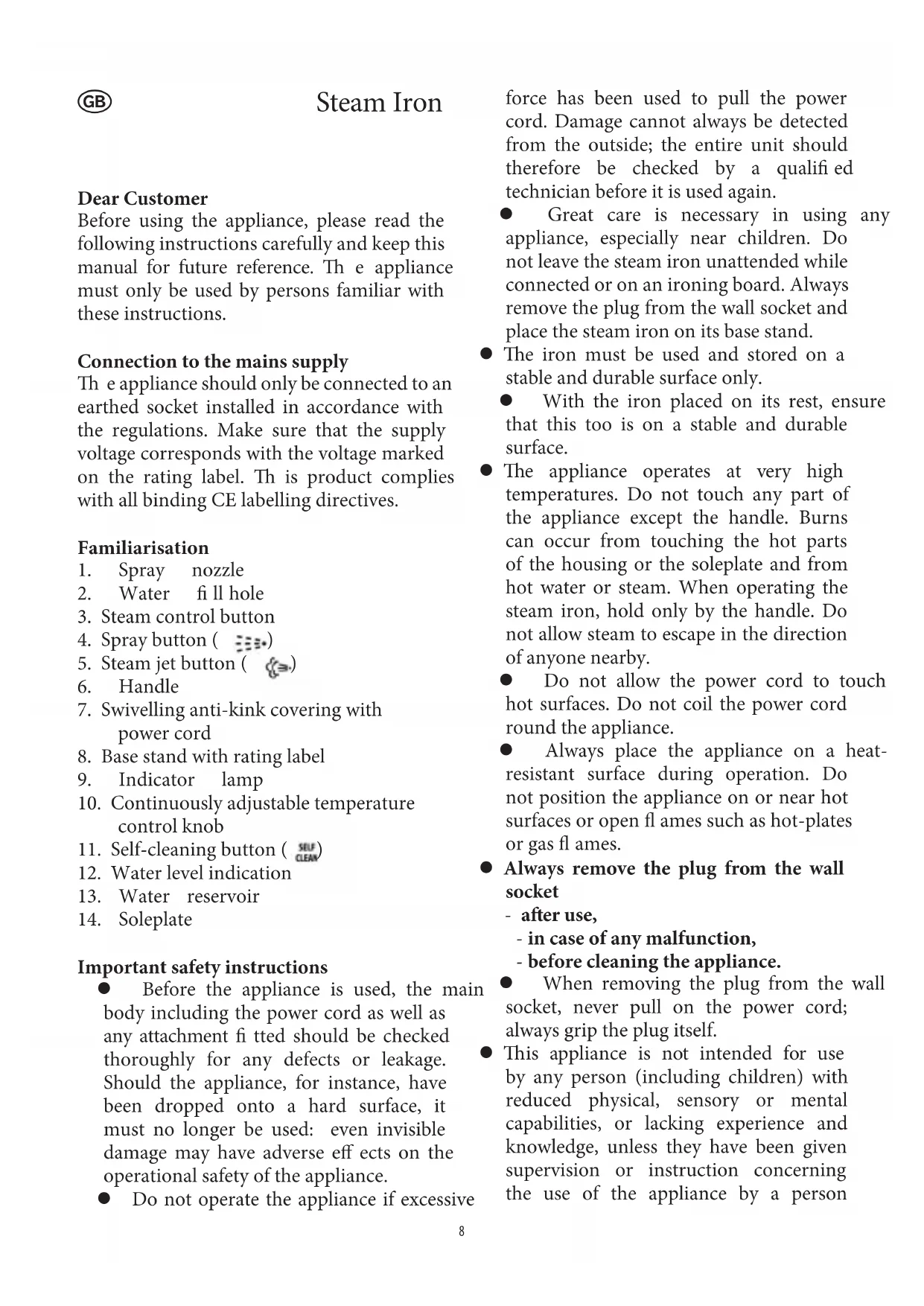

USER MANUAL BA 3220 SEVERIN

Before using the appliance, please read the following instructions carefully and keep this manual for future reference. The appliance must only be used by persons familiar with these instructions.

Connection to the mains supply

The appliance should only be connected to an earthed socket installed in accordance with the regulations. Make sure that the supply voltage corresponds with the voltage marked on the rating label. Th is product complies with all binding CE labelling directives.

Familiarisation

1. Spray nozzle
2. Water fill hole
3. Steam control button
4. Spray button ( ≡)
5. Steam jet button ( ）
6. Handle
7. Swivelling anti-kink covering with power cord
8. Base stand with rating label
9. Indicator lamp
10. Continuously adjustable temperature control knob
11. Self-cleaning button ( SELF CLEAN)
12. Water level indication
13. Water reservoir
14. Soleplate

Important safety instructions

• Before the appliance is used, the main body including the power cord as well as any attachment fitted should be checked thoroughly for any defects or leakage. Should the appliance, for instance, have been dropped onto a hard surface, it must no longer be used: even invisible damage may have adverse effects on the operational safety of the appliance.
• Do not operate the appliance if excessive

force has been used to pull the power cord. Damage cannot always be detected from the outside; the entire unit should therefore be checked by a qualified technician before it is used again.

● Great care is necessary in using any appliance, especially near children. Do not leave the steam iron unattended while connected or on an ironing board. Always remove the plug from the wall socket and place the steam iron on its base stand.

- The iron must be used and stored on a stable and durable surface only.

- With the iron placed on its rest, ensure that this too is on a stable and durable surface.

- The appliance operates at very high temperatures. Do not touch any part of the appliance except the handle. Burns can occur from touching the hot parts of the housing or the soleplate and from hot water or steam. When operating the steam iron, hold only by the handle. Do not allow steam to escape in the direction of anyone nearby.

• Do not allow the power cord to touch hot surfaces. Do not coil the power cord round the appliance.
  ● Always place the appliance on a heat-resistant surface during operation. Do not position the appliance on or near hot surfaces or open fl ames such as hot-plates or gas fl ames.

● Always remove the plug from the wall socket

- after use,

• in case of any malfunction,
• before cleaning the appliance.

- When removing the plug from the wall socket, never pull on the power cord; always grip the plug itself.

- This appliance is not intended for use by any person (including children) with reduced physical, sensory or mental capabilities, or lacking experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person

responsible for their safety.

● Children should be supervised to ensure—that they do not play with the appliance.

- Caution: Keep any packaging materials well away from children, as they are a potential source of danger e.g. from suff ocation.

- Before refilling or emptying the water reservoir, remove the plug from the wall socket.

- No responsibility is accepted if damage results from improper use, or if these instructions are not complied with.

● This appliance is intended for domestic or similar applications, such as in

- shops, offices and other similar working environments,

- agricultural areas,

- hotels, motels etc. and similar establishments,

- bed-and-breakfast type environments.

- In order to comply with safety regulations and to avoid hazards, repairs of electrical appliances must be carried out by qualified personnel, including the replacement of the power cord. If repairs are needed, please send the appliance to one of our customer service departments. The addresses can be found in the appendix to this manual.

Anti-scale fi lter

A special filter in the generator reservoir soft ens the water and reduces the build-up of lime deposits in the sole plate.

Filling with water

Fill the water reservoir before using the steam function or the spray nozzle.

Remove the plug from the wall socket before filling the reservoir.

- Th is steam iron is to a large extent resistant

to hard water (up to 15^ dH). Although normal tap water may be used, it is advisable to use distilled, demineralised or decalcified water. Should you be unsure about the hardness of the water in your area, please enquire of the relevant local authority department.

Open the cover of the water fill hole.

• Fill the empty water reservoir using the measuring cup provided. Fill the reservoir to the indicated 'Max' level only.
• Close the filling hole, ensuring that the cover is heard clicking into place.

Anti-drip function

If the temperature of the soleplate is not sufficient to produce steam, the water supply is cut off automatically to prevent dripping.

General information about ironing

Always check first whether a label with ironing instructions is attached to the article to be ironed.

- The meaning of the ironing symbols is as follows:

• synthetics (low temperature)
• silk and wool (medium temperature)
••• cotton and linen (high temperature)

• These markings can also be found on the temperature control knob of the steam iron in form of dot symbols.
  ● Laundry to be ironed should be sorted according to the fabric ironing temperature. Follow the ironing symbols and start with the lowest temperature.

- When ironing highly sensitive fabrics, or if you are not sure about the fabrics, you may carefully test-iron at a non-visible point, e.g. inside of seam. Start with the lowest temperature.

- If the laundry is being dried in a dryer before ironing, the temperature should be adjusted to 'iron dry'. Very dry fabrics are difficult to iron.

Start up

Clean the steam iron before using for the first time, according to the instructions given in the paragraph 'General Care and Cleaning

- Self-cleaning system'. This will result in the removal of possible dust particles from the

soleplate and subsequently lessen the smell typically encountered when first switching on.

Please ensure sufficient ventilation.

will switch off after approx 30 seconds of inactivity.

Vertical position:

When upright on its base stand, the iron will switch off after approx. 8 minutes of

Ironing

● Steam ironing and the steam jet functioninactivity.

both involve high temperatures. The suitable temperature range is marked green on the temperature control.

● After filling the reservoir with water, place the steam iron upright on its base stand and insert the plug into the wall socket.
- Set the temperature control knob to the required ironing temperature as indicated by the ironing symbols.
- During the heating-up process the indicator lamp will be on. It goes out once the required ironing temperature is reached.

- Before ironing any fabrics, the soleplat should be cleaned by passing it over an old, clean cotton cloth, while using the steam jet function; this helps to flush out any dirt residues or lint particles trapped inside the openings in the soleplate.

- The steam output can be adjusted with the steam control button or completely switched off for dry ironing (0).

- For dry ironing, the water reservoir may be empty. Should there be water left in the reservoir, the steam jet function may also be used when dry-ironing at higher temperature settings.

- Place the steam iron upright on its base stand after use and remove the plug from the wall socket.

Automatic switch-off

If the appliance is switched on but not being used for a certain period of time, it will automatically switch off. Automatic switch-off is indicated by 6 short beep signals. As soon as the appliance is moved, it will switch on again.

Horizontal position:

With the iron standing on its sole plate, it

Steam Jet

When the steam jet button ( ) is depressed, an additional hot steam jet is emitted from the soleplate. This function can useful when removing stubborn creases. The steam jet function may also be used with the iron held vertically, to restore the surface of fabrics.

For a suffi ciently strong steam jet, the reservoir must be at least a quarter full.

Spray nozzle

eThe laundry can be dampened by pressing the spray button (≡≡). This will help to smooth out difficult areas. The spray nozzle may be used at any temperature level during dry or steam ironing.

General Care and Cleaning

● Before cleaning the appliance, ensure it is disconnected from the power supply and has cooled down completely.
● To avoid the risk of electric shock, do not clean the appliance with water and do not immerse it in water.
- If necessary, the unit may be wiped with a dry fuzz-free cloth.
- Starch, fat and other deposits on the soleplate may be removed with a woollen cloth soaked in a vinegar-water solution.

- Do not use abrasives or harsh cleaning solutions.

- Do not put vinegar or other descalers into the water reservoir.

Self-cleaning system

The self-cleaning system flushes out loose mineral deposits and keeps the appliance free of lime and dust particles. Self-cleaning should be performed if the iron has not

been used for an extended period of time, or otherwise every 10-15 days. Proceed as follows:

• Fill the water reservoir up to the maximum level mark with water.
• Place the iron on its base stand and insert the plug into the wall socket.
• Set the temperature control to maximum.
• Wait until the indicator light goes out.
• Remove the plug from the wall socket.
• Hold the iron horizontally over a sink.
• With the self-cleaning button (SEE) pressed, swing the iron lightly to and fro until no more steam or hot water is emitted.
• Pour out any remaining water from the reservoir.
• Allow the sole plate to cool down before cleaning it with a damp, lint-free cloth.

been modified, repaired or interfered with by any unauthorised person, or damaged through misuse.

Th is guarantee naturally does not cover wear and tear, nor breakables such as glass and ceramic items, bulbs etc. This guarantee does not affect your statutory rights, nor any legal its rights you may have as a consumer under applicable national legislation governing the purchase of goods. If the product fails to operate and needs to be returned, pack it carefully, enclosing your name and address and the reason for return. If within the guarantee period, please also provide the guarantee card and proof of purchase.

Storage

• Turn off the steam iron, remove the plug from the wall socket and let the unit cool down completely.
• Pour any remaining water out of the reservoir through the water fill hole.
• To avoid damage to the soleplate, store the steam iron in upright position on its base stand.

Disposal

Do not dispose of old or defective appliances in domestic garbage; this should only be done through public collection points.

Guarantee

Th is product is guaranteed against defects in materials and workmanship for a period of two years from the date of purchase. Under this guarantee the manufacturer undertakes to repair or replace any parts found to be defective, providing the product is returned to one of our authorised service centres. This guarantee is only valid if the appliance has been used in accordance with the instructions, and provided that it has not
