Product Type	Mini-oven
Brand	Severin
Model	TO 2040
Timer	Up to 60 minutes with audible signal and automatic shut-off
Cooking functions	5 modes: top heat, top heat + rotisserie, top + bottom heat, top + bottom + convection, top + convection + rotisserie
Adjustable temperature	Yes, via temperature selector
Included accessories	Grill, baking tray, rotisserie with forks, crumb tray
Minimum installation distances	Sides: 12 cm, rear: 12 cm, above: 30 cm
Exterior cleaning	Non-linting damp cloth
Accessories cleaning	Hot water with dish soap
Crumb tray	Removable, washable with water
Safety	Automatic shut-off at end of timer; do not use unattended
Warranty	2 years against material and manufacturing defects
After-sales service	Authorized service centers listed in the manual
Manual page count	62
Available languages	French, English, German, Spanish, Italian, Dutch, etc.

Frequently Asked Questions - TO 2040 SEVERIN

How to use the rotisserie function?

Skewer the food by centering it on the rotisserie using the forks. Secure any protruding parts. Place the rotisserie in the oven: pointed end to the right, notch on the handle rest. Make sure the regulator tip is properly connected. Select the mode top heat with rotisserie or with convection.

What is the appliance's power?

The power is not specified in the manual. Check the rating plate on the appliance for the exact power.

How to clean the mini-oven?

Unplug the appliance and let it cool down. Clean the exterior with a non-linting damp cloth. The accessories (grill, tray, rotisserie) can be cleaned with hot water and dish soap. The crumb tray is removable and washable. Do not use abrasive products.

Can I use aluminum foil?

The manual does not explicitly mention the use of aluminum foil. It is advisable to follow usual precautions: do not fully cover the grill or tray, and avoid contact with heating elements to prevent fire risks.

What to do if the timer does not work?

Check that the appliance is plugged in and the temperature selector is not set to MIN. If the timer does not start cooking, try setting it to a longer time and then turning it back. If the problem persists, contact an authorized service center.

How to preheat the oven?

Set the thermostat to the desired temperature. Select both heating elements (top+bottom mode) and set the timer to a few minutes. Close the door. The indicator light turns on. After preheating, place the food and adjust settings.

What types of dishes can I use?

Use the grill, the provided tray, or the rotisserie. For greasy or juicy foods, use the tray to prevent dripping. Pizza stone can be used on the grill (not provided). Avoid plastic or flammable containers.

How to adjust the temperature?

Turn the temperature selector to the desired position. The settings likely range from MIN to MAX (approx. 100-230°C, not specified). Use the mark on the knob to choose the appropriate temperature for cooking.

Is it safe to leave the appliance on unattended?

No, it is dangerous to leave the appliance running unattended due to risk of overheating or fire. Always turn off the appliance after use or when leaving.

Where to find spare parts?

Contact an authorized Severin after-sales service center. The manual provides a list of addresses and phone numbers for different countries. The 2-year warranty covers manufacturing defects but not breakable parts like glass.

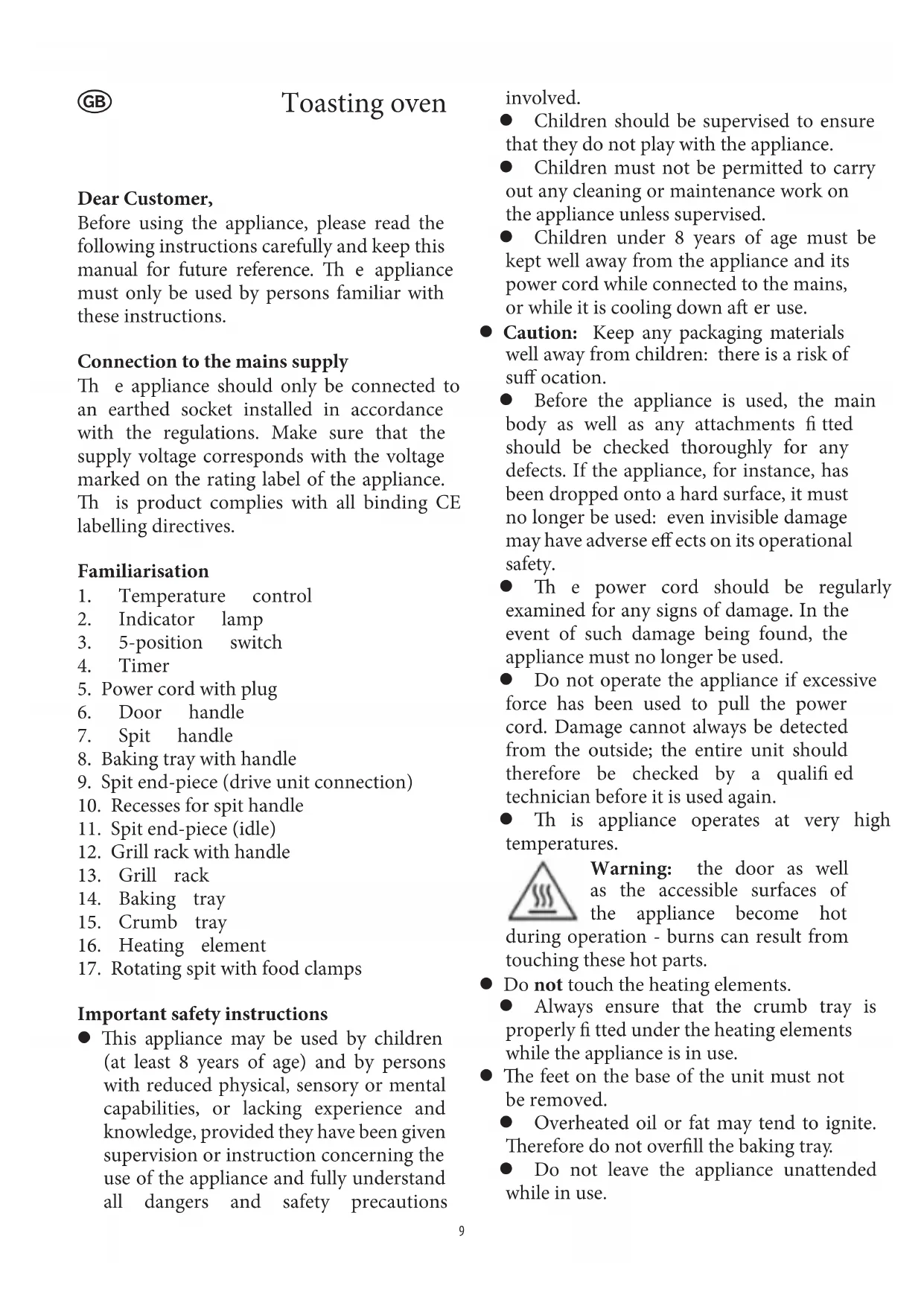

USER MANUAL TO 2040 SEVERIN

Before using the appliance, please read the following instructions carefully and keep this manual for future reference. The appliance must only be used by persons familiar with these instructions.

Connection to the mains supply

The appliance should only be connected to an earthed socket installed in accordance with the regulations. Make sure that the supply voltage corresponds with the voltage marked on the rating label of the appliance. This product complies with all binding CE labelling directives.

Familiarisation

1. Temperature control

2. Indicator lamp

3. 5-position switch

4. Timer

5. Power cord with plug

6. Door handle

7. Spit handle

8. Baking tray with handle

9. Spit end-piece (drive unit connection)

10. Recesses for spit handle

11. Spit end-piece (idle)

12. Grill rack with handle

13. Grill rack

14. Baking tray

15. Crumb tray

16. Heating element

17. Rotating spit with food clamps

Important safety instructions

- This appliance may be used by children (at least 8 years of age) and by persons with reduced physical, sensory or mental capabilities, or lacking experience and knowledge, provided they have been given supervision or instruction concerning the use of the appliance and fully understand all dangers and safety precautions

involved.

● Children should be supervised to ensure that they do not play with the appliance.

● Children must not be permitted to carry out any cleaning or maintenance work on the appliance unless supervised.

● Children under 8 years of age must be kept well away from the appliance and its power cord while connected to the mains, or while it is cooling down after use.

- Caution: Keep any packaging materials well away from children: there is a risk of suffocation.

- Before the appliance is used, the main body as well as any attachments fitted should be checked thoroughly for any defects. If the appliance, for instance, has been dropped onto a hard surface, it must no longer be used: even invisible damage may have adverse effects on its operational safety.

- The power cord should be regularly examined for any signs of damage. In the event of such damage being found, the appliance must no longer be used.

- Do not operate the appliance if excessive force has been used to pull the power cord. Damage cannot always be detected from the outside; the entire unit should therefore be checked by a qualified technician before it is used again.

- Th is appliance operates at very high temperatures.

Warning: the door as well as the accessible surfaces of the appliance become hot during operation - burns can result from touching these hot parts.

- Do not touch the heating elements.

● Always ensure that the crumb tray is properly fitted under the heating elements while the appliance is in use.

- The feet on the base of the unit must not be removed.

● Overheated oil or fat may tend to ignite. Therefore do not overfill the baking tray.

- Do not leave the appliance unattended while in use.

- The appliance is not intended to be operated by means of an external timer or separate remote-control system.

- Sufficient ventilation must be ensured at all times. Do not place any objects on the unit, and make sure that the following minimum distances from any wall or other object are maintained:

Side: 12 cm

Rear: 12 cm

Top: 30 cm

- The unit must not be installed inside a cupboard; when positioning the unit, also ensure that it is not placed directly underneath a shelf or any other similar object.

- Do not operate the appliance outdoors.

- Do not position or operate the appliance close to or underneath any wall-cupboards or hanging objects such as curtains or any infl ammable materials.

- During operation, the appliance must be placed on a heat-resistant surface, impervious to splashes and stains. Do not position the appliance on or near hot surfaces, open flames or infl ammable vapours.

- Do not allow the power cord to touch hot surfaces.

- Do not let the power cord hang free.

● Always switch off and remove the plug from the wall socket

• aft er use, as well as
• in cases of malfunction, and
• during cleaning.

- When removing the plug from the wall socket, never pull on the power cord; always grip the plug itself.

- No responsibility will be accepted damage results from improper use, or if these instructions are not complied with.

● This appliance is intended for domestic or similar applications, such as

- in shops, offices and other similar working environments,

- in agricultural areas,

- by customers in hotels, motels etc. and similar establishments,

- in bed-and breakfast type environments.

- In order to comply with safety regulations and to avoid hazards, repairs of electrical appliances must be carried out by qualified personnel, including the replacement of the power cord. If repairs are needed, please send the appliance to one of our customer service departments. The e address can be found in the appendix to this manual.

Temperature control

With the temperature control knob, the temperature can be set to the desired level.

5-position switch

Upper heat
Upper heat with rotating spit
Upper and lower heat
Upper and lower heat with hot-air convection function
Upper heat with hot-air convection function and rotating spit

The heating elements will only be switched on once the timer is activated.

Timer

The timer can be used for either selecting a certain cooking time (up to 60 minutes), or for continuous operation.

To select continuous operation, turn the timer switch anti-clockwise to its ON position. To turn the unit off, turn the switch to position 0.

To pre-programme the cooking time, turn the switch clockwise to the desired time.

To set a time of less than 10 minutes, turn the if timer to a somewhat higher setting first and then slowly turn it back to the desired time setting. After the pre-programmed time has elapsed, an acoustic signal indicates that the heating elements are switched off.

Indicator lamp

The indicator lamp lights up when the appliance is switched on. It goes out once the pre-programmed time has elapsed, or if the

switch is turned back to position 0.

Rotating spit

The rotating spit is used with the upper heat function; in addition, the hot-air convection function can be selected.

- When food is put on the spit, make sure that it cannot come into contact with the heating elements; ensure sufficient distance.

- Make sure that the spit pierces through the middle of the food. This is to ensure that there is sufficient distance between the oven interior and the heating elements. Use the holding clamps to secure it in the centre of the spit.

- Any protruding parts (e.g. wings of a chicken) should be held in with a tooth-pick, a suitable piece of string or other suitable means. Th is ensures that no part of the food can stick out or come off during the cooking process.

- Inserting and removing the rotating spit:

- Once the food has been securely attached, place the spit onto the handle with its tip facing right. Ensure that the indentation in the handle fits securely into the corresponding recess in the spit.

- Place the idle end of the spit into its holding bracket on the opposite side (see picture I).

- Slide the spit end-piece with the drive unit connection into the drive unit (see picture II).

- Ensure that the spit end is securely engaged into the lower, narrow part of the holding bracket (idle side).

- To remove the spit, follow these steps in reverse order.

Start up

- Clean the appliance (see General care and cleaning) and remove any packing materials completely.

- Before using the appliance for the first time, let it heat up for 15 minutes with both heating elements on. When the

appliance is first switched on, a slight smell may be emitted. This is normal and will only last for a very short time. Ensure sufficient ventilation.

Operation

- Before using the appliance, make sure that the crumb tray is fitted in its proper position underneath the lower heating element.

- Pre-heat the oven compartment for several minutes with the door closed, using both heating elements. Set the temperature control knob to the required level and use the timer control to select the desired pre-heating time.

- Place the food to be cooked on the grill rack, the baking tray or the rotating spit. When cooking food containing fat or moisture, use the baking tray to stop any drips into the interior of the appliance.

- When using the baking tray, insert the grill rack first and place the tray on top.

- Close the door, set the temperature control to the required level and use the timer knob to select the desired cooking time, or continuous operation.

- For baking or grilling from above, either the upper or the upper and lower elements may be selected.

- The switch settings may be changed during the cooking process.

- A ft er the pre-programmed cooking time has elapsed, the timer will automatically switch off the heating elements.

- To interrupt the cooking process, or to switch off the oven during continuous operation, set the timer switch to 0.

- Always use the door handle to open the glass door aft er use, when it is hot. When removing the baking tray or grill rack, use the handle provided. Likewise, when removing the spit, the spit handle must be used. Always place the baking tray and the grill rack on a heat-resistant surface.

- A ft er cooking, always turn the temperature control to its MIN position.

- Remove the plug from the wall socket.

Cooking times

The grilling/cooking times listed are approximate only, as each type of food is of a different nature and consistency; please also refer to the information contained on the food packaging.

Food	Temperature / switch setting	Grilling / cooking time
Chicken (rotating spit)	180°C	60 - 70 mins.
Pizza (deep-frozen)	200°C	10-12 mins.
Pizza (deep-frozen)	220°C	13-15 mins.
‘Hawaii’ Toast	220°C	10-14 mins.
Baguette (deep-frozen)	200°C	14-15 mins.
Baguette (deep-frozen)	220°C	15-16 mins.
Cookies, biscuits	175°C	15-17 mins.

General care and cleaning

● Before cleaning the appliance, ensure it is disconnected from the power supply and has completely cooled down.
● To avoid the risk of electric shock, do not clean the appliance with water and do not immerse it in water.
- Do not use abrasives, harsh cleaning solutions or spray-type oven cleaners.

• Th e exterior of the housing may be cleaned with a damp, lint-free cloth.
• Th e baking tray, grill rack, rotating spit and holding clamps may be cleaned using hot water and a mild detergent.
• If necessary, the crumb tray may be removed and cleaned using hot water and a mild detergent. Be sure to replace

it in the proper position underneath the heating element aft er cleaning.

Disposal

Do not dispose of old or defective appliances in domestic garbage; this should only be done through public collection points.

Guarantee

Th is product is guaranteed against defects in materials and workmanship for a period of two years from the date of purchase. Under this guarantee the manufacturer undertakes to repair or replace any parts found to be defective, providing the product is returned to one of our authorised service centres. Th is guarantee is only valid if the appliance has been used in accordance with the instructions, and provided that it has not been modified, repaired or interfered with by any unauthorised person, or damaged through misuse.

Th is guarantee naturally does not cover wear and tear, nor breakables such as glass and ceramic items, bulbs etc. Th is guarantee does not affect your statutory rights, nor any legal rights you may have as a consumer under applicable national legislation governing the purchase of goods. If the product fails to operate and needs to be returned, pack it carefully, enclosing your name and address and the reason for return. If within the guarantee period, please also provide the guarantee card and proof of purchase.
