USER MANUAL PS51D530A5W SAMSUNG

imagine the possibilities Thank you for purchasing this Samsung product. To receive more complete service, please register your product at www.samsung.com/register Model _____________ Serial No. _____________

© 2011 Samsung Electronics Co., Ltd. All rights reserved.BN68-03712A-00Contact SAMSUNG WORLDWIDEIf you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre.CountryCustomer Care Centre Web SiteALBANIA 42 27 5755 -AUSTRIA 0810 - SAMSUNG (7267864, € 0.07/min) www.samsung.comBELGIUM 02-201-24-18 www.samsung.com/be (Dutch)www.samsung.com/be_fr (French)BOSNIA 05 133 1999 -BULGARIA 07001 33 11 www.samsung.comCROATIA 062 SAMSUNG (062 726 7864) www.samsung.comCZECH 800 - SAMSUNG (800-726786) www.samsung.comSamsung Zrt., česká organizační složka, Oasis Florenc, Sokolovská394/17, 180 00, Praha 8DENMARK 70 70 19 70 www.samsung.comFINLAND 030 - 6227 515 www.samsung.comFRANCE 01 48 63 00 00 www.samsung.comGERMANY 01805 - SAMSUNG (726-7864 € 0,14/Min) www.samsung.comGREECE 2106293100 www.samsung.comHUNGARY 06-80-SAMSUNG (726-7864) www.samsung.comITALIA 800-SAMSUNG (726-7864) www.samsung.comKOSOVO +381 0113216899 -LUXEMBURG 261 03 710 www.samsung.comMACEDONIA 023 207 777 -MONTENEGRO 020 405 888 - NETHERLANDS 0900-SAMSUNG (0900-7267864) (€ 0,10/Min) www.samsung.com NORWAY 815-56 480 www.samsung.comPOLAND 0 801 1SAMSUNG (172678)022-607-93-33www.samsung.comPORTUGAL 80820-SAMSUNG (726-7864) www.samsung.comRUMANIA 08010 SAMSUNG (08010 7267864) – doar din reţeaua Romtelecom, tarif local;021.206.01.10 – din orice reţea, tarif normal www.samsung.comSERBIA 0700 Samsung (0700 726 7864) www.samsung.comSLOVAKIA 0800 - SAMSUNG (0800-726 786) www.samsung.com/skSPAIN 902 - 1 - SAMSUNG (902 172 678) www.samsung.comSWEDEN 0771 726 7864 (SAMSUNG) www.samsung.com Switzerland 0848 - SAMSUNG(7267864, CHF 0.08/min) www.samsung.com/ch www.samsung.com/ch_fr/(French)U.K 0330 SAMSUNG (7267864) www.samsung.comEIRE 0818 717100 www.samsung.comLITHUANIA 8-800-77777 www.samsung.comLATVIA 8000-7267 www.samsung.comESTONIA 800-7267 www.samsung.comTurkey 444 77 11 www.samsung.com[PD530-XC]BN68-03712A-00L04.indb 1 2011-04-29 오후 1:50:52English - 2

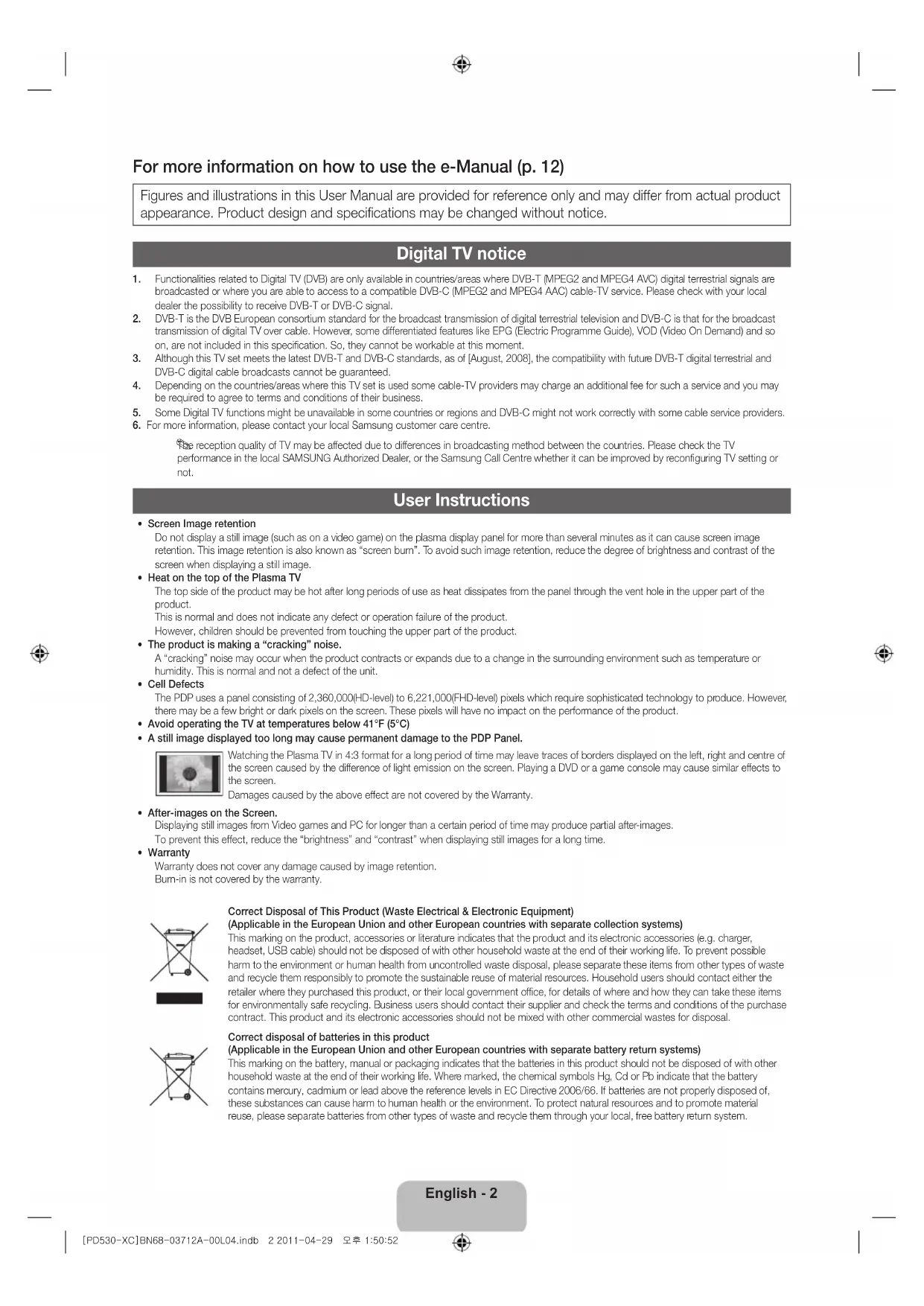

For more information on how to use the e-Manual (p. 12)

Figures and illustrations in this User Manual are provided for reference only and may differ from actual product

appearance. Product design and specifications may be changed without notice.

1. Functionalities related to Digital TV (DVB) are only available in countries/areas where DVB-T (MPEG2 and MPEG4 AVC) digital terrestrial signals are

broadcasted or where you are able to access to a compatible DVB-C (MPEG2 and MPEG4 AAC) cable-TV service. Please check with your local

dealer the possibility to receive DVB-T or DVB-C signal.

2. DVB-T is the DVB European consortium standard for the broadcast transmission of digital terrestrial television and DVB-C is that for the broadcast

transmission of digital TV over cable. However, some differentiated features like EPG (Electric Programme Guide), VOD (Video On Demand) and so

on, are not included in this specification. So, they cannot be workable at this moment.

3. Although this TV set meets the latest DVB-T and DVB-C standards, as of [August, 2008], the compatibility with future DVB-T digital terrestrial and

DVB-C digital cable broadcasts cannot be guaranteed.

4. Depending on the countries/areas where this TV set is used some cable-TV providers may charge an additional fee for such a service and you may

be required to agree to terms and conditions of their business.

5. Some Digital TV functions might be unavailable in some countries or regions and DVB-C might not work correctly with some cable service providers.

6. For more information, please contact your local Samsung customer care centre.

The reception quality of TV may be affected due to differences in broadcasting method between the countries. Please check the TV

performance in the local SAMSUNG Authorized Dealer, or the Samsung Call Centre whether it can be improved by reconfiguring TV setting or

• Screen Image retention

Do not display a still image (such as on a video game) on the plasma display panel for more than several minutes as it can cause screen image

retention. This image retention is also known as “screen burn”. To avoid such image retention, reduce the degree of brightness and contrast of the

screen when displaying a still image.

• Heat on the top of the Plasma TV The top side of the product may be hot after long periods of use as heat dissipates from the panel through the vent hole in the upper part of the

This is normal and does not indicate any defect or operation failure of the product.

However, children should be prevented from touching the upper part of the product.

• The product is making a “cracking” noise.

A “cracking” noise may occur when the product contracts or expands due to a change in the surrounding environment such as temperature or

humidity. This is normal and not a defect of the unit.

The PDP uses a panel consisting of 2,360,000(HD-level) to 6,221,000(FHD-level) pixels which require sophisticated technology to produce. However,

there may be a few bright or dark pixels on the screen. These pixels will have no impact on the performance of the product.

• Avoid operating the TV at temperatures below 41°F (5°C)

• A still image displayed too long may cause permanent damage to the PDP Panel.

Watching the Plasma TV in 4:3 format for a long period of time may leave traces of borders displayed on the left, right and centre of

the screen caused by the difference of light emission on the screen. Playing a DVD or a game console may cause similar effects to

Damages caused by the above effect are not covered by the Warranty.

• After-images on the Screen.

Displaying still images from Video games and PC for longer than a certain period of time may produce partial after-images.

To prevent this effect, reduce the “brightness” and “contrast” when displaying still images for a long time.

Warranty does not cover any damage caused by image retention.

Burn-in is not covered by the warranty.

Correct Disposal of This Product (Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems)

This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger,

headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible

harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste

and recycle them responsibly to promote the sustainable reuse of material resources. Household users should contact either the

retailer where they purchased this product, or their local government office, for details of where and how they can take these items

for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase

contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.

Correct disposal of batteries in this product

(Applicable in the European Union and other European countries with separate battery return systems)

This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other

household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery

contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66. If batteries are not properly disposed of,

these substances can cause harm to human health or the environment. To protect natural resources and to promote material

reuse, please separate batteries from other types of waste and recycle them through your local, free battery return system.

[PD530-XC]BN68-03712A-00L04.indb 2 2011-04-29 오후 1:50:52English - 3

Please make sure the following items are included with your TV. If any items are missing, contact your

The items’ colours and shapes may vary depending on the models.

Cables not included in the package contents can be purchased separately.

Check that there is no accessory hidden behind packing materials when you open the box.

• Warranty Card (Not available in some locations) / Safety Guide

Ferrite Core (1EA) Ferrite Core (1EA)

Ferrite Core for Power Cord: The ferrite cores are used to shield the cables from

interference. When connecting a cable, open the ferrite core and clip it around the

cable near the plug as shown in the figure.

A Maximum distance between the ferrite core and the end of the cord inserted in

the TV: 6~8 inches (51 inches model only)

B Maximum distance between the ferrite core and the other end of the cord

inserted in the AC outlet: 3/4 inches

• An administration fee may be charged if either

– (a) an engineer is called out at your request and there is no defect in the product

(i.e. where you have failed to read this user manual)

– (b) you bring the unit to a repair centre and there is no defect in the product

(i.e. where you have failed to read this user manual).

• The amount of such administration charge will be advised to you before any work or home visit is carried out.

B A [PD530-XC]BN68-03712A-00L04.indb 3 2011-04-29 오후 1:50:53English - 4

Viewing the Control Panel

The product colour and shape may vary depending on the model.

Remote control sensor Aim the remote control towards this spot on the TV.

Power Indicator Blinks and turns off when the power is on and lights up in standby mode.

SOURCE E Toggles between all the available input sources. In the on-screen menu, use

this button as you would use the ENTER E

button on the remote control.

MENU Displays an on-screen menu, the OSD (on screen display) of your TV’s

Y Adjusts the volume. In the OSD, use the

buttons as you would use

the ◄ and ► buttons on the remote control.

Changes the channels. In the OSD, use the

would use the ▼ and ▲ buttons on the remote control.

Turns the TV on or off.

Do not leave your TV in standby mode for long periods of time (when you are away on a holiday, for example).

A small amount of electric power is still consumed even when the power button is turned off. It is best to unplug

Securing the Installation Space

Keep the required distances between the product and other objects (e.g. walls) to ensure proper ventilation.

Failing to do so may result in fire or a problem with the product due to an increase in the internal temperature of

When using a stand or wall-mount, use parts provided by Samsung Electronics only.

If you use parts provided by another manufacturer, it may result in a problem with the product or an injury

due to the product falling.

The appearance may differ depending on the product.

Be careful when you contact the TV because some parts can be somewhat hot.

Installation with a stand. Installation with a wall-mount.

Viewing the Remote Control

This is a special remote control for the visually impaired and has Braille points on the Channel and Number

Installing batteries (Battery size: AAA)

Turns the TV on and off.

Displays and selects the available video

Returns to the previous channel.

Cuts off the sound temporarily.

Displays channel lists on the screen.

Displays the EPG (Electronic Programme

: Selects the menu and

changes the corresponding item value.

Have direct access to channels.

Alternately select Teletext ON, Double,

Quickly select frequently used functions.

Displays the Content Home.

Returns to the previous menu.

Use these buttons in a specific feature.

For details, refer to the e-Manual.

E-MANUAL: Displays the e-Manual.

P.SIZE: Selects the Picture Size.

AD/SUBT.: Turns the audio description on

and off (not available in some locations). /

Displays digital subtitles.

[PD530-XC]BN68-03712A-00L04.indb 5 2011-04-29 오후 1:50:54English - 6

Changing the Input Source

Use to select TV or an external input

sources such as a DVD / Blu-ray player /

cable box /STB satellite receiver.

1. Press the SOURCE button on your

2. Select a desired external input source.

You can change the view mode

among the All and Connected by pressing

In the Source, connected inputs will be

Ext. always stay activated.

In the Source, press the TOOLS button, and then you

can set an external input sources name you want.

■ VCR / DVD / Cable STB / Satellite STB / PVR STB / AV Receiver / Game / Camcorder / PC /

DVI PC / DVI Devices / TV / IPTV / Blu-ray / HD DVD / DMA: Name the device connected to the

input jacks to make your input source selection

When connecting a PC to the HDMI IN 1(DVI)

port with HDMI cable, you should set the TV to

PC mode under Edit Name.

When connecting a PC to the HDMI IN 1(DVI)

port with HDMI to DVI cable, you should set the

TV to DVI PC mode under Edit Name.

When connecting an AV devices to the HDMI IN

1(DVI) port with HDMI to DVI cable, you should

set the TV to DVI Devices mode under Edit

You can see detailed information about the selected

Connecting to an Antenna

When the TV is initially powered on, basic settings proceed automatically.

Preset: Connecting the mains and antenna.

The PDP device may interfere with an amateur radio or AM radio.

When using two-way radio mobile and portable units or amateur radio or AM radio near by your TV, this

may cause the TV to malfunction.

VHF/UHF AntennaCable

[PD530-XC]BN68-03712A-00L04.indb 6 2011-04-29 오후 1:50:54English - 7

Plug & Play (Initial Setup)

When the TV is initially powered on, a sequence of on-screen prompts will assist in configuring basic settings.

button. Plug & Play is available only when the Source is set to TV.

Before turning on the TV, make sure the antenna cable is connected (p. 6).

To return to the previous step, press the Red button.

Selecting a language

Press the ▲ or ▼ button, then press the ENTER E

Select the desired OSD (On Screen Display) language.

Select the Home Use mode. Store Demo mode is for retail

To return the unit’s settings from Store Demo to Home Use

(standard): Press the volume button on the TV. When you see the

volume OSD, press and hold MENU for 5 sec.

Store Demo is only for shop display. If you select it, several

functions are not able to use. Please select Home Use when you

appropriate country.

After selecting the country in the Country menu, some models may proceed

with an additional option to setup the pin number.

When you input the PIN number, “0-0-0-0” is not available.

Set the Clock Mode automatically or manually.

Auto: Select the time zone (depending on the country) where you are located.

Manual: Allows you to manually set the current date and time.

Selecting an antenna

button. Select the channel

source to memorise. When setting the antenna source to Cable, a step appears

allowing you to assign numerical values (channel frequencies) to the channels. For

more information, refer to Channel → Auto Tuning.

Select System - Plug & Play (Initial Setup). Enter your 4 digit PIN number. The default PIN number is “0-0-0-0”.

If you want to change the PIN number, use the Change PIN function.

You should do Plug & Play (MENU → System) again at home although you did in shop.

If you forget the PIN code, press the remote control buttons in the following sequence in Standby mode,

which resets the PIN to “0-0-0-0”: MUTE → 8 → 2 → 4 → POWER (on).

P POWER [PD530-XC]BN68-03712A-00L04.indb 7 2011-04-29 오후 1:50:55English - 8

Connecting to an AV devices

Available devices: DVD, Blu-ray player, HD cable box, HD STB (Set-Top-Box) satellite

receiver, VCR Using an HDMI cable (up to 1080p)

If an HDMI to DVI cable is connected to the HDMI IN 1(DVI) port, the audio does not work.

The picture may not display normally (if at all) or the audio may not work if an external device that

uses an older version of HDMI mode is connected to the TV. If such a problem occurs, ask the

manufacturer of the external device about the HDMI version and, if out of date, request an upgrade.

Be sure to purchase a certified HDMI cable. Otherwise, the picture may not display or a connection

In Ext. mode, DTV Out supports MPEG SD Video and Audio only.

SERVICE: Connector for service only. HDMI OUTHDMI connection EXT SCART connection[PD530-XC]BN68-03712A-00L04.indb 8 2011-04-29 오후 1:50:56English - 9

Connecting to a Audio device and PC

¦ Available devices: digital audio system, amplifier, DVD home theatre, PC Using a Headphone Connection

: You can connect your headphones to the headphones output on your set. While the

headphones are connected, the sound from the built-in speakers will be disabled.

Sound function may be restricted when connecting headphones to the TV.

Headphone volume and TV volume are adjusted separately.

¦ Using an HDMI cable or an HDMI to DVI cable

Connecting through the HDMI cable may not be supported depending on the PC.

For HDMI/DVI cable connection, you must use the HDMI IN 1(DVI) jack.

If an HDMI to DVI cable is connected to the HDMI IN 1(DVI) port, the audio does not work.

The interlace mode is not supported.

The set might operate abnormally if a non-standard video format is selected.

Separate and Composite modes are supported. SOG(Sync On Green) is not supported. DVI OUTHDMI OUT PC connection [PD530-XC]BN68-03712A-00L04.indb 10 2011-04-29 오후 1:50:57English - 11

Connecting to a COMMON INTERFACE slot

Using the “CI or CI+ CARD”

To watch paid channels, the “CI or CI+ CARD” must be inserted.

• If you don’t insert the “CI or CI+ CARD”, some channels will

display the message “Scrambled Signal”.

• The pairing information containing a telephone number, the

“CI or CI+ CARD” ID the Host ID and other information will

be displayed in about 2~3 minutes. If an error message is

displayed, please contact your service provider.

• When the configuration of channel information has finished,

the message “Updating Completed” is displayed, indicating

the channel list is updated.

You must obtain a “CI or CI+ CARD” from a local cable service provider.

When removing the “CI or CI+ CARD”, carefully pull it out with your hands since dropping the “CI or CI+

CARD” may cause damage to it.

Insert the “CI or CI+ CARD” in the direction marked on the card.

The location of the COMMON INTERFACE slot may be different depending on the model.

“CI or CI+ CARD” is not supported in some countries and regions; check with your authorized dealer.

If you have any problems, please contact a service provider.

Insert the “CI or CI+ CARD” that supports the current antenna settings. The screen will be distorted or

How to toggle between the e-Manual and the corresponding menu(s).

This function is not enabled in some menus.

1. Press the red button to select Try Now, if you

want to execute the corresponding menu(s).

2. To return to the e-Manual screen, press the

1. Press the ENTER E

button when selecting

Contents Area. The “Are you sure?” is displayed.

Select Yes and then press the ENTER E

The OSD window will be displayed.

2. To return to the e-Manual screen, press the

E-MANUAL button. E-MANUAL You can read the introduction and instructions about the TV features stored

 Changing the Preset Picture Mode ■ Picture Mode t

Select your preferred picture type.

• Dynamic: Suitable for a bright room.

• Standard: Suitable for a normal environment.

: Suitable for reducing eye strain.

• Movie: Suitable for watching movies in a dark room.

• Entertain: Suitable for watching movies and games.

N It is only available in PC mode.

 Changing the Preset Picture Mode

→ Picture → Picture Mode → ENTER E ■ Picture Mode

Select your preferred picture type.

N When an input source is set to PC, the Picture Mode is only available the

Standard and Entertain.

• Dynamic: Suitable for a bright room.

• Standard: Suitable for a normal environment.

: Suitable for reducing eye strain.

• Movie: Suitable for watching movies in a dark room.

• Entertain: Suitable for watching movies and games.

N It is only available when connecting a PC. Basic Features > Changing the Preset Picture Mode (5/10) a

Viewing the Contents

When you view the e-Manual instruction, select the

yellow button to magnify the screen. You can scroll

through the magnified screen by using the

To return to the previous screen, press the

How to search a keyword by using index page

This function may not supported depending on the language.

button to select a character order you want.

button to select a keyword you want to see, and then press the ENTER E

4. You can view the corresponding e-Manual instruction screen.

Green (Home): Moves to the e-Manual home screen.

Yellow (Zoom): Magnifies a screen.

■ Picture ModeSelect your preferred picture type. N When an input source is set to PC, the Picture Mode is only available the Standard and Entertain.• Dynamic: Suitable for a bright room.• Standard: Suitable for a normal environment.• Natural for LED 5003 model : Suitable for reducing eye strain.• Movie: Suitable for watching movies in a dark room.• Entertain: Suitable for watching movies and games. N It is only available when connecting a PC. R Return  Changing the Preset Picture Mode O MENU m

→ Picture → Picture Mode → ENTER E

■ Picture ModeSelect your preferred picture type. N When an input source is set to PC, the Picture Mode is only available the Standard and Entertain.• Dynamic: Suitable for a bright room.• Standard: Suitable for a normal environment.• Natural for LED 5003 model : Suitable for reducing eye strain.• Movie: Suitable for watching movies in a dark room.• Entertain: Suitable for watching movies and games. [PD530-XC]BN68-03712A-00L04.indb 13 2011-04-29 오후 1:51:03English - 14

Installing the Wall Mount

Installing the Wall Mount Kit

The wall mount kit (sold separately) allows you to mount the TV on the wall.

For detailed information on installing the wall mount, see the instructions provided with the wall mount. Contact a

technician for assistance when installing the wall mount bracket.

Samsung Electronics is not responsible for any damage to the product or injury to yourself or others if you elect

to install the TV on your own.

Wall Mount Kit Specifications (VESA)

The wall mount kit is not supplied, but sold separately.

Install your wall mount on a solid wall perpendicular to the floor. When attaching to other building materials,

please contact your nearest dealer. If installed on a ceiling or slanted wall, it may fall and result in severe personal

Standard dimensions for wall mount kits are shown in the table below.

When purchasing our wall mount kit, a detailed installation manual and all parts necessary for assembly

Do not use screws that do not comply with the VESA standard screw specifications.

Do not use screws that are longer than the standard dimension or do not comply with the VESA standard

screw specifications. Screws that are too long may cause damage to the inside of the TV set.

For wall mounts that do not comply with the VESA standard screw specifications, the length of the

screws may differ depending on the wall mount specifications.

Do not fasten the screws that are too strongly; this may damage the product or cause the product to fall,

leading to personal injury. Samsung is not liable for these kinds of accidents.

Samsung is not liable for product damage or personal injury when a non-VESA or non-specified wall

mount is used or the consumer fails to follow the product installation instructions.

Our 55” model do not comply with VESA Specifications. Therefore, you should use our dedicated wall

mount kit for this model.

Do not mount the TV at more than a 15 degree tilt.

Product Family inches

Unscrew the hole around before installing Wall-Mount on the wall.

Do not install your Wall Mount Kit while your TV is turned on. It may result in personal injury

due to electric shock.

[PD530-XC]BN68-03712A-00L04.indb 14 2011-04-29 오후 1:51:04English - 15

If you have any questions about the TV, first refer to this list. If none of these troubleshooting tips apply, please

visit “www.samsung.com,” then click on Support, or contact the call centre listed on the back-cover of this

Issues Solutions and Explanations

The TV won’t turn on. • Make sure the AC power cord is securely plugged in to the wall outlet and the TV.

• Make sure the wall outlet is working.

• Try pressing the POWER button on the TV to make sure the problem is not the remote. If the TV turns

on, refer to “Remote control does not work” below.

There is no picture/video. • Check cable connections (remove and reconnect all cables connected to the TV and external

• Set your external device’s (Cable/Sat Box, DVD, Blu-ray etc) video outputs to match the connections

to the TV input. For example, if an external device’s output is HDMI, it should be connected to an

HDMI input on the TV.

• Make sure your connected devices are powered on.

• Be sure to select the TV’s correct source by pressing the SOURCE button on the remote control.

The remote control does not work. • Replace the remote control batteries with the poles (+/–) in the right direction.

• Clean the sensor’s transmission window on the remote.

• Try pointing the remote directly at the TV from 5~6 feet away.

The cable/set top box remote control

doesn’t turn the TV on or off, or adjust the

• Programme the Cable/Set remote control to operate the TV. Refer to the Cable/Set user manual for

the SAMSUNG TV code.

Some of above pictures and functions are available at specific models only.

You can keep your TV as optimum condition to upgrade the latest firmware on web site (samsung.com →

Support → Downloads) by USB.

Excellent Digital Interface: With a built-in HD digital tuner, nonsubscription HD broadcasts can be viewed without

a cable box / STB (Set-Top-Box) satellite receiver.

[PD530-XC]BN68-03712A-00L04.indb 15 2011-04-29 오후 1:51:04English - 16

Securing the TV to the wall

Caution: Pulling, pushing, or climbing onto the TV may cause the TV to fall. In particular, ensure

that your children do not hang over or destabilize the TV; doing so may cause the TV to tip over,

resulting in serious injuries or death. Follow all safety precautions provided in the included Safety

Flyer. For added stability and safety, install the anti-fall device as follows.

To Avoid the TV from Falling

1. Put the screws into the clamps and firmly fasten them onto the wall.

Confirm that the screws have been firmly installed onto the wall.

You may need additional material such as an anchor depending on

Since the necessary clamps, screws, and string are not supplied,

please purchase these additionally.

2. Remove the screws from the back centre of the TV, put the screws into

the clamps, and then fasten the screws onto the TV again.

Screws may not be supplied with the product. In this case, please

purchase the screws of the following specifications.

3. Connect the clamps fixed onto the TV and the clamps fixed onto the wall

with a strong cable and then tie the string tightly.

Install the TV near to the wall so that it does not fall backwards.

It is safe to connect the string so that the clamps fixed on the wall are equal to or lower than the

clamps fixed on the TV.

Untie the string before moving the TV.

4. Verify all connections are properly secured. Periodically check connections for any sign of fatigue for failure. If

you have any doubt about the security of your connections, contact a professional installer.

Storage and Maintenance

If you attached some stickers on the TV screen, it remains some debris after removing the sticker. Please

clean it to watch TV.

Do not spray water or a cleaning agent directly onto

the product. Any liquid that goes into the product may

cause a failure, fire, or electric shock.

Clean the product with a soft cloth dapped in a small

Display Resolution 1920 X 1080

Environmental Considerations

Operating Temperature

10°C to 40°C (50°F to 104°F)

10% to 80%, non-condensing

-20°C to 45°C (-4°F to 113°F)

5% to 95%, non-condensing

TV System Analogue: B/G, D/K, L, I (Depending on your country selection)

Digital: DVB-T/DVB-C Colour/Video System Analogue: PAL, SECAM, NTSC-4.43, NTSC-3.58, PAL60

Design and specifications are subject to change without prior notice.

For information about power supply, and more about power consumption, refer to the label attached to the

TELEVISEUR ECRAN A PLASMA
