USER MANUAL PSR-E353 YAMAHA

Information for Users on Collection and Disposal of Old Equipment and used Batteries

These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries should not be mixed with general household waste.

For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points, in accordance with your national legislation and the Directives 2002/96/EC and 2006/66/EC.

By disposing of these products and batteries correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling.

For more information about collection and recycling of old products and batteries, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items.

[For business users in the European Union]

If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.

[Information on Disposal in other Countries outside the European Union]

These symbols are only valid in the European Union. If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal.

Note for the battery symbol (bottom two symbol examples):

This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement set by the Directive for the chemical involved.

(weee_battery_eu_en_01)

Yamaha Online Member

https://member.yamaha.com/myproduct/regist/

Keys To Success....31

Listening, Timing et Waiting 33

Initialization....43

Annexe

Diagram showing a device with an arrow indicating rotation or movement, no text or symbols present

Réglages : OFF, 5, 10, 15, 30, 60, 120 (minutes)

NOTE

●Reverb (Réverbération)

Illustration of a hand touching the leftmost key of a piano keyboard (no text or symbols)

Illustration of a piano keyboard with two hands typing on the keys (no text or symbols)

Illustration of a hand pressing down on a piano keyboard (no text or symbols)

Easy Chords (Accords faciles)

NOTE

Tuning, Split Point, Touch Response, Style Volume, Song Volume, Metronome Volume, Your Tempo, Demo Group, Demo Play Mode, Demo Cancel, Master EQ type, Panel Sustain, Auto Power Off, Battery Type

Pure electrical circuit lines without any symbols

Flash Clear (Effacer la mémoire flash)

Pure electrical circuit symbols including a power button, a switch, and a piano keyboard (no text or labels)

AVIS

Chord Progression ....36

Chord Study 35

Chorus 18

Chorus Type 73

Computer-related Operations .....5

D

Demo 27,42

Demo Cancel 42

Demo Group 42

Demo Play, mode 42

Dépannage 44

Drum Kit List 64

Dual Voice 17,41

Duo 21

E

Écran 15

Effect Type List ....71

Effet 18,41

ENDING 24

Envoi initial 42

État de réussite 32

Évaluation ....33

F

Flash Clear 43

Fonction 40

G

GM System Level 1 ....5

Grand Piano 16

H

Harmony 19

Harmony Volume 20,41

Horloge externe 42

|

INTRO 24

iPad 43

iPhone 43

iPhone/iPad Connection Manual ... 5

i-UX1 43

K

Keys To Success 31

L

Lesson 31

This score is provided with the part of the song book (free downloadable scores).

The song book contains not only the scores for all internal songs (excepting Songs 1–3) but also music terms and important points for your practice. To obtain the Song Book, complete the user registration at the following website.

Yamaha Online Member https://member.yamaha.com/myproduct/regist/

* The Song book is provided in English, French, German and Spanish. This example introduces part of the English song book.

Für Elise is an all-time classical favorite.

The beautiful, well-known melody is repeated a number of times.

In each step you won't be practicing alone. You have a wonderful orchestra to back you up!

First, listen to the example a few times. It won't be long before you'll want to start playing it yourself!

Step 01 Warm-up Exercise - "The Semitone Mystery" 14

Step 02 Diligent Practice Time ....15

Step 03 Warm-up Exercise - "Basic Accompaniment"......16

Step 04 Diligent Practice Time 16

Step 05 First Half Review ......17

Step 06 Diligent Practice Time ...... 17

Step 07 Warm-up Exercise - "The Jump Competition" 18

Step 08 "EEEE!" 18

Step 09 "Left! Right! Left! Right!"....19

Step 10 Second Half Review....19

Step 11 Play the Whole Song!....19

Before Playing...

◇ Sit Correctly

Illustration of a person typing on a keyboard (no text or symbols present)

Sit near the middle of the keyboard.

◇ Finger Numbering

Reading the Score

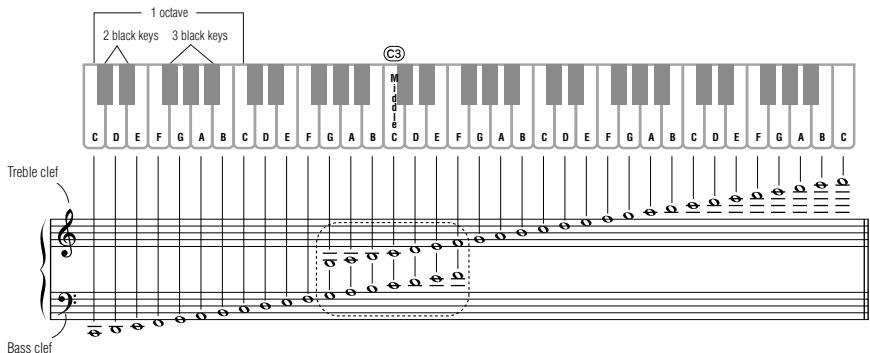

◇ The Keyboard, Staff Lines, and Clef

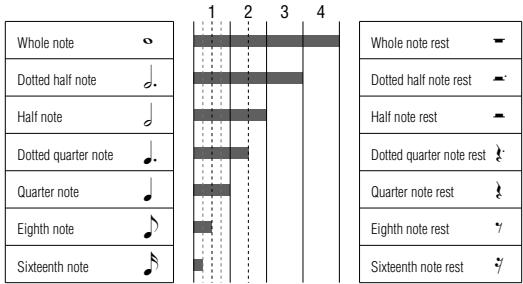

◇ Notes and Rests

◇ Accidentals

◇ Time Signatures and Counting Time

Song No.004

Basic

Für Elise

\~ With Step Map \~

Play with both hands as if gently telling a story. It might help to sing or hum the melody as you play.

Similar melody lines and rhythms are repeated in this song, so there aren't as many sections to practice as you might think. Enjoy learning each section as you build proficiency.

Step 05 From here...

Song No.004 Für Elise Basic

Step 01

Warm-up Exercise - "The Semitone Mystery"

Let's start with a warm-up exercise using three fingers of the right hand.

We'll start by ascending and descending the white and black keys. Check out the illustrations until you understand how the fingers are supposed to move, then get started!

You'll find it easier to play if you bend your fingers slightly.

Go back to the beginning and play it again.

Step 02

Diligent Practice Time

Right! Now that we're warmed up let's try playing along with the orchestra in 3/4 time.

The melody will be built up little by little.

Compare each line... notice that many of the shapes formed by the notes are very similar.

Short break

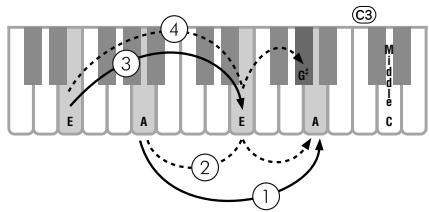

Step 03

Warm-up Exercise - "Basic Accompaniment"

And now a warm-up exercise for the left hand.

It's important to spread your fingers widely from the start.

Don't play the black keys too strongly.

Step 04

Diligent Practice Time

Connect the notes smoothly, as if the left hand were passing them to the right hand. You'll be able to play smoothly if you move the left hand into position for the next phrase as soon as it finishes playing the first phrase.

Step 05

First Half Review

You've reached the halfway step! Have you learned all the material provided in the preceding steps?

Now let's go back and play through all the first-half exercises. If you find that you're having trouble playing any of the material, go back and review the steps using the Step Map as a guide.

Step 06

Diligent Practice Time

OK, let's begin the second half!

You'll be able to play the melody nicely if you lift your fingers from the keyboard between the slurs.

It might be easier to grasp the key release timing if you sing along with the melody.

Don't panic and play too strongly where the left hand has to play short notes.

Always have left-hand finger 5 ready to play the next note!

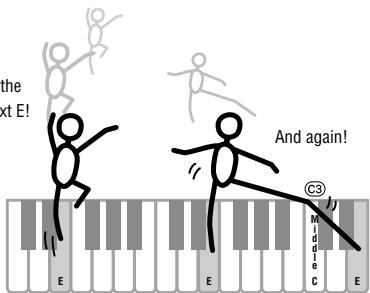

Step 07

Warm-up Exercise - "The Jump Competition"

The first note has a staccato dot.

Spread your fingers wide and jump quickly to the next note!

Jump to the next E!

Step 08

"EEEE!"

The only note in this step is E!

Make the connection between the left and right hands as smooth as possible.

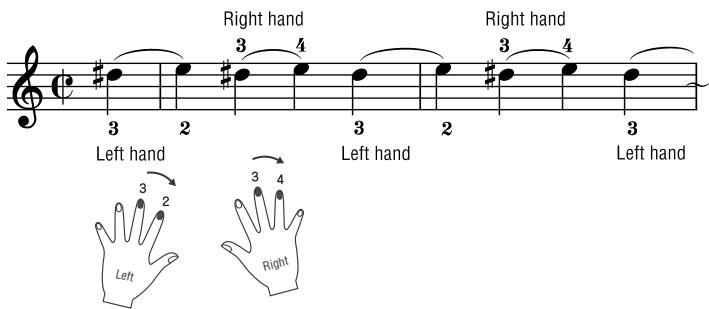

Step 09

"Left! Right! Left! Right!"

Play “D# E” repeatedly, alternating the left and right hands.

Have the next hand ready in position to play D# so you won't have to rush.

Step 10

Second Half Review

Try playing all the way through the second half.

As we did after the first half, if there are places you can't play with confidence go back and review the steps.

Step 11

Play the Whole Song!

This is the finishing step!

Don't be afraid of making mistakes. Just concentrate on playing the entire song from start to finish.

Practice this with the lessons learned in each step in mind, and gradually you'll master the whole song.

Voice List / Liste des sonorités / Lista de voces / Lista de vozes / Voice-Liste / Список тембров

Maximum Polyphony

The instrument has 32-note maximum polyphony. This means that it can play a maximum of up to 32 notes at once, regardless of what functions are used. Auto accompaniment uses a number of the available notes, so when auto accompaniment is used the total number of available notes for playing on the keyboard is correspondingly reduced. The same applies to the Split Voice and Song functions. If the maximum polyphony is exceeded, earlier played notes will be cut off and the most recent notes have priority (last note priority).

Polyphonie maximale

• The Voice List includes MIDI program change numbers for each voice. Use these program change numbers when playing the instrument via MIDI from an external device.
• Program Numbers 001 to 128 directly relate to MIDI Program Change Numbers 000 to 127. That is, Program Numbers and Program Change Numbers differ by a value of 1. Remember to take this into consideration.
• Some voices may sound continuously or have a long decay after the notes have been released while the sustain pedal (footswitch) is held.

NOTE

* When you select a Voice of the DUAL category, two voices sound at the same time.

** Selecting a Voice number between 215 and 234 will turn on Arpeggio.

XGlite Voice List / Liste der XGlite-Voices / Liste des sonorités XGlite / Lista de voces de XGlite/ Liste der XGlite-Voices / Список тембров XGlite

Voice No.	Bank Select		MIDI Program Change# (1-128)	Voice Name
	MSB (0-127)	LSB (0-127)
XG PIANO
235	0	0	1	Grand Piano
236	0	1	1	Grand Piano KSP
237	0	40	1	Piano Strings
238	0	41	1	Dream
239	0	0	2	Bright Piano
240	0	1	2	Bright Piano KSP
241	0	0	3	Electric Grand Piano
242	0	1	3	Electric Grand Piano KSP
243	0	32	3	Detuned CP80
244	0	0	4	Honky-tonk Piano
245	0	1	4	Honky-tonk Piano KSP
246	0	0	5	Electric Piano 1
247	0	1	5	Electric Piano 1 KSP
248	0	32	5	Chorus Electric Piano 1
249	0	0	6	Electric Piano 2
250	0	1	6	Electric Piano 2 KSP
251	0	32	6	Chorus Electric Piano 2
252	0	41	6	DX + Analog Electric Piano
253	0	0	7	Harpsichord 1
254	0	1	7	Harpsichord KSP
255	0	35	7	Harpsichord 2
256	0	0	8	Clavi
257	0	1	8	Clavi KSP
XG CHROMATIC
258	0	0	9	Celesta
259	0	0	10	Glockenspiel
260	0	0	11	Music Box 1
261	0	64	11	Music Box 2
262	0	0	12	Vibraphone
263	0	1	12	Vibraphone KSP
264	0	0	13	Marimba
265	0	1	13	Marimba KSP
266	0	64	13	Sine Marimba
267	0	97	13	Balimba
268	0	98	13	Log Drums
269	0	0	14	Xylophone
270	0	0	15	Tubular Bells
271	0	96	15	Church Bells
272	0	97	15	Carillon
XG ORGAN
273	0	0	17	Drawbar Organ 1
274	0	32	17	Detuned Drawbar Organ
275	0	33	17	60s Drawbar Organ 1
276	0	34	17	60s Drawbar Organ 2
277	0	35	17	70s Drawbar Organ 1
278	0	37	17	60s Drawbar Organ 3
279	0	40	17	16+2/2/3 Organ
280	0	64	17	Organ Bass
281	0	65	17	70s Drawbar Organ 2
282	0	66	17	Cheezy Organ
283	0	67	17	Drawbar Organ 2
284	0	0	18	Percussive Organ 1
285	0	24	18	70s Percussive Organ
286	0	32	18	Detuned Percussive Organ
287	0	33	18	Light Organ
288	0	37	18	Percussive Organ 2
289	0	0	19	Rock Organ
290	0	64	19	Rotary Organ
291	0	65	19	Slow Rotary Organ
292	0	66	19	Fast Rotary Organ
293	0	0	20	Church Organ 1
294	0	32	20	Church Organ 3
295	0	35	20	Church Organ 2
296	0	40	20	Notre Dame
297	0	64	20	Organ Flute
298	0	65	20	Tremolo Organ Flute

Voice No.	Bank Select		MIDI Program Change# (1-128)	Voice Name
	MSB (0-127)	LSB (0-127)
299	0	0	21	Reed Organ
300	0	40	21	Puff Organ
301	0	0	22	Accordion
302	0	0	23	Harmonica 1
303	0	32	23	Harmonica 2
304	0	0	24	Tango Accordion 1
305	0	64	24	Tango Accordion 2
XG GUITAR
306	0	0	25	Nylon Guitar 1
307	0	25	25	Nylon Guitar 3
308	0	43	25	Velocity Guitar Harmonics
309	0	96	25	Ukulele
310	0	0	26	Steel Guitar
311	0	35	26	12-string Guitar
312	0	40	26	Nylon & Steel Guitar
313	0	41	26	Steel Guitar with Body Sound
314	0	96	26	Mandolin
315	0	0	27	Jazz Guitar
316	0	32	27	Jazz Amp
317	0	0	28	Clean Guitar
318	0	32	28	Chorus Guitar
319	0	0	29	Muted Guitar
320	0	40	29	Funk Guitar
321	0	41	29	Muted Steel Guitar
322	0	45	29	Jazz Man
323	0	0	30	Overdriven Guitar
324	0	43	30	Guitar Pinch
325	0	0	31	Distortion Guitar
326	0	40	31	Feedback Guitar 1
327	0	41	31	Feedback Guitar 2
328	0	0	32	Guitar Harmonics 1
329	0	65	32	Guitar Feedback
330	0	66	32	Guitar Harmonics 2
XG BASS
331	0	0	33	Acoustic Bass
332	0	40	33	Jazz Rhythm
333	0	45	33	Velocity Crossfade Upright Bass
334	0	0	34	Finger Bass 1
335	0	18	34	Finger Bass Dark
336	0	40	34	Bass & Distorted Electric Guitar
337	0	43	34	Finger Slap Bass
338	0	45	34	Finger Bass 2
339	0	65	34	Modulated Bass
340	0	0	35	Pick Bass
341	0	28	35	Muted Pick Bass
342	0	0	36	Fretless Bass 1
343	0	32	36	Fretless Bass 2
344	0	33	36	Fretless Bass 3
345	0	34	36	Fretless Bass 4
346	0	0	37	Slap Bass 1
347	0	32	37	Punch Thumb Bass
348	0	0	38	Slap Bass 2
349	0	43	38	Velocity Switch Slap
350	0	0	39	Synth Bass 1
351	0	40	39	Techno Synth Bass
352	0	0	40	Synth Bass 2
353	0	6	40	Mellow Synth Bass
354	0	12	40	Sequenced Bass
355	0	18	40	Click Synth Bass
356	0	19	40	Synth Bass 2 Dark
357	0	40	40	Modular Synth Bass
358	0	41	40	DX Bass
XG STRINGS
359	0	0	41	Violin
360	0	8	41	Slow Violin
361	0	0	42	Viola
362	0	0	43	Cello
363	0	0	44	Contrabass
364	0	0	45	Tremolo Strings
365	0	8	45	Slow Tremolo Strings
366	0	40	45	Suspense Strings
367	0	0	46	Pizzicato Strings
368	0	0	47	Orchestral Harp
369	0	0	48	Timpani
XG ENSEMBLE
370	0	0	49	Strings 1
371	0	3	49	Stereo Strings
372	0	8	49	Slow Strings
373	0	35	49	60s Strings
374	0	40	49	Orchestra 1
375	0	41	49	Orchestra 2
376	0	42	49	Tremolo Orchestra
377	0	45	49	Velocity Strings
378	0	0	50	Strings 2
379	0	3	50	Stereo Slow Strings
380	0	8	50	Legato Strings
381	0	40	50	Warm Strings
382	0	41	50	Kingdom
383	0	0	51	Synth Strings 1
384	0	64	51	Synth Strings 4
385	0	0	52	Synth Strings 2
386	0	0	53	Choir Aahs
387	0	3	53	Stereo Choir
388	0	32	53	Mellow Choir
389	0	40	53	Choir Strings
390	0	0	54	Voice Oohs
391	0	0	55	Synth Voice 1
392	0	40	55	Synth Voice 2
393	0	41	55	Choral
394	0	64	55	Analog Voice
395	0	0	56	Orchestra Hit 1
396	0	35	56	Orchestra Hit 2
397	0	64	56	Impact
XG BRASS
398	0	0	57	Trumpet
399	0	32	57	Warm Trumpet
400	0	0	58	Trombone 1
401	0	18	58	Trombone 2
402	0	0	59	Tuba
403	0	0	60	Muted Trumpet
404	0	0	61	French Horn 1
405	0	6	61	French Horn Solo
406	0	32	61	French Horn 2
407	0	37	61	Horn Orchestra
408	0	0	62	Brass Section
409	0	35	62	Trumpet & Trombone Section
410	0	0	63	Synth Brass 1
411	0	20	63	Resonant Synth Brass
412	0	0	64	Synth Brass 2
413	0	18	64	Soft Brass
414	0	41	64	Choir Brass
XG REED
415	0	0	65	Soprano Sax
416	0	0	66	Alto Sax
417	0	40	66	Sax Section
418	0	0	67	Tenor Sax
419	0	40	67	Breathy Tenor Sax
420	0	0	68	Baritone Sax
421	0	0	69	Oboe
422	0	0	70	English Horn
423	0	0	71	Bassoon
424	0	0	72	Clarinet
XG PIPE
425	0	0	73	Piccolo
426	0	0	74	Flute
427	0	0	75	Recorder
428	0	0	76	Pan Flute
429	0	0	77	Blown Bottle
430	0	0	79	Whistle
431	0	0	80	Ocarina

Voice No.	Bank Select		MIDI Program Change# (1-128)	Voice Name
	MSB (0-127)	LSB (0-127)
XG SYNTH LEAD
432	0	0	81	Square Lead 1
433	0	6	81	Square Lead 2
434	0	8	81	LM Square
435	0	18	81	Hollow
436	0	19	81	Shroud
437	0	64	81	Mellow
438	0	65	81	Solo Sine
439	0	66	81	Sine Lead
440	0	0	82	Sawtooth Lead 1
441	0	6	82	Sawtooth Lead 2
442	0	8	82	Thick Sawtooth
443	0	18	82	Dynamic Sawtooth
444	0	19	82	Digital Sawtooth
445	0	20	82	Big Lead
446	0	24	82	Heavy Synth
447	0	96	82	Sequenced Analog
448	0	0	83	Calliope Lead
449	0	65	83	Pure Lead
450	0	0	84	Chiff Lead
451	0	0	85	Charang Lead
452	0	64	85	Distorted Lead
453	0	0	86	Voice Lead
454	0	0	87	Fifths Lead
455	0	35	87	Big Five
456	0	0	88	Bass & Lead
457	0	16	88	Big & Low
458	0	64	88	Fat & Perky
459	0	65	88	Soft Whirl
XG SYNTH PAD
460	0	0	89	New Age Pad
461	0	64	89	Fantasy
462	0	0	90	Warm Pad
463	0	0	91	Poly Synth Pad
464	0	0	92	Choir Pad
465	0	66	92	Itopia
466	0	0	93	Bowed Pad
467	0	0	94	Metallic Pad
468	0	0	95	Halo Pad
469	0	0	96	Sweep Pad
XG SYNTH EFFECTS
470	0	0	97	Rain
471	0	64	97	Harmo Rain
472	0	65	97	African Wind
473	0	66	97	Carib
474	0	0	98	Sound Track
475	0	27	98	Prologue
476	0	0	99	Crystal
477	0	12	99	Synth Drum Comp
478	0	14	99	Popcorn
479	0	18	99	Tiny Bells
480	0	35	99	Round Glockenspiel
481	0	40	99	Glockenspiel Chimes
482	0	41	99	Clear Bells
483	0	42	99	Chorus Bells
484	0	65	99	Soft Crystal
485	0	70	99	Air Bells
486	0	71	99	Bell Harp
487	0	72	99	Gamelimba
488	0	0	100	Atmosphere
489	0	18	100	Warm Atmosphere
490	0	19	100	Hollow Release
491	0	40	100	Nylon Electric Piano
492	0	64	100	Nylon Harp
493	0	65	100	Harp Vox
494	0	66	100	Atmosphere Pad
495	0	0	101	Brightness
496	0	0	102	Goblins
497	0	64	102	Goblins Synth
498	0	65	102	Creeper
499	0	67	102	Ritual
500	0	68	102	To Heaven
501	0	70	102	Night
502	0	71	102	Glisten
503	0	96	102	Bell Choir
504	0	0	103	Echoes
505	0	65	103	Big Pan
506	0	0	104	Sci-Fi
XG WORLD
507	0	0	78	Shakuhachi
508	0	97	105	Tamboura
509	0	0	106	Banjo
510	0	28	106	Muted Banjo
XG PERCUSSIVE
511	0	0	113	Tinkle Bell
512	0	96	113	Bonang
513	0	97	113	Altair
514	0	98	113	Gamelan Gongs
515	0	99	113	Stereo Gamelan Gongs
516	0	100	113	Rama Cymbal
517	0	0	114	Agogo
518	0	0	115	Steel Drums
519	0	97	115	Glass Percussion
520	0	98	115	Thai Bells
521	0	0	116	Woodblock
522	0	96	116	Castanets
523	0	0	117	Taiko Drum
524	0	96	117	Gran Cassa
525	0	0	118	Melodic Tom 1
526	0	64	118	Melodic Tom 2
527	0	65	118	Real Tom
528	0	66	118	Rock Tom
529	0	0	119	Synth Drum
530	0	64	119	Analog Tom
531	0	65	119	Electronic Percussion
532	0	0	120	Reverse Cymbal
XG SOUND EFFECTS
533	64	0	1	Cutting Noise 1
534	64	0	2	Cutting Noise 2
535	64	0	4	String Slap
536	64	0	17	Flute Key Click
537	64	0	33	Shower
538	64	0	34	Thunder
539	64	0	35	Wind
540	64	0	36	Stream
541	64	0	37	Bubble
542	64	0	38	Feed
543	64	0	49	Dog
544	64	0	50	Horse
545	64	0	51	Bird Tweet 2
546	64	0	56	Maou
547	64	0	65	Phone Call
548	64	0	66	Door Squeak
549	64	0	67	Door Slam
550	64	0	68	Scratch Cut
551	64	0	69	Scratch Split
552	64	0	70	Wind Chime
553	64	0	71	Telephone Ring 2
554	64	0	81	Car Engine Ignition
555	64	0	82	Car Tires Squeal
556	64	0	83	Car Passing
557	64	0	84	Car Crash
558	64	0	85	Siren
559	64	0	86	Train
560	64	0	87	Jet Plane
561	64	0	88	Starship
562	64	0	89	Burst
563	64	0	90	Roller Coaster
564	64	0	91	Submarine
565	64	0	97	Laugh
566	64	0	98	Scream
567	64	0	99	Punch

Voice No.	Bank Select		MIDI Program Change# (1-128)	Voice Name
	MSB (0-127)	LSB (0-127)
568	64	0	100	Heartbeat
569	64	0	101	Footsteps
570	64	0	113	Machine Gun
571	64	0	114	Laser Gun
572	64	0	115	Explosion
573	64	0	116	Firework

Drum Kit List / Liste des kits de percussion / Lista de juegos de batería / Lista do conjunto de percussão / Drum Kit-Liste / Список наборов ударных

Song No.	Song Name
Top Picks
001	Demo 1 (Yamaha Original)
002	Demo 2 (Yamaha Original)
003	Demo 3 (Yamaha Original)
Learn to Play
004	Für Elise (Basic) (L. v. Beethoven)
005	Für Elise (Advanced) (L. v. Beethoven)
006	Twinkle Twinkle Little Star (Basic) (Traditional)
007	Twinkle Twinkle Little Star (Advanced) (Traditional)
008	Turkish March (Basic) (W.A. Mozart)
009	Turkish March (Advanced) (W.A. Mozart)
010	Ode to Joy (Basic) (L. v. Beethoven)
011	Ode to Joy (Advanced) (L. v. Beethoven)
012	The Entertainer (Basic) (S. Joplin)
013	The Entertainer (Advanced) (S. Joplin)
014	Londonderry Air (Basic) (Traditional)
015	Londonderry Air (Advanced) (Traditional)
016	The Last Rose of Summer (Basic) (Traditional)
017	The Last Rose of Summer (Advanced) (Traditional)
018	Amazing Grace (Basic) (Traditional)
019	Amazing Grace (Advanced) (Traditional)
Favorite
020	Frère Jacques (Traditional)
021	Der Froschgesang (Traditional)
022	Aura Lee (Traditional)
023	London Bridge (Traditional)
024	Sur le pont d'Avignon (Traditional)
025	Nedelka (Traditional)
026	Aloha Oe (Q. Liliukalani)
027	Sippin' Cider Through a Straw (Traditional)
028	Old Folks at Home (S. C. Foster)
029	Bury Me Not on the Lone Prairie (Traditional)
030	Cielito Lindo (Traditional)
031	Santa Lucia (A. Longo)
032	If You're Happy and You Know It (Traditional)
033	Beautiful Dreamer (S. C. Foster)
034	Greensleeves (Traditional)
035	Kalinka (Traditional)
036	Holdilia Cook (Traditional)
037	Ring de Banjo (S. C. Foster)
038	La Cucaracha (Traditional)
039	Funiculi Funicula (L. Denza)
040	Largo (from the New World) (A. Dvořák)
041	Brahms' Lullaby (J. Brahms)
042	Liebesträume Nr.3 (F. Liszt)
043	Pomp and Circumstance (E. Elgar)
044	Chanson du Toreador (G. Bizet)
045	Jupiter, the Bringer of Jollity (G. Holst)
046	The Polovetsian Dances (A. Borodin)
047	Die Moldau (B. Smetana)
048	Salut d'Amour op.12 (E. Elgar)
049	Humoresques (A. Dvořák)
050	Symphony No.9 (from the New World - 4th movement) (A. Dvořák)

- Some songs have been edited for length or for ease in learning, and may not be exactly the same as the original.

- A song book (free downloadable scores) is available that includes scores for all internal songs (excepting Songs 1–3). To obtain the Song Book, complete the user registration at the following website.

https://member.yamaha.com/myproduct/regist/

Song No.	Song Name
Favorite with Style
051	O du lieber Augustin (Traditional)
052	Mary Had a Little Lamb (Traditional)
053	When Irish Eyes Are Smiling (E. R. Ball)
054	Little Brown Jug (Traditional)
055	Ten Little Indians (Traditional)
056	On Top of Old Smoky (Traditional)
057	My Darling Clementine (Traditional)
058	Oh! Susanna (S. C. Foster)
059	Red River Valley (Traditional)
060	Turkey in the Straw (Traditional)
061	Muffin Man (R. A. King)
062	Pop Goes the Weasel (Traditional)
063	Grandfather's Clock (H. C. Work)
064	Camptown Races (S. C. Foster)
065	When the Saints Go Marching In (Traditional)
066	Yankee Doodle (Traditional)
067	Battle Hymn of the Republic (Traditional)
068	I've Been Working on the Railroad (Traditional)
069	American Patrol (F. W. Meacham)
070	Down by the Riverside (Traditional)
Instrument Master
071	Sicilienne/Fauré (G. Fauré)
072	Swan Lake (P. I. Tchaikovsky)
073	Grand March (Aida) (G. Verdi)
074	Serenade for Strings in C major, op.48 (P. I. Tchaikovsky)
075	Pizzicato Polka (J. Strauss II)
076	Romance de Amor (Traditional)
077	Menuett BWV. Anh.114 (J. S. Bach)
078	Ave Verum Corpus (W. A. Mozart)
079	Radetzky Marsch (J. Strauss I)
Piano Repertoire
080	Wenn ich ein Vöglein wär (Traditional)
081	Die Lorelei (F. Silcher)
082	Home Sweet Home (H. R. Bishop)
083	Scarborough Fair (Traditional)
084	My Old Kentucky Home (Traditional)
085	Loch Lomond (Traditional)
086	Silent Night (F. Gruber)
087	Deck the Halls (Traditional)
088	O Christmas Tree (Traditional)
089	Sonata Pathétique 2nd Adagio Cantabile (L. v. Beethoven)
090	Ave Maria/J. S. Bach - Gounod (J. S. Bach / C. F. Gounod)
091	Jesus bleibet meine Freude (J. S. Bach)
092	Prelude op.28-15 “Raindrop” (F. Chopin)
093	Nocturne op.9-2 (F. Chopin)
094	Etude op.10-3 “Chanson de L'adieu” (F. Chopin)
095	Romanze (Serenade K.525) (W. A. Mozart)
096	Arabesque (J. F. Burgmüller)
097	La Chevaleresque (J. F. Burgmüller)
098	Für Elise (L. v. Beethoven)
099	Turkish March (W.A. Mozart)
100	24 Preludes op.28-7 (F. Chopin)
101	Annie Laurie (Traditional)
102	Jeanie with the Light Brown Hair (S. C. Foster)

Song No.	Special Appendix
Chord Study
103–114	ChdStd01-ChdStd12
Chord Progression
115–154	Maj1234-min1736

https://member.yamaha.com/myproduct/regist/

• Algunas de las canciones han sido editadas adaptando la longitud o la facilidad de interpretación, por lo que pueden diferir de la pieza original.
• Se dispone de un libro de canciones (partituras descargables gratuitas) con las partituras de todas las canciones internas (excepto de la 1 a la 3). Para obtener el libro de canciones, cumplimente la inscripción de usuario en el siguiente sitio web.
  https://member.yamaha.com/myproduct/regist/
• Algumas músicas foram editadas, na duração ou para facilitar a aprendizagem, e podem não ser exatamente iguais à original.

• Está disponível um livro de músicas (partituras para download gratuito) que inclui partituras de todas as músicas internas (exceto as Músicas 1 a 3). Para obter o Song Book, preencha o registro do usuário no site: https://member.yamaha.com/myproduct/regist/

• Einige Songs wurden gekürzt oder vereinfacht und weichen möglicherweise vom Original ab.

• Es ist ein Notenheft (Song Book; kostenlose herunterladbare Noten) erhältlich, das die Noten aller integrierten Songs enthält (außer Songs 1–3). Um das Notenheft zu erhalten, füllen Sie das Anwender-Registrierungsformular auf der folgenden Website aus. https://member.yamaha.com/myproduct/regist/
• Некоторые композиции были отредактированы с целью уменьшения продолжительности или для облегчения исполнения и, следовательно, могут не совпадать с оригиналом.
• Можно получить сборник композиций Song Book (партитуры, бесплатно загружаемые с веб-сайта), содержащий партитуры всех встроенных композиций (за исключением композиций 1–3). Для получения сборника композиций заполните регистрационные данные пользователя на следующем веб-сайте: https://member.yamaha.com/myproduct/regist/

Style List / Liste des styles / Lista de estilos / Lista de estilos / Style-Liste / Список стилей

Style No.	Style Name
8BEAT
1	BritPopRock
2	8BeatModern
3	Cool8Beat
4	StadiumRock
5	70sRock
6	HardRock1
7	60sGuitarPop
8	8BeatAdria
9	60s8Beat
10	8Beat
11	OffBeat
12	Folkrock
13	60sRock
14	HardRock2
15	RockShuffle
16	8BeatRock
16BEAT
17	16Beat
18	PopShuffle
19	GuitarPop
20	16BeatUptempo
21	KoolShuffle
22	HipHopLight
BALLAD
23	70sGlamPiano
24	PianoBallad
25	LoveSong
26	6/8ModernEP
27	6/8SlowRock
28	OrganBallad
29	PopBallad
30	16BeatBallad
DANCE
31	ClubBeat
32	Electronica
33	FunkyHouse
34	RetroClub
35	USHipHop
36	MellowHipHop
37	Chillout
38	EuroTrance
39	Ibiza
40	SwingHouse
41	Clubdance
42	ClubLatin
43	Garage1
44	Garage2
45	TechnoParty
46	UKPop
47	HipHopGroove
48	HipShuffle
49	HipHopPop
DISCO
50	ModernDisco
51	70sDisco
52	LatinDisco
53	SaturdayNight

Style No.	Style Name
54	DiscoHands
SWING&JAZZ
55	BigBandFast
56	BigBandBallad
57	AcousticJazz
58	AcidJazz
59	JazzClub
60	Swing1
61	Swing2
62	Five/Four
63	Dixieland
64	Ragtime
R&B
65	BluesRock
66	Soul
67	DetroitPop
68	60sRock&Roll
69	6/8Soul
70	CrocoTwist
71	Rock&Roll
72	ComboBoogie
73	6/8Blues
COUNTRY
74	CountryPop
75	CountrySwing
76	Country2/4
77	Bluegrass
LATIN
78	BrazilianSamba
79	BossaNova
80	Forro
81	Sertanejo1
82	Sertanejo2
83	Baião
84	Joropo
85	Parranda
86	Reggaeton
87	Tijuana
88	PasoDuranguense
89	CumbiaGrupera
90	BaladaBanda
91	MexicanMambo
92	Mambo
93	Salsa
94	Beguine
95	Reggae
WORLD
96	ScottishReel
97	4/4Standart
98	Rumba2/4
99	Saeidy
100	WehdaSaghira
101	IranianElec
102	Emarati
103	AfricanGospelReggae
104	HighLife
105	IndianPop
106	Bhangra

Style No.	Style Name
107	Bhajan
108	BollyMix
109	Tamil
110	Kerala
111	GoanPop
112	Rajasthan
113	Dandiya
114	Qawwali
115	FolkHills
116	ModernDangdut
117	Keroncong
118	XiQingLuoGu
119	YiZuMinGe
120	JingJuJieZou
BALLROOM
121	VienneseWaltz
122	EnglishWaltz
123	Slowfox
124	Foxtrot
125	Quickstep
126	Tango
127	Pasodoble
128	Samba
129	ChaChaCha
130	Rumba
131	Jive
TRADITIONAL
132	USMarch
133	6/8March
134	GermanMarch
135	PolkaPop
136	OberPolka
137	Tarantella
138	Showtune
139	ChristmasSwing
140	ChristmasWaltz
WALTZ
141	SwingWaltz
142	JazzWaltz
143	ValsMexicano
144	CountryWaltz
145	OberkrainerWalzer
146	Musette
CHILDREN
147	Learning2/4
148	Learning4/4
149	Learning6/8
PIANIST
150	Stride
151	PianoSwing
152	PianoBoogie
153	Arpeggio
154	Habanera
155	SlowRock
156	8BeatPianoBallad
157	6/8PianoMarch
158	PianoWaltz
MDB No.	MDB Name
POP
1	AlvFever
2	DayPdise
3	GoMyWay
4	HowDeep!
5	HurryLuv
6	Imagine
7	JustCall
8	SultanSw
9	WhitePle
10	YesterBd
ROCK
11	JumpRock
12	PickUpPc
13	RdRiverR
14	SatsfyRk
15	Sheriff
16	SmokeWtr
17	TwistAgn
18	VenusPop
DANCE
19	2 of Us
20	B Leave
21	Back St
22	Crockett
23	FunkyTwn
24	KillSoft
25	Nine PM
26	SingBack
27	StrandD
BALLAD
28	AdelineB
29	CatMemry
30	ElvGhett
31	Feeling
32	Mn Rivr
33	OnMyMnd
34	OverRbow
35	ReleseMe
36	SavingLv
37	SmokyEye
38	WhisprBd
R & B
39	AmazingG
40	BoogiePf
41	Clock Rk
42	CU later
43	HappyDay
44	RisingSn
45	ShookUp
46	TeddyBer

MDB No.	MDB Name
SWING & JAZZ
47	ChooChoo
48	HighMoon
49	InMood
50	MistyBld
51	MoonLit
52	New York
53	SaintMch
54	ShearJz
55	TstHoney
56	USPatrol
EASY LISTENING
57	Close2U
58	Entrtain
59	LuvStory
60	MyPrince
61	PupetStr
62	Raindrop
63	R'ticGtr
64	SingRain
65	SmallWld
66	SpkSoft
67	StrangeN
68	TimeGoes
69	WhteXmas
70	WishStar
71	WondrWld
LATIN
72	BambaLa
73	BeHappy!
74	CopaLola
75	DayNight
76	Ipanema
77	MuchoBgn
78	Sunshine
79	TicoSmb
80	WaveBosa
COUNTRY
81	BoxerGtr
82	CntryRds
83	Jambala
84	TopWorld
85	YlwRose
BALLROOM
86	BrazilBr
87	CheryApl
88	DanubeWv
89	TangoAc
90	Tea4Two
TRADITIONAL
91	CampRace

MDB No.	MDB Name
92	CielPari
93	GrndClok
94	JinglBel
95	MickMrch
96	Showbiz
97	StarMrch
98	WashPost
99	SilentNt
100	YankDood

Effect Type List / Liste des types d'effets / Lista de tipos de efectos / Lista de tipos de efeitos / Effekttypenliste / Список типов эффектов

Harmony Types / Types d'effets Harmony / Tipos de armonía / Tipos de harmonía / Harmony-Typen / Типы гармонизации

No.	Harmony Type	Description
001	Duet	If you want to sound one of the harmony types 01–05, play keys to the right side of the Split Point while playing chords in the left side of the keyboard after turning Auto Accompaniment on. One, two or three notes of harmony are automatically added to the note you play. When playing back a Song that includes chord data, harmony is applied whichever keys are played.Si vous voulez entendre un des types d'harmonie 01–05, jouez des notes à droite du point de partage tout en jouant des accords dans la partie gauche du clavier après avoir activé l'accompagnement automatique. Une, deux ou trois notes d'harmonie sont automatiquement ajoutées à la note que vous jouez. Lors de la reproduction d'un morceau contenant des données d'accord, l'harmonie est appliquée quelles que soient les notes jouées.Si desea que suene uno de los tipos de armonía 01–05, toque las teclas del lado derecho del punto de división, mientras toca los acordes del lado izquierdo del teclado después de activar el acompañamiento automático. Se añaden automáticamente una, dos o tres notas de armonía a la nota que esté tocado. Cuando interprete una canción que incluya datos de acordes, se aplica la armonía a cualquier tecla que se toque.Se você quiser tocar um dos tipos de harmonia, 01 a 05, toque as teclas à direita do Split Point (Ponto de divisão) enquanto toca os acordes no lado esquerdo do teclado, depois de ativar o Acompanamento Automático. Uma, duas ou três notas de harmonia são adicionadas automaticamente à nota tocada. Ao reproduzir uma música que inclua dados de acorde, a harmonia é aplicada, qualquer que seja a tecla tocada.Wenn Sie möchten, dass einer der Harmonietypen 01-05 erklingt, schlagen Sie bitte nach Aktivierung der Begleitautomatik Tasten rechts vom Splitpunkt an, während Sie auf der linken Tastaturseite Akkorde spielen. Der von Ihnen gespielten Note werden automatisch eine, zwei oder drei Harmonienoten hinzugefügt. Bei der Wiedergabe von Songs mit Akkorddaten wird der Harmonieeffekt angewendet, gleichgültig, welche Tasten angeschlagen werden.Eсли нужно озвучить тип гармонизации с номером от 01 до 05, после включения автоаккомпанемента исполняйте Melodию справа от точки разделения, играя аккорды на левой части клавиатуры. К каждой исполняемой note автоматически добавляется одна, две или три созвучные ноты. При воспроизведении композиции, включающей данные аккордов, гармонизация применяется к каждой нажатой клавише.
002	Trio
003	Block
004	Country
005	Octave
006	Trill 1/4 note	[IMAGE]	If you keep holding down two different notes, the notes alternate (in a trill) continuously.Si vous maintenez deux notes différentes enfoncées, les notes alternent en continu (dans une trille).Si sigue pulsando dos notas diferentes, las notas se alternan de forma continua (como si fuera un trino)Se você mantiver duas notas diferentes pressionadas, elas se alternarão continuamente (em um garganteio).Wenn Sie zwei verschiedene Noten gedrückt halten, werden die Noten fortlaufend abwechselnd gespielt (als Triller).Если удерживать две разные клавиши, ноты непрерывно чередуются трелью.
007	Trill 1/6 note
008	Trill 1/8 note	[IMAGE]
009	Trill 1/12 note
010	Trill 1/16 note	[IMAGE]
011	Trill 1/24 note
012	Trill 1/32 note	[IMAGE]
013	Tremolo 1/4 note		If you keep holding down a single note, the note is repeated continuously.(The repeat speed differs depending on the selected type.)Si vous maintenez une note unique enfoncée, celle-ci est répétée en continu.(La vitesse de répétition varie en fonction du type sélectionné.)Si mantiene pulsada una sola nota, la nota se repite constantemente.(la velocidad de repetición varía según el tipo seleccionado.)Se você mantiver uma única nota pressionada, ela se repetirá continuamente.(A velocidade de repetição difere, dependendo do tipo seleccionado.)Wenn Sie eine einzelne Note gedrückt halten, wird die Note fortlaufend wiederholt.(Die Wiederholungsgeschwindigkeit hängt vom ausgewählten Typ ab.)Если удерживать нажатой одну клавишу, нота непрерывно повторяется.(Скорость повторения зависит от выбранного типа.)
014	Tremolo 1/6 note	[IMAGE]
015	Tremolo 1/8 note
016	Tremolo 1/12 note	[IMAGE]
017	Tremolo 1/16 note
018	Tremolo 1/24 note	[IMAGE]
019	Tremolo 1/32 note
020	Echo 1/4 note	[IMAGE]	If you keep holding down a note, echo is applied to the note played.(The echo speed differs depending on the selected type.)Si vous maintenez une note enfoncée, un écho est appliqué à la note jouée.(La vitesse de l'écho varie en fonction du type sélectionné.)Si mantiene pulsada una nota, se aplica eco a la nota tocada.(la velocidad de eco varía según el tipo seleccionado.)Se você mantiver uma nota pressionada, um efeito de eco será aplicado à nota tocada.(A velocidade do eco difere, dependendo do tipo seleccionado.)Wenn Sie eine Note gedrückt halten, wird auf die gespielte Note die Echofunktion angewendet. (Die Echogeschwindigkeit hängt vom ausgewählten Typ ab.)Если удерживать нажатой одну клавишу, к проигрываемой note применяется эффект эха. (Скорость эффекта эха зависит от выбранного типа.)
021	Echo 1/6 note
022	Echo 1/8 note	[IMAGE]
023	Echo 1/12 note
024	Echo 1/16 note	[IMAGE]
025	Echo 1/24 note
026	Echo 1/32 note	[IMAGE]

Arpeggio Type List / Liste des types d'arpege / Lista de tipos de arpegio / Liste der Arpeggio-Typen / Lista de tipos de arpejo / Список типов арпеджио

Arpeggio No.	Arpeggio Name
027	UpOct
028	DownOct
029	UpDwnOct
030	SynArp1
031	SynArp2
032	SynArp3
033	SynArp4
034	SyncEcho
035	PulsLine
036	StepLine
037	Random
038	Down&Up
039	SuperArp
040	AcidLine
041	TekEcho
042	VelGruv
043	Planet
044	Trance1
045	Trance2
046	Trance3
047	ChordAlt
048	SynChrd1
049	SynChrd2
050	Syncopa
051	Hybrid1
052	Hybrid2
053	Hybrid3
054	Hybrid4
055	Hybrid5
056	PfArp1
057	PfArp2
058	PfArp3
059	PfArp4
060	PfClub1
061	PfClub2
062	PfBallad
063	PfChd8th
064	EPArp
065	PfShufle
066	PfRock
067	Clavi1
068	Clavi2
069	RocknPf
070	70RockPf
071	SlowfIPf
072	SoulPf
073	ChordUp
074	ChdDance
075	LatinRck
076	Salsa1
077	Salsa2
078	Reggae1
079	Reggae2
080	Reggae3
081	6/8R&B
082	Gospel
083	BalladEP
084	Strum1
085	Strum2
086	Strum3
087	Strum4
088	Pickin1
089	Pickin2

Arpeggio No.	Arpeggio Name
090	Funky
091	GtrChrd1
092	GtrChrd2
093	GtrChrd3
094	GtrArp
095	FngrPck1
096	FngrPck2
097	CleanGtr
098	Slowfl
099	Samba1
100	Samba2
101	Spanish1
102	Spanish2
103	Harp1
104	Harp2
105	FngrBas1
106	FngrBas2
107	FngrBas3
108	CoolFunk
109	SlapBass
110	AcidBas1
111	AcidBas2
112	FunkyBas
113	CmbJazB1
114	CmbJazB2
115	CmbJazB3
116	NewR&BBs
117	HipHopBs
118	SmoothBs
119	DreamBas
120	TranceBs
121	LatinBas
122	Strings1
123	Strings2
124	Strings3
125	Strings4
126	StringDwn
127	StrngUp
128	OrcheStr
129	Jupiter
130	Pizz1
131	Pizz2
132	BrasSec1
133	BrasSec2
134	BrasSec3
135	FunkBras
136	SoulReed
137	DiscoLd
138	SmoothPd
139	PercArp
140	Ethnic
141	Cresendo
142	DiscoCP
143	Perc1
144	Perc2
145	R&B
146	Funk1
147	Funk2
148	Funk3
149	Soul
150	ClsChip
151	Smooth
152	NewGospl

Arpeggio No.	Arpeggio Name
153	CmbJazz1
154	CmbJazz2
155	Bebop
156	JazzHop
157	FolkRock
158	Unplugged
159	HipHop
160	Trance
161	Dream
162	2 Step
163	ClubHs1
164	ClubHs2
165	EuroTek
166	House
167	Ibiza1
168	Ibiza2
169	Ibiza3
170	Garage
171	Samba
172	African
173	Latin
174	China
175	Indian
176	Arabic

Reverb Types / Types d'effets Reverb / Tipos de reverberación / Tipos de reverberação / Reverb-Effekttypen / Типы реверберации

No.	Reverb Type	Description
01–03	Hall 1–3	Concert hall reverb.Réverbération d'une salle de concert.Reverberación de sala de conciertos.Reverberação de Sala de concertos.Nachhall in einem Konzertaal.Peverberperация концертного зала.
04–05	Room 1–2	Small room reverb.Réverbération d'une petite salle.Reverberación de sala pequeña.Reverberação de Sala pequena.Nachhall in einem kleineren Raum.Peverberperация небольшого помещения.
06–07	Stage 1–2	Reverb for solo instruments.Réverbération pour instruments solo.Reverberación para instrumentos solistas.Reverberação para Instrumentos. Solistas.Halleffekte für Soloinstrumente.Peverberperация для сольных инструментов.
08–09	Plate 1–2	Simulated steel plate reverb.Simulation de la réverbération d'une plaque d'acier.Reverberación de plancha de acero simulada.Reverberação de placa metálica simulada.Simulation des Halls in einer Stahlplatte.Имитатор реверберации стальной пластины.
10	Off	No effect.Pas d'effet.Sin efecto.Sem efeito.Kein Effekt.Никакого эффекта.

Chorus Types / Types d'effets Chorus / Tipos de coro / Tipos de coro / Chorus-Effekttypen / Типы эффекта Chorus

No.	Chorus Type	Description
01-03	Chorus 1-3	Conventional chorus program with rich, warm chorusing.Programme de choeur classique avec un effet de choeur riche et chaud.Programma de coros convencionales con coros cálidos y complejos.Programa de coros convencionais com coros quentes e complexos.Herkömmlicher Chorus-Effekt mit vollem und warmem Klang).Традиционная хоровая программа с насыщенным теплым звуком.
04-05	Flanger 1-2	This produces a rich, animated wavering effect in the sound.Vous obtenez un effet d'ondulation riche et animé dans le son.Así se produce en el sonido un efecto ondulación completo y animado.Produz um animado e avançado efeito de flutuação ao som.Hiermit wird eine volltönende und lebhafte Tonhöhenschwankung erzeugt.Придает звуку богатый живой эффект «дрожания».
06	Off	No effect.Pas d'effet.Sin efecto.Sem efeito.Kein Effekt.Никакого эффекта.

For the Power Adaptor with a Removable Plug

Do not remove the plug from the power adaptor. If the plug is removed accidentally, slide the plug into place without touching the metallic parts, and then push the plug in completely until it clicks.

WARNING

• Make sure to keep the plug attached to the AC adaptor. Using the plug alone can cause electric shock or fire.
• Never touch the metallic section when attaching the plug. To avoid electric shock, short circuit or damage, also be careful that there is no dust between the AC adaptor and plug.

Technical line drawing of a mechanical component with a pin and plug (no text or symbols)

* The shape of the plug differs depending on locale.
* La forme de la fiche varie selon le pays.
* La forma del enchufe varía según la región.
* Die Form des Steckers variiert je nach Land.
* O formato do plugue varia de acordo com a localidade.
* В разных странах штепсельные вилки отличаются по форме.

Plug

Fiche

Enchufe

Stecker

Plugue

Вилка

Slide the plug as indicated

Important Notice: Guarantee Information for customers in European Economic Area (EEA) and Switzerland

Tärkeä ilmoitus: Takuutiedot Euroopan talousalueen (ETA)* ja Sveitsin asiakkailleTämän Yamaha-tuotteen sekä ETA-eauene ja Sveitsin takuuta koskevat yksityiskohtaiset tiedot saatte alla olevasta nettiosoit- teesta, (Tulostettava tiedosto saatavissa sivustolamme,) Voitte myös ottaa yhteyttä paikalliseen Yamaha-edustajaan.*ETA: Euroopan talousalue	Suomi
P Ważne: Warunki gwarancyjne obowiązujące w EOG* i SzwajcariiAby dowiedzieć się więcej na temat warunków gwarancyjnych tego produktu firmy Yamaha i serwisu gwarancyjnego w całym EOG* i Szwajcarii, należy odwedzić wskazana poníje stronę internetowa (Plik gotowy do wydruku znajduje się na naszej stronie internetowej) lub skontaktować się z przedstawicielstwem firmy Yamaha w swoim kraju. * EOG — Europejski Obszar Gospodarczy
Duležité oznámeni: Záruční informace pro zákazniky v EHS* a ve ŠvýcarskuPodrobné záruční informace o tomto produktu Yamaha a záručním servisu v celém EHS* a ve Švýcarsku naleznete na niže uvedené webové adrese (soubor k tisku je dostupný na našich webových stránkách) nebo se můžete obrátit na zastoupení firmy Yamaha ve své zemi. * EHS: Evropsky hospodářský prostor	Česky
Fontos figyelmeztetés: Garancia-információk az EGT* területén és Svájcban elő vásárlók számáraA jelen Yamaha termékre vonatkozó részletes garancia-információk, valamint az EGT*-re és Svájcra kiterjedő garanciális szolgáltatás tekintetében keresse fel webhelyünket az alábbi címen (a webhelyen nyomtatható fájl is talál), vagy pedig lépjen kapcsolatba az országában működő Yamaha képviseleti irodával. * EGT: Európai Gazdasági Tér ség
Oluline márkus: Garantiateve Euroopa Majanduspiirkonna (EMP)* ja Šveitsi klientideleTäpsema teabe saamiseks selle Yamaha toote garantii ning kogu Euroopa Majanduspiirkonna ja Šveitsi garantiteeninduse kohta, kůlastage pałun veebisaiti alljárgneval aadressil (meie saidil on saadaval prinditav fail) vöi pöörduge Teie regiooni Yamaha esinduse poode. * EMP: Europa Majanduspiirkond	Eesti keel
Svarígs paziņojums: garantijas informácija klientiem EEZ* un ŠveicēLai saņemu detalizėtu garantijas informáciju par šo Yamaha produktu, kā arī garantijas apkalpošanu EEZ* un Šveicē, lõdzu, apmeklėjet zemák norădito timekļa vietnes adresi (timekļa vietne ir pieejams drukăjams fails) vai sazinieties ar jüsu valsti apkalpojošo Yamaha pärstävniecibu. * EEZ: Europas Ekonomikas zona	Latviešu
Dêmesio: informacija dél garantijos pirkėjams EEE* ir ŠveicarijojeJei reikia išsamios informacijos apie ši „Yamaha“ produktą ir jo technine priežiūrą visoje EEE* ir Šveicarijoje, apsilankykite mūsų svetainėje tolau nurodytu adresu (svetainėje yra spausdintinas failas) arba kreipkitės į „Yamaha“ atstovybę savo šalai.*EEE – Europos ekonominė erdvė	Lietuvių kalba
Dôležité upozornenie: Informácie o záruke pre zákaznikov v EHP* a ŠvajčiarskuPodrobné informacije o záruke týkajúce sa tohto produktu od spoločnosti Yamaha a garančnom servise v EHP* a Švajčiarsku najdele na webovej stránke uvedenej nižšie (na našej webovej stránke je k dispozícii súbor na tlač) alebo sa obráťte na zástupcu spoločnosti Yamaha vo svojej krajine. * EHP: Európsky hospodársky priestor	Slovenčina
Pombembno obvestilo: Informacije o garanciji za kupce v EGP* in ŠviciZa podrobnješe informacije o tem Yamahinem izdelku ter garancijskem servisu v celotnem EGP in Švici, obiščite spletno mesto, ki je navedeno spodą (natisljiva datoteka je na voljo na našem spletnem mestu), ali se obrnite na Yamahinega predstavnika v svoji državi. * EGP: Evropski hospodarski prostor	Slovenščina
Bavkno sъобщение: Информация за гаранцията за клиенти в ЕИП* и ШвейцарияЗа подробна информация за гаранцията за този продукт на Yamaha и гаранционното обслужване в паневропейската зона на ЕИП* и Швейцария или посетете посочения по-долу уеб сайт (на нашия уеб сайт има файл за печат), или се свържете с представтинеля офис на Yamaha във ваша страна. * ЕИП: Еропелско ikonomischko пространство
Notificare importantă: Informatii despre garantie pentru clientiți din SEE* și ElvețiaPentru informați detaliate privind acest produs Yamaha și serviciul de garantie Pan-SEE* și Elveția, vizitați site-ul la adresa de mai jos (fisjerul imprimabil este disponibil pe site-ul nostru) sau contactați biroul reprezentanței Yamaha din țara dumneavoastră .* SEE: Spațiul Economic European	Limba română

Important Notice: Guarantee Information for customers in EEA* and Switzerlandor detailed guarantee information about this Yamaha product, and Pan-EEA* and Switzerland warranty service, please either sit the website address below (Printable file is available at our website) or contact the Yamaha representative office for your country. * EEA: European Economic Area	English
Flichtiger Hinweis: Garantie-Information für Kunden in der EWR* und der Schweizfür nähere Garantie-Information über dieses Produkt von Yamaha, sowie über den Pan-EWR*- und Schweizer Garantiservice, besuchen sie bitte entweder die folgend angegebene Internetadresse (eine druckfähige Version befindet sich auch auf unserer Webseite), oderenden Sie sich an den für Ihr Land zuständigen Yamaha-Vertrieb. *EWR: Europäischer Wirtschaftsraum	Deutsch
Remarque importante: informations de garantie pour les clients de l’EEE et la Suissepour des informations plus détaillées sur la garantie de ce produit Yamaha et sur le service de garantie applicable dans l’ensemble de l’EEE ainsi qu’en Suisse, consultez notre site Web à l’adresse ci-dessous (le fichier imprimable est disponible sur notre site Web) ou contactez directement Yamaha dans votre pays de résidence. * EEE : Espace Economique Européen	Français
elangrijke mededeling: Garantie-informatie voor klanten in de EER* en Zwitzerlandpor gedetailleerde garantie-informatie over dit Yamaha-product en de garantiservice in heel de EER* en Zwitzerland, gaat u waar de onderstaande website (u vind een afdrukbaar bestand op onze website) of neemt u contact op met de vertegenwoordiging van Yamaha in uw land. * EER: Europese Economische Ruimte	Nederlands
Viso importante: información sobre la garantía para los clientes del EEE* y Suizapara una información detallada sobre este producto Yamaha y sobre el soporte de garantía en la zona EEE* y Suiza, visite la crección web que se incluye más abajo (la version del archivo para imprimir esta disponible en nuestro sitio web) o póngase en contacto con el representante de Yamaha en su país. * EEE: Espacio Económico Europeo	Español
Viso importante: informazioni sulla garanzia per i clienti residenti nell’EEA* e in Svizzeraer informazioni dettagliate sulla garanzia relativa a questo prodotto Yamaha e l’assistenza in garanzia nei paesi EEA* e in vizizzera, potete consultare il sito Web all’indirizzo riportato di seguito (é disponibile il file in formato stampabile) oppure contattare ufficio di rappresentanza locale della Yamaha. * EEA: Area Economica Europea	Italiano
Viso importante: informações sobre as garantias para clientes da AEE* e da Suíçapara obter uma informação pormenorizada sobre este produto da Yamaha e sobre o serviço de garantia na AEE* e na Suíça, site o site a seguir (o arquivo para impressão está disponível no nosso site) ou entre em contato com o escritório de representa-ão da Yamaha no seu país. * AEE: Área Económica Européia	Português
ημαντική σημείωση: Πληροφορίες εγγύσης για τους πελάτες στον ΕΟΧ* και Ελβετίαα λεπτομερείς πληροφορίες εγγύσης σχετικά με το παρόν προϊόν της Yamaha και την κάλωψη εγγύσης σε όλες τις χώρες του ΕΟΧ και την ΕΑβετία, επισκερτείτε την παρακάτω ιστοσελίδα (Εκτυπώσιμη μορφή είναι διαθέσιμη στην ιστοσελίδα μας) ή πευθυνδείτε στην αντιπροσωτεία της Yamaha στη χώρα σας. * ΕΟΧ: Ευρωπαϊκός Οικονομικός Χώρος	Ελληνικά
Aktigt: Garantiinformation för kunder i EOS-området* och Schweizör detaljerad information om denna Yamahaproduct samt garantiservice i hela EES-området* och Schweiz kan du antingenesöka nedanstående webbaddress (en utskriftsvänlig fil finns på webbplatsen) eller kontakta Yamahas officiella representant i t t land. * EES: Europeiska Ekonomsika Samarbetsområdet	Svenska
Aktig merknad: Garantiinformasjon för kunder i E∅S* og Sveitsetaljert garantiinformasjon om dette Yamaha-produktet og garantiservice for hele E∅S-området* og Sveits kan fås enten ved a besøke nettadressen nedenfor (utskriftsversion finnes på våre nettésider) eller kontakte kontakte Yamaha-kontoret i Iandet der du port. *E∅S: Det europeiske økonomiske samarbeidsområdet	Norsk
Niktig oplysning: Garantioplysninger til kunder i E∅O* og Schweize can finde detaljerede garantioplysninger om dette Yamaha-produkt und den fælles garantiserviceordning for E∅O* (og Schweiz) ved at besagte det websted, der er angivet nedenfor (der findes en fil, som kan udskrives, på vores websted), eller ved at kontakte yamahas nationale repräsentationskontor i det land, hvor De bor. * E∅O: Det Europäiske ∅konomiske Område	Dansk

http://europe.yamaha.com/warranty/

Yamaha Canada Music Ltd.

135 Milner Avenue, Toronto, Ontario,

M1S 3R1, Canada

Tel: [phone]

U.S.A.

Yamaha Corporation of America

6600 Orangethorpe Avenue, Buena Park, CA 90620,

U.S.A

Tel: [phone]

CENTRAL & SOUTH AMERICA

MEXICO

PANAMA AND OTHER LATIN

AMERICAN COUNTRIES/

CARIBBEAN COUNTRIES

Yamaha Music Latin America, S.A.

Torre Banco General, Piso No.7, Marbella,

Sherbourne Drive, Tilbrook, Milton Keynes,

MK7 8BL, U.K.

Tel: [phone]

GERMANY

Yamaha Music Europe GmbH

Siemensstraße 22-34, 25462 Rellingen, Germany

Tel: [phone]

Branch Switzerland in Zürich

Seefeldstrasse 94, 8008 Zürich, Switzerland

Tel: [phone]

AUSTRIA

Yamaha Music Europe GmbH Branch Austria

Schleiergasse 20, A-1100 Wien, Austria

Tel: [phone]

CZECH REPUBLIC/HUNGARY/

ROMANIA/SLOVAKIA/SLOVENIA

Yamaha Music Europe GmbH

Branch Austria (Central Eastern Europe Office)

Schleiergasse 20, A-1100 Wien, Austria

Tel: [phone]

POLAND/LITHUANIA/LATVIA/

ESTONIA

Yamaha Music Europe GmbH

Branch Poland Office

Yamaha Music Europe GmbH, Branch Italy

Viale Italia 88, 20020 Lainate (Milano), Italy

Tel: [phone]

SPAIN/PORTUGAL

Yamaha Music Europe GmbH Ibérica, Sucursal

en España

Ctra. de la Coruna km. 17,200, 28231

Las Rozas (Madrid), Spain

147 Skiathou Street, 112-55 Athens, Greece

Tel: [phone]

SWEDEN

Yamaha Music Europe GmbH Germany filial

Scandinavia

J. A. Wettergrensgata 1, Box 30053

S-400 43 Göteborg, Sweden

Tel: [phone]

DENMARK

Yamaha Music Europe GmbH, Tyskland – filial

Denmark

Generatorvej 6A, DK-2730 Herlev, Denmark

Tel: [phone]

FINLAND

F-Musiikki Oy

Kluuvikatu 6, P.O. Box 260,

SF-00101 Helsinki, Finland

Tel: [phone]

NORWAY

Yamaha Music Europe GmbH Germany -

Norwegian Branch

Grini Næringspark 1, N-1361 ∅sterås, Norway

Tel: [phone]

ICELAND

Skifan HF

Skeifan 17 P.O. Box 8120, IS-128 Reykjavik,

Iceland

Tel: [phone]

RUSSIA

Yamaha Music (Russia) LLC.

Room 37, bld. 7, Kievskaya street, Moscow,

121059, Russia

Tel: [phone]

TURKEY/CYPRUS

Yamaha Music Europe GmbH

OTHER EUROPEAN COUNTRIES

Yamaha Music Europe GmbH

Siemensstraße 22-34, 25462 Rellingen, Germany

Tel: [phone]

AFRICA/MIDDLE EAST

SOUTH AFRICA

Global Music Instruments

World of Yamaha

19 Eastern Service Road, Eastgate Ext.6, Sandton,

South Africa

Tel: [phone]

OTHER COUNTRIES

Yamaha Music Gulf FZE

LOB 16-513, P.O.Box 17328, Jebel Ali,

Dubai, United Arab Emirates

Tel: [phone]

ASIA

THE PEOPLE'S REPUBLIC OF CHINA

Yamaha Music & Electronics (China) Co., Ltd.

2F, Yunhedasha, 1818 Xinzha-lu, Jingan-qu,

Shanghai, China

Tel: [phone]

HONG KONG

Tom Lee Music Co., Ltd.

11/F., Silvercord Tower 1, 30 Canton Road,

Tsimshatsui, Kowloon, Hong Kong

Tel: [phone]

INDIA

Yamaha Music India Pvt. Ltd.

Spazedge building, Ground Floor, Tower A, Sector

47, Gurgaon- Sohna Road, Gurgaon, Haryana, India

Tel: [phone]

INDONESIA

PT. Yamaha Musik Indonesia (Distributor)

Yamaha Music Center Bldg. Jalan Jend. Gatot

Subroto Kav. 4, Jakarta 12930, Indonesia

Tel: [phone]

KOREA

Yamaha Music Korea Ltd.

8F, 9F, Dongsung Bldg. 158-9 Samsung-Dong,

Kangnam-Gu, Seoul, Korea

Tel: [phone]

MALAYSIA

Yamaha Music (Malaysia) Sdn., Bhd.

No.8, Jalan Perbandaran, Kelana Jaya, 47301

Petaling Jaya, Selangor, Malaysia

Tel: [phone]

SINGAPORE

Yamaha Music (Asia) Private Limited

Block 202 Hougang Street 21, #02-00,

Singapore 530202, Singapore

Tel: [phone]

TAIWAN

Yamaha Music & Electronics Taiwan Co., Ltd.

3F, No.6, Section 2 Nan-Jing East Road, Taipei,

Taiwan R.O.C.

Tel: [phone]

THAILAND

Siam Music Yamaha Co., Ltd.

3, 4, 15 and 16th floor, Siam Motors Building,

891/1 Rama 1 Road, Wangmai,

Pathumwan, Bangkok 10330, Thailand

Tel: [phone]

VIETNAM

Yamaha Music Vietnam Company Limited

15th Floor, Nam A Bank Tower, 201-203 Cach

Mang Thang Tam St., Ward 4, Dist.3,

Ho Chi Minh City, Vietnam

Tel: [phone]

OTHER ASIAN COUNTRIES

http://asia.yamaha.com

OCEANIA

AUSTRALIA

Yamaha Music Australia Pty. Ltd.

Level 1, 99 Queensbridge Street, Southbank,

Victoria 3006, Australia

Tel: [phone]

NEW ZEALAND

Music Works LTD

P.O.BOX 6246 Wellesley, Auckland 4680,

New Zealand

Tel: [phone]

COUNTRIES AND TRUST

TERRITORIES IN PACIFIC OCEAN

http://asia.yamaha.com

DMI8

HEAD OFFICE: Yamaha Corporation Nakazawa-cho 10-1, Naka-ku, Hamamatsu, Japan 430-8650

ZN22370

Yamaha Global Site

http://www.yamaha.com/

Yamaha Downloads

http://download.yamaha.com/

ZN22370

Manual Development Department

© 2015 Yamaha Corporation

Published 01/2015 PO##*.*-**A0

Printed in China
