USER MANUAL LE22B450C8WXXU SAMSUNG

imagine the possibilities

Thank you for purchasing this Samsung product.

To receive more complete service, please register

(MPEG2 AND MPEG4 AVC) DIGITAL TERRESTRIAL SIGNALS ARE BROADCAST. DVB-T is the European consortium

standard for the broadcast transmission of digital terrestrial television. Please check with your local dealer about the

availability of DVB-T service in your area.

2. Although this TV set meets the current DVB-T standards as of [August, 2008], compatibility with future DVB-T digital terrestrial

broadcast cannot be guaranteed.

Some Digital TV functions may not be available or operate correctly in

some countries or regions.

For more information, please contact your local SAMSUNG customer care centre.

Precautions When Displaying a Still Image

A still image may cause permanent damage to the TV screen

Do not display a still image and partially still on the LCD panel for more than 2 hours as it can cause screen image retention.

This image retention is also known as “screen burn”. To avoid such image retention, reduce the degree of brightness and

contrast of the screen when displaying a still image.

Watching the LCD TV in 4:3 format for a long period of time may leave traces of borders displayed on the

left, right and centre of the screen caused by the difference of light emission on the screen. Playing a DVD or

a game console may cause a similar effect to the screen. Damages caused by the above effect are not

covered by the Warranty.

Displaying still images from Video games and PC for longer than a certain period of time may produce partial after-images. To

prevent this effect, reduce the ‘brightness’ and ‘contrast’ when displaying still images.

© 2009 Samsung Electronics Co., Ltd. All rights reserved.

GENERAL INFORMATION Viewing the Control Panel 2 Accessories 3 Viewing the Connection Panel 4Remote Control 6Installing Batteries in the Remote Control 6

Using Your TV as a Computer (PC) Display 15 Setting up the TV with your PC 16 SOUND CONTROL Conguring the Sound Menu 17Selecting the Sound Mode 18 ■

RECOMMENDATIONS FOR USE Teletext Feature 23 How to Adjust the Stand (19inch model only) 24How to Adjust the Angle of the TV (19inch model only) 24Installing VESA Compliant Mounting Devices (19inch model only) . 25 Using the Decoration Covers (19inch model only) 25 Installing the Stand 26Installing the Wall Mount Kit 26Using the Anti-Theft Kensington Lock 26Securing the TV to the Wall 27Troubleshooting: Before Contacting Service Personnel 28 Specications 28

TruSurround HD, SRS and symbol are trademarks of SRS Labs, Inc. TruSurround HD technology is

incorporated under license from SRS Labs, Inc.

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of

BN68-01980A.indb 1 2009-03-02 �� 5:51:05English - 2

GENERAL INFORMATION Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance.

Product design and specications may be changed without notice in order to enhance product performance.

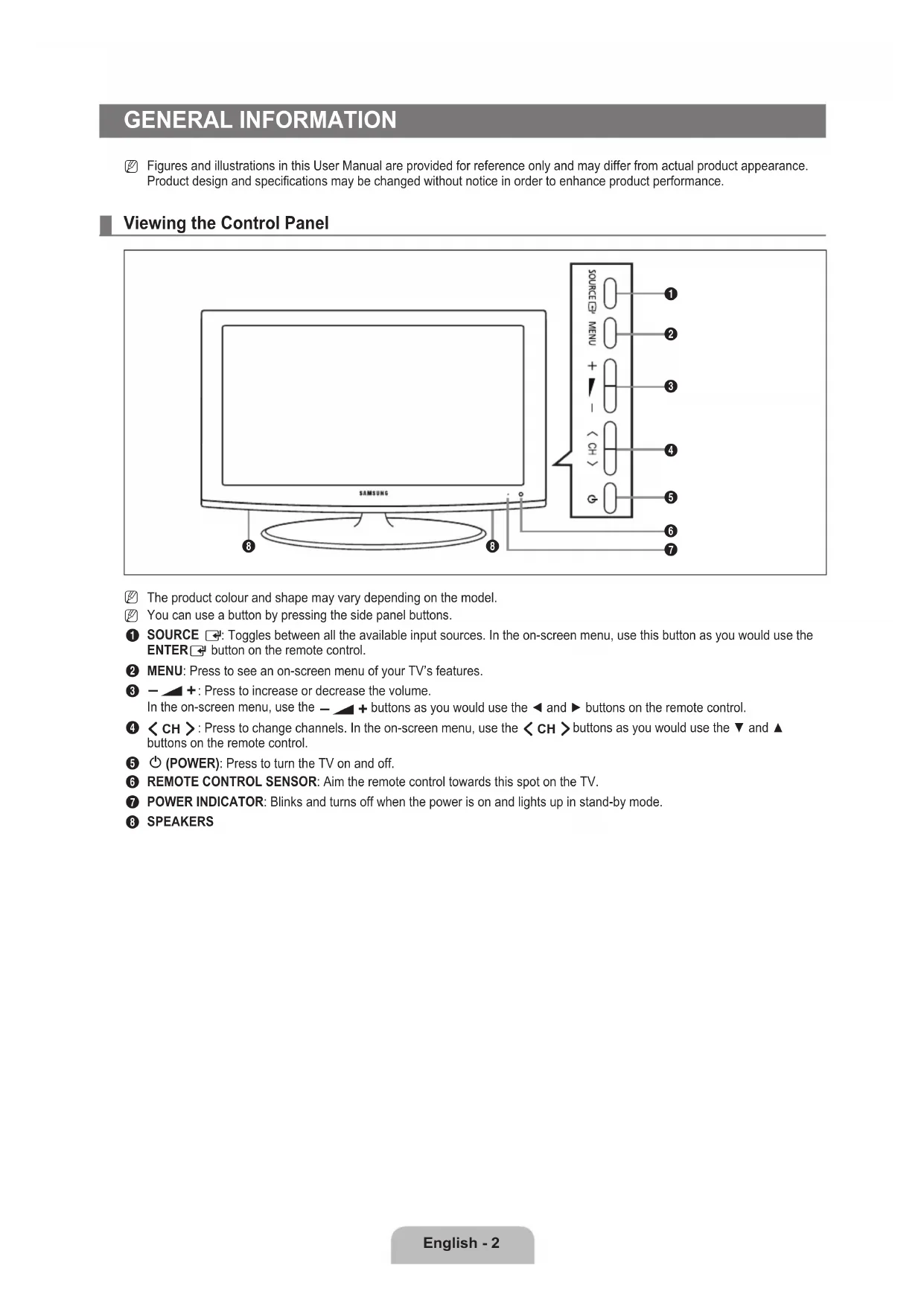

Viewing the Control Panel

The product colour and shape may vary depending on the model.

You can use a button by pressing the side panel buttons.

: Toggles between all the available input sources. In the on-screen menu, use this button as you would use the

button on the remote control.

MENU: Press to see an on-screen menu of your TV’s features.

buttons as you would use the ◄ and ► buttons on the remote control.

: Press to change channels. In the on-screen menu, use the

buttons as you would use the ▼ and ▲

buttons on the remote control.

(POWER): Press to turn the TV on and off.

REMOTE CONTROL SENSOR: Aim the remote control towards this spot on the TV.

POWER INDICATOR: Blinks and turns off when the power is on and lights up in stand-by mode.

(22 inch model only)

(19 inch model only)

(19 inch model only)

(22 inch model only)

● Owner’s Instructions ● Warranty card ● Safety Guide

Please make sure the following items are included with your LCD TV

. If any items are missing, contact your dealer.

Warranty card / Safety Guide (Not available in all locations)

The items colour and shape may vary depending on the model.

N N N BN68-01980A.indb 3 2009-03-02 �� 5:51:05English - 4

Viewing the Connection Panel

The product colour and shape may vary depending on the model.

Whenever you connect an external device to your TV, make sure that power on the unit is turned off.

When connecting an external device, match the colour of the connection terminal to the cable.

DIGITAL AUDIO OUT (OPTICAL)

Connects to a Digital Audio component such as a Home theatre receiver.

When the HDMI IN jacks are connected, the DIGITAL AUDIO OUT (OPTICAL) jack on the TV outputs 2 channel audio

only. If you want to hear 5.1 channel audio, connect the Optical jack on the DVD / Blu-ray player or Cable / Satellite Box

directly to an Amplier or Home Theatre, not the TV.

SERVICE Connector for software upgrades.

Supports connections between HDMI-connection-enabled AV devices (Set-Top Boxes, DVD / Blu-ray player)

No additional Audio connection is needed for an HDMI to HDMI connection.

The HDMI (DVI) jack can be used to connect a PC.

‘High Denition Multimedia interface’ allows the transmission of high denition digital video data and multiple channels of

The HDMI / DVI terminal supports DVI connection to an extended device with the appropriate cable (not supplied).

The difference between HDMI and DVI is that the HDMI device is smaller in size, has the HDCP (High Bandwidth Digital

Copy Protection) coding feature installed, and supports multi - channel digital audio.

PC/DVI (HDMI) [AUDIO]

Connect to the audio output jack on your PC.

DVI audio outputs for external devices.

PC Connect to the video output jack on your PC.

When not inserting ‘CI CARD’ in some channels, ‘Scrambled Signal’ is displayed on the screen.

The pairing information containing a telephone number, CI CARD ID, Host ID and other information will be displayed in

about 2~3 minutes. If an error message is displayed, please contact your service provider

When the channel information conguration has nished, the message ‘Updating Completed’

is displayed, indicating that

the channel list is now updated.

You must obtain a CI CARD from a local cable service provider. Remove the CI CARD by carefully pulling it out with your

hands since dropping the CI CARD may cause damage to it.

Insert the CI-Card in the direction marked on it.

The place of the COMMON INTERFACE Slot may be different depending on its model.

CAM is not supported in some countries and regions, check with your authorized dealer

ANT IN Connects to an antenna or cable TV system.

KENSINGTON LOCK (depending on the model)

The Kensington Lock (optional) is a device used to physically x the system when used in a public place. If you want to

use a locking device, contact the dealer where you purchased the TV

The location of the Kensington Lock may be different depending on its model.

AV IN [R-AUDIO-L] / [VIDEO]

Connect RCA cable to an appropriate external A/V device such as VCR, DVD or Camcorder.

Connect RCA audio cables to [R-AUDIO-L] on your set and the other ends to corresponding audio out connectors on the

Headphone may be connected to the headphone output on your set. While the head phone is connected, the sound from

the built-in speakers will be disabled.

COMPONENT IN Connect component video cables (optional) to component connector (P R, PB, Y) on the rear of your set and the other ends

to corresponding component video out connectors on the DTV or DVD.

If you wish to connect both the Set-Top Box and DTV (or DVD), you should connect the Set-Top Box to the DTV (or DVD)

and connect the DTV (or DVD) to component connector (P R, PB, Y) on your set.

The P R, PB and Y connectors on your component devices (DTV or DVD) are sometimes labeled Y, B-Y and R-Y or Y, Cb

Connect RCA audio cables (optional) to [R-AUDIO-L] on the rear of your set and the other ends to corresponding audio

out connectors on the DTV or DVD.

Inputs or outputs for external devices, such as VCR, DVD, video game device or video disc players.

You can use the remote control up to a distance of about 23 feet from the TV.

The performance of the remote control may be affected by bright light.

The product colour and shape may vary depending on the model.

directional keys. When switching

channels with the numeric

buttons, and you press the

channel number and then the

immediately switched.

: Press to increase or

decrease the volume.

SOURCE: Press to display

and select the available video

TOOLS: Use to quickly select

frequently used functions.

INFO: Press to display

information on the TV screen.

COLOURS BUTTONS: Use

these buttons in the Channel list

TV: Selects the TV mode directly.

PRE-CH: Enables you to return

to the previous channel you were

FAV.CH: Press to switch to your

favourites channels.

RETURN: Returns to the

select on-screen menu items and

: Teletext mode selection

: Teletext size selection

Fastext topic selection

: Alternately select

: Exit from the teletext display

: Teletext next page

: Teletext previous page

Installing Batteries in the Remote Control

1. Lift the cover at the back of the remote control upward as shown in the gure.

2. Install two AAA size batteries.

Make sure to match the ‘+’ and ‘–’ ends of the batteries with the diagram inside the

Remove the batteries and store them in a cool, dry place if you won’t be using the

remote control for a long time.

If the remote control doesn’t work, check the following:

Are the plus and minus ends of the batteries reversed?

Are the batteries drained?

Is there a power outage or is the power cord unplugged?

Is there a special uorescent light or neon sign nearby?

OPERATION Viewing the menus

Before using the TV, follow the steps below to learn how to navigate the menu in order to select

and adjust different functions.

1. Press the MENU button.

The main menu is displayed on the screen. Its left side has icons: Picture, Sound,

Channel , Setup, Input, Support.

Press the ▲ or ▼ button to select one of the icons.

4. Press the ▲/▼/◄/► button to change the selected items.

Press the RETURN button to return to the previous menu.

. Press the EXIT button to exit from the menu.

Using the remote control buttons

Button Operations Button Operations

MENU Display the main on-screen menu.

Select the currently selected item.

Adjusting the Brightness to 80

button to select Picture.

3. Press the ▲ or ▼ button to select Brightness.

5. Press the ◄ or ► button until the brightness becomes 80.

Press the EXIT button to exit from the menu.

When the TV is initially powered on, basic settings proceed automatically and subsequently.

1. Press the POWER button on the remote control. The message You can set the menu

language. is displayed.

Select the appropriate language by pressing the ▲ or ▼ button. Press the ENTER E

button to conrm your choice.

3. Press the ◄ or ► button to select Store Demo or Home Use, then the ENTER E

We recommend setting the TV to Home Use mode for the best picture in your home environment.

Store Demo mode is only intended for use in retail environments.

If the unit is accidentally set to Store Demo mode and you want to return to Home Use (Standard): Press the Volume

button on the TV. When the volume OSD is displayed, press and hold the MENU button on the TV for 5 seconds.

. Press the ▲ or ▼ button to select the channel source to memorize. Press the ENTER E

button to select Start.

Digital & Analogue: Digital and Analogue channels.

Digital: Digital channels.

Analogue: Analogue channels.

When setting the antenna source to Cable, a step appears allowing you to set a value for the digital channel search. For

more information, refer to Channel → Auto Store.

The channel search will start and end automatically.

button at any time to interrupt the memorization process.

After all the available channels are stored, the message Set the Clock Mode. is displayed.

If you select Manual, Set current date and time is displayed.

If you have received a digital signal, the time will be set automatically. If not, select

Manual to set the clock. (refer to page

8. The connection method to provide the best quality HD is offered. After conrming the method, press the ENTER E

9. The message Enjoy your viewing is displayed. When you have nished, press the ENTER E

If you want to reset this feature...

2. Press the ENTER E

button again to select Plug & Play.

3. Enter your 4 digit PIN number. The default PIN number of a new TV set is ‘0-0-0-0’. (refer to page 20)

If you want to change PIN number, use the Change PIN function.

The Plug & Play feature is only available in the TV mode.

The PIN number input screen appears. Enter your 4 digit PIN number.

You can change the country for analogue channels.

You can change the country for digital channels.

You can scan for the frequency ranges available to you (and availability depends on your

country). Automatically allocated programme numbers may not correspond to actual or desired

If a channel is locked using the Child Lock function, the PIN input window appears.

Antenna source to memorize

Digital & Analogue: Digital and Analogue channels.

Digital: Digital channels.

Analogue: Analogue channels.

When selecting Cable→Digital&Analogue or Cable→Digital

Provide a value to scan for cable channels.

Frequency: Displays the frequency for the channel. (Differs in each country)

Modulation: Displays available modulation values.

Symbol Rate: Displays available symbol rates.

Scans for all channels with active broadcast stations and stores them in the TV’s memory.

If you want to stop Auto Store, press the

button. The Stop Auto Store? message will be displayed.

Select Yes by pressing the ◄ or ► button, then press the

Scans for a channel manually and stores it in the TV’s memory.

If a channel is locked using the Child Lock function, the PIN input window appears.

Manual store for digital channels.

Digital Channel is only available in DTV mode.

Channel: Set the Channel number using the ▲, ▼ or number (0~9) buttons.

Frequency: Set the frequency using the number buttons.

Bandwidth: Set the bandwidth using the ▲, ▼ or number (0~9) buttons.

When it has nished, channels are updated in the channel list.

Manual store for analogue channel.

Programme (Programme number to be assigned to a channel): Sets the programme number using the ▲, ▼ or number (0~9)

Colour System → Auto / PAL / SECAM / NTSC4.43: Sets the colour system value using the ▲ or ▼ button.

Channel (When you know the number of the channel to be stored): Press the ▲ or ▼ button to select C (Air channel) or S

(Cable channel). Press the ► button, then press the ▲, ▼ or number (0~9) buttons to select the required number

You can also select the channel number directly by pressing the number (0~9) buttons.

If there is abnormal sound or no sound, reselect the sound standard required.

Search (When you do not know the channel numbers): Press the ▲ or ▼ button to start the search. The tuner scans the

frequency range until the rst channel or the channel that you selected is received on the screen.

Store (When you store the channel and associated programme number): Set to OK by pressing the

P (Programme mode): When completing tuning, the broadcasting stations in your area have been assigned to position

numbers from P00 to P99. You can select a channel by entering the position number in this mode.

C (Air channel mode): You can select a channel by entering the assigned number to each air broadcasting station in this

S (Cable channel mode): You can select a channel by entering the assigned number for each cable channel in this mode.

Cable Search Option (depending on the country)

Using this function, you can manually add the channel range to be scanned by Full Search mode of the Auto Store function.

Frequency (Start ~ Stop): Displays the frequency for the channel.

Modulation: Displays available modulation values.

Symbol Rate: Displays available symbol rates.

Now & Next Guide / Full Guide

The EPG (Electronic Programme Guide) information is provided by the broadcasters. Programme entries may appear blank or out

of date as a result of the information broadcast on a given channel. The display will dynamically update as soon as new information

For detailed procedures on using Now & Next Guide and Full Guide, refer to the descriptions on page 11.

You can also display the guide menu simply by pressing the GUIDE button. (To congure the Default Guide, refer to the

For the six channels indicated in the left-hand column, displays the Current programme and the Next programme information.

Displays the programme information as time ordered One hour segments. T

wo hours of programme information is displayed which

may be scrolled forwards or backwards in time.

DefaultGuide→Now&NextGuide/FullGuide

For detailed procedures on using the Channel List,refer to the ‘Managing Channels’ instructions.

You can select these options by simply pressing the CH LIST button on the remote control.

button, Channels will be switched within the selected channel list.

Channels will be switched within the memorized channel list.

Channels will be switched within the favourite channel list.

If the reception is clear, you do not have to ne tune the channel, as this is done automatically during the search and store

operation. If the signal is weak or distorted, you may have to ne tune the channel manually.

Fine tuned channels that have been saved are marked with an asterisk “*” on the right-hand side of the channel number in the

To reset the ne-tuning, select Reset by pressing the ▲ or ▼ button and then press the ENTER E

Only Analogue TV channels can be ne tuned.

Watch a programme in the EPG list Select a programme by pressing the ▲, ▼, ◄, ► button.

Exit the guide Press the blue button

If the next programme is selected, it is scheduled with the clock icon displayed. If the ENTER E

button is pressed again, press

the ◄, ► button to select Cancel Schedules, the scheduling is cancelled with the clock icon gone.

View programme information Select a programme of your choice by pressing the ▲, ▼, ◄, ► button.

Then press the INFO button when the programme of your choice is

The programme title is on the upper part of the screen centre.

Please click on INFO button for detailed information. Channel Number, Running Time, Status Bar, Parental Level, Video Quality

Information (HD / SD), Sound Modes, Subtitle or Teletext, languages of Subtitle or Teletext and brief summary of the highlighted

programme are included on the detailed information. “...” will be appeared if the summary is long.

Toggle between the Now & Next Guide and Full

Press the red button repeatedly.

Scrolls backwards quickly (24 hours).

Scrolls forwards quickly (24 hours).

Press the green button repeatedly.

Press the yellow button repeatedly.

Using this menu, you can Add / Delete or set Favourite channels and use the programme guide for digital broadcasts.

Shows all currently available channels.

Shows all added channels.

Shows all favourite channels.

To select the Favourites channels you have set up, press the FAV.CH button on the remote

Shows all current reserved programmes.

Select a channel in the All Channels, Added Channels or Favourites screen by pressing the ▲ / ▼ buttons, and pressing

button. Then you can watch the selected channel.

Using the Colour buttons with the Channel List

Red (Channel Type): Toggle between your TV, Radio, Data / Other and All.

Green (Zoom): Enlarges or shrinks a channel number.

Yellow (Select): Selects multiple channel lists. You can perform the add / delete, add to Favourites / delete from

Favourites, or lock / unlock function for multiple channels at the same time. Select the required channels and press the

yellow button to set all the selected channels at the same time. The

mark appears to the left of the selected channels.

TOOLS (Tools): Displays the Delete (or Add), Add to Favourite (or Delete from Favourite), Lock (or Unlock), Timer

Viewing, Edit Channel Name, Sort, Edit Channel Number, Select All, Deselect All or Auto Store menu. (The Options

menus may differ depending on the situation.)

: A channel selected by pressing the yellow button.

: A channel set as a Favourite.

: A programme currently being broadcast.

: A reserved programme

Channel List Option Menu (in All Channels / Added Channels / Favourites)

Press the TOOLS button to use the option menu.

Option menu items may differ depending on the channel status.

You can delete or add a channel to display the channels you want.

All deleted channels will be shown on All Channels menu.

A gray-coloured channel indicates the channel has been deleted.

The Add menu only appears for deleted channels.

You can also delete a channel from the Added Channels or Favourite menu in the same

Add to Favourite / Delete from Favourite

You can set channels you watch frequently as favourites.

Press the TOOLS button to display the Tools menu. You can also set the Add to Favourite

by selecting Tools → Add to Favourite.

’ symbol will be displayed and the channel will be set as a favourite.

All favourite channels will be shown on Favourite menu.

If you reserve a programme you want to watch, the channel is automatically switched to the reserved channel in the Channel List;

even when you are watching another channel. To reserve a programme, set the current time rst. (See page 19.)

Only memorized channels can be reserved.

You can set the channel, day, month, year, hour and minute directly by pressing the number buttons on the remote control.

Reserving a programme will be shown in the Programmed menu.

Digital Programme Guide and Viewing Reservation

When a digital channel is selected, and you press the ► button, the Programme Guide for the channel appears.

reserve a programme according to the procedures described above.

Edit Channel Name (analogue channels only)

Channels can labelled so that their call letters appear whenever the channel is selected.

The names of digital broadcasting channels are automatically assigned and cannot be labelled.

Edit Channel Number (digital channels only)

You can also edit the channel number by pressing the number buttons on the remote control.

Sort (analogue channels only)

This operation allows you to change the programme numbers of the stored channels.

This operation may be necessary after using

You can lock a channel so that the channel cannot be selected and viewed. This function is available only when the Child Lock is

set to On. (see page 20)

The PIN number input screen appears. Enter your 4 digit PIN number.

The default PIN number of a new TV set is “0-0-0-0”. You can change the PIN, by selecting Change PIN from the menu.

’ symbol will be displayed and the channel will be locked.

Select All / Deselect All

Select All: You can select all the channels in the channel list.

Deselect All: You can deselect all the selected channels.

You can only select Deselect All when there is a selected channel.

For further details on setting up options, refer to page 9.

If a channel is locked using the Child Lock function, the PIN input window appears.

N N 824 UKTV Gold825 UKTV style A

A 2 C -- A 3 ♥ C -- A 4 C -- A 5 C -- A 6 C -- A 7 C --Added Channels All ■ Channel Type ■ Zoom ■ Select

T ToolsDeleteAdd to FavouriteTimer ViewingEdit Channel Name Sort

BN68-01980A.indb 12 2009-03-02 �� 5:51:07English - 13

Channel List Option Menu (in Programmed )

You can view, modify or delete a reservation.

Press the TOOLS button to use the option menu.

Select to change a viewing reservation.

Select to cancel a viewing reservation.

Select to view a viewing reservation. (You can also change the reservation information.)

Select all reserved programmes.

You can select the type of picture which best corresponds to your viewing requirements.

Press the TOOLS button to display the Tools menu. You can also set the picture mode by

selecting Tools → Picture Mode.

Selects the picture for high-denition in a bright room.

Selects the picture for the optimum display in a normal environment.

Selects the picture for viewing movies in a dark room.

Backlight / Contrast / Brightness / Sharpness / Colour / Tint(G/R)

Your television has several setting options that allow you to control the picture quality.

Backlight: Adjusts the brightness of LCD back light.

Contrast: Adjusts the contrast level of the picture.

Brightness: Adjusts the brightness level of the picture

Sharpness: Adjusts the edge denition of the picture.

Colour: Adjusts colour saturation of the picture.

Tint(G/R): Adjusts the colour tint of the picture.

Select a picture mode to be adjusted rst. The adjusted values are saved for each picture mode.

When you make changes to Backlight, Contrast, Brightness, Sharpness, Colour or Tint(G/R), the OSD will be adjusted

In analogue TV, Ext., AV modes of the PAL system, you cannot use the Tint(G/R) Function.

In PC mode, you can only make changes to Backlight, Contrast and Brightness.

Settings can be adjusted and stored for each external device you have connected to an input of the

The energy consumed during use can be signicantly reduced if the brightness level of the picture is reduced, which will

reduce the overall running cost.

Samsung’s new TVs allow you to make even more precise picture settings than previous

models. See below to adjust detailed picture settings.

Advanced Settings is available in Standard or Movie mode.

In PC mode, you can only make changes to Gamma and White Balance from among the

Advanced Settings items.

BlackTone→Off/Dark/Darker/Darkest

You can select the black level on the screen to adjust the screen depth.

You can adjust the screen contrast so that the optimal contrast is provided.

You can adjust the Primary Colour (Red, Green, Blue) Intensity.

Colour Space is a colour matrix composed of red, green and blue colours. Select your favourite Colour Space to experience the

most natural colour.

Native: Native Colour Space offers deep and rich colour tone.

Auto: Auto Colour Space automatically adjusts to the most natural colour tone based on programme sources.

You can adjust the colour temperature for more natural picture colours.

R-Offset / G-Offset / B-Offset / R-Gain / G-Gain / B-Gain: You can adjust the Colour ‘temperature’ in the light areas by

changing the values of R, G, B. Recommended for advanced users only.

Reset: The previously adjusted white balance will be reset to the factory defaults.

You can emphasize the pink ‘esh tone’ in the picture.

Changing the adjustment value will refresh the adjusted screen.

EdgeEnhancement→Off/On

You can emphasize object boundaries in the picture.

In PC mode, you can only make changes to the Colour Tone and Size from among the items in Picture Options.

ColourTone→Cool/Normal/Warm1/Warm2

You can select the most comfortable colour tone to your eyes.

Settings can be adjusted and stored for each external device you have connected to an input of the

Warm1 or Warm2 is only activated when the picture mode is Movie.

You can select the picture size which best corresponds to your viewing requirements.

Press the TOOLS button to display the Tools menu. You can also set the size by selecting Tools→PictureSize.

Auto Wide: Automatically adjusts the picture size to the 16:9 aspect ratio.

16:9: Adjusts the picture size to 16:9 appropriate for DVDs or wide broadcasting.

Wide Zoom: Magnify the size of the picture more than 4:3.

Zoom: Magnies the 16:9 wide picture (in the vertical direction) to t the screen size.

4:3: This is the default setting for a video movie or normal broadcasting.

Screen Fit: Use the function to see the full image without any cut-off when HDMI (720p / 1080i) or Component (1080i) signals

Depending on the input source, the picture size options may vary.

The items available may differ depending on the selected mode.

In PC Mode, only 16:9 and 4:3 mode can be adjusted.

Settings can be adjusted and stored for each external device you have connected to an input of the

Temporary image retention may occur when viewing a static image on the set for more than two hours.

Wide Zoom: Press the ► button to Select Position, then press the ENTER E

button. Press the ▲ or ▼ button to move the

picture up / down. Then press the ENTER E

Zoom: Press the ► button to Select Position, then press the ENTER E

up and down. Then press the ENTER E

button. Press the ► button to Select Size, then press the ENTER E

the ▲ or ▼ button to magnify or reduce the picture size in the vertical direction. Then press the ENTER E

After selecting Screen Fit in HDMI (1080i) or Component (1080i) mode: Select Position by pressing the ◄ or ►button. Use

the ▲, ▼, ◄ or ► button to move the picture.

Reset: Press the ◄ or ► button to select Reset, then press the ENTER E

button. You can initialize the setting.

If you use the Screen Fit function with HDMI 720p input, 1 line will be cut at the top, bottom, left and right as in the Overscan

ScreenMode→16:9/WideZoom/Zoom/4:3

When setting the picture size to Auto Wide in a 16:9 wide TV, you can determine the picture size you want to see the 4:3 WSS

(Wide Screen Service) image or nothing. Each individual European country requires dif

ferent picture size so this function is

intended for users to select it.

16:9: Sets the picture to 16:9 wide mode.

Wide Zoom: Magnify the size of the picture more than 4:3.

Zoom: Magnify the size of the picture vertically on screen.

4:3: Sets the picture to 4:3 normal mode.

This function is available in Auto Wide mode.

This function is not available in PC, Component or HDMI mode.

DigitalNR→Off/Low/Medium/High/Auto

If the broadcast signal received by your TV is weak, you can activate the Digital Noise Reduction feature to help reduce any static

and ghosting that may appear on the screen.

When the signal is weak, select one of the other options until the best picture is displayed.

HDMIBlackLevel→Normal/Low

You can directly select the black level on the screen to adjust the screen depth.

This function is active only when the external input connects to HDMI (RGB signals).

FilmMode→Off/Auto

The TV can be set to automatically sense and process lm signals from all sources and adjust the picture for optimum quality.

Film Mode is supported in TV, AV, COMPONENT (480i / 1080i) and HDMI (480i / 1080i).

Picture Reset→Reset Picture Mode / Cancel

Resets all picture settings to the default values.

Select a picture mode to be reset. The reset is performed for each picture mode.

Reset Picture Mode: Current picture values return to default settings.

Using Your TV as a Computer (PC) Display

Setting Up Your PC Software (Based on Windows XP)

The Windows display-settings for a typical computer are shown below. The actual screens on your PC will probably be different,

depending upon your particular version of Windows and your particular video card. However, even if your actual screens look

different, the same basic set-up information will apply in almost all cases. (If not, contact your computer manufacturer or Samsung

1. First, click on ‘Control Panel’ on the Windows start menu.

When the control panel window appears, click on ‘Appearance and Themes’

and a display dialog-box will appear.

3. When the control panel window appears, click on ‘Display’ and a display dialogbox will appear.

Navigate to the ‘Settings’ tab on the display dialog-box.

The correct size setting (resolution): Optimum-1360 X 768 pixels

If a vertical-frequency option exists on your display settings dialog box, the correct value is ‘60’

or ‘60 Hz’. Otherwise, just click

‘OK’ and exit the dialog box.

Both screen position and size will vary depending on the type of PC monitor and its resolution. The resolutions in the table are

VESA GTF 1280 x 720 52.500 70.000 89.040 -/+

When using an HDMI / DVI cable connection, you must use the HDMI (DVI) jack.

The interlace mode is not supported.

The set might operate abnormally if a non-standard video format is selected.

Separate and Composite modes are supported. SOG is not supported.

Setting up the TV with your PC Preset: Press the SOURCE button to select PC mode.

Auto Adjustment allows the PC screen of set to self-adjust to the incoming PC video signal. The

values of ne, coarse and position are adjusted automatically.

This function does not work in DVI-HDMI mode.

Press the TOOLS button to display the Tools menu. You can also set the Auto Adjustment

by selecting Tools → Auto Adjustment.

The purpose of picture quality adjustment is to remove or reduce picture noise. If the noise is not removed by Fine-tuning alone,

then adjust the frequency as best as possible (Coarse) and Fine-tune again. After the noise has been reduced, readjust the picture

so that it is aligned on the centre of screen.

Adjust the PC’s screen positioning if it does not t the TV screen. Press the ▲ or ▼ button to adjusting the Vertical-Position. Press

Mode→Standard/Music/Movie/ClearVoice/Custom

You can select a sound mode to suit your personal preferences.

Press the TOOLS button to display the Tools menu. You can also congure the sound

mode by selecting Tools→SoundMode.

Selects the normal sound mode.

Emphasizes music over voices.

Provides the best sound for movies.

Emphasizes voice over other sounds.

Recalls your customized sound settings.

The sound settings can be adjusted to suit your personal preferences.

You can select a sound mode to suit your personal preferences.

Controls the balance between the right and left speakers.

100Hz / 300Hz / 1KHz / 3KHz / 10KHz (Bandwidth Adjustment)

To adjust the level of different bandwidth frequencies

Resets the equalizer settings to the default values.

SRSTruSurroundHD→Off/On

SRS TruSurround HD is a patented SRS technology that solves the problem of playing 5.1 multichannel content over two

speakers. TruSurround delivers a compelling, virtual surround sound experience through any two-speaker playback system,

including internal television speakers. It is fully compatible with all multichannel formats.

Press the TOOLS button to display the Tools menu. You can also set the SRS TruSurround HD by selecting Tools→SRSTS

Audio Language (digital channels only)

You can change the default value for audio languages. Displays the language information for the incoming stream.

You can only select the language among the actual languages being broadcast.

AudioFormat→MPEG/DolbyDigital(digital channels only)

When sound is emitted from both the main speaker and the audio receiver, a sound echo may occur due to the decoding speed

difference between the main speaker and the audio receiver. In this case, use the TV Speaker function.

The Audio Format appears according to the broadcasting signal.

N Mode :Custom ►EqualizerSRS TruSurround HD : OffAudio Language : - - -Audio Format : - - -Audio DescriptionAuto Volume : OffSound BN68-01980A.indb 17 2009-03-02 �� 5:51:08English - 18

Audio Description (digital channels only)

This is an auxiliary audio function that provides an additional audio track for visually challenged persons. This function handles the

Audio Stream for the AD (Audio Description), when it is sent along with the Main audio from the broadcaster. Users can turn the

Audio Description On or Off and control the volume.

AudioDescription→Off/On

Turn the audio description function on or off.

You can adjust the audio description volume.

Volume is active when Audio Description is set to On.

AutoVolume→Off/On

Each broadcasting station has its own signal conditions, and so it is not easy to adjust the volume every time the channel is

changed. This feature lets you automatically adjust the volume of the desired channel by lowering the sound output when the

modulation signal is high or by raising the sound output when the modulation signal is low.

SpeakerSelect→ExternalSpeaker/TVSpeaker

If you want to hear the sound through separate speakers, cancel the internal amplier.

The volume and MUTE buttons do not operate when the Speaker Select is set to External Speaker.

If you select External Speaker in the Speaker Select menu, the sound settings will be limited.

SoundReset→ResetAll/ResetSoundMode/Cancel

You can restore the Sound settings to the factory defaults.

Selecting the Sound Mode

You can set the sound mode in the Tools menu. When you set to Dual l ll, the current sound mode is displayed on the screen.

Audio Type Dual 1 / 2 Default

If the stereo signal is weak and an automatic switching occurs, then switch to the mono.

This function is only activated in stereo sound signal. It is deactivated in mono sound signal.

This function is only available in TV mode.

You can set the menu language.

Setting the clock is necessary in order to use the various timer features of the TV

The current time will appear every time you press the INFO button.

If you disconnect the power cord, you have to set the clock again.

You can set up the current time manually or automatically.

Auto: Set the current time automatically using the time from the digital broadcast.

Manual: Set the current time to a manually specied time.

Depending on the broadcast station and signal, the auto time may not be set correctly

If this occurs, set the time manually.

The Antenna or cable must be connected in order to set the time automatically.

You can set the current time manually.

Set up this item when you have set Clock Mode to Manual.

You can set the day, month, year, hour and minute directly by pressing the number

buttons on the remote control.

SleepTimer→Off/30min/60min/90min/120min/150min/180min

The sleep timer automatically shuts off the TV after a preset time (30, 60, 90, 120, 150 and 180 minutes).

The TV automatically switches to standby mode when the timer reaches 0.

To cancel the Sleep Timer function, select Off.

Press the TOOLS button to display the Tools menu. You can also set the sleep timer by selecting Tools→SleepTimer.

Timer 1 / Timer 2 / Timer 3

Three different on / off timer settings can be made. You must set the clock rst.

On Time: Set the hour, minute, and activate / inactivate. (To activate the timer with the setting you’ve chosen, set to Activate.)

Off Time: Set the hour, minute, and activate / inactivate. (To activate the timer with the setting you’ve chosen, set to Activate.)

Volume: Select the desired turn on volume level.

Antenna: Select Air or Cable.

Channel: Select the desired channel.

Repeat: Select Once, Everyday, Mon~Fri, Mon~Sat, Sat~Sun, or Manual.

When Manual is selected, press the ► button to select the desired day of the week. Press the ENTER E

You can set the hour, minute and channel by pressing the number buttons on the remote control.

When you set the timer On, the television will eventually turn off, if no controls are operated for 3 hours after the

turned on by the timer. This function is only available in timer On mode and prevents overheating, which may occur if a TV is

on for too long time.

GameMode→Off/On

When connecting to a game console such as PlayStation™ or Xbox™, you can enjoy a more realistic gaming experience by

selecting the game menu.

To disconnect the game console and connect another external device, cancel game mode in the setup menu. If you display

the TV menu in Game Mode, the screen shakes slightly.

Game Mode is not available in regular TV and PC mode.

Picture mode is automatically changed to Standard and users cannot change the mode.

Sound mode is automatically changed to Custom and users cannot change the mode. Adjust the sound using the

This feature allows you to prevent unauthorized users, such as children, from watching unsuitable programme by muting out video

Before the setup screen appears, the PIN number input screen appears. Enter your 4 digit PIN number

The default PIN number of a new TV set is “0-0-0-0”. You can change the PIN by selecting Change PIN from the menu.

You can lock some channels in Channel List. (refer to page 12)

Child Lock is available only in TV mode.

Change PIN You can change your personal ID number that is required to set up the TV.

Before the setup screen appears, the PIN number input screen appears. Enter your 4 digit PIN number

The default PIN number of a new TV set is “0-0-0-0”.

If you forget the PIN code, press the remote control buttons in the following sequence, which resets the PIN to 0-0-0-0:

POWER (Off), MUTE, 8, 2, 4, POWER (On).

This feature allows you to prevent unauthorized users, such as children, from watching unsuitable programme by a 4-digit PIN

(Personal Identication Number) code that is dened by the user.

The Parental Rating item differs depending on the country.

Before the setup screen appears, the PIN number input screen appears. Enter your 4 digit PIN number

The default PIN number of a new TV set is “0-0-0-0”. You can change the PIN by selecting Change PIN from the menu.

When the parental ratings are set, the

symbol is displayed.

Allow All: Press to unlock all TV ratings.

Block All: Press to lock all TV ratings.

You can activate and deactivate the subtitles. Use this menu to set the Subtitle Mode. Normal under the menu is the basic subtitle

and Hard of hearing is the subtitle for a hearing-impaired person.

Subtitle→Off/On : Switches subtitles on or off.

Mode→Normal/Hardofhearing: Sets the subtitle mode.

Subtitle Language: Set the subtitle language.

If the programme you are watching does not support the Hard of hearing function, Normal automatically activates even

though Hard of hearing mode is selected.

English is the default in cases where the selected language is unavailable in the broadcast.

You can select these options simply by pressing the SUBT. button on the remote control.

You can set the Teletext language by selecting the language type.

English is the default in cases where the selected language is unavailable in the broadcast.

Primary Audio Language / Secondary Audio Language / Primary Subtitle Language / Secondary Subtitle Language /

Primary Teletext Language / Secondary Teletext Language

Using this feature, users can select one of the languages. The language selected here is the default when the user selects a

If you change the language setting, the Subtitle Language, Audio Language, and the Teletext Language of the Language menu are

automatically changed to the selected language.

The Subtitle Language, Audio Language, and the Teletext Language of the Language menu show a list of languages supported

by the current channel and the selection is highlighted. If you change this language setting, the new selection is only valid for the

current channel. The changed setting does not change the setting of the Primary Subtitle Language, Primary Audio Language, or

the Primary Teletext Language of the Preference menu.

DigitalText→Disable/Enable (UK only)

If the programme is broadcast with digital text, this feature is enabled.

MHEG (Multimedia and Hypermedia Information Coding Experts Group)

An International standard for data encoding systems used in multimedia and hypermedia. This is at a higher level than the

MPEG system which includes data-linking hypermedia such as still images, character service, animation, graphic and video

les as well as multimedia data. MHEG is user runtime interaction technology and is being applied to various elds including

VOD (Video-On-Demand), ITV (Interactive TV), EC (Electronic Commerce), tele-education, tele-conferencing, digital libraries

Melody → Off / Low / Medium / High

A melody sound can be set to come on when the TV is powered On or Off.

The Melody does not play

When no sound is output from the TV because the MUTE button has been pressed.

When no sound is output from the TV because the (–) Volume button has been pressed.

When the TV is turned off by Sleep Timer function.

Energy Saving → Off / Low / Medium / High / Auto

This feature adjusts the brightness of the TV in order to reduce power consumption. When watching TV at night, set the Energy

Saving mode option to High to reduce eye fatigue as well as power consumption.

Press the TOOLS button to display the Tools menu. You can also set the Energy Saving option by selecting Tools → Energy

This enables the user to select from the CAM-provided menu. Select the CI Menu based on the menu PC Card.

This contains information on CAM inserted in the CI slot and displays it.

The Application Info inserting is about the CI CARD. You can install the CAM anytime whether the TV is ON or OFF.

Purchase the CI CAM module by visiting your nearest dealer or by phone.

Insert the CI CARD into the CAM in the direction of the arrow until it ts.

Insert the CAM with the CI CARD installed into the common interface slot. (Insert the CAM in the direction of the arrow, right

up to the end so that it is parallel with the slot.)

Check if you can see a picture on a scrambled signal channel.

CAM is not supported in some countries and regions, check with your authorized dealer.

Use to select TV or other external input sources such as DVD / Blu-ray players / Satellite

receivers (Set-Top Box) connected to the TV. Use to select the input source of your choice.

TV / Ext. / AV / Component / PC / HDMI/DVI You can choose only those external devices that are connected to the TV. In the Source

List, connected inputs will be highlighted and sorted to the top. Inputs that are not

connected will be sorted to the bottom.

TOOLS (Tools): Displays the Edit Name and Information menus.

Press the SOURCE button on the remote control to view an external signal source.

TV mode can be selected by pressing the TV button.

Name the device connected to the input jacks to make your input source selection easier.

If you think you have a picture problem, perform the picture test. Check the colour pattern on

the screen to see if the problem still exists.

Yes: If the test pattern does not appear or there is noise in the test pattern, select Yes.

There may be a problem with the TV. Contact Samsung’s call centre for assistance.

No: If the test pattern is properly displayed, select No. There may be a problem with your

external equipment. Please check your connections. If the problem still persists, refer to

the external device’s user manual.

If you think you have a sound problem, please perform the sound test. Y

sound by playing a built-in melody sound through the TV. ‘Does the problem still exist with this

sound test?’ appears on the screen.

If you hear no sound from the TV’s speakers, before performing the sound test, make sure Speaker Select is set to TV

speaker in the Sound menu.

The melody will be heard during the test even if Speaker Select is set to External Speaker or the sound is muted by pressing

Yes: If during the sound test you can hear sound only from one speaker or not at all, select Yes. There may be a problem with

the TV. Contact Samsung’s call centre for assistance.

No: If you can hear sound from the speakers, select No. There may be a problem with your external equipment. Please check

your connections. If the problem still persists, refer to the external device’s user manual.

Signal Information (digital channels only)

Unlike analogue channels, which can vary in reception quality from ‘snowy’ to clear

, digital (HDTV) channels have either perfect

reception quality or you will not receive them at all. So, unlike analogue channels, you cannot ne tune a digital channel. You can,

however, adjust your antenna to improve the reception of available digital channels.

If the signal strength meter indicates that the signal is weak, physically adjust your antenna to increase the signal strength.

Continue to adjust the antenna until you nd the best position with the strongest signal.

To keep your product up-to-date with new Digital Television features then software upgrades

are periodically / broadcast as part of the normal Television signal. It will automatically detect

these signals and display the software upgrade banner. You are given the option to install the

BY USB Insert a USB drive containing the rmware upgrade into TV. Please be careful to not disconnect

the power or remove the USB drive while upgrades are being applied. The

TV will turn off and

turn on automatically after completing the rmware upgrade. Please check the rmware version

after the update is completed. When software is upgraded, video and audio settings you have

made will return to their default (factory) settings.

We recommend you write down your settings so that you can easily reset them after the upgrade.

Upgrades the software using the broadcasting signal.

Standby Mode Upgrade

To continue software upgrade with master power on, Select On by pressing the ▲ or ▼ button. 45 minutes after entering standby

mode, a manual upgrade is automatically conducted. Since the power of the unit is turned on internally

, the screen may be on

slightly for the LCD product. This phenomenon may continue for more than 1 hour until the software upgrade is completed.

Alternative Software

To display the software version information.

This menu presents the connection method that provides the optimal quality for the HD TV.

Refer to this information when connecting external devices to the TV.

View this information when your TV does not work properly or when you want to upgrade the software.

You can view the information regarding the call centre, product and software le download method.

❑ TV Rear PanelUSB DriveSelfDiagnosis   ►Software UpgradeHD Connection GuideContact SamsungSupport BN68-01980A.indb 22 2009-03-02 �� 5:51:09English - 23

RECOMMENDATIONS FOR USE Teletext Feature

Most television stations provide written information services via Teletext. The index page of the teletext service gives you

information on how to use the service. In addition, you can select various options to suit your requirements by using the remote

For teletext information to be displayed correctly, channel reception must be stable. Otherwise, information may be missing or

some pages may not be displayed.

You can change teletext pages by pressing the numeric buttons on the remote control.

Press to select the teletext mode

(LIST/FLOF). If you press it in the

LIST mode, it switches into the List

save mode. In the List save mode,

you can save teletext page into list

Used to store the teletext pages.

Press to display the double-size

letters in the upper half of the screen.

For lower half of the screen, press

it again. To display normal screen,

press it once again.

(answers to quiz games, for

Colour buttons (red/green/yellow/

If the FASTEXT system is used by a

broadcasting company, the different

topics covered on a teletext page are

colour-coded and can be selected

by pressing the coloured buttons.

Press one of them corresponding to

the required. The page is displayed

with other coloured information that

can be selected in the same way. To

display the previous or next page,

Press to activate teletext mode after

selecting the channel providing the

teletext service. Press it twice to

overlap the teletext with the current

broadcasting screen.

Exit from the teletext display.

Used to display the previous teletext

Used to hold the display on a given

page if the selected page is linked with

several secondary pages which follow

on automatically. To resume, press it

page at any time while you are viewing

Used to display the broadcast when

searching for a page.

The teletext pages are organized according to six categories:

A Selected page number.

B Broadcasting channel identity.

C Current page number or search indications.

Teletext information is often divided between several pages displayed in sequence, which can be accessed by:

Entering the page number

Selecting a title in a list

Selecting a coloured heading (FASTEXT system)

Teletext level supported by the TV is version 2.5 which is capable of displaying additional graphics or text.

Depending upon the transmission, blank side panels can occur when displaying T

In these cases, additional graphics or text is not transmitted.

Older TV’s which do not support version 2.5 are not capable of displaying any additional graphics or text, regardless of the

Teletext transmission.

Press the TV button to exit from the teletext display.

Teletext 16:9, picture is 16:9.

How to Adjust the Stand (19inch model only)

1. Place the front of the TV onto a soft cloth or cushion on a table as in Figure

Press on the center of the TV back. Adjust the stand as in Figure

while pressing the button on the back of the stand.

3. Place the TV on the table so that the TV sits safely on the table.

How to Adjust the Angle of the TV (19inch model only)

When you adjust the stand, press the button on the back of the stand.

shows the adjustment angle (-2°~14°) when you use the LCD on its stand.

Excessive tilting can turn the LCD TV over which may cause damage.

shows the adjustment angle (14°~80°) when you convert the LCD from stand-based use to wall-mount.

shows the adjustment angle (0°~10°) when you mount the LCD TV to a wall.

You will hear a “Click” sound when changing the angle from 1 to 2 or 3 to 2.

the TV on its stand.

Angle adjustment when

converting from Stand to Wall

Angle adjustment when LCD TV is wall-mounted

BN68-01980A.indb 24 2009-03-02 �� 5:51:10English - 25

Installing VESA Compliant Mounting Devices (19inch model only)

1. Place the TV face down on a soft cloth or cushion on a table.

2. Adjust the stand, pressing the button on the back of the stand.

Align the mounting interface pad (not supplied) with the holes in the stand bottom and secure it with the four screws that come

with the arm-type base, wall mount hanger or other bases (not supplied).

Using the Decoration Covers (19inch model only)

1. When installing the TV on the wall without using the stand, insert decoration covers into the holes as described in the picture

2. After inserting the decoration covers, fasten them with 4 screws as described in the picture

Installing the Stand

1. Attach your LCD TV to the stand.

Two or more people should carry the TV.

Make sure to distinguish between the front and back of the stand when assembling

To make sure the TV is installed on the stand at a proper level, do not apply excess

downward pressure to the upper left of right sides of the TV.

Fasten two screws at position

and then fasten two screw at position

Stand the product up and fasten the screws. If you fasten the screws with the LCD TV

placed down, it may lean to one side.

The stand is installed for models with the screen size of 37 inch and above.

N N N N N Installing the Wall Mount Kit

Wall mount items (sold separately) allow you to mount the TV on the wall.

For detailed information on installing the wall mount, see the instructions provided with the

Wall Mount items. Contact a technician for assistance when installing the wall mounted

Samsung Electronics is not responsible for any damage to the product or injury to yourself or

others if you elect to install the TV on your own.

Do not install your Wall Mount Kit while your TV is turned on. It may result in personal

injury due to electric shock.

Remove the stand and cover the bottom hole with a cap and fasten with two screws.

N Using the Anti-Theft Kensington Lock

The Kensington Lock is a device used to physically x the system when using it in a public

place. The appearance and locking method may differ from the illustration depending on the

manufacturer. Refer to the manual provided with the Kensington Lock for proper use. The

locking device has to be purchased separately. The location of the Kensington Lock may be

different depending on its model.

Insert the locking device into the Kensington slot on the LCD TV (

) and turn it in the

3. Fix the Kensington Lock to a desk or a heavy stationary object.

BN68-01980A.indb 26 2009-03-02 �� 5:51:11English - 27

Securing the TV to the Wall

Caution: Pulling, pushing, or climbing on the TV may cause the TV to fall. In particular, ensure your children do

not hang over or destabilize the TV; doing so may cause the TV to tip over, causing serious injuries or death.

Follow all safety precautions provided on the included Safety Flyer. For added stability, install the anti-fall device

for safety purposes, as follows.

To avoid the TV from falling:

Put the screws into the clamps and rmly fasten them onto the wall. Conrm that the

screws have been rmly installed onto the wall.

You may need additional material such as an anchor depending on the type of wall.

Since the necessary clamps, screws, and string are not supplied, please purchase

Remove the screws from the centre back of the TV, put the screws into the clamps, and

then fasten the screws onto the TV again.

Screws may not be supplied with the product. In this case, please purchase the

screws of the following specications.

For a 17 ~ 29 Inch LCD TV: M4 X 15 / For a 32 ~ 40 Inch LCD TV: M6 X 15

Connect the clamps xed onto the TV and the clamps xed onto the wall with a strong

string and then tie the string tightly.

Install the TV near to the wall so that it does not fall backwards.

It is safe to connect the string so that the clamps xed on the wall are equal to or

lower than the clamps xed on the TV.

Untie the string before moving the TV.

Verify all connections are properly secured. Periodically check connections for any

sign of fatigue for failure. If you have any doubt about the security of your connections,

contact a professional installer.

Troubleshooting: Before Contacting Service Personnel

No sound or picture Check that the mains lead has been connected to a wall socket.

Check that you have pressed the button on your set.

Check the picture contrast and brightness settings.

Normal picture but no sound Check the volume.

Check whether the MUTE M

button has been pressed on the remote control.

Check the Speaker Select settings.

Screen is black and power indicator

light blinks steadily

On your computer check; Power, Signal Cable.

The TV is using its power management system.

Move the computer’s mouse or press any key on the keyboard.

No picture or black and white picture Adjust the colour settings.

Check that the broadcast system selected is correct.

Sound and picture interference Try to identify the electrical appliance that is affecting the set and move it further away.

Plug your set into a different mains socket.

Check the direction, location and connections of your aerial.

This interference is often due to the use of an indoor aerial.

Remote control malfunctions Replace the remote control batteries.

Clean the upper edge of the remote control (transmission window).

Check the battery terminals.

‘Check signal cable.’ message is

Check that the signal cable is rmly connected to the PC or video sources.

Check that the PC or video sources are turned on.

On PC mode, ‘Not Supported Mode.’

message is displayed

Check the maximum resolution and the frequency of the video adaptor.

The damaged picture appears in the

corner of the screen

If Screen Fit is selected in some external devices, the damaged picture may appear in

the corner of the screen. This symptom is caused by external devices, not TV.

The ‘Resets all settings to the default

values.’ message appears.

This appears when you press and hold the EXIT button for a while. The product settings

are reset to the factory defaults.

You may see small particles if you

look closely at the edge of the bezel

surrounding the TV screen.

This is part of the product’s design and is not a defect.

The TFT LCD panel uses a panel consisting of sub pixels (3 133 440) which require sophisticated technology to produce.

However, there may be few bright or dark pixels on the screen. These pixels will have no impact on the performance of the

Model Name LE19B450, LE19B451, LE19B541 LE22B450, LE22B451, LE22B541

(Diagonal) 19 inches 22 inches

With Stand 5 kg 7 kg

Environmental Considerations

Operating Temperature

10°C to 40°C (50°F to 104°F)

10% to 80%, non-condensing

-20°C to 45°C (-4°F to 113°F)

5% to 95%, non-condensing

Design and specications are subject to change without prior notice.

This device is a Class B digital apparatus.

For the power supply and Power Consumption, refer to the label attached to the product.

DIGITAL AUDIO OUT (OPTICAL)

PC/DVI (HDMI) [AUDIO]

N N 824 UKTV Gold825 UKTV style A

MHEG (Multimedia and Hypermedia Information Coding Experts Group)

installer le support mural.

DIGITAL AUDIO OUT (OPTICAL)

PC/DVI (HDMI) [AUDIO]

N N 824 UKTV Gold825 UKTV style A

MHEG (Multimedia and Hypermedia Information Coding Experts Group)

© 2009 Samsung Electronics Co., Ltd. All rights reserved.

DIGITAL AUDIO OUT (OPTICAL)

PC/DVI (HDMI) [AUDIO]

N N 824 UKTV Gold825 UKTV style A

SRSTruSurroundHD→Uit/Aan

MHEG (Multimedia and Hypermedia Information Coding Experts Group)

upgrade is voltooid.

DIGITAL AUDIO OUT (OPTICAL)

PC/DVI (HDMI) [AUDIO]

Teletext (LIST/FLOF)

N N 824 UKTV Gold825 UKTV style A

MHEG (Multimedia and Hypermedia Information Coding Experts Group)

Nome modello LE19B450, LE19B451, LE19B541 LE22B450, LE22B451, LE22B541

DIGITAL AUDIO OUT (OPTICAL)

PC/DVI (HDMI) [AUDIO]

N N 824 UKTV Gold825 UKTV style A

MHEG (Multimedia and Hypermedia Information Coding Experts Group)

DIGITAL AUDIO OUT (OPTICAL)

(High Bandwidth Digital

Copy Protection - Protecção de banda larga para conteúdos digitais) instalada e suporta som digital multi-canal.

PC/DVI (HDMI) [AUDIO]

teletexto (LIST / FLOF)

N N 824 UKTV Gold825 UKTV style A

MHEG (Multimedia and Hypermedia Information Coding Experts Group)

(activar teletexto/sobrepor)

(Diagonal) 19 " 22 "

© 2009 Samsung Electronics Co., Ltd. All rights reserved.

DIGITAL AUDIO OUT (OPTICAL)

PC/DVI (HDMI) [AUDIO]

Setup, Input, Support.

TOOLS (Tools): Za prikaz menija Delete (ali Add), Add to Favourite (ali Delete from Favourite), Lock (ali Unlock),

Timer Viewing, Edit Channel Name, Sort, Edit Channel Number, Select All, Deselect All ali Auto Store. (Meniji

možnosti so lahko drugačni, odvisno od okoliščin.)

Add to Favourite / Delete from Favourite

Select All / Deselect All

T ToolsDeleteAdd to FavouriteTimer ViewingEdit Channel Name Sort

Primary Audio Language / Secondary Audio Language / Primary Subtitle Language / Secondary Subtitle Language /

Primary Teletext Language / Secondary Teletext Language

S to funkcijo lahko uporabnik izbere enega od jezikov. Tukaj izbrani jezik je privzeti jezik, ko uporabnik izbere kanal.

Če spremenite nastavitev jezika, se možnosti menija Language Subtitle Language,

Audio Language in Teletext Language

MHEG (Multimedia and Hypermedia Information Coding Experts Group)

exist with this sound test?’.

Standby Mode Upgrade

(shrani) shranite stran

Ime modela LE19B450, LE19B451, LE19B541 LE22B450, LE22B451, LE22B541

DIGITAL AUDIO OUT (OPTICAL)

PC/DVI (HDMI) [AUDIO]

N N 824 UKTV Gold825 UKTV style A

MHEG (Multimedia and Hypermedia Information Coding Experts Group)

LVD : KTL (Korea Testing Laboratory)

BN68-01980A.indb 29 2009-03-02 �� 5:52:15Correct Disposal of This Product (Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems) This marking on the product, accessories

or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other

household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste

disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material

resources. Household users should contact either the retailer where they purchased this product, or their local government ofce, for details

of where and how they can take these items for environmentally safe recycling. Business users should contact their supplier and check the

terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes

Weee.indd 4 2009-03-02 �� 5:32:12Correct disposal of batteries in this product

(Applicable in the European Union and other European countries with separate battery return systems.)

This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household

waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium

or lead above the reference levels in EC Directive 2006/66. If batteries are not properly disposed of, these substances can cause harm to

human health or the environment. To protect natural resources and to promote material reuse, please separate batteries from other types of

waste and recycle them through your local, free battery return system.
