USER MANUAL R239IN SHARP

el horno se modifica de forma que pueda ponerse en funcionamiento con la puerta abierta.

This operation manual contains important information which you should read carefully before using your microwave oven.

Important: There may be a serious risk to health if this operation manual is not followed or if the oven is modified so that it operates with

1. R239 introduction section 07.3.1 3:48 PM Page B (1,1)2

Congratulations on acquiring your new microwave oven, which from now on will make your kitchen chores

considerably easier.

You will be pleasantly surprised by the kinds of things you can do with a microwave. Not only can you use it

for rapid defrosting or heating up of food, you can also prepare whole meals.

In our test kitchen our microwave team has gathered together a selection of the most delicious international

recipes which are quick and simple to prepare.

Be inspired by the recipes we have included and prepare your own favourite dishes in your microwave oven.

There are so many advantages to having a microwave oven which we are sure you will find exciting:

● Food can be prepared directly in the serving dishes, leaving less to wash up.

● Shorter cooking times and the use of little water and fat ensure that many vitamins, minerals and

characteristic flavours are preserved.

We advise you to read the cookery book guide and operating instructions carefully.

You will then easily understand how to use your oven.

Enjoy using your microwave oven and trying out the delicious recipes.

1. R239 introduction section 07.2.19 7:34 PM Page H (1,1)8

A. Information on Disposal for Users

(private households)

1. In the European Union

Attention: If you want to dispose of this equipment, please do not use the

Used electrical and electronic equipment must be treated separately and in

accordance with legislation that requires proper treatment, recovery and

recycling of used electrical and electronic equipment.

Following the implementation by member states, private households within

the EU states may return their used electrical and electronic equipment to

designated collection facilities free of charge*.

In some countries* your local retailer may also take back your old product

free of charge if you purchase a similar new one.

*) Please contact your local authority for further details.

If your used electrical or electronic equipment has batteries or accumulators,

please dispose of these separately beforehand according to local

By disposing of this product correctly you will help ensure that the waste

undergoes the necessary treatment, recovery and recycling and thus

prevent potential negative effects on the environment and human health

which could otherwise arise due to inappropriate waste handling.

2. In other Countries outside the EU If you wish to discard this product, please contact your local authorities and

ask for the correct method of disposal.

For Switzerland: Used electrical or electronic equipment can be returned

free of charge to the dealer, even if you don’t purchase a new product.

Further collection facilities are listed on the homepage of www.swico.ch or

B. Information on Disposal for Business Users

1. In the European Union

If the product is used for business purposes and you want to discard it:

Please contact your SHARP dealer who will inform you about the take-back

of the product. You might be charged for the costs arising from take-back

and recycling. Small products (and small amounts) might be taken back by

your local collection facilities.

For Spain: Please contact the established collection system or your local

authority for take-back of your used products.

2. In other Countries outside the EU If you wish to discard of this product, please contact your local authorities

and ask for the correct method of disposal.

collection system for

1 Door opening handle

4 Door safety latches

6 Door seals and sealing

11 Power supply cord

ACCESSORIES Check to make sure the following accessories are

(14) Turntable (15) Roller stay

•Place the roller stay in the coupling (7) on the floor

• Then place the turntable on the roller stay.

•To avoid turntable damage, ensure dishes or

containers are lifted clear of the turntable rim when

removing them from the oven.

Note: When you order accessories, please mention

two items: part name and model name to your dealer or

SHARP authorised service agent.

The appropriate indicator will flash or light

up, just above each symbol according to the

instruction. When an indicator is flashing, do

the necessary operation.

Microwave power level

3 EXPRESS COOK & DEFROST button

Press to select one of the 12 automatic

TL = Teelöffel g = Gramm Msp = Messerspitze

Pr = Prise l = Liter Pck = Päckchen

Ta = Tasse ml = Milliliter MW = Mikrowellen

Min = Minuten cm = Zentimeter Sec = Sekunden

EL Butter/Margarine (25 g)

reposer approximativement 2 minutes.

reposer approximativement 2 minutes.

80 W 240 W240 W240 W240 W 80 W

80 W 240 W240 W240 W240 W240 W240 W240 W 80 W

PICCOLE E GROSSE QUANTITÀ

acompañar muy biencon nata fría o yogur.

6. R239 O/M Spanish 07.2.19 7:40 PM Page 24 (1,1)IMPORTANT SAFETY INSTRUCTIONS To avoid overheating and fire, special care must be taken when

cooking or reheating foods with a high sugar or fat content, for

example, Sausage rolls, Pies or Christmas pudding.

See the corresponding hints in operation manual and the

cookery book section.

To avoid the possibility of injury

Do not operate the oven if it is damaged or

malfunctioning. Check the following before use:

a)The door; make sure the door closes properly and

ensure it is not misaligned or warped.

b)The hinges and safety door latches; check to make sure

they are not broken or loose.

c) The door seals and sealing surfaces; ensure that they

have not been damaged.

d)Inside the oven cavity or on the door; make sure there

e) The power supply cord and plug; ensure that they are

If the door or door seals are damaged, the oven must not be

operated until it has been repaired by a competent person.

Never adjust , repair or modify the oven yourself.

It is hazardous for anyone other than a competent

person to carry out any service or repair

operation which involves the removal of a cover

which gives protection against exposure to

Do not operate the oven with the door open or

alter the door safety latches in any way.

Do not operate the oven if there is an object

between the door seals and sealing surfaces.

Do not allow grease or dirt to build up on the

door seals and adjacent parts. Clean the oven

at regular intervals and remove any food

deposits. Follow the instructions for “Care and

Cleaning” on page GB-12. Failure to maintain

the oven in a clean condition could lead to a

deterioration of the surface that could

adversely affect the life of the appliance and

possibly result in a hazardous situation.

Individuals with PACEMAKERS should check with

their doctor or the manufacturer of the pacemaker

for precautions regarding microwave ovens.

To avoid the possibility of electric shock

Under no circumstances should you remove the outer cabinet.

Never spill or insert any objects into the door lock openings or

ventilation openings. In the event of a spill, turn off and unplug the

oven immediately, and call an authorised SHARP service agent.

Do not immerse the power supply cord or plug in

water or any other liquid.

Do not let the power supply cord hang over the

edge of a table or work surface.

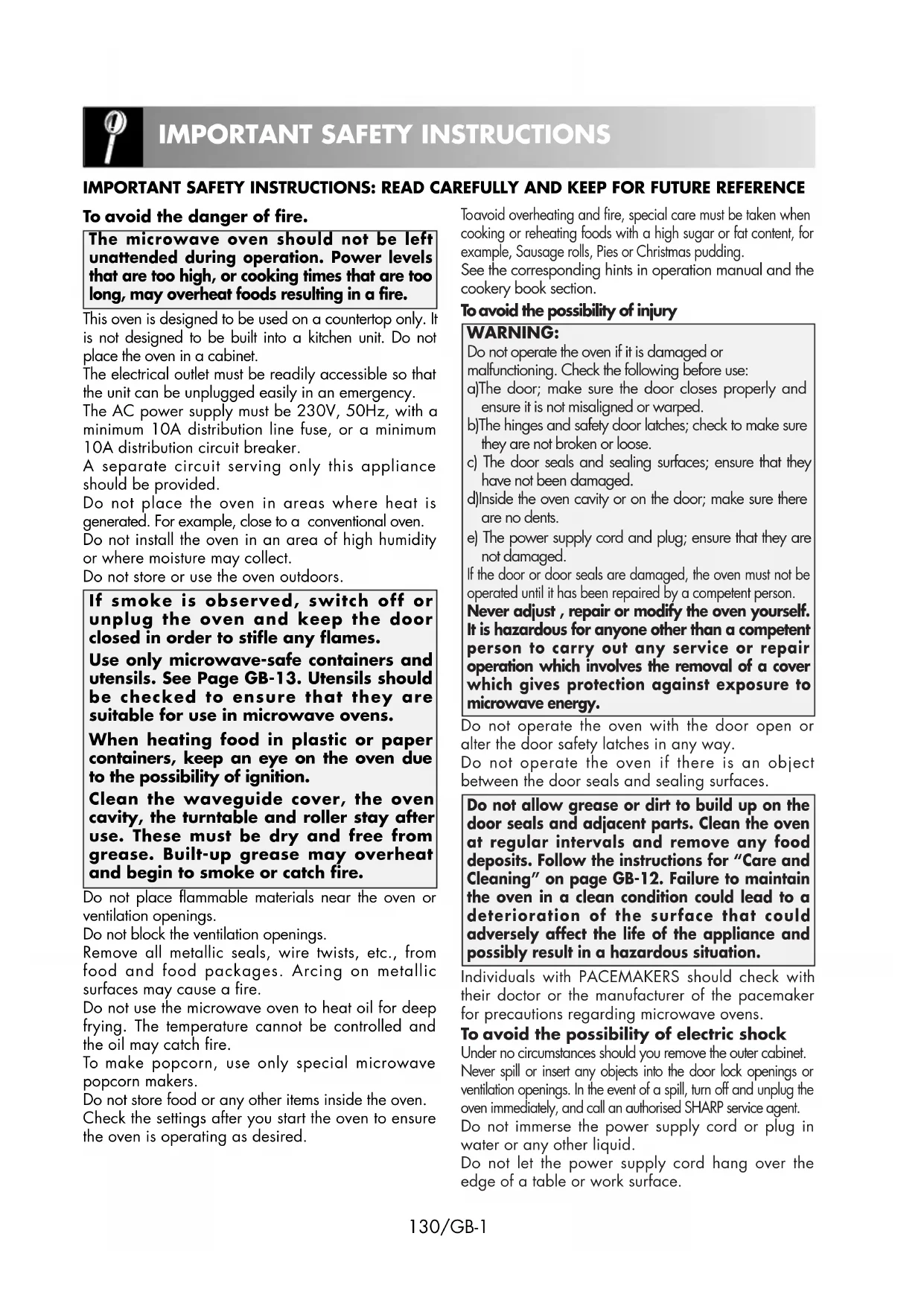

IMPORTANT SAFETY INSTRUCTIONS: READ CAREFULLY AND KEEP FOR FUTURE REFERENCE To avoid the danger of fire.

The microwave oven should not be left

unattended during operation. Power levels

that are too high, or cooking times that are too

long, may overheat foods resulting in a fire.

This oven is designed to be used on a countertop only. It

is not designed to be built into a kitchen unit. Do not

place the oven in a cabinet.

The electrical outlet must be readily accessible so that

the unit can be unplugged easily in an emergency.

The AC power supply must be 230V, 50Hz, with a

minimum 10A distribution line fuse, or a minimum

10A distribution circuit breaker.

A separate circuit serving only this appliance

Do not place the oven in areas where heat is

generated. For example, close to a conventional oven.

Do not install the oven in an area of high humidity

or where moisture may collect.

Do not store or use the oven outdoors.

If smoke is observed, switch off or

unplug the oven and keep the door

closed in order to stifle any flames.

Use only microwave-safe containers and

utensils. See Page GB-13. Utensils should

be checked to ensure that they are

suitable for use in microwave ovens.

When heating food in plastic or paper

containers, keep an eye on the oven due

to the possibility of ignition.

Clean the waveguide cover, the oven

cavity, the turntable and roller stay after

use. These must be dry and free from

grease. Built-up grease may overheat

and begin to smoke or catch fire.

Do not place flammable materials near the oven or

ventilation openings.

Do not block the ventilation openings.

Remove all metallic seals, wire twists, etc., from

food and food packages. Arcing on metallic

surfaces may cause a fire.

Do not use the microwave oven to heat oil for deep

frying. The temperature cannot be controlled and

the oil may catch fire.

To make popcorn, use only special microwave

Do not store food or any other items inside the oven.

Check the settings after you start the oven to ensure

the oven is operating as desired.

7. R239 English 07.2.19 7:43 PM Page 2 (1,1)To avoid the possibility of burns

WARNING: The contents of feeding bottles

and baby food jars must be stirred or shaken

and the temperature checked before

consumption, in order to avoid burns.

Use pot holders or oven gloves when removing food

from the oven to prevent burns.

Always open containers, popcorn makers, oven

cooking bags, etc., away from the face and hands to

avoid steam burns and eruption of boiling.

To avoid burns, always test food temperature

and stir before serving and pay special

attention to the temperature of food and

drink given to babies, children or the elderly.

Temperature of the container is not a true

indication of the temperature of the food or drink;

always check the food temperature.

Always stand back from the oven door when opening

it to avoid burns from escaping steam and heat.

Slice stuffed baked foods after heating to release

steam and avoid burns.

Keep children away from the door to prevent them

To avoid misuse by children

WARNING: Only allow children to use the

oven without supervision when adequate

instructions have been given so that the child

is able to use the oven in a safe way and

understands the hazards of improper use.

Do not lean or swing on the oven door. Do not play

with the oven or use it as a toy.

Children should be taught all important safety instructions:

use of pot holders, careful removal of food coverings; paying

special attention to packaging (e.g. self-heating materials)

designed to make food crisp, as they may be extra hot.

Never modify the oven in any way.

Do not move the oven while it is in operation.

This oven is for home food preparation only and

may only be used for cooking food. It is not

suitable for commercial or laboratory use.

To promote trouble-free use of your oven

Never operate the oven when it is empty.

When using a browning dish or self-heating material,

always place a heat-resistant insulator such as a porcelain

plate under it to prevent damage to the turntable and

roller stay due to heat stress. The preheating time

specified in the dishes instructions must not be exceeded.

Do not use metal utensils, which reflect microwaves

and may cause electrical arcing. Do not put cans

Keep the power supply cord away from heated

surfaces, including the rear of the oven.

Do not attempt to replace the oven lamp yourself

or allow anyone who is not an electrician

authorised by SHARP to do so. If the oven lamp

fails, please consult your dealer or an authorised

SHARP service agent.

If the power supply cord of this appliance is

damaged, it must be replaced with a special cord.

The exchange must be made by an authorised

SHARP service agent.

To avoid the possibility of explosion and

WARNING: Liquids and other foods must

not be heated in sealed containers since

they are liable to explode.

Microwave heating of beverages can result in

delayed eruptive boiling, therefore care must

be taken when handling the container.

Never use sealed containers. Remove seals and

lids before use. Sealed containers can explode due

to a build up of pressure even after the oven has

Take care when microwaving liquids. Use a wide-

mouthed container to allow bubbles to escape.

Never heat liquids in narrow necked

containers such as baby bottles, as this

may result in the contents erupting from the

container when heated and cause burns.

To prevent sudden eruption of boiling liquid and

1. Do not use excessive amount of time (See page GB-

2. Stir liquid prior to heating/reheating.

3. It is advisable to insert a glass rod or similar utensil

(not metal) into the liquid whilst reheating.

4. Let liquid stand for at least 20 seconds in the oven

at the end of cooking time to prevent delayed

Do not cook eggs in their shells, and whole

hard boiled eggs should not be heated in

microwave ovens since they may explode

even after microwave cooking has ended.

To cook or reheat eggs which have not

been scrambled or mixed, pierce the yolks

and the whites, or the eggs may explode.

Shell and slice hard boiled eggs before

reheating them in the microwave oven.

Pierce the skin of such foods as potatoes, sausages

and fruit before cooking, or they may explode.

IMPORTANT SAFETY INSTRUCTIONS ENGLISH

7. R239 English 07.2.19 7:43 PM Page 3 (1,1)2. Check the oven carefully for any signs of damage.

3. Place the oven on a flat, level surface strong

enough to support the oven’s weight plus the

heaviest item likely to be cooked.

4. Ensure there is a minimum free space above the

5. Securely connect the plug of the oven to a standard

earthed (grounded) household electrical outlet.

1. Remove all packing materials from the inside of

the oven cavity. Discard the loose polythene sheet

from between the door and cavity. Remove the

feature sticker, if attached, from the outside of

If you are unsure how to connect your oven, please

consult an authorised, qualified electrician.

Neither the manufacturer nor the dealer can accept

any liability for damage to the oven or personal

injury resulting from failure to observe the correct

electrical connection procedure.

Water vapour or drops may occasionally form on

the oven walls or around the door seals and

sealing surfaces. This is a normal occurrence and is

not an indication of microwave leakage or a

Use only the turntable and the roller stay designed

for this oven. Do not operate the oven without the

To prevent the turntable from breaking:

(a)Before cleaning the turntable with water, leave

the turntable to cool.

(b)Do not put hot foods or hot utensils on a cold

(c) Do not put cold foods or cold utensils on a hot

Do not place anything on the outer cabinet during

Do not remove the protective film attached to the

To set the clock, see below.

Using the STOP button

Use the STOP button to:

1. Erase a mistake during programming.

2. Stop the oven temporarily during cooking.

3. Cancel a programme during cooking, touch twice.

To set the 24 hour clock to 23:35

1. Choose the clock function.

2. Set the hours. Rotate the

TIMER/WEIGHT knob until

the correct hour is displayed

the correct minute is displayed

3. If the electrical power supply to your microwave

oven is interrupted, the display will intermittently

show after the power is reinstated. If this

occurs during cooking, the programme will be

erased. The time of day will also be erased.

4. When you want to reset the time of day, follow the

above example again.

There are two setting modes: 12 hour clock and 24 hour clock.

To set the 12 hour clock, hold the MICROWAVE POWER LEVEL button

down for 3 seconds. will appear in the display.

2. To set the 24 hour clock, press the MICROWAVE POWER LEVEL button once

more after Step 1, in the example below will appear in the display.

To set the clock, follow the example below.

3. Press the MICROWAVE POWER LEVEL button

to change from hours to

Your oven has 5 power levels. To choose the power level

for cooking, follow the advice given in the recipe section.

Generally the following recommendations apply:

100 P (800 W) used for fast cooking or reheating

e.g. soup, casseroles, canned food, hot beverages,

vegetables, fish, etc.

70 P (560 W) used for longer cooking of dense foods

such as roast joints, meat loaf and plated meals, also

for sensitive dishes such as cheese sauce and sponge

cakes. At this reduced setting, the sauce will not boil

over and food will cook evenly without over cooking at

50 P (400 W) for dense foods which require a long

cooking time when cooked conventionally, eg. beef

dishes, it is advisable to use this power setting to

ensure the meat will be tender.

30 P (240 W) to defrost, select this power setting, to

ensure that the dish defrosts evenly. This setting is also

ideal for simmering rice, pasta, dumplings and

cooking egg custard.

10 P (80 W) For gentle defrosting, eg. cream

To set the power, touch the MICROWAVE POWER LEVEL button until the desired level is displayed. If

MICROWAVE POWER LEVEL button is touched once, will be displayed. If you miss your desired level,

continue touching the MICROWAVE POWER LEVEL button until you reach the level again. If the level is not

selected, the level 100 P is automatically set.

1. When the door is opened during the cooking process, the cooking time on the digital display stops

automatically. The cooking time starts to count down again when the door is closed and the

START/+1min button is pressed.

2. If you wish to know the power level during cooking, press the MICROWAVE POWER LEVEL button.

As long as your finger is touching the MICROWAVE POWER LEVEL button, the power level will be displayed.

3. You can rotate the TIMER/WEIGHT knob clockwise or counterclockwise. If you rotate the knob

counterclockwise, the cooking time will decrease from 90 minutes by degrees.

Suppose you want to heat soup for 2 minutes and 30 seconds on 70 P microwave power.

1. Enter the desired cooking time by

rotating the TIMER/WEIGHT

Your oven can be programmed for up to 90 minutes.

(90.00) The input unit of cooking (defrosting) time

varies from 10 seconds to five minutes. It depends on

the total length of the cooking (defrosting) time as

Cooking time Increasing unit

1. MULTIPLE SEQUENCE COOKING A maximum of 3 sequences can be input, consisting of manual cooking time and mode.

To cook: 5 minutes on 100 P power (Stage 1)

16 minutes on 30 P power (Stage 2)

1. Enter the desired cooking time

by rotating TIMER/WEIGHT

by pressing the MICROWAVE POWER LEVEL button once.

3. Enter desired time by

level by pressing the

MICROWAVE POWER LEVEL button four times.

5. Press the START /+1min

button once to begin

(The oven will begin to cook for 5 minutes on 100 P, and then for 16 minutes on 30 P).

If 100P is required on the final stage, it is not necessary to enter the power level.

7. R239 English 07.2.19 7:43 PM Page 7 (1,1)OTHER CONVENIENT FUNCTIONS

2. MINUTE PLUS FUNCTION The START/+1min button allows you to operate the two following functions:

You can directly start cooking on 100 P microwave power level for 1 minute by pressing the

To avoid the misuse by children the START/+1min button can be used only within 3 minutes after

preceding operation, i.e., closing the door, pressing the STOP button or cooking completion.

b. Extend the cooking time

You can extend the cooking time during manual cooking for multiples of 1 minute if the button is pressed

while the oven is in operation.

3. TO CHECK THE POWER LEVEL To check the microwave power level during cooking press the MICROWAVE POWER LEVEL button.

As long as your finger is touching the MICROWAVE POWER LEVEL button the power level will be

The oven continues to count down although the display shows the power level.

EXPRESS COOK & DEFROST OPERATION EXPRESS COOK & DEFROST automatically works

out the correct cooking mode and cooking time. You

can choose from 7 EXPRESS COOK menus and 5

EXPRESS DEFROST menus. What you need to know

when using this automatic function:

1. Press the EXPRESS COOK & DEFROST button

once, the display will appear as shown.

The menu can be chosen by pressing the EXPRESS COOK & DEFROST button until the desired menu

number is displayed. See pages GB-9-10 “EXPRESS COOK & DEFROST charts”.

To select a defrost menu, press the EXPRESS COOK

& DEFROST button at least 8 times. If you press the

button 8 times, will appear in the display. The

menu will be changed automatically by holding down

the EXPRESS COOK & DEFROST button.

2. The weight of the food can be input by rotating the

TIMER/WEIGHT knob until the desired weight is

• Enter the weight of the food only. Do not include the

weight of the container.

• For food weighing more or less than weights given

in the cooking chart, use manual programmes. For

best results, follow the cooking charts in the

3. To start cooking press START/+1min button.

When action is required (e.g. to turn food over), the

oven stops and the audible signals sound,

remaining cooking time and any indicator will flash

on the display. To continue cooking, press the

The final temperature will vary according to the initial

food temperature. Check food is piping hot after

cooking. If necessary, you can extend the cooking

time and change the power level.

To cook gratin weighing 1,0 kg using Express Cook EC-7.

2. Enter the weight by rotating

the TIMER/WEIGHT knob

1. Select the menu required by

pressing the EXPRESS COOK &

DEFROST button seven times.

(initial temp 20° C)

(initial temp -18° C)

Shallow, oval gratin dish

and microwave foil or

original container and

0,1 - 0,3 kg (100 g)

(initial temp 20° C)

0,4 - 1,2 kg* (100 g)

(initial temp fish 5° C,

Gratin dish & microwave

0,5 - 1,0 kg* (100 g)

(initial temp 20° C)

• Add 1 tbsp water per 100 g and salt as desired.

(For mushrooms no additional water is

• When audible signal sounds, stir and re-cover.

• After cooking, let stand for approx. 2 minutes.

NOTE: If frozen vegetables are compacted

together, cook manually.

• Cut into small pieces, eg. strips, cubes or slices.

• Add 1 tbsp water per 100 g and salt as desired.

(For mushrooms no additional water is

• When audible signal sounds, stir and re-cover.

• After cooking, let the food stand for approx 2

•Transfer meal to suitable microwave-proof dish.

• Add some liquid if recommended by the

• Cook without cover if the manufacturer instructs.

• When audible signal sounds, stir and re-cover.

• After cooking, stir and let stand for approx. 2

• Remove the frozen gratin from the package.

If the container is not suitable for microwave

ovens, transfer gratin to a suitable microwave

• Cover with microwave foil.

• If the container is suitable for microwave ovens,

remove original paper cover and cover with

• After cooking, let stand for approx. 5 minutes.

• Add cold water as follows.

250 ml per 100 g rice

• When audible signal sounds, stir and re-cover.

• After cooking, stir and let stand for approx. 5 -

• See recipes for Fish Fillet with Sauce on page GB-

*Total weight of all ingredients.

• See recipes for Gratin on page

*Total weight of all ingredients.

• Place the food in a flan dish in the centre of the

• When the audible signal sounds, turn the food over,

rearrange and separate. Shield thin parts and

warm spots with small pieces of aluminium foil.

• After defrosting, wrap in aluminium foil for 10 - 15

minutes, until thoroughly defrosted.

• Place the block of minced meat in a flan dish in

the centre of the turntable.

• When the audible signal sounds, turn the food

over. Remove the defrosted parts if possible.

• After defrosting cover with aluminium foil, stand

for 5 - 10 minutes, until thoroughly defrosted.

• Place the poultry in a flan dish in the centre of the

When the audible signal sounds, turn over and shield

thin parts and warm spots with small pieces of

• After defrosting, rinse with cold water, cover with

aluminium foil and stand for 15 - 30 minutes until

thoroughly defrosted.

• Finally clean the poultry under running water.

• Remove all packaging from the cake.

• Place on a plate in the middle of the turntable.

• After defrosting, cut the cake into similar sized

pieces keeping space between each piece and let

stand for 10 - 60 minutes until evenly defrosted.

Distribute in a flan dish in the centre of the turntable.

For 1,0 kg distribute directly on the turntable.

• When the audible signal sounds, turn over, re-

arrange and remove defrosted slices.

• After defrosting cover in aluminum foil and stand

for 5 - 15 minutes, until thoroughly defrosted.

BUTTON NOTE: Express Defrost

1 Steaks and Chops should be frozen in one layer.

2 Minced meat should be frozen in a thin shape.

3 After turning over, shield the defrosted portions with small, flat pieces of aluminium foil.

4 The poultry should be processed immediately after defrosting.

7. R239 English 07.2.19 7:43 PM Page 11 (1,1)RECIPES FOR EXPRESS COOK

Fish fillet with piquant sauce

0,4 kg 0,8 kg 1,2 kg

140 g 280 g 420 g canned tomatoes (drained)

gratin dish with the thin ends toward the centre and

3. Mix a sauce from tomatoes, corn, chilli sause,

onion, vinegar and spices and spread the sauce

4. Cover with microwave foil and cook on EXPRESS COOK EC-6, “Fish Fillet with Sauce”.

5. After cooking, let stand for approx. 2 minutes.

FISH FILLET WITH SAUCE (EC-6)

Fish fillet with curry sauce

1. Place the fish fillet in a round gratin dish with the

thin ends toward the centre and sprinkle with salt.

2. Spread the banana and the ready-made curry

sauce on the fish fillet.

3. Cover with microwave foil and cook on

EXPRESS COOK EC-6, “Fish Fillet with Sauce”.

4. After cooking, let stand for approx. 2 minutes.

5 g 10 g butter or margarine (to grease

salt, pepper, nutmeg

150 g 300 g boiled potatoes (sliced)

35 g 75 g cooked ham (diced)

50 g 100 g créme fraîche

40 g 75 g grated cheese

1. Mix together the drained leaf spinach with the

onion and season with salt, pepper and nutmeg.

2. Grease the gratin dish.

3. Place alternate layers of potato slices, diced ham

and spinach in the dish. The top layer should be

4. Mix the eggs with créme fraîche, add salt and

pepper and pour over the vegetables.

5. Cover the gratin with the grated cheese, sprinkle

with paprika powder and cook on EXPRESS COOK EC-7, “Gratin”.

6. After cooking, let stand for 5 minutes.

5 g 10 g butter or margarine (to grease

200 g 400 g potatoes (sliced) (fresh or boiled)

2 1 clove of garlic (crushed)

40 g 80 g feta cheese (diced)

1. Grease the gratin dish and place alternate

layers of potato slices and courgette in the dish.

2. Mix the eggs with crème fraîche, season with

salt, pepper and garlic and pour over the

3. Crumble the feta cheese and sprinkle over the

4. Finally sprinkle the gratin with sunflower kernel

and paprika powder and cook on EXPRESS COOK EC-7, “Gratin”.

5. After cooking, let stand for 5 minutes.

7. R239 English 07.2.19 7:43 PM Page 12 (1,1)SERVICE CALL CHECK CARE AND CLEANING ENGLISH

Please check the following before calling for service.

Check the power plug is properly connected to a suitable wall outlet.

Check the line fuse/circuit breaker is functioning properly.

2. Place a cup of water (approx. 150 ml) in the oven and close the door securely.

Programme the oven for one minute on 100 P power and start the oven.

Does the oven lamp come on? YES NO Does the turntable rotate? YES NO NOTE: The turntable turns in either direction.

Does the ventilation work?

(Place your hand over the ventilation openings and check for air flow.) YES NO After 1 minute does the signal sound? YES NO Does cooking in progress indicator go off? YES NO Is the cup with water warm after the above operation? YES NO If you answer “No” to any of the above questions, call a Service Technician appointed by SHARP and report the

results of your check. See inside back cover for details of address.

NOTE: If you cook the food over the standard time with only 100 P (800 W), the power of the oven will lower

automatically to avoid overheating. (The microwave power level will be reduced).

CAUTION: DO NOT USE COMMERCIAL OVEN CLEANERS, STEAM CLEANERS,

ABRASIVE, HARSH CLEANERS, ANY THAT CONTAIN SODIUM HYDROXIDE OR SCOURING PADS ON ANY PART OF YOUR MICROWAVE OVEN.

CLEAN THE OVEN AT REGULAR INTERVALS AND REMOVE ANY FOOD DEPOSITS - Keep

the oven clean, or the oven could lead to a

deterioration of the surface. This could

adversely affect the life of the appliance and

possibly result in a hazardous situation.

The outside of your oven can be cleaned easily with

mild soap and water. Make sure the soap is wiped off

with a moist cloth, and dry the exterior with a soft towel.

Open the door before cleaning to de-activate the oven

controls. Care should be taken when cleaning the

oven control. Using a cloth dampened with water

only, gently wipe the panel until it becomes clean.

Avoid using excessive amounts of water. Do not use

any sort of chemical or abrasive cleaner.

1. For cleaning, wipe any splatters or spills with a soft

damp cloth or sponge after each use while the

oven is still warm. For heavier spills, use a mild

soap and wipe several times with a damp cloth

until all residues are removed. Do not remove the

2. Make sure that mild soap or water does not

penetrate the small vents in the walls which may

cause damage to the oven.

3. Do not use spray type cleaners on the oven interior.

Turntable and Roller stay

Remove the turntable and roller stay from the oven.

Wash the turntable and roller stay in mild soapy

water. Dry with a soft cloth. Both the turntable and the

roller stay are dishwasher safe.

To remove all trace of dirt, regularly clean both sides

of the door, the door seals and adjacent parts with a

soft, damp cloth. Do not use abrasive cleaner.

NOTE: A steam cleaner should not be used.

a metal alloy base, which allows food to be browned.

When using the browning dish a suitable insulator,

e.g. a porcelain plate, must be placed between the

turntable and the browning dish. Be careful to adhere

exactly to the pre-heating time given in the

manufacturer’s instructions. Excessive pre-heating can

damage the turntable and the turntable stand or can

trigger the safety-device which will switch off the oven.

METAL Generally speaking, metal should not be used, since

microwaves do not pass through metal and therefore

cannot reach the food. There are, however,

exceptions: small strips of aluminium foil may be used

to cover certain parts of the food, so that these do not

thaw too quickly or begin to cook (e.g. chicken

wings).Small metal skewers and aluminium containers

(e.g. of ready- cooked meals) can be used. They

must, however, be small in relation to the food, e.g.

aluminium containers must be at least

with food. It is recommended that you transfer the

food into a dish suitable for use in the microwave.

When using aluminium containers or other metal

utensils there must be a gap of approx. 2 cms

between them and the walls of the cooking area,

otherwise the walls could be damaged by possible

NO UTENSIL SHOULD HAVE A METAL OVERLAY -

parts such as screws, bands or handles.

UTENSIL SUITABILITY TEST If you are not sure whether your utensil

is suitable for use in your microwave

oven, carry out the following test: Place

the utensil into the oven. Place a glass

container filled with 150 ml of water

on or next to the utensil. Switch on the oven at 800

W power for 1 to 2 minutes. If the utensil stays cool

or just warm to the touch, it is suitable. Do not use

this test on a plastic utensil. It could melt.

Microwaves are generated in the microwave oven

by a magnetron and cause the water molecules in

the food to oscillate.

GLASS AND CERAMIC GLASS Heat-resistant glass utensils are very

suitable. The cooking process can be

observed from all sides. They must not,

however, contain any metal (e.g. lead

crystal), nor have a metallic overlay (e.g. gold edge,

cobalt blue finish).

CERAMICS Generally very suitable. Ceramics must be glazed,

since with unglazed ceramics moisture can get into

the ceramic. Moisture causes the material to heat up

and may make it shatter. If you are not certain

whether your utensil is suitable for the microwave,

carry out the utensil suitability test.

PORCELAIN Very suitable. Ensure that the porcelain does not

have a gold or silver overlay and that it does not

PLASTIC AND PAPER UTENSILS Heat resistant plastic utensils which are suitable for

use in the microwave can be used to thaw, heat and

cook food. Follow the manufacturer’s

Heat-resistant paper made for use in a microwave

oven is also suitable. Follow the manufacturer’s

MICROWAVE FOIL This, or heat-resistant foil, is very suitable for covering

or wrapping. Please follow the manufacturer’s

ROASTING BAGS Can be used in a microwave oven. Metal clips are

not suitable for fastening them since the roasting bag

foil might melt. Fasten the roasting bag with string

and pierce it several times with a fork. Non heat-

resistant food wraps are not recommended for use in

BROWNING DISH A special microwave dish made from ceramic glass with

Heat is generated by the friction which is caused,

with the result that the food is thawed, heated or

7. R239 English 07.2.19 7:43 PM Page 14 (1,1)TIPS AND ADVICE

TIME SETTINGS In general the thawing, heating and cooking times

are significantly shorter than when using a

conventional cooker or oven. For this reason you

should adhere to the recommended times given in

this cookery book. It is better to set the times too

short, rather than too long. Test the food after it

has been cooked. It is better to have to cook

something for a little longer than to overcook it.

INITIAL TEMPERATURES Thawing, heating and cooking times are

dependent upon the initial temperature of the food.

Deep-frozen food and food stored in a

refrigerator, for example, requires longer than

food which has been stored at room temperature.

For heating and cooking, normal storage

temperatures are assumed (refrigerator

temperature approx. 5° C, room temperature

approx. 20° C). For thawing the temperature of

the deep freeze is assumed to be - 18° C.

COOKING TIMES All the times given in this cookery book are

guidelines, which can be varied according to the

initial temperature, weight and condition of the

food (water or fat content etc.).

SALT, SPICES AND HERBS Food cooked in your microwave retains its

individual flavour better than it does when

conventional preparation methods are used. For

this reason you should use salt very sparingly and

normally add it only after cooking. Salt absorbs

liquid and dries out the outer layer of the food.

Herbs and spices can be used as normal.

ADDITION OF WATER Vegetables and other foods with a high water

content can be cooked in their own juice or with

the addition of a little water. This ensures that

many vitamins and minerals are preserved.

FOOD IN SKINS OR SHELLS Food such as sausages, chickens, chicken legs,

baked potatoes, tomatoes, apples, egg yolks or

such like should be pricked or pierced with a fork

or small wooden skewer. This will enable the

steam which forms to dissipate without splitting the

LARGE AND SMALL QUANTITIES Microwave times are directly dependent upon the

amount of food which you would like to thaw, heat

or cook. This means that small portions cook more

quickly than larger ones.

TWICE THE AMOUNT = ALMOST TWICE THE TIME HALF THE AMOUNT = HALF THE TIME DEEP AND SHALLOW CONTAINERS Both containers have the same capacity, but the

cooking time is longer for the deeper one. You

should therefore choose as flat a container as

possible with a large surface area. Only use deep

containers for dishes where there is a danger of

overcooking, e.g. for noodles, rice, milk etc..

ROUND AND OVAL CONTAINERS Food cooks more evenly in round or oval

containers than in containers with corners, since

the microwave energy concentrates in the corners

and the food in these areas could become

COVERING Covering the food retains the moisture within it and

shortens the cooking time. Use a lid, microwave

foil or a cover. Foods which are to be crispy, e.g.

roasts or chickens, should not be covered.

As a general rule, whatever would be covered in a

conventional oven should also be covered in a

microwave oven. Whatever would be uncovered

in an ordinary oven can also be left uncovered in

TURNING Medium-sized items, such as hamburgers and

steaks, should be turned over once during

cooking, in order to shorten the cooking process.

Large items, such as roasts and chickens, must be

turned, since the upper side receives more

microwave energy and could dry out if not turned.

STANDING TIME Keeping to the standing time is one of the most

important rules with microwaves. Almost all foods,

which are thawed, heated or cooked in the

microwave, require a certain amount of time to

stand, during which temperature equalisation takes

place and the moisture in the food is evenly

BROWNING AGENTS After more than 15 minutes cooking time food

acquires a brownness, although this is not

comparable to the deep brownness and crispness

obtained through conventional cooking. In order

to obtain an appetising brown colour you can use

browning agents. For the most part they

simultaneously act as seasoning agents.

In the following table you will find some

suggestions for substances you might use for

browning and some of the uses to which you might

Melted butter and dried paprika

Barbecue and Worcestershire sauce, Gravy

Oven baked dishes”Cheese

Roasts, Rissoles, Small roasted

Oven baked dishes, toasted

Coat the poultry with the

Sprinkle pieces of bacon or

Sprinkle pieces on top of cakes

and desserts or use to glaze

BROWNING AGENT DISH METHOD HEATING

● Ready-prepared meals in aluminium containers

should be removed from the aluminium container

and heated on a plate or in a dish.

● Remove the lids from firmly closed containers.

● Food should be covered with microwave foil, a plate

or cover (obtainable from stores), so that the surface

does not dry out. Drinks need not be covered.

● When boiling liquids such as water, coffee, tea or

milk, place a glass stirrer in the container.

● If possible, stir large quantities from time to time, to

ensure that the temperature is evenly distributed.

● The times are for food at a room temperature of

20° C. The heating time for food stored in a

refrigerator should be increased slightly.

● After heating allow the food to stand for 1-2

minutes, so that the temperature inside the food can

be evenly distributed (standing time).

● The times given are guidelines, which can be

varied according to the initial temperature, weight,

water content, fat content or the result which you

THAWING Your microwave is ideal for thawing. Thawing times

are usually considerably shorter than in traditional

Here are a few tips. Take the frozen item out of its

packaging and place on a plate for thawing.

BOXES AND CONTAINERS Boxes and containers suitable for microwaves are

particularly good for thawing and heating food, since

they can withstand temperatures in a deep freeze

(down to approx. –40° C) as well as being heat-

resistant (up to approx. 220° C). You can therefore

use the same container to thaw, heat and even cook

the food, without having to transfer it.

COVERING Cover thin parts with small strips of aluminium foil

before thawing. Thawed or warm parts should

likewise be covered with aluminium strips during

thawing. This stops the thin parts becoming too hot

while thicker parts are still frozen.

CORRECT SETTING It is better to choose a setting which is too low rather

than one which is too high. By so doing you will

ensure that the food thaws evenly.

If the microwave setting is too high, the surface of the

food will already have begun to cook while the inside

7. R239 English 07.2.19 7:43 PM Page 16 (1,1)TIPS AND ADVICE ENGLISH

TURNING/STIRRING Almost all foods have to be turned or stirred from time

to time. As early as possible, separate parts which are

stuck together and rearrange them.

SMALL AMOUNTS Thaw more quickly and evenly than larger ones. We

recommend that you freeze portions which are as

small as possible. By so doing you will be able to

prepare whole menus quickly and easily.

FOODS REQUIRING CAREFUL HANDLING Foods such as gateaux, cream, cheese and bread

should only be partially thawed and then left to thaw

completely at room temperature. By so doing you will

avoid the outer areas becoming too hot while the

inside is still frozen.

STANDING TIME This is particularly important after thawing food, as the

thawing process continues during this period. In the

thawing table you will find the standing times for

various foods. Thick, dense foods require a longer

standing time than thinner foods or food of a porous

nature. If the food has not thawed sufficiently, you may

continue thawing it in the microwave oven or lengthen

the standing time accordingly. At the end of the

standing time you should process the food as soon as

possible and not re-freeze it.

COOKING FRESH VEGETABLES ● When buying vegetables try to ensure that, as far as possible, they are of similar size. This is

particularly important when you want to cook the

vegetables whole (e.g. boiled potatoes). ● Wash the vegetables before preparing them, clean them and only then weigh the required quantity for

the recipe and chop them up. ● Season them as you would normally, but as a rule only add salt after cooking. ● Add about 5 tbsps of water for 500 g of vegetables. Vegetables which are high in fibre

require a little more water. You will find information

about this in the table. ● Vegetables are usually cooked in a dish with a lid. Those with a high moisture content, e.g. onions or

boiled potatoes, can be cooked in microwave foil

without adding water. ● After half the cooking time has elapsed vegetables should be stirred or turned over. ● After cooking allow the vegetables to stand for approx. 2 minutes, so that the temperature

disperses evenly (standing time). ● The cooking times given are guidelines and depend upon the weight, initial temperature and

condition of the type of vegetable in question. The

fresher the vegetables, the shorter the cooking

COOKING MEAT, FISH AND POULTRY ● When buying food items, try to ensure that, as far as possible, they are of similar size. This will

ensure that they are cooked properly. ● Before preparation wash meat, fish and poultry thoroughly under cold running water and pat them

dry with kitchen paper. Then continue as normal. ● Beef should be well hung and have little gristle.● Even though the pieces may be of a similar size, cooking results may vary. This is due, amongst

other things, to the kind of food, variations in the fat

and moisture content as well as the temperature

before cooking. ● After the food has been cooking for 15 minutes it acquires a natural brownness, which may be

enhanced by the use of a browning agent. If, in

addition, you would like the surface to be crisp you

should either use the browning dish or sear the

food on your cooker and finish cooking it in your

microwave. By doing this you will simultaneously

obtain a brown base for making a sauce.

● Turn large pieces of meat, fish or poultry half way

through the cooking time, so that they are cooked

evenly from all sides. ● After cooking cover roasts with aluminium foil and allow them to stand for approx. 10 minutes (standing

time). During this period the roast carries on cooking

and the liquid is evenly distributed, so that when it is

carved a minimum amount of juice is lost.

THAWING AND COOKING Deep-frozen dishes can be thawed and cooked at the

same time in one process in your microwave. You will

find some examples in the table. Do take note,

however, of the general advice given on “heating” and

“thawing” food. Please refer to the manufacturer’s

instructions on the packaging when preparing deep-

frozen dishes. These usually contain precise cooking

times and offer advice on preparation.

7. R239 English 07.2.19 7:43 PM Page 17 (1,1)146/GB-17

tbsp = tablespoon KG = kilogram DF = deep frozen

tsp = teaspoon g = gram MW = microwave

l.p. = large pinch l = litre MWO = microwave oven

s.p. = small pinch ml = millilitre min = minutes

Cup = cupful cm = centimetre sec = seconds

Sach. = sachet DFC = dry fat content dm = diameter

Fish and Poultry Quantity Power Time Hints Standing time -g- -Setting- -Min- -Min-

TABLE: COOKING MEAT, FISH AND POULTRY TABLE: HEATING FOOD AND DRINK Roasts 500 800W 8-10* season to taste, place in a shallow flan dish 10

(pork, 400W 10-12 turn over after *

veal, lamb) 1000 800W 20-23* 10

Roast beef (medium) 1000 800W 9-11* season to taste, place in a quiche dish, 10

400W 5-7 turn over after *

Minced meat 1000 800W 16-18 prepare the minced meat mixture (half pork/half beef) 10

place in a shallow casserole dish

Fish fillet 200 800W 3-4 season to taste, place on a plate, cover 3

Chicken 1200 800W 22-25* season to taste, place in a casserole dish, 3

turn half way through cooking time *

Chicken legs 200 800W 3-4 season to taste, place on a plate, cover 3

* Refrigerator temperature

* When turning over remove the juices from the dish.

Coffee, 1 cup 150 800W approx.1 do not cover

Milk, 1 cup 150 800W approx.1 do not cover

Water, 1 cup 150 800W 1

-2 do not cover, bring to the boil

6 cups 900 800W 10-12 do not cover, bring to the boil

1 bowl 1000 800W 10-12 do not cover, bring to the boil

Platters 400 800W approx.4 sprinkle some water onto the sauce, cover

(Vegetables, meat and trimmings) stir half way through the heating time

Stew 200 800W 2-3 cover, stir after heating

Clear soup 200 800W approx.2 cover, stir after heating

Cream soup 200 800W approx.2 cover, stir after heating

Vegetables 200 800W 2-3 if necessary add some water, cover

500 800W 4-5 stir half way through the heating time

Garnishes 200 800W 1-2 sprinkle with water, cover and stir from time to

Meat, 1 slice* 200 800W 3-4 thinly spread sauce over the top, cover

Fish fillet* 200 800W 2-3 cover

Sausages 2 180 560W approx.2 pierce the skin several times

place on a cake stand

Baby food, 1 glass 190 400W approx.1 remove the lid, after heating stir well and test the

Melting chocolate 100 400W 2-3 stir from time to time

Dissolving six sheets of gelatine 10 400W

dip into water, squeeze thoroughly and place in

a soup bowl, stir from time to time

Glazing for a tart for

1 of liquid 10 400W 5-6 mix the sugar in 250 ml of liquid, cover, stir well

during and after heating

7. R239 English 07.2.19 7:43 PM Page 18 (1,1)ENGLISH

TABLES Food Quantity Power Cooking time Added water Hints Standing time -g- -Setting- -Min- -tbsps/ml- -Min-

TABLE: THAWING AND COOKING TABLE: THAWING Food Quantity Power Thawing time Hints Standing time-g- -Setting- -Min- -Min-Roast meat (e.g. pork, beef, 1500 80W 58-64 place on an upturned plate, turn 30-90lamb, veal) 1000 80W 42-48 half way through thawing time 30-90500 80W 18-20 30-90 Steaks, escalopes, cutlets, liver 200 80W 7-8 turn half way through thawing time 30

Goulash 500 240W 8-12 separate and stir half way through thawing time 10-15

Sausages, 8 600 240W 6-9 place next to each other, 5-10

4 300 240W 4-5 turn half way through thawing time 5-10

Duck, turkey 1500 80W 48-52 place upon an upturned plate, 30-90 turn half way through thawing time Chicken 1200 80W 39-43 place upon an upturned plate, 30-90 turn half way through thawing time1000 80W 33-37 place upon an upturned plate, 30-90turn half way through thawing time Chicken legs 200 240W 4-5 turn half way through thawing time 10-15

Whole fish 800 240W 9-12 turn half way through thawing time 10-15

Fish fillet 400 240W 7-10 turn half way through thawing time 5-10 Crabs 300 240W 6-8 turn half way through thawing time 30 Rolls, 2 80 240W app.1 only partially thaw -

Sliced bread for toasting 250 240W 2-4 remove outer slices after each minute has passed 5

White loaf, whole 750 240W 7-10 turn half way through thawing time (centre still frozen) 30

Cakes, per piece 100-150 80W 2-5 place on a cake stand 5 Cream cake, per piece 150 80W 3-4 place on a cake stand 10Whole gateau, Ø 25cm 80W 20-24 place on a cake stand 30-60 Butter 250 240W 2-4 only partially thaw 15

Fruit such as strawberries 250 240W 4-5 spread them out evenly 5 raspberries, cherries, plums turn half way through thawing time Fish fillet 300 800W 10-11 - cover 1-2

Trout, 1 fish 250 800W 7-9 - cover

Platter 400 800W 8-9 - cover, stir half way through cooking time -

Leaf spinach 300 800W 7-9 - cover, stir once or twice during cooking 2

Broccoli 300 800W 7-9 3-5 tbspscover, stir half way through cooking time 2 Peas 300 800W 7-9 3-5 tbspscover, stir half way through cooking time 2 Kohlrabi 300 800W 7-9 3-5 tbspscover, stir half way through cooking time 2 Mixed vegetables 500 800W 12-14 3-5 tbspscover, stir half way through cooking time 2Brussels sprouts 300 800W 7-9 3-5tbspscover, stir half way through cooking time 2 Red cabbage 450 800W 11-13 3-5 tbspscover, stir half way through cooking time 2

7. R239 English 07.2.19 7:43 PM Page 19 (1,1)RECIPES TABLES

Vegetable Quantity Power Time Hints Added Water -g- -Setting- -Min- -tbsps/ml-

TABLE: COOKING FRESH ADAPTING RECIPES FOR THE MICROWAVE OVEN If you would like to adapt your favourite recipes for

the microwave, you should take note of the

Shorten cooking times by a third to a half. Follow

the example of the recipes in this cookery book.

Foods which have a high moisture content such as

meat, fish, poultry, vegetables, fruit, stews and

soups can be prepared in your microwave without

any difficulty. Foods which have little moisture,

such as platters of food, should have the surface

moistened prior to heating or cooking.

The amount of liquid to be added to raw foods,

which are to be braised, should be reduced to

about two thirds of the quantity in the original

recipe. If necessary, add more liquid during

The amount of fat to be added can be reduced

considerably. A small amount of butter, margarine

or oil is sufficient to flavour food. For this reason

your microwave is excellent for preparing low-fat

foods as part of a diet.

● All the recipes in this cookery book are

calculated on the basis of 4 servings - unless

● Recommendations relating to suitable utensils

and the total cooking times are given at the

beginning of every recipe.

● As a rule the quantities shown are assumed to

be wholly consumable, unless specifically

indicated otherwise.

● When eggs are given in the recipes they are

assumed to have weight of approx. 55 g

Leaf Spinach 300 800W 5-7 wash dry well, cover, stir once or twice during cooking -

Cauliflower 800 800W 15-17 1 whole head, cover, divide into florets, stir 5-6 tbsps 500 800W 10-12 during cooking 4-5 tbsps Broccoli 500 800W 10-12 divide into florets, cover, stir occasionally during cooking 4-5 tbsps Mushrooms 500 800W 8-10 whole heads, cover, stir occasionally during cooking -

Chinese leaves 300 800W 9-11 cut into strips, cover, stir occasionally during cooking 4-5 tbsps Peas 500 800W 9-11 cover, stir occasionally during cooking 4-5 tbsps Fennel 500 800W 9-11 cut into quarters, cover, stir occasionally during cooking 4-5 tbsps Onions 250 800W 5-7 whole, cook in microwave foil -

Kohlrabi 500 800W 10-12 dice, cover, stir occasionally during cooking 50ml

Carrots 500 800W 10-12 cut into rings, cover, stir occasionally during cooking 4-5 tbsps 300 800W 9-12

Green peppers 500 800W 7-9 cut into strips, stir once or twice during cooking 4-5 tbsps Boiled potatoes (skins on) 500 800W 9-11 cover, stir occasionally during cooking 4-5 tbsps Leeks 500 800W 9-11 cut into rings, cover, stir occasionally during cooking 4-5 tbsps Red cabbage 500 800W 10-12 cut into strips, stir once or twice 50ml

Brussels sprouts 500 800W 9-11 whole sprouts, cover, stir occasionally during cooking 50ml

Boiled Potatoes (salted) 500 800W 9-11 cut into large pieces of a similar size, add a little salt, 150ml

cover, stir occasionally during cooking

Celery 500 800W 9-11 dice finely, cover, stir occasionally during cooking 50ml

White cabbage 500 800W 10-12 cut into strips, cover, stir occasionally during cooking 50ml

Courgettes 500 800W 9-11 slice, cover, stir occasionally during cooking 4-5 tbsps

7. R239 English 07.2.19 7:43 PM Page 20 (1,1)ENGLISH RECIPES

CAMEMBERT TOAST Total cooking time: approx. 1-2minutes

4 slices of bread for toasting

1. Toast the bread and spread with butter.

2. Cut the Camembert into slices and arrange on

top of the toast. Put the cranberry jelly in the

middle of the cheese and sprinkle with cayenne

3. Place the toast on a plate and heat for

1-2 Mins. 800 W Tip:You can vary this recipe according to your

taste. For example, you can use fresh

mushrooms and grated cheese or cooked ham,

asparagus and Emmental cheese.

MUSHROOM SOUP Champignonsoep

Total cooking time: approx. 13-17 Minutes

Utensil: Bowl with Lid (2 l Capacity)

200 g mushrooms, sliced

1. Place the vegetables and the stock in the bowl,

2. Blend all the ingredients in the mixer.

3. Mix the flour and butter to a dough and smooth

into the soup. Season with salt and pepper, cover

and cook. Stir after cooking.

4. Mix the egg yolk with the cream, gradually stir

into the soup. Heat for a short time, but do not let

1-2 Mins. 800 W Allow the soup to stand for about 5 minutes after

ZÜRICH VEAL IN CREAM Total cooking time: approx. 12-16 minutes

Utensil: dish with lid (2 l capacity)

Seasoned gravy browning, for approx.

1 tbsp parsley, chopped

1. Cut the fillet into finger-width strips.

2. Grease the dish all over with the butter. Put the

onion and the meat into the dish, cover and

cook. Stir once during cooking.

3. Add the white wine, gravy browning and cream,

stir, cover and continue cooking. Stir occasionally.

4. Test the veal, stir the mixture once more and allow

to stand for approx. 5 minutes. Serve garnished

BRAISED LAMB WITH GREEN BEANS Total cooking time: approx. 20-24 minutes

1 tsp butter or margarine for greasing the bowl

1 onion (50 g), finely chopped

1 clove garlic, crushed

1. Skin and remove the stalks of the tomatoes, then

purée in a blender or food processor.

2. Cut the lamb into large chunks. Grease the bowl

with butter. Add meat, onions and garlic, season,

3. Add beans and puréed tomatoes to the meat,

cover and continue cooking.

11-13 Mins. 560 W After cooking, leave the lamb to stand for

approximately 5 minutes.

Tip:If you prefer to use fresh beans, these should be

SOLE FILLETS Total cooking time: approx. 11-14 minutes

Utensil: shallow,oval oven dish with microwave foil

(approx. 26 cm long)

1 tsp butter or margarine for greasing

1 tbsp vegetable oil

1 tbsp parsley, chopped

4 tbsps white wine (30 ml)

2 tbsps butter or margarine (20 g)

1. Wash the sole fillets and pat them dry. Remove

2. Cut the lemon and the tomatoes into thin slices.

3. Grease the oven dish with butter. Place the fish

fillets inside and drizzle the vegetable oil over them.

4. Sprinkle parsley over the fish, place the tomato

slices on top and season. Place the lemon slices

on top of the tomatoes and pour the white wine

5. Place small pats of butter on top of the lemon,

10-12 Mins. 800 W After cooking allow the fish fillets to stand for

Tip:This recipe can also be used for Haddock,

Utensils: Bowl with lid (2 l capacity)

1 clove of garlic, crushed

50 g grated Parmesan cheese

1 tsp mixed chopped herbs

1 tsp vegetable oil to grease the mould

1 tbsp grated Parmesan cheese

1 tbsp butter or margarine

1. Cut the tomatoes into slices, mix with the ham

and onion, garlic, minced meat and mashed

tomato. Season and cook with the lid on. Stir

2. Mix the cream with the milk, Parmesan cheese,

herbs, oil, and spices.

3. Grease the soufflé mould and cover the bottom of

the mould with about

of the pasta. Put half of

the minced meat mixture on the pasta and pour

on some sauce. Put an additional

pasta on top followed by another layer of the

minced meat mixture and some sauce, finishing

with the remaining pasta on top. Finally, cover the

pasta with lots of sauce and sprinkle with

Parmesan cheese. Place butter flakes on top and

cook with the lid on.

15-16 Mins. 560 W After cooking, let the lasagne stand for

approximately 5-10 minutes.

RATATOUILLE Total cooking time 19-21 minutes

Utensils: Bowl with lid (2 l capacity)

5 tbsp olive oil (50 ml)

1 clove garlic, crushed

1 onion (50 g), sliced

1 small aubergine (250 g), cut into cubes

1 courgette (200 g), into cubes

1 pepper (200 g), cut into large cubes

1 Small fennel (75 g) cut into large cubes

200 g tinned artichoke hearts, cut into quarters

1. Place the olive oil and garlic clove in the bowl. Add

the prepared vegetables, except the artichoke hearts,

and season with pepper. Add the bouquet garni,

cover and cook, stirring once.

18-20 Mins. 800 W For the last 5 minutes, add the artichoke hearts and heat.

2. Season the ratatouille to taste with salt and pepper.

Remove the bouquet garni before serving. After

cooking, leave the ratatouille to stand for around 2

Tip:Ratatouille can be served hot with meat dishes.

Served cold, it also makes an excellent starter.

A bouquet garni consists of: one stalk of parsley,

a bunch of herbs suitable for seasoning soup, one

stalk of lovage, one stalk of thyme, several bay

Utensils: Bowl with lid (2 l capacity)

4 medium sized potatoes (400 g)

60 g ham, cut into fine cubes

2 tbsp grated Parmesan cheese (20 g)

2 tbsp grated Emmental cheese

1. Place the potatoes in a dish, add the water, cover

and cook. Rearrange halfway through cooking.

8-9 Mins. 800 W Leave to cool.

2. Cut the potatoes lengthwise and carefully remove the

potato from the skin. Mix the potato with the ham,

onion, milk and Parmesan cheese to an even

consistency. Season with salt and pepper.

3. Fill the potato skins with potato mixture and sprinkle

with Emmental cheese. Place potatoes on a plate and

4-6 Mins. 800 W After cooking, leave to stand for approximately

Utensils: Dish with lid (2 l capacity)

150 g redcurrants, washed and stalks removed

150 g strawberries, washed and haulms removed

150 g raspberries, washed and haulms removed

1. Put some of the fruit to one side for decoration.

Purée the rest of the fruit with the white wine, put

it into a dish, cover and heat.

7-9 Min. 800 W Fold in the sugar and the lemon juice.

2. Soak the gelatin in cold water for approx. 10

minutes, then take it out and squeeze dry. Stir the

gelatin in with the hot purée until it has dissolved.

Place the jelly in the refrigerator and leave to set.

3. To make the vanilla sauce; put the milk into the

other dish. Slit the vanilla pod and remove the

inside. Stir this in with the milk, together with the

sugar and the food thickener, cover and cook,

stirring during cooking and again at the end.

4. Turn out the jelly onto a plate and decorate with

the whole fruit. Add the vanilla sauce.

Tip:You can also use defrosted frozen fruits.

Distribution line fuse/circuit breaker

AC Power required: Microwave

Output power: Microwave

This Product fulfils the requirement of the European standard EN55011.

In conformity with this standard, this product is classified as group 2 class B equipment.

Group 2 means that the equipment intentionally generates radio-frequency energy in the form of electromagnetic radiation for

the heat treatment of food.

Class B equipment means that the equipment is suitable to be used in domestic establishments.

Internal capacity is calculated by measuring maximum width, depth and height. Actual capacity for holding food is less.
