USER MANUAL BR 7962 SEVERIN

Instructions for use

Swirl® and Y101® are registered trademarks of a

company of the Melitta Group.

Ersatzteile und Zubehör

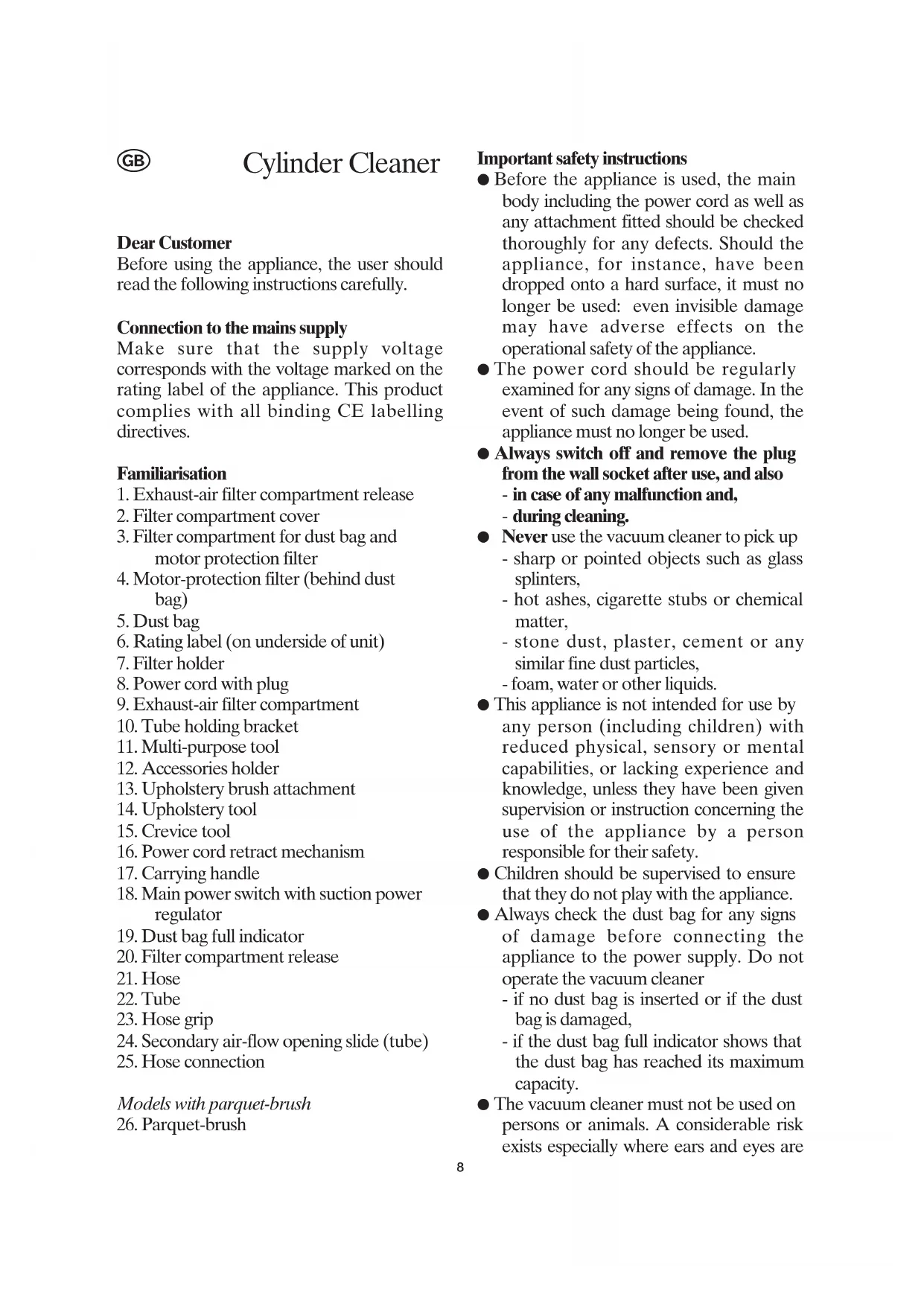

Before using the appliance, the user should

read the following instructions carefully.

Connection to the mains supply

Make sure that the supply voltage

corresponds with the voltage marked on the

rating label of the appliance. This product

complies with all binding CE labelling

1. Exhaust-air filter compartment release

2. Filter compartment cover

3. Filter compartment for dust bag and

motor protection filter

6. Rating label (on underside of unit)

8. Power cord with plug

9. Exhaust-air filter compartment

10. Tube holding bracket

11. Multi-purpose tool

12. Accessories holder

13. Upholstery brush attachment

18. Main power switch with suction power

19. Dust bag full indicator

20. Filter compartment release

Important safety instructions

● Before the appliance is used, the main

body including the power cord as well as

any attachment fitted should be checked

thoroughly for any defects. Should the

appliance, for instance, have been

dropped onto a hard surface, it must no

longer be used: even invisible damage

may have adverse effects on the

operational safety of the appliance.

● The power cord should be regularly

examined for any signs of damage. In the

event of such damage being found, the

appliance must no longer be used.

● Always switch off and remove the plug

from the wall socket after use, and also

- in case of any malfunction and,

● Never use the vacuum cleaner to pick up

- sharp or pointed objects such as glass

- hot ashes, cigarette stubs or chemical

- stone dust, plaster, cement or any

similar fine dust particles,

- foam, water or other liquids.

● This appliance is not intended for use by

any person (including children) with

reduced physical, sensory or mental

capabilities, or lacking experience and

knowledge, unless they have been given

supervision or instruction concerning the

use of the appliance by a person

responsible for their safety.

● Children should be supervised to ensure

that they do not play with the appliance.

● Always check the dust bag for any signs

of damage before connecting the

appliance to the power supply. Do not

operate the vacuum cleaner

- if no dust bag is inserted or if the dust

- if the dust bag full indicator shows that

the dust bag has reached its maximum

● The vacuum cleaner must not be used on

persons or animals. A considerable risk

exists especially where ears and eyes are

concerned. Keep the nozzle away from

the head at all times.

● When removing the plug from the wall

socket, never pull on the power cord;

always grip the plug itself.

● No responsibility will be accepted if

damage results from improper use, or if

these instructions are not complied with.

● This appliance is intended for domestic

use only and is not designed for medical

or commercial applications.

● In order to comply with safety

regulations and to avoid hazards, repairs

of electrical appliances must be carried

out by qualified personnel, including the

replacement of the power cord. If repairs

are needed, please send the appliance to

one of our customer service departments.

The addresses can be found in the

appendix to this manual.

Before using for the first time

Remove the appliance from its

Remove any exterior and interior

packaging materials and make sure that

the dust bag, the motor-protection and

exhaust air filters are correctly inserted.

Thermal safety cut-out

This vacuum cleaner is equipped with an

integral thermal safety cut-out, which

automatically switches the appliance off in

case of overheating (e.g. due to blockage in

the tube or filter). Should this occur, remove

the plug from the wall socket and let the

appliance cool down for a minimum of one

hour. The vacuum cleaner may then be used

again after the blockage has been removed.

Always use the handle to carry the

appliance. To use, pull out first.

Main power switch with suction power

The appliance is switched on and off by

pushing the main power switch. The suction

power can be adjusted by turning the same

Put the vacuum cleaner in its horizontal

Insert the hose into the hose connection.

Connect the tube to the hose grip.

Attach any of the nozzles provided to the

end of the tube. If the full tube length is

not required (e.g. when using the

upholstery tool), the nozzle may be

attached directly to the hose grip.

Pull out the power cord from its storage

to the necessary length (but not beyond

the red mark) and insert the plug into a

suitable wall socket.

The vacuum cleaner is equipped with a

very powerful motor. In order to prevent

a fuse within your home electrical

installation from being triggered at

switch-on, always set the power regulator

to its lowest setting before the appliance

The electronic suction regulator allows

the suction power to be infinitely

adjusted to your needs.

In addition, the suction power can be

decreased further by opening the

secondary air-flow opening slide in the

Always start with a low setting when

cleaning soft objects such as curtains.

● Always ensure that the power cord is not

routed around or runs over corners or

edges, and that it cannot be jammed in a

During operation, the hose may be used

to pull the unit along behind you.

However, when carrying the unit, always

use the carrying handle.

● To prevent the power cord from being

pulled with excessive force, always

change to the next suitable wall socket

when cleaning larger areas.

Switch off the appliance after use and

remove the plug from the wall socket.

To retract the power cord automatically

9into its storage, press the foot switch of

the retract mechanism.

The accessories can be stored in the

accessories holder, which attaches to the

The multi-purpose tool is especially suitable

for cleaning large areas.

The upholstery tool is suitable for cleaning

smaller areas such as arm rests and chair

Upholstery brush attachment

This brush attachment can be fitted to the

upholstery tool by sliding it on sideways.

This brush tool is suitable for cleaning

uneven areas such as upholstered surfaces,

picture frames, rows of books etc.

The crevice tool is designed to clean difficult-

to-reach areas such as grooves, niches,

corners and crevices.

Models with parquet-brush

The parquet brush is used for high-grade

hard floors such as laminate floors, parquet

Changing dust bag or filters

● Before any filter is changed, always

switch the appliance off and remove the

plug from the wall socket.

The vacuum cleaner uses replaceable filters.

When replacing the motor or exhaust-air

filter, it may be necessary to cut the filters to

size with a pair of scissors.

The indicator shows when the dust bag

needs changing: as soon as it is permanently

illuminated, the dust bag has reached its

capacity. The appliance must be switched off

before the bag is replaced.

A noticeable decrease in vacuuming power

also indicates that the dust bag has reached

Changing the dust bag

Remove the hose from the unit by

pressing the two buttons at the end of the

Press the filter compartment release and

open the compartment.

Flip the filter holder upwards.

Pull the full dust bag from the filter

Fit the cardboard frame of the new dust

bag into the filter holder.

Push the filter holder back into the filter

Close the cover of the filter compartment

by pressing down lightly until it is heard

Changing the motor-protection filter

The motor-protection filter is located at the

rear of the filter compartment. Should the

filter be visibly dirty, replacement is

recommended at the same time as the dust

Lift out the motor-protection filter

holder from the filter compartment.

Remove the old motor-protection filter

from its holding bracket.

Insert a new motor-protection filter into

Push the motor-protection filter holder

back into the filter compartment.

Changing the exhaust-air filter

The exhaust-air filter is located in the

exhaust-air filter compartment. Should the

filter be visibly dirty, replacement is

Press the release button to open the

exhaust-air filter compartment.

Remove the cover and lift out the

exhaust-air filter holder.

Change the exhaust-air filter. Ensure that

the smoother surface of the filter is facing

Replace the filter holder into the filter

10compartment with its grid facing

Close the cover of the filter compartment

by pressing down lightly until it is heard

● Before cleaning the appliance, ensure it is

switched off and disconnected from the

● To avoid the risk of electric shock, do not

clean the appliance with water and do

not immerse it in water.

The housing of the unit and the

accessories may be cleaned with a dry or

slightly damp lint-free cloth.

Do not use abrasives or harsh cleaning

Replacement filter sets may be obtained

through the SEVERIN Service, quoting

article no. SB 9017.

Suitable replacement filters type Swirl®

Y101® are also available at most dealers.

Swirl® and Y101® are registered trademarks of a

company of the Melitta Group.

Do not dispose of old or defective

appliances in domestic garbage;

this should only be done through

public collection points.

This product is guaranteed against defects in

materials and workmanship for a period of

two years from the date of purchase. Under

this guarantee the manufacturer undertakes

to repair or replace any parts found to be

defective, providing the product is returned

to one of our authorised service centres. This

guarantee is only valid if the appliance has

been used in accordance with the

instructions, and provided that it has not

been modified, repaired or interfered with

by any unauthorised person, or damaged

This guarantee naturally does not cover

wear and tear, nor breakables such as glass

and ceramic items, bulbs etc. If the product

fails to operate and needs to be returned,

pack it carefully, enclosing your name and

address and the reason for return. If within

the guarantee period, please also provide the

guarantee card and proof of purchase.
