USER MANUAL LE26B450C4WXZG SAMSUNG

(MPEG2 AND MPEG4 AVC) DIGITAL TERRESTRIAL SIGNALS ARE BROADCAST. DVB-T is the European consortium standard for the broadcast transmission of digital terrestrial television. Please check with your local dealer about the availability of DVB-T service in your area. 2. Although this TV set meets the current DVB-T standards as of [August, 2008], compatibility with future DVB-T digital terrestrial broadcast cannot be guaranteed.

Some Digital TV functions may not be available or operate correctly in some countries or regions.

For more information, please contact your local SAMSUNG customer care centre. Precautions When Displaying a Still Image A still image may cause permanent damage to the TV screen Do not display a still image and partially still on the LCD panel for more than 2 hours as it can cause screen image retention. This image retention is also known as “screen burn”. To avoid such image retention, reduce the degree of brightness and contrast of the screen when displaying a still image. Watching the LCD TV in 4:3 format for a long period of time may leave traces of borders displayed on the left, right and centre of the screen caused by the difference of light emission on the screen. Playing a DVD or a game console may cause a similar effect to the screen. Damages caused by the above effect are not covered by the Warranty. Displaying still images from Video games and PC for longer than a certain period of time may produce partial after-images. To prevent this effect, reduce the ‘brightness’ and ‘contrast’ when displaying still images. © 2009 Samsung Electronics Co., Ltd. All rights reserved.

CONTENTS License TruSurround HD, SRS and symbol are trademarks of SRS Labs, Inc. TruSurround HD technology is incorporated under license from SRS Labs, Inc. Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories. Symbol N O T Note One-Touch Button TOOL Button

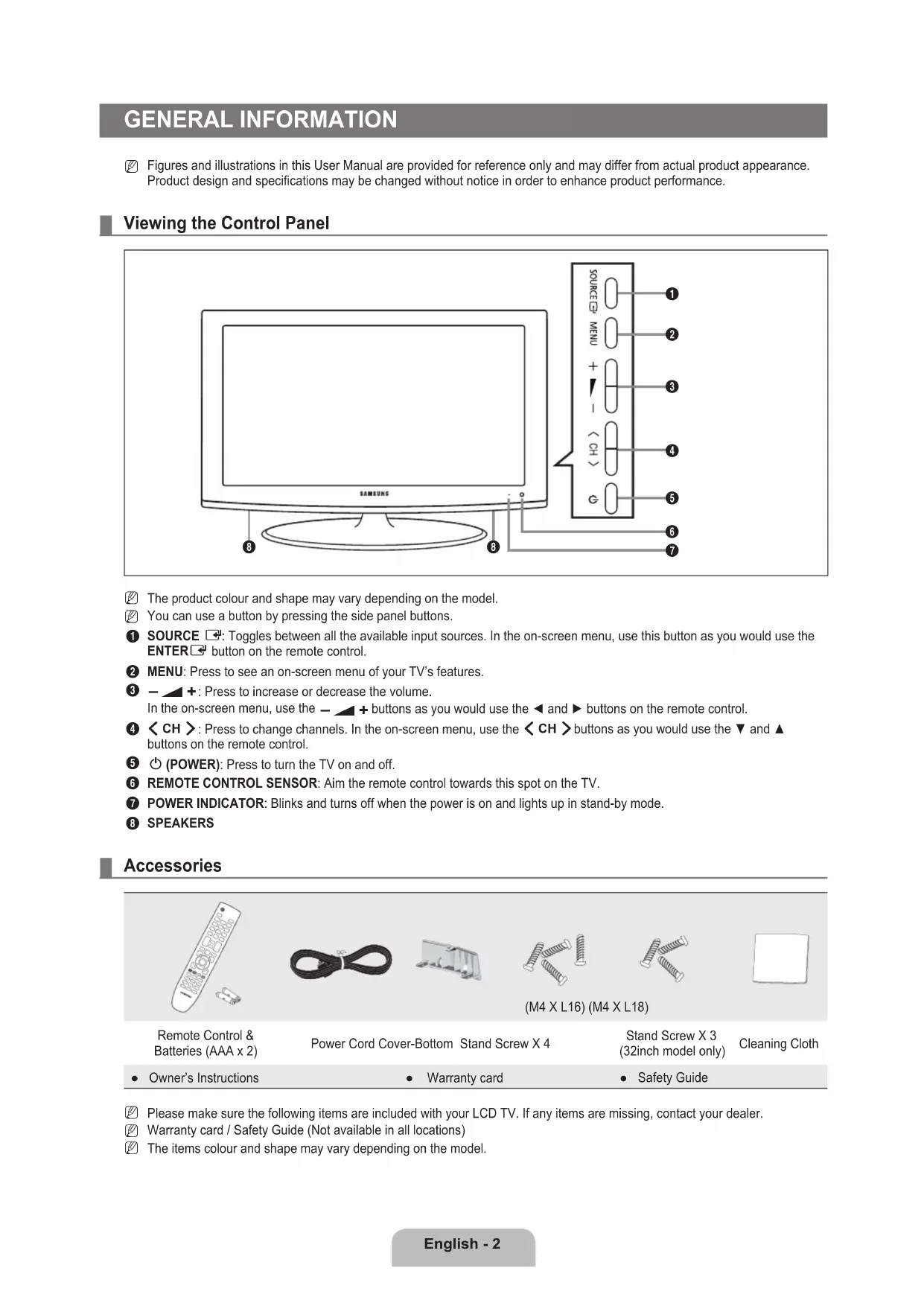

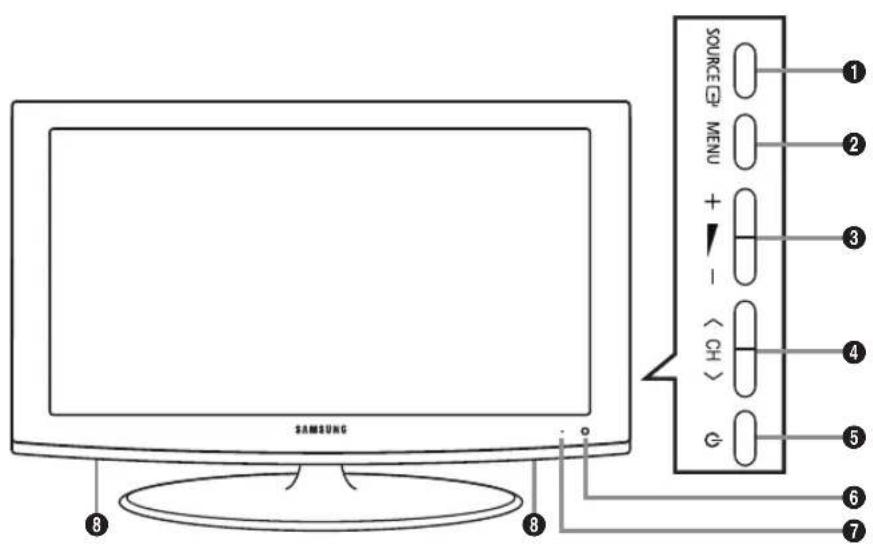

English BN68-01981A-00.indb 1 2009-03-02 7:27:23English - 2 GENERAL INFORMATION Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance. Product design and specications may be changed without notice in order to enhance product performance. Viewing the Control Panel The product colour and shape may vary depending on the model. You can use a button by pressing the side panel buttons.

: Toggles between all the available input sources. In the on-screen menu, use this button as you would use the ENTER

button on the remote control.

MENU: Press to see an on-screen menu of your TV’s features.

buttons as you would use the ◄ and ► buttons on the remote control.

: Press to change channels. In the on-screen menu, use the

buttons as you would use the ▼ and ▲ buttons on the remote control.

(POWER): Press to turn the TV on and off.

REMOTE CONTROL SENSOR: Aim the remote control towards this spot on the TV.

POWER INDICATOR: Blinks and turns off when the power is on and lights up in stand-by mode.

SPEAKERS Accessories (M4 X L16) (M4 X L18) Remote Control & Batteries (AAA x 2) Power Cord Cover-Bottom Stand Screw X 4 Stand Screw X 3 (32inch model only) Cleaning Cloth Owner’s Instructions

Please make sure the following items are included with your LCD TV. If any items are missing, contact your dealer. Warranty card / Safety Guide (Not available in all locations) The items colour and shape may vary depending on the model.

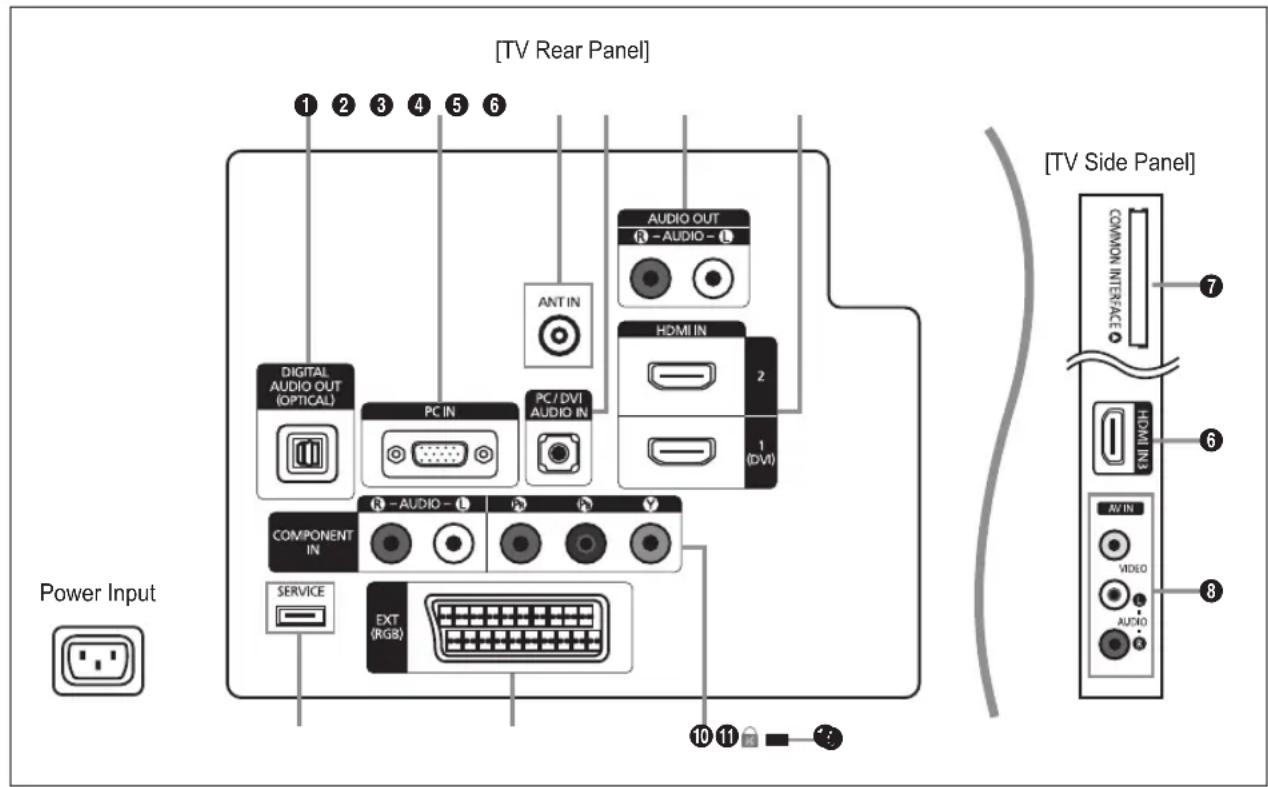

BN68-01981A-00.indb 2 2009-03-02 7:27:24English - 3 Viewing the Connection Panel The product colour and shape may vary depending on the model. Whenever you connect an external device to your TV, make sure that power on the unit is turned off. When connecting an external device, match the colour of the connection terminal to the cable.

DIGITAL AUDIO OUT (OPTICAL) Connects to a Digital Audio component such as a Home theatre receiver. When the HDMI IN jacks are connected, the DIGITAL AUDIO OUT (OPTICAL) jack on the TV outputs 2 channel audio only. If you want to hear 5.1 channel audio, connect the Optical jack on the DVD / Blu-ray player or Cable / Satellite Box directly to an Amplier or Home Theatre, not the TV.

PC IN Connect to the video output jack on your PC.

ANT IN Connects to an antenna or cable TV system.

Connect to the audio output jack on your PC. DVI audio outputs for external devices.

Connect RCA audio cables to AUDIO OUT [R-AUDIO-L] on the rear of your set and the other ends to corresponding audio in connectors on the Amplier or DVD Home Theatre.

Supports connections between HDMI-connection-enabled AV devices (Set-Top Boxes, DVD / Blu-ray player) No additional Audio connection is needed for an HDMI to HDMI connection. The HDMI IN 1 (DVI) jack can be used to connect a PC. What is HDMI? ‘High Denition Multimedia interface’ allows the transmission of high denition digital video data and multiple channels of digital audio. The HDMI / DVI terminal supports DVI connection to an extended device with the appropriate cable (not supplied). The difference between HDMI and DVI is that the HDMI device is smaller in size, has the HDCP (High Bandwidth Digital Copy Protection) coding feature installed, and supports multi - channel digital audio.

COMMON INTERFACE Slot When not inserting ‘CI CARD’ in some channels, ‘Scrambled Signal’ is displayed on the screen. The pairing information containing a telephone number, CI CARD ID, Host ID and other information will be displayed in about 2~3 minutes. If an error message is displayed, please contact your service provider

When the channel information conguration has nished, the message ‘Updating Completed’ is displayed, indicating that the channel list is now updated. You must obtain a CI CARD from a local cable service provider. Remove the CI CARD by carefully pulling it out with your hands since dropping the CI CARD may cause damage to it. Insert the CI-Card in the direction marked on it. The place of the COMMON INTERFACE Slot may be different depending on its model. CAM is not supported in some countries and regions, check with your authorized dealer

Connect RCA cable to an appropriate external A/V device such as VCR, DVD or Camcorder. Connect RCA audio cables to [R-AUDIO-L] on your set and the other ends to corresponding audio out connectors on the A/V device.

KENSINGTON LOCK (depending on the model) The Kensington Lock (optional) is a device used to physically x the system when used in a public place. If you want to use a locking device, contact the dealer where you purchased the TV

The location of the Kensington Lock may be different depending on its model.

COMPONENT IN Connect component video cables (optional) to component connector (P R, PB, Y) on the rear of your set and the other ends to corresponding component video out connectors on the DTV or DVD. If you wish to connect both the Set-Top Box and DTV (or DVD), you should connect the Set-Top Box to the DTV (or DVD) and connect the DTV (or DVD) to component connector (P R, PB, Y) on your set. The P R, PB and Y connectors on your component devices (DTV or DVD) are sometimes labelled Y, B-Y and R-Y or Y, Cb and Cr. Connect RCA audio cables (optional) to [R-AUDIO-L] on the rear of your set and the other ends to corresponding audio out connectors on the DTV or DVD.

EXT Connector Input Output Video Audio (L / R) RGB Video + Audio (L / R) EXT O O O Only TV or DTV output is available. Inputs or outputs for external devices, such as VCR, DVD, video game device or video disc players.

SERVICE Connector for software upgrades.

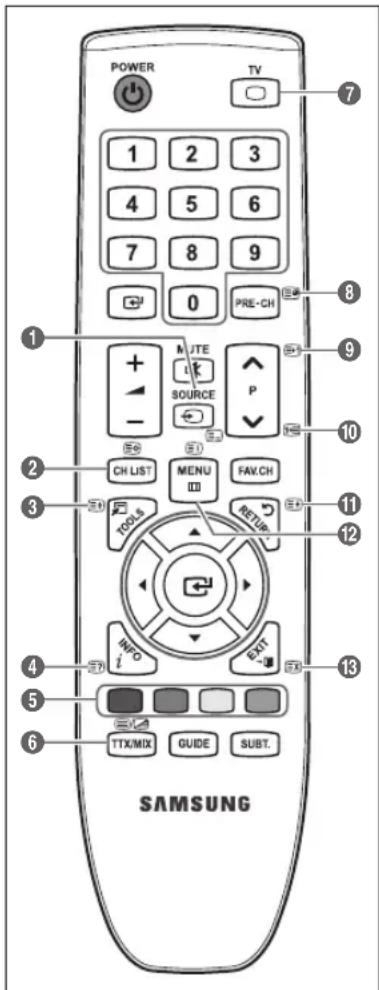

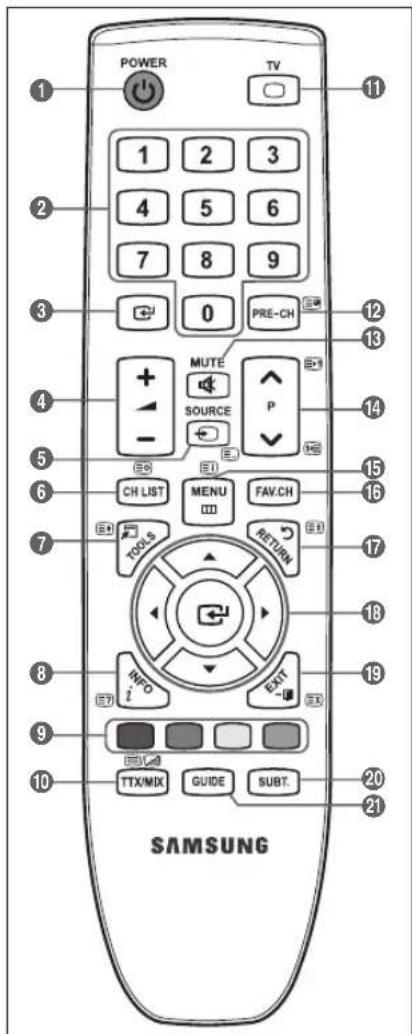

BN68-01981A-00.indb 4 2009-03-02 7:27:24English - 5 Remote Control You can use the remote control up to a distance of about 23 feet from the TV. The performance of the remote control may be affected by bright light. The product colour and shape may vary depending on the model.

: Performs the same function as the ENTER

key of the directional keys. When switching channels with the numeric buttons, and you press the channel number and then the ENTER

key, the channel is immediately switched.

SOURCE: Press to display and select the available video sources.

CH LIST: Displays the Channel List on screen

TOOLS: Use to quickly select frequently used functions.

COLOURS BUTTONS: Use these buttons in the Channel list menus etc.

TV: Selects the TV mode directly.

PRE-CH: Enables you to return to the previous channel you were watching.

: Press to temporarily cut off the sound.

: Press to change channels.

FAV.CH: Press to switch to your favourites channels.

RETURN: Returns to the previous menu

: Teletext mode selection (LIST / FLOF)

: Teletext size selection

Fastext topic selection

: Alternately select Teletext, Double, or Mix.

: Exit from the teletext display

: Teletext next page

: Teletext previous page

: Teletext cancel Installing Batteries in the Remote Control

1. Lift the cover at the back of the remote control upward as shown in the gure.

2. Install two AAA size batteries.

Make sure to match the ‘+’ and ‘–’ ends of the batteries with the diagram inside the compartment.

Replace the cover. Remove the batteries and store them in a cool, dry place if you won’t be using the remote control for a long time. If the remote control doesn’t work, check the following: Is the TV power on? Are the plus and minus ends of the batteries reversed? Are the batteries drained? Is there a power outage or is the power cord unplugged? Is there a special uorescent light or neon sign nearby?

BN68-01981A-00.indb 5 2009-03-02 7:27:25English - 6 OPERATION Viewing the menus Before using the TV, follow the steps below to learn how to navigate the menu in order to select and adjust different functions.

1. Press the MENU button.

The main menu is displayed on the screen. Its left side has icons: Picture, Sound, Channel , Setup, Input, Support.

4. Press the ▲/▼/◄/► button to change the selected items.

Move the cursor and select an item. Select the currently selected item. Conrm the setting. RETURN

Exit the on-screen menu. Example: Setting the TV’s Brightness in the Picture Menu Adjusting the Brightness to 80

button to select Picture.

3. Press the ▲ or ▼ button to select Brightness.

5. Press the ◄ or ► button until the brightness becomes 80.

menu language. is displayed.

Select the appropriate language by pressing the ▲ or ▼ button. Press the ENTER

button to conrm your choice.

button. We recommend setting the TV to Home Use mode for the best picture in your home environment. Store Demo mode is only intended for use in retail environments. If the unit is accidentally set to Store Demo mode and you want to return to Home Use (Standard): Press the Volume button on the TV. When the volume OSD is displayed, press and hold the MENU button on the TV for 5 seconds.

button to conrm your choice.

. Press the ▲ or ▼ button to select the channel source to memorize. Press the ENTER

button to select Start. Digital & Analogue: Digital and Analogue channels. Digital: Digital channels. Analogue: Analogue channels. When setting the antenna source to Cable, a step appears allowing you to set a value for the digital channel search. For more information, refer to Channel → Auto Store. The channel search will start and end automatically. Press the ENTER

button at any time to interrupt the memorization process. After all the available channels are stored, the message Set the Clock Mode. is displayed.

button. If you select Manual, Set current date and time is displayed. If you have received a digital signal, the time will be set automatically. If not, select Manual to set the clock. (refer to page 18)

8. The connection method to provide the best quality HD is offered. After conrming the method, press the ENTER

9. The message Enjoy your viewing is displayed. When you have nished, press the ENTER

button. If you want to reset this feature...

button again to select Plug & Play.

3. Enter your 4 digit PIN number. The default PIN number of a new TV set is ‘0-0-0-0’. (refer to page 19)

If you want to change PIN number, use the Change PIN function. The Plug & Play feature is only available in the TV mode.

Plug & Play You can set the menu language.Menu Language : English ► Enter BN68-01981A-00.indb 7 2009-03-02 7:27:25English - 8 CHANNEL CONTROL ConguringtheChannelMenu Country The PIN number input screen appears. Enter your 4 digit PIN number. Analogue Channel You can change the country for analogue channels. Digital Channel You can change the country for digital channels. Auto Store You can scan for the frequency ranges available to you (and availability depends on your country). Automatically allocated programme numbers may not correspond to actual or desired programme numbers. If a channel is locked using the Child Lock function, the PIN input window appears. Air / Cable Antenna source to memorize Digital & Analogue: Digital and Analogue channels. Digital: Digital channels. Analogue: Analogue channels. WhenselectingCable→Digital&AnalogueorCable→Digital Provide a value to scan for cable channels. SearchMode→Full/Network/Quick Quick Network ID: Displays the network identication code. Frequency: Displays the frequency for the channel. (Differs in each country) Modulation: Displays available modulation values. Symbol Rate: Displays available symbol rates.

Scans for all channels with active broadcast stations and stores them in the TV’s memory. If you want to stop Auto Store, press the ENTER

button. Manual Store Scans for a channel manually and stores it in the TV’s memory. If a channel is locked using the Child Lock function, the PIN input window appears. Digital Channel Manual store for digital channels. Digital Channel is only available in DTV mode. Channel: Set the Channel number using the ▲, ▼ or number (0~9) buttons. Frequency: Set the frequency using the number buttons. Bandwidth: Set the bandwidth using the ▲, ▼ or number (0~9) buttons. When it has nished, channels are updated in the channel list.

You can also select the channel number directly by pressing the number (0~9) buttons. If there is abnormal sound or no sound, reselect the sound standard required. Search (When you do not know the channel numbers): Press the ▲ or ▼ button to start the search. The tuner scans the frequency range until the rst channel or the channel that you selected is received on the screen. Store (When you store the channel and associated programme number): Set to OK by pressing the ENTER

button. Channel mode P (Programme mode): When completing tuning, the broadcasting stations in your area have been assigned to position numbers from P00 to P99. You can select a channel by entering the position number in this mode. C (Air channel mode): You can select a channel by entering the assigned number to each air broadcasting station in this mode. S (Cable channel mode): You can select a channel by entering the assigned number for each cable channel in this mode. Cable Search Option (depending on the country) Using this function, you can manually add the channel range to be scanned by Full Search mode of the Auto Store function. Frequency (Start ~ Stop): Displays the frequency for the channel. Modulation: Displays available modulation values. Symbol Rate: Displays available symbol rates. Now & Next Guide / Full Guide The EPG (Electronic Programme Guide) information is provided by the broadcasters. Programme entries may appear blank or out of date as a result of the information broadcast on a given channel. The display will dynamically update as soon as new information becomes available. For detailed procedures on using Now & Next Guide and Full Guide, refer to the descriptions on page 10. You can also display the guide menu simply by pressing the GUIDE button. (To congure the Default Guide, refer to the descriptions.) Now & Next Guide For the six channels indicated in the left-hand column, displays the Current programme and the Next programme information. Full Guide Displays the programme information as time ordered One hour segments. T wo hours of programme information is displayed which may be scrolled forwards or backwards in time. DefaultGuide→Now&NextGuide/FullGuide You can decide whether to display either the Now & Next Guide or the Full Guide when the GUIDE button on the remote control is pressed. Channel List For detailed procedures on using the Channel List,refer to the ‘Managing Channels’ instructions. You can select these options by simply pressing the CH LIST button on the remote control. Channel Mode When press the P

button, Channels will be switched within the selected channel list. Added Ch. Channels will be switched within the memorized channel list. Favourite Ch. Channels will be switched within the favourite channel list. Fine Tune If the reception is clear, you do not have to ne tune the channel, as this is done automatically during the search and store operation. If the signal is weak or distorted, you may have to ne tune the channel manually. Fine tuned channels that have been saved are marked with an asterisk “*” on the right-hand side of the channel number in the channel banner. To reset the ne-tuning, select Reset by pressing the ▲ or ▼ button and then press the ENTER

button. Only Analogue TV channels can be ne tuned.

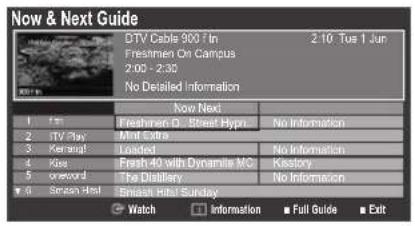

BN68-01981A-00.indb 9 2009-03-02 7:27:25English - 10 Using the Now & Next Guide / Full Guide To... Then... Watch a programme in the EPG list Select a programme by pressing the ▲, ▼, ◄, ► button. Exit the guide Press the blue button If the next programme is selected, it is scheduled with the clock icon displayed. If the ENTER

button is pressed again, press the ◄, ► button to select Cancel Schedules, the scheduling is cancelled with the clock icon gone. View programme information Select a programme of your choice by pressing the ▲, ▼, ◄, ► button. Then press the INFO button when the programme of your choice is highlighted. The programme title is on the upper part of the screen centre. Please click on INFO button for detailed information. Channel Number, Running Time, Status Bar, Parental Level, Video Quality Information (HD / SD), Sound Modes, Subtitle or Teletext, languages of Subtitle or Teletext and brief summary of the highlighted programme are included on the detailed information. “...” will be appeared if the summary is long. Toggle between the Now & Next Guide and Full Guide Press the red button repeatedly. In Full Guide Scrolls backwards quickly (24 hours). Scrolls forwards quickly (24 hours). Press the green button repeatedly. Press the yellow button repeatedly. Managing Channels Using this menu, you can Add / Delete or set Favourite channels and use the programme guide for digital broadcasts. All Channels Shows all currently available channels. Added Channels Shows all added channels. Favourites Shows all favourite channels. To select the Favourites channels you have set up, press the FAV.CH button on the remote control. Programmed Shows all current reserved programmes. Select a channel in the All Channels, Added Channels or Favourites screen by pressing the ▲ / ▼ buttons, and pressing the ENTER

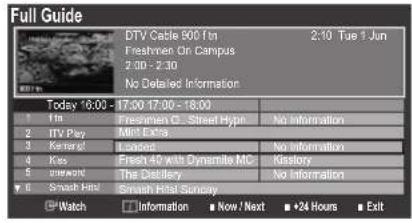

button. Then you can watch the selected channel. Using the Colour buttons with the Channel List Red (Channel Type): Toggle between your TV, Radio, Data / Other and All. Green (Zoom): Enlarges or shrinks a channel number. Yellow (Select): Selects multiple channel lists. You can perform the add / delete, add to Favourites / delete from Favourites, or lock / unlock function for multiple channels at the same time. Select the required channels and press the yellow button to set all the selected channels at the same time. The

mark appears to the left of the selected channels. TOOLS (Tools): Displays the Delete (or Add), Add to Favourite (or Delete from Favourite), Lock (or Unlock), Timer Viewing, Edit Channel Name, Sort, Edit Channel Number, Select All, Deselect All or Auto Store menu. (The Options menus may differ depending on the situation.)

: A channel selected by pressing the yellow button.

: A channel set as a Favourite.

: A programme currently being broadcast.

: A reserved programme Channel List Option Menu (in All Channels / Added Channels / Favourites) Press the TOOLS button to use the option menu. Option menu items may differ depending on the channel status. Add / Delete You can delete or add a channel to display the channels you want. All deleted channels will be shown on All Channels menu. A gray-coloured channel indicates the channel has been deleted. The Add menu only appears for deleted channels. You can also delete a channel from the Added Channels or Favourite menu in the same manner. Add to Favourite / Delete from Favourite You can set channels you watch frequently as favourites. Press the TOOLS button to display the Tools menu. You can also set the add to (or delete from) Favourite by selecting Tools→Add toFavourite (or Delete from Favourite). The ‘

’ symbol will be displayed and the channel will be set as a favourite. All favourite channels will be shown on Favourite menu. Timer Viewing If you reserve a programme you want to watch, the channel is automatically switched to the reserved channel in the Channel List; even when you are watching another channel. To reserve a programme, set the current time rst. (See page 18.) Only memorized channels can be reserved. You can set the channel, day, month, year, hour and minute directly by pressing the number buttons on the remote control. Reserving a programme will be shown in the Programmed menu. Digital Programme Guide and Viewing Reservation When a digital channel is selected, and you press the ► button, the Programme Guide for the channel appears. You can reserve a programme according to the procedures described above. Edit Channel Name (analogue channels only) Channels can labelled so that their call letters appear whenever the channel is selected. The names of digital broadcasting channels are automatically assigned and cannot be labelled. Edit Channel Number (digital channels only) You can also edit the channel number by pressing the number buttons on the remote control. Sort (analogue channels only) This operation allows you to change the programme numbers of the stored channels. This operation may be necessary after using the auto store. Lock / Unlock You can lock a channel so that the channel cannot be selected and viewed. This function is available only when the Child Lock is set to On. (see page 19) The PIN number input screen appears. Enter your 4 digit PIN number. The default PIN number of a new TV set is “0-0-0-0”. You can change the PIN, by selecting Change PIN from the menu. The ‘

’ symbol will be displayed and the channel will be locked. Select All / Deselect All Select All: You can select all the channels in the channel list. Deselect All: You can deselect all the selected channels. You can only select Deselect All when there is a selected channel. Auto Store For further details on setting up options, refer to page 8. If a channel is locked using the Child Lock function, the PIN input window appears.

824 UKTV Gold825 UKTV style

BN68-01981A-00.indb 11 2009-03-02 7:27:26English - 12 Channel List Option Menu (in Programmed ) You can view, modify or delete a reservation. Press the TOOLS button to use the option menu. Change Info Select to change a viewing reservation. Cancel Schedules Select to cancel a viewing reservation. Information Select to view a viewing reservation. (You can also change the reservation information.) Select All Select all reserved programmes.

PICTURE CONTROL ConguringthePictureMenu Mode You can select the type of picture which best corresponds to your viewing requirements. Press the TOOLS button to display the Tools menu. You can also set the picture mode by selecting Tools→PictureMode. Dynamic Selects the picture for high-denition in a bright room. Standard Selects the picture for the optimum display in a normal environment. Movie Selects the picture for viewing movies in a dark room. Backlight / Contrast / Brightness / Sharpness / Colour / Tint(G/R) Your television has several setting options that allow you to control the picture quality. Backlight: Adjusts the brightness of LCD back light. Contrast: Adjusts the contrast level of the picture. Brightness: Adjusts the brightness level of the picture Sharpness: Adjusts the edge denition of the picture. Colour: Adjusts colour saturation of the picture. Tint(G/R): Adjusts the colour tint of the picture. Select a picture mode to be adjusted rst. The adjusted values are saved for each picture mode. When you make changes to Backlight, Contrast, Brightness, Sharpness, Colour or Tint(G/R), the OSD will be adjusted accordingly. In analogue TV, Ext., AV modes of the PAL system, you cannot use the Tint(G/R) Function. In PC mode, you can only make changes to Backlight, Contrast and Brightness. Settings can be adjusted and stored for each external device you have connected to an input of the TV. The energy consumed during use can be signicantly reduced if the brightness level of the picture is reduced, which will reduce the overall running cost. Advanced Settings Samsung’s new TVs allow you to make even more precise picture settings than previous models. See below to adjust detailed picture settings. Advanced Settings is available in Standard or Movie mode. In PC mode, you can only make changes to Gamma and White Balance from among the Advanced Settings items. BlackTone→Off/Dark/Darker/Darkest You can select the black level on the screen to adjust the screen depth.

1 / 1 / 200913:59 5 TV1 Quincy, M.E18:59 2 TV3 The Equalizer20:59 2 TV3 McMillan & WifeProgrammedAll■Zoom■Select Tools InformationChange InfoCancel SchedulesInformationSelect AllMode :Standard ►Backlight : 7 Contrast : 95Brightness : 45Sharpness : 50Colour : 50Tint (G / R) : G50 / R50PictureColour : 50Tint (G / R) : G50 / R50AdvancedSettings ►Picture OptionsPicture ResetPicture BN68-01981A-00.indb 12 2009-03-02 7:27:26English - 13 DynamicContrast→Off/Low/Medium/High You can adjust the screen contrast so that the optimal contrast is provided. Gamma You can adjust the Primary Colour (Red, Green, Blue) Intensity. Colour Space Colour Space is a colour matrix composed of red, green and blue colours. Select your favourite Colour Space to experience the most natural colour. Native: Native Colour Space offers deep and rich colour tone. Auto: Auto Colour Space automatically adjusts to the most natural colour tone based on programme sources. White Balance You can adjust the colour temperature for more natural picture colours. R-Offset / G-Offset / B-Offset / R-Gain / G-Gain / B-Gain: You can adjust the Colour ‘temperature’ in the light areas by changing the values of R, G, B. Recommended for advanced users only. Reset: The previously adjusted white balance will be reset to the factory defaults. Flesh Tone You can emphasize the pink ‘esh tone’ in the picture. Changing the adjustment value will refresh the adjusted screen. EdgeEnhancement→Off/On You can emphasize object boundaries in the picture. Picture Options In PC mode, you can only make changes to the Colour Tone and Size from among the items in Picture Options. ColourTone→Cool/Normal/Warm1/Warm2 You can select the most comfortable colour tone to your eyes. Settings can be adjusted and stored for each external device you have connected to an input of the TV. Warm1 or Warm2 is only activated when the picture mode is Movie. Size You can select the picture size which best corresponds to your viewing requirements. Press the TOOLS button to display the Tools menu. You can also set the size by selecting Tools→PictureSize. Auto Wide: Automatically adjusts the picture size to the 16:9 aspect ratio. 16:9: Adjusts the picture size to 16:9 appropriate for DVDs or wide broadcasting. Wide Zoom: Magnify the size of the picture more than 4:3. Zoom: Magnies the 16:9 wide picture (in the vertical direction) to t the screen size. 4:3: This is the default setting for a video movie or normal broadcasting. Screen Fit: Use the function to see the full image without any cut-off when HDMI (720p / 1080i) or Component (1080i) signals are input. Depending on the input source, the picture size options may vary. The items available may differ depending on the selected mode. In PC Mode, only 16:9 and 4:3 mode can be adjusted. Settings can be adjusted and stored for each external device you have connected to an input of the TV. Temporary image retention may occur when viewing a static image on the set for more than two hours. Wide Zoom: Press the ► button to Select Position, then press the ENTER

button. Press the ▲ or ▼ button to move the picture up and down. Then press the ENTER

button. You can initialize the setting. If you use the Screen Fit function with HDMI 720p input, 1 line will be cut at the top, bottom, left and right as in the Overscan function.

BN68-01981A-00.indb 13 2009-03-02 7:27:26English - 14 ScreenMode→16:9/WideZoom/Zoom/4:3 When setting the picture size to Auto Wide in a 16:9 wide TV, you can determine the picture size you want to see the 4:3 WSS (Wide Screen Service) image or nothing. Each individual European country requires dif ferent picture size so this function is intended for users to select it. 16:9: Sets the picture to 16:9 wide mode. Wide Zoom: Magnify the size of the picture more than 4:3. Zoom: Magnify the size of the picture vertically on screen. 4:3: Sets the picture to 4:3 normal mode. This function is available in Auto Wide mode. This function is not available in PC, Component or HDMI mode. DigitalNR→Off/Low/Medium/High/Auto If the broadcast signal received by your TV is weak, you can activate the Digital Noise Reduction feature to help reduce any static and ghosting that may appear on the screen. When the signal is weak, select one of the other options until the best picture is displayed. HDMIBlackLevel→Normal/Low You can directly select the black level on the screen to adjust the screen depth. This function is active only when the external input connects to HDMI (RGB signals). FilmMode→Off/Auto The TV can be set to automatically sense and process lm signals from all sources and adjust the picture for optimum quality. Film Mode is supported in TV, AV, COMPONENT (480i / 1080i) and HDMI (480i / 1080i). PictureReset→ResetPictureMode/Cancel Resets all picture settings to the default values. Select a picture mode to be reset. The reset is performed for each picture mode. Reset Picture Mode: Current picture values return to default settings. Using Your TV as a Computer (PC) Display Setting Up Your PC Software (Based on Windows XP) The Windows display-settings for a typical computer are shown below. The actual screens on your PC will probably be different, depending upon your particular version of Windows and your particular video card. However, even if your actual screens look different, the same basic set-up information will apply in almost all cases. (If not, contact your computer manufacturer or Samsung Dealer.)

When the control panel window appears, click on ‘Appearance and Themes’ and a display dialog-box will appear.

3. When the control panel window appears, click on ‘Display’ and a display dialogbox will appear.

Navigate to the ‘Settings’ tab on the display dialog-box. The correct size setting (resolution): Optimum-1360 X 768 pixels If a vertical-frequency option exists on your display settings dialog box, the correct value is ‘60’ or ‘60 Hz’. Otherwise, just click ‘OK’ and exit the dialog box.

BN68-01981A-00.indb 14 2009-03-02 7:27:26English - 15 Display Modes Both screen position and size will vary depending on the type of PC monitor and its resolution. The resolutions in the table are recommended. D-Sub and HDMI/DVI Input Mode Resolution Horizontal Frequency (KHz) Vertical Frequency (Hz) Pixel Clock Frequency (MHz) Sync Polarity (H / V) IBM 640 x 350 31.469 70.086 25.175 +/- 720 x 400 31.469 70.087 28.322 -/+ MAC 640 x 480 35.000 66.667 30.240 -/- 832 x 624 49.726 74.551 57.284 -/- VESA CVT 720 x 576 35.910 59.950 32.750 -/+ 1280 x 720 44.772 59.855 74.500 -/+ 1280 x 720 56.456 74.777 95.750 -/+ VESA DMT 640 x 480 31.469 59.940 25.175 -/- 640 x 480 37.500 75.000 31.500 -/- 640 x 480 37.861 72.809 31.500 -/- 800 x 600 37.879 60.317 40.000 +/+ 800 x 600 46.875 75.000 49.500 +/+ 800 x 600 48.077 72.188 50.000 +/+ 1024 x 768 48.363 60.004 65.000 -/- 1024 x 768 56.476 70.069 75.000 -/- 1024 x 768 60.023 75.029 78.750 +/+ 1360 x 768 47.712 60.015 85.500 +/+ VESA GTF 1280 x 720 52.500 70.000 89.040 -/+ When using an HDMI / DVI cable connection, you must use the HDMI IN 1 (DVI) jack. The interlace mode is not supported. The set might operate abnormally if a non-standard video format is selected. Separate and Composite modes are supported. SOG is not supported. Setting up the TV with your PC Preset: Press the SOURCE button to select PC mode. Auto Adjustment Auto Adjustment allows the PC screen of set to self-adjust to the incoming PC video signal. The values of ne, coarse and position are adjusted automatically. This function does not work in DVI-HDMI mode. Press the TOOLS button to display the Tools menu. You can also set the Auto Adjustment by selecting Tools→Auto Adjustment. Screen Coarse / Fine The purpose of picture quality adjustment is to remove or reduce picture noise. If the noise is not removed by Fine-tuning alone, then adjust the frequency as best as possible (Coarse) and Fine-tune again. After the noise has been reduced, readjust the picture so that it is aligned on the centre of screen. PC Position Adjust the PC’s screen positioning if it does not t the TV screen. Press the ▲ or ▼ button to adjusting the Vertical-Position. Press the ◄ or ► button to adjust the Horizontal-Position. Image Reset You can replace all image settings with the factory default values.

Brightness : 45 Sharpness : 50AutoAdjustment ►Screen Advanced Settings Picture Options Picture Reset Picture BN68-01981A-00.indb 15 2009-03-02 7:27:26English - 16 SOUND CONTROL ConguringtheSoundMenu Mode→Standard/Music/Movie/ClearVoice/Custom You can select a sound mode to suit your personal preferences. Press the TOOLS button to display the Tools menu. You can also congure the sound mode by selecting Tools→SoundMode. Standard Selects the normal sound mode. Music Emphasizes music over voices. Movie Provides the best sound for movies. Clear Voice Emphasizes voice over other sounds. Custom Recalls your customized sound settings. Equalizer The sound settings can be adjusted to suit your personal preferences. Mode You can select a sound mode to suit your personal preferences. Balance Controls the balance between the right and left speakers. 100Hz / 300Hz / 1KHz / 3KHz / 10KHz (Bandwidth Adjustment) To adjust the level of different bandwidth frequencies Reset Resets the equalizer settings to the default values. SRSTruSurroundHD→Off/On SRS TruSurround HD is a patented SRS technology that solves the problem of playing 5.1 multichannel content over two speakers. TruSurround delivers a compelling, virtual surround sound experience through any two-speaker playback system, including internal television speakers. It is fully compatible with all multichannel formats. Press the TOOLS button to display the Tools menu. You can also set the SRS TruSurround HD by selecting Tools→SRSTS HD. Audio Language (digital channels only) You can change the default value for audio languages. Displays the language information for the incoming stream. You can only select the language among the actual languages being broadcast. AudioFormat→MPEG/DolbyDigital(digital channels only) When sound is emitted from both the main speaker and the audio receiver, a sound echo may occur due to the decoding speed difference between the main speaker and the audio receiver. In this case, use the TV Speaker function. The Audio Format appears according to the broadcasting signal.

Mode :Custom ►EqualizerSRS TruSurround HD : OffAudio Language : - - -Audio Format : - - -Audio DescriptionAuto Volume : OffSound BN68-01981A-00.indb 16 2009-03-02 7:27:27English - 17 Audio Description (digital channels only) This is an auxiliary audio function that provides an additional audio track for visually challenged persons. This function handles the Audio Stream for the AD (Audio Description), when it is sent along with the Main audio from the broadcaster. Users can turn the Audio Description On or Off and control the volume. AudioDescription→Off/On Turn the audio description function on or off. Volume You can adjust the audio description volume. Volume is active when Audio Description is set to On. AutoVolume→Off/On Each broadcasting station has its own signal conditions, and so it is not easy to adjust the volume every time the channel is changed. This feature lets you automatically adjust the volume of the desired channel by lowering the sound output when the modulation signal is high or by raising the sound output when the modulation signal is low. SpeakerSelect→ExternalSpeaker/TVSpeaker If you want to hear the sound through separate speakers, cancel the internal amplier. The volume and MUTE buttons do not operate when the Speaker Select is set to External Speaker. If you select External Speaker in the Speaker Select menu, the sound settings will be limited. SoundReset→ResetAll/ResetSoundMode/Cancel You can restore the Sound settings to the factory defaults. Selecting the Sound Mode You can set the sound mode in the Tools menu. When you set to Dual l ll, the current sound mode is displayed on the screen. Audio Type Dual 1 / 2 Default A2 Stereo Mono MONO Automatic change Stereo STEREO↔MONO Dual DUAL 1↔DUAL2 DUAL 1 NICAM Stereo Mono MONO Automatic change Stereo MONO↔STEREO Dual MONO↔DUAL

DUAL 2 DUAL 1 If the stereo signal is weak and an automatic switching occurs, then switch to the mono. This function is only activated in stereo sound signal. It is deactivated in mono sound signal. This function is only available in TV mode.

BN68-01981A-00.indb 17 2009-03-02 7:27:27English - 18 SETUP ConguringtheSetupMenu Language You can set the menu language. Time Clock Setting the clock is necessary in order to use the various timer features of the TV

The current time will appear every time you press the INFO button. If you disconnect the power cord, you have to set the clock again. Clock Mode You can set up the current time manually or automatically. Auto: Set the current time automatically using the time from the digital broadcast. Manual: Set the current time to a manually specied time. Depending on the broadcast station and signal, the auto time may not be set correctly

If this occurs, set the time manually. The Antenna or cable must be connected in order to set the time automatically. Clock Set You can set the current time manually. Set up this item when you have set Clock Mode to Manual. You can set the day, month, year, hour and minute directly by pressing the number buttons on the remote control. SleepTimer→Off/30min/60min/90min/120min/150min/180min The sleep timer automatically shuts off the TV after a preset time (30, 60, 90, 120, 150 and 180 minutes). The TV automatically switches to standby mode when the timer reaches 0. To cancel the Sleep Timer function, select Off. Press the TOOLS button to display the Tools menu. You can also set the sleep timer by selecting Tools→SleepTimer. Timer 1 / Timer 2 / Timer 3 Three different on / off timer settings can be made. You must set the clock rst. On Time: Set the hour, minute, and activate / inactivate. (To activate the timer with the setting you’ve chosen, set to Activate.) Off Time: Set the hour, minute, and activate / inactivate. (To activate the timer with the setting you’ve chosen, set to Activate.) Volume: Select the desired turn on volume level. Antenna: Select Air or Cable. Channel: Select the desired channel. Repeat: Select Once, Everyday, Mon~Fri, Mon~Sat, Sat~Sun, or Manual. When Manual is selected, press the ► button to select the desired day of the week. Press the ENTER

button over the desired day and the

mark will appear. You can set the hour, minute and channel by pressing the number buttons on the remote control. Auto Power Off When you set the timer On, the television will eventually turn off, if no controls are operated for 3 hours after the TV was turned on by the timer. This function is only available in timer On mode and prevents overheating, which may occur if a TV is on for too long time. GameMode→Off/On When connecting to a game console such as PlayStation™ or Xbox™, you can enjoy a more realistic gaming experience by selecting the game menu. To disconnect the game console and connect another external device, cancel game mode in the setup menu. If you display the TV menu in Game Mode, the screen shakes slightly. Game Mode is not available in regular TV and PC mode. If Game Mode is On: Picture mode is automatically changed to Standard and users cannot change the mode. Sound mode is automatically changed to Custom and users cannot change the mode. Adjust the sound using the equalizer.

Plug & Play Language :English ► Time Game Mode : offChild Lock : On Change PINParental LockSubtitleSetupSubtitleTeletext Language : - - -Preference ►Digital Text : Enable Melody : MediumGame Mode : OffEnergy Saving : OffCommon InterfaceSetup BN68-01981A-00.indb 18 2009-03-02 7:27:27English - 19 ChildLock→Off/On This feature allows you to prevent unauthorized users, such as children, from watching unsuitable programme by muting out video and audio. Before the setup screen appears, the PIN number input screen appears. Enter your 4 digit PIN number

The default PIN number of a new TV set is “0-0-0-0”. You can change the PIN by selecting Change PIN from the menu. You can lock some channels in Channel List. (refer to page 11) Child Lock is available only in TV mode. Change PIN You can change your personal ID number that is required to set up the TV. Before the setup screen appears, the PIN number input screen appears. Enter your 4 digit PIN number

The default PIN number of a new TV set is “0-0-0-0”. If you forget the PIN code, press the remote control buttons in the following sequence, which resets the PIN to 0-0-0-0: POWER (Off), MUTE, 8, 2, 4, POWER (On). Parental Lock This feature allows you to prevent unauthorized users, such as children, from watching unsuitable programme by a 4-digit PIN (Personal Identication Number) code that is dened by the user. The Parental Rating item differs depending on the country. Before the setup screen appears, the PIN number input screen appears. Enter your 4 digit PIN number

The default PIN number of a new TV set is “0-0-0-0”. You can change the PIN by selecting Change PIN from the menu. When the parental ratings are set, the

symbol is displayed. Allow All: Press to unlock all TV ratings. Block All: Press to lock all TV ratings. Subtitle You can activate and deactivate the subtitles. Use this menu to set the Subtitle Mode. Normal under the menu is the basic subtitle and Hard of hearing is the subtitle for a hearing-impaired person. Subtitle→Off/On : Switches subtitles on or off. Mode→Normal/Hardofhearing: Sets the subtitle mode. Subtitle Language: Set the subtitle language. If the programme you are watching does not support the Hard of hearing function, Normal automatically activates even though Hard of hearing mode is selected. English is the default in cases where the selected language is unavailable in the broadcast. You can select these options simply by pressing the SUBT. button on the remote control. Teletext Language You can set the Teletext language by selecting the language type. English is the default in cases where the selected language is unavailable in the broadcast. Preference Primary Audio Language / Secondary Audio Language / Primary Subtitle Language / Secondary Subtitle Language / Primary Teletext Language / Secondary Teletext Language Using this feature, users can select one of the languages. The language selected here is the default when the user selects a channel. If you change the language setting, the Subtitle Language, Audio Language, and the Teletext Language of the Language menu are automatically changed to the selected language. The Subtitle Language, Audio Language, and the Teletext Language of the Language menu show a list of languages supported by the current channel and the selection is highlighted. If you change this language setting, the new selection is only valid for the current channel. The changed setting does not change the setting of the Primary Subtitle Language, Primary Audio Language, or the Primary Teletext Language of the Preference menu. DigitalText→Disable/Enable (UK only) If the programme is broadcast with digital text, this feature is enabled. MHEG (Multimedia and Hypermedia Information Coding Experts Group) An International standard for data encoding systems used in multimedia and hypermedia. This is at a higher level than the MPEG system which includes data-linking hypermedia such as still images, character service, animation, graphic and video les as well as multimedia data. MHEG is user runtime interaction technology and is being applied to various elds including VOD (Video-On-Demand), ITV (Interactive TV), EC (Electronic Commerce), tele-education, tele-conferencing, digital libraries and network games.

BN68-01981A-00.indb 19 2009-03-02 7:27:27English - 20 Melody → Off / Low / Medium / High A melody sound can be set to come on when the TV is powered On or Off. The Melody does not play When no sound is output from the TV because the MUTE button has been pressed. When no sound is output from the TV because the (–) Volume button has been pressed. When the TV is turned off by Sleep Timer function. Energy Saving → Off / Low / Medium / High / Auto This feature adjusts the brightness of the TV in order to reduce power consumption. When watching TV at night, set the Energy Saving mode option to High to reduce eye fatigue as well as power consumption. Press the TOOLS button to display the Tools menu. You can also set the Energy Saving option by selecting Tools → Energy Saving. Common Interface CI Menu This enables the user to select from the CAM-provided menu. Select the CI Menu based on the menu PC Card. Application Info. This contains information on CAM inserted in the CI slot and displays it. The Application Info inserting is about the CI CARD. You can install the CAM anytime whether the TV is ON or OFF.

Purchase the CI CAM module by visiting your nearest dealer or by phone.

Insert the CI CARD into the CAM in the direction of the arrow until it ts.

Insert the CAM with the CI CARD installed into the common interface slot. (Insert the CAM in the direction of the arrow, right up to the end so that it is parallel with the slot.)

Check if you can see a picture on a scrambled signal channel. CAM is not supported in some countries and regions, check with your authorized dealer.

INPUT / SUPPORT Conguring the Input Menu Source List Use to select TV or other external input sources such as DVD / Blu-ray players / Satellite receivers (Set-Top Box) connected to the TV. Use to select the input source of your choice. TV / Ext. / AV / Component / PC / HDMI1/DVI / HDMI 2 / HDMI 3 You can choose only those external devices that are connected to the TV. In the Source List, connected inputs will be highlighted and sorted to the top. Inputs that are not connected will be sorted to the bottom. TOOLS (Tools): Displays the Edit Name and Information menus. Press the SOURCE button on the remote control to view an external signal source. TV mode can be selected by pressing the TV button. Edit Name Name the device connected to the input jacks to make your input source selection easier. VCR / DVD / Cable STB / Satellite STB / PVR STB / AV Receiver / Game / Camcorder / PC / DVI PC / DVI / TV / IPTV / Blu- ray / HD DVD / DMA

Source List Edit NameInput BN68-01981A-01Eng.indd 20 2009-03-04 1:26:04English - 21 ConguringtheSupportMenu Self Diagnosis Picture Test If you think you have a picture problem, perform the picture test. Check the colour pattern on the screen to see if the problem still exists. Yes: If the test pattern does not appear or there is noise in the test pattern, select Yes. There may be a problem with the TV. Contact Samsung’s call centre for assistance. No: If the test pattern is properly displayed, select No. There may be a problem with your external equipment. Please check your connections. If the problem still persists, refer to the external device’s user manual. Sound Test If you think you have a sound problem, please perform the sound test. Y ou can check the sound by playing a built-in melody sound through the TV. ‘Does the problem still exist with this sound test?’ appears on the screen. If you hear no sound from the TV’s speakers, before performing the sound test, make sure Speaker Select is set to TV speaker in the Sound menu. The melody will be heard during the test even if Speaker Select is set to External Speaker or the sound is muted by pressing the MUTE button. Yes: If during the sound test you can hear sound only from one speaker or not at all, select Yes. There may be a problem with the TV. Contact Samsung’s call centre for assistance. No: If you can hear sound from the speakers, select No. There may be a problem with your external equipment. Please check your connections. If the problem still persists, refer to the external device’s user manual. Signal Information (digital channels only) Unlike analogue channels, which can vary in reception quality from ‘snowy’ to clear , digital (HDTV) channels have either perfect reception quality or you will not receive them at all. So, unlike analogue channels, you cannot ne tune a digital channel. You can, however, adjust your antenna to improve the reception of available digital channels. If the signal strength meter indicates that the signal is weak, physically adjust your antenna to increase the signal strength. Continue to adjust the antenna until you nd the best position with the strongest signal. Software Upgrade To keep your product up-to-date with new Digital Television features then software upgrades are periodically / broadcast as part of the normal Television signal. It will automatically detect these signals and display the software upgrade banner. You are given the option to install the upgrade. BY USB Insert a USB drive containing the rmware upgrade into TV. Please be careful to not disconnect the power or remove the USB drive while upgrades are being applied. The TV will turn off and turn on automatically after completing the rmware upgrade. Please check the rmware version after the update is completed. When software is upgraded, video and audio settings you have made will return to their default (factory) settings. We recommend you write down your settings so that you can easily reset them after the upgrade. BY Channel Upgrades the software using the broadcasting signal. Standby Mode Upgrade To continue software upgrade with master power on, Select On by pressing the ▲ or ▼ button. 45 minutes after entering standby mode, a manual upgrade is automatically conducted. Since the power of the unit is turned on internally , the screen may be on slightly for the LCD product. This phenomenon may continue for more than 1 hour until the software upgrade is completed. Alternative Software To display the software version information. HD Connection Guide This menu presents the connection method that provides the optimal quality for the HD TV. Refer to this information when connecting external devices to the TV. Contact Samsung View this information when your TV does not work properly or when you want to upgrade the software. You can view the information regarding the call centre, product and software le download method.

Teletext Feature Most television stations provide written information services via Teletext. The index page of the Teletext service gives you information on how to use the service. In addition, you can select various options to suit your requirements by using the remote control buttons. For Teletext information to be displayed correctly, channel reception must be stable. Otherwise, information may be missing or some pages may not be displayed. You can change Teletext pages by pressing the numeric buttons on the remote control.

(mode) Press to select the Teletext mode (LIST/FLOF). If you press it in the LIST mode, it switches into the List save mode. In the List save mode, you can save Teletext page into list using the

(store) Used to store the Teletext pages.

(size) Press to display the double-size letters in the upper half of the screen. For lower half of the screen, press it again. To display normal screen, press it once again.

(reveal) Used to display the hidden text (answers to quiz games, for example). To display normal screen, press it again.

Colour buttons (red/green/yellow/ blue) If the FASTEXT system is used by a broadcasting company, the different topics covered on a Teletext page are colour-coded and can be selected by pressing the coloured buttons. Press one of them corresponding to the required. The page is displayed with other coloured information that can be selected in the same way. To display the previous or next page, press the corresponding coloured button.

(Teletext on/mix) Press to activate Teletext mode after selecting the channel providing the Teletext service. Press it twice to overlap the Teletext with the current broadcasting screen.

(exit) Exit from the Teletext display.

(hold) Used to hold the display on a given page if the selected page is linked with several secondary pages which follow on automatically. To resume, press it again.

(index) Used to display the index (contents) page at any time while you are viewing Teletext.

(cancel) Used to display the broadcast when searching for a page. The Teletext pages are organized according to six categories: Part Contents A Selected page number. B Broadcasting channel identity. C Current page number or search indications. D Date and time. E Text. F Status information. FASTEXT information.

BN68-01981A-00.indb 22 2009-03-02 7:27:28English - 23 Teletext information is often divided between several pages displayed in sequence, which can be accessed by: Entering the page number Selecting a title in a list Selecting a coloured heading (FASTEXT system) Teletext level supported by the TV is version 2.5 which is capable of displaying additional graphics or text. Depending upon the transmission, blank side panels can occur when displaying T eletext. In these cases, additional graphics or text is not transmitted. Older TV’s which do not support version 2.5 are not capable of displaying any additional graphics or text, regardless of the Teletext transmission. Press the TV button to exit from the Teletext display. Teletext 16:9, picture is 16:9. Installing the Stand Preset: Place the Guide Stand and Cover Neck onto the stand and fasten it using the screws. Applicable to 32 inch model only.

1. Attach your LCD TV to the stand.

Two or more people should carry the TV. Make sure to distinguish between the front and back of the stand when assembling them. To make sure the TV is installed on the stand at a proper level, do not apply excess downward pressure to the upper left of right sides of the TV.

Fasten two screws at position

and then fasten two screw at position

Stand the product up and fasten the screws. If you fasten the screws with the LCD

placed down, it may lean to one side. The stand is installed for models with the screen size of 37 inch and above.

Installing the Wall Mount Kit Wall mount items (sold separately) allow you to mount the TV on the wall. For detailed information on installing the wall mount, see the instructions provided with the Wall Mount items. Contact a technician for assistance when installing the wall mounted bracket. Samsung Electronics is not responsible for any damage to the product or injury to yourself or others if you elect to install the TV on your own. Do not install your Wall Mount Kit while your TV is turned on. It may result in personal injury due to electric shock. Remove the stand and cover the bottom hole with a cap and fasten with two screws.

Using the Anti-Theft Kensington Lock The Kensington Lock is a device used to physically x the system when using it in a public place. The appearance and locking method may differ from the illustration depending on the manufacturer. Refer to the manual provided with the Kensington Lock for proper use. The locking device has to be purchased separately. The location of the Kensington Lock may be different depending on its model.

Insert the locking device into the Kensington slot on the LCD TV (

) and turn it in the locking direction (

3. Fix the Kensington Lock to a desk or a heavy stationary object.

BN68-01981A-00.indb 23 2009-03-02 7:27:28English - 24 Securing the TV to the Wall Caution: Pulling, pushing, or climbing on the TV may cause the TV to fall. In particular, ensure your children do not hang over or destabilize the TV; doing so may cause the TV to tip over, causing serious injuries or death. Follow all safety precautions provided on the included Safety Flyer. For added stability, install the anti-fall device for safety purposes, as follows. To avoid the TV from falling:

Put the screws into the clamps and rmly fasten them onto the wall. Conrm that the screws have been rmly installed onto the wall. You may need additional material such as an anchor depending on the type of wall. Since the necessary clamps, screws, and string are not supplied, please purchase these additionally.

Remove the screws from the centre back of the TV, put the screws into the clamps, and then fasten the screws onto the TV again. Screws may not be supplied with the product. In this case, please purchase the screws of the following specications. Screw Specications For a 17 ~ 29 Inch LCD TV: M4 X 15 / For a 32 ~ 40 Inch LCD TV: M6 X 15

Connect the clamps xed onto the TV and the clamps xed onto the wall with a strong string and then tie the string tightly. Install the TV near to the wall so that it does not fall backwards. It is safe to connect the string so that the clamps xed on the wall are equal to or lower than the clamps xed on the TV. Untie the string before moving the TV.

Verify all connections are properly secured. Periodically check connections for any sign of fatigue for failure. If you have any doubt about the security of your connections, contact a professional installer.

Wall Wall BN68-01981A-00.indb 24 2009-03-02 7:27:29English - 25 Troubleshooting: Before Contacting Service Personnel No sound or picture Check that the mains lead has been connected to a wall socket. Check that you have pressed the button on your set. Check the picture contrast and brightness settings. Check the volume.

button has been pressed on the remote control. Check the Speaker Select settings.

Screen is black and power indicator light blinks steadily On your computer check; Power, Signal Cable. The TV is using its power management system. Move the computer’s mouse or press any key on the keyboard.

No picture or black and white picture Adjust the colour settings. Check that the broadcast system selected is correct.

Sound and picture interference Try to identify the electrical appliance that is affecting the set and move it further away. Plug your set into a different mains socket.

Blurred or snowy picture, distorted sound Check the direction, location and connections of your aerial. This interference is often due to the use of an indoor aerial.

Remote control malfunctions Replace the remote control batteries. Clean the upper edge of the remote control (transmission window). Check the battery terminals.

‘Check signal cable.’ message is displayed Check that the signal cable is rmly connected to the PC or video sources. Check that the PC or video sources are turned on.

On PC mode, ‘Not Supported Mode.’ message is displayed Check the maximum resolution and the frequency of the video adaptor. Compare these values with the data in the Display Modes.

The damaged picture appears in the corner of the screen If Screen Fit is selected in some external devices, the damaged picture may appear in the corner of the screen. This symptom is caused by external devices, not TV. The ‘Resets all settings to the default values.’ message appears. This appears when you press and hold the EXIT button for a while. The product settings are reset to the factory defaults. You may see small particles if you look closely at the edge of the bezel surrounding the TV screen. This is part of the product’s design and is not a defect. The TFT LCD panel uses a panel consisting of sub pixels (3 133 440) which require sophisticated technology to produce. However, there may be few bright or dark pixels on the screen. These pixels will have no impact on the performance of the product. Specications Model Name LE26B450 LE32B450 Screen Size (Diagonal) 26 inches 32 inches PC Resolution (Optimum) 1360 x 768 @ 60Hz 1360 x 768 @ 60Hz Sound (Output) 10W X 2 10W X 2 Dimensions (WxDxH) Body With stand 670 x 75 x 455 mm 670 x 216 x 495 mm 800 x 85 x 531 mm 800 x 252 x 577 mm Weight With Stand 8 kg 12 kg Environmental Considerations Operating Temperature Operating Humidity Storage Temperature Storage Humidity 10°C to 40°C (50°F to 104°F) 10% to 80%, non-condensing -20°C to 45°C (-4°F to 113°F) 5% to 95%, non-condensing 10°C to 40°C (50°F to 104°F) 10% to 80%, non-condensing -20°C to 45°C (-4°F to 113°F) 5% to 95%, non-condensing Stand Swivel Left / Right 0˚ -20˚ ~ 20˚ Design and specications are subject to change without prior notice. This device is a Class B digital apparatus. For the power supply and Power Consumption, refer to the label attached to the product.
