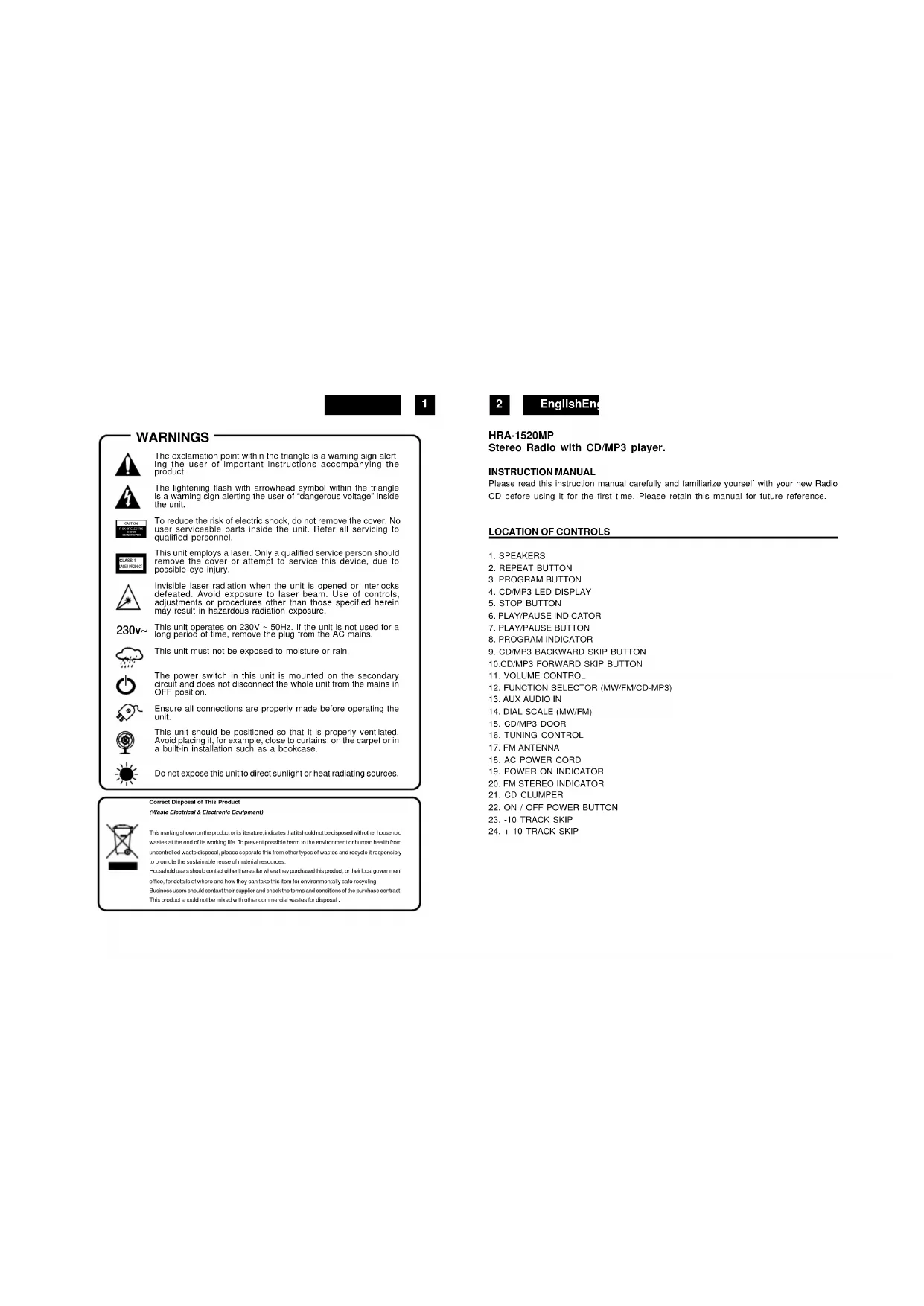

USER MANUAL HRA1520MP ROADSTAR

The exclamation point within the triangle is a warning sign alerting the user of important instructions accompanying the product.

The lightening flash with arrowhead symbol within the triangle is a warning sign alerting the user of "dangerous voltage" inside the unit.

To reduce the risk of electric shock, do not remove the cover. No user serviceable parts inside the unit. Refer all servicing to qualified personnel.

This unit employs a laser. Only a qualified service person should remove the cover or attempt to service this device, due to possible eye injury.

Invisible laser radiation when the unit is opened or Interlocks defeated. Avoid exposure to laser beam. Use of controls, adjustments or procedures other than those specified herein may result in hazardous radiation exposure.

230v~

This unit operates on 230V 50Hz .If the unit is not used for a long period of time, remove the plug from the AC mains.

This unit must not be exposed to moisture or rain.

The power switch in this unit is mounted on the secondary circuit and does not disconnect the whole unit from the mains in OFF position.

Ensure all connections are properly made before operating the unit.

This unit should be positioned so that it is properly ventilated. Avoid placing it, for example, close to curtains, on the carpet or in a built-in installation such as a bookcase.

Do not expose this unit to direct sunlight or heat radiating sources.

Correct Disposal of This Product

(Waste Electrical & Electronic Equipment)

This marking shows on the product or its literature, indicates that I should not be disposed with other household wastes at the end of its working life. To prevent possible waste to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government.

office, for details of where and how they can take this item for environmentally safe recycling.

Businesse users should contact their supplier and check the terms and conditions of the purchase contract.

This product should not be mixed with other commercial wastes for disposal.

EnglishEn

HRA-1520MP

Stereo Radio with CD/MP3 player.

INSTRUCTION MANUAL

Please read this instruction manual carefully and familiarize yourself with your new Radio

CD before using it for the first time. Please retain this manual for future reference.

LOCATION OF CONTROLS

1. SPEAKERS

2. REPEAT BUTTON

3.PROGRAM BUTTON

4.CD/MP3LEDDISPLAY

1. STOP BUTTON

2. PLAY/PAUSE INDICATOR

3. PLAY/PAUSE BUTTON

8.PROGRAM INDICATOR

1. CD/MP3 BACKWARD SKIP BUTTON

10.CD/MP3 FORWARD SKIP BUTTON

1. VOLUME CONTROL

2. FUNCTION SELECTOR (MW/FM/CD-MP3)

13.AUX AUDIO IN

1. DIAL SCALE (MW/FM)

15.CD/MP3DOOR

1. TUNING CONTROL

17.EMANTENNA

1. AC POWER CORD

2. POWER ON INDICATOR

3. FM STEREO INDICATOR

4. CD CLUMPER

5. ON / OFF POWER BUTTON

6. -10 TRACK SKIP

7. • 10 TRACK SKIP

3

CONNECTING TO POWER

Before switching on make sure that the voltage of your electricity supply is the same as that indicated on the rating plate. For your own safety read the following instructions carefully before attempting to connect this unit to the mains.

This unit is designed to operate on AC 230V 50Hz current only. Connecting it to other power sources may damage the unit.

Caution

To prevent electric shock disconnect from the mains before removing cover. No user serviceable parts inside. Refer servicing to qualified service personnel.

Safety Precaution

Do not allow this unit to be exposed to rain or moisture.

Mains Supply: AC230Volts / 50Hz - AC only

This symbol means that this unit is double insulated. An earth connection is not required.

POWER SUPPLY

• Remove the stereo carefully from the box, retaining the packaging for future use.
• Please read this instruction book carefully before operating this unit.

AC Power Operation

• Connect the AC Power Cord to your AC household mains outlet and switch ON.
• Disconnect the power cord form the mains when not in use.

RADIO OPERATION

1. Press the ON/OFF button (22).
2. Select the desired frequency band with the Function/Band Selector (12).
3. Tune to the desired radio station by turning the Tuning control (16).
4. Adjust the Volume control to the desired level.
5. To turn off the radio, press the ON/OFF - button (22).

Antenna

For FM reception there is a built-in FM antenna wire at the rear of the unit. Move the wire around to obtain the best reception.

For MW reception the signals are picked up through a built-in ferrite antenna. Your may have to orient the unit to obtain the best reception.

To remove a disc from its storage case, press down on the centre of the case and lift the disc out, holding it carefully by the edges.

• Fingerprints and dust should be carefully wiped off the disc's recorded surface with a soft cloth. Unlike conventional records, compact discs have no grooves to collect dust and microscopic debris so gently wiping with a soft cloth should remove most particles. Wipe in a straight line from the inside to the outside of the disc. Small dust particles and light stains will have absolutely no effect on reproduction quality.
• Never use chemicals such as record sprays, antistatic sprays, benzine, or thinners to clean compact discs. These chemicals can irreparably damage the disc's surface.
• Discs should be returned to their cases after use. This avoids serious scratches that could cause the Laser pickup to skip.
• Do not expose discs to direct sunlight, high humidity, or high temperatures for extended periods. Long exposure to high temperatures can warp the disc.
• Do not stick paper or write anything with a ballpoint pen on the label side of the disc.

CD/MP3 OPERATION

Loading and Unloading Compact Discs

1. Set the Function Selector (12) to the CD/MP3 Position.
2. Open the CD Door (15).
3. When the door has opened, remove a disc from its case and place it carefully in the compartment with the label side facing up. Locate 3" discs, on the central spindle in the compartment.

PLAY BACK

1. Load a CD into the disc compartment, and close the compartment.
2. Press the Play/Pause button (7). The Play/Pause indicator will light up and disc play will begin from the start of the first track of the disc.
3. At the end of the disc, the unit will switch to stop mode and the play indicator will go out.

Notes: If the disc is deeply scratched, or too dirty, disc play may not start. If an improperly centred disc is played, noise can be heard in the mechanism. The use of such discs should be avoided.

IMPORTANT INFORMATION

This compact disc player has built-in error compensation circuits to correct for minor defects in a disc. There are limits, however, to the amount of correction available. In some cases the CD player may skip some tracks on a disc during disc play. This problem may be caused by defects (such as scratches) on the disc being played, which are too large for the error compensation circuits to handle.

1. To stop CD play, Press the Stop Button (5). Disc play will stop, the Play indicator will go off, and the display will show the total number of tracks on the CD.
2. To temporarily stop disc play (pause mode), press the Pause Button (7). Disc play will stop at the current play position. The track number indicator will begin to flash.
3. To resume disc play, press the Play Button again. The Play indicator will light up.

Starting disc play from the beginning of a particular track

• Press the Forward or Reverse Skip Track Buttons (9) to select the desired track. The number of the selected track will be shown on the CD display (4). Press the Play/Pause Button (7) to start play.

To skip to the next track

1. To skip to the beginning of next track 5 while track 4 is playing.
2. Press the Skip Forward (10) Skip Track Button once to skip to the beginning of next track.

6

EnglishEn

Continuously pressing the Forward Skip Track Button until the desired trade is reached. Once the beginning of the last track is reached the CD player will not advance any further.

To skip back to the previous track on a disc

1. To skip back to the beginning of current track. Press the skip Backward (9) once.
   2 Toskip back to the beginning of previous track.

Press the skip backward (9) Skip Track Button twice.

Continuously pressing the Reverse (9) Skip Track Button makes the CD player skip back through the disc track by track. Once the beginning of the first track is reached, the CD player will not go back any further.

Manual Search

• During playback, pressing the Forward or Reverse Skip / Search buttons will cause the player to scan through the current track. At the end of a track the player will skip to the next track and continue scanning. At the beginning of a track the player will skip to the previous track and continue scanning.
• When the player reaches the end of the final track, or the beginning of the first track, it will stop scanning.

PROGRAMMED DISC PLAY

It is not possible to enter programs during disc play. Press the Stop button (6) first, then follow the instructions below.

Press the PROGRAM button (3). "001" will flash on the LED display and the Program Indicator (8) will light up.
Press the Forward and Reverse Skip Track buttons to select the track to be stored in position1.
Press the PROGRAM button (3). The first program selection is now stored in the program memory 1.
Select the next track to be programmed using the Forward and Reverse Skip Track (10/9) buttons. Press the PROGRAM button (3) to store this track.
Continue entering tracks in this way until all the desired tracks are stored (up to a limit of 20). When the PROGRAM button (3) is pressed to store the 20th track, the display will return to the 1st program location. Press the PROGRAM button (3) to step through the program locations.

Listening to Programmed Tracks

Press the Play Pause button (7). Disc play will start at the beginning of the first programmed track.

To Clear The Program Memory

If the disc is playing, press the Stop button (5) to stop the disc.

Switch the Function (12) selector to MW or FM to clear the Program.

REPEAT DISC PLAY

Use the Repeat button (2) to listen to an entire disc or one track repetitively.

For repeat disc play of all the tracks on the CD/MP3

Press the Stop button (5) first, then press the Repeat button (2) twice. The REPEAT Indicator will light up.

Press the Play/Pause button (7).

The disc will then begin playing through to the end of the last track. At which point it will automatically return to the beginning of the first track. This will continue until the Stop button (5) is pressed.

If the Repeat button (2) is pressed once more, the Repeat indicator will be cancelled, repeat play will end, and normal disc play will resume from that point.

When the last track has finished playing, the CD player will then Stop.

For repeat play of one track

Press the Repeat button (2) once. The REPEAT Indicator will flash.

Select the desired track by pressing the Forward or Reverse Skip Track buttons. The selected track will be shown on the CD display.

Press the Play/Pause button (7).

The selected track will then begin playing through to its end. At which point it will automatically return to the beginning of that track. This will continue until the Stop button (5) is pressed.

If the Repeat button (2) is pressed twice more, the Repeat indicator will go off. Repeat play will end, and normal disc play will resume from that point.

When the selected track has finished playing, the CD play will Stop.

AUX IN FUNCTION

1. You can put the other audio products through the Aux in Jack (13).

EnglishEn

IMPORTANT

Since movement of the CD mechanism and the sensitive circuitry may cause interference to a radio tuner nearby switch this unit off while operating other radio devices.

This product utilizes a laser

Danger - Invisible laser radiation when opened and interlock failed or defeated. Avoid direct exposure to the beam.

Caution - Use of controls, adjustments, or procedures not listed in this manual may result in hazardous radiation exposure.

Concerning Compact Discs

Only compact discs identified with this mark can be used with this player.

SPECIFICATIONS

Power Supply

AC:230V\~50Hz

Radio Frequency Coverage

FM:88-108MHz

MW:540-1600kHz

CD Player

Pick Up: 3-Beam. Semiconductor Laser

Encoding: 16-Bit Linear

Specifications and the design are subject to possible modifications without notice due to improvement.
