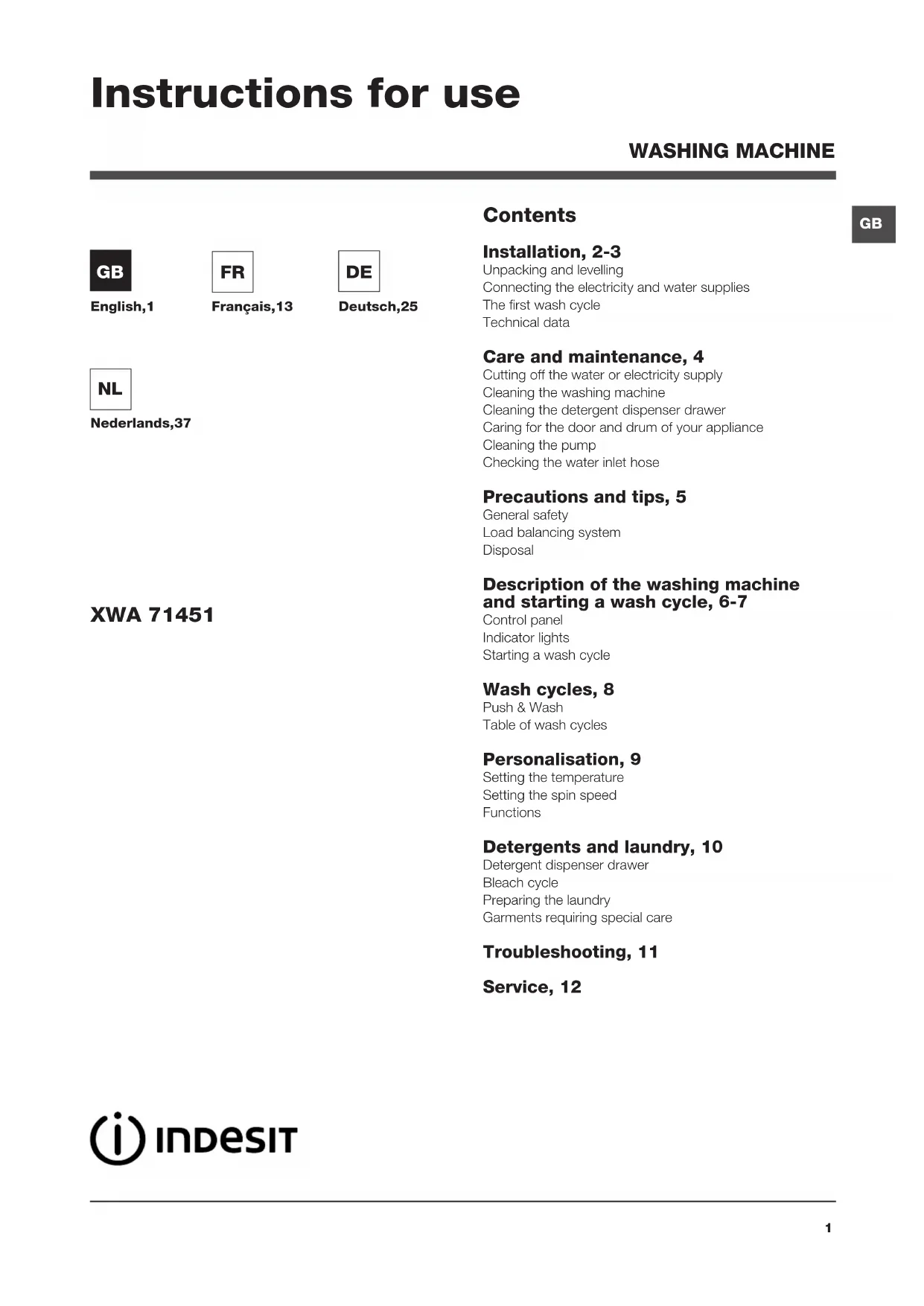

USER MANUAL XWA 71451 WB INDESIT

Unpacking and levelling

Connecting the electricity and water supplies

The first wash cycle

Care and maintenance, 4

Cutting off the water or electricity supply

Cleaning the washing machine

Cleaning the detergent dispenser drawer

Caring for the door and drum of your appliance

Checking the water inlet hose

Precautions and tips, 5

Load balancing system

Description of the washing machine

and starting a wash cycle, 6-7

Starting a wash cycle

Table of wash cycles

Setting the temperature

Setting the spin speed

Detergents and laundry, 10

Detergent dispenser drawer

Preparing the laundry

Garments requiring special care

Instructions for use

GB Levelling the machine correctly will provide

it with stability, help to avoid vibrations and

excessive noise and prevent it from shifting

while it is operating. If it is placed on carpet or

a rug, adjust the feet in such a way as to allow

a sufficient ventilation space underneath the

Connecting the electricity and water

Connecting the water inlet hose

using a 3/4 gas thre-

aded connection (see

Before performing the

connection, allow the

water to run freely un-

til it is perfectly clear.

it onto the correspon-

ding water inlet of the

right-hand side of the

rear part of the ap-

pliance (see figure).

3. Make sure that the hose is not folded over

! The water pressure at the tap must fall within

the range of values indicated in the Technical

data table (see next page).

! If the inlet hose is not long enough, contact a

specialised shop or an authorised technician.

! Never use second-hand hoses.

! Use the ones supplied with the machine.

! This instruction manual should be kept in a

safe place for future reference. If the washing

machine is sold, transferred or moved, make

sure that the instruction manual remains with

the machine so that the new owner is able to

familiarise himself/herself with its operation

! Read these instructions carefully: they con-

tain vital information relating to the safe instal-

lation and operation of the appliance.

Unpacking and levelling

1. Remove the washing machine from its

2. Make sure that the washing machine has

not been damaged during the transportation

process. If it has been damaged, contact the

retailer and do not proceed any further with

the installation process.

3. Remove the 4 pro-

tective screws (used

during transportation)

part of the appliance

4. Close off the holes using the plastic plugs

5. Keep all the parts in a safe place: you will

need them again if the washing machine ne-

eds to be moved to another location.

! Packaging materials should not be used as

1. Install the washing machine on a flat sturdy

floor, without resting it up against walls, furni-

ture cabinets or anything else.

2. If the floor is not

perfectly level, com-

pensate for any une-

venness by tightening

adjustable front feet

(see figure); the angle

of inclination, measu-

red in relation to the

Connecting the drain hose

hose, without bending

it, to a drain duct or

a wall drain situated

alternatively, placed

it over the edge of a

basin, sink or tub, fa-

stening the duct sup-

plied to the tap (see

! We advise against the use of hose extensions;

if it is absolutely necessary, the extension must

have the same diameter as the original hose

and must not exceed 150 cm in length.

Electrical connections

Before plugging the appliance into the electri-

city socket, make sure that:

• the socket is earthed and complies with all

• the socket is able to withstand the maximum

power load of the appliance as indicated in the

Technical data table (see opposite);

• the power supply voltage falls within the va-

lues indicated in the Technical data table (see

• the socket is compatible with the plug of the

washing machine. If this is not the case, repla-

ce the socket or the plug.

! The washing machine must not be installed

outdoors, even in covered areas. It is extremely

dangerous to leave the appliance exposed to

rain, storms and other weather conditions.

! When the washing machine has been instal-

led, the electricity socket must remain within

! Do not use extension cords or multiple sockets.

! The cable should not be bent or compressed.

! The power supply cable must only be repla-

ced by authorised technicians.

Warning! The company shall not be held re-

sponsible in the event that these standards are

The first wash cycle

Once the appliance has been installed, and

before you use it for the first time, run a wash

cycle with detergent and no laundry, using the

wash cycle “Auto Clean” (see “Cleaning the

please refer to the technical

data plate fixed to the ma-

up to 1400 rotations per minute

Cotton Standard 40°.

This appliance conforms to

the following EC Directives:

- 2004/108/EC (Electroma-

gnetic Compatibility)

- 2006/95/EC (Low Voltage)

GB Care and maintenance

The washing machine is fitted with a self-

cleaning pump which does not require any

maintenance. Sometimes, small items (such

as coins or buttons) may fall into the protective

pre-chamber at the base of the pump.

! Make sure the wash cycle has finished and

unplug the appliance.

To access the pre-chamber:

1. Take off the cover

panel on the front of

the machine by first

pressing it in the cen-

tre and then pushing

sides until you can re-

move it (see figures).

by rotating it anti-

clockwise (see figu-

re): a little water may

trickle out. This is

3. Clean the inside thoroughly.

4. Screw the lid back on.

5. Reposition the panel, making sure the hooks

are securely in place before you push it onto

Checking the water inlet hose

Check the inlet hose at least once a year. If

there are any cracks, it should be replaced

immediately: during the wash cycles, water

pressure is very strong and a cracked hose

could easily split open.

! Never use second-hand hoses.

Cutting off the water and electricity

• Turn off the water tap after every wash cycle.

This will limit wear on the hydraulic system inside

the washing machine and help to prevent leaks.

• Unplug the washing machine when cleaning it

and during all maintenance work.

Cleaning the washing machine

• The outer parts and rubber components

of the appliance can be cleaned using a soft

cloth soaked in lukewarm soapy water. Do not

use solvents or abrasives.

• The washing machine has a “Auto Clean”

programme for its internal parts that must be

run with no load in the drum.

For maximum performance you may want

to use either the detergent (i.e. a quantity

10% the quantity specified for lightly-soiled

garments) or special additives to clean the

washing machine. We recommend running a

cleaning programme every 40 wash cycles.

To start the programme press buttons A and

B simultaneously for 5 seconds (see figure).

The programme will start automatically and

will last approximately 70 minutes. To stop the

cycle press the START/PAUSE button.

Cleaning the detergent dispenser

To remove the drawer,

press lever (1) and pull

the drawer outwards (2)

Wash it under running

water; this procedure

should be repeated fre-

Caring for the door and drum of your

• Always leave the porthole door ajar in order to

prevent unpleasant odours from forming.

Precautions and tips

! This washing machine was designed and constructed in

accordance with international safety regulations. The fol-

lowing information is provided for safety reasons and must

therefore be read carefully.

• This appliance was designed for domestic use only.

• This appliance can be used by children aged

from 8 years and above and persons with re-

duced physical, sensory or mental capabilities

or lack of experience and knowledge if they

have been given supervision or instruction

concerning use of the appliance in a safe way

and understand the hazards involved. Children

shall not play with the appliance. Cleaning and

user maintenance shall not be made by children

without supervision.

• The washing machine must only be used by adults, in accor-

dance with the instructions provided in this manual.

• Do not touch the machine when barefoot or with wet or

• Do not pull on the power supply cable when unplugging

the appliance from the electricity socket. Hold the plug

• Do not open the detergent dispenser drawer while the

machine is in operation.

• Do not touch the drained water as it may reach extreme-

ly high temperatures.

• Never force the porthole door. This could damage the safety

lock mechanism designed to prevent accidental opening.

• If the appliance breaks down, do not under any circum-

stances access the internal mechanisms in an attempt

to repair it yourself.

• Always keep children well away from the appliance while

• The door can become quite hot during the wash cycle.

• If the appliance has to be moved, work in a group of two

or three people and handle it with the utmost care. Never

try to do this alone, because the appliance is very heavy.

• Before loading laundry into the washing machine, make

sure the drum is empty.

Load balancing system

Before every spin cycle, to avoid excessive vibrations and

to distribute the load in a uniform manner, the drum rotates

continuously at a speed which is slightly greater than the

washing rotation speed. If, after several attempts, the load is

not balanced correctly, the machine spins at a reduced spin

speed. If the load is excessively unbalanced, the washing ma-

chine performs the distribution process instead of spinning.

To encourage improved load distribution and balance, we

recommend small and large garments are mixed in the load.

• Disposing of the packaging materials: observe local

regulations so that the packaging may be re-used.

• The European Directive 2012/19/EU on Waste

Electrical and Electronic Equipment, requires that

old household electrical appliances must not be

disposed of in the normal unsorted municipal waste

stream. Old appliances must be collected

separately in order to optimise the recovery and

recycling of the materials they contain and reduce

the impact on human health and the environment.

The crossed out “wheeled bin” symbol on the

product reminds you of your obligation, that when

you dispose of the appliance it must be separately

Consumers should contact their local authority or

retailer for information concerning the correct

disposal of their old appliance.6

GB Detergent dispenser drawer: used to dispense

detergents and washing additives (see “Detergents and

ON/OFF button: switches the washing machine on and off.

PUSH & WASH button: (see “Wash cycles”).

WASH CYCLE knob: programmes the wash cycles. Du-

ring the wash cycle, the knob does not move.

FUNCTION buttons with indicator light: used to select the

available functions. The indicator light corresponding to the

selected function will remain lit.

TEMPERATURE button: sets the temperature or the cold

wash cycle (see “Personalisation”).

SPIN button: sets the spin speed or exclude the spin cycle

completely (see “Personalisation”).

DELAY TIMER button: delays the start of the wash cycle

Press the button repeatedly until the indicator light corre-

sponding to the desired delay time turns on.

When the button is pressed for the fourth time, the option

will be deactivated.

N.B.: once the START/PAUSE button has been pressed,

the delay time can only be modified by decreasing it until

the set programme is launched.

! This option is available on all programmes.

monitor the progress of the wash cycle.

The illuminated indicator light shows which phase is in

DOOR LOCKED indicator light: indicates whether the

door may be opened or not (see next page).

START/PAUSE button with indicator light: starts or tem-

porarily interrupts the wash cycles.

N.B. To pause the wash cycle in progress, press this

button; the corresponding indicator light will flash orange,

while the indicator light for the current wash cycle phase

will remain lit in a fixed manner. If the DOOR LOCKED

indicator light is switched off, the door may be opened

(wait approximately 3 minutes).

To start the wash cycle from the point at which it was inter-

rupted, press this button again.

This washing machine, in compliance with new energy sa-

ving regulations, is fitted with an automatic standby system

which is enabled after about 30 minutes if no activity is

detected. Press the ON-OFF button briefly and wait for the

machine to start up again.

Consumption in off-mode: 0,5 W Consumption in Left-on: 8 W Description of the washing

machine and starting a wash cycle

button with indicator light Detergent dispenser drawer

The indicator lights provide important information.

This is what they can tell you:

If the DELAY TIMER function has been activated (see “Per-

sonalisation”), after the wash cycle has been started the

indicator light corresponding to the selected delay period

will begin to flash:

As time passes, the remaining delay will be displayed and

the corresponding indicator light will flash:

The set programme will start once the selected time delay

Wash cycle phase indicator lights

Once the desired wash cycle has been selected and has be-

gun, the indicator lights switch on one by one to indicate which

phase of the cycle is currently in progress.

Function buttons and corresponding indicator lights

When a function is selected, the corresponding indicator

light will illuminate.

If the selected function is not compatible with the program-

med wash cycle, the corresponding indicator light will flash

and the function will not be activated.

If the selected option is not compatible with another

previously selected option, the indicator light will flash

accompanied by a buzzer (3 beeps), and only the latter

option will be activated; the indicator light corresponding to

the activated option will turn on

Door locked indicator light

When the indicator light is on, the porthole door is locked

to prevent it from being opened; make sure the indicator

light is off before opening the door (wait approximately 3

To open the door during a running wash cycle, press the

START/PAUSE button; the door may be opened once the

DOOR LOCKED indicator light turns off.

Starting a wash cycle

1. LOAD THE LAUNDRY. Open the porthole door.

Load the laundry, making sure you do not exceed

the maximum load value indicated in the table of

programmes and wash cycles on the following page.

2. ADD THE DETERGENT. Pull out the detergent

dispenser drawer and pour the detergent into the

relevant compartments as described in “Detergents and

4. Press the “PUSH & WASH” button to start the wash

Traditional programming

1. Turn the washing machine on by pressing the ON/OFF

button. All the indicator lights will turn on for a few secon-

ds, then only the indicator lights relative to the selected

programme settings will remain lit and the START/PAUSE

indicator light will flash.

2. Load the laundry and close the door.

3. Set the WASH CYCLE knob to the desired programme.

4. Set the washing temperature (see “Personalisation”).

5. Set the spin speed (see “Personalisation”).

6. Measure out the detergent and washing additives (see

“Detergents and laundry”).

7. Select the desired functions.

8. Start the wash cycle by pressing the START/PAUSE

button and the corresponding indicator light will remain lit

in a fixed manner in green. To cancel the set wash cycle,

pause the machine by pressing the START/PAUSE button

and select a new cycle.

9. At the end of the wash cycle the END indicator light

will switch on. The door can be opened once the DOOR LOCK indicator light turns off (wait approximately 3 mi-

nutes). Take out your laundry and leave the appliance door

ajar to make sure the drum dries completely. Switch the

washing machine off by pressing the ON/OFF button.

Table of wash cycles

This function allows for starting a wash cycle even when the machine is switched off without having to press the ON/OFF

button in advance, or after switching on the machine, without having activated any button and/or selector (otherwise, the

Push & Wash function will be deactivated). To start the Push & Wash cycle press and hold the relative button for 2 seconds.

The lit indicator light indicates that the cycle has started. This wash cycle is ideal for cotton or synthetic fabrics, as it washes

at a temperature of 30° and a maximum spin speed of 1200 rpm. Maximum load 3,5 kg. (Cycle duration 50’).

1. Load the laundry (cotton and/or synthetic garments) and close the door.

2. Pour the detergent and additives.

3. Start the programme by pressing and holding the Push & Wash button for 2 seconds. The relative indicator light turns

green and the door will lock (the DOOR LOCKED symbol turns on).

N.B.: starting the wash cycle through the Push & Wash button activates an automatic non-customisable cycle

recommended for cotton and synthetic fabrics. This programme does not allow for setting any additional options.

To open the door while an automatic cycle is under way, press the START/PAUSE button; if the DOOR LOCKED symbol

is switched off the door may be opened. Press the START/PAUSE button again to restart the wash cycle from the point at

which it was interrupted.

4. Once the programme is finished, the END indicator light turns on.

The length of cycle shown on the display or in this booklet is an estimation only and is calculated assuming standard working conditions. The actual duration can vary accor-

ding to factors such as water temperature and pressure, the amount of detergent used, the amount and type of load inserted, load balancing and any wash options selected. 1) Test wash cycle in compliance with directive 1061/2010: set wash cycle 8 with a temperature of 60°C. This cycle is designed for cotton loads with a normal soil level and is the most efficient in terms of both electricity and water consumption; it should be used for garments which can be washed at 60°C. The actual washing temperature may differ from the indicated value.2) Test wash cycle in compliance with directive 1061/2010: set wash cycle 9 with a temperature of 40°C. This cycle is designed for cotton loads with a normal soil level and is the most efficient in terms of both electricity and water consumption; it should be used for garments which can be washed at 40°C. The actual washing temperature may differ from the indicated value.For all Test Institutes:2) Long wash cycle for cottons: set wash cycle 9 with a temperature of 40°C.3) Synthetic program along: set wash cycle 10 with a temperature of 40°C.Wash cyclesDescription of the wash cycleMax. temp. (°C) Max. speed (rpm)DetergentsMax. load (kg)Residual dampness %Energy consumption kWh Total water ltCycle durationPrewash Wash FabricsoftenerBleachSpecial 1 Sport30° 600 -   - 3,5 - - - 55’ 2

Dark 30° 800 -   - 4 - - - 70’ 3 Anti-odour (Cotton) 60° 1000 -   - 3,5 - - - 110’ 3 Anti-odour (Synthetic) 40° 1000 -   - 3,5 - - - 100’ 4 Delicate30° 0 -   - 1 - - - 80’ 5 Wool: for wool, cashmere, etc. 40° 800 -   - 1,5 - - - 70’ 6 Duvet: for down-stuffed garments. 30° 1000 -   - 2 - - - 110’Standard 7 Cottons with Pre-wash: extremely soiled whites. 90° 1400   - 7 53 2,15 77 170’

8 Cotton Standard 60° (1): heavily soiled whites and resistant colours. 60° (Max. 90°)1400 -  

- 7 53 1,13 52,5 180’

9 Cotton Standard 40° (2): lightly soiled whites and delicate colours.40° 1400 -  

10 Synthetic: heavily soiled resistant colours. 60° 800 -   - 3,5 46 0,79 46 110’ 10 Synthetic (3): lightly soiled resistant colours. 40° 800 -   - 3,5 46 0,56 46 100’ 11 Coloured40° 1400 -  

Cotton Standard 20°: lightly soiled whites and delicate colours. 20° 1400 -

Setting the temperature

Press the TEMPERATURE button to set the wash temperature (see Table of wash cycles).

The temperature may be lowered, or even set to a cold wash . The washing machine will automatically prevent you from

selecting a temperature which is higher than the maximum value set for each wash cycle.

! Exception: if the 8 programme is selected, the temperature can be increased up to a value of 90°C.

Setting the spin speed

Press the SPIN SPEED button to set the spin speed for the selected wash cycle.

The maximum spin speeds available for each wash cycle are as follows:

Wash cycles Maximum spin speed

The spin speed may be lowered, or the spin cycle can be excluded altogether by selecting the symbol .

The washing machine will automatically prevent you from selecting a spin speed which is higher than the maximum speed

set for each wash cycle.

The various wash functions available with this washing machine will help to achieve the desired results, every time.

To activate the functions:

1. Press the button corresponding to the desired function;

2. the function is enabled when the corresponding indicator light is illuminated.

Note: If the indicator light flashes rapidly, this signals that this particular function may not be selected in conjunction with the

selected wash cycle.

When this button is pressed the first time, the 9’ icon will light up, when pressed the second time the 30’ icon lights up and

the third time the 60’ icon lights up. When pressed the fourth time the 9’ icon lights up again.

! It cannot be used in conjunction with wash cycles 1-2-3-4-5-6-7-8-9-10-11-12-13- - .

During a wash programme and under certain conditions, pressing this button allows for ending the wash programme after

only 20’ if necessary, by performing a brief rinse cycle followed by a spin cycle at maximum 800 rpm or lower, if reduced

manually during the programme customisation phase. In this case, washing and rinsing performance will be reduced. After

pressing the button, the relative indicator light turns on together with the indicator light of the rinse phase. If the selected

temperature is equal to 40° and/or the button is pressed during the initial phase of the programme, the “Fast Forward” option

lasts longer so that the detergent can dissolve properly and avoid damaging the fabrics. In this case, the rinse phase indica-

tor light flashes while the wash indicator light remains fixed until the necessary activation conditions are fulfilled. If less than

20’ remain of the wash programme, the option will be disabled.

! It cannot be used in conjunction with wash cycles 2-4-5-6-14- - .

By selecting this function, the wash and spin cycles will be modified in order to reduce the formation of creases. At the end

of the cycle the washing machine will perform slow rotations of the drum, while the EASY IRON and START/PAUSE indicator

lights will flash and the END led will remain lit in a fixed manner. To end the cycle, press the START/PAUSE button or the

! It cannot be used in conjunction with wash cycles 1-3-5-14- - .

By selecting this option, the efficiency of the rinse is increased and optimal detergent removal is guaranteed. It is particularly

useful for sensitive skin.

! It cannot be used in conjunction with wash cycles 2-4-14- .

GB Detergents and laundry

Detergent dispenser drawer Successful washing results also depend on the correct dose of detergent: adding too much detergent will not necessarily result in a more efficient wash, and may in fact cause build up on the in-side of your appliance and contribute to environmental pollution.! Do not use hand washing detergents because these create too much foam.! Use powder detergent for white cotton garments, for pre-washing, and for washing at temperatures over 60°C.! Follow the instructions given on the detergent packaging.Open the detergent dispenser drawer and pour in the detergent or washing additive, as follows.Compartment 1: Pre-wash detergent (powder)Before pouring in the detergent, make sure that extra compart-ment 4 has been removed.Compartment 2: Washing detergent (powder or liquid)If liquid detergent is used, it is recommended that the removable plastic partition A (supplied) be used for proper dosage. If powder detergent is used, place the partition into slot B.Compartment 3: Additives (fabric softeners, etc.)The fabric softener must not exceed the “max” level indicated on the central pin. Extra compartment 4: Bleach Bleach cycle Insert the additional compartment 4 (provided) into compartment 1. In pouring the bleach do not exceed the “max” level indicated on the central pin. Perform bleaching by pouring the bleach into additional com-partment 4 and set the programme .! Traditional bleach should be used on resistant white fabrics, and delicate bleach for coloured and synthetics fabrics and for wool. Preparing the laundry • Divide the laundry according to: - the type of fabric/the symbol on the label - the colours: separate coloured garments from whites.• Empty all garment pockets and check the buttons.• Do not exceed the values listed in the “Table of wash cycles”, which refer to the weight of the laundry when dry.How much does your laundry weigh? 1 sheet 400-500 g 1 pillow case 150-200 g 1 tablecloth 400-500 g 1 bathrobe 900-1.200 g 1 towel 150-250 g Garments requiring special care

Sport (programme 1) is designed for washing lightly soiled sports clothing (tracksuits, shorts, etc.); for best results, we recommend not exceeding the maximum load indicated in the “Programme table”. We recommend using liquid detergent, and adding the amount suitable for a half-load. Dark: use cycle 2 to wash dark-coloured garments. This pro- gramme is designed to maintain dark colours over time. We recommend using a liquid detergent for the best results when washing dark-coloured garments. Anti-odour: use programme 3 for washing garments with bad odours (e.g. smoke, sweat, fried food). The programme is de-signed to remove bad odours while preserving the fabric fibres. Synthetics fabrics or mixed loads should be washed at 40°, and resistant cotton fabrics at 60°. Delicate: use programme 4 to wash very delicate garments. It is advisable to turn the garments inside out before washing them. For best results, use liquid detergent on delicate garments. For washing Silk items and Curtains, select the relevant cycle 4 and activate the option (in this case it will also be possible to enable the “Extra Rinse” option); the machine will end the cycle with the laundry soaked and the indicator light will flash. To drain the water so that the laundry can be removed, press the START/PAUSE button or the option .Wool: the wool wash programme of this machine has been tested and approved by The Woolmark Company for the washing of wool containing garments labelled as “hand wash” provided that the garments are washed according to the instructions on the garment label and those issued by the manufacturer of this washing machine. (M1126) In UK, Eire, Hong Kong and India the Woolmark trade mark is a Certification trade mark.Duvet: to wash single duvets (the weight of which should not exceed 2 kg), cushions or clothes padded with goose down such as puffa jackets, use the special wash cycle number 6. We recommend that duvets are placed in the drum with their edges folded inwards (see figure) and that no more than ¾ of the total volume of the drum is used. To achieve the best results, we recommend that a liquid detergent is used and placed inside the detergent dispenser drawer. Coloured: use this cycle 11 to wash bright coloured clothes. The programme is designed to maintain bright colours over time. Cotton Standard 20° (programme 12) ideal for heavily soiled cotton loads. The effective performance levels achieved at cold temperatures, which are comparable to washing at 40°, are guaranteed by a mechanical action which operates at varying speed, with repeated and frequent peaks. Eco Synthetic (programme 13) ideal for mixed loads (cotton and synthetics) with a normal soil level. The effective performance levels achieved at cold temperatures are guaranteed by a mechanical action which operates at varying speed, across set average intervals. Rapid (programme 14) allows for varying the garment treatment duration from 9’ to 60’. Pressing the corresponding “Rapid” button allows for varying the cycle duration between 9’ (refresh), 30’ (wash), 60’ (wash). The 9’ cycle refreshes garments using fabric softener only; it is advisable not to add any detergent into the machine. The 30’ cycle is designed to wash lightly soiled garments at 30° (excluding wool and silk) with a 3 kg maximum load in a short time: it only lasts 30 minutes and allows for saving time and energy. The 60’ cycle is designed to wash moderately soiled resistant cotton garments at 60° in an hour, with good washing performance. For synthetic or mixed garments, we recommend lowering the temperature down to 40°.

Your washing machine could fail to work. Before contacting the Technical Assistance Centre (see “Assistance”), make sure

that the problem cannot be solved easily using the following list.

The washing machine does not

The wash cycle does not start.

The washing machine does not

take in water (the indicator light for

the first wash cycle stage flashes

The washing machine continuously

takes in and drains water.

The washing machine does not

The washing machine vibrates a lot

during the spin cycle.

The washing machine leaks.

The “Functions” indicator lights and the

“start/pause” indicator light flash, while

one of the “phase in progress” indicator

lights and the “door locked” indicator

light will remain lit in a fixed manner.

There is too much foam.

Push & Wash does not activate.

The programme lasts a lot less that

Possible causes / Solutions:

• The appliance is not plugged into the socket fully, or is not making contact.

• There is no power in the house.

• The washing machine door is not closed properly.

• The ON/OFF button has not been pressed.

• The START/PAUSE button has not been pressed.

• The water tap has not been opened.

• A delayed start has been set.

• The water inlet hose is not connected to the tap.

• The water tap has not been opened.

• There is no water supply in the house.

• The pressure is too low.

• The START/PAUSE button has not been pressed.

• The drain hose is not fitted at a height between 65 and 100 cm from the floor

(see “Installation”).

• The free end of the hose is under water (see “Installation”).

• The wall drainage system is not fitted with a breather pipe.

If the problem persists even after these checks, turn off the water tap, switch

the appliance off and contact the Assistance Service. If the dwelling is on one of

the upper floors of a building, there may be problems relating to water drainage,

causing the washing machine to fill with water and drain continuously. Special

anti-draining valves are available in shops and help to avoid this inconvenience.

• The wash cycle does not include draining: some wash cycles require the drain

phase to be started manually.

• The option function is enabled: to complete the wash cycle, press the

START/PAUSE button (“Personalisation”).

• The drain hose is bent (see “Installation”).

• The drainage duct is clogged.

• The drum was not unlocked correctly during installation (see “Installation”).

• The washing machine is not level (see “Installation”).

• The washing machine is trapped between cabinets and walls (see “Installation”).

• The water inlet hose is not screwed on properly (see “Installation”).

• The detergent dispenser drawer is blocked (for cleaning instructions, see

“Care and maintenance”).

• The drain hose is not fixed properly (see “Installation”).

• Switch off the machine and unplug it, wait for approximately 1 minute and

then switch it back on again.

If the problem persists, contact the Technical Assistance Service.

• The detergent is not suitable for machine washing (it should display the text

“for washing machines” or “hand and machine wash”, or the like).

• Too much detergent was used.

• After switching on the machine a control other than Push & Wash was activa-

ted. Switch the machine off and press the Push & Wash button.

• The “Fast Forward” option was activated.12

Before calling for Assistance:

• Check whether you can solve the problem alone (see “Troubleshooting”);

• Restart the programme to check whether the problem has been solved;

• If this is not the case, contact an authorised Technical Assistance Centre using the telephone number provided on the

guarantee certificate.

! Always request the assistance of authorised technicians.

Have the following information to hand:

• the type of problem;

• the appliance model (Mod.);

• the serial number (S/N).

This information can be found on the data plate applied to the rear of the washing machine, and can also be found on the

front of the appliance by opening the door.FR

Coton 1400 tours/minute
