USER MANUAL PowerLite Pro G6150 EPSON

©SEIKO EPSON CORPORATION 2013. All rights reserved.

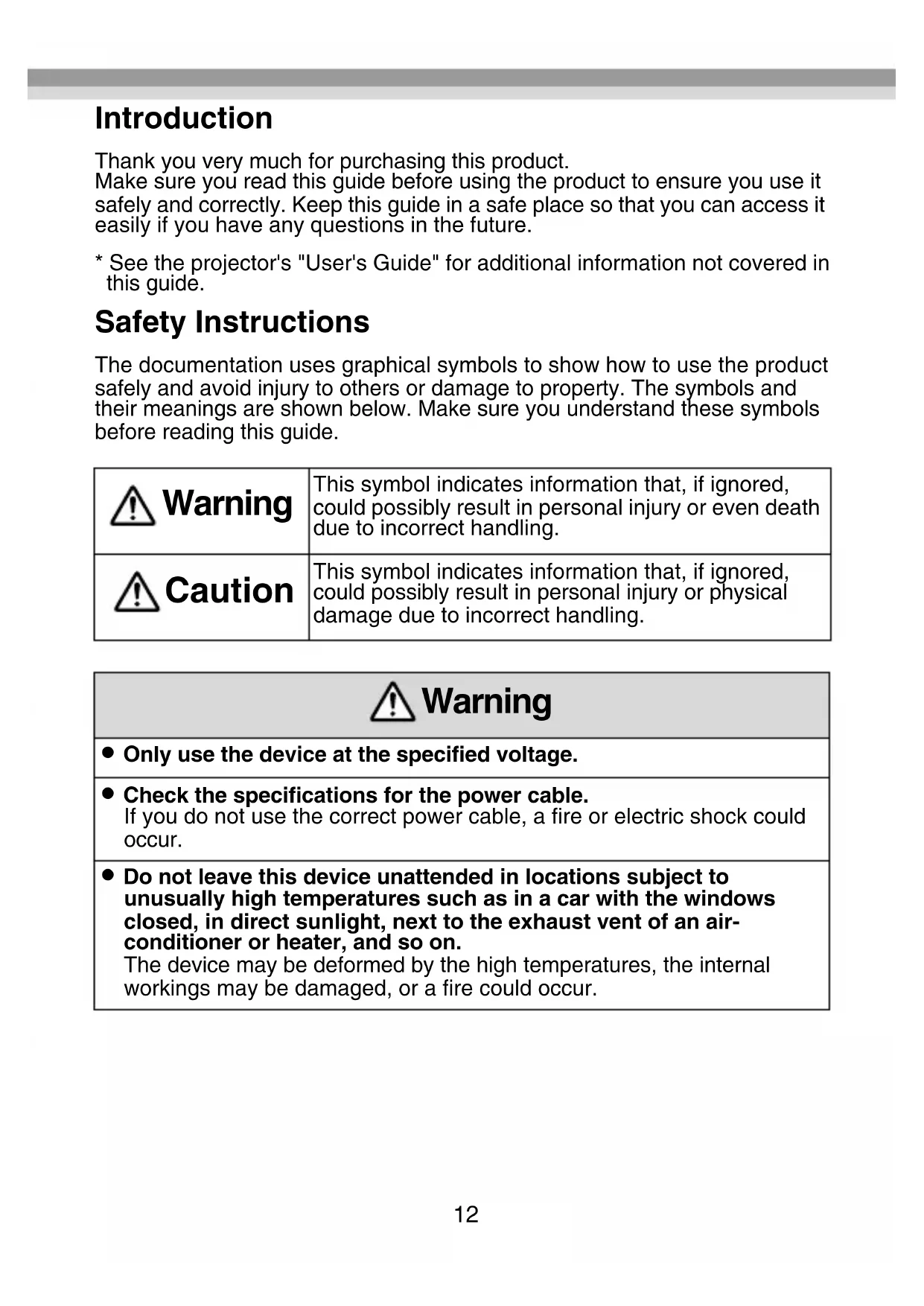

Thank you very much for purchasing this product.

Make sure you read this guide before using the product to ensure you use it

safely and correctly. Keep this guide in a safe place so that you can access it

easily if you have any questions in the future.

* See the projector's "User's Guide" for additional information not covered in

The documentation uses graphical symbols to show how to use the product

safely and avoid injury to others or damage to property. The symbols and

their meanings are shown below. Make sure you understand these symbols

before reading this guide.

This symbol indicates information that, if ignored,

could possibly result in personal injury or even death

due to incorrect handling.

This symbol indicates information that, if ignored,

could possibly result in personal injury or physical

damage due to incorrect handling.

• Only use the device at the specified voltage.

• Check the specifications for the power cable.

If you do not use the correct power cable, a fire or electric shock could

• Do not leave this device unattended in locations subject to

unusually high temperatures such as in a car with the windows

closed, in direct sunlight, next to the exhaust vent of an air-

conditioner or heater, and so on.

The device may be deformed by the high temperatures, the internal

workings may be damaged, or a fire could occur.13

• Take care when handling the power plug.

If it is not handled correctly, a fire or electric shock could occur.

Note the following points when handling the plug.

• Do not overload wall outlets, extension cables, or power strips.

• Do not plug it in if there are any foreign substances, such as dust,

attached to the plug.

• Make sure the plug is fully plugged in.

• Do not plug in or unplug if your hands are wet.

• Do not unplug by pulling on the power cable.

• Do not use a different power supply (AC adapter). Only use the one

• Do not use a damaged power cable.

Otherwise, a fire or electric shock could occur.

• Do not modify the power cable.

• Do not place heavy objects on the power cable.

• Do not apply excess force, bend, or twist the power cable.

• Do not perform wiring near an electric heater.

• Do not install or use this device in locations subject to humidity or

water such as outdoors, near a bath or shower, and so on.

Otherwise, a fire or electric shock could occur.

• Make sure this device is grounded (earthed).

Connect the FG port on the device to an earth wire.

• Do not touch the plug during a thunderstorm.

Otherwise, an electric shock could occur.

• Except as indicated in the "User's Guide", the case for this device

should only be opened by qualified service personnel. Do not

disassemble or remodel this device or its consumables.

Many sections inside the device carry a high electrical charge which

could cause a fire or electric shock to occur.

• Do not place vases, containers containing water, or medical

containers on this device.

If any liquid spills from the container, a fire or electric shock could occur.

• If you notice any of the following abnormalities, turn off the device

immediately, unplug the power cable from the electrical outlet, and

contact your local dealer or Epson service call center.

• If you see smoke coming from the device, or notice abnormal odors or

• If any water or foreign substances enter the device.

• If the device was dropped and the case was damaged.

If you continue using the device in any of these states, a fire or electric

Do not perform repairs yourself.14

Trademarks and Copyrights

HDMI and High-Definition Multimedia Interface are the trademarks or

registered trademarks of HDMI Licensing LLC.

HDBaseT™ and the HDBaseT Alliance logo are trademarks of the HDBaseT Alliance.

Other product names used herein are also for identification purposes only

and may be trademarks of their respective owners. Epson disclaims any and

all rights in those marks.

©SEIKO EPSON CORPORATION 2013. All rights reserved.

• When moving the device, make sure you turn off the power, unplug

the power cable from the electrical outlet, and disconnect any

wiring before moving.

Otherwise, a fire or electric shock could occur.

• Do not install the device in a location subject to humidity or dust

such as a kitchen counter or near a humidifier, or in a location

subject to smoke or steam.

Otherwise, a fire or electric shock could occur.

• Do not install the device in the following locations.

• On a carpet, a bed, a blanket, and so on.

• Do not cover it with a blanket, curtain, tablecloth, and so on.

• Do not place it on a surface that is slanted or unstable.

Otherwise, it could fall and cause an injury.

• When maintaining the device, do not use a wet cloth or solvents

such as alcohol, benzene, or thinner.

Otherwise, an electric shock or malfunction could occur.

• Do not sit on this device, or place heavy objects on this device.

Otherwise, an injury could occur.

• When maintaining the device, make sure you unplug the power,

unplug the power cable from the electrical outlet, and disconnect

any wiring before performing maintenance.

Otherwise, an electric shock could occur.

• For safety reasons, when not using this device, make sure you

unplug the power cable from the electrical outlet.

If the insulation has degraded, a fire could occur.15

EN Notes on Usage and Storage

• Do not drop the device or subject it to shocks.

• Use and store the device under the following conditions.

Power (AC adapter): 100 to 240 V AC ±10% 50/60 Hz

Operating temperature: +5 to +35°C (41 to 95 °F); no condensation

Storage temperature: -10 to +60°C (14 to 140 °F); no condensation

• Do not install it in a location subject to vibrations or shocks.

• Do not use or store the device in locations subject to high or low

temperatures. Avoid sudden changes in temperature. Otherwise, the

device may not operate correctly.

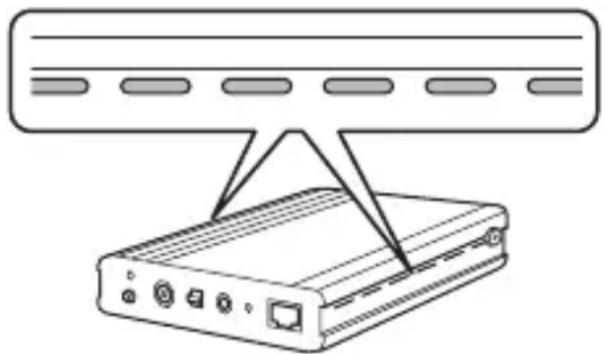

• Make sure there is a gap of at least 20 mm (0.8 inch) between the

device and the walls on the left and right to prevent the air vents on

the side from being blocked, and a gap of at least 25 mm (1 inch)

• Do not install the device near high-voltage lines or magnetic

equipment. Otherwise, the device may not operate correctly.

• Because it can be easily influenced by internal noise, make sure the

LAN cable is completely unwound and stretched out when installing.

• Do not twist or bend the LAN cable.

• Do not tie the LAN cable together with other cables. In particular,

make sure that it is separated from the power cable.

• Do not loosen any screws except for the FG port screw.

• Make sure the earth wire is grounded before use.

• Connect all necessary cables before turning on the device.

• During communication, do not turn on/off this device or the

projector, and do not connect or disconnect any cables.

* If you notice any operational abnormalities or damage, stop using the

device immediately and contact your local dealer or the nearest Epson

repair center mentioned in the projector's "User's Guide".

* This is an optional device made exclusively for Epson projectors. See the

projector's "User's Guide" for more information on handling this device.16

This transmitter allows long-distance transmission of an HDMI and control

(RS-232C) signal using a LAN cable (category 5e or 6). This device is based

on the HDBaseT standard.

This device is useful when you want to control the projector from a remote

location, such as in a hall or event site, since you can use a LAN cable up to

100 m (328 feet) in length.

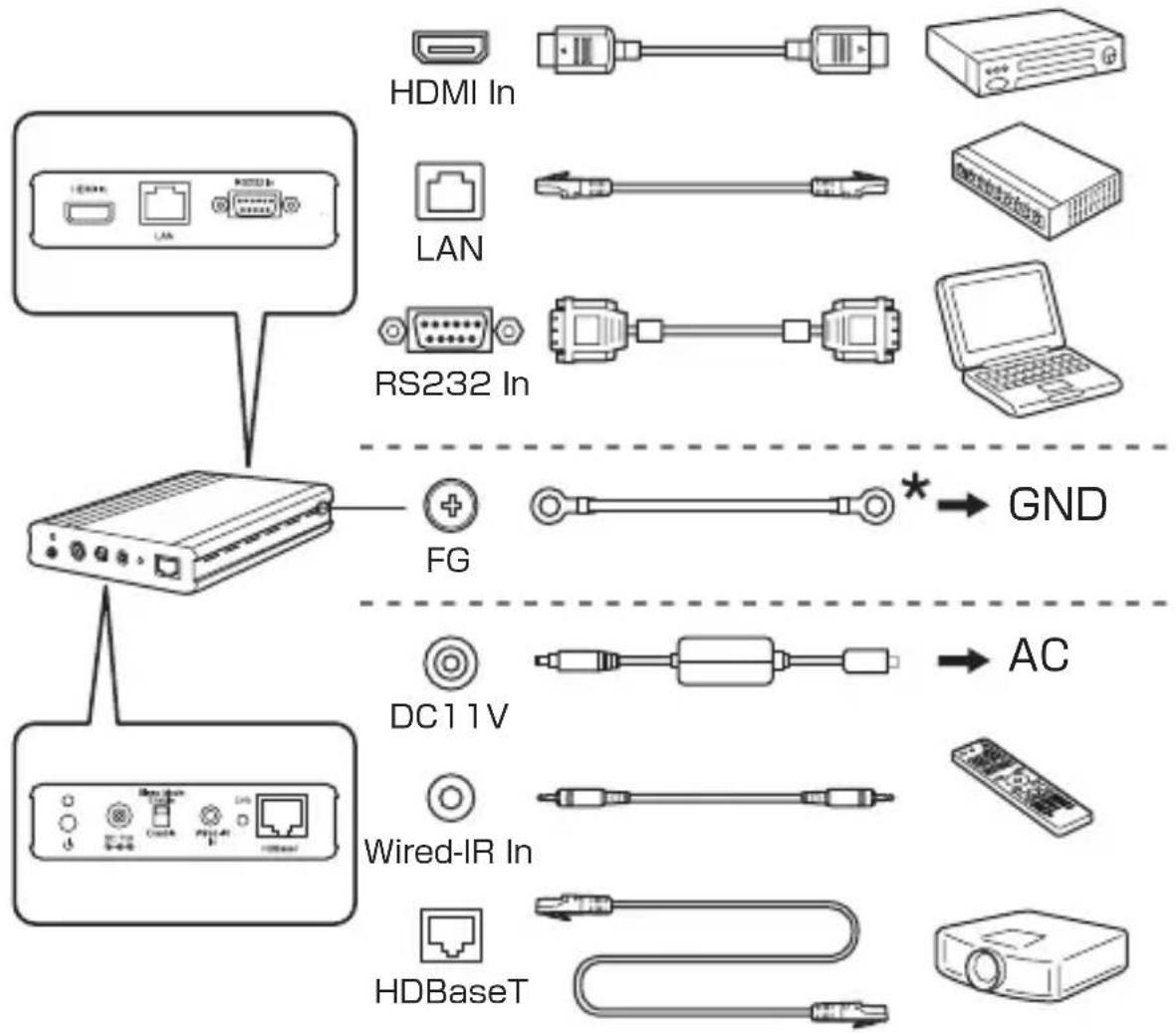

Connect the projector to the HDBaseT port on this device using a LAN cable.

Then connect this device to your HDMI compatible video equipment or a

computer to control the projector with.

Fix this with an M4 screw.

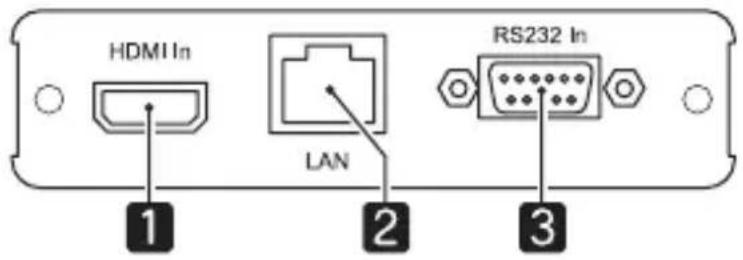

HDMI In port Inputs video and audio signals from HDMI

compatible video equipment and computers.

Allows the device to connect to a network using a

LAN cable. Connect when controlling the

projector from a computer over a network.

Allows the device to connect to a computer using

a RS-232C cable. Connect when controlling the

projector from a computer.

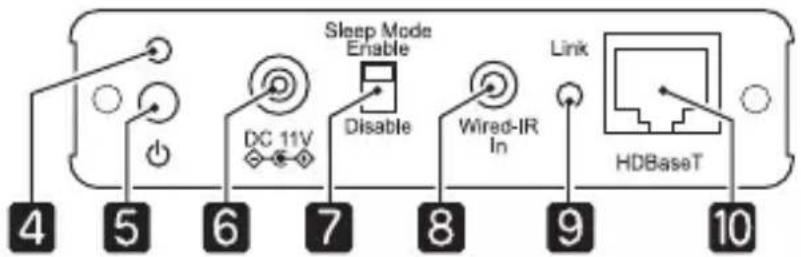

Power indicator Indicates the operating status of the device.

On green: Device is operating.

On orange: Device is standing by.

Power button Turns the device on/off.

This device supports Direct Power On. This

feature allows the projector to turn on

automatically when power is supplied to it.18

Supported LAN Cables

Use a category 5e or category 6 straight STP cable. When using a cable,

use a tester to check that the cable's properties are at least category 5e

before connecting. When using a relay connector, make sure the connecting

cables meet the specifications mentioned above.

Power inlet Connects the AC adapter's power plug.

Do not use a different power supply (AC adapter/

power cable). Only use the one supplied.

Note that when the power cable is plugged in, this

device turns on automatically (Direct Power On)

when power is restored after a power outage.

When set to [Enable], the device automatically

enters sleep mode and turns off after 30 minutes

if no signals are input. Press the power button to

turn the device back on.

When set to [Disable], the device does not turn

off automatically. When monitoring and

controlling using HDBaseT, set this to [Disable]

so that the device does not enter sleep mode.

If the device is connected to an access point over

a LAN connection, it will not turn off even when

sleep mode is enabled.

Wired-IR In port Connects the projector's optional remote control

cable set (ELPKC28) and inputs signals from the

Link indicator Turns green when communicating with the

HDBaseT port Allows the device to connect to a projector using

No images appear Is the power on?

Check that the Power indicator is green.

Is the HDMI cable connected correctly?

Check that the HDMI cable is securely connected to

the connectors on the video equipment and this device.

Is the LAN cable connected correctly?

Check that the Link indicator is green. Also, make sure

you are using a category 5e or category 6 straight STP

Is the HDMI device turned on?

Check that the HDMI device is turned on and that an

image is being played back.

Was a cable connected during operation?

Connect all necessary cables before turning on this

If an image is still not displayed even after checking the

points above, try turning the power off and then back

on for all connected devices.

Is the LAN cable connected correctly?

Check that the Link indicator is green. Also, make sure

you are using a category 5e or category 6 straight STP

cable. Do not use a UTP cable.

Is the earth wire grounded?

To perform stable communication with the projector,

make sure the device is grounded.

Is the LAN cable tied to other cables?

If the LAN cable is tied to any other cables, noise may

Is an HDMI cable being used to connect the devices?

If no audio is output when connecting via an HDMI

cable, set the connected equipment to PCM output.20

Is the remote control cable connected correctly?

Check that the remote control cable is securely

connected to the connectors on the remote control and

Do the remote control ID and the projector ID match?

Make sure the ID for the projector you want to operate

and the ID for the remote control match.

Is a remote control from another company connected?

Remote controls from other companies are not

Is the device ready to communicate?

See the following entry "Cannot communicate".

232 In, or Wired-IR In ports)

Is the HDBaseT function enabled for the connected

Check the projector's settings.

Has the device entered sleep mode?

In sleep mode, the device cannot be controlled from

the RS-232 In or Wired-IR In ports. Set the [Sleep

Mode] switch to [Disable].

Was the power turned on/off or a cable connected or

disconnected during communication?

A communication error occurs if the power or the signal

is disrupted during communication.

HDBaseT port RJ45/Cable length 100 m (328 feet) maximum

HDMI (Video, Audio)/RS-232 (for control)/Wired IR

(Remote Control)/LAN (for control)

HDMI In port HDMI HDCP supported (only PCM supported for

audio)/Cable length 3 m (9.8 feet) maximum

HDMI input signals VGA/SVGA/XGA/WXGA/WXGA+/WXGA++/WSXGA+/

SDTV(576i/576p)/HDTV(720p)/HDTV(1080i)/

* Varies depending on the connected projector. For

more details, see the projector's "User's Guide".21

EN Wiring for the RS-232 In Port

Use an RS-232C cross cable.

• Communications protocol

Default baud rate setting: 9,600 bps, Data length: 8 bit, Parity: None, Stop-

bit: 1 bit, Flow control: None

LAN port RJ45 (100Base-TX only)

RS-232 In port Mini D-Sub 9 pin (male)/Cable length 5 m (16.5 feet)

maximum (cross cable)

Operating: 6 W Standing by: 0.48 W Operating

Temperature: +5 to +35°C (41 to 95 °F)

Humidity: 20 to 80% (no condensation)

Temperature: -10 to +60°C (14 to 140 °F)

Humidity: 10 to 90% (no condensation)

102 x 25 x 102 mm (4 x 1 x 4 inches); not including

Items Included HDBaseT Transmitter, AC adapter, power cable, earth

HDBaseT™ and the HDBaseT Alliance logo are trademarks of the HDBaseT Alliance.

(576i/576p)/HDTV (720p)/HDTV (1080i)/HDTV (1080p)

HDBaseT™ and the HDBaseT Alliance logo are trademarks of the HDBaseT Alliance.

VGA/SVGA/XGA/WXGA/WXGA+/WXGA++/WSXGA+/

SXGA/SXGA+/UXGA/WUXGA/SDTV(480i/480p)/

SDTV(576i/576p)/HDTV(720p)/HDTV(1080i)/

HDBaseT™ and the HDBaseT Alliance logo are trademarks of the HDBaseT Alliance.

SDTV(576i/576p)/HDTV(720p)/HDTV(1080i)/

SDTV(576i/576p)/HDTV(720p)/HDTV(1080i)/

SDTV(576i/576p)/HDTV(720p)/HDTV(1080i)/

©SEIKO EPSON CORPORATION 2013. All rights reserved.

VGA/SVGA/XGA/WXGA/WXGA+/WXGA++/WSXGA+/

SXGA/SXGA+/UXGA/WUXGA/SDTV(480i/480p)/

SDTV(576i/576p)/HDTV(720p)/HDTV(1080i)/

HDBaseT™ and the HDBaseT Alliance logo are trademarks of the HDBaseT Alliance.

本文件所使用之其他產品名稱僅作識別用途，產品名稱為擁有者所有。

Epson 並不擁有這些商標的任何權利。

©SEIKO EPSON CORPORATION 2013. All rights reserved.

VGA/SVGA/XGA/WXGA/WXGA+/WXGA++/WSXGA+/

SXGA/SXGA+/UXGA/WUXGA/SDTV(480i/480p)/

SDTV(576i/576p)/HDTV(720p)/HDTV(1080i)/

FCC Compliance Statement

For United States Users

This equipment has been tested and found to comply with the limits for

a Class B digital device, pursuant to part 15 of the FCC Rules. These

limits are designed to provide reasonable protection against harmful

interference in a residential installation. This equipment generates, uses

and can radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to

radio communications. However, there is no guarantee that interference

will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is encouraged

to try to correct the interference by one or more of the following

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

For United States Users

In North America, wiring needs to be fireproofed as defined in NFPA70.

Make sure you use a suitable LAN cable when performing wiring.

This Class B digital apparatus complies with Canadian ICES-003.

In Conformity with the Turkish EEE Regulation.

Türkiye’deki kullanıcılar için

AEEE Yönetmeliğine Uygundur.98

WARNING: The cords included with this product contain chemicals,

including lead, known to the State of California to cause birth defects or

other reproductive harm. Wash hands after handling. (This notice is

provided in accordance with Proposition 65 in Cal. Health & Safety

Code § 25249.5 and following.)99

para investigar la posibilidad de reciclar su producto.

For users outside the Province of Buenos Aires, Argentina:

This information only applies to customers in the Province of Buenos Aires,

Argentina, according to Law No. 14321 in the Province of Buenos Aires (excluding

the City of Buenos Aires) on waste electrical and electronic equipment (WEEE).

For other countries and other locations, please contact your local government to

investigate the possibility of recycling your product.

Pour les utilisateurs à l’extérieur de la province de Buenos Aires,
