USER MANUAL JB 6604 Kärcher

GEFAHR EINES ELEKTRO-SCHOCKS

WIEDERHOLMODUS "REP" (BEI CD/MP3-WIEDERGABE)

1. Read Instructions - All the safety and operating instructions should be read before the appliance is operated.
2. Retain Instructions - The safety and operating instructions should be retained for future reference.
3. HeedWarnings - All warnings on the appliance and in the operating instructions should be adhered to.
4. Water and Moisture - Do not use the apparatus near water (e.g. bath tub, sink, swimming pool) or in wet places or tropical climates. Do not place objects filled with liquids, such as vases, on top of the apparatus. Do not expose the apparatus to dripping or splashing.
5. Setup - The apparatus should only be placed on a stable, flat surface. Do not let the apparatus fall down or expose it to shock.
6. Wall or Ceiling Mounting - The appliance should be mounted to a wall or ceiling only as recommended by the manufacturer.
7. Ventilation - The appliance should be situated so that its location or position does not interfere with its proper ventilation. For example, the appliance should not be situated on a bed, sofa, rug, or similar surface that may block the ventilation openings; or, placed in a built-in installation, such as a bookcase or cabinet that may impede the flow of air through the ventilation openings.
   Ensure a minimum distance of 5cm around the apparatus for sufficient ventilation. Ensure that the ventilation is not impeded by covering the ventilation openings with items such as newspapers, table-cloths, curtains, etc.
8. Heat - The appliance should be situated away from heat sources such as radiators, heat registers, stoves, or other appliances (including amplifiers) that produce heat.
9. Power Sources - The appliance should be connected to a power supply only of the type described in the operating instructions or as marked on the appliance.
10. Cables and Plugs - The mains plug shall remain readily operable. All cables should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the appliance.
11. Cleaning - The appliance should be cleaned only as recommended by the manufacturer. Clean by wiping with a dry and clean cloth. Do not use chemical cleaners or detergents. Always pull the mains plug before cleaning the unit.
12. Non-use Periods - The power cord of the appliance should be unplugged from the outlet when left unused for a long period of time.
13. Object and Liquid Entry - Care should be taken so that objects do not fall and liquids are not spilled into the enclosure through openings.
14. Damage Requiring Service - The appliance should be serviced by qualified service personnel when:

a) The power-supply cord or the plug has been damaged; or
b) Objects have fallen, or liquid has been spilled into the appliance; or
c) The appliance has been exposed to rain; or
d) The appliance does not appear to operate normally or exhibits a marked change in performance; or
e) The appliance has been dropped, or the enclosure damaged.

1. Servicing - The user should not attempt to service the appliance beyond that described in the operating instructions. All other servicing should be referred to qualified service personnel.
2. Open Fire - Keep the apparatus away from open fires. Do not place naked flame sources, such as lighted candles on the apparatus.
3. Thunderstorms - During a thunderstorm the mains plug should be unplugged.
4. Safety Check - After servicing the technician should conduct a safety check in order to ensure that the apparatus is working properly and safely.

5. Batteries - Always place batteries in the correct polarization into electrical components. Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type. Do not mix old and new batteries. Take attention to the environmental aspects of battery disposal. Batteries shall not be exposed to excessive heat such as sunshine, fire or the like. Remove batteries before disposing of the product.

6. Volume Levels - To prevent possible hearing damage, do not listen at high volume levels for long periods.

7. Headphones (if applicable) - Excessive sound pressure from earphones and headphones can cause hearing loss.

WARNING: To reduce the risk of electric shock, do not remove cover (or back). No user serviceable parts inside. Refer servicing to qualified service personnel.

The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

DO NOT STARE INTO BEAM - INVISIBLE LASER RADIATION

Batteries

Batteries may not be disposed of in regular house hold trash. Every consumer has the obligation to return batteries to special disposal locations.

Disposal of Used Electrical & Electronic Equipment

The meaning of the symbol on the product, its accessory or packaging indicates that this product shall not be treated as household waste. Please, dispose of this equipment at your applicable collection point for the recycling of electrical & electronic equipments waste. By ensuring the correct disposal of this product, you will help prevent potential hazards to the environment and to human health, which could otherwise be caused by unsuitable waste handling of this product. The recycling of materials will help conserve natural resources. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

1. Handling discs

Always keep the CD compartment shut to prevent dust or dirt from getting into the CD mechanism.
- Do not touch the recorded surface.
- Do not stick paper or write on either side of the CD.
- Do not bend the CD.
- Only handle a disc on its outer edges.

1. Storing discs

2. To avoid scratches/damages always put CDs back into their cases after use.

3. Do not expose CDs to direct sunlight, dust, dirt, high temperatures, high humidity or water.

4. Cleaning discs

5. Use a soft cloth to wipe fingerprints and dust from the disc surface.

6. Carefully move the cloth from the center of the disc to its edge:

Correct False

• Never use benzene, thinners, record cleaner fluid or antistatic spray to clean CDs.
• Compatibility
• Due to the numerous compression methods, some discs may not play.

REMOTE CONTROL FUNCTIONS (FOR CD/MP3)
PLAY/PAUSE ▷|| (CD/MP3)
STOP■ (CD/MP3)
NEXT ▷▶ | (CD/MP3)
BACK |←← (CD/MP3)
SKIP 10 SONGS FORWARD F +	10 (CD/MP3)
SKIP 10 SONGS BACK F - 10 (CD/MP3)
PROGRAM PROG (CD/MP3)
REPEAT REP (CD/MP3)
FUNCTION SELECTOR	CD/MP3 / USB / SD MODE
RANDOM PLAYBACK	RANDOM	(CD/MP3)

REMOTE CONTROL

INSTALLING BATTERIES

1. Remove the battery cover.
2. Insert the 2x AAA' size /1.5V batteries not supplied), making sure the polarities (+ or -) of the batteries match the polarity markings inside the battery compartment.
3. Close the battery cover. Note: Remove batteries when they are exhausted or if the remote control is not going to be used for a long time.

BATTERY REPLACEMENT

When batteries become weak, the operating distance of the Remote Controller is greatly reduced and you will need to replace the batteries.

USING THE REMOTE CONTROLLER CORRECTLY

Point the remote controller at the REMOTE SENSOR located to the left bottom of the device. When there is a strong ambient light source, the performance of the infrared REMOTE SENSOR may be reduced, causing unreliable operation.

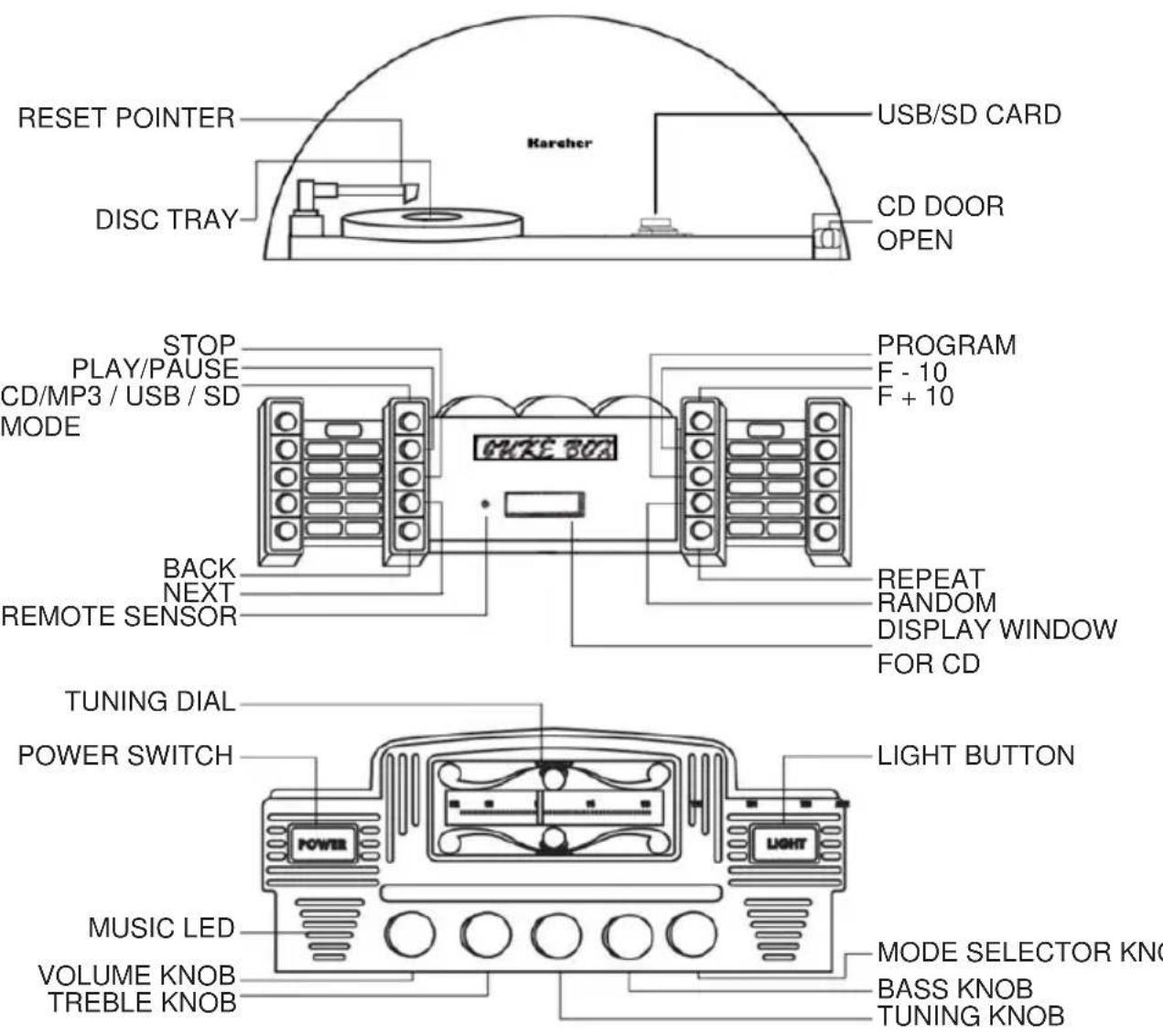

BASIC OPERATIONS (FOR CD/MP3)

1. Switch the unit on by pressing the POWER switch.
2. Set the MODE SELECTOR knob to "CD.USB.SD", the CD indicator on the CD control panel will be lit up ("OP").
3. Flip open the semi circular transparent door.
4. Turn the "RESET POINTER" to the "OFF" position and place a disc onto the disc tray (make sure the "RESET POINTER" is in the "ON" position after the disc has been loaded).
5. Press (NEXT) to skip ahead to next track.
6. Press | BACK) to skip back to previous track.
7. Press to fast forward the current track. Press | PLAY/PAUSE to resume normal playback.
8. Press to fast rewind the current track. Press | PLAY/PAUSE to resume normal playback.
9. Press F + 10 to skip 10 songs forward. This is helpful when you have a disc with many songs on it.
10. Press F-10 to skip 10 songs back. This is helpful when you have a disc with many songs on it.
11. Press | PLAY/PAUSE button to play disc, press twice to temporarily stop disc play at the current play position, Press the button again to resume disc play from the pause mode.
12. Press STOP button to stop playing disc.
13. To take out a disc, first set the RESET POINTER back to "OFF".

Notes:

• If the disc is seriously scratched or too dirty, disc play may not start.
  If an improperly centered disc is played, noise can be heard in the mechanism. The use of such discs should be avoided.
• Do not tilt the unit with discs loaded. Doing so may cause malfunctions.
• During the electrostatic discharge, the product may be malfunctioning. Reset it to return its normal operation.

REPEAT MODE "REP" (FOR CD/MP3)

Mode sequence REPEAT > REPEAT ALBUM (FOR MP3 ONLY) > REPEAT ALL > CLEAR

1. Press REP button once. The current track will be repeated.
2. Press REP button again. The disc will play through each track in a single folder to the end (FOR MP3 PLAYBACK ONLY).
3. Press REP button again. The complete disc will be repeated.
4. Press REP button again to resume normal playback.

Notes on CD-R/RW discs:

• Because of non-standardized format definition/ production of CD-R/RW, playback quality and performance are not guaranteed.
  Manufacturer is not responsible for the playability of CD-R/RW due to recording conditions, such as PC performance, writing software, media ability, etc.
  Do not attach a seal or label to either side of the CD-R/RW disc. It may cause a malfunction.

RANDOM MODE (FOR CD/MP3)

To play all tracks on a disc in a random order, press the RANDOM button. "RANDOM" will be shown in the display.

To resume normal playback, press the RANDOM button again.

PROGRAMMED DISC PLAY (FOR CD/MP3)

The program function allows you to select up to 20 songs to be played in a specific order. To do so, the CD playback must be in stop mode.

1. Press the STOP button to stop CD playback.
2. Press the PROG button. Select a track number using | NEXT or | BACK button to select a track which is to played first in your order. Then press PROG button again.
3. Repeat step 2 until all the desired tracks are programmed in memory (maximum 20 tracks).
4. To start playback of your order, press the | PLAY/PAUSE button.

Note:

• To clear the program, press the STOP or switch off the power.

LIGHT OPERATION

1. Press the LIGHT button to turn on all the lights.
2. To turn the lights off, press the LIGHT button again.

Note:

• Switch the MODE selector located on the back of the unit to change light mode.

RADIO OPERATION

1. Uncoil the Wire Antenna and extend fully for better reception.
2. Set the MODE SELECTOR know to your desired band (AM or FM).
3. Tune to the desired radio station by using the TUNING knob.
4. To turn the radio off, press the POWER button.

EXTENSION SPEAKER CONNECTION

1. Connect each speaker wire to the speaker terminal on the back cover
2. Switch the external speaker function on by setting the speaker switch at the back of the unit to ON. The sound from the internal speakers will be cut off.
3. To listen to the sound over the internal speakers again, set the speaker switch at the back to OFF.

USB/SD CARD READER

1. Set the MODE SELECTOR knob to "CD.USB.SD".
2. Press the CD/MP3 / USB / SD MODE button repeatedly to switch into USB or SD mode.
3. Insert your USB Flash Drive or SD Card into the slots.
4. The unit will search and play all the MP3 formatted file and repeat all tracks automatically.
5. The playback functions are the same as for CD playback.

IMPORTANT NOTE:

To avoid malfunction on both your devices, make sure the unit is in off mode before insert the USB FLASH DRIVE / SD CARD!

Notes:

• Because of non-standardized format definition/production of USB Flash Drive or SD Memory Card, playback quality and performance are not guaranteed.
• Manufacturer is not responsible for the playability of USB Flash Drive or SD Memory Card, due to recording conditions, such as PC performance, writing software, media ability, etc.
• Manufacturer is not responsible for any loss or damage of data.
• A USB device must always be connected directly to the USB port of this product. The use of a USB extension cord is not supported by this product. The USB port of this product cannot communicate with a computer directly.

EN

TROUBLESHOOTING GUIDE

Symptom Possible Causes (and Remedies)
RADIO RECEPTION	No radio The MODE selector has not been set to the correct position.
	Adjust the VOLUME knob.
	Rotate the TUNING knob to find a radio station.
CD PLAYER Disc does not play Reload the disc with the label side up.
			Clean the disc.
			Programmed disc play will not function	Press the STOP button and then program the tracks.
USB SD CARD READER	No Sound Check the USB Flash Drive and SD Card is firmly connected.
	Switch the MODE SELECTOR to USB-SD.
	Check the USB Flash Drive and SD Card file format, only MP3 formatted file can be accepted.
GENERAL Unit is not working The AC power cord is not connected to an AC wall outlet.
			Check that the power cord is connected firmly.
			Push the power button from the “OFF” position to the “ON” position.
			No sound output Turn VOLUME knob clockwise. Press the Reset button.
			Switch the external speaker jack on the back cover.

TECHNICAL SPECIFICATIONS

Power Supply: 220-240V 50Hz

Frequency Range: AM: 530 - 1610 kHz

FM:88-108MHz

Unit Dimensions (WxDxH): ca. 560 x 295 x 1.005 mm

Technical specifications and design may change without notice.

CE

We, Karcher AG, herewith confirm that this product is in line with the basic requirements of regulation 2014/53/EU and further relevant regulations.

A copy of the declaration of conformity can be obtained at the following address:

Or online at the following link:
