USER MANUAL SensoTouch RQ1131 PHILIPS

Register your product and get support at

www.philips.com/welcome

Always here to help you

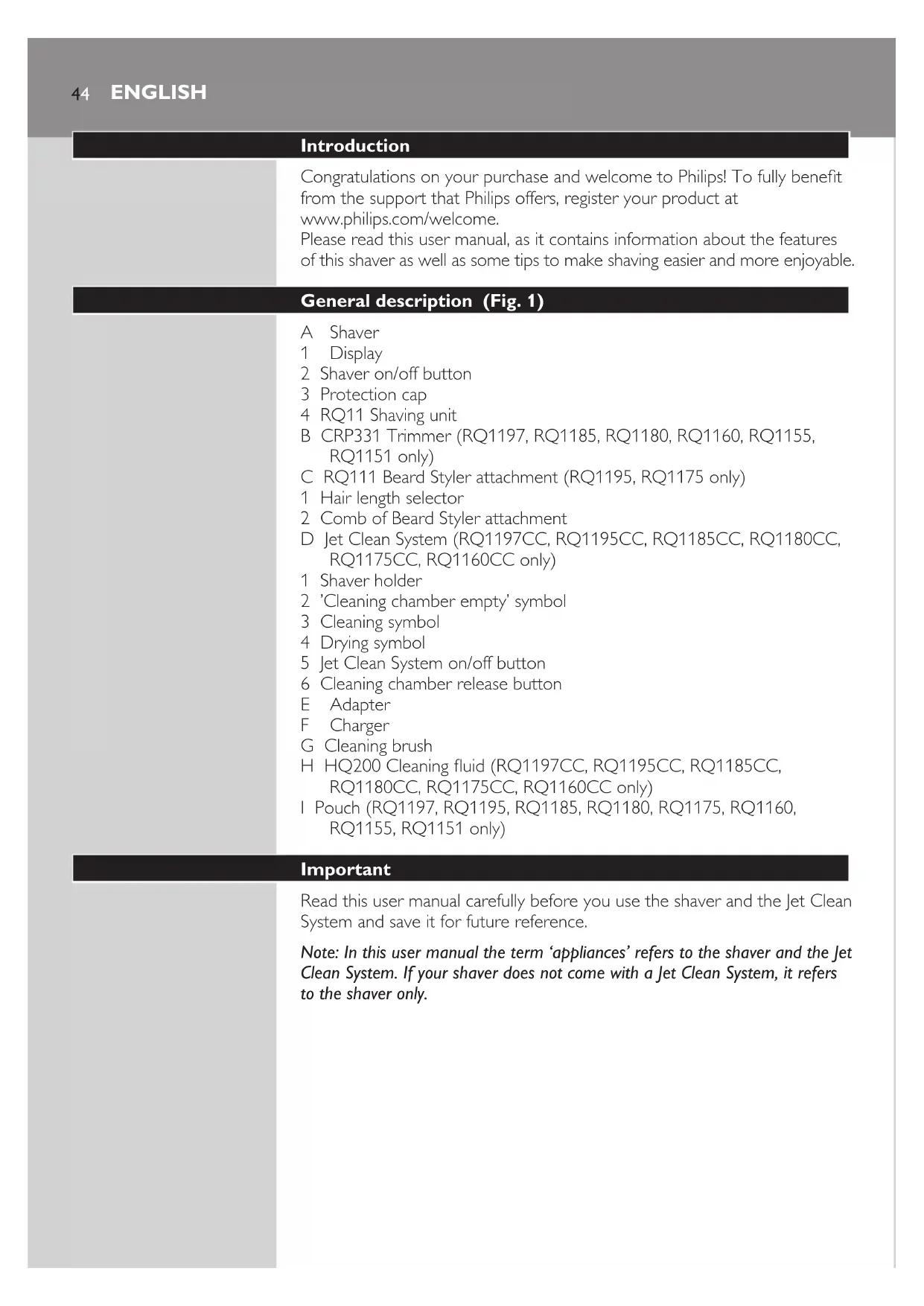

Congratulations on your purchase and welcome to Philips! To fully benet

from the support that Philips offers, register your product at

www.philips.com/welcome.

Please read this user manual, as it contains information about the features

of this shaver as well as some tips to make shaving easier and more enjoyable.

General description (Fig. 1)

2 Comb of Beard Styler attachment

D Jet Clean System (RQ1197CC, RQ1195CC, RQ1185CC, RQ1180CC,

RQ1175CC, RQ1160CC only)

6 Cleaning chamber release button

RQ1180CC, RQ1175CC, RQ1160CC only)

RQ1155, RQ1151 only)

Read this user manual carefully before you use the shaver and the Jet Clean

System and save it for future reference.

Note: In this user manual the term ‘appliances’ refers to the shaver and the Jet

Clean System. If your shaver does not come with a Jet Clean System, it refers

- Make sure the adapter does not get wet.

- The adapter contains a transformer. Do not cut off the adapter to

replace it with another plug, as this causes a hazardous situation.

- These appliances are not intended for use by persons (including

children) with reduced physical, sensory or mental capabilities, or lack

of experience and knowledge, unless they have been given supervision

or instruction concerning use of these appliances by a person

responsible for their safety.

- Children should be supervised to ensure that they do not play with the

shaver and the Jet Clean System.

- Be careful with hot water when you clean the appliances. Always check

if the water is not too hot, to prevent your hands from getting burnt.

- Never immerse the Jet Clean System and the charger in water nor

rinse them under the tap.

- The appliances and accessories are not dishwasher-proof.

- Always place and use the appliances on a surface that is uid-resistant.

- Use, charge and store the shaver at a temperature between 5°C and

- Only use the accessories supplied with this shaver or that have been

specically developed for this shaver.

- If the adapter or any of the other accessories is damaged, always have it

replaced with one of the original type in order to avoid a hazard.

- The adapter transforms 100-240 volts to a safe low voltage of less than

- Do not use the appliances and accessories if they are damaged.

- Water may leak from the socket at the bottom of the shaver when you

rinse it. This is normal and not dangerous because all electronics are

enclosed in a sealed power unit inside the shaver.

Jet Clean system (RQ1197CC, RQ1195CC, RQ1185CC,

RQ1180CC, RQ1175CC only)

- Only use the Jet Clean System with the original HQ200 cleaning uid.

- Always place and use the Jet Clean System on a stable, level and

horizontal uid-resistant surface to prevent leakage.

- Never immerse the Jet Clean System in water.

- Empty the cleaning chamber and clean it thoroughly by rinsing it with

hot tap water every 15 days.

- The Jet Clean System thoroughly cleans but does not disinfect your

shaver, therefore do not share the shaver with others.

- The cleaning chamber of the Jet Clean System is not dishwasher-proof.

- When the Jet Clean System is ready for use, do not move it to prevent

leakage of cleaning uid.

Beard Styler attachment (RQ1195, RQ1175 only)

- Only use the Beard Styler attachment to trim facial hair (beard,

moustache and sideburns). Do not use it to trim body parts below the

- Only use the Beard Styler attachment in combination with the

following shaver types: RQ12xx,RQ11xx, RQ10xx.

- The Beard Styler attachment is not dishwasher-proof.

Compliance with standards

- This shaver complies with the internationally approved safety

regulations and can be safely used in the bath or shower and cleaned

- These Philips appliances comply comply with all standards regarding

electromagnetic elds (EMF). If handled properly and according to the

instructions in this user manual, the appliances are safe to use based on

scientic evidence available today.

Note: If there is a protective foil on the display, remove it before you use the

shaver for the rst time.

The various shaver types have different displays, which are shown in the

- Charging takes approx. 1 hour.

RQ1197, RQ1195, RQ1180, RQ1175

- When the shaver is charging, rst the bottom charging light ashes, then

the second charging light, and so on until the shaver is fully charged.

- Quick charge: When the shaver contains enough energy for one shave,

the bottom charging light alternately ashes orange and white.

RQ1185, RQ1167, RQ1160, RQ1155, RQ1151, RQ1150, RQ1145,

Note: The displays of the various shaver types look different, but work in the

- When the shaver is charging, rst the plug symbol and the battery

symbol ash alternately. After some time, the plug symbol goes out and

the battery symbol continues to ash until the shaver is fully charged.

- Quick charge: When the shaver contains enough energy for one shave,

the alternate ashing of the plug symbol and battery symbol stops and

only the battery symbol ashes.

Battery fully charged

RQ1197, RQ1195, RQ1180, RQ1175

- When the battery is fully charged, all charging lights light up

continuously. After approx. 30 minutes, the display automatically

RQ1185, RQ1167, RQ1160, RQ1155, RQ1151, RQ11510,

Note: The displays of the various shaver types look different, but work in the

- When the battery is fully charged, the battery symbol lights up

continuously. After approx. 30 minutes, the display automatically

- When the battery is almost empty (when there are only 5 or fewer

shaving minutes left), the bottom charging light ashes orange.

- When you switch off the shaver, the bottom charging light continues to

ash for a few seconds.

RQ1185, RQ1167, RQ1160, RQ1155, RQ1151, RQ11510,

RQ1145, RQ1141, RQ1131

Note: The displays of the various shaver types look different, but work in the

- When the battery is almost empty (when there are only 5 or fewer

shaving minutes left), the plug symbol ashes.

- When you switch off the shaver, the plug symbol continues to ash for

Remaining battery capacity

RQ1197, RQ1195, RQ1180, RQ1175

- The remaining battery capacity is indicated by the number of charging

You can lock the shaver when you are going to travel. The travel lock

prevents the shaver from being switched on by accident.

Activating the travel lock

1 Press the on/off button for 3 seconds to enter the travel lock mode.

ENGLISH8, The lock symbol lights up on the display.

Note: The displays of the various shaver types look different, but show the

Deactivating the travel lock

1 Press the on/off button for 3 seconds.

, The motor starts running to indicate that the travel lock has been

The shaver is now ready for use again.

Note: When you place the shaver in the plugged-in charger or Jet Clean System,

the travel lock is automatically deactivated.

Replace shaving head holder

Note: The displays of the various shaver types look different, but show the

For maximum shaving performance, we advise you to replace the shaving

head holder every two years.

- To remind you to replace the shaving head holder, the appliance is

equipped with a replacement reminder which is activated automatically

after approx. two years. The replacement reminder is repeated at 9

successive shaves or until you reset the shaver.

Charging takes approx. 1 hour.

RQ1195, RQ1187, RQ1185, RQ1180, RQ1175, RQ1167, RQ1160,

RQ1155: A fully charged shaver has a shaving time of up to 50 minutes.

RQ1151, RQ1150, RQ1145: A fully charged shaver has a shaving time of up

RQ1141, RQ1131: A fully charged shaver has a shaving time of up to

Charge the shaver before you use it for the rst time and when the display

indicates that the battery is almost empty (see section ‘Battery low’ in

chapter ‘The display’).

After the shaver has charged for 5 minutes, it contains enough energy for

Charging in the charger

1 Insert the small plug into the charger.

2 Unfold the charger (‘click’).

3 Put the adapter in the wall socket.

4 Put the shaver in the charger (1) and press it backwards until it locks

, The display shows that the shaver is charging (see section ‘Charging’

in chapter ‘The display’).

Charging in the Jet Clean System (RQ1197CC, RQ1195CC,

RQ1185CC, RQ11801CC, RQ1175CC only)

1 Put the small plug in the Jet Clean System.

2 Put the adapter in the wall socket.

3 Hold the shaver upside down above the holder with the back of the

shaver pointing towards the holder.

Note: RQ1197, RQ1195, RQ1180, RQ1175: when you turn the shaver upside

down, the battery indication on the display is also turned upside down so you

can still see to what level the battery is charged.

4 Place the shaver body in the holder behind the two clips (1) and

press it down until it locks into place (2).

Note: The shaver cannot be placed in the Jet Clean System when the protection

cap is on the shaving unit or when the trimmer is placed on the shaver.

, The display shows that the shaver is charging (see chapter ‘The

ENGLISH10Using the shaver

Skin adaptation period

Your rst shaves may not bring you the result you expect and your skin

may even become slightly irritated. This is normal. Your skin and beard need

time to adapt to any new shaving system.

We advise you to shave regularly (at least 3 times a week) for a period of

3 weeks to allow your skin to adapt to the new shaver. During this period,

use your new electric shaver exclusively and do not use other shaving

methods. If you use different shaving methods, it is more difcult for your

skin to adapt to the new shaving system.

1 Press the on/off button once to switch on the shaver.

, RQ1197, RQ1195, RQ1185, RQ1180, RQ1175: The display lights up

2 Move the shaving heads over your skin in circular movements.

- Do not make straight movements.

3 Press the on/off button once to switch off the shaver.

, RQ1197, RQ1195, RQ1185, RQ1180, RQ1175: The display lights up

for a few seconds and then shows the remaining battery capacity.

You can also use this shaver on a wet face with shaving foam or shaving gel.

To shave with shaving foam or shaving gel, follow the steps below:

1 Apply some water to your skin.

2 Apply shaving foam or shaving gel to your skin.

3 Rinse the shaving unit under the tap to ensure that the shaving unit

glides smoothly over your skin.

4 Press the on/off button once to switch on the shaver.

5 Move the shaving heads over your skin in circular movements.

Note: Rinse the shaver under the tap regularly to ensure that it continues to

glide smoothly over your skin.

6 Dry your face and thoroughly clean the shaver after use (see chapter

‘Cleaning and maintenance’).

Note: Make sure you rinse all foam or shaving gel off the shaver.

Using the trimmer (RQ1197, RQ1185, RQ1180, RQ1160,

RQ1155, RQ1151 only)

You can use the trimmer to groom your sideburns and moustache.

1 Pull the shaving unit straight off the shaver.

Note: Do not twist the shaving unit while you pull it off the shaver.

2 Insert the lug of the trimmer into the slot in the top of the shaver

(1). Then press down the trimmer (2) to attach it to the shaver

3 Press the on/off button once to switch on the trimmer.

, RQ1180: The display lights up for a few seconds.

4 You can now start trimming.

5 Press the on/off button once to switch off the trimmer.

, RQ1180: The display lights up for a few seconds to show the

remaining battery capacity.

6 Pull the trimmer straight off the shaver.

Note: Do not twist the trimming unit while you pull it off the shaver.

7 Insert the lug of the shaving unit into the slot in the top of the shaver

(1). Then press down the shaving unit (2) to attach it to the shaver

Using the Beard Styler attachment (RQ1195, RQ1175 only)

Note: Only use the Beard Styler attachment to trim facial hair (beard,

moustache and sideburns). Do not use it to trim body parts below the neckline.

1 Make sure the shaver is switched off.

2 Pull the shaving unit straight off the shaver.

Note: Do not twist the shaving unit while you pull it off the shaver.

3 Insert the lug of the Beard Styler attachment into the slot in the top

of the shaver (1). Then press down the Beard Styler attachment (2)

to attach it to the shaver (‘click’).

Using the Beard Styler attachment with comb

You can use the Beard Styler attachment with the comb attached to style

your beard at one xed setting, but also at different length settings. The

hair length settings on the Beard Styler attachment correspond to the

remaining hair length after cutting and range from 1 to 5mm.

ENGLISH121 Slide the comb straight into the guiding grooves on both sides of the

Beard Styler attachment (‘click’).

2 Press the length selector (1) and then push it to the left or right (2)

to select the desired hair length setting.

3 Press the on/off button on the shaver to switch it on.

4 You can now start styling your beard.

Using the Beard Styler attachment without comb

You can use the Beard Styler attachment without the comb to trim and

contour your beard, moustache or sideburns.

1 Pull the comb off the Beard Styler attachment.

Note: Grab the comb in the centre to pull it off the Beard Styler attachment.

Do not pull at the sides of the comb.

2 Press the on/off button to switch on the shaver.

3 You can now start to trim and contour your beard, moustache,

sideburns or neckline.

Below you nd some examples of beard styles you can create.

Cleaning and maintenance

Never use scouring pads, abrasive cleaning agents or aggressive liquids

such as petrol or acetone to clean the shaver, its accessories and the

Jet Clean System (RQ1197CC, RQ1195CC, RQ1185CC, RQ1180CC,

- The best and most hygienic way to clean the shaver is in the Jet

Clean System (RQ1197CC, RQ1195CC, RQ1185CC, RQ1180CC,

RQ1175CC only). You can also rinse the shaver under the tap or clean

it with the brush supplied.

- Clean the shaver after every shave for optimal shaving performance.

- You can clean the outside of the shaver with a damp cloth.

- Regular cleaning guarantees better shaving performance.

Cleaning the shaving unit

Be careful with hot water. Always check if the water is not too hot, to

prevent your hands from getting burnt.

1 Switch off the shaver. Remove it from the charger or remove it

from the Jet Clean System (RQ1197CC, RQ1195CC, RQ1185CC,

RQ1180CC, RQ1175CC only).

2 Rinse the shaving unit under a hot tap for some time.

Note: You can also clean the shaving unit with the cleaning brush supplied.

3 Pull the shaving head holder off the bottom part of the shaving unit

and rinse it under a hot tap for 30 seconds.

Note: You can also clean the shaving head holder with the cleaning brush

4 Carefully shake off excess water and let the shaving head holder dry.

Never dry the shaving unit with a towel or tissue, as this may damage the

5 Reattach the shaving head holder to the bottom part of the shaving

Cleaning the shaving unit in the Jet Clean System (RQ1197CC,

RQ1195CC, RQ1185CC, RQ1180CC, RQ1175CC only)

The Jet Clean System has an automatic cleaning program. When you press

the on/off button, the Jet Clean System starts cleaning in this automatic

Preparing the Jet Clean System for use

Fill the cleaning chamber before rst use.

1 Put the small plug in the Jet Clean System.

2 Put the adapter in the wall socket.

, The holder automatically moves to the highest position.

3 Simultaneously press the release buttons on both sides of the

cleaning chamber (1). Then lift the Jet Clean System off the cleaning

, The cleaning chamber remains behind.

4 UnscrewthecapfromthebottlewithHQ200cleaninguid.

5 FillthecleaningchamberwithHQ200cleaninguidtoalevel

between the two lines.

6 Place the Jet Clean System back onto the cleaning chamber.

Make sure the release buttons click back into place.

Using the Jet Clean System

Note: If you use the shaver with shaving foam or shaving gel, we advise you

to rinse it under the hot tap before you clean it in the Jet Clean System. This

guarantees an optimal lifetime for the cleaning uid.

ENGLISH161 Hold the shaver upside down above the holder with the back of the

shaver pointing towards the holder.

2 Place the shaver body in the holder behind the two clips (1) and

press it down until it locks into place (2).

, The display shows that the shaver is charging (see chapter ‘The

3 Press the on/off button on the Jet Clean System to start the cleaning

, The shaver display stops showing the charging indication.

, Thecleaninglightstartstoashandtheshaverisautomatically

loweredintothecleaninguid.

, Thecleaninglightashesthroughoutthecleaningprogram,which

takes a few minutes.

, Duringtherstphaseofthecleaningprogram,theshaver

automatically switches on and off several times and moves up and

, During the second phase of the cleaning program, the shaver is

placedinthedryingposition,indicatedbytheashingdryingsymbol.

This phase takes approx. 2 hours. The shaver stays in this position

until the end of the program.

, After the cleaning program, the charging indication appears on the

shaver display (see chapter ‘The display’).

Note: If you press the on/off button of the Jet Clean System during the cleaning

program, the program aborts. In this case, the cleaning or drying light stops

ashing and the holder moves to the highest position.

Note: If you remove the adapter from the wall socket during the cleaning

program, the program aborts. The holder remains in its current position. When

you put the adapter back into the wall socket, the holder moves to the highest

- When the cleaning uid drops below the minimum level, the ‘cleaning

chamber empty’ symbol starts to ash and the holder returns to its

- If you use the Jet Clean System to clean your shaver every day, you

need to rell the cleaning chamber approx. every 15 days.

Cleaning the Jet Clean System

Clean the cleaning chamber every 15 days.

You can wipe the outside of the Jet Clean System with a damp cloth.

1 Simultaneously press the release buttons on both sides of the Jet

Clean System (1). Then lift the Jet Clean System off the cleaning

, The cleaning chamber remains behind.

2 Pouranyremainingcleaninguidoutofthecleaningchamber.

You can simply pour the cleaning uid down the sink.

3 Rinse the cleaning chamber under the tap.

The cleaning chamber is not dishwasher-proof.

4 FillthecleaningchamberwithHQ200cleaninguidtoalevel

between the two lines.

ENGLISH185 Place the Jet Clean System back onto the cleaning chamber.

Make sure the release buttons click back into place.

Extra-thorough cleaning method

Make sure the appliance is switched off.

1 Pull the shaving head holder off the bottom part of the shaving unit.

2 Slide the green retaining frame in the direction of the arrows

indicated on the retaining frame.

3 Lift the retaining frame out of the shaving head holder.

4 Remove the cutter from the shaving guard.

Note: Do not clean more than one cutter and shaving guard at a time, since

they are all matching sets. If you accidentally put a cutter in the wrong shaving

guard, it may take several weeks before optimal shaving performance is

5 Clean the cutter with the cleaning brush supplied.

6 Clean the inside of the shaving guard.

7 After cleaning, place the cutter back into the shaving guard with the

cutter legs pointing downwards.

8 Place the retaining frame back onto the shaving head holder.

9 Slide the guard back into place (‘click’).

ENGLISH2010 Reattach the shaving head holder to the bottom part of the shaving

Cleaning the trimmer (RQ1197, RQ1185, RQ1180, RQ1160,

RQ1155, RQ1151 only)

Clean the trimmer every time you have used it.

1 Switch on the appliance with the trimmer attached.

2 Rinse the trimmer under a hot tap for some time.

3 After cleaning, switch off the appliance.

Tip: For optimal trimmer performance, lubricate the trimmer teeth with a drop

of sewing machine oil every six months.

Cleaning the Beard Styler attachment (RQ1195, RQ1175 only)

Clean the Beard Styler attachment every time you have used it.

1 Pull the comb off the Beard Styler attachment.

2 Rinse the Beard Styler attachment and the comb separately under a

hot tap for some time.

Note: You can also clean the Beard Styler attachment and the comb with the

cleaning brush supplied.

3 Lubricate the trimmer teeth with a drop of sewing machine oil every

1 Slide the protection cap onto the shaving unit to prevent damage to

2 RQ1197, RQ1195, RQ1185, RQ1180, RQ1175, RQ1160, RQ1155,

RQ1151 only: Store the shaver in the pouch supplied.

For maximum shaving performance, we advise you to replace the shaving

head holder every two years.

Only replace the shaving head holder with an original RQ11 Philips

Shaving Head Holder.

Replacement reminder

To remind you to replace the shaving head holder, the appliance is

equipped with a replacement reminder which is activated automatically

after approx. two years. The replacement reminder is repeated at 9

successive shaves or until you reset the shaver.

1 Theshavingunitsymbolasheswhenyouswitchofftheshaver.

Note: The displays of the various shaver types look different, but show the

2 Pull the shaving head holder off the bottom part of the shaving unit.

3 Attach the new shaving head holder to the bottom part of the

shaving unit (‘click’).

4 To reset the shaver, press and hold the on/off button for approx. 10

Note: If you do not reset the shaver at the rst replacement reminder, it

continues to show the shaving unit symbol at 8 more shaves or until you reset

ENGLISH22Ordering accessories

To purchase accessories for this appliance, please visit our online shop at

www.shop.philips.com/service. If the online shop is not available in

your country, go to your Philips dealer or a Philips service centre. If you

have any difculties obtaining accessories for your appliance, please contact

the Philips Consumer Care Centre in your country. You nd its contact

details in the worldwide guarantee leaet.

The following parts are available

- RQ11 Philips Shaving Head Holder

- HQ110 Philips Shaving Head Cleaning Spray

- HQ200 Philips Cleaning Fluid

- RQ111 Beard Styler attachment

- We advise you to replace the shaving head holder every two years.

Always replace the shaving head holder with an original RQ11 Philips

Shaving Head Holder.

- RQ1197CC, RQ1195CC, RQ1185CC, RQ1180CC, RQ1175CC only:

use Jet Clean Solution (HQ200) for regular cleaning of the shaving

- Do not throw away the shaver and the Jet Clean System (RQ1197CC,

RQ1195CC, RQ1185CC, RQ1180CC, RQ1175CC only) with the

normal household waste at the end of their life, but hand them in at an

ofcial collection point for recycling. By doing this, you help to preserve

- The built-in rechargeable shaver battery contains substances that

may pollute the environment. Always remove the battery before you

discard or hand in the shaver at an ofcial collection point. Dispose

of the battery at an ofcial collection point for batteries. If you have

trouble removing the battery, you can also take the appliance to a

Philips service centre. The staff of this centre will remove the battery

for you and will dispose of it in an environmentally safe way.

Removing the rechargeable shaver battery

Only remove the rechargeable battery when you discard the shaver.

Make sure the battery is completely empty when you remove it.

Be careful, the battery strips are sharp.

1 Remove the back panel of the shaver with a screwdriver.

2 Remove the rechargeable battery.

Guarantee and support

If you need information or support, please visit www.philips.com/

support or read the separate worldwide guarantee leaet.

Guarantee restrictions

The shaving heads (cutters and shaving guards) are not covered by the

terms of the international guarantee because they are subject to wear.

This chapter summarises the most common problems you could

encounter with the appliance. If you are unable to solve the problem with

the information below, visit www.philips.com/support for a list of

frequently asked questions or contact the Consumer Care Centre in your

Problem Possible cause Solution

shave as well as it used

The shaving heads are damaged or

Replace the shaving head holder (see

chapter ‘Replacement’).

Long hairs obstruct the shaving heads. Clean the shaving heads by following

the steps of the extra-thorough

cleaning method (see chapter

‘Cleaning and maintenance’).

RQ1185CC, RQ1180CC, RQ1175CC

only: The Jet Clean System has not

cleaned the shaver properly, because

the cleaning uid in the cleaning

chamber is soiled or the cleaning uid

Clean the shaver thoroughly before

you continue shaving. If necessary,

clean and rell the cleaning

chamber (see chapter ‘Cleaning and

The rechargeable battery is empty. Recharge the battery (see chapter

The travel lock is activated. Press the on/off button for 3 seconds

to deactivate the travel lock.

The shaving head holder is soiled or

damaged to such an extent that the

Clean the shaving head holder or

replace it (see chapters ‘Cleaning and

maintenance’ and ‘Replacement’).

The temperature of the shaver is too

high. In this case, the shaver does not

Let the shaver cool down. As soon

as the temperature of the shaver has

dropped sufciently, you can switch

on the shaver again.

shaver is not entirely

clean after I clean it in

the Jet Clean System.

The cleaning uid in the cleaning

Empty and rinse the cleaning

chamber and rell it with new

The cleaning uid level is too low.

If the uid volume in the cleaning

chamber drops below the minimum

level during the cleaning program, the

program aborts.The cleaning light and

the ‘cleaning chamber empty’ symbol

ash at intervals and the holder

returns to its starting position.

Rell the cleaning chamber with

cleaning uid to a level between the

two lines (see chapter ‘Cleaning and

You have used another cleaning uid

than the original Philips cleaning uid.

Only use HQ200 Philips Cleaning

Jet Clean System does

not work when I press

The Jet Clean System is not

connected to the mains.

Put the small plug in the Jet Clean

System and put the adapter in the

There is no electrical connection

between the Jet Clean System and the

Press the shaver tightly into the

holder to lock it into place.

Problem Possible cause Solution

The shaver is not fully

charged after I charge it

in the charger/Jet Clean

You have not placed the shaver in the

charger/Jet Clean System properly.

Make sure you press the shaver until

it locks into place.

Jet Clean (RQ1197CC/

Consumer Care Centre in uw land.

Clean (solo RQ1197CC, RQ1195CC, RQ1185CC, RQ1180CC,

- Ladingen tar ca. én time.

Ladingen tar ca. én time.

- HQ110 Philips Shaving Head Cleaning Spray (rensespray for
