| Product type | Portable digital DAB+/DAB and FM radio |
| Brand | Noxon |
| Model | Journaline Mobile |
| Reception | DAB+/DAB (Band III) and FM (87.5-108 MHz) |
| Display | LCD screen with station information, menus and Journaline service |
| Main functions | Automatic and manual search, 5 memory keys, dual alarm, DRC setting, silent mode |
| Journaline service | Text subtitling with tree navigation (if supported by the station) |
| Speaker | Built-in speaker |
| Audio outputs | Headphone output (3.5 mm) and line output (RCA) |
| Power supply | Mains via adapter (included) or internal rechargeable battery |
| Battery | Internal rechargeable battery (type not specified) |
| Antenna | Telescopic antenna included + adapters for external antenna |
| Connectivity | USB port (firmware update only) |
| Memory | 5 presets per mode (DAB and FM) |
| Firmware update | Via USB key formatted in FAT32 (SCAN key + power on) |
| Included accessories | Telescopic antenna, 2 antenna adapters, mains cord, manual (FR/DE/EN/IT), audio CD (German) |
| Operating temperature | 5 °C to 35 °C |
| Safety | Instructions: do not expose to water, do not obstruct openings, use on a flat surface, disconnect in case of storm |
| Maintenance | Clean with a dry cloth only; maintenance by qualified personnel |
Frequently Asked Questions - Journaline Mobile Noxon
User questions about Journaline Mobile Noxon
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Radio in PDF format for free! Find your manual Journaline Mobile - Noxon and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Journaline Mobile by Noxon.
USER MANUAL Journaline Mobile Noxon
CE/FCC declaration....15
Important safety information....16
Welcome! 17
Scope of delivery 17
Overview 18
Front....18
Back....18
Control Panel 19
Connection 19
Operation 19
Receiving DAB+/DAB stations....19
Receiving Journaline 20
Receiving FM stations 20
Further operation notes 21
Setup 21
The DAB menu....21
The FM menu....22
The System Setup menu 23
Firmware Update 23
Battery Safety and Disposal Instructions 24
CE/FCC declaration
NOXON NOXON Vertriebsgesellschaft mbH · Herrenpfad 38 · 41334 Nettetal · Germany hereby declare that the product:
NOXON Journaline (DAB+/DAB/FM Radio)
to which this declaration refers is in compliance with the following standards or standardizing documents:
EN 55022:1998 + A1:2000 + A2:2003, CLASS B, EN 55024: 1998 + A1:2001 + A2:2003, EN 61000-3-2:2000, Class A, EN 61000-3-3:1995+A1:2001, IEC 61000-4-2:2001, IEC 61000-4-3:2002+A1:2002, IEC 61000-4-4:2004, IEC 61000-4-5:2001, IEC 61000-4-6:2003+A1:2004, IEC 61000-4-8:2001, IEC 61000-4-11:2004
This device may only be used in the following environments and operating conditions: residential, commercial and industrial environments, as well as small businesses. The basic protective requirements of EMC Directive 89/336/EEC are thus fulfilled.
CE conformity has been demonstrated. As stipulated in R&TTE Directive (1999/5/EC), this device corresponds to a Class 1 radio system (Commission Decision 2000/299/EC). The device also complies with FCC Part 15, Subpart B, Class B, and ANSI C63.4:2003.
NOXON Journaline Mobile
Important safety information
This device has been developed and manufactured so that it does not endanger personal safety. Improper use can cause electric shock or fire. The safety features integrated into this device can protect you only if you observe the following instructions for installation, use and maintenance:
- Please read this operating manual in its entirety.
- Observe all warnings and instructions.
- Do not use the device close to water.
- Clean it using a dry cloth only. Do not use any liquids!
- Do not cover up any ventilation openings. Install the device according to the instructions in this manual.
- Do not install the device in the immediate vicinity of heat sources such as radiators, ovens or other devices that give off a great deal of heat.
- Route all cables so that no one can step on them and they are not pinched, especially not on the connector, on the power outlet or at the location where the network cable exits the device.
- Unplug the power cable from the socket during electrical storms or when the device will not be used for a long time.
- All maintenance work may be carried out by qualified service technicians only. Maintenance work is required whenever the device has been damaged in any way, e.g. if power cables or connectors are damaged, liquid gets into the device or objects fall into it, if it has been exposed to rain or moisture, if it no longer functions normally or has fallen down.
- The device may be operated at ambient temperatures of 5 °C to 35 °C (41 °F to 95 °F) only.
- Do not drop the device or expose it to mechanical shock!
- Do not move the device as long as it is switched on.
- Place the device on a level, dry surface to prevent fire and electrical shock hazards as well as possible damage to the player itself.
- Do not place objects filled with liquid such as vases or bottles on the device.
- If the device has been exposed to extreme differences in temperature, allow it to adjust to the room temperature for one hour before plugging it in. Condensation may have formed inside the device, which impairs its functionality or can cause damage to the device itself.
Welcome!
Thank you very much for choosing a NOXON product.
With your new NOXON Journaline Mobile you can receive DAB+ and DAB radio stations in CD quality. On top of a superior audio quality, the digital broadcasting services also offer interesting additional services and information on their program.
But this does not mean you have to do without the analog stations from now on, as you can switch the Radio to FM operation by a single button – it's just this easy.
The integrated speaker of the Radio enables you to use it anywhere you like, but you can also connect it to a home stereo system or listen to your favourite stations on headphones as well.
We hope you will have lots of fun with your NOXON Journaline Mobile. Enjoy the radio of the future!
Scope of delivery
Please start by checking the contents of the package:
• NOXON Journaline Mobile
- Telescopic antenna
- Antenna adapter (IEC female)
- Antenna adapter (IEC male)
- Mains cable
- Manual DE/EN/FR/IT
- Service card
• CD with Audiomanual (German)
NOXON Journaline Mobile
Overview

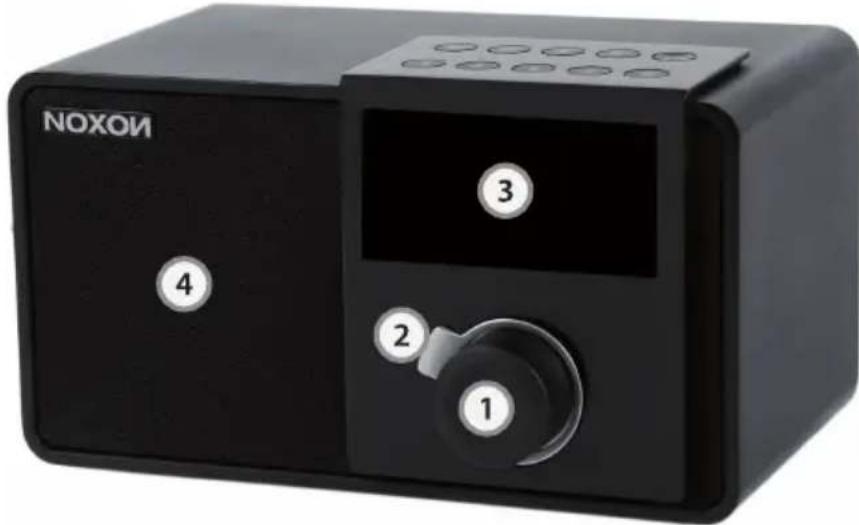

Front
- Navigation wheel for menu navigation and altering the volume
- Back button takes you back one level from the current menu
- LCD display shows menus and station information
- Speaker for playing back the tuned station

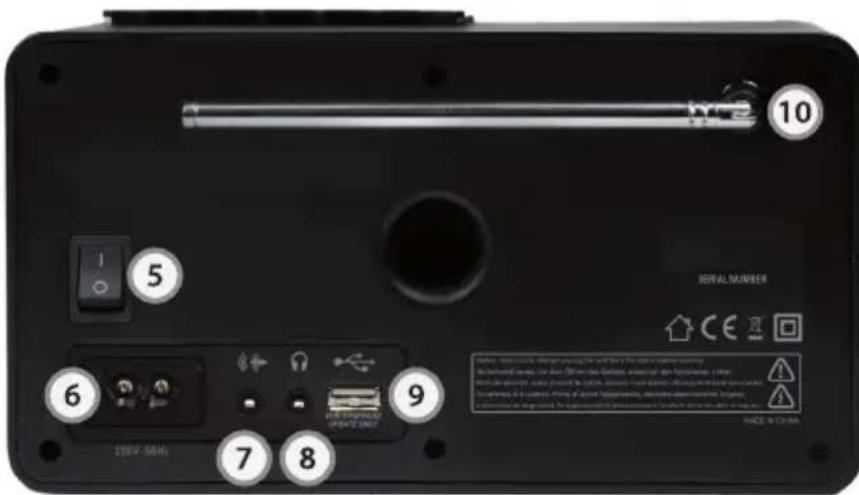

Back
- Mains switch completely disconnects the device from mains
- Mains connector connect the provided mains cable here
- Line out for connecting to a hi-fi system, active speakers etc.
- Headphones out allows undisturbed musical enjoyment with headphones
- USB port for executing firmware updates & Text-to-Speech activation
- Antenna in for the provided telescopic antenna or an antenna cable

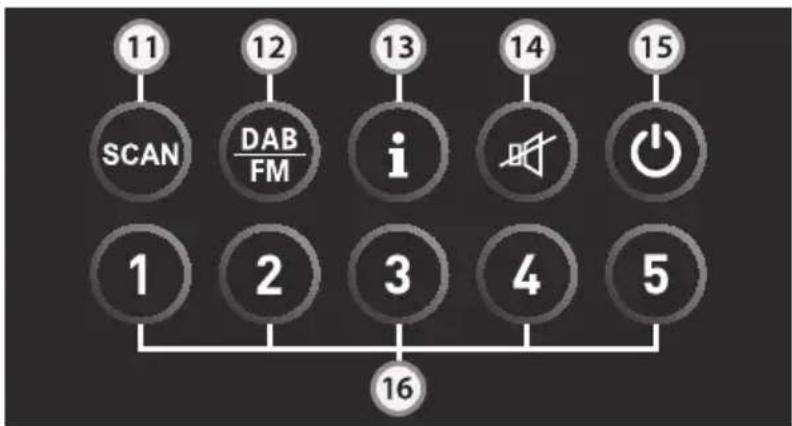

Control Panel
- Scan starts scanning available stations
- DAB/FM switches from DAB+/DAB to FM mode and vice versa
- Info (i) shows additional information Journaline (if broadcasted by station)
- Mute reduces the volume to 0
- On/Off activates or deactivates your Radio (Standby)
- Memory saves and recalls your favourite stations
Battery Installation
- Open the battery compartment located at the bottom.
• Gently press the battery connector into the corresponding socket. - The tongue of the connector slides into the groove of the socket.
- Place the battery plainly into its compartment.
- Close the cover of the battery compartment.
Connection The connection of your Radio is really easy:
- Start by connecting the provided mains cable with the mains connector (6) on the unit and a power outlet.
- Proceed by inserting the provided telescopic antenna into its dedicated connector (9) and extend it to its full length.
• Alternatively, you can also use a DAB active antenna or a signal coming from your rooftop antenna. In this case, please use the provided adapter. - Set the mains switch (5) into the "I" position. In order to activate or deactivate the Radio, just press the On/Off button (14) on the control panel located on top of the unit.
Operation Receiving DAB+/DAB stations
Switch into DAB+/DAB mode
The upper left corner of the display shows the mode your Radio is currently set to (FM, DAB or Menu). If it is not set to DAB+/DAB already, just press the DAB/FM button (11) on the control panel once.
NOXON Journaline Mobile
Scan stations
Press the Scan button (10) on the control panel in order to start scanning the available stations automatically. Your Radio scans the complete frequency range and then writes the stations it has found into the station list. This comes in very handy, because this way you do not have to execute the scan process over and over again.
Show station list
Press the navigation wheel (1) shortly. Start turning it and you will see the list of available stations, which you can choose from by pressing the navigation wheel on the one you would like to listen to.
Prune station list
If your DAB+/DAB station list contains stations which have a question mark in front of their name, the reception situation has changed since the last recent station scan, with the effect that the marked station can currently not be received anymore. If you would like to clear such marked stations from the station list, please use the "Prune" function in the System Setup menu.
Journaline
Journaline is a text-based information service designed for digital broadcasting systems. It provides up-to-date text-based information similar to that offered by an electronic magazine or newspaper. The information is structured in the form of topics and sub-topics that are easily accessible via a menu structure.
If a radiostation provides journaline it will be shown with an additional icon [J] in the display. You can access the journaline menu through the information button „i“ (long press) on the control panel. Using the navigation wheel you can choose the topics and access the individual submenus and content.
If you see a loading bar next to the topic the content is not fully loaded yet. Depending on the content it can take some time until you can access the menu then. In the list of the radiostations you may will find stations without audio. This stations provide data only. Again here you can access the data while pressing the „i“ button on the control-panel.
Receiving FM stations
Switch into FM mode
The upper left corner of the display shows the mode your Radio is currently set to (FM, DAB or Menu). If it is not set to FM already, just press the DAB/FM button (11) on the control panel once.
Scan stations
Press the Scan button (10) on the control panel in order to start scanning for the next available FM station.
Find only strong stations
If you are only interested in the stronger stations with a good reception quality and skip the weaker ones, you can make the corresponding setting under "FM Scan Setting" in the System Setup menu.
Tune manually
Press the navigation wheel (1) once shortly. By turning it you can now navigate to a desired frequency manually.
Further operation notes
The following functions can be used both in DAB and FM mode:
Save stations as favourites
If you have found a station which you especially like and which you would like to listen to again later without the need to search for it first, simply save it as one of your favourites. Press one of the five available memory buttons (15) for three seconds. In order to recall the station later, just press the same memory button for a short time. By the way, you can of course save different stations in DAB and in FM mode (so you have five memory buttons available for DAB and FM each).
Change volume
In order to change the volume of your Radio, turn the navigation wheel (1) to the left for a lower volume or to the right in order to make it louder. If you want to completely mute your radio temporarily, press the mute button (13) on the control panel.
Display additional information
Press the info button (12) in order to display additional info broadcasted by the currently tuned station. Please note the type of information broadcasted can alter from one station to the next.
Setup
Start by pressing the back button (2) in order to navigate to the main menu of your Radio.
There you will find the following sub menus:
The DAB menu
Station List
Shows the station list. If a question mark appears in front of the name of a station, it cannot be received at the moment.
Full Scan
Executes an automatic scan though the complete frequency range and writes the available stations into the station list.
NOXON Journaline Mobile
Manual Tune
Use this if you want to navigate to a certain frequency manually.
The FM menu
At the moment, the FM menu does not contain any further sub menus or functions. Therefore it redirects to the FM reception mode.
The System Setup menu
Language
Here you can choose from several languages for the menu navigation.
Time Setup
This menu lets you choose from different formats for displaying time and date. You can also set time and date information manually here.
Alarm Setup
The alarm setup offers two individuals alarm times.
For both alarm times you can set on/off state and the desired volume independently from each other.
FM Scan Setting
With this option you can decide if the automatic FM scan should only find strong stations with a good reception quality, or if it should also stop on weaker stations as well.
Prune
If your DAB+/DAB station list contains stations marked with a question mark (meaning that your dRadio 110 cannot receive these stations at the moment), you can permanently remove them from the station list. If you want to add them to the station list again later (for example after changing location in order to achieve a better quality of reception), you have to execute a new station scan.
DRC
DRC means Dynamic Range Control. This function aims at smoothing the differences in volume between different stations, which can result in an overall more homogeneous listening experience.
SW Version
This shows the software version running on your device.
Factory Reset
Should you decide to reset your Radio to its default settings, you can do this here.
Attention: This will delete all of your settings and saved stations!
Firmware Update
An essential part of our corporate philosophy is the constant improvement of our devices. For this reason we have provided the Radio with an USB port. This USB port is solely responsible for the firmware/software update, therefore it is not capable of transferring any other data.
Preparation
Please visit the following website:
http://www.noxonradio.de/en/support
and choose the NOXON Journaline as your product.
Support-Hotline: 02157 - 817914
Download the latest firmware and unpack it into the main directory of your USB stick (not into a subfolder). It is also important that the USB stick is formatted in FAT32 format. Other formats are not supported by the Radio.
It is possible that the device is automatically reset to its factory settings on a firmware update. This means your individual settings will get lost. We apologize for this, but this is partly necessary to really update the full functionality of the device.
Flash process
- Turn off the device with the power switch on the rear panel (do not switch the device into standby).
- Insert the prepared USB stick into the USB port on the rear panel.
- Press the SCAN button, keep holding it down, and then turn on the device.
- A progress bar will display the flash process now.
This process should not be interrupted under any circumstances. Do not power off the device or unplug the USB stick during the update process since this would irreversible destroy the device.
- If no progress bar is shown, the USB stick is not detected by the Radio. Please check if the USB stick is inserted correctly. If this is the case, please review and repeat the steps specified above.
- After successfully updating the firmware the message "Done" will be displayed and shortly thereafter the display turns black.
- Turn off the device with the power switch on the rear panel (do not switch the device into standby).
- Now you can remove the USB stick and switch your Radio back on again.
Enjoy the NOXON Journaline!
Your NOXON Team.
Battery Safety and Disposal Instructions
- Do replace batteries with the size and type specified in your product's setup guide or getting started guide. Remove all batteries from the product at the same time.
- Do charge rechargeable batteries with the instructions and correct charging equipment supplied with your product.
- Do store batteries in a cool, dry place at normal room temperature. Remove batteries from devices that will be stored unused for extended periods.
- Do dispose of batteries according to the local laws and regulations of your region. Some batteries may be recycled, and may be accepted for disposal at your local recycling centre. If you are not able to identify the applicable rules in your area, please check the instructions of the battery manufacturer.
• Do contact our customer support if you have questions about proper handling of batteries. - Batteries may present a risk of fire, explosion, or chemical burn if mistreated.
- Do not disassemble, puncture, modify, drop, throw, or cause other unnecessary shocks to
- batteries.
- Do not dispose of batteries in a fire or trash incinerator, or leave batteries in hot places such as a automobile under direct sunlight.
- Do not store batteries near an oven, stove, or other heat source.
- Do not connect batteries directly to an electrical source, such as a building outlet or automobile power-point.
- Do not place batteries into a microwave oven, or into any other high-pressure container.
- Do not immerse batteries in water or otherwise get them wet.
• Do not short circuit batteries; for example, do not carry loose batteries in a pocket or purse
• with other metal objects, which may inadvertently cause a battery to short circuit. - Do not use batteries, or charge rechargeable batteries, that appear to be leaking, discoloured, rusty, deformed; emit a smell; or are otherwise abnormal.
- Do not touch leaking batteries directly; wear protective material to remove the batteries and dispose of them properly immediately.
- Do not reverse the polarity (positive and negative terminals) of batteries.
- Do not mix used and new batteries, or install used batteries in other equipment.
- Do not charge non-rechargeable batteries, or use unspecified charging instructions or equipment for rechargeable batteries.
- Do not continue to charge batteries beyond the specified time.
• Do not give batteries to young children, or store batteries where children may access them. - Do not put batteries in mouth. If swallowed, contact physician or local poison control centre immediately.
