USER MANUAL HVTM08ABS HAIER

When using this appliance, always exercise basic safety precautions, including the following:

1. Read all of the instructions before using this appliance.
2. This wine cellar must be properly installed in accordance with the installation instructions before it is used. See grounding instructions in the installation section.
3. Never unplug your wine cellar by pulling on the power cord. Always grasp the plug firmly and pull straight out from the outlet.
4. Repair or replace immediately, all electric service cords that have become frayed or otherwise damaged. Do not use a cord that shows cracks or abrasion damage along its length, the plug or the connector end.
5. Unplug your wine cellar before cleaning or before making any repairs. Note: If for any reason this product requires service, we strongly recommend that a certified technician performs the service.
6. If your wine cellar is not being used, we recommend that you remove the door and leave the shelves in place. This will reduce the possibility of danger to children.
7. This wine cellar should not be recessed or built-in an enclosed cabinet. It is designed for freestanding installation only.
8. Do not operate your wine cellar in the presence of explosive fumes.
9. Do not store foods in wine cellar as interior temperature may not be cool enough to prevent spoilage.

SAVE THESE INSTRUCTIONS

HOUSEHOLD USE ONLY

! DANGER

Risk of child entrapment. Before you throw away your old appliance, take off the doors. Leave the shelves in place so that children may not easily climb inside.

TABLE OF CONTENTS

PAGE

IMPORTANT SAFEGUARDS ....1

PARTS AND FEATURES ......3

INSTALLING YOUR WINE CELLAR 4-6

Unpacking your wine cellar ....4

Proper Air Circulation 4

Electrical Requirements 5

Use of extension cords....5

Install Limitations ....5

Door Alignment 5

WINE CELLAR FEATURES AND USE 6

Temperature Adjustments 6

Thermoelectric Cooling 7

Shelving 7

PROPER WINE CELLAR CARE AND CLEANING 8

Cleaning and Maintenance 8

Power interruptions....8

Vacation & moving care 8

TROUBLESHOOTING 9

WARRANTY....10

Thank you for using our Haier product. This easy-to-use manual will guide you in getting the best use of your wine cellar.

Remember to record the model and serial number. They are on a label in back of the wine cellar.

Model number

Serial number

Date of purchase

Staple your receipt to your manual.

You will need it to obtain warranty service.

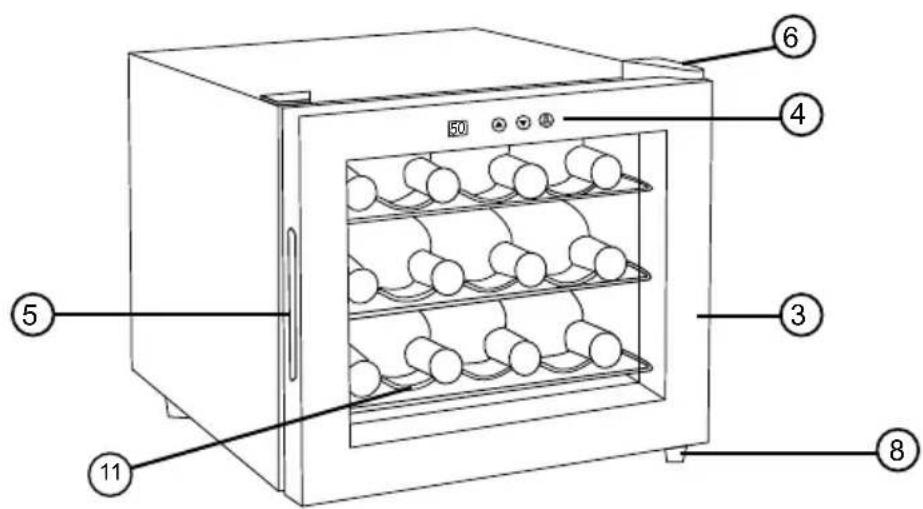

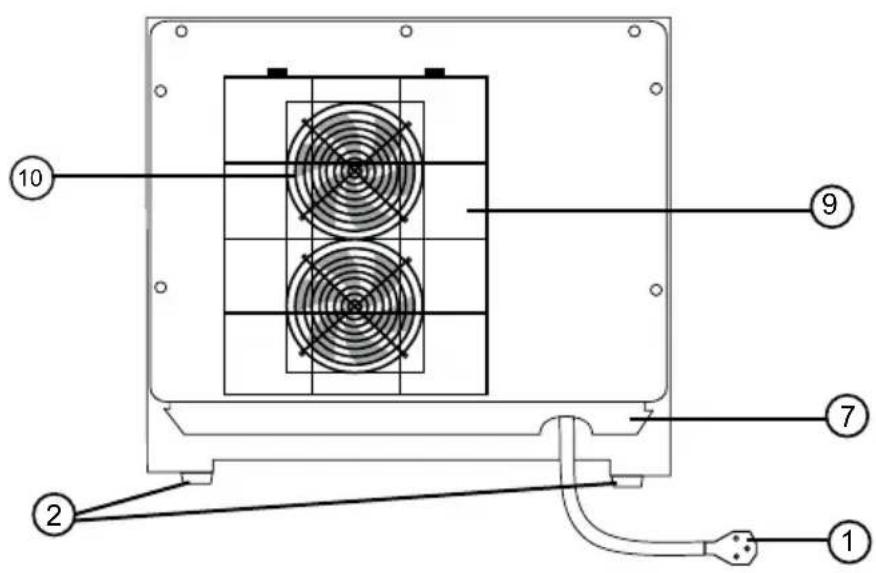

PARTS AND FEATURES

Labeled diagram of a 11-inch oven with numbered components for cooking or storage purposes.

Technical diagram of a device with numbered components and labeled parts, including fan-like structures and wiring connections.

1. Power Cord
2. Feet
3. Door Frame
4. Control Panel
5. Recessed Handle

6. Hinge Cover

7. Drip Tray

8. Bottom Hinge
9. Fan Filter
10. Cooling Fan
11. Racks
12. Interior Light (not shown)

Note: This figure is only a sketch and may differ from the actual product

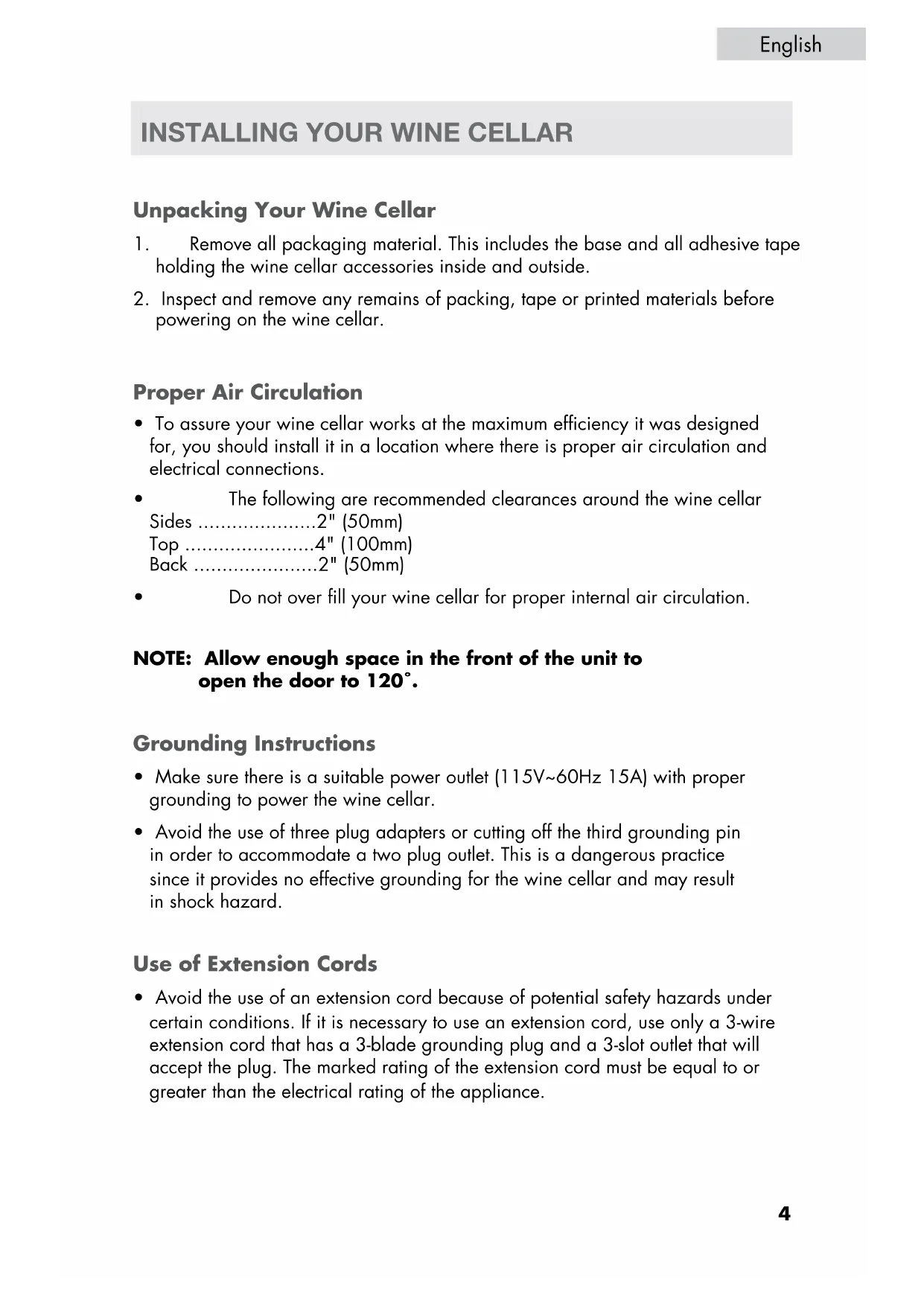

INSTALLING YOUR WINE CELLAR

Unpacking Your Wine Cellar

1. Remove all packaging material. This includes the base and all adhesive tape holding the wine cellar accessories inside and outside.
2. Inspect and remove any remains of packing, tape or printed materials before powering on the wine cellar.

Proper Air Circulation

• To assure your wine cellar works at the maximum efficiency it was designed for, you should install it in a location where there is proper air circulation and electrical connections.
  • The following are recommended clearances around the wine cellar Sides ....2" (50mm)

Top 4" (100mm)

Back ......2" (50mm)

• Do not over fill your wine cellar for proper internal air circulation.

NOTE: Allow enough space in the front of the unit to open the door to 120°.

Grounding Instructions

• Make sure there is a suitable power outlet (115V\~60Hz 15A) with proper grounding to power the wine cellar.
• Avoid the use of three plug adapters or cutting off the third grounding pin in order to accommodate a two plug outlet. This is a dangerous practice since it provides no effective grounding for the wine cellar and may result in shock hazard.

Use of Extension Cords

- Avoid the use of an extension cord because of potential safety hazards under certain conditions. If it is necessary to use an extension cord, use only a 3-wire extension cord that has a 3-blade grounding plug and a 3-slot outlet that will accept the plug. The marked rating of the extension cord must be equal to or greater than the electrical rating of the appliance.

Installation Limitations

• Do not install your wine cellar in any location not properly insulated or heated e.g. garage etc.
• Select a suitable location for the wine cellar on a hard even surface away from direct sunlight or heat source e.g. radiators, baseboard heaters, cooking appliances etc. Any surface unevenness should be corrected with the leveling legs located on the front and rear bottom corners of the wine cellar. Avoid placing unit where there may be electrical interference.
• Your wine cellar is designed for free-standing installation only. It is not designed for built-in application.

NOTE: To minimize the risk of rusting, leakage and insulation damage, avoid placing the unit in a place where heavy moisture is present. Under no circumstances spill or directly apply water onto or into the unit.

Door Alignment

1. Remove the top hinge cover using a flat head screwdriver.
2. Gently move wires aside and loosen the 3 screws using a Phillips Head Screwdriver.
3. Adjust the door and tighten the screws.
4. Replace the top hinge cover.
5. Adjust bottom hinge if necessary.

Stabilization Bracket (HVTM04ABB ONLY)

To increase product stability we strongly recommend attaching the stabilization bracket to the underside of the wine cellar.

1. Remove the bracket and 3 screws from the plastic bag.
2. Insert the screws through the holes in the bracket and then into the predrilled holes on the bottom of the wine cellar (see image)
3. Tighten the screws

Line drawing of a rectangular electronic device with mounting holes and a power outlet (no text or symbols)

Diagram showing light rays interacting with a device and a screen (no text or symbols)

WINE CELLAR FEATURES & USE

Plug in the wine cellar to power the unit on.

You can set the temperature of your wine cellar at any setting you desire. The temperature will range from 46^ to 66^ . When initially turned on, the LED will show the ambient. The LED will then display the internal temperature.

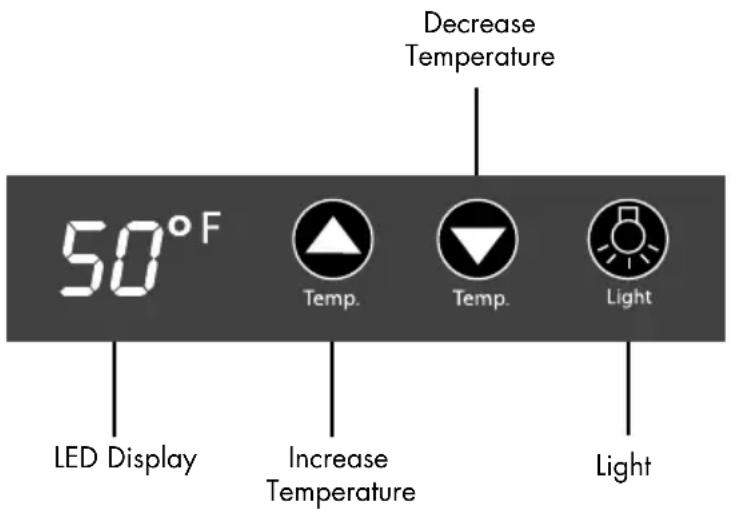

Decrease Temperature 50°F Temp. Temp. Light LED Display Increase Temperature Light

By pressing the ( ) temperature button on the display you can increase the temperature and pressing the (v) temperature button will lower the temperature.

Your wine cellar also has a light for your viewing pleasure. A light switch on the control panel will activate the light manually. Under normal operation it is best for the light to remain off.

Please note that the actual cabinet temperature in a thermoelectric unit is dependent on the ambient temperature. You may set the cabinet temperature within range but the unit may not reach the preset temperature.

For this model, when the ambient temperature is 77^ , the lowest temperature that can be reached is 50-52^ . When ambient temperature is 73^ , the cabinet temperature can reach approximately 46-48^ .

When the ambient temperature is below the pre-set temperature, the cellar will not operate until the ambient temperature increase to higher than the pre-set temperature.

Thermoelectric Cooling:

- Thermoelectric (also referred to as semiconductor) wine cellars do not use a compressor and therefore create minimal noise and vibration. Besides being extremely quiet, the lack of vibration will prevent bubbles from forming in stored wine. In addition thermoelectric units offer high reliability and low maintenance while precisely maintaining the preset temperature for storing wine. Thermoelectric technology is environmentally friendly, as no CFC, HCFC, or HCF-type refrigerants are involved in the cooling process.

Shelving:

- The shelves are chrome plated for appearance and easy cleaning.

Fan Filter:

To maintain proper product cooling and longevity the fan filter should be removed and cleaned every 6 months, or sooner, to remove dirt, dust and hair that can accumulate causing the cooling system to not function properly.

ALWAYS UNPLUG THE UNIT PRIOR TO CLEANING THE FAN FILTER

There are two effective methods to clean the external fan filter:

• A vacuum cleaner can be used to remove the dirt, dust and hair that has built-up.
• Alternatively compressed air, similar to what is used on a computer keyboard, can be used to clean the fan filter. Please be sure to follow the directions of the compressed air container to avoid damage or personal injury.

PROPER WINE CELLAR CARE AND CLEANING

Cleaning and Maintenance

Warning:

To avoid electric shock always unplug your wine cellar before cleaning. Ignoring this warning may result in death or injury.

Caution:

Before using cleaning products, always read and follow manufacturer's instructions and warnings to avoid personal injury or product damage.

General:

• Prepare a cleaning solution of 3-4 tablespoons of baking soda mixed with warm water. Use sponge or soft cloth, dampened with the cleaning solution, to wipe down your wine cellar.
• Rinse with clean warm water and dry with a soft cloth.
• Do not use harsh chemicals, abrasives, ammonia, chlorine bleach, concentrated detergents, solvents or metal scouring pads. SOME of these chemicals may dissolve, damage and/or discolor your wine cellar.

Power Interruptions

- Occasionally there may be power interruptions due to thunderstorms or other causes. Remove the power cord from AC outlet when a power outage occurs. When power has been restored, replug power cord to AC outlet.

Vacation and Moving Care

- For long vacations or absences, unplug the unit, empty contents from wine cellar, and clean the wine cellar and door gaskets according to "General cleaning" section. Prop doors open, so air can circulate inside. When moving always move the wine cellar vertically. Do not move the unit lying on its side.

TROUBLESHOOTING

Wine Cellar does not operate

• Check if wine cellar is plugged in.
• Check if there is power at the AC outlet, by checking the circuit breaker.

Wine appears too warm

• Frequent door openings.
• Check gaskets for proper seal.
• Adjust temperature control to colder setting.
• Clean the fan filter.

- Allow time for recently added wine to reach desired temperature.

Wine temperature is too cold

- If temperature control setting is too cold, adjust to a warmer setting.

Moisture build up on interior or exterior of the wine cellar:

• This is normal during high humidity periods.
- Prolonged or frequent door openings.
- Check door gaskets for proper seal.

Wine Cellar door does not shut properly:

• Level the wine cooler.
• Check for blockages e.g. wine bottles, shelves.

LIMITED WARRANTY

What is covered and for how long?

This warranty covers all defects in workmanship or materials for a period of:

12 months labor (carry-in) 12 months parts

The warranty commences on the date the item was purchased and the original purchase receipt must be presented to the authorized service center before warranty repairs are rendered.

EXCEPTIONS: Commercial or Rental Use warranty

90 days labor (carry-in only)

90 days parts

No other warranty applies What is covered.

1. The mechanical and electrical parts, which serve as a functional, purpose of this appliance for a period of 12 months. This includes all parts except finish, and trim.

What will be done?

1. We will repair or replace, at our discretion any mechanical or electrical part which proves to be defective in normal usage during the warranty period so specified.

2. There will be no charge to the purchaser for parts and labor on any covered items during the initial 12 month period.

3. Contact your nearest authorized service center. For the name of the nearest service center please call 1-877-337-3639.

THIS WARRANTY COVERS APPLIANCES WITHIN THE CONTINENTAL UNITED STATES, PUERTO RICO AND CANADA. IT DOES NOT COVER THE FOLLOWING:

Damages from improper installation.

Damages in shipping.

Defects other than manufacturing.

Damage from misuse, abuse, accident, alteration, lack of proper care and maintenance or incorrect current or voltage.

Damage from other than household use.

Damage from service by other than an authorized dealer or service center.

Decorative trims or replaceable light bulbs.

Transportation and shipping.

Labor (after the initial 12 months).

THIS LIMITED WARRANTY IS GIVEN IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE

The remedy provided in this warranty is exclusive and is granted in lieu of all other remedies.

This warranty does not cover incidental or consequential damages, so the above limitations may not apply to you. Some States do not allow limitations on how long an implied warranty lasts, so the above limitations may not apply to you.

This warranty gives you specific legal rights, and you may have other rights, which vary, from state to state.

Haier America

New York, NY 10018

MESURES DE SECURITE

Technical diagram of a device with numbered components, showing internal fan structures and wiring connections.

Line drawing of a rectangular electronic device with mounting holes and a power outlet (no text or symbols)

Diagram showing light rays interacting with a device and a screen (no text or symbols)

CARACTERISTIQUES ET UTILISATION DE LA CAVE A VIN

Technical diagram of a device with numbered components and circular patterns, likely for assembly or labeling.

• Do not over fill your wine cellar for proper internal air circulation.

Line drawing of a rectangular electronic device with mounting holes and a power outlet (no text or symbols)

Diagram showing light rays interacting with a device, no text or symbols present

If you have a problem with this product, please contact the "Haier Customer Satisfaction Center" at 877.337.3639. DATED PROOF OF PURCHASE REQUIRED FOR WARRANTY SERVICE

IMPORTANT
