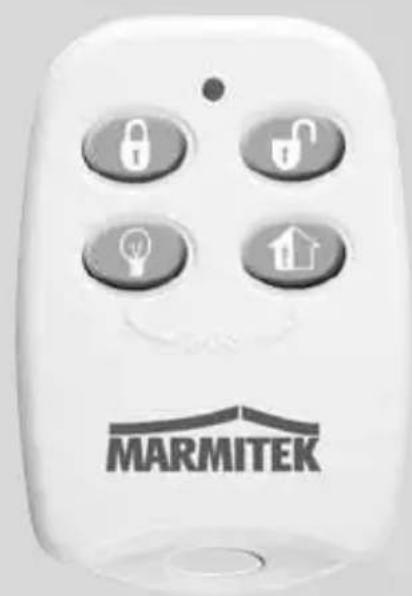

White MARMITEK remote control device with four function buttons (lock, unlock, lightbulb, house) and a logo at the bottom (no readable text on device body)

USER MANUAL 2

• Do not expose the components of your systems to extremely high temperatures or bright light sources.
• In case of improper usage or if you have altered and repaired the product yourself, all guarantees expire. Marmitek does not accept responsibility in the case of improper usage of the product or when the product is used for purposes other than specified. Marmitek does not accept responsibility for additional damage other than covered by the legal product responsibility.
  • This product is not a toy. Keep out of reach of children.
• The product should only be repaired or serviced by a qualified repairman.
• Keep batteries out of the reach of children. Dispose of batteries as chemical waste. Never use old and new batteries or different types of batteries together. Remove the batteries when you are not using the system for a longer period of time. Check the polarity (+/-) of the batteries when inserting them in the product. Wrong positioning can cause an explosion.
  • Automatic switching devices provide comfort, but can also be dangerous. They can surprise people or can ignite clothing hanging over an electric heat source. Please be careful and take appropriate measures to avoid accidents.

INTRODUCTION

The PR811 and KR814 are keyfob transmitters. This product is a part of the Marmitek ProGuard800 series, and operates together with the ProGuard800 alarm system. When you wish to know more about the complete system, its possibilities and its settings, then you can check out the installation manual or visit www.marmitek.com.

REGISTRATION PROCEDURE

To register keyfobs:

1. From the Programming menu, select Devices, Keyfobs [912].
2. Select the keyfob you want to register; the system initiates Registration mode.
3. Press a button, making sure that the keyfob's LED lights up when the button is pressed.
4. Press the same button again. When Save? appears on the panel's LCD display, press √.

PR811

The PR811 is a one-button transmitter that generates a Medical Emergency alarm when pressed. The transmitter is water resistant and can be worn around the neck. Its large button makes it ideal for elderly or sight-impaired users.

When the battery is low, the PR811's LED flashes during transmission and a Low Battery signal is sent to the receiver. When either of these two indications are observed, replace the battery.(CR2032)

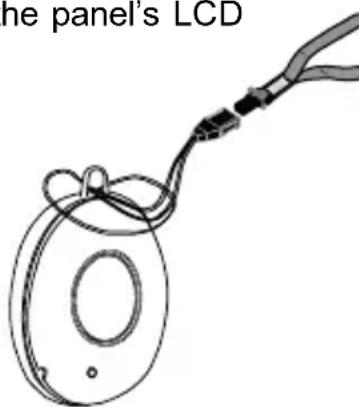

Line drawing of a handheld electronic device with wires and a circular component (no text or symbols)

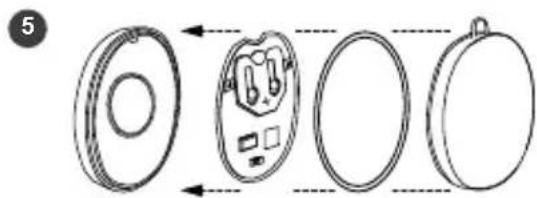

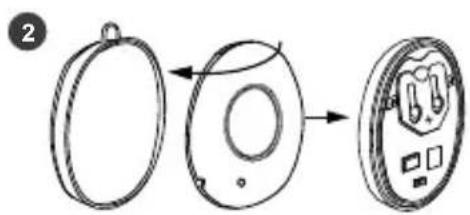

To replace the batteries:

Line drawing of a hand holding a tool near a circular object (no text or symbols)

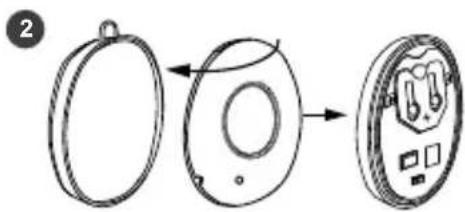

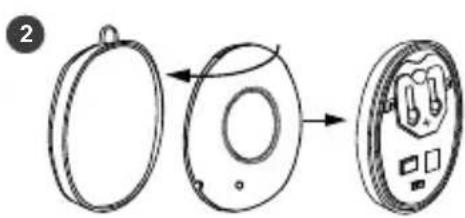

Diagram showing three-step assembly of a device with labeled parts and directional arrows indicating process flow.

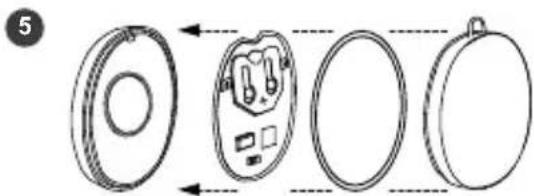

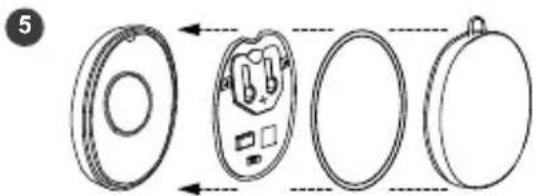

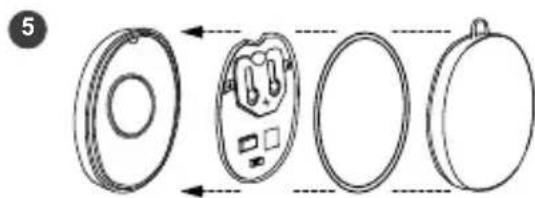

Diagram showing three stages of a device or component: circular opening, internal circuit switch, and outer ring with internal contacts.

4

5

NARMITEK

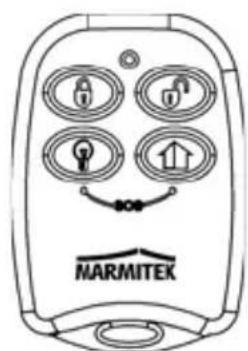

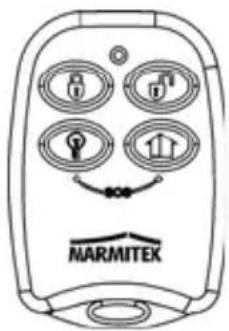

Figure B.11: KR814

KR814

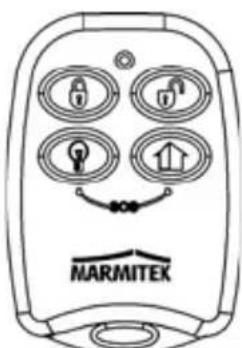

The KR814 is a four-button keyfob transmitter that offers a number of functions including arm, disarm and SOS Panic.

When the battery is low, the KR814's LED flashes during transmission and a Low Battery signal is sent to the receiver. When either of these two indications are observed, replace the batteries.

To replace the batteries:

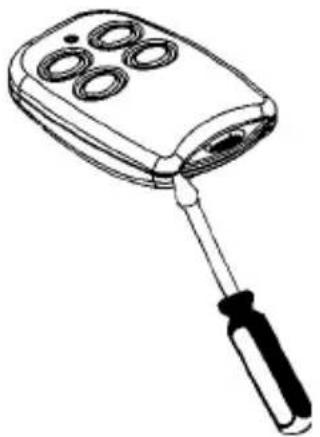

1. Insert a small screwdriver into the pry-off slot – see Figure B.12 Carefully twist the screwdriver to separate the front and back of the casing.
2. Observing correct polarity, replace the batteries (3V lithium, size: CR1225).
3. Close the casing making sure that the front and back click shut.

Line drawing of a flippan with four circular indentations and a black handle (no text or symbols)

Figure B.12: Opening the KR814's Casing

TECHNICAL DATA

PR811

Antenna: Built-in Whip

Frequency: 868.35MHz FM

Power: 1 x 3V Lithium Battery Size CR2032

RFI Immunity: 40V/m

Operating Temperature: 0 to 60°C

Dimensions: 60 x 40 x 15mm

KR814

Antenna: Built-in Whip

Frequency: 868.35MHz FM

Power: 2 x 3V Lithium Battery Size CR1225

Current Consumption: 16mA (transmission)

2μA (standby)

RFI Immunity: 40V/m

Operating Temperature: 0 to 60°C

Dimensions: 62 x 42 x 15mm

Specifications may be modified without prior notice.

Environmental Information for Customers in the European Union

European Directive 2002/96/EC requires that the equipment bearing this symbol on the product and/or its packaging must not be disposed of with unsorted municipal waste. The symbol indicates that this product should be disposed of separately from regular household waste streams. It is your responsibility to dispose of this and other electric and electronic equipment via designated

collection facilities appointed by the government or local authorities. Correct disposal and recycling will help prevent potential negative consequences to the environment and human health. For more detailed information about the disposal of your old equipment, please contact your local authorities, waste disposal service, or the shop where you purchased the product.

SICHERHEITSHINWEISE

Line drawing of a medical or laboratory device with a looped body and attached wires (no text or symbols)

Line drawing of a hand holding a tool near a circular object (no text or symbols)

Diagram showing three steps of a device or component: opening, folding, and packaging with labeled parts.

Diagram showing three stages of a device or component with arrows indicating progression from inner to outer ring.

Diagram showing a device with labeled components and an inset close-up of its internal structure, likely illustrating a medical or electrical component.

5

MARMITEK

Line drawing of a handheld device with four circular ports and a black handle (no text or symbols)

Line drawing of a medical device with attached cable and connector (no text or symbols)

Line drawing of a hand holding a small object with a circular component above it (no text or symbols)

Diagram showing a device with labeled parts: top view, front view, and close-up view.

Diagram showing three stages of a device or component: top view, internal display, and outer ring with internal contacts.

Diagram showing a device with labeled components and an inset view of its internal structure with arrows indicating direction.

5

MARMITEX

Figure B.6: KR814

KR814

Fréquence: 868,35MHz FM

Dimensions: 60 x 40 x 15mm

Line drawing of a handheld device with circular cutouts and a black handle (no text or symbols)

Fréquence: 868,35MHz FM

Alimentation: 2 x 3V Batterie de lithium Taille CR1225

Consommation courante: 16mA (en transmission)

2μA (au repos)

Immunité IRF: 40V/m

Dimensions: 62 x 42 x 15mm

Line drawing of a medical or laboratory device with a looped handle and central oval shape (no text or symbols)

Line drawing of a hand holding a small object with a lid, no text or symbols present

Diagram showing three-step assembly of a device with labeled parts and directional arrows indicating process flow.

Diagram showing three stages of a device or component with arrows indicating progression from inner to outer ring.

4

Diagram showing four stages of a device or component assembly: top view, internal components, outer ring, and final view (no text or symbols)

NARMITEK

KR814

Line drawing of a handheld device with four circular cutouts and a black handle (no text or symbols)

Figura B.7: Abriendo el KR814

Line drawing of a medical device with attached cable and connector (no text or symbols)

Line drawing of a flat-screen flatener with four circular holes and a handle (no text or symbols)

VEILIGHEIDSWAARSCHUWINGEN

Line drawing of a medical device with attached cable and connector (no text or symbols)

Line drawing of a hand holding a small object with a circular component, no text or symbols present

Diagram showing three-step assembly of a circular device with labeled components and directional arrows

Diagram showing three stages of a device or component: ring opening, internal circuit switch, and outer ring assembly.

Diagram showing a device with labeled components and an inset view of its internal structure with arrows indicating movement.

5

Line drawing of a device with four circular components and a smiley face (no text or symbols)

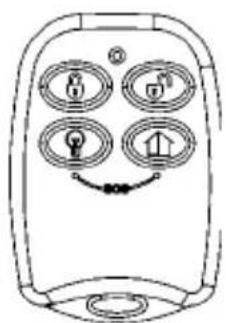

Figuur B.11: KR814

KR814

Line drawing of a handheld device with circular ports and a handle (no text or symbols)

DECLARATION OF CONFORMITY

Hereby, Marmitek BV, declares that this PR811+KR814 is in compliance with the essential requirements and other relevant provisions of the following Directives:

Directive 1999/5/EC of the European Parliament and of the Council of 9 March 1999 on radio equipment and telecommunications terminal equipment and the mutual recognition of their conformity

Council Directive 89/336/EEC of 3 May 1989 on the approximation of the laws of the Member States relating to electromagnetic compatibility

868.35MHz is not intended for use in BG, GR, PL & SI.

Copyrights

Marmitek is a trademark of Pattitude B.V. I PR811 is a trademark of Marmitek B.V. KR814 is a trademark of Marmitek B.V. All rights reserved.

Copyright and all other proprietary rights in the content (including but not limited to model numbers, software, audio, video, text and photographs) rests with Marmitek B.V. Any use of the Content, but without limitation, distribution, reproduction, modification, display or transmission without the prior written consent of Marmitek is strictly prohibited. All copyright and other proprietary notices shall be retained on all reproductions.

MARMITEK® www.marmitek.com
