USER MANUAL PR811 MARMITEK

• Do not expose the components of your systems to extremely high temperatures or bright light sources.
• In case of improper usage or if you have altered and repaired the product yourself, all guarantees expire. Marmitek does not accept responsibility in the case of improper usage of the product or when the product is used for purposes other than specified. Marmitek does not accept responsibility for additional damage other than covered by the legal product responsibility.
• This product is not a toy. Keep out of reach of children.
• The product should only be repaired or serviced by a qualified repairman.
• Keep batteries out of the reach of children. Dispose of batteries as chemical waste. Never use old and new batteries or different types of batteries together. Remove the batteries when you are not using the system for a longer period of time. Check the polarity (+/-) of the batteries when inserting them in the product. Wrong positioning can cause an explosion.
• Automatic switching devices provide comfort, but can also be dangerous. They can surprise people or can ignite clothing hanging over an electric heat source. Please be careful and take appropriate measures to avoid accidents.

INTRODUCTION

The PR811 and KR814 are keyfob transmitters. This product is a part of the Marmitek ProGuard800 series, and operates together with the ProGuard800 alarm system. When you wish to know more about the complete system, its possibilities and its settings, then you can check out the installation manual or visit www.marmitek.com.

REGISTRATION PROCEDURE

To register keyfobs:

1. From the Programming menu, select Devices, Keyfobs [912].
2. Select the keyfob you want to register; the system initiates Registration mode.
3. Press a button, making sure that the keyfob's LED lights up when the button is pressed.
4. Press the same button again. When Save? appears on the panel's LCD display, press .

PR811

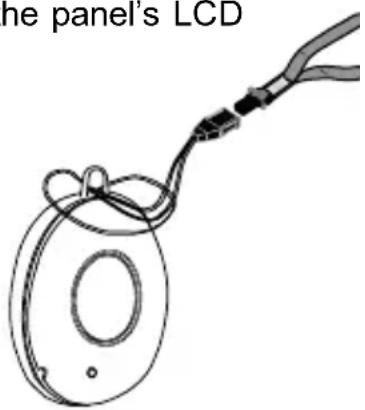

The PR811 is a one-button transmitter that generates a Medical Emergency alarm when pressed. The transmitter is water resistant and can be worn around the neck. Its large button makes it ideal for elderly or sight-impaired users.

When the battery is low, the PR811's LED flashes during transmission and a Low Battery signal is sent to the receiver. When either of these two indications are observed, replace the battery.(CR2032)

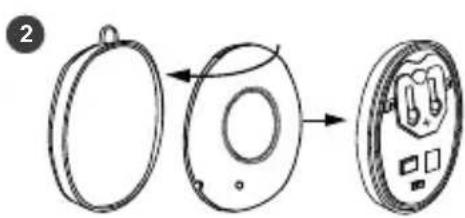

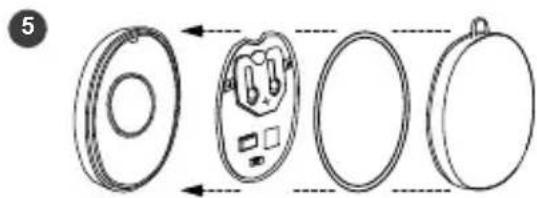

To replace the batteries:

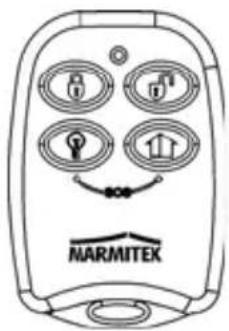

Figure B.11: KR814

KR814

The KR814 is a four-button keyfob transmitter that offers a number of functions including arm, disarm and SOS Panic.

When the battery is low, the KR814's LED flashes during transmission and a Low Battery signal is sent to the receiver. When either of these two indications are observed, replace the batteries.

To replace the batteries:

1. Insert a small screwdriver into the pry-off slot - see Figure B.12 Carefully twist the screwdriver to separate the front and back of the casing.
2. Observing correct polarity, replace the batteries (3V lithium, size: CR1225).
3. Close the casing making sure that the front and back click shut.

Figure B.12: Opening the KR814's Casing

TECHNICAL DATA

PR811

Antenna: Built-in Whip

Frequency: 868.35MHz FM

Power: 1 x 3V Lithium Battery Size CR2032

RFI Immunity: 40V/m

Operating Temperature: 0 to 60^

Dimensions: 60 × 40 × 15mm

KR814

Antenna: Built-in Whip

Frequency: 868.35MHz FM

Power: 2 × 3V Lithium Battery Size CR1225

Current Consumption: 16mA (transmission)

2μA (standby)

RFI Immunity: 40V/m

Operating Temperature: 0 to 60^

Dimensions: 62 × 42 × 15 ~mm

Specifications may be modified without prior notice.

Environmental Information for Customers in the European Union

European Directive 2002/96/EC requires that the equipment bearing this symbol on the product and/or its packaging must not be disposed of with unsorted municipal waste. The symbol indicates that this product should be disposed of separately from regular household waste streams. It is your responsibility to dispose of this and other electric and electronic equipment via designated

collection facilities appointed by the government or local authorities. Correct disposal and recycling will help prevent potential negative consequences to the environment and human health. For more detailed information about the disposal of your old equipment, please contact your local authorities, waste disposal service, or the shop where you purchased the product.

SICHERHEITSHINWEISE

Fréquence: 868,35MHz FM

Fréquence: 868,35MHz FM

Alimentation: 2 x 3V Batterie de lithium Taille CR1225

Consommation courante: 16mA (en transmission)

2 A

(au

repos)

Immunité IRF: 40V/m

VEILIGHEIDSWAARSCHUWINGEN

DECLARATION OF CONFORMITY

Hereby, Marmitek BV, declares that this PR811+KR814 is in compliance with the essential requirements and other relevant provisions of the following Directives:

Directive 1999/5/EC of the European Parliament and of the Council of 9 March 1999 on radio equipment and telecommunications terminal equipment and the mutual recognition of their conformity

Council Directive 89/336/EEC of 3 May 1989 on the approximation of the laws of the Member States relating to electromagnetic compatibility

868.35MHz is not intended for use in BG, GR, PL & SI.
