USER MANUAL Zerolucido Eco IMETEC

A] ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨

Diagram of a mechanical component with numbered parts labeled 13 and 14

Technical diagram of a steam iron with numbered parts labeled 10, 11, and 12

Close-up of a white handheld device with a curved arrow indicating rotation or change, labeled [B], [C], and [D] (no text on device itself)

Close-up of a hand holding a small mechanical knob with a curved arrow pointing to it (no text or symbols visible)

Close-up of a hand holding a small circular object with an arrow indicating rotation (no text or symbols visible)

TYPE 76706

230-240 V\~ 50 Hz 2150 W

CE

ISTRUZIONI PER L'USO DEL FERRO A CALDAIA

Dear customer, IMETEC would like to thank you for purchasing this product. We are certain that you will appreciate the quality and reliability of this appliance, which has been designed and manufactured with customer satisfaction in mind. These operating instructions were created in accordance with European standard EN 62079.

IMPORTANT!

Instructions and information for a safe use

Read these instructions completely and in particular the safety instructions before using your appliance and follow these instructions carefully. Keep these instructions and the associated image section in a convenient location for reference over the entire service life of the product and be sure to include it if you pass the appliance on to another user.

INDEX

User instructions page 6

Safety instructions page 6

Description of appliance and accessories page 8

Before use page 8

Filling the reservoir	page 8
Ironing	page 8
ECO function	page 9
Filling the reservoir while ironing	page 9
Cleaning the boiler page 9
After use	page 9
Maintenance	page 10
Disposal	page 10
Service and warranty	page 10
Image section	I-II
Technical specifications	III

SAFETY INSTRUCTIONS

• After removing the appliance from its packaging, check the appliance's integrity referring to the provided design and for any damage caused during transport. Should you have any doubts, do not use the appliance and take it to an authorised service centre.
• The packaging material is not suitable for children to play with! Keep the plastic bag out of the reach of children as there is risk of suffocation!
• Before connecting the appliance, check that the voltage indicated on the identification plate corresponds to that of the electrical supply available. The identification plate is on the appliance.
• This appliance must be used solely for the purpose for which it has been designed, that is as a boiler iron for home use. Any other use is to be considered improper and therefore dangerous.
• If there is a fault and/or the appliance operates irregularly, switch it off and do not tamper with it. For any repairs, only contact an authorised service centre.
  DO NOT use the appliance with wet hands or with bare or damp feet.
  DO NOT pull the power cord, or the appliance itself, to remove the plug from the socket.
  DO NOT expose the appliance to humidity or weather conditions (rain, sun).
• Always disconnect the appliance from the mains supply before cleaning or maintenance and when the appliance is not in use.
• The iron must only be used and rest on a stable surface. When the iron is placed on its iron rest, ensure the

support surface is stable. The iron must not be used if it falls, if there are visible signs of damage or water leaks.

• If the power cord is damaged it must be replaced by an authorised technical service centre, so as to prevent all risks.
• The electrical safety of this appliance can be guaranteed only if it is correctly connected to an efficient earthing system circuit as indicated by current electrical safety regulations. It is necessary to check this fundamental safety precaution, and if in doubt, ask a professionally qualified technician to check the system.

Specifically:

This appliance can be used by minors older than 12 years of age, by persons with limited physical, sensorial or mental faculties or by unskilled persons only if they are preventively instructed on its safe use and only if informed on the hazards connected to the product.

Children must not play with the appliance. Cleaning and maintenance on the appliance cannot be done by children without adult supervision.

Keep the appliance and the power cord out of reach of children under 12 years of age when the appliance is switched on or in the cooling down phase.

NEVER immerse the iron, cord or plug in any liquid.

DO NOT leave the hot iron touching fabrics or very inflammable surfaces.

DO NOT leave the iron without supervision when it is connected to the power supply.

DO NOT release steam when the iron is on its mat.

DO NOT use chemical additives, scented substances or descalers.

WARNING

hot surfaces

IMPORTANT INSTRUCTIONS

The appliance was designed to function with tap water, however if the local water is too calcareous, mix tap water (50%) with distilled and/or demineralised water (50%); in coastal areas, the salt concentration in water is very high: In these cases, “demineralised water for irons” sold on the market must be used. When in doubt, use only demineralised water for irons.

Do not use chemical diluents, scented substances or descalers. Using such substances can damage the product.

The boiler may still contain water since every product is tested before being sold.

When ironing for the first time, it is advisable to put a cloth between the iron and the fabric to be ironed.

Before ironing, we advise directing a shot of steam into the air to let off any remaining condensate.

GB

DESCRIPTION OF APPLIANCE AND ACCESSORIES [Fig. A]

Please consult figure [A] in the image section to check the specifications of your appliance. All the diagrams can be found on the cover pages of this instruction manual.

1. ON/OFF switch

1. steam indicator

2. steam regulation knob

3. water level indicator

1. ECO switch

2. heel rest

3. plug

4. reservoir lid

5. cable clip

6. soleplate temperature indicator

1. temperature regulation knob

2. steam button

3. cap cover

4. cleaning cap

BEFORE USE

Divide the laundry to be ironed according to the international symbols on the care labels, or alternatively, according to the type of fabric.

Start by ironing garments that require a low temperature, to cut down on waiting time (the iron takes less time to heat up than it does to cool down), and avoid the risk of singing the fabric.

synthetics, acrylic, nylon and polyester: low temperatures;

wool, silk: medium temperatures;

cotton, linen: high temperatures;

fabric requires no ironing.

FILLING THE RESERVOIR

Lift the lid on the water reservoir (8) and fill the reservoir with water. Do not allow the water to overflow. Then close the lid (8).

IRONING

- insert the plug (7) in a suitable socket;

- press the ON/OFF switch (1).

- adjust the temperature of the iron (11) according to the international symbols on the care labels of the clothes, and wait for the temperature light to switch off (10);

- turn the steam nozzle (3) to obtain the desired quantity of steam;

- when the steam is ready, the light (2) will remain switched on. You can now start ironing. While ironing, the steam light (2) and iron temperature light (10) will turn on or switch off, indicating that the appliance is maintaining optimal pressure and temperature;

• to iron with steam, press the steam button (12);

• to iron without steam, do not press the steam button (12).

to prevent drops of water leaking from the iron, only use the steam button (12) at high temperatures.

ECO FUNCTION

The appliance is equipped with new technology able to optimise steam production and consequently, reduce energy consumption.

Press the ECO (5) switch to activate the Eco function.

It is advisable to use the ECO function for ironing delicate items (silk, wool and light cotton).

FILLING THE RESERVOIR WHILE IRONING

• if the water in the reservoir falls below the minimum level, the water light will come on (4) and the iron will stop producing steam;
• lift the lid on the water reservoir (8) and fill the reservoir with water. Do not allow the water to overflow. Then close the lid (8).
• the appliance is now ready for use again.

CLEANING THE BOILER

The boiler should be cleaned regularly, at least once every 3 months.

When the boiler needs cleaning, the steam light (2) will flash for 20 seconds when the iron is turned on. The light will then remain switched on and you can begin ironing.

The steam light (2) will flash whenever the iron is turned on, until the boiler is cleaned.

Only clean the boiler when the iron is completely cold.

Sequence of operations:

• disconnect the plug (7) from the mains;
• hold the boiler above a sink;
• shake the base to allow flakes of lime scale to fall out (Fig. B);

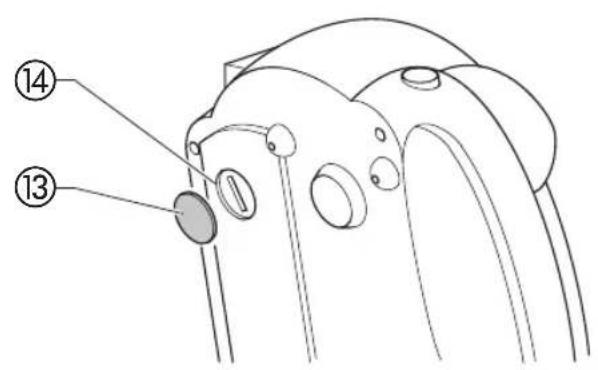

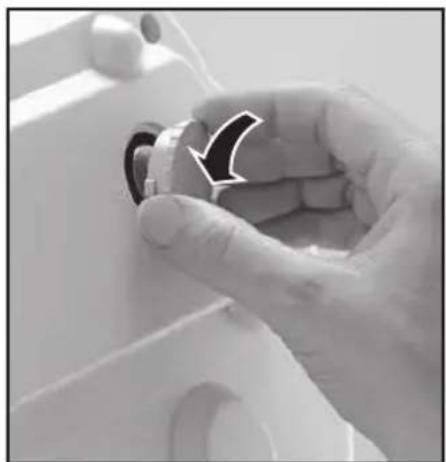

• remove the cap cover (13) at the base of the boiler, turning it anti-clockwise (Fig.C);

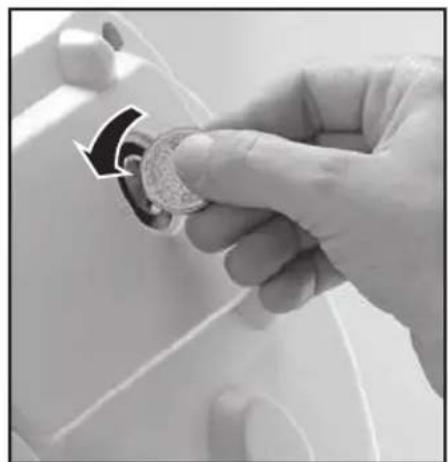

• unscrew the cleaning cap (14) in an anti-clockwise direction, using a coin (Fig. D);
• allow the water and flakes of lime scale to flow out of the hole;
• shake the boiler again, to remove any remaining water or lime scale;
• tighten the cleaning cap (14) in a clockwise direction, using a coin;
• replace the cap cover (13) turning it in a clockwise direction.

NOTE:

• do not screw the cleaning cap (14) too tightly, as you may damage the screw thread;
• do not clean the boiler with detergent, anti-lime scale products, vinegar or any other type of substance;
  • cleaning should only be done when the boiler is cold, at least 4 hours after it has been turned off.

After cleaning, always fill the reservoir with water before using the boiler again. This must be done in order to prevent overheating.

AFTER USE

• switch off the appliance by pressing the ON-OFF switch (1);
• disconnect the plug (7) from the mains;
• wait until the iron is completely cool before laying it flat. It is not necessary to empty the water reservoir.

NOTE:

- If you are not expecting to use the appliance for several weeks, empty the boiler completely: wait for the appliance to cool down completely, then turn it upside down so that all the water in the reservoir can flow out..

GB

MAINTENANCE

Cleaning the iron:

Before cleaning your iron, turn it off and remove the plug from the socket!

If necessary, clean the iron with a damp cloth. Do not use solvents or other harsh, abrasive detergents, as they may damage the surface.

Before re-using the appliance, check that all the cleaned parts are completely dry!

DISPOSAL

The packaging is made from recyclable materials. It should be disposed of in accordance with environmental laws.

Under the terms of European regulation 2002/96/EC, disused electrical appliances must be disposed of appropriately. Any recyclable materials contained in the appliance should be re-used in order to prevent damage to the environment. For further information, contact your local waste disposal authority or the retailer.

SERVICE AND WARRANTY

For repairs or to purchase spare parts, contact an authorised IMETEC service centre.

The appliance is covered by a manufacturer's warranty. For details, see the attached warranty card.

Failure to observe the instructions contained in this manual, or failure to carry out care and maintenance of the product, will invalidate the manufacturer's warranty.
