USER MANUAL SP2005 I FAGOR

Illustration of two hair blowers with black and white coloring, no text or symbols present

SECADOR DE PELO / SECADOR DE CABELO / HAIR DRYER / SÈCHE-CHEVEUX / HAARTROCKNER / ASCIUGACAPELLI / ETETNÖTHPAE MAALION / HAJSZÁRÍTÓ / SUSÍC NA VLASY / SUSZARKA DO WLOSÓW / CEÑOAP 3A KOCA / ФЕН ДЛЯ ВОЛОС / مgeführt الشّم/

MOD.: SP-1815 SP-2005I

N.I.F. F-20.020.517 - B° San Andrés, n° 18 • Apartado 49 - 20500 MONDRAGON (Gupózco) ESPAÑA

FAGOR

1 2 3 4 5 6 FAGOR

Technical diagram showing a mechanical component with rotational arrows indicating motion (no text or symbols present)

ES

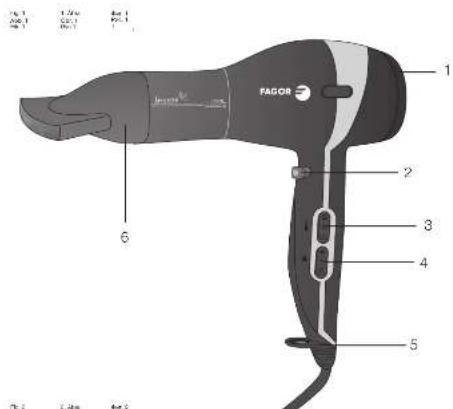

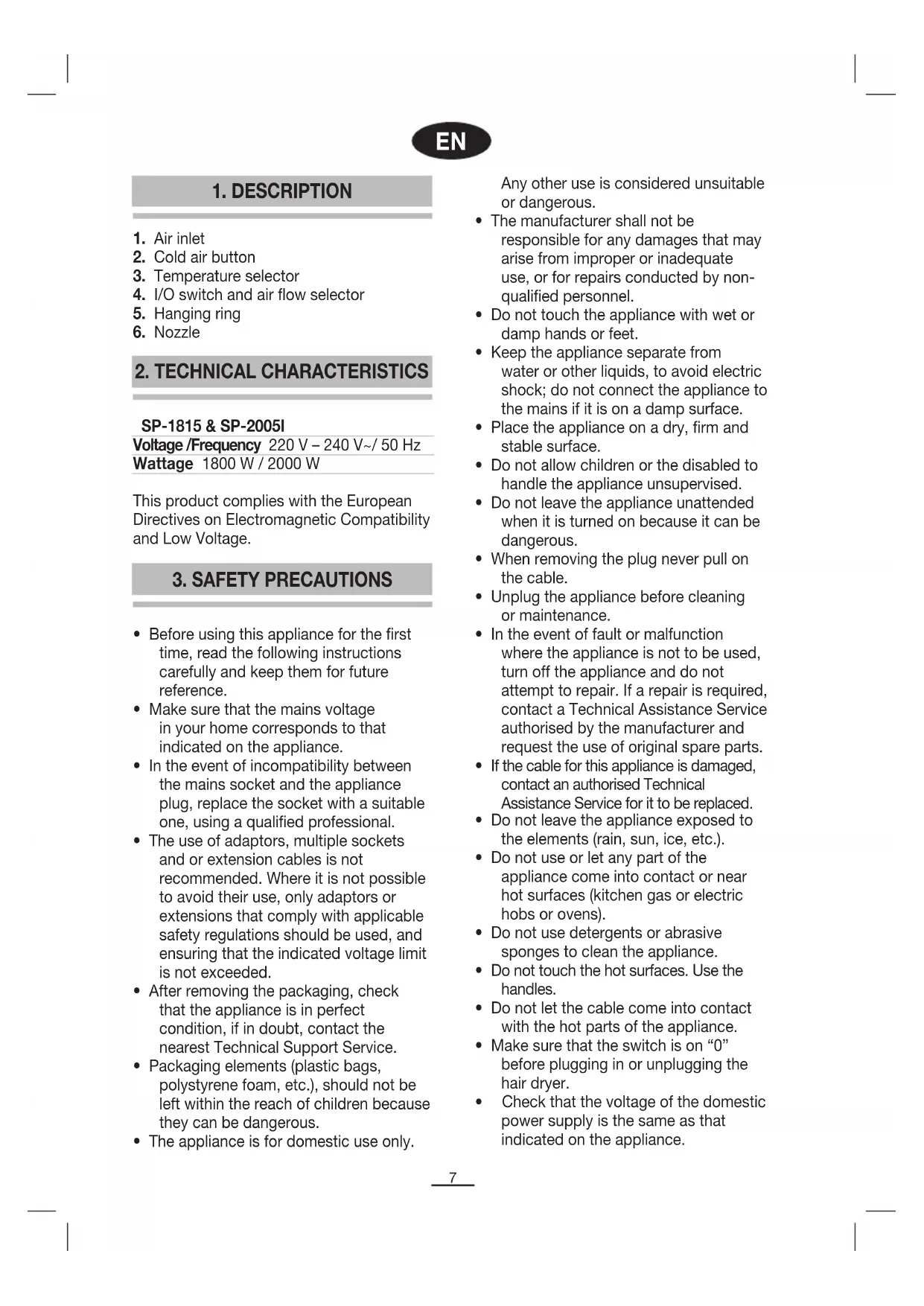

1. DESCRIPCIÓN

1. Air inlet
2. Cold air button
3. Temperature selector
4. I/O switch and air flow selector
5. Hanging ring
6. Nozzle

2. TECHNICAL CHARACTERISTICS

SP-1815 & SP-2005I

Voltage /Frequency 220 V - 240 V\~/ 50 Hz

Wattage 1800 W / 2000 W

This product complies with the European Directives on Electromagnetic Compatibility and Low Voltage.

3. SAFETY PRECAUTIONS

• Before using this appliance for the first time, read the following instructions carefully and keep them for future reference.
• Make sure that the mains voltage in your home corresponds to that indicated on the appliance.
• In the event of incompatibility between the mains socket and the appliance plug, replace the socket with a suitable one, using a qualified professional.
• The use of adaptors, multiple sockets and or extension cables is not recommended. Where it is not possible to avoid their use, only adaptors or extensions that comply with applicable safety regulations should be used, and ensuring that the indicated voltage limit is not exceeded.
• After removing the packaging, check that the appliance is in perfect condition, if in doubt, contact the nearest Technical Support Service.
• Packaging elements (plastic bags, polystyrene foam, etc.), should not be left within the reach of children because they can be dangerous.
• The appliance is for domestic use only.

Any other use is considered unsuitable or dangerous.
- The manufacturer shall not be responsible for any damages that may arise from improper or inadequate use, or for repairs conducted by non-qualified personnel.
- Do not touch the appliance with wet or damp hands or feet.
- Keep the appliance separate from water or other liquids, to avoid electric shock; do not connect the appliance to the mains if it is on a damp surface.
- Place the appliance on a dry, firm and stable surface.
- Do not allow children or the disabled to handle the appliance unsupervised.
- Do not leave the appliance unattended when it is turned on because it can be dangerous.
- When removing the plug never pull on the cable.
- Unplug the appliance before cleaning or maintenance.
- In the event of fault or malfunction where the appliance is not to be used, turn off the appliance and do not attempt to repair. If a repair is required, contact a Technical Assistance Service authorised by the manufacturer and request the use of original spare parts.
- If the cable for this appliance is damaged, contact an authorised Technical Assistance Service for it to be replaced.
- Do not leave the appliance exposed to the elements (rain, sun, ice, etc.).
- Do not use or let any part of the appliance come into contact or near hot surfaces (kitchen gas or electric hobs or ovens).
- Do not use detergents or abrasive sponges to clean the appliance.
- Do not touch the hot surfaces. Use the handles.
- Do not let the cable come into contact with the hot parts of the appliance.
- Make sure that the switch is on "0" before plugging in or unplugging the hair dryer.
- Check that the voltage of the domestic power supply is the same as that indicated on the appliance.

• Do not use spray products whilst the appliance is operating.
• Do not use the appliance for anything other than drying and modelling human hair.
• Do not cover the air inlet or outlet when the appliance is operating.
• In the event of a fault and/or a malfunction of the appliance, switch it off and do not try to repair it. If the appliance needs repairing, only contact a Technical Support Service authorised by the manufacturer.
• In order to prevent damage to hair, do not bring the hair dryer too close to your hair.
• Switch off the appliance when you are not using it, even if only for a moment.
• When unplugging, do not pull on the cable.
• Supervise children to make sure that they are not playing with it. They should not use the dryer if there is no adult present.
• For greater protection it is recommended to install a residual current device (RCD) with a residual operating current which does not exceed 30mA. Ask your installer for advice.
• This appliance is not designed for use by people (including children) with reduced physical, sensory or mental abilities, or those with lack of experience or knowledge; unless they are supervised or instructed on the use of the appliance by a person responsible for their safety.
  • After using the appliance, leave it to cool down before putting it away.
• Unplug the appliance when you are not using it.

4. OPERATION

• After washing your hair, dry it with a towel.
• Do not use spray products or inflammable chemical haircare products.
• The hair dryer includes an accessory: the nozzle to aim the air flow or dry a

specific point. This accessory fit on to the front part to the hair dryer easily.

- Make sure that your hands are completely dry before plugging in the dryer.

- Plug the appliance in and select the switch position with the chosen temperature and air flow.

I/O switch and air flow selector: With this control, you can switch the appliance on and off and also select the air flow which suits you best.

$$ \begin{array}{l} 0 = \text { off } \ l = \text { gentle air flow } \ l = \text { strong air flow } \ \end{array} $$

Temperature selector: With the temperature selector you can select the working temperature.

$$ \begin{array}{l} I = \text { low temperature } \ \mathrm{II} = \text { mid temperature } \ \text { III } = \text { high temperature } \ \end{array} $$

Cold air button: The hair dryer is fitted with a cold air button (2) which cools the air quickly when pressed, regardless of the temperature selector position.

- Once you have dried your hair, unplug the appliance.

ION TECHNOLOGY

The SP-2005I emits negative ions whenever it is in use. It is not therefore necessary to activate this function.

The negative ions neutralise the static electricity in your hair. They make it smooth, shiny and manageable and prevent it from drying out. They also turn the drops of water into micromolecules. This enables your hair to absorb humidity easily, leaving it smooth and shiny.

(The SP-1815 dryer does not have this function).

5. CLEANING

• Unplug the appliance before cleaning.

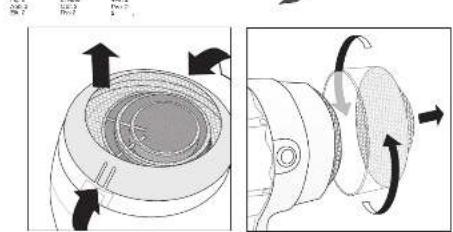

• Clean the air inlet grille regularly with a brush to remove the dust and hair trapped in the grille. Release the grille by pressing the grille opening button and pushing it backwards (fig. 2) Remove dirt stuck to the orifices.
• Clean the outside of the appliance with a slightly dampened cloth and dry it with a dry cloth.
• Do not submerge the appliance in water.

6. INFORMATION FOR THE CORRECT DISPOSAL OF ELECTRICAL AND ELECTRONIC APPLIANCES

At the end of its working life, the product must not be disposed of as urban waste. It must be taken to a special local authority differentiated waste collection centre or to a dealer providing this service. Disposing of a household appliance separately avoids possible negative consequences for the environment and health deriving from inappropriate disposal and enables the constituent materials to be recovered to obtain significant savings in energy and resources.

To remind you that you must collaborate with a selective collection scheme, the symbol shown appears on the product warning you not to dispose of it in traditional refuse containers.

For further information, contact your local authority or the shop where you bought the product.
