USER MANUAL CN 136231 T BEKO

ChladničkaPlease read this manual first!

We hope that your product, which has been produced in modern plants and

checked under the most meticulous quality control procedures, will provide you

an effective service.

For this, we recommend you to carefully read the entire manual of your product

before using it and keep it at hand for future references.

• Will help you use your appliance in a fast and safe way.

• Read the manual before installing and operating your product.

• Follow the instructions, especially those for safety.

• Keep the manual in an easily accessible place as you may need it later.

• Besides, read also the other documents provided with your product.

Please note that this manual may be valid for other models as well.

Symbols and their descriptions

This instruction manual contains the following symbols:

C Important information or useful usage tips.

A Warning against dangerous conditions for life and property.

B Warning against electric voltage.

This product is supplied with the selective sorting symbol for waste electrical

and electronic equipment (WEEE).

This means that this product must be handled pursuant to European Directive

2002/96/EC in order to be recycled or dismantled to minimise its impact on

the environment. For further information, please contact your local or regional

Electronic products not included in the selective sorting process are potentially

dangerous for the environment and human health due to the presence of

hazardous substances.

For products with a water dispenser; .6

Things to be done for energy saving ..7

Technical specifications of your

Points to be considered when re-

transporting your refrigerator 8

Before operating your refrigerator 8

Electric connection 8

Disposing of the packaging 9

Disposing of your old refrigerator 9

Placing and Installation 9

Changing the illumination lamp 10

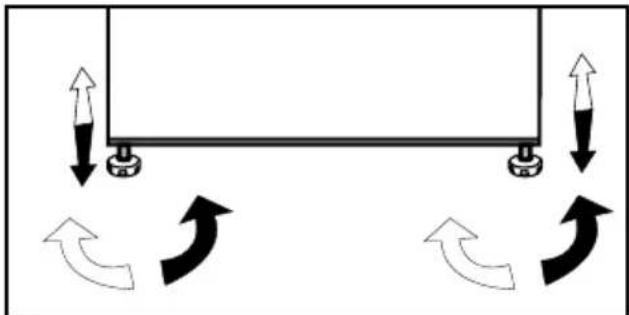

Adjusting the legs 10

Dual cooling system: 15

Freezing fresh food 15

Recommendations for preservation of

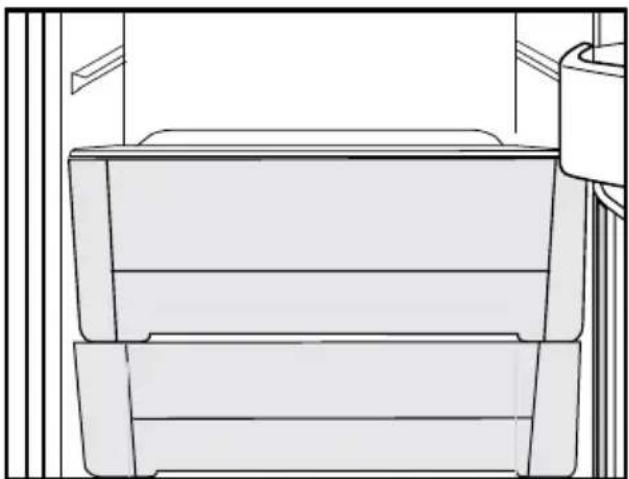

Zero temperature compartment 18

Protection of plastic surfaces 19

7 Recommended solutions

for the problems 20EN

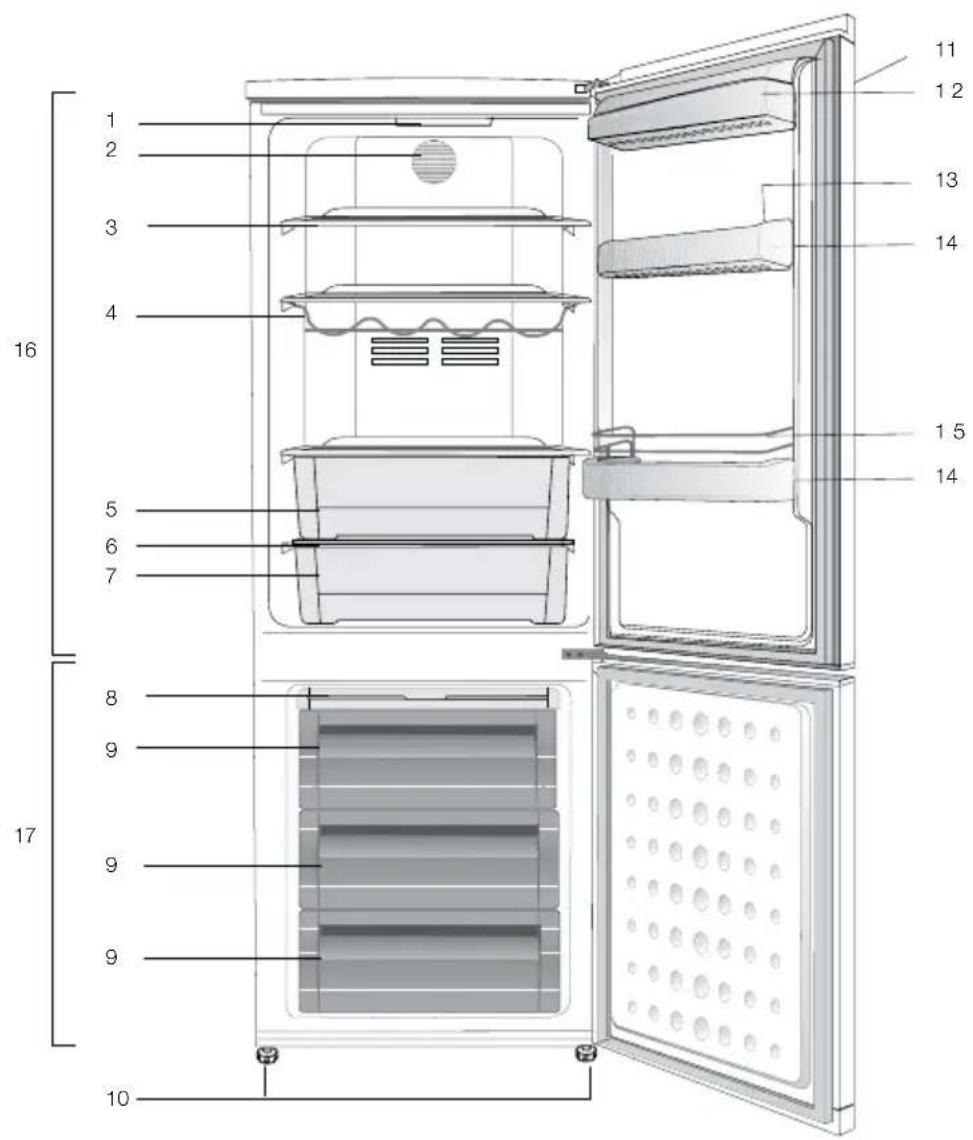

7. Chill Compartment

9. Deep-freeze compartment

10. Adjustable front feet

11. Control panel and temperature

12. Dairy compartment

14. Fridge compartment door shelves

15. Bottle shelter wire

16. Fridge compartment

17. Freezer compartment

Figures that take place in this instruction manual are schematic and may not

correspond exactly with your product. If the subject parts are not included in the

product you have purchased, then it is valid for other models.

2 Important Safety Warnings

Please review the following

information. Failure to observe this

information may cause injuries or

material damage. Otherwise, all

warranty and reliability commitments

will become invalid.

The usage life of the unit you

purchased is 10 years. This is the

period for keeping the spare parts

required for the unit to operate as

This product is intended to be used

– indoors and in closed areas such as

– in closed working environments such

as stores and offices;

– in closed accommodation areas such

as farm houses, hotels, pensions.

• This product should not be used

• When you want to dispose/scrap

the product, we recommend you

to consult the authorized service in

order to learn the required information

and authorized bodies.

• Consult your authorized service for

all your questions and problems

related to the refrigerator. Do not

intervene or let someone intervene to

the refrigerator without notifying the

authorised services.

• For products with a freezer

compartment; Do not eat cone ice

cream and ice cubes immediately

after you take them out of the freezer

compartment! (This may cause

frostbite in your mouth.)

• For products with a freezer

compartment; Do not put bottled and

canned liquid beverages in the freezer

compartment. Otherwise, these may

• Do not touch frozen food by hand;

they may stick to your hand.

• Unplug your refrigerator before

cleaning or defrosting.

• Vapor and vaporized cleaning

materials should never be used in

cleaning and defrosting processes of

your refrigerator. In such cases, the

vapor may get in contact with the

electrical parts and cause short circuit

• Never use the parts on your

refrigerator such as the door as a

means of support or step.

• Do not use electrical devices inside

• Do not damage the parts, where

the refrigerant is circulating, with

drilling or cutting tools. The refrigerant

that might blow out when the gas

channels of the evaporator, pipe

extensions or surface coatings are

punctured causes skin irritations and

• Do not cover or block the ventilation

holes on your refrigerator with any

• Electrical devices must be repaired

by only authorised persons. Repairs

performed by incompetent persons

create a risk for the user.

• In case of any failure or during

a maintenance or repair work,

disconnect your refrigerator’s mains

supply by either turning off the

relevant fuse or unplugging your

• Do not pull by the cable when pulling

• Place the beverage with higher proofs

tightly closed and vertically.

• Never store spray cans containing

flammable and explosive substances

in the refrigerator.

• Do not use mechanical devices

or other means to accelerate the

defrosting process, other than those

recommended by the manufacturer.

• This product is not intended to be

used by persons with physical,

sensory or mental disorders or

unlearned or inexperienced people

(including children) unless they are

attended by a person who will be

responsible for their safety or who will

instruct them accordingly for use of

• Do not operate a damaged

refrigerator. Consult with the service

agent if you have any concerns.

• Electrical safety of your refrigerator

shall be guaranteed only if the earth

system in your house complies with

• Exposing the product to rain, snow,

sun and wind is dangerous with

respect to electrical safety.

• Contact authorized service when

there is a power cable damage to

• Never plug the refrigerator into

the wall outlet during installation.

Otherwise, risk of death or serious

• This refrigerator is intended for only

storing food items. It must not be

used for any other purpose.

• Label of technical specifications is

located on the left wall inside the

• Never connect your refrigerator to

electricity-saving systems; they may

damage the refrigerator.

• If there is a blue light on the

refrigerator, do not look at the blue

light with optical tools.

• For manually controlled refrigerators,

wait for at least 5 minutes to start the

refrigerator after power failure.

• This operation manual should be

handed in to the new owner of the

product when it is given to others.

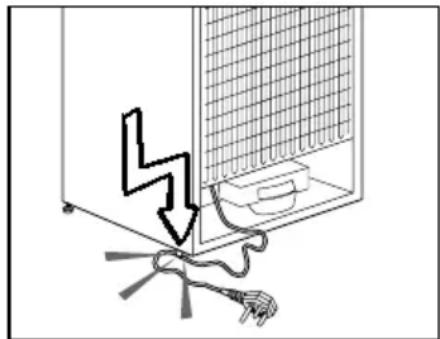

• Avoid causing damage on power

cable when transporting the

refrigerator. Bending cable may cause

fire. Never place heavy objects on

power cable. Do not touch the plug

with wet hands when plugging the

• Do not plug the refrigerator if the wall

• Water should not be sprayed directly

on inner or outer parts of the product

for safety purposes.

• Do not spray substances containing

inflammable gases such as propane

gas near the refrigerator to avoid fire

• Never place containers filled with

water on top of the refrigerator,

otherwise this may cause electric

• Do not overload your refrigerator

with excessive amounts of food. If

overloaded, the food items may fall

down and hurt you and damageEN

refrigerator when you open the door.

Never place objects on top of the

refrigerator; otherwise, these objects

may fall down when you open or

close the refrigerator's door.

• As they require a precise

temperature, vaccines, heat-sensitive

medicine and scientific materials

and etc. should not be kept in the

• If not to be used for a long time,

refrigerator should be unplugged. A

possible problem in power cable may

• The plug's tip should be regularly

cleaned; otherwise, it may cause fire.

• The plug’s tip should be cleaned

regularly with a dry cloth; otherwise, it

• Refrigerator may move if adjustable

legs are not properly secured on the

floor. Properly securing adjustable

legs on the floor can prevent the

refrigerator to move.

• When carrying the refrigerator, do not

hold it from door handle. Otherwise, it

• When you have to place your product

next to another refrigerator or freezer,

the distance between devices should

be at least 8cm. Otherwise, adjacent

side walls may be humidified.

For products with a water

Pressure of water mains should be

minimum 1 bar. Pressure of water

mains should be maximum 8 bars.

• Use only potable water.

• If the door has a lock, the key should

be kept away from reach of children.

• Children must be supervised to

prevent them from tampering with the

If your product's cooling system

This gas is flammable. Therefore, pay

attention to not damaging the cooling

system and piping during usage and

transportation. In the event of damage,

keep your product away from potential

fire sources that can cause the

product catch a fire and ventilate the

room in which the unit is placed.

Ignore this warning if your

product's cooling system contains

Type of gas used in the product is

stated in the type plate which is on the

left wall inside the refrigerator.

Never throw the product in fire for

Things to be done for energy

• Do not leave the doors of your

refrigerator open for a long time.

• Do not put hot food or drinks in your

• Do not overload your refrigerator so

that the air circulation inside of it is not

• Do not install your refrigerator

under direct sunlight or near heat

emitting appliances such as ovens,

dishwashers or radiators.

• Pay attention to keep your food in

• For products with a freezer

compartment; You can store

maximum amount of food items in

the freezer when you remove the

shelf or drawer of the freezer. Energy

consumption value stated for your

refrigerator has been determined

by removing freezer shelf or drawer

and under maximum load. There

is no harm to use a shelf or drawer

according to the shapes and size of

• Thawing frozen food in fridge

compartment will both provide energy

saving and preserve the food quality.EN

BPlease remember that the

manufacturer shall not be held liable if

the information given in the instruction

manual is not observed.

Points to be considered

when re-transporting your

1.Your refrigerator must be emptied and

cleaned prior to any transportation.

2.Shelves, accessories, crisper and etc.

in your refrigerator must be fastened

securely by adhesive tape against any

jolt before repackaging.

3.Packaging must be tied with thick

tapes and strong ropes and the

rules of transportation printed on the

package must be followed.

Please do not forget…

Every recycled material is an

indispensable source for the nature

and for our national resources.

If you wish to contribute to recycling

the packaging materials, you can

get further information from the

environmental bodies or local

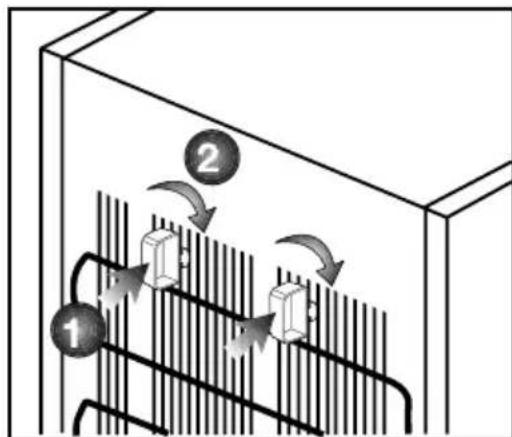

Before operating your

Before starting to use your refrigerator

check the following:

1.Is the interior of the refrigerator dry and

can the air circulate freely in the rear

2.Please install the 2 plastic wedges

as illustrated in the figure. Plastic

wedges will provide the required

distance between your refrigerator

and the wall in order to allow the air

circulation. (The illustrated figure is

only an example and does not match

exactly with your product.)

3.Clean the interior of the refrigerator as

recommended in the “Maintenance

and cleaning” section.

4.Plug the refrigerator into the wall outlet.

When the fridge door is open, the

fridge compartment interior light will

5.You will hear a noise as the

compressor starts up. The liquid and

gases sealed within the refrigeration

system may also give rise to noise,

even if the compressor is not running

and this is quite normal.

6.Front edges of the refrigerator may feel

warm. This is normal. These areas

are designed to be warm to avoid

Connect your product to a grounded

socket which is being protected by a

fuse with the appropriate capacity.

• The connection must be in compliance

with national regulations.

• The power cable plug must be easily

accessible after installation.

• The specified voltage must be equal to

must not be used for connection.EN

3. There must be appropriate air

ventilation around your refrigerator

in order to achieve an efficient

operation. If the refrigerator is to be

placed in a recess in the wall, there

must be at least 5 cm distance with

the ceiling and at least 5 cm with

the wall. If the floor is covered with

a carpet, your product must be

elevated 2.5 cm from the floor.

4. Place your refrigerator on an even floor

surface to prevent jolts.

5. Do not keep your refrigerator in

ambient temperatures under 10°C.

BA damaged power cable must be

replaced by a qualified electrician.

BProduct must not be operated before

it is repaired! There is danger of

Disposing of the packaging

The packing materials may be

dangerous for children. Keep the

packing materials out of the reach

of children or dispose of them by

classifying them in accordance

with the waste instructions. Do not

dispose of them along with the normal

The packing of your refrigerator is

produced from recyclable materials.

Disposing of your old

Dispose of your old refrigerator without

giving any harm to the environment.

•You may consult your authorised dealer

or waste collection center of your

municipality about the disposal of

Before disposing of your refrigerator, cut

out the electric plug and, if there are

any locks on the door, make them

inoperable in order to protect children

Placing and Installation

A If the entrance door of the room

where the refrigerator will be

installed is not wide enough for the

refrigerator to pass through, then call

the authorised service to have them

remove the doors of your refrigerator

and pass it sideways through the

1. Install your refrigerator to a place that

2. Keep your refrigerator away from heat

sources, humid places and direct

If your refrigerator is unbalanced;

You can balance your refrigerator by

turning the front legs of it as illustrated

in the figure. The corner where the

leg exists is lowered when you turn

in the direction of black arrow and

raised when you turn in the opposite

direction. Taking help from someone to

slightly lift the refrigerator will facilitate

Changing the illumination

To change the lamp used for

illumination of your refrigerator, please

call your Authorized Service.EN

C Your refrigerator should be installed at

least 30 cm away from heat sources

such as hobs, ovens, central heater

and stoves and at least 5 cm away

from electrical ovens and should not

be located under direct sunlight.

C The ambient temperature of

the room where you install your

refrigerator should at least be 10°C.

Operating your refrigerator under

cooler conditions than this is not

recommended with regard to its

C Please make sure that the interior

of your refrigerator is cleaned

C If two refrigerators are to be installed

side by side, there should be at least

2 cm distance between them.

C When you operate your refrigerator

for the first time, please observe the

following instructions during the initial

- The door should not be opened

- It must be operated empty without

- Do not unplug your refrigerator. If

a power failure occurs out of your

control, please see the warnings in

the “Recommended solutions for

the problems” section.

C Original packaging and foam

materials should be kept for future

transportations or moving.EN

5 Using your refrigerator

the Quick Freeze function is on. To

cancel this function press Quick Freeze

button again. Quick Freeze indicator

will turn off and return to its normal

settings. If you do not cancel it, Quick

Freeze will cancel itself automatically

after 4 hours or when the freezer

compartment reaches to the required

If you want to freeze large amounts

of fresh food, press the Quick Freeze

button before putting the food into

the freezer compartment. If you press

the Quick Freeze button repeatedly

with short intervals, the electronic

circuit protection will be activated

and the compressor will not start up

This function is not recalled when

power restores after a power failure.

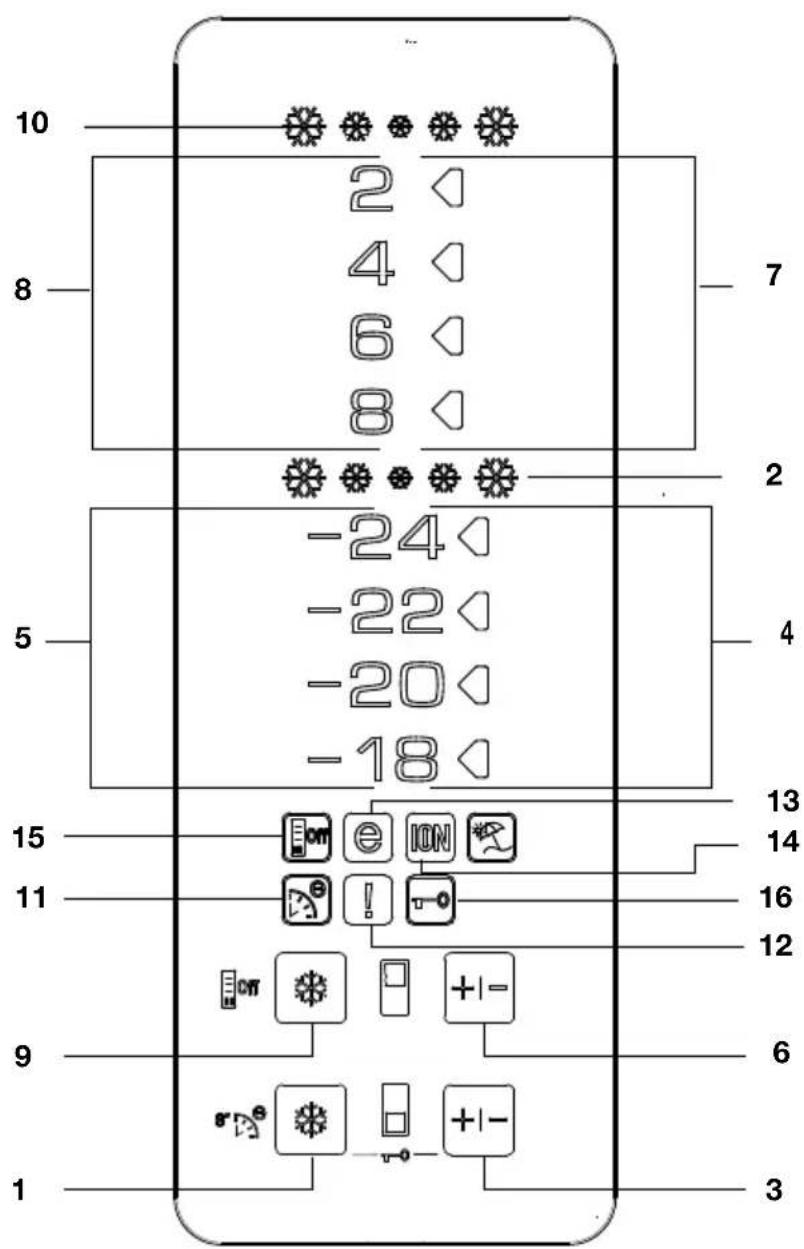

2- Quick Freeze Indicator

This icon flashes in an animated style

when the Quick Freeze function is

3- Freezer Set Function

This function allows you to make the

freezer compartment temperature

setting. Press this button to set

the temperature of the freezer

compartment to -18, -20, -22 and -24

4- Freezer Compartment

Temperature Setting Indicator

Indicates the temperature set for the

Freezer Compartment.

5- Freezer Compartment

Temperature Indicator

6- Fridge Set Function

This function allows you to make

the fridge compartment temperature

setting. Press this button to set the

temperature of the fridge compartment

to 8, 6, 4, 2 respectively.

7- Fridge Compartment

Temperature Setting Indicator

Indicates the temperature set for the

8-Fridge Compartment

Temperature Indicator

8, 6, 4 and 2 indicators light up

9- Quick Fridge Function

When you press Quick Fridge button,

the temperature of the compartment

will be colder than the adjusted values.

This function can be used for food

placed in the fridge compartment and

required to be cooled down rapidly.

If you want to cool large amounts of

fresh food, it is recommended to active

this feature before putting the food

into the fridge. Quick Fridge indicator

will remain lit when the Quick Fridge

function is enabled. To cancel this

function press Quick Fridge button

again. Quick Fridge indicator will turn

off and return to its normal settings.

If you do not cancel it, Quick Fridge

will cancel itself automatically after 2

hours or when the fridge compartment

reaches to the required temperature.

This function is not recalled when

power restores after a power failure.

10- Quick Fridge Indicator

This icon flashes in an animated style

when the Quick Fridge function is

11- Eco-Fuzzy (Special Economic

Press the Quick Freeze button for 3

seconds to activate the Eco Fuzzy

Function. Refrigerator will start

operating in the most economic mode

at least 6 hours later and the economic

usage indicator will turn on when the

function is active. Press the Quick

Freeze button for 3 seconds again to

deactivate the Eco Fuzzy Function.EN

12- High Temperature/ Error

This light comes on during high

temperature failures and error

13. Economic Usage Indicator

when the Freezer Compartment is set

to -18°C. Economic Usage Indicator

turns off when the Quick Fridge or

Quick Freeze function is selected.

14- Ionizer Indicator Light

Indicator light lights up continuously.

This light indicates that your

refrigerator is protected against the

15-Energy Saving Mode

When you press this button, Energy

saving icon will light up and Energy

Saving Function will be activated. If

energy saving function is active, all

icons on the display other than energy

saving icon will turn off. When the

Energy Saving Function is active, if

any button is pressed or the door is

opened, Energy Saving Function will

be exited and the icons on display will

return to normal.If you press this buton

again, Energy Saving icon will turn off

and Energy Saving Function will not be

Press Quick Freeze and FRZ Set

buttons concurrently for 3 seconds.

Key lock icon will light up and key lock

mode will be activated. Buttons will

not function if the Key Lock mode is

active. Press Quick Freeze and FRZ Set buttons concurrently for 3 seconds

again. Key lock icon will turn off and

the key lock mode will be exited.EN

A audio warning signal will be given

when the fridge compartment door of

your product is left open for at least

1 minute. This audio signal will mute

when any button on the indicator is

pressed or when the door is closed.

Dual cooling system:

Your refrigerator is equipped with

two separate cooling systems to

cool the fresh food compartment and

freezer compartment. Thus, air in the

fresh food compartment and freezer

compartment do not get mixed.

Thanks to these two separate cooling

systems, cooling speed is much higher

then other refrigerators. Odors in the

compartments do not get mixed. Also

additional power saving is provided

since the defrosting is performed

• It must be preferred to wrap or cover

the food before placing them in the

• Hot food must cool down to the

room temperature before putting

them in the refrigerator.

• The foodstuff that you want to freeze

must be fresh and in good quality.

• Foodstuff must be divided into

portions according to the family’s

daily or meal based consumption

• The foodstuff must be packaged in

an airtight manner to prevent them

from drying even if they are going to

be kept for a short time.

• Materials to be used for packaging

must be tear-proof and resistant to

cold, humidity, odor, oils and acids

and they must also be airtight.

Moreover, they must be well closed

and they must be made from easy-

to-use materials that are suitable for

• Food to be frozen must be put in the

freezer compartment. (They should

not be allowed to come in contact

with the previously frozen items to

prevent their partial thawing. Freezing

capacity of our product is given in

the technical specifications of your

• Periods given in the information about

deep freeze must be obeyed for

• Frozen food must be used

immediately after they are thawed

and they should never be re-frozen.

• Please observe the following

instructions to obtain the best results.

1. Do not freeze too large quantities

of food at one time. The quality of

the food is best preserved when it

is frozen right through to the core as

quickly as possible.

2. Placing warm food into the freezer

compartment causes the cooling

system to operate continuously until

the food is frozen solid.

3. Take special care not to mix already

frozen food and fresh food.EN

preservation of frozen food

• Prepacked commercially frozen

food should be stored in accordance

with the frozen food manufacturer’s

instructions for a ( 4 star)

frozen food storage compartment.

• To ensure that the high quality

achieved by the frozen food

manufacturer and the food retailer is

maintained, the following should be

1. Put packages in the freezer as quickly

as possible after purchase.

2. Ensure that contents are labeled and

3. Do not exceed “Use By”, “Best

Before” dates on the packaging.

If there is a power failure do not open

the freezer door. Even if the power

failure lasts up to the “Temperature

Increasing Time” indicated in the

“Technical specifications of your

refrigerator” section, frozen food

will not be affected. In case the

failure lasts longer, the food must be

checked and when necessary, must

be consumed immediately or must

be frozen after cooked.

The freezer compartment defrosts

ice cream, vegetables

Food in pans, covered

food or drinks (such

as milk, fruit juice and

Crisper Vegetables and fruits

Delicatessen products

(cheese, butter, salami

Deep-freeze information

Food must be frozen as rapidly as

possible when they are put in a

refrigerator in order to keep them in

The TSE norm requires (according to

certain measurement conditions) the

refrigerator to freeze at least 4.5 kg of

foodstuff at 32°C ambient temperature

to -18°C or lower within 24 hours for

every 100-liters of freezer volume.

It is possible to keep the food for

a long time only at -18°C or lower

You can keep the freshness of food

for many months (at -18°C or lower

temperatures in the deep freeze).EN

• Foodstuff must be divided into

portions according to the family’s daily

or meal based consumption needs.

• Foodstuff must be packaged in an

airtight manner to prevent them from

drying even if they are going to be kept

Materials necessary for packaging:

Materials to be used for packaging

the foodstuff must be tear-proof and

resistant to cold, humidity, odor, oils

Foodstuff to be frozen should not be

allowed to come in contact with the

previously frozen items to prevent their

Always follow the values in the tables

for storage periods.

Frozen food must be used immediately

after they are thawed and they should

never be re-frozen.EN

Odour filter in the air duct of the fridge

compartment prevents the build-up of

unpleasant odours in the refrigerator.

This compartment has been designed

to store frozen food which would be

thawed slowly (meat, fish, chicken,etc.)

as required.Zero temperature

compartment is the coldest place

of your refrigerator in which dairy

products (cheese, butter), meat,

fish or chicken may be kept at ideal

storage conditions.Vegetables and/

or fruits must not be placed in this

Hygiene+: The photocatalyst filter in

the air channel of refrigerator helps

to clean the air inside. Also this filter

reduces bad smells.EN

6 Maintenance and cleaning

A Never use gasoline, benzene or

similar substances for cleaning

B We recommend that you unplug the

appliance before cleaning.

B Never use any sharp abrasive

instrument, soap, household

cleaner, detergent and wax polish for

C Use lukewarm water to clean the

cabinet of your refrigerator and wipe it

C Use a damp cloth wrung out in

a solution of one teaspoon of

bicarbonate of soda to one pint of

water to clean the interior and wipe it

B Make sure that no water enters the

lamp housing and other electrical

B If your refrigerator is not going to be

used for a long period of time, unplug

the power cable, remove all food,

clean it and leave the door ajar.

C Check door seals regularly to ensure

they are clean and free from food

A To remove door racks, remove all the

contents and then simply push the

door rack upwards from the base.

Protection of plastic

C Do not put the liquid oils or oil-cooked

meals in your refrigerator in unsealed

containers as they damage the

plastic surfaces of your refrigerator. In

case of spilling or smearing oil on the

plastic surfaces, clean and rinse the

relevant part of the surface at once

7 Recommended solutions for the problems

Please review this list before calling the service. It might save you time and

money. This list includes frequent complaints that are not arising from defective

workmanship or material usage. Some of the features described here may not

exist in your product.

The refrigerator does not operate.

• Is the refrigerator properly plugged in? Insert the plug to the wall socket.

• Is the fuse of the socket which your refrigerator is connected to or the main fuse

blown out? Check the fuse.

Condensation on the side wall of the fridge compartment (MULTIZONE, COOL CONTROL and FLEXI ZONE).

• Very cold ambient conditions. Frequent opening and closing of the door. Highly

humid ambient conditions. Storage of food containing liquid in open containers.

Leaving the door ajar. Switching the thermostat to a colder degree.

• Decreasing the time the door left open or using it less frequently.

• Covering the food stored in open containers with a suitable material.

• Wipe the condensation using a dry cloth and check if it persists.

Compressor is not running

• Protective thermic of the compressor will blow out during sudden power

failures or plug-out plug-ins as the refrigerant pressure in the cooling system of

the refrigerator has not been balanced yet. Your refrigerator will start running

approximately after 6 minutes. Please call the service if the refrigerator does not

startup at the end of this period.

• The fridge is in defrost cycle. This is normal for a full-automatically defrosting

refrigerator. Defrosting cycle occurs periodically.

• Your refrigerator is not plugged into the socket. Make sure that the plug is

properly fit into the socket.

• Are the temperature adjustments correctly made?

• Power might be cut off.EN

The fridge is running frequently or for a long time.

• Your new product may be wider than the previous one. This is quite normal.

Large refrigerators operate for a longer period of time.

• The ambient room temperature may be high. This is quite normal.

• The refrigerator might have been plugged in recently or might have been loaded

with food. Cooling down of the refrigerator completely may last for a couple of

• Large amounts of hot food might have been put in the refrigerator recently. Hot

food causes longer running of the refrigerator until they reach the safe storage

• Doors might have been opened frequently or left ajar for a long time. The warm

air that has entered into the refrigerator causes the refrigerator to run for longer

periods. Open the doors less frequently.

• Freezer or fridge compartment door might have been left ajar. Check if the doors

• The refrigerator is adjusted to a very low temperature. Adjust the refrigerator

temperature to a warmer degree and wait until the temperature is achieved.

• Door seal of the fridge or freezer may be soiled, worn out, broken or not properly

seated. Clean or replace the seal. Damaged/broken seal causes the refrigerator

to run for a longer period of time in order to maintain the current temperature.

Freezer temperature is very low while the fridge temperature is sufficient.

• The freezer temperature is adjusted to a very low temperature. Adjust the freezer

temperature to a warmer degree and check.

Fridge temperature is very low while the freezer temperature is sufficient.

• The fridge temperature might have been adjusted to a very low temperature.

Adjust the fridge temperature to a warmer degree and check.

Food kept in the fridge compartment drawers are freezing.

• The fridge temperature might have been adjusted to a very low temperature.

Adjust the fridge temperature to a warmer degree and check.

Temperature in the fridge or freezer is very high.

• The fridge temperature might have been adjusted to a very high degree.

Fridge adjustment has an effect on the temperature of the freezer. Change

the temperature of the fridge or freezer until the fridge or freezer temperature

reaches to a sufficient level.

• Doors might have been opened frequently or left ajar for a long time; open them

• Door might have been left ajar; close the door completely.

• Large amount of hot food might have been put in the refrigerator recently. Wait

until the fridge or freezer reaches the desired temperature.

• The refrigerator might have been plugged in recently. Cooling down of the

refrigerator completely takes time.EN

The operation noise increases when the refrigerator is running.

• The operating performance of the refrigerator may change due to the changes in

the ambient temperature. It is normal and not a fault.

Vibrations or noise.

• The floor is not even or it is weak. The refrigerator rocks when moved slowly.

Make sure that the floor is strong enough to carry the refrigerator, and level.

• The noise may be caused by the items put onto the refrigerator. Items on top of

the refrigerator should be removed.

There are noises coming from the refrigerator like liquid spilling or spraying.

• Liquid and gas flows happen in accordance with the operating principles of your

refrigerator. It is normal and not a fault.

There is a noise like wind blowing.

• Fans are used in order to cool the refrigerator. It is normal and not a fault.

Condensation on the inner walls of refrigerator.

• Hot and humid weather increases icing and condensation. It is normal and not a

• Doors might have been left ajar; make sure that the doors are closed fully.

• Doors might have been opened frequently or left ajar for a long time; open them

Humidity occurs on the outside of the refrigerator or between the doors.

• There might be humidity in the air; this is quite normal in humid weather. When

the humidity is less, condensation will disappear.

Bad odour inside the refrigerator.

• Inside of the refrigerator must be cleaned. Clean the inside of the refrigerator with

a sponge, lukewarm water or carbonated water.

• Some containers or package materials might cause the smell. Use a different

container or different brand packaging material.

The door is not closing.

• Food packages may prevent the door's closing. Replace the packages that are

obstructing the door.

• The refrigerator is not completely upright on the floor and rocking when slightly

moved. Adjust the elevation screws.

• The floor is not level or strong. Make sure that the floor is level and capable to

carry the refrigerator.

• The food might be touching the ceiling of the drawer. Rearrange food in the

mohly by chladničku poškodit.
