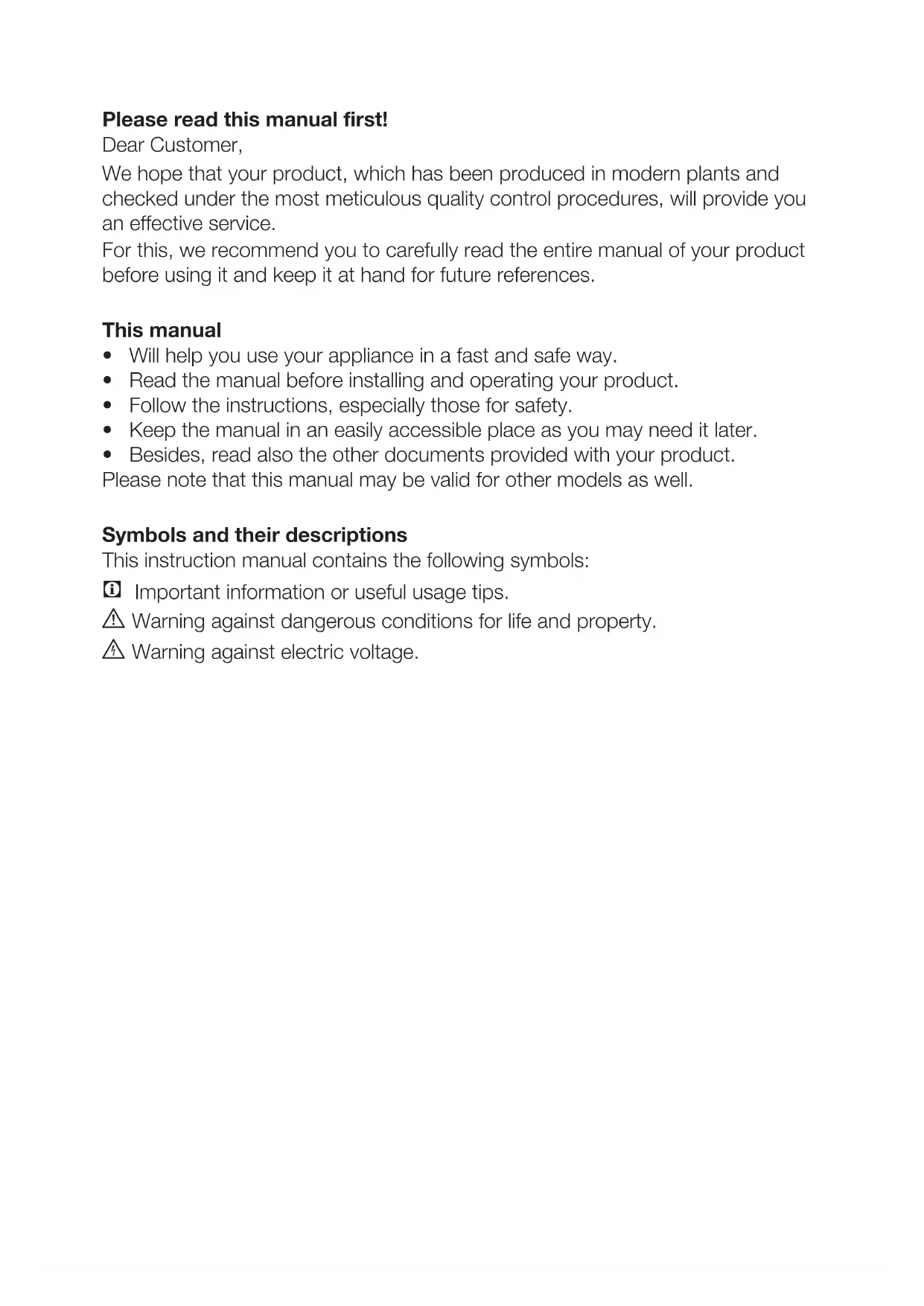

USER MANUAL CN 148241 X BEKO

We hope that your product, which has been produced in modern plants and

checked under the most meticulous quality control procedures, will provide you

an effective service.

For this, we recommend you to carefully read the entire manual of your product

before using it and keep it at hand for future references.

• Will help you use your appliance in a fast and safe way.

• Read the manual before installing and operating your product.

• Follow the instructions, especially those for safety.

• Keep the manual in an easily accessible place as you may need it later.

• Besides, read also the other documents provided with your product.

Please note that this manual may be valid for other models as well.

Symbols and their descriptions

This instruction manual contains the following symbols:

C Important information or useful usage tips.

A Warning against dangerous conditions for life and property.

B Warning against electric voltage.

CN148240X CN148241X Congélateur / réfrigérateurEN

For products with a water dispenser; .6

Compliance with WEEE Directive and

Disposing of the Waste Product: 6

Compliance with RoHS Directive: 6

Package information 7

Things to be done for energy saving ..7

Points to be considered when re-

transporting your refrigerator 9

Before operating your refrigerator 9

Electric connection 9

Disposing of the packaging 10

Disposing of your old refrigerator 10

Placing and Installation 10

Changing the illumination lamp 11

Installing the lower ventilation cover .11

Changing the door opening direction 11

Adjusting the feet 11

Dual cooling system: 17

Freezing fresh food 17

Recommendations for preservation of

Rotary storage container 22

Chill compartment 23

Icematic and ice storage container ..23

Protection of plastic surfaces 24

7 Recommended solutions

for the problems 25EN

Figures that take place in this instruction manual are schematic and may not

correspond exactly with your product. If the subject parts are not included in the

product you have purchased, then it is valid for other models.

10. Deep-freeze compartment

12. Adjustable front feet

13. Control panel and temperature control

14. Fridge compartment door shelves

16. Sliding and Rotary storage containers

18. Fridge compartment

19. Freezer compartmentEN

2 Important Safety Warnings

Please review the following

information. Failure to observe this

information may cause injuries or

material damage. Otherwise, all

warranty and reliability commitments

will become invalid.

The usage life of the unit you

purchased is 10 years. This is the

period for keeping the spare parts

required for the unit to operate as

This product is intended to be used

– indoors and in closed areas such as

– in closed working environments such

as stores and offices;

– in closed accommodation areas such

as farm houses, hotels, pensions.

•Thisproductshouldnotbeused

• Whenyouwanttodispose/scrap

the product, we recommend you

to consult the authorized service in

order to learn the required information

and authorized bodies.

• Consultyourauthorizedservicefor

all your questions and problems

related to the refrigerator. Do not

intervene or let someone intervene to

the refrigerator without notifying the

authorised services.

• Forproductswithafreezer

compartment; Do not eat cone ice

cream and ice cubes immediately

after you take them out of the freezer

compartment! (This may cause

frostbite in your mouth.)

• Forproductswithafreezer

compartment; Do not put bottled and

canned liquid beverages in the freezer

compartment. Otherwise, these may

• Donottouchfrozenfoodbyhand;

they may stick to your hand.

• Unplugyourrefrigeratorbefore

cleaning or defrosting.

• Vaporandvaporizedcleaning

materials should never be used in

cleaning and defrosting processes of

your refrigerator. In such cases, the

vapor may get in contact with the

electrical parts and cause short circuit

• Neverusethepartsonyour

refrigerator such as the door as a

means of support or step.

• Donotuseelectricaldevicesinside

• Donotdamagetheparts,where

the refrigerant is circulating, with

drilling or cutting tools. The refrigerant

that might blow out when the gas

channels of the evaporator, pipe

extensions or surface coatings are

punctured causes skin irritations and

• Donotcoverorblocktheventilation

holes on your refrigerator with any

• Electricaldevicesmustberepaired

by only authorised persons. Repairs

performed by incompetent persons

create a risk for the user.

• Incaseofanyfailureorduring

a maintenance or repair work,

disconnect your refrigerator’s mains

supply by either turning off the

relevant fuse or unplugging your

• Placethebeveragewithhigherproofs

tightly closed and vertically.

• Neverstorespraycanscontaining

flammable and explosive substances

in the refrigerator.

• Donotusemechanicaldevices

or other means to accelerate the

defrosting process, other than those

recommended by the manufacturer.

• Thisproductisnotintendedtobe

used by persons with physical,

sensory or mental disorders or

unlearned or inexperienced people

(including children) unless they are

attended by a person who will be

responsible for their safety or who will

instruct them accordingly for use of

• Donotoperateadamaged

refrigerator. Consult with the service

agent if you have any concerns.

• Electricalsafetyofyourrefrigerator

shall be guaranteed only if the earth

system in your house complies with

• Exposingtheproducttorain,snow,

sun and wind is dangerous with

respect to electrical safety.

• Contactauthorizedservicewhen

there is a power cable damage to

• Neverplugtherefrigeratorinto

the wall outlet during installation.

Otherwise, risk of death or serious

• Thisrefrigeratorisintendedforonly

storing food items. It must not be

used for any other purpose.

• Labeloftechnicalspecificationsis

located on the left wall inside the

• Neverconnectyourrefrigeratorto

electricity-saving systems; they may

damage the refrigerator.

• Ifthereisabluelightonthe

refrigerator, do not look at the blue

light with optical tools.

• Formanuallycontrolledrefrigerators,

wait for at least 5 minutes to start the

refrigerator after power failure.

• Thisoperationmanualshouldbe

handed in to the new owner of the

product when it is given to others.

• Avoidcausingdamageonpower

cable when transporting the

refrigerator. Bending cable may cause

fire.Neverplaceheavyobjectson

power cable. Do not touch the plug

with wet hands when plugging the

• Watershouldnotbesprayeddirectly

on inner or outer parts of the product

for safety purposes.

• Donotspraysubstancescontaining

inflammable gases such as propane

gas near the refrigerator to avoid fire

• Neverplacecontainersfilledwith

water on top of the refrigerator,

otherwise this may cause electric

• Donotoverloadyourrefrigerator

with excessive amounts of food. If

overloaded, the food items may fall

down and hurt you and damage

refrigerator when you open the door.EN

refrigerator; otherwise, these objects

may fall down when you open or

close the refrigerator’s door.

• Astheyrequireaprecise

temperature, vaccines, heat-sensitive

medicine and scientific materials

and etc. should not be kept in the

• Ifnottobeusedforalongtime,

refrigerator should be unplugged. A

possible problem in power cable may

• Theplug’stipshouldberegularly

cleaned; otherwise, it may cause fire.

• The plug’s tip should be cleaned

regularly with a dry cloth; otherwise, it

• Refrigeratormaymoveifadjustable

legs are not properly secured on the

floor. Properly securing adjustable

legs on the floor can prevent the

refrigerator to move.

• Whencarryingtherefrigerator,donot

• Whenyouhavetoplaceyourproduct

next to another refrigerator or freezer,

the distance between devices should

be at least 8cm. Otherwise, adjacent

side walls may be humidified.

For products with a water

Pressure of water mains should be

minimum 1 bar. Pressure of water

mains should be maximum 8 bars.

• Useonlypotablewater.

be kept away from reach of children.

• Childrenmustbesupervisedto

prevent them from tampering with the

Compliance with WEEE Directive and Disposing of

classification symbol for

waste electrical and

electronic equipment

(WEEE).This product has

been manufactured with

high quality parts and materials which

can be reused and are suitable for

recycling. Do not dispose of the waste

product with normal domestic and

other wastes at the end of its service

life. Take it to the collection center for

the recycling of electrical and

electronic equipment. Please consult

your local authorities to learn about

these collection centers.

Compliance with RoHS Directive:

The product you have purchased

complieswithEURoHSDirective

(2011/65/EU).Itdoesnotcontain

harmful and prohibited materials

Packaging materials of the product

are manufactured from recyclable

materials in accordance with our

NationalEnvironmentRegulations.Do

not dispose of the packaging materials

together with the domestic or other

wastes. Take them to the packaging

material collection points designated

by the local authorities.

If your product’s cooling system

This gas is flammable. Therefore, pay

attention to not damaging the cooling

system and piping during usage and

transportation. In the event of damage,

keep your product away from potential

fire sources that can cause the

product catch a fire and ventilate the

room in which the unit is placed.

Ignore this warning if your

product’s cooling system contains

Type of gas used in the product is

stated in the type plate which is on the

left wall inside the refrigerator.

Neverthrowtheproductinfirefor

Things to be done for energy

• Payattentionnottoopendoorsvery

frequently and do not leave the doors

open for a long time. When doors

areopen,warmairentersthefridge/

freezer cabinets and the appliance

consumes more energy to cool down

the foodstuffs.Thus please do not

open doors frequently in order to

save energy and to keep foods at

ideal storage temperature.

• Donotblockthefreezerfangrillby

placing foods in front.

that the air circulation inside is not

• Donotinstallyourrefrigerator

under direct sunlight or near heat

emitting appliances such as ovens,

dishwashers or radiators.

• Payattentiontokeepyourfoodin

• Thawingfrozenfoodinfridge

compartment will both provide energy

saving and preserve the food quality.EN

• Pleaseuseprovided2piecesofcold

packs (pcm) at recommended places

below when storing foodstuffs in

freezer compartments.

It helps to keep your foodstuffs colder

for more time when electricity is off or

your appliance is unplugged.

• Ifyoudonotplantostorefoodstuffin

freshfood compartment, please

activate vacation mode for energy

saving. Freezer compartment keeps

when vacation mode is on.

• Recommendedtemperaturesettings

are +4°C and -18°C for freshfood

and freezer compartments

• Forloadingmaximumfoodstuff

in your freezer compartment, top

shelf cover and middle drawer

may be removed. Declared energy

consumption volume of your

refrigerator is determined while the

freezer compartment is loaded

without ice maker, ice tray top

shelf cover and middle drawer for

maximum loading configuration. It’s

highly recommended that bottom

drawer is always used in place when

loading. Top shelf cover and middle

drawer are provided for ease of use if

• Ifrearbackwallcondanserof

your appliance can be reached

without any tool, please pull the

appliance forward and clean the

dust off regularly to maintain high

BPlease remember that the

manufacturer shall not be held liable if

the information given in the instruction

manual is not observed.

Points to be considered

when re-transporting your

1.Your refrigerator must be emptied and

cleaned prior to any transportation.

2.Shelves, accessories, crisper and etc.

in your refrigerator must be fastened

securely by adhesive tape against any

jolt before repackaging.

3.Packaging must be tied with thick

tapes and strong ropes and the

rules of transportation printed on the

package must be followed.

Please do not forget…

Every recycled material is an

indispensable source for the nature

and for our national resources.

If you wish to contribute to recycling

the packaging materials, you can

get further information from the

environmental bodies or local

Before operating your

Before starting to use your refrigerator

check the following:

1.Is the interior of the refrigerator dry and

can the air circulate freely in the rear

2.Please install the 2 plastic wedges

as illustrated in the figure. Plastic

wedges will provide the required

distance between your refrigerator

and the wall in order to allow the air

circulation. (The illustrated figure is

only an example and does not match

exactly with your product.)

3.Clean the interior of the refrigerator as

recommended in the “Maintenance

and cleaning” section.

4.You will hear a noise as the

compressor starts up. The liquid and

gases sealed within the refrigeration

system may also give rise to noise,

even if the compressor is not running

and this is quite normal.

5.Front edges of the refrigerator may feel

warm. This is normal. These areas

are designed to be warm to avoid

Connect your product to a grounded

socket which is being protected by a

fuse with the appropriate capacity.

•Theconnectionmustbeincompliance

with national regulations.

• Thepowercableplugmustbeeasily

accessible after installation.

•Extensioncablesandmultiwayplugs

must not be used for connection.

BA damaged power cable must be

replaced by a qualified electrician.EN

Placing and Installation

A If the entrance door of the room

where the refrigerator will be

installed is not wide enough for the

refrigerator to pass through, then call

the authorised service to have them

remove the doors of your refrigerator

and pass it sideways through the

1. Install your refrigerator to a place that

2. Keep your refrigerator away from heat

sources, humid places and direct

3. There must be appropriate air

ventilation around your refrigerator

in order to achieve an efficient

operation. If the refrigerator is to be

placed in a recess in the wall, there

must be at least 5 cm distance with

the ceiling and at least 5 cm with

the wall. If the floor is covered with

a carpet, your product must be

elevated 2.5 cm from the floor.

4. Place your refrigerator on an even floor

surface to prevent jolts.

BProduct must not be operated before

it is repaired! There is danger of

Disposing of the packaging

The packing materials may be

dangerous for children. Keep the

packing materials out of the reach

of children or dispose of them by

classifying them in accordance

with the waste instructions. Do not

dispose of them along with the normal

The packing of your refrigerator is

produced from recyclable materials.

Disposing of your old

Dispose of your old refrigerator without

giving any harm to the environment.

•Youmayconsultyourauthoriseddealer

or waste collection center of your

municipality about the disposal of

Before disposing of your refrigerator, cut

out the electric plug and, if there are

any locks on the door, make them

inoperable in order to protect children

against any danger.EN

If your refrigerator is unbalanced;

You can balance your refrigerator by

turning the front legs as shown in the

illustration below. The corner where

the leg exists is lowered when you turn

it in the direction of black arrow and

raised when you turn in the opposite

direction. Taking help from someone to

slightly lift the refrigerator will facilitate

Changing the illumination

To change the lamp used for

illumination of your refrigerator, please

call your Authorized Service.

Installing the lower

You can install the lower ventilation

cover as illustrated in the figure.

Changing the door opening

Door opening direction of your

refrigerator can be changed according

to the place you are using it. If this is

necessary, please call your nearest

Authorized Service.EN

C Your refrigerator should be installed at

least 30 cm away from heat sources

such as hobs, ovens, central heater

and stoves and at least 5 cm away

from electrical ovens and should not

be located under direct sunlight.

C The ambient temperature of

the room where you install your

refrigerator should at least be 10°C.

Operating your refrigerator under

cooler conditions than this is not

recommended with regard to its

C Please make sure that the interior

of your refrigerator is cleaned

C If two refrigerators are to be installed

side by side, there should be at least

2 cm distance between them.

C When you operate your refrigerator

for the first time, please observe the

following instructions during the initial

- The door should not be opened

- It must be operated empty without

- Do not unplug your refrigerator. If

a power failure occurs out of your

control, please see the warnings in

the “Recommended solutions for

the problems” section.

C Original packaging and foam

materials should be kept for future

transportations or moving.EN

5 Using your refrigerator

1- Quick Freeze Function

the Quick Freeze function is on. To

cancel this function press Quick Freeze

button again. Quick Freeze indicator

will turn off and return to its normal

settings. If you do not cancel it, Quick

Freeze will cancel itself automatically

after 72 hours or when the freezer

compartment reaches to the required

If you want to freeze large amounts

of fresh food, press the Quick Freeze

button 6 hours before putting the

food into the freezer compartment.

If you press the Quick Freeze button

repeatedly with short intervals, the

electronic circuit protection will be

activated and the compressor will not

start up immediately.EN

It's strongly recommended that you use top shelf for initial freezing of foodstuffs.

This function is not recalled when power restores after a power failure.

It's advised that provided cold packs are used as described below prior to using

Quick freeze function. It improves storage and quick-freezing performance of

your freezer compartment.

2- Quick Freeze Indicator

This icon flashes in an animated style

when the Quick Freeze function is

3- Freezer Set Function

This function allows you to make the

freezer compartment temperature

setting. Press this button to set

the temperature of the freezer

compartment to -18, -20, -22 and -24

4- Freezer Compartment

Temperature Setting Indicator

Indicates the temperature set for the

Freezer Compartment.

5- Freezer Compartment

Temperature Indicator

6- Fridge Set Function

This function allows you to make

the fridge compartment temperature

setting. Press this button to set the

temperature of the fridge compartment

to 8, 6, 4, 2 respectively.

7- Fridge Compartment

Temperature Setting Indicator

Indicates the temperature set for the

8-Fridge Compartment

Temperature Indicator

8, 6, 4 and 2 indicators light up

9- Quick Fridge Function

When you press Quick Fridge button,

the temperature of the compartment

will be colder than adjusted values.

This function can be used for food

placed in the fridge compartment and

required to be cooled down rapidly.

If you want to cool large amounts of

fresh food, it is recommended to active

this feature before putting the foodEN

into the fridge. Quick Fridge indicator

will remain lit when the Quick Fridge

function is enabled. To cancel this

function press Quick Fridge button

again. Quick Fridge indicator will turn

off and return to its normal settings.

If you do not cancel it, Quick Fridge

will cancel itself automatically after 2

hours or when the fridge compartment

reaches to the required temperature.

This function is not recalled when

power restores after a power failure.

10- Quick Fridge Indicator

This icon flashes in an animated style

when the Quick Fridge function is

11- Eco-Fuzzy (Special Economic

Press the Quick Freeze button for 3

seconds to activate the Eco Fuzzy

Function. Refrigerator will start

operating in the most economic mode

at least 6 hours later and the economic

usage indicator will turn on when the

function is active. Press the Quick

Freeze button for 3 seconds again to

deactivate the Eco Fuzzy Function.

12- High Temperature/ Error

This light turns on when freezer

compartment temperature is measured

higher than -9°C for more than 1 hour.

If this indicator is on,please be aware

than foodstuffs stored in the freezer

compartment may be spoiled and

must not be frozen again for storage.

In order to turn off the indicator, please

press “freezer set function button”

concurrently for 5 seconds.

13. Economic Usage Indicator

EconomicUsageIndicatorturnson

when the Freezer Compartment is set

to-18°C.EconomicUsageIndicator

turns off when the Quick Fridge or

Quick Freeze function is selected.

14- Ionizer Indicator Light

Indicator light lights up continuously.

This light indicates that your

refrigerator is protected against the

15-Energy Saving Function

When you press this button, Energy

saving icon will light up and Energy

Saving Function will be activated. If

energy saving function is active, all

icons on the display other than energy

saving icon will turn off. When the

Energy Saving Function is active, if

any button is pressed or the door is

opened, Energy Saving Function will

be exited and the icons on display will

return to normal.If you press this buton

again, Energy Saving icon will turn off

and Energy Saving Function will not be

Press Quick Freeze and FRZ Set

buttons concurrently for 3 seconds.

Key lock icon will light up and key lock

mode will be activated. Buttons will

notfunctioniftheKeyLockmodeis

active. Press Quick Freeze and FRZ Set buttons concurrently for 3 seconds

again. Key lock icon will turn off and

the key lock mode will be exited.EN

concurrently for 3 seconds to activate

Vacationmode.Invacationmode,fresh

food mean temperature will be around

15°C and freshfood compartment

will not be suitable for food storage.

Please do not store any foodstuff in

freshfood compartment when vacation

mode is active. Press vacation mode

button for 3 seconds to deactivate.

Freezer compartment keeps freezing

on vacation mode. Foodstuffs can be

stored at freezer compartment while

vacation mode is on.EN

A audio warning signal will be given

when the fridge compartment door of

your product is left open for at least

1 minute. This audio signal will mute

when any button on the indicator is

pressed or when the door is closed.

Dual cooling system:

Your refrigerator is equipped with

two separate cooling systems to

cool the fresh food compartment and

freezer compartment. Thus, air in the

fresh food compartment and freezer

compartment do not get mixed.

Thanks to these two separate cooling

systems, cooling speed is much

higher than other,type refrigerators.

Odors in the compartments do not get

mixed. Also additional power saving

is provided since the defrosting is

performed individually.

-18°C 4°C This is the normal recommended setting.

-20,-22 or -24°C 4°C These settings are recommended when the ambient

temperature exceeds 30°C.

4°C Usewhenyouwishtofreezeyourfoodinashorttime.

Your refrigerator will return to its previous mode when

the process is over.

-18°C or colder 2°C If you think that your fridge compartment is not cold

enough because of the hot conditions or frequent

opening and closing of the door.

You can use it when your fridge compartment is

overloaded or if you wish to cool down your food

rapidly. It is recommended that you activate quick

fridge function 4-8 hours before placing the food.

• Itmustbepreferredtowraporcover

the food before placing them in the

• Hotfoodmustbecooleddownto

room temperature before placing

them in the freezer compartment.

• Thefoodstuffthatyouwanttofreeze

must be fresh and in good quality.

• Foodstuffmustbedividedinto

portions according to the family’s

daily or meal based consumption

• Thefoodstuffmustbepackagedin

an airtight manner to prevent them

from drying even if they are intended

to be kept for a short time.

• Materialstobeusedforpackaging

must be tear-proof and resistant to

cold, humidity, odor, oils and acids

and they must also be airtight.

Moreover, they must be well closed

and they must be made from easy-

to-use materials that are suitable for

deep freeze usage.EN

• It'srecommendedthatyouplace

foodstuffs on top shelf of freezer for

• Freezingcapacityofyourappliance

is declared and can be achieved by

placing foodstuffs on top shelf while

Quick freezer function is activated 4

hours before loading.

• Foodtobefrozenmustbeputinthe

freezer compartment. (They should

not be allowed to come in contact

with the previously frozen items to

prevent their partial thawing. Freezing

capacity of our product is given in

the technical specifications of your

• Periodsgivenintheinformationabout

deep freeze must be obeyed for

• Frozenfoodmustbeused

immediately after they are thawed

and they should never be re-frozen.

• Pleaseobservethefollowing

instructions to obtain the best results.

1. Do not freeze too large quantities

of food at one time. The quality of

the food is best preserved when it

is frozen right through to the core as

quickly as possible.

2. Placing warm food into the freezer

compartment causes the cooling

system to operate continuously until

the food is frozen solid.

3. Take special care not to mix already

frozen food and fresh food.

preservation of frozen food

• Prepackedcommerciallyfrozenfood

should be stored in accordance with

the food manufacturer’s instructions

described for a ( 4 star) frozen

food storage compartment.

• Donotplacefoodstuffinfrontof

freezer fan in a way to block air

circulation. Such loading will result

in higher energy consumption and

worsen freezer storage performance

• Toensurefoodensurequatilyoud

healthy storage,the following should

1. Put packages in the freezer as quickly

as possible after purchase.

2. Ensure that contents are labeled and

3. Donotexceed“UseBy”,“Best

Before” dates on the packaging.

If there is a power failure do not open

the freezer door. Even if the power

failure lasts up to the “Temperature

Increasing Time” indicated in the

“Technical specifications of your

refrigerator” section, frozen food

will not be affected. In case the

failure lasts longer, the food must be

checked and when necessary, must

be consumed immediately or must

be frozen after cooked.

• Pleasepayattentiontotheexpiry

date, maximum allowed storage

period and recommended storage

temperature of fodstuffs when

purchased. If expiry date is passed,

• Iffrozenfoodisthawved,pleasedo

notfreezeagain.Unthawedfoods

must be consumed or cooked

immediately. It is advised that such

such foods are cooked prior to

freezing again if required.

• Freezerfoodstufftemperaturerise

time is improved when cold packs are

placed at recommended locations

depicted below. Temperature rise

time is declared with cold packs in

proper place as shown below.

The freezer compartment defrosts

Deep-freeze information

Food must be frozen as rapidly as

possible when they are put in a

refrigerator in order to keep them in

You can keep the freshness of food

for many months (at -18°C or lower

temperatures in the deep freeze) as

instructed at food packaging by food

•Foodstuffmustbedividedinto

portions according to the family’s daily

or meal based consumption needs.

•Foodstuffmustbepackagedinan

airtight manner to prevent them from

drying even if they are going to be kept

Materials necessary for packaging:

Materials to be used for packaging

the foodstuff must be tear-proof and

resistant to cold, humidity, odor, oils

Foodstuff to be frozen should not be

allowed to come in contact with the

previously frozen items to prevent their

Always follow the values in the tables

for storage periods.

Frozen food must be used immediately

after they are thawed and they should

•Donotplacehotfoodinyour

ice cream, vegetables

Food in pans, covered

food or drinks (such

as milk, fruit juice and

Delicatessen products

(cheese, butter, salami

freshfood compartment

•Pleasedonotletanyfoodstuffto

come to contact with the temperature

sensor in freshfood compartment.

In order to maintain freshfood

compartment at ideal storage

temperature, the sensor must not be

blocked by fodstuffs.

•Donotplacehotfoodstuffinyour

temperaturesensor food MILKjuiceetc.temperaturesensor

temperaturesensor food

MILK juice etc. temperaturesensorEN

Rotary storage container

Sliding body shelf can be moved to

left or right in order to allow you place

long bottles, jars or boxes to a lower

You can reach the food that you have

placed into the shelf by grabbing and

turning it from its right edge (Fig.2).

When you want to load or remove it to

clean, turn it by 90 degrees, raise it up

and pull towards yourself (Fig. 3-4).

Hygiene+: The photocatalyst filter in

the air channel of refrigerator helps

to clean the air inside. Also this filter

Ion+: Ionizer, that is in the air channel

of refrigerator, ionizers the air. With the

help of this system airborne bacteria

and bad smells originated from these

bacteria will be reduced.

Odour filter in the air duct of the fridge

compartment prevents the build-up of

unpleasant odours in the refrigerator.

Please rinse it with clean water and let

it dry at sunlight for at least 4 hours

before placing it again.Perform this

action every 6 months.

Icematic and ice storage

Fill the Icematic with water and place

it into its seat. Your ice will be ready

approximately in two hours. Do not

remove the Icematic from its seating to

Turn the knobs on it clockwise by 90

Ice cubes in the cells will fall down into

the ice storage container below.

You may take out the ice storage

container and serve the ice cubes.

If you wish, you may keep the ice

cubes in the ice storage container.

Ice storage container

Ice storage container is only intended

for accumulating the ice cubes. Do not

put water in it. Otherwise, it will break.

Chill compartment is ideal for storing

solid dairy products meat,fish and

poultry. Chill compartment temperature

remains between -2°C and +3°C,

slightly colder than freshfood

Prior to placing in the freezing

compartment for storage,it is advised

that you place such foodstuffs in chill

compartment first for energy saving

and better storage performance. If

chill compartment is full, you may

use freshfood compartment for this

It is not recommended to store

vegetables and fruits in chill

You can increase the inner volume

of your refrigerator by removing the

drawers of chill compartment. Pull

the drawers towards yourself until it

is stopped by the stopper. Raise the

front part for approximately 1 cm and

pull the compartment towards yourself

again to remove it completely.EN

6 Maintenance and cleaning

ANeverusegasoline,benzeneor

similar substances for cleaning

B We recommend that you unplug the

appliance before cleaning.

BNeveruseanysharpabrasive

instrument, soap, household

cleaner, detergent and wax polish for

C Uselukewarmwatertocleanthe

cabinet of your refrigerator and wipe it

C Useadampclothwrungoutin

a solution of one teaspoon of

bicarbonate of soda to one pint of

water to clean the interior and wipe it

B Make sure that no water enters the

lamp housing and other electrical

B If your refrigerator is not going to be

used for a long period of time, unplug

the power cable, remove all food,

clean it and leave the door ajar.

C Check door seals regularly to ensure

they are clean and free from food

A To remove door racks, remove all the

contents and then simply push the

door rack upwards from the base.

ANeverusecleaningagentsorwater

that contain chlorine to clean the

outer surfaces and chromium coated

parts of the product. Chlorine causes

corrosion on such metal surfaces.

Protection of plastic

C Do not put the liquid oils or oil-cooked

meals in your refrigerator in unsealed

containers as they damage the

plastic surfaces of your refrigerator. In

case of spilling or smearing oil on the

plastic surfaces, clean and rinse the

relevant part of the surface at once

7 Recommended solutions for the problems

Please review this list before calling the service. It might save you time and

money. This list includes frequent complaints that are not arising from defective

workmanship or material usage. Some of the features described here may not

exist in your product.

The refrigerator does not operate.

• Istherefrigeratorproperlypluggedin?Inserttheplugtothewallsocket.

• Isthefuseofthesocketwhichyourrefrigeratorisconnectedtoorthemainfuse

blown out? Check the fuse.

CONTROLandFLEXIZONE).

humid ambient conditions. Storage of food containing liquid in open containers.

Leavingthedoorajar.Switchingthethermostattoacolderdegree.

• Decreasingthetimethedoorleftopenorusingitlessfrequently.

• Coveringthefoodstoredinopencontainerswithasuitablematerial.

• Wipethecondensationusingadryclothandcheckifitpersists.

Compressor is not running

• Protectivethermicofthecompressorwillblowoutduringsuddenpower

failures or plug-out plug-ins as the refrigerant pressure in the cooling system of

the refrigerator has not been balanced yet. Your refrigerator will start running

approximately after 6 minutes. Please call the service if the refrigerator does not

startup at the end of this period.

• Thefridgeisindefrostcycle.Thisisnormalforafull-automaticallydefrosting

refrigerator. Defrosting cycle occurs periodically.

• Yourrefrigeratorisnotpluggedintothesocket.Makesurethattheplugis

properly fit into the socket.

• Arethetemperatureadjustmentscorrectlymade?

• Powermightbecutoff.

The fridge is running frequently or for a long time.EN

with food. Cooling down of the refrigerator completely may last for a couple of

• Largeamountsofhotfoodmighthavebeenputintherefrigeratorrecently.Hot

food causes longer running of the refrigerator until they reach the safe storage

• Doorsmighthavebeenopenedfrequentlyorleftajarforalongtime.Thewarm

air that has entered into the refrigerator causes the refrigerator to run for longer

periods. Open the doors less frequently.

• Freezerorfridgecompartmentdoormighthavebeenleftajar.Checkifthedoors

temperature to a warmer degree and wait until the temperature is achieved.

• Doorsealofthefridgeorfreezermaybesoiled,wornout,brokenornotproperly

seated.Cleanorreplacetheseal.Damaged/brokensealcausestherefrigerator

to run for a longer period of time in order to maintain the current temperature.

Freezer temperature is very low while the fridge temperature is sufficient.

• Thefreezertemperatureisadjustedtoaverylowtemperature.Adjustthefreezer

temperature to a warmer degree and check.

Fridge temperature is very low while the freezer temperature is sufficient.

• Thefridgetemperaturemighthavebeenadjustedtoaverylowtemperature.

Adjust the fridge temperature to a warmer degree and check.

Food kept in the fridge compartment drawers are freezing.

• Thefridgetemperaturemighthavebeenadjustedtoaverylowtemperature.

Adjust the fridge temperature to a warmer degree and check.

Temperature in the fridge or freezer is very high.

• Thefridgetemperaturemighthavebeenadjustedtoaveryhighdegree.

Fridge adjustment has an effect on the temperature of the freezer. Change

the temperature of the fridge or freezer until the fridge or freezer temperature

reaches to a sufficient level.

• Doorsmighthavebeenopenedfrequentlyorleftajarforalongtime;openthem

• Doormighthavebeenleftajar;closethedoorcompletely.

• Largeamountofhotfoodmighthavebeenputintherefrigeratorrecently.Wait

until the fridge or freezer reaches the desired temperature.

• Therefrigeratormighthavebeenpluggedinrecently.Coolingdownofthe

refrigerator completely takes time.

The operation noise increases when the refrigerator is running.EN

• Theoperatingperformanceoftherefrigeratormaychangeduetothechangesin

the ambient temperature. It is normal and not a fault.

Vibrationsornoise.

• Thefloorisnotevenoritisweak.Therefrigeratorrockswhenmovedslowly.

Make sure that the floor is strong enough to carry the refrigerator, and level.

• Thenoisemaybecausedbytheitemsputontotherefrigerator.Itemsontopof

the refrigerator should be removed.

There are noises coming from the refrigerator like liquid spilling or spraying.

• Liquidandgasflowshappeninaccordancewiththeoperatingprinciplesofyour

refrigerator. It is normal and not a fault.

There is a noise like wind blowing.

• Fansareusedinordertocooltherefrigerator.Itisnormalandnotafault.

Condensation on the inner walls of refrigerator.

• Hotandhumidweatherincreasesicingandcondensation.Itisnormalandnota

• Doorsmighthavebeenleftajar;makesurethatthedoorsareclosedfully.

• Doorsmighthavebeenopenedfrequentlyorleftajarforalongtime;openthem

Humidity occurs on the outside of the refrigerator or between the doors.

• Theremightbehumidityintheair;thisisquitenormalinhumidweather.When

the humidity is less, condensation will disappear.

Bad odour inside the refrigerator.

• Insideoftherefrigeratormustbecleaned.Cleantheinsideoftherefrigeratorwith

a sponge, lukewarm water or carbonated water.

• Somecontainersorpackagematerialsmightcausethesmell.Useadifferent

container or different brand packaging material.

The door is not closing.

• Foodpackagesmaypreventthedoor'sclosing.Replacethepackagesthatare

obstructing the door.

• Therefrigeratorisnotcompletelyuprightonthefloorandrockingwhenslightly

moved. Adjust the elevation screws.

temperaturesensor food MILKjuiceetc.temperaturesensor

temperaturesensor food

MILK juice etc. temperaturesensorDE

(Quick Fridge), bodo temperature

Majhna in zapakirana

temperaturesensor food MILKjuiceetc.temperaturesensor

temperaturesensor food

MILK juice etc. temperaturesensorSL

efficacement ce compartiment.

temperaturesensorfood MILK juice etc. temperaturesensorFR
