USER MANUAL 4950 Cloer

Operating Instructions

Electric Kettle with Temperature Controller 4950 / 4951 / 4959

DE Gebrauchsanweisung 3
EN Operating Instructions 7
F Notice d'utilisation 11
NL Gebruiksaanwijzing 15

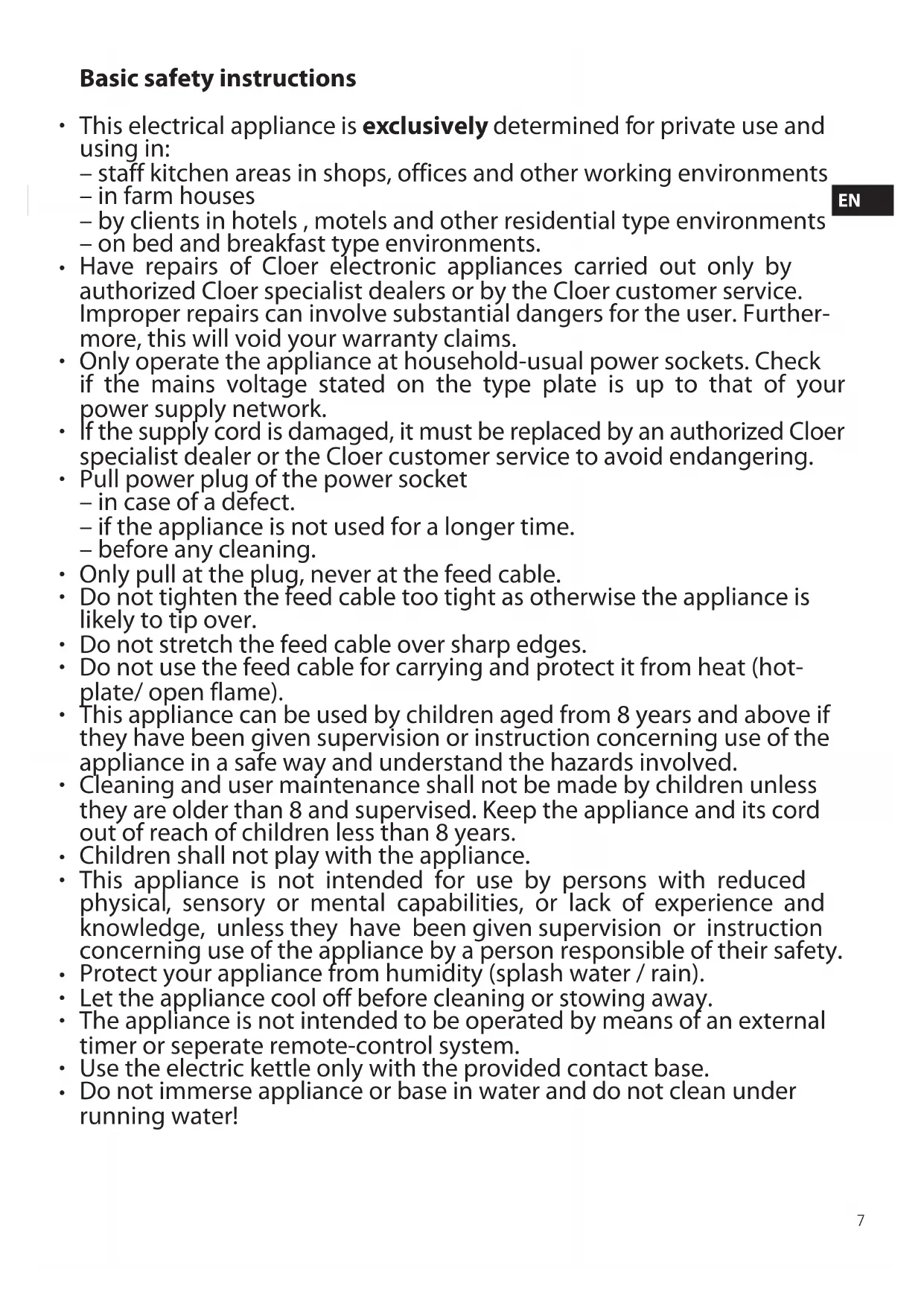

Basic safety instructions

• This electrical appliance is exclusively determined for private use and using in:

• staff kitchen areas in shops, offices and other working environments

• in farm houses
• by clients in hotels, motels and other residential type environments

• on bed and breakfast type environments.

• Have repairs of Cloer electronic appliances carried out only by authorized Cloer specialist dealers or by the Cloer customer service. Improper repairs can involve substantial dangers for the user. Furthermore, this will void your warranty claims.

• Only operate the appliance at household-usual power sockets. Check if the mains voltage stated on the type plate is up to that of your power supply network.

• If the supply cord is damaged, it must be replaced by an authorized Cloer specialist dealer or the Cloer customer service to avoid endangering.

• Pull power plug of the power socket - in case of a defect.

• if the appliance is not used for a longer time.

• before any cleaning.

• Only pull at the plug, never at the feed cable.

• Do not tighten the feed cable too tight as otherwise the appliance is likely to tip over.
• Do not stretch the feed cable over sharp edges.
• Do not use the feed cable for carrying and protect it from heat (hot-plate/ open flame).
• This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Keep the appliance and its cord out of reach of children less than 8 years.
  Children shall not play with the appliance.
• This appliance is not intended for use by persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible of their safety.
• Protect your appliance from humidity (splash water / rain).
• Let the appliance cool off before cleaning or stowing away.
• The appliance is not intended to be operated by means of an external timer or separate remote-control system.
• Use the electric kettle only with the provided contact base.
• Do not immerse appliance or base in water and do not clean under running water!

EN

Dear Customer

We wish you much pleasure with your new electric kettle with touch panel.

Your Cloer Company

Preparation for use

• Remove all packaging elements and labels, but not the rating plate.
• Place the electric kettle on a dry, even, non-slip surface.

Before initial use

• Please read these operating instructions carefully before using the device for the first time and save these instructions in case you want to read it again.
• Boil at least once 1.7 l water at 100^ , and then pour this away.

Safety notices for use of the contact base / electric kettle

• Do not come below the MIN marking (= 0.8l) on the water level display, otherwise the appliance can not switch off properly.
• Do not fill the electric kettle with water past the MAX marking (= 1,7l) on the water level display. Scalding may result from water boiling over.
  Always remove the electric kettle from the contact base before filling with water.
• This electric kettle may only be used for heating water.
• Do not place this appliance on or near a hot gas or electric burner.
• Before operating the machine, make sure that the contact base is dry.

• Please make sure that water is never spilled on the contact base.
  If water is accidentally spilled onto the contact base, proceed as follows:

• Unplug the unit from the wall socket.

• Dry the contact base with an absorbent dry kitchen towel.
• Dry the surface beneath the contact base.

• Plug the unit into the wall socket again.

• Never leave the appliance unattended when in use.

The surface is hot during operation. Only touch the device's handle.

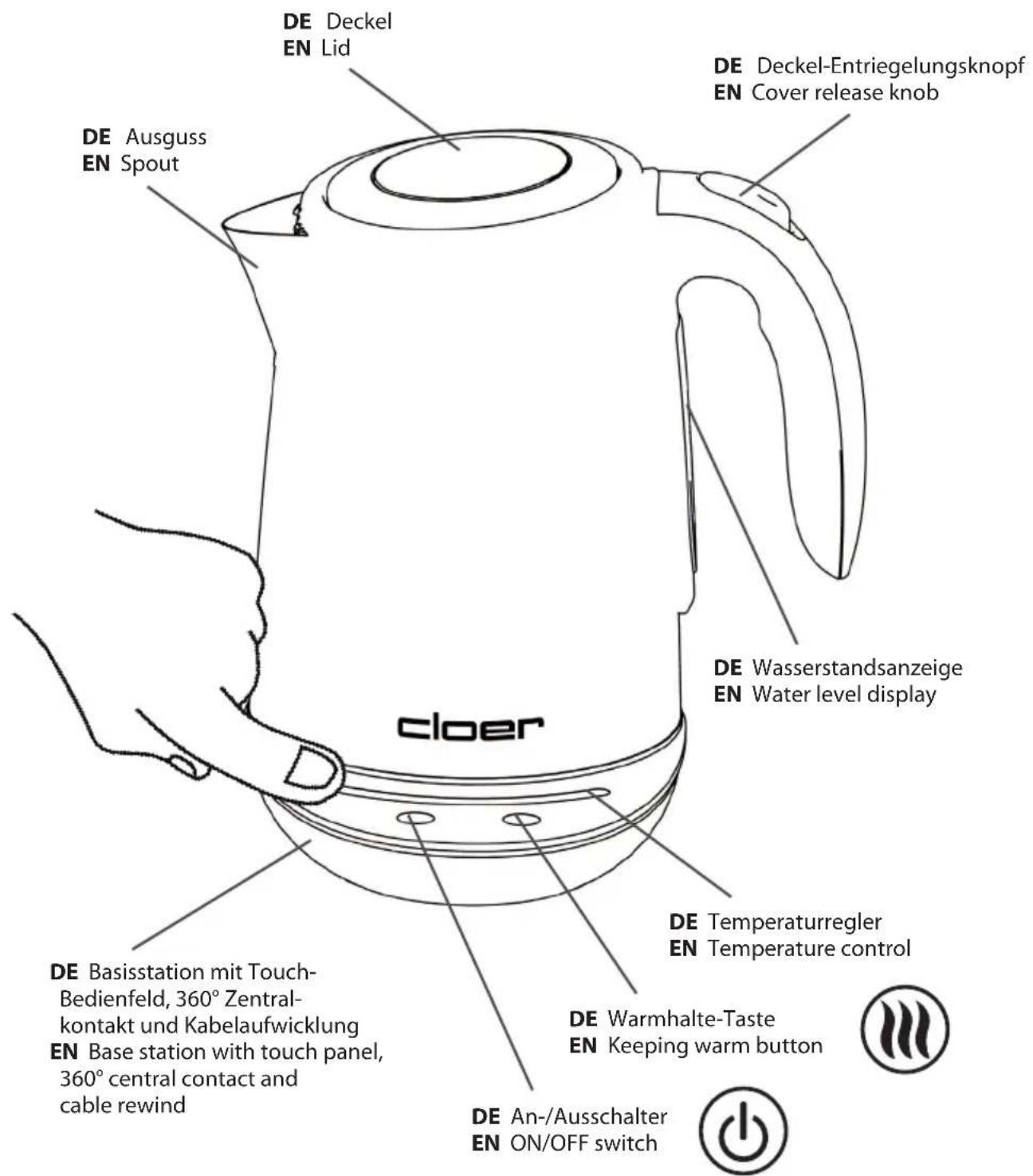

Touch control panel

Your electric kettle is equipped with a temperature control and a "keep-warm" function, controlled by a modern touch control panel. For both a temperature in the range of 40^ - 100^ can be selected. The closed surface prevents dirt, dust or water to get into the base interior.

Operation

• Plug the power plug into the wall socket.
• Remove the electric kettle from the contact base.
• Open the lid by pressing the cover release knob at the handle.
• Fill the electric kettle with desired amount of cold tap water using the water markings on the water level display behind the handle.
• ATTENTION: Make sure not to fill below the MIN marking (= 0.8l) so that the heat detector is co

vered with water, otherwise the appliance can not switch off properly.

• ATTENTION: Make sure not to fill water past the MAX marking (= 1,7l) on the water level display.

Scalding may result from water boiling over.

• Close the lid manually and place the electric kettle anywhere on the 360^ contact base.
• Your water boiler is equipped with a temperature control and works by touch (please see also "Touch control panel").
• Select the desired temperature (between 40^ and 100^ ) by touching it on the "Touch-Temperature Strip". The LED display then lights up blue to this point.
  INFO: Water will boil at a temperature of 100^
• Please observe that the water temperature after boiling may deviate from the selected temperature by a few degrees Celsius.
• To switch it on, press the ON/OFF switch on the touch panel.

• When the water reaches the desired temperature, the electric kettle will beep three times and then switches off automatically.
  The LEDs of the temperature control will light up afterwards.
• You can interrupt the boiling process at any time by pushing up the ON/OFF switch again.
• Please wait a moment until the water stops bubbling.
• To pour the water, lift the electric kettle from the contact base.
• IMPORTANT: Always make sure that the device is switched off before removing the electric kettle from the contact base.
• Wait a few minutes to let the device cool off before filling it with water again and using it. Do not touch the hot housing during operation. Danger of burning!

Keeping warm function

• You can keep the water hot after boiling.
• Proceed as described in "Operation", but push the button for keeping warm instead of the ON/OFF switch.

• This automatically operates the ON/OFF switch and the device starts to boil.
• Then the water is kept warm on the selected temperature.
• You can remove the water boiler from the contact socket at any time during the keeping warm time, pour water and return it, which will continue the keeping warm function.
• You can stop the keeping warm function at any time by pushing the keeping warm button again.
• Otherwise, the device will automatically switch off after approx. 2 hours.
• You may also switch on the keeping warm button subsequently during a regular boiling process.
• For this, boil water as usual and select the keeping warm button after pushing the ON/OFF switch.

Overheating protection device

The electric kettle is equipped with a overheating protection. In the event that you accidentally operate the electric kettle without water, the device will automatically switch off for your safety and can have no function for a short time. Let the appliance allow to cool for ca. 1 hour. Afterwards fill in cold water and the device will be ready to operate again.

Cleaning

• CAUTION: Do not immerse appliance or base in water and do not clean under running water!
• Do not clean the electric kettle with heavily abrasive cleaners. They could scratch the appliance.
  Clean very dirty appliances with a damp cloth and lukewarm water.

Removing / cleaning the lime filter

• The lime filter is located below the pouring spout inside of the kettle.
• To remove, press the upper flat edge with your thumbs to release the two brackets. Then remove the filter towards the top.
• Clean the lime filter with a little bit of soapy water and place it into the bottom hole of the scale filter holder of the water boiler with the bottom pin first. Then push the two upper filter hooks back into the square holes of the holder in the water boiler until the scale filter latches.

Decalcifying

If you have hard water, the electric kettle should be decalcified regularly (depending on the hardness of the water, about every 2 - 3 weeks).
- Use a commercially available liquid decalcifying product (do not use chemical decalcifiers) and follow the manufacturer's instructions.
- TIP: Mild calcium deposits can also be removed with a mixture of 5 to 6 tablespoons of vinegar in 0.5~l of water.

Please observe the following when decalcifying the machine:

• First, pour cold water into the electric kettle.
• Briefly bring it to a boil.
  Now, add the decalcifier and let the device stand for a while.
• CAUTION: Do not bring this mixture to a boil.
  After decalcifying, rinse the pot twice with clear water.
• Do not clean the electric kettle with heavily abrasive cleaners. They could scratch the appliance.
  NOTE: Regularly decalcifying your electric kettle will reduce the electricity used and prolong the life of the appliance. The calcium content of water varies from region to region. Please consult your local water works or utility works for information on water hardness.

In the event of malfunctions due to calcium deposits, the guarantee will be voided!

Problem / Cause / Solution

Problem Possible cause	Solution
Electric kettle does not function	Appliance is not plugged in
Electric kettle does not function	Overheating protection switches off appliance
Water bubbles over in the electric kettle	Too much water has been added
Electric kettle does not switch off	Added to little water
Electric kettle makes loud noises during operation or	Too much calcification inside the electric kettle
White spots form at the bottom of the electric kettle	Too much calcification inside the electric kettle

Environmentally friendly disposal

We use only environmentally friendly packaging for the transport of our appliances. Please recycle cardboard/paper and plastic packaging appropriately.

CAUTION!

Electrical appliances should not be disposed of with the household trash.

Electrical appliances contain valuable raw materials. When an appliance is worn-out, please take it to a recognised recycling facility. Please consult the local authorities for information on recycling appliances.

Customer service

In the event that your Cloer appliance becomes defective, please contact your Cloer dealer or Cloer customer service department. Cloer electrical appliances comply with current EC guidelines and safety regulations.

Conditions of warranty

Cloer grants you, the private end user, a limited manufacturer's warranty. Assuming careful handling and compliance with the operating instructions and safety notices, we will be obligated to replace the appliance at no cost, insofar as there are defects in material or workmanship. The repair will be effected by repairing or replacing defective components.

Any parts replaced will become the property of Cloer. All further claims of any type, especially claims for indemnification, are not valid. This warranty does not affect any rights of the customer with respect to the sale of goods in accordance with the applicable national laws.

EN

The warranty period is 2 years starting from the date on which the product was first purchased by an end consumer. The warranty period will not be extended or begin anew or in any other way be affected by the subsequent sale, repair or replacement of the product. This warranty is passed on to you by your retail dealer. In order to assert a warranty claim, please contact your dealer directly.

If you have questions about your product, please contact the Cloer importer in your country. The address and telephone number can be found on our website at http://www.cloer.de or you can send an e-mail to

[e-mail]

As proof of warranty entitlement you must submit the original sales receipt with the date of sale and the dealer's address. Without the sales receipt, the repair will be carried out at your expense without asking.

The warranty does not cover damages resulting from

improper use,
natural wear and tear,
external influences (e.g. damage from transport, shocks, jolts, heat, acids, etc.),
insufficient decalcifying
- or unsuitable accessories.

The warranty will be void if the appliance

is used commercially,
- is opened or modified without authorisation
- or if unauthorised repairs are attempted.

Also, the warranty does not apply to consumable materials.

• electric kettle / coffeemaker / teamaker

Chere cliente, cher client,

Stamp and signature of dealer
