HM130520 - Freezer BEKO - Free user manual and instructions

Product Type	Freezer
Brand	Beko
Model	HM130520
Power supply	230 V, 50 Hz
Climate class	+10 °C to +40 °C
Refrigerant	R600a (eco-friendly, flammable under certain conditions)
Operating modes	Refrigerator, Chiller, Freezer (multimode)
Special functions	Quick freezing (orange button), LED indication (green, red, orange)
Interior lighting	Bulb E14-15W
Defrosting	Automatic in refrigerator/chiller mode; manual in freezer mode
Locking device	Yes (door with key)
Spare parts available	10 years after purchase date
Interior cleaning	Lukewarm water with neutral detergent; avoid soap, gasoline, acetone
Exterior cleaning	Sponge soaked in warm soapy water, then soft dry cloth
Transport	Vertical position only; let stand for 4 hours if tilted
Warranty	Manufacturer standard

Frequently Asked Questions - HM130520 BEKO

How to use the appliance in refrigerator mode?

Turn the thermostat knob to the Refrigerator position (approximately 5°C). This temperature is ideal for dairy products, fresh vegetables, and cold meats. Gradually introduce food (max 50 kg or 50 L per 15-20 h).

How to defrost the freezer?

Unplug the appliance, remove frozen food and wrap it in several sheets of paper. Leave the door open. Never use sharp metal objects or a hair dryer. After defrosting, clean the interior and plug back in. Perform this operation at least twice a year or when the ice layer is excessive.

What to do if the red LED lights up?

The red LED indicates that the internal temperature is too high. Check that the door is properly closed, that the appliance is not near a heat source, and that the thermostat is set correctly. If the problem persists, contact a qualified technician.

Can I freeze carbonated drinks?

No, carbonated drinks should not be kept in the freezer as they may explode when freezing. Use only non-carbonated drinks and follow storage instructions.

How to replace the interior bulb?

Unplug the appliance. Remove the bulb cover. Check that it is screwed in properly. If still burnt out, replace it with a bulb of type E14-15W only. Put the cover back. Do not reuse the old bulb.

How to save energy with this appliance?

Place the appliance away from sunlight and heat sources. Ensure good ventilation of the compressor and condenser. Do not leave the door open longer than necessary. Regularly clean the condenser (tubes at the back). Preferably maintain an ambient temperature below 27°C and 65% RH.

What is the maximum storage time for frozen food?

As a rule, frozen foods can be stored for a maximum of 3 months if the date is not indicated on the packaging. Never refreeze partially thawed food: consume it immediately or cook it before refreezing.

What to do in case of power failure?

Do not unplug the appliance. Do not open the door to keep the cold inside. Frozen food will stay cold for several hours. If the outage lasts long, check the red LED: if it lights up, the temperature has risen. Quickly consume the food if necessary.

How to clean the interior of the appliance?

Unplug the appliance and remove food. Use a soft cloth soaked in lukewarm water with a neutral detergent. Avoid soap, gasoline, or acetone which leave odors. Clean the door gasket with a clean cloth. Dry with a soft cloth before putting back into service.

What to do if the door does not close properly?

Check that food is not obstructing the closure. Ensure the appliance is level (adjust the feet). Clean the door gaskets. If the problem persists, inspect the locking device or contact a qualified technician.

USER MANUAL HM130520 BEKO

HM130520

EN|FR|D|NL|ES|PT|EL

beko

WARNING!

In order to ensure a normal operation of your refrigerating appliance, which uses a completely environmentally friendly refrigerant the R600a (flammable only under certain conditions) you must observe the following rules:

• Do not hinder the free circulation of the air around the appliance. Do not use mechanical devices in order to accelerate the defrosting, others than the ones recommended by the manufacturer.
• Do not destroy the refrigerating circuit. Do not use electric appliances inside the food keeping compartment, other than those that might have been recommended by the manufacturer.

ATTENTION!

Advice for recycling of the old appliance /1

Packing Recycling /2

Transport instructions /2

Warnings and special advice /2

Setting up /3

Electric connection /3

Switching off; Operation /4

Appliance description /4

Appliance operation (multimode) /4

Advice for food conservation /5

Replacing the interior light bulb /5

Mounting of the water collection tray /6

Way of energy saving /6

Advice to defrost your appliance /6

Cleaning of the appliance /7

Defects finding guide /7

FR

Table of contents

Item 1

Figures that take place in this instruction manual are schematic and may not correspond exactly with your product. If the subject parts are not included in the product you have purchased, then it is valid for other models. The illustrations presented in this user manual are schematic and may not correspond exactly to your product. If parts shown are not included in the product you have purchased, they are valid for other models. ① Illustrations and information in this manual are schematic and may differ somewhat from your product. If parts are not included in the scope of delivery of the purchased device, they apply to other models. The images in this user manual are schematic and need not correspond exactly to your product. When parts do not belong to the product you have purchased, these apply to other models. The illustrations included in this instruction manual are schematic and may not correspond exactly to your appliance. If any of the elements shown do not correspond to the appliance you have purchased, then it will be valid for other models. The figures that appear in this instruction manual are schematic and may not correspond exactly to your product. If the parts referred to are not included in the product you have purchased, it is because they are valid for other models. The images in this instruction manual are schematic and may not correspond exactly to your product. If certain components are not included in the product you have purchased, then they apply to other models.

Item 2

Item 3

Item 4

Item 6

Item 5

Item 7

Item 8

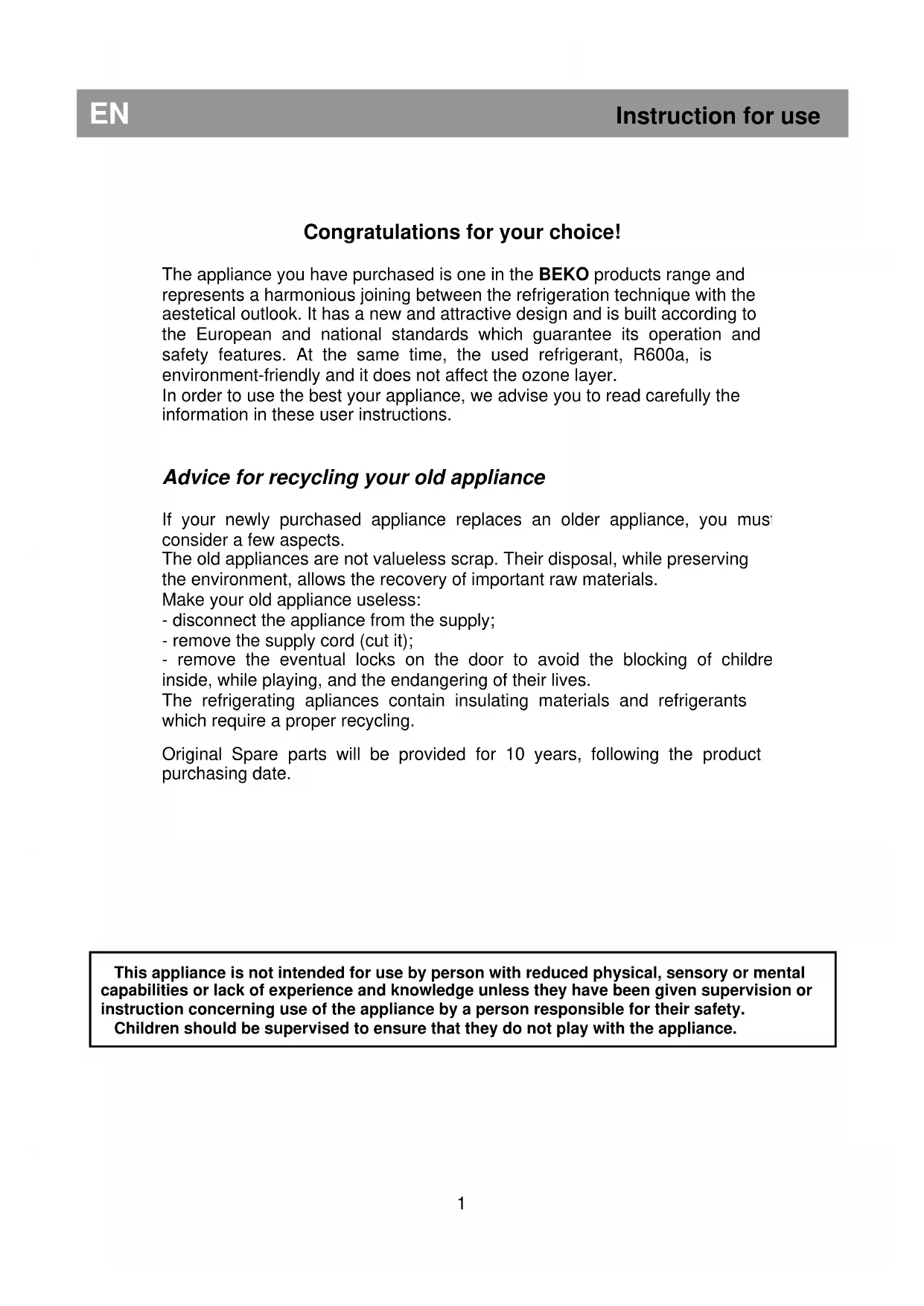

Congratulations for your choice!

The appliance you have purchased is one in the BEKO products range and represents a harmonious joining between the refrigeration technique and the aesthetic outlook. It has a new and attractive design and is built according to the European and national standards which guarantee its operation and safety features. At the same time, the used refrigerant, R600a, is environment-friendly and it does not affect the ozone layer.

In order to use your appliance to the best, we advise you to read carefully the information in these user instructions.

Advice for recycling your old appliance

If your newly purchased appliance replaces an older appliance, you must consider a few aspects.

The old appliances are not valueless scrap. Their disposal, while preserving the environment, allows the recovery of important raw materials.

Make your old appliance useless:

- disconnect the appliance from the supply;

- remove the supply cord (cut it);

- remove the eventual locks on the door to avoid the blocking of children inside, while playing, and the endangering of their lives.

The refrigerating appliances contain insulating materials and refrigerants which require proper recycling.

Original spare parts will be provided for 10 years following the product purchasing date.

This appliance is not intended for use by persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

Packing Recycling

WARNING!

Do not allow children to play with the packing or with parts of it. There is the risk of suffocation with parts of corrugated cardboard and with plastic film.

In order to get to you in good condition, the appliance was protected with suitable packing. All the materials of the packing are compatible with the environment and recyclable. Please help us recycle the packing while protecting the environment!

IMPORTANT!

Before putting the appliance in operation, read carefully and entirely these instructions. They contain important information concerning the setting up, use and maintenance of the appliance.

The manufacturer is free of any responsibility if the information in this document is not observed. Keep the instructions in a safe place in order to reach them easily in case of need. They can also be useful subsequently by another user.

ATTENTION!

This appliance must be used only for its intended purpose (household use), in suitable areas, far from rain, moisture or other weather conditions.

Transport instructions

The appliance must be transported, as much as possible, only in vertical position. The packing must be in perfect condition during transport.

If during transport the appliance was put in horizontal position (only according to the markings on the packing), it is advised that, before putting it into operation, the appliance is left to rest for 4 hours in order to allow the settling of the refrigerating circuit.

Failure to observe these instructions can cause the breakdown of the motor-compressor and the cancellation of its warranty.

Warnings and general advice

• Do not plug in the appliance if you notice a failure.
• Please avoid distorting the refrigerating circuit (tubes) during transport, handling, and positioning of the appliance. Repairs must be done only by qualified personnel.
• In the following situations, please unplug the appliance from the mains:

- when you defrost the appliance completely;

- when you clean the appliance.

To unplug the appliance, pull by the plug, not by the cable!

• Ensure the minimum space between the appliance and the wall against which it is placed.
• Do not climb on the appliance.
• Do not allow children to play or hide inside the appliance. Never use electric appliances inside the appliance for defrosting.
• Do not use the appliance near heating appliances, cookers, or other sources of heat and fire.
• Do not leave the appliance door open more than necessary to put in or take out food.
• Do not leave food in the appliance if it is not working.
• Do not keep inside products containing flammable or explosive gases.
• Never touch cold metal parts or frozen food with wet hands because your hands can quickly freeze on the very cold surfaces.
• Verify the horizontal position of the product to ensure a good flow of the water resulted during functioning.
• If you do not use your appliance for a few days, it is not advisable to switch it off. If you do not use it for a longer period, please proceed as follows:
• unplug the appliance;
• empty the appliance;
• defrost it and clean it;
• leave the door open to avoid the formation of unpleasant smells.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• If your appliance has a lock, keep it locked and store the key in a safe place, out of the reach of children. If you are discarding an appliance with lock, make sure that, is made ineffective. This is very important so as to avoid children being trapped inside, which may cause their loss of life.

Setting up

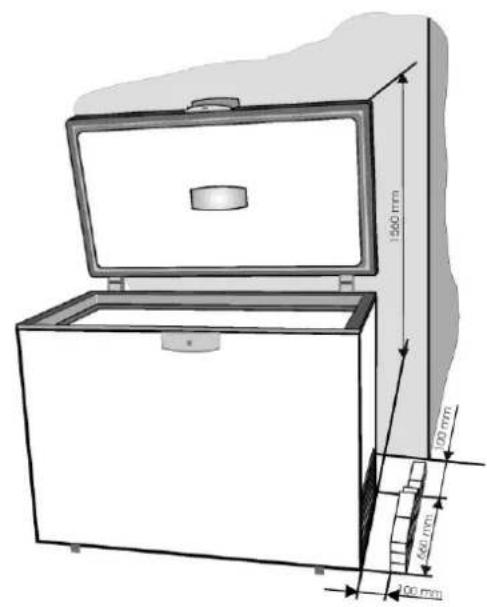

This appliance was designed to operate at an ambient temperature between +10°C and +40°C. If the ambient temperature is above +40°C, inside the appliance the temperature can increase.

Set up the appliance far from any source of heat and fire. Placing it in a warm room, the direct exposure to sunbeams or near a heat source (heaters, cookers, ovens), will increase the energy consumption and shorten the product life.

- Please observe the following minimum distances:

- 100 cm from cookers working with coal or oil;

● 150 cm from electric and gas cookers.

- Ensure free circulation of air around the appliance by observing the distances shown in Item 2.

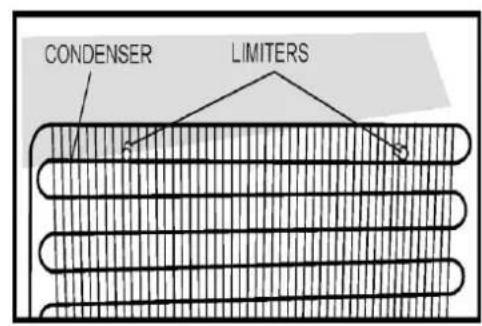

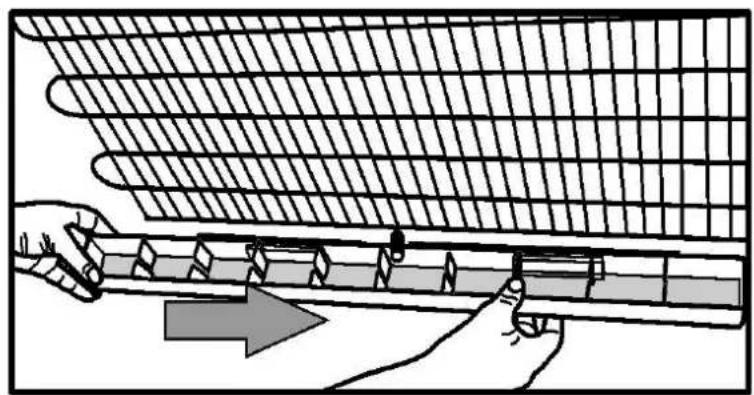

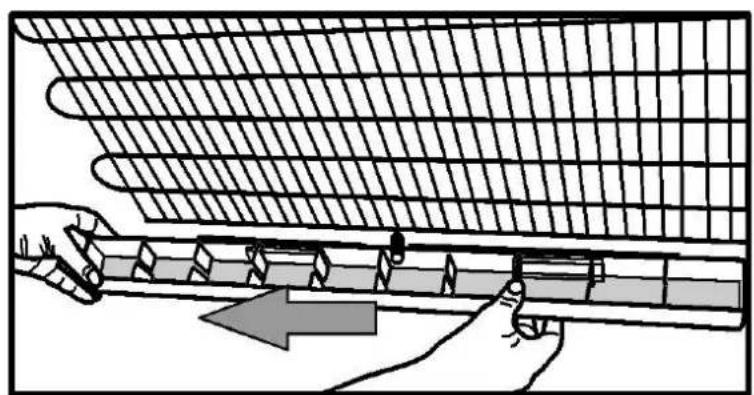

Assemble the supplied spacers on the condenser (at the rear side) (Item 3).

● Place the appliance in a perfectly even, dry, and well-ventilated place.

Assemble the supplied accessories.

Electric connection

Your appliance is intended to operate at a single-phase voltage of 230V/50 Hz. Before plugging in the appliance, please make sure that the parameters of the mains in your house (voltage, current type, frequency) comply with the operation parameters of the appliance.

● The information concerning the supply voltage and the absorbed power is given on the marking label placed on the back side of the appliance.

● The electric installation must comply with the law requirements.

● The earthing of the appliance is compulsory. The manufacturer has no responsibility for any damage to persons, animals, or goods which may arise from the failure to observe the specified conditions.

● The appliance is endowed with a supply cord and a plug (European type, marked 10/16A) with double earthing contact for safety. If the socket is not the same type as the plug, please ask a specialised electrician to change it.

- Do not use extension pieces or multiple adapters.

- Please keep a distance of min. 25 cm from any furniture "suspended" above the appliance. This clearance will also be kept in case of a niche or of another construction element.

● The appliance is not built to be included into the furniture.

- Please fit the supplied accessories.

Switching off

The switching off must be possible by taking the plug out of the socket or by means of a mains two-poles switch placed before the socket.

Operation

Before putting into operation, clean the inside of the appliance (see chapter "Cleaning").

After finishing this operation please plug in the appliance and switch on.

The green and red LEDs in the signalling block must light.

Leave the appliance work for about 2 hours without putting food inside it.

Appliance description

(Item. 1)

1. Door handle
2. Door
3. Lamp housing
4. Baskets
5. Tray
6. Lock housing
7. Thermostat box
8. Spacer for transport

Appliance operation (multimode)

Temperature adjustment

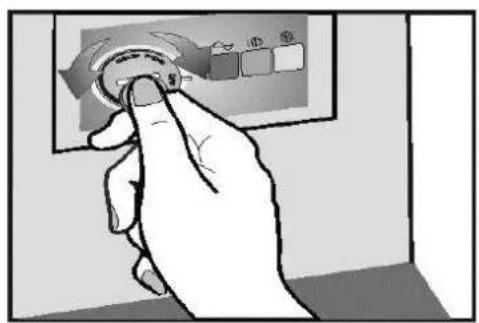

The temperature in the cabinet may be adjusted by turning the knob slightly left or right in each function sector. To left for higher temperature and to right for lower temperature.

The achieved temperatures can vary according to the conditions of use of the appliance, such as: place of the appliance, ambient temperature, frequency of door opening, extent of filling with food of the appliance. The position of the thermostat knob will change according to these factors.

The appliance is designed to operate in three ways.

It can operate as a:

1. Refrigerator;
2. Chiller;
3. Freezer.

Using the unit as a refrigerator

At the refrigerator setting on the knob, the temperature in the cabinet will be about 5°C. This temperature is ideal for storing perishable foods such diary products, fresh vegetables and cold meats.

Cold drinks can also be stored at this temperature. The load can be introduced gradually in quantities not bigger than 50kg or 50l, on intervals of 15-20 hours.

Using the unit as a chiller

At the chiller setting on the knob, the unit may be compared with a butcher's cold storage facility. The temperature in the cabinet can range from 3°C to -2°C. This temperature is ideal for storing meat or fish for short periods.

The advantage is that the food can be cooked without first defrosting it. The load can be introduced gradually in quantities not bigger than 50kg or 50l, at intervals of 15-20 hours.

Using the unit as a freezer

At the freezer setting on the knob, the temperature in the cabinet will be around -18°C.

This temperature is ideal for storing frozen foods for long periods of time. For freezing fresh food, it is possible after a minimum of 20 hours of operation.

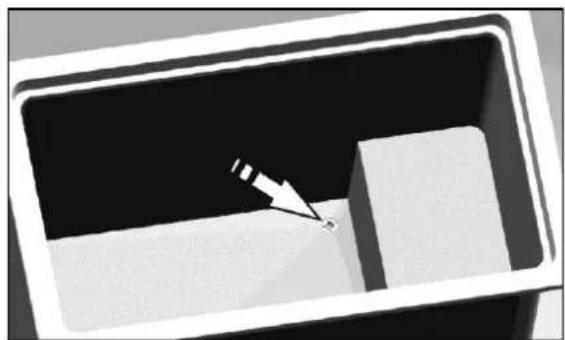

In freezer operation mode, it is necessary to use the obstructing plug (item 8).

In fridge and chiller operation mode, the obstruction plug (item 8) will be removed.

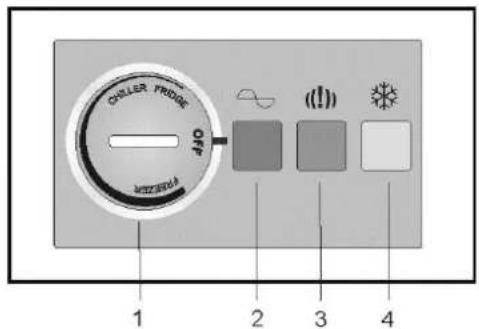

The signalling system is placed on the front side of the appliance (item 5).

It includes:

1. Thermostat adjustment knob – the inside temperature is adjusted.
2. Green LED – shows that the appliance is supplied with electric energy.
3. Red LED – damage – lights if the temperature in the compartment is too high. The LED will operate 15-45 minutes after the putting into operation of the appliance, then it must go off. If the LED goes on during operation, this means that defects have occurred.
4. Orange button – fast freeze – this function is useful only in freezer operation mode! By pushing it, the orange LED goes on, showing that the appliance entered into the "fast freeze" mode. The exit of this mode is done by pushing the button again, and the orange LED goes off.

The three LEDs give information about the mode of operation of the appliance.

Advice for food conservation

Fridge & chiller operation.

Avoid positioning the thermostat box outside the ranges “Fridge” & “Chiller”, which could lead to negative operating temperatures of the appliance, thereby exceeding temperatures below the intended range, with the danger of freezing beverages and fresh food, and excessive build-up of ice on the walls of the cabinet liner. You do not need to remove these drops, because the resulting water is collected by the special channel in a small tray placed on the rear side of the appliance, from where it evaporates.

Freezer operation.

The freezer is intended to keep frozen food for a long time, as well as to freeze fresh food.

One of the main elements for successful food freezing is the packing.

The main conditions that the packing must fulfill are the following: to be airtight, to be inert towards the packed food, to resist low temperatures, to be proof against liquids, grease, water vapours, and smells, and to be washable.

These conditions are fulfilled by the following types of packings: plastic or aluminium film, plastic and aluminium vessels, waxed cardboard glasses, or plastic glasses.

IMPORTANT!

• For freezing fresh food, please use the supplied baskets of the appliance.
• Do not place too large a quantity of food into the freezer at a time. The quality of the food is best kept if it is deeply frozen as quickly as possible. This is why it is advisable not to exceed the freezing capacity of the appliance specified in the "Product Fiche". In order to reduce the freezing time, push the button for “fast freeze”.
• The fresh food must not come into contact with the food already frozen.
• The frozen food you have bought can be placed into the freezer without having to adjust the thermostat.
• If the freezing date is not mentioned on the packing, please take into consideration a period of max. 3 months, as a general guide.
• The food, even partially defrosted, cannot be frozen again; it must be consumed immediately or cooked and then refrozen.
• The fizzy drinks will not be kept in the freezer.
• In case of a power failure, do not open the door of the appliance.

DO NOT FORGET!

After 24 hours since the food was placed inside, please cancel the "fast freeze" mode by pushing again the button 4, when the orange led goes off.

Replacing the interior light bulb

If the lamp burns out, disconnect the appliance from the mains. Take out the lamp trim. Make sure the lamp is screwed correctly. Plug in the appliance again. If the lamp still does not go on, replace it with another one model E14-15W. Mount back the lamp trim in its place.

The lamp(s) used in this appliance is not suitable for household room illumination. The intended purpose of this lamp is to assist the user to place foodstuffs in the refrigerator/freezer in a safe and comfortable way.

The lamps used in this appliance have to withstand extreme physical conditions such as temperatures below -20°C.

Mounting of the water collection tray

The tray for the water collection, (delivered with the appliance) must be mounted in the rear of it, under the condenser, on the metal fixing part. It is mounted on the eyes of the metal parts by its displacement in the direction shown by the arrow (Item 6). The tray will be detached from the fixing part if you want to move the appliance from one place to another, mounting it back after moving (Item 7).

Way of energy saving

• Avoid to place the appliance in a sunny place or near a heat source.
• Provide the good ventilation of the compressor and condenser.
• Do not leave the door open more than necessary and open it only when it is required.
• Keep the condenser clean (the piping at the rear of the appliance).
• For the most efficient operation, try to maintain an ambient temperature below 27°C and 65% relative humidity (RH).

Advice on defrosting your appliance

Fridge and chiller operation.

Defrosting in fridge or chiller mode is completely automatic and occurs during each period when the motor-compressor stops, as controlled by the thermostat. No intervention is required from you. The water from defrosting is collected in the water collection tray at the rear of the appliance, where it evaporates.

Freezer operation.

• We recommend defrosting the freezer at least twice a year, or when the ice layer becomes excessively thick.
• Ice build-up is a normal phenomenon.
• The amount and speed of ice build-up depend on ambient conditions and how often the door is opened.
• We recommend defrosting the appliance when the quantity of frozen food is at its lowest.
• Before defrosting, adjust the thermostat knob to a higher setting in "Freezer" mode so that the food retains more cold.
• Unplug the appliance.
• Remove the frozen food, wrap it in several sheets of paper, and place it in a refrigerator or a cool place.
• During defrosting, if a large amount of ice is present, check the water level in the water tray at the rear of the appliance (Item 6). If the water exceeds the tray's maximum capacity, detach the tray to remove the collected water, then reattach it.
• For faster thawing, leave the door open. Do not use sharp metal objects to remove ice. Do not use hairdryers or other electric heating appliances for defrosting.

Interior cleaning

Before starting the cleaning, unplug the appliance from the mains.

• It is advisable to clean the appliance when you defrost it.
• Wash the inside with lukewarm water where you add some neutral detergent. Do not use soap, gasoline or acetone which can leave a strong odour.
• Wipe with a wet sponge and dry with a soft cloth.

During this operation, avoid the excess of water, in order to prevent its entrance into the thermal insulation of the appliance, which would cause unpleasant odours.

Do not forget to clean also the door gasket especially the bellow ribs, by means of a clean cloth.

Outside cleaning

• Clean the outside of the cooler by means of a sponge soaked in soapy warm water, wipe with a soft cloth and dry.
• The cleaning of the outside part of the refrigerating circuit (motorcompressor, condenser, connection tubes) will be done with a soft brush or with the vacuum-cleaner. During this operation, please take care not to distort the tubes or detach the cables.

Do not use scouring or abrasive materials!

• After having finished the cleaning, replace the accessories at their places and plug in the appliance.
• The tray will be cleaned every time when it is required.

Attention: The cleaning will be done with the tray detached from the appliance.

After having finished the cleaning, put the accessories back to their places.

Defects finding guide

The appliance does not work.

• There is a power failure.
• The plug of the supply cord is not inserted well into the socket.
• The fuse is blown.
• The thermostat is in the “OFF” position.

The temperatures are not low enough (red LED on).

• The food prevents the door from closing.
• The appliance was not placed correctly.
• The appliance is placed too close to a heat source.
• The thermostat knob is not in the correct position.

Excessive ice build-up in freezer mode.

- The door was not closed properly.

The inside lighting does not work.

- The lamp is blown. Unplug the appliance from the mains, take out the lamp and replace it with a new one.

The following are not defects.

Possible clicking and cracking noises coming from the product: circulation of the refrigerant in the system.

Noises during operation

In order to keep the temperature at the value you have adjusted, the compressor of the appliance starts periodically.

The noises which can be heard in such situation are normal.

They are reduced as soon as the appliance reaches the operation temperature.

The humming noise is made by the compressor. It can become a little stronger when the compressor starts.

The bubbling and gurgling noises coming from the refrigerant circulating in the pipes of the appliance are normal operating noises.

Warning!

Never try to repair the appliance or its electric components yourself. Any repair made by an unauthorized person is dangerous for the user and can result in the warranty cancellation.

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead, it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service, or the shop where you purchased the product.
