USER MANUAL DNE62220DPX BEKO

We hope that your product, which has been produced in modern plants and

checked under the most meticulous quality control procedures, will provide you

an effective service.

For this, we recommend you to carefully read the entire manual of your product

before using it and keep it at hand for future references.

• Will help you use your appliance in a fast and safe way.

• Read the manual before installing and operating your product.

• Follow the instructions, especially those for safety.

• Keep the manual in an easily accessible place as you may need it later.

• Besides, read also the other documents provided with your product.

Please note that this manual may be valid for other models as well.

Symbols and their descriptions

This instruction manual contains the following symbols:

C Important information or useful usage tips.

A Warning against dangerous conditions for life and property.

B Warning against electric voltage.

This product is supplied with the selective sorting symbol for waste electrical

and electronic equipment (WEEE).

This means that this product must be handled pursuant to European Directive

2002/96/EC in order to be recycled or dismantled to minimise its impact on

the environment. For further information, please contact your local or regional

Electronic products not included in the selective sorting process are potentially

dangerous for the environment and human health due to the presence of

hazardous substances.

www.beko.com This product was manufactured using the latest technology in environmentally friendly conditions.EN

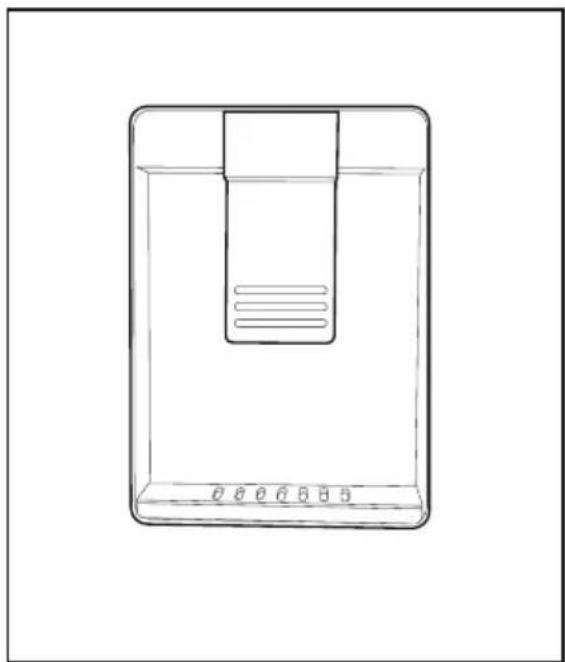

For products with a water dispenser; .6

Things to be done for energy saving ..7

Points to be considered when re-

transporting your refrigerator 8

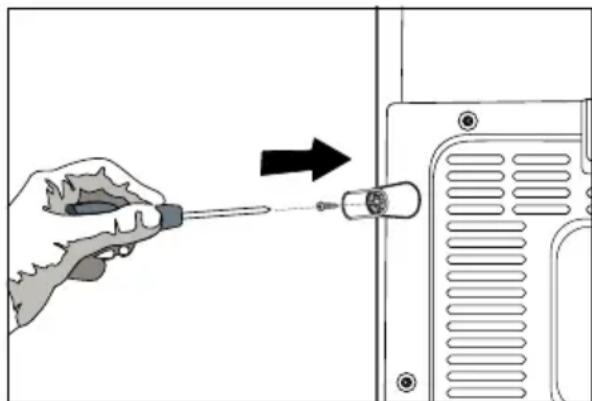

Before operating your refrigerator 8

Disposing of the packaging 9

Disposing of your old refrigerator 9

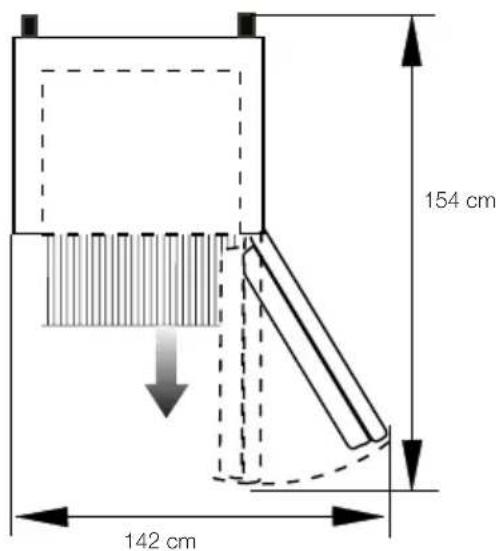

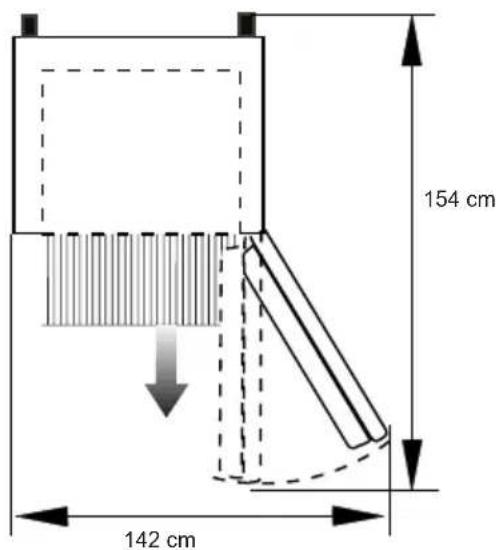

Placing and Installation 9

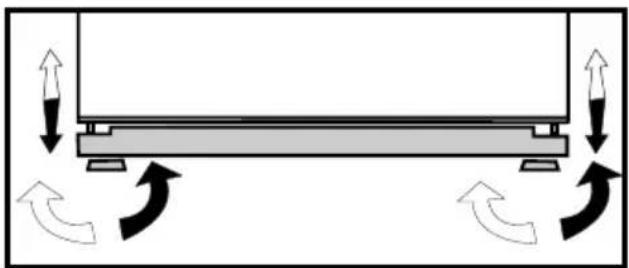

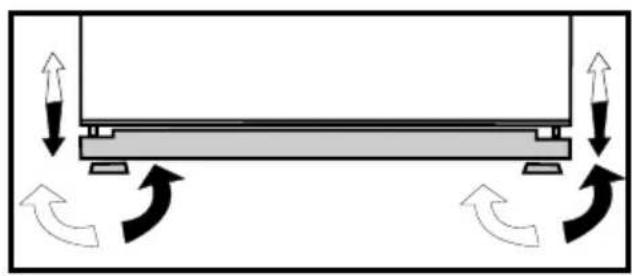

Adjusting the feet 10

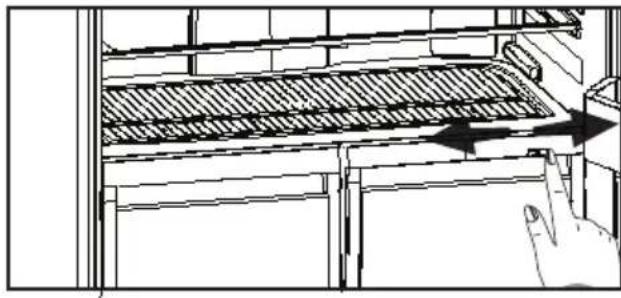

Humidity control in the crisper 15

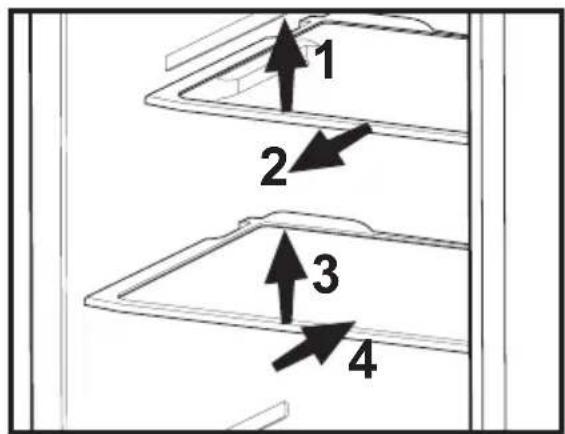

Sliding Body Shelves

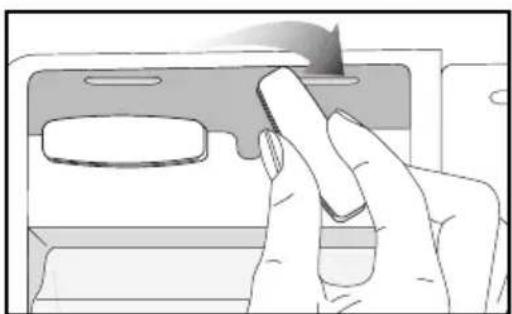

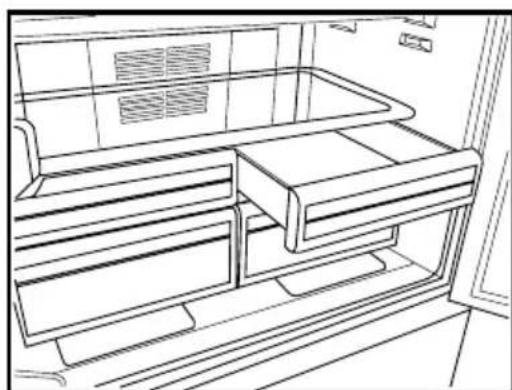

Chiller compartment 16

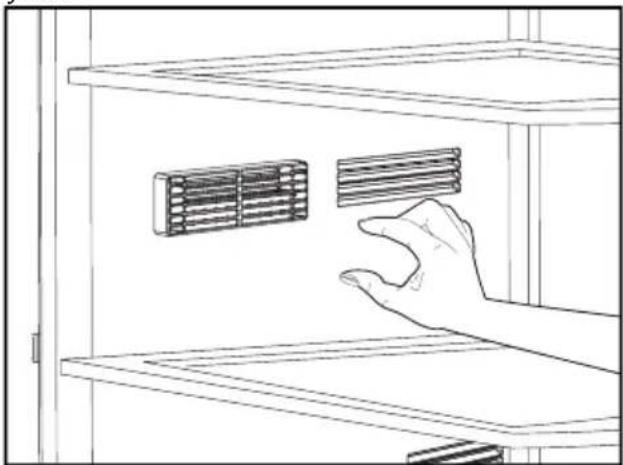

Description and cleaning of odor

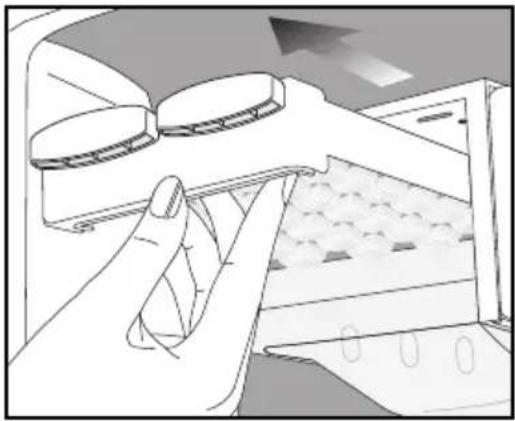

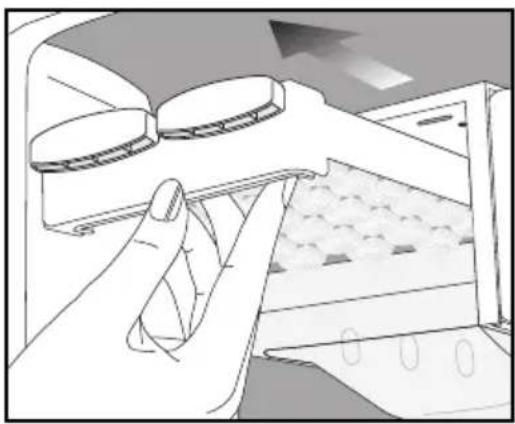

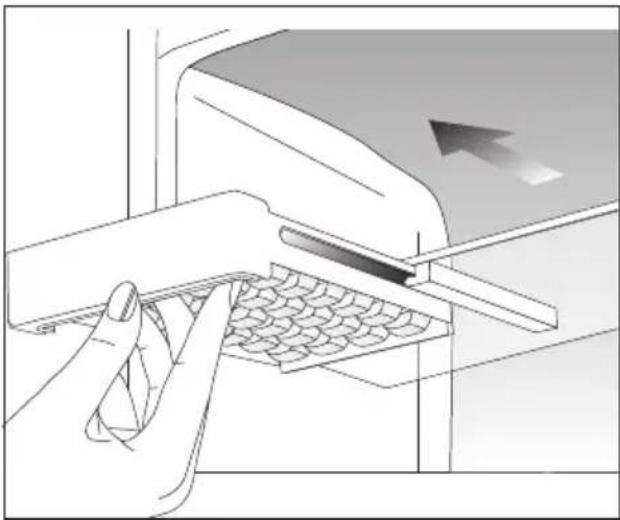

Icematic and ice storage container .17

Protection of plastic surfaces 20

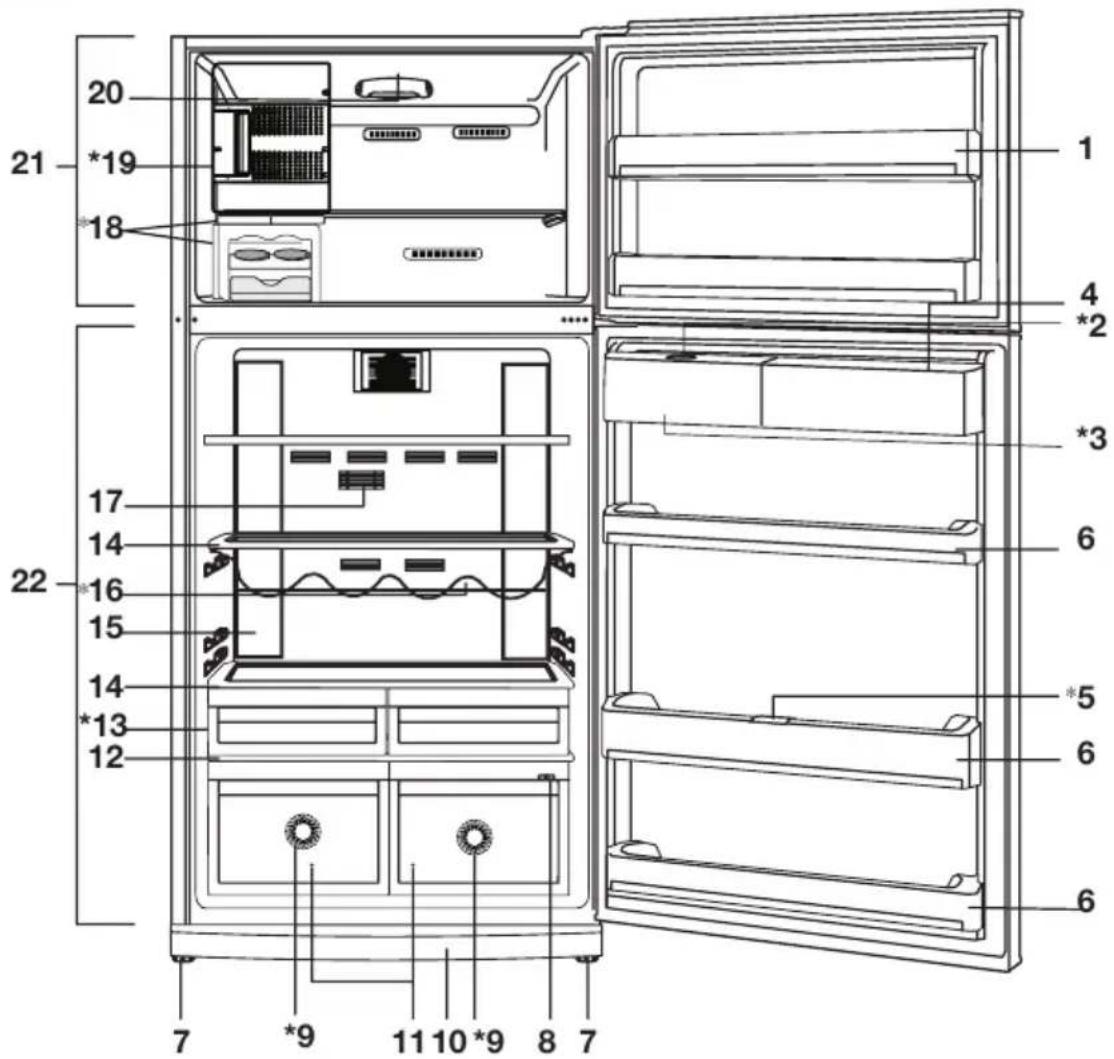

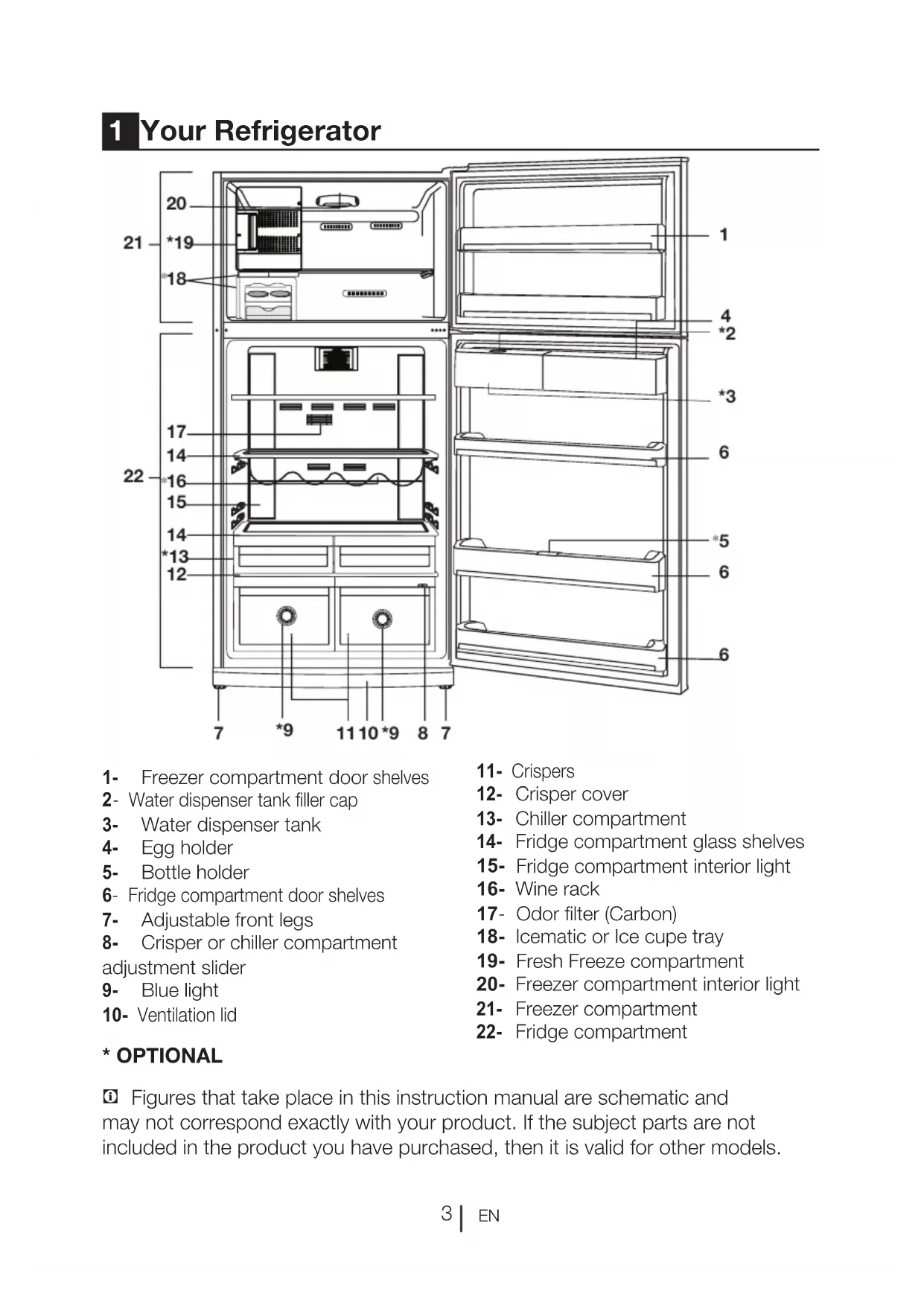

7 Recommended solutions

Freezer compartment door

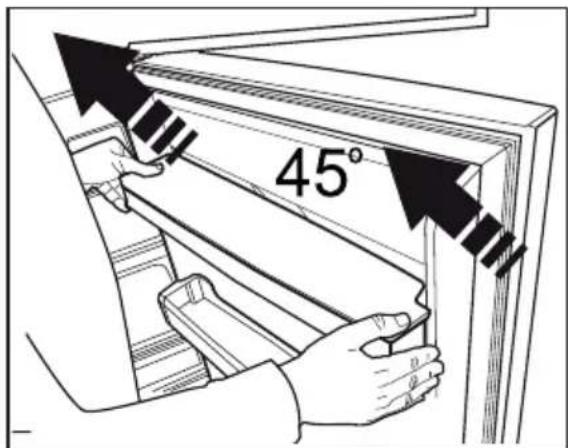

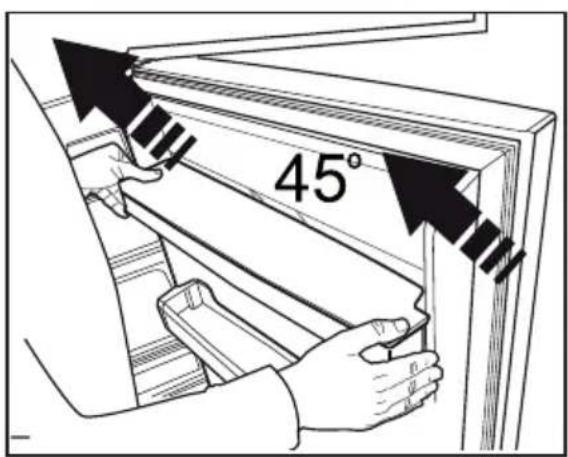

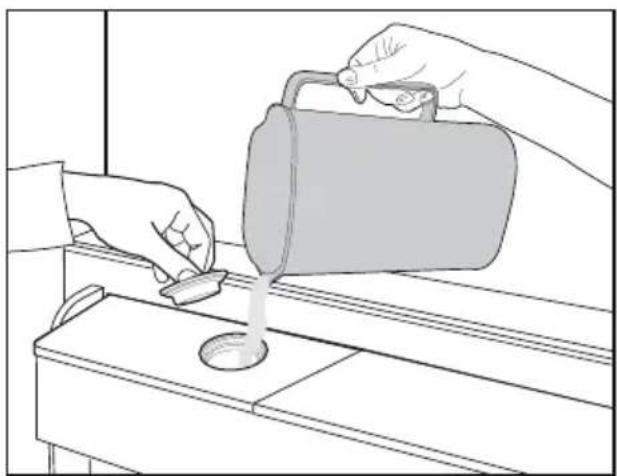

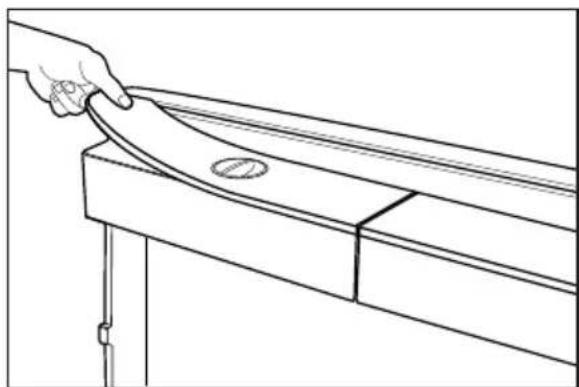

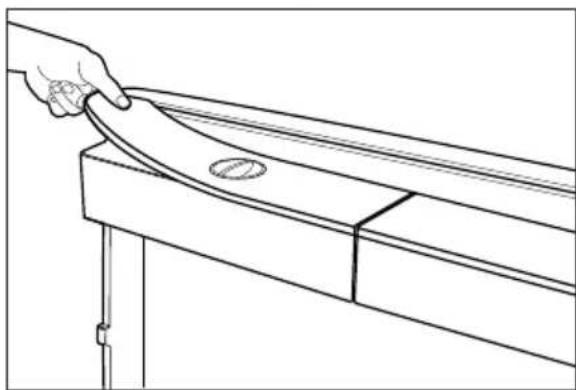

Water dispenser tank

6- Fridge compartment door shelves

Adjustable front legs

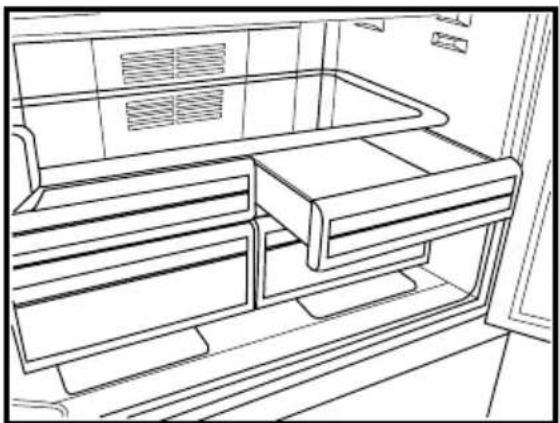

Crisper or chiller compartment

Fridge compartment glass shelves

Fridge compartment interior light

17- Odor filter (Carbon)

18- Icematic or Ice cupe tray

Fresh Freeze compartment

20- Freezer compartment interior light

C Figures that take place in this instruction manual are schematic and

may not correspond exactly with your product. If the subject parts are not

included in the product you have purchased, then it is valid for other models.

2 Important Safety Warnings

Please review the following

information. Failure to observe this

information may cause injuries or

material damage. Otherwise, all

warranty and reliability commitments

will become invalid.

The usage life of the unit you

purchased is 10 years. This is the

period for keeping the spare parts

required for the unit to operate as

This product is intended to be used

– indoors and in closed areas such as

– in closed working environments such

as stores and offices;

– in closed accommodation areas such

as farm houses, hotels, pensions.

• This product should not be used

• When you want to dispose/scrap

the product, we recommend you

to consult the authorized service in

order to learn the required information

and authorized bodies.

• Consult your authorized service for

all your questions and problems

related to the refrigerator. Do not

intervene or let someone intervene to

the refrigerator without notifying the

authorised services.

• For products with a freezer

compartment; Do not eat cone ice

cream and ice cubes immediately

after you take them out of the freezer

compartment! (This may cause

frostbite in your mouth.)

• For products with a freezer

compartment; Do not put bottled and

canned liquid beverages in the freezer

compartment. Otherwise, these may

• Do not touch frozen food by hand;

they may stick to your hand.

• Unplug your refrigerator before

cleaning or defrosting.

• Vapor and vaporized cleaning

materials should never be used in

cleaning and defrosting processes of

your refrigerator. In such cases, the

vapor may get in contact with the

electrical parts and cause short circuit

• Never use the parts on your

refrigerator such as the door as a

means of support or step.

• Do not use electrical devices inside

• Do not damage the parts, where

the refrigerant is circulating, with

drilling or cutting tools. The refrigerant

that might blow out when the gas

channels of the evaporator, pipe

extensions or surface coatings are

punctured causes skin irritations and

• Do not cover or block the ventilation

holes on your refrigerator with any

• Electrical devices must be repaired

by only authorised persons. Repairs

performed by incompetent persons

create a risk for the user.

• In case of any failure or during

a maintenance or repair work,

disconnect your refrigerator’s mains

supply by either turning off the

relevant fuse or unplugging your

• Do not pull by the cable when pulling

• Place the beverage with higher proofs

tightly closed and vertically.

• Never store spray cans containing

flammable and explosive substances

in the refrigerator.

• Do not use mechanical devices

or other means to accelerate the

defrosting process, other than those

recommended by the manufacturer.

• This product is not intended to be

used by persons with physical,

sensory or mental disorders or

unlearned or inexperienced people

(including children) unless they are

attended by a person who will be

responsible for their safety or who will

instruct them accordingly for use of

• Do not operate a damaged

refrigerator. Consult with the service

agent if you have any concerns.

• Electrical safety of your refrigerator

shall be guaranteed only if the earth

system in your house complies with

• Exposing the product to rain, snow,

sun and wind is dangerous with

respect to electrical safety.

• Contact authorized service when

there is a power cable damage to

• Never plug the refrigerator into

the wall outlet during installation.

Otherwise, risk of death or serious

• This refrigerator is intended for only

storing food items. It must not be

used for any other purpose.

• Label of technical specifications is

located on the left wall inside the

• Never connect your refrigerator to

electricity-saving systems; they may

damage the refrigerator.

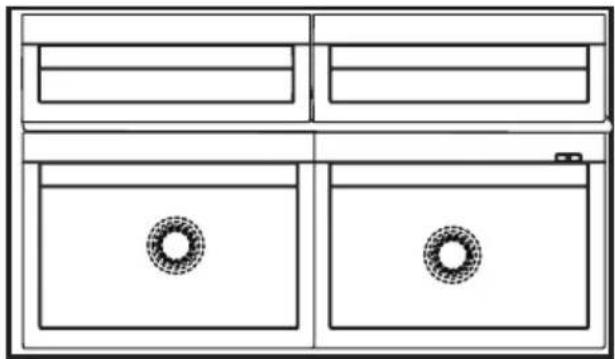

• If there is a blue light on the

refrigerator, do not look at the blue

light with optical tools.

• For manually controlled refrigerators,

wait for at least 5 minutes to start the

refrigerator after power failure.

• This operation manual should be

handed in to the new owner of the

product when it is given to others.

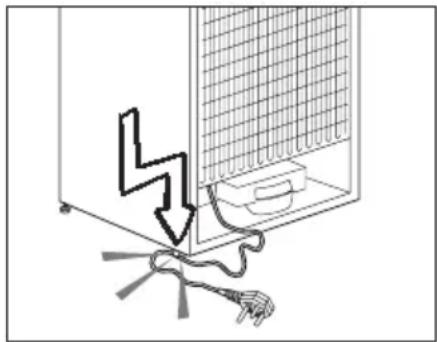

• Avoid causing damage on power

cable when transporting the

refrigerator. Bending cable may cause

fire. Never place heavy objects on

power cable. Do not touch the plug

with wet hands when plugging the

• Do not plug the refrigerator if the wall

• Water should not be sprayed directly

on inner or outer parts of the product

for safety purposes.

• Do not spray substances containing

inflammable gases such as propane

gas near the refrigerator to avoid fire

• Never place containers filled with

water on top of the refrigerator,

otherwise this may cause electric

• Do not overload your refrigerator

with excessive amounts of food. If

overloaded, the food items may fall

down and hurt you and damage

refrigerator when you open the door.

Never place objects on top of the

refrigerator; otherwise, these objects

may fall down when you open or

close the refrigerator's door.

• As they require a precise

temperature, vaccines, heat-sensitive

medicine and scientific materials

and etc. should not be kept in the

• If not to be used for a long time,

refrigerator should be unplugged. A

possible problem in power cable may

• The plug's tip should be regularly

cleaned; otherwise, it may cause fire.

• The plug’s tip should be cleaned

regularly with a dry cloth; otherwise, it

• Refrigerator may move if adjustable

legs are not properly secured on the

floor. Properly securing adjustable

legs on the floor can prevent the

refrigerator to move.

• When carrying the refrigerator, do not

hold it from door handle. Otherwise, it

• When you have to place your product

next to another refrigerator or freezer,

the distance between devices should

be at least 8cm. Otherwise, adjacent

side walls may be humidified.

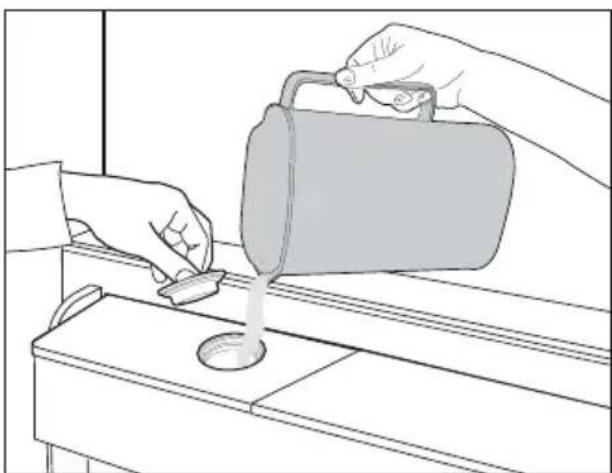

For products with a water

Pressure of water mains should be

minimum 1 bar. Pressure of water

mains should be maximum 8 bars.

• Use only potable water.

• If the door has a lock, the key should

be kept away from reach of children.

• Children must be supervised to

prevent them from tampering with the

If your product's cooling system

This gas is flammable. Therefore, pay

attention to not damaging the cooling

system and piping during usage and

transportation. In the event of damage,

keep your product away from potential

fire sources that can cause the

product catch a fire and ventilate the

room in which the unit is placed.

Ignore this warning if your

product's cooling system contains

Type of gas used in the product is

stated in the type plate which is on the

left wall inside the refrigerator.

Never throw the product in fire for

Things to be done for energy

• Do not leave the doors of your

refrigerator open for a long time.

• Do not put hot food or drinks in your

• Do not overload your refrigerator so

that the air circulation inside of it is not

• Do not install your refrigerator

under direct sunlight or near heat

emitting appliances such as ovens,

dishwashers or radiators.

• Pay attention to keep your food in

• For products with a freezer

compartment; You can store

maximum amount of food items in

the freezer when you remove the

shelf or drawer of the freezer. Energy

consumption value stated for your

refrigerator has been determined

by removing freezer shelf or drawer

and under maximum load. There

is no harm to use a shelf or drawer

according to the shapes and size of

• Thawing frozen food in fridge

compartment will both provide energy

saving and preserve the food quality.

freshfood compartment

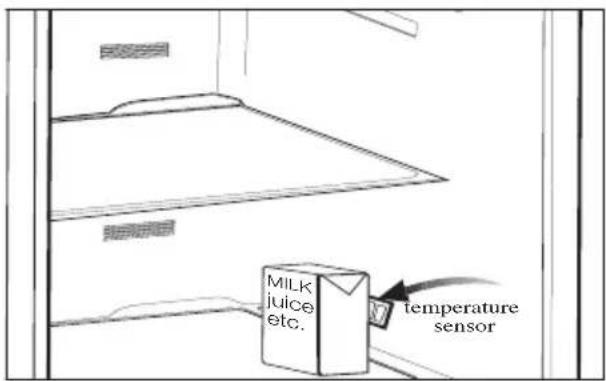

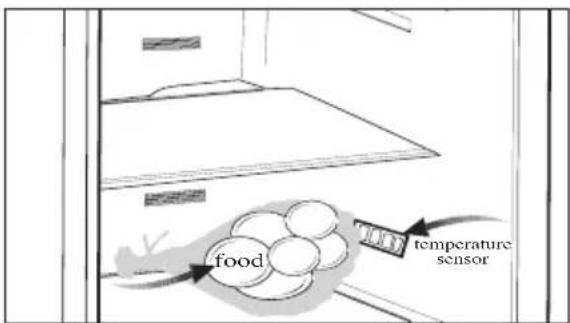

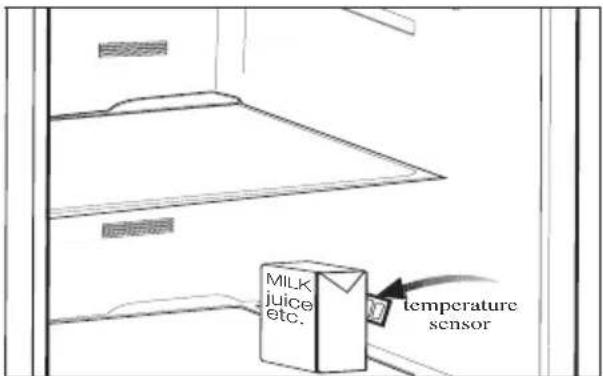

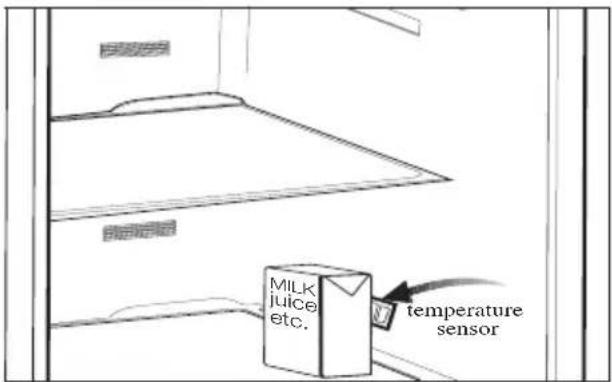

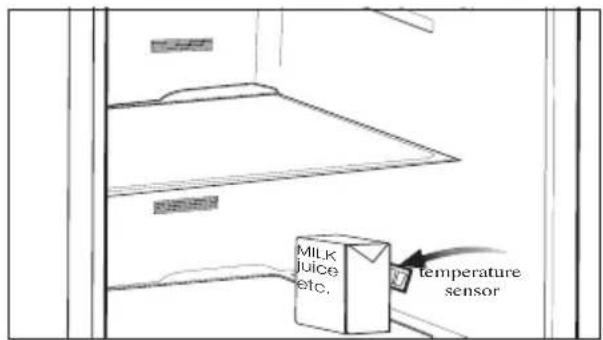

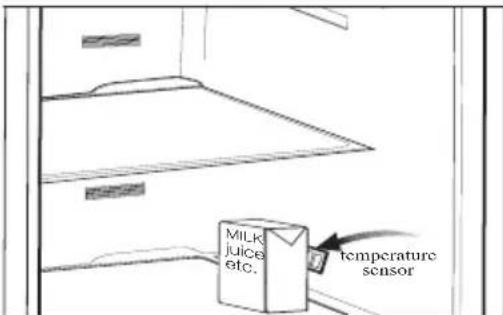

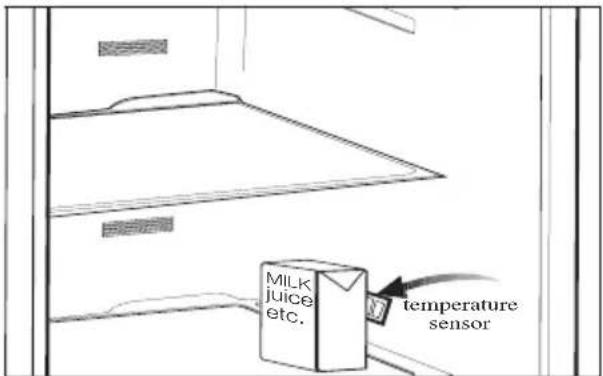

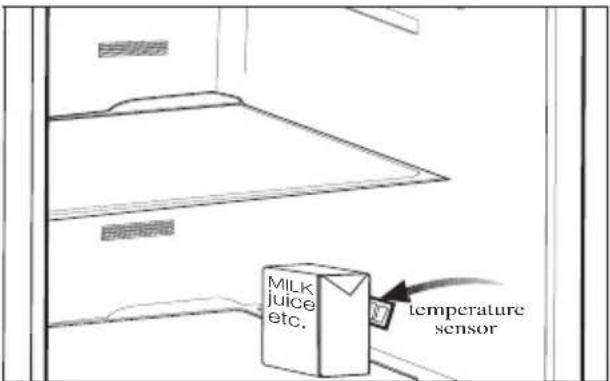

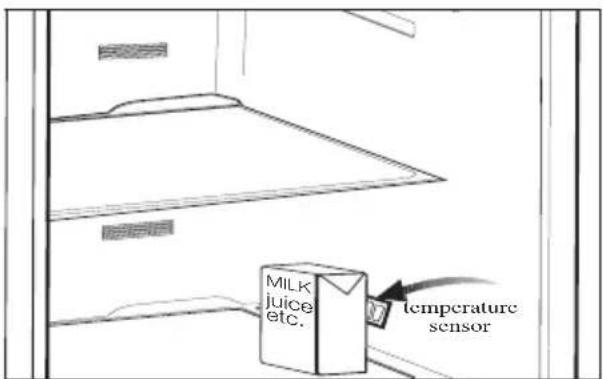

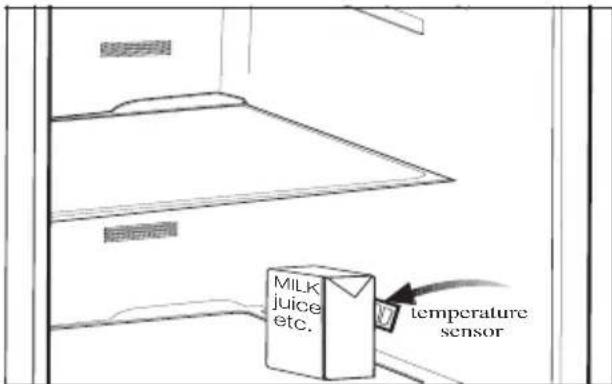

• Please do not let any foodstuff to

come to contact with the temperature

sensor in freshfood compartment.

In order to maintain freshfood

compartment at ideal storage

temperature, the sensor must not be

blocked by fodstuffs.

• Do not place hot foodstuff in your

temperaturesensor food MILKjuiceetc.temperaturesensor

temperaturesensor food

MILK juice etc. temperaturesensorEN

B Please remember that the

manufacturer shall not be held liable if

the information given in the instruction

manual is not observed.

Points to be considered

when re-transporting your

1. Your refrigerator must be

emptied and cleaned prior to any

2. Shelves, accessories, crisper and etc.

in your refrigerator must be fastened

securely by adhesive tape against any

jolt before repackaging.

3. Packaging must be tied with thick

tapes and strong ropes and the

rules of transportation printed on the

package must be followed.

Please do not forget…

Every recycled material is an

indispensable source for the nature

and for our national resources.

If you wish to contribute to recycling

the packaging materials, you can

get further information from the

environmental bodies or local

Before operating your

Before starting to use your refrigerator

check the following:

1. Is the interior of the refrigerator dry

and can the air circulate freely in the

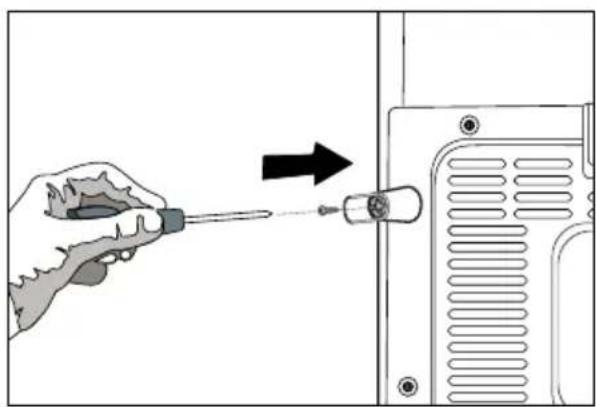

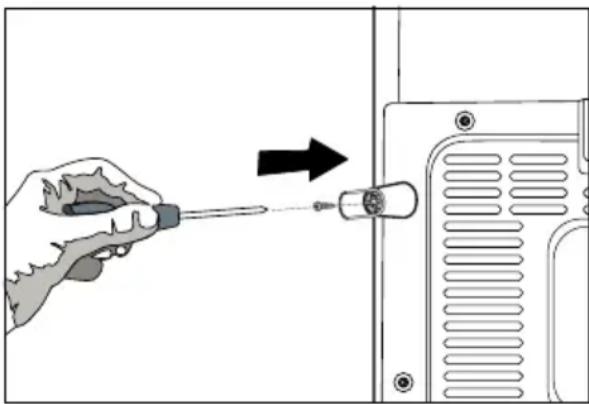

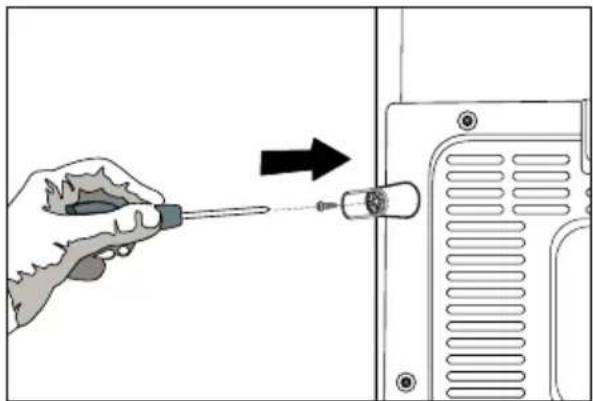

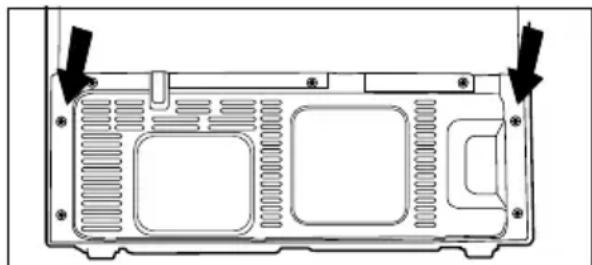

2. You can install the 2 plastic wedges

as illustrated in the figure. Plastic

wedges will provide the required

distance between your refrigerator

and the wall in order to allow the air

circulation. (The illustrated figure is

only an example and does not match

exactly with your product.)

3. Clean the interior of the

refrigerator as recommended in the

“Maintenance and cleaning” section.

4. Plug the refrigerator into the wall

outlet. When the fridge door is open

the fridge compartment interior light

5. You will hear a noise as the

compressor starts up. The liquid and

gases sealed within the refrigeration

system may also give rise to noise,

even if the compressor is not running

and this is quite normal.

6. Front edges of the refrigerator may

feel warm. This is normal. These

areas are designed to be warm to

Connect your product to a grounded

socket which is being protected by a

fuse with the appropriate capacity.

• The connection must be in

compliance with national regulations.

• The power cable plug must be easily

accessible after installation.

• The specified voltage must be equal

to your mains voltage.

• Extension cables and multiway plugs

must not be used for connection.

B A damaged power cable must be

replaced by a qualified electrician.

B Product must not be operated before

it is repaired! There is danger of

Disposing of the packaging

The packing materials may be

dangerous for children. Keep the

packing materials out of the reach

of children or dispose them of by

classifying them in accordance

with the waste instructions. Do not

dispose them of along with the normal

The packing of your refrigerator is

produced from recyclable materials.

Disposing of your old

Dispose of your old machine without

giving any harm to the environment.

• You may consult your authorized

dealer or waste collection center of

your municipality about the disposal

of your refrigerator.

Before disposing of your refrigerator,

cut out the electric plug and, if there

are any locks on the door, make them

inoperable in order to protect children

Placing and Installation

1. Install your refrigerator to a place

that allows ease of use.

2. Keep your refrigerator away from

heat sources, humid places and direct

3. There must be appropriate air

ventilation around your refrigerator in

order to achieve an efficient operation.

If the refrigerator is to be placed in a

recess in the wall, there must be at

least 5 cm distance with the ceiling

and at least 5 cm with the wall.

If the floor is covered with a carpet,

your product must be elevated 2.5 cm

4. Place your refrigerator on an even

floor surface to prevent jolts.

5. Do not keep your refrigerator in

ambient temperatures under 10°C.EN

If your refrigerator is unbalanced;

You can balance your refrigerator by

turning the front legs as shown in the

illustration below. The corner where

the leg exists is lowered when you turn

it in the direction of black arrow and

raised when you turn in the opposite

direction. Taking help from someone to

slightly lift the refrigerator will facilitate

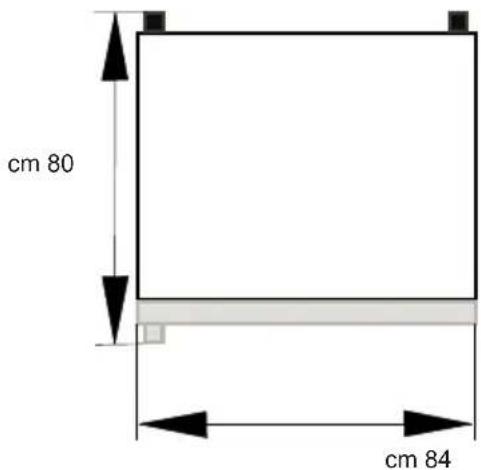

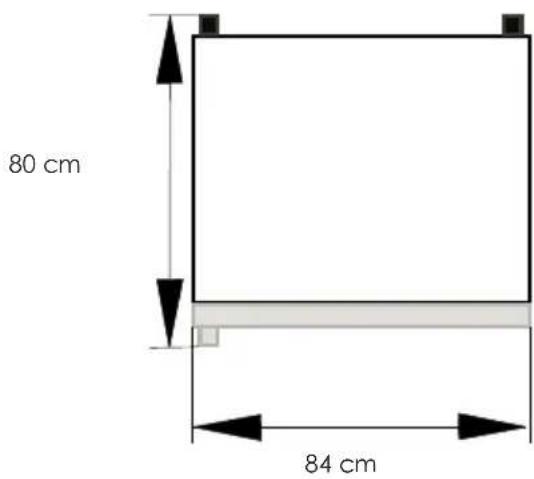

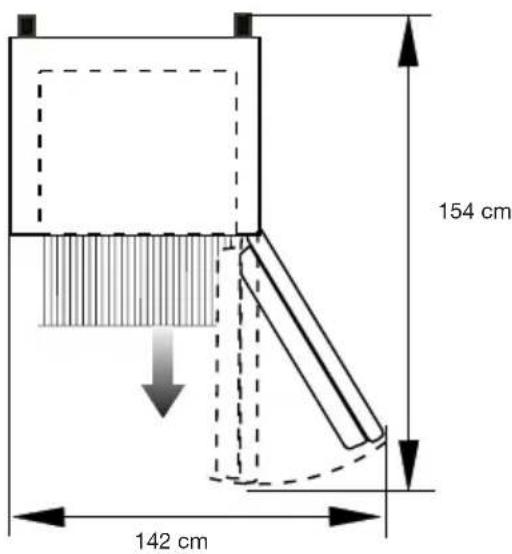

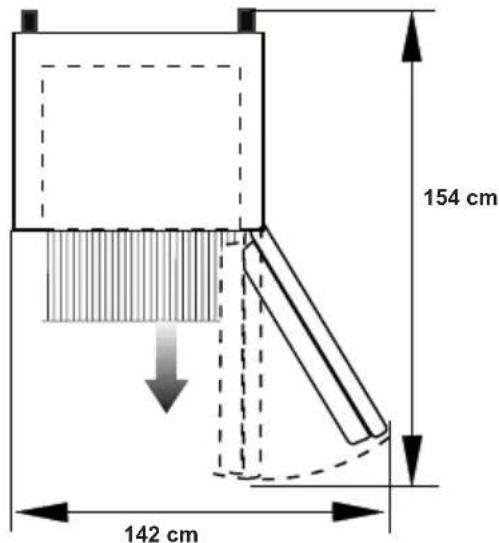

Dimensions of your refrigerator

Following figure shows the required place to allow

you use your refrigerator most efficiently.

C Your refrigerator should be installed at

least 30 cm away from heat sources

such as hobs, ovens, central heater

and stoves and at least 5 cm away

from electrical ovens and should not

be located under direct sunlight.

C The ambient temperature of

the room where you install your

refrigerator should at least be 10°C.

Operating your refrigerator under

cooler conditions than this is not

recommended with regard to its

C Please make sure that the interior

of your refrigerator is cleaned

C If two refrigerators are to be installed

side by side, there should be at least

2 cm distance between them.

C When you operate your refrigerator

for the first time, please observe the

following instructions during the initial

- The door should not be opened

- It must be operated empty without

- Do not unplug your refrigerator. If

a power failure occurs out of your

control, please see the warnings in

the “Recommended solutions for

the problems” section.

C Original packaging and foam

materials should be kept for future

transportations or moving.EN

5 Using your refrigerator

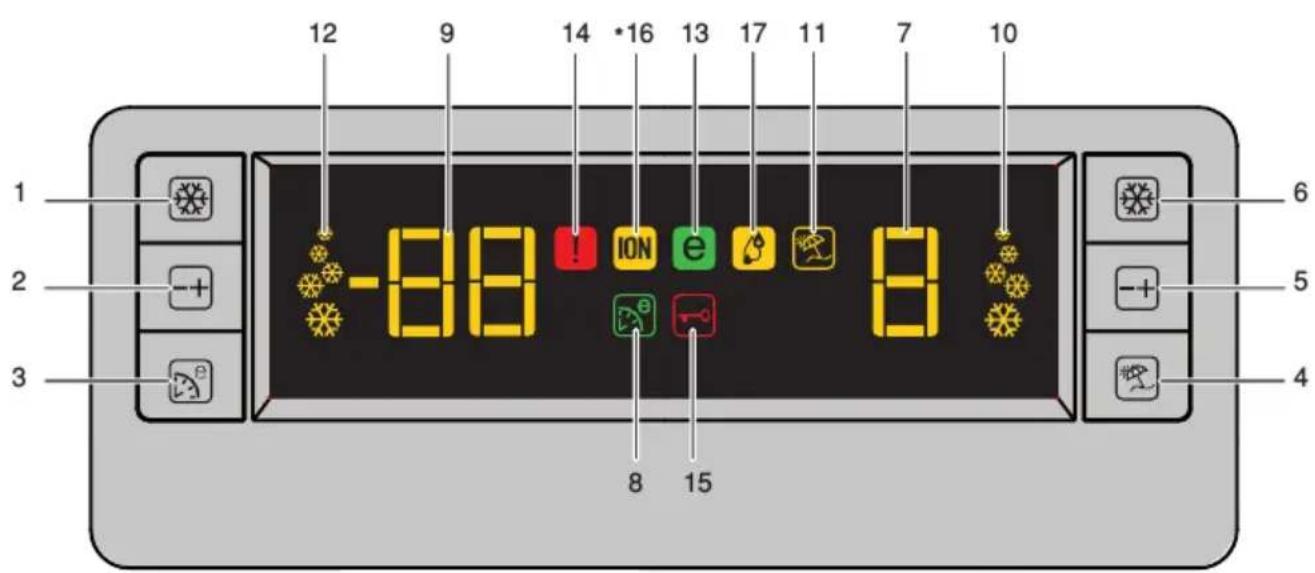

This touch-control indicator panel allows you to set the temperature without

opening the door of your refrigerator. Just touch the relevant button with your

finger to set the temperature.

2. Freezer Compartment Temperature

3. Eko-Ekstra Button

5. Fridge Compartment Temperature

6. Quick Cool Button

7. Fridge Compartment Temperature

8. Eco Extra Function Indicator

9. Freezer Compartment Temperature

17. Humidity Indicator

* OPTIONAL C Figures that take place in this instruction manual are schematic and may

not correspond exactly with your product. If the subject parts are not included in

the product you have purchased, then it is valid for other models.

1- Fast Freeze Button

Press this button briefly to activate

the Fast Freeze function. Press this

button again to deactivate the selected

2- Freezer Compartment

Temperature Setting Button

Press this button to set the

temperature of the freezer

compartment to -18, -20, -22, -24,

-18... respectively. Press this button

to set the desired temperature for the

Freezer Compartment.

3- Eko-Ekstra Button

Press this button briefly to activate the

Press this button briefly to activate

the Vacation function. To stop ice

formation, press the same button for 3

5- Fridge Compartment

Temperature Setting Button

Press this button to set the

temperature of the fridge compartment

to 8, 6, 4, 2, 8... respectively.

Press this button to set the

desired temperature for the Fridge

Press this button briefly to activate

the Quick Cool function. Press this

button again to deactivate the selected

7- Fridge Compartment

Temperature Indicator

Indicates the temperature set for

8- Eco Extra Function Indicator

Indicates that the Eco Extra function

is active. If this function is active, your

refrigerator will automatically detect

the least usage periods and energy-

efficient cooling will be performed

during those times. Economy indicator

will be active while energy-efficient

cooling is performed.

9- Freezer Compartment

Temperature Indicator

It indicates the temperature set for

Freezer Compartment.

10- Quick Cool Function Indicator

Indicates that the Quick Cool function

is active. Use this function when

you place fresh food into the fridge

compartment or when you need to

cool your food quickly. When this

function is active, your refrigerator will

run for 2 hours without stopping.

Press the relevant button again to

deactivate this function.

11- Vacation Function Indicator

Indicates that the vacation function

is active. If this function is active,

“- -” appears on the indicator of the

fridge compartment and no cooling is

performed in the fridge compartment.

Other compartments will be cooled in

accordance with the temperature set

Press the relevant button again to

Indicates that the Quick Freezer

function is active. Use this function

when you place fresh food into the

freezer compartment or when you

need ice. When this function is active,

your refrigerator will run for 6 hours

Press the relevant button again to

deactivate this function.

13- Economy Mode Indicator

Indicates that the refrigerator is

running in energy-efficient mode. This

indicator will be active if the Freezer

Compartment temperature is set to

-18 or the energy efficient cooling is

being performed due to Eco-Extra

14- Error Status Indicator

If your refrigerator does not cool

adequately or if there is a sensor

failure, this indicator will be activated.

When this indicator is active,

Freezer Compartment Temperature

indicator will display “E” and Fridge

Compartment Temperature Indicator

will display numbers such as “1,2,3…”.

These numbers on the indicator

provides information about the error to

the service personnel.

15- Key Lock Indicator

Use this function if you do not want

your refrigerator temperature setting

changed. Press Eco Extra Button and

Freezer Compartment Temperature

Setting Button simultaneously for

a long time (3 sec) to activate this

Press the relevant buttons again to

deactivate this function.

16- Ionizer Indicator Light

Indicator light lights up continuously.

This light indicates that your

refrigerator is protected against the

17- Humidity Indicator

Indicator light lights up continuously.

This light indicates that the food kept

in the refrigerator is preserved for a

long time under ideal humidity.

An audio warning will be given when

the fridge or freezer compartment

door of your product is left open for

a certain period of time. This audio

warning signal will mute when any

button on the indicator is pressed or

when the door is closed.EN

Sliding Body Shelves

Sliding body shelves can be pulled

by slightly lifting up from the front and

moved back and forth. They come to

a stop point when pulled towards front

to allow you reach the foods placed at

the back of the shelf; when it is pulled

after slightly lifted upwards at the

second stop point, the body shelf will

The shelf should be hold tightly from

the bottom as well in order to prevent

it from tipping over. The body shelf is

placed on the rails at the sides of the

refrigerator body by bringing it to one

lower or one upper level.

The body shelf should be pushed

backwards to seat it completely.

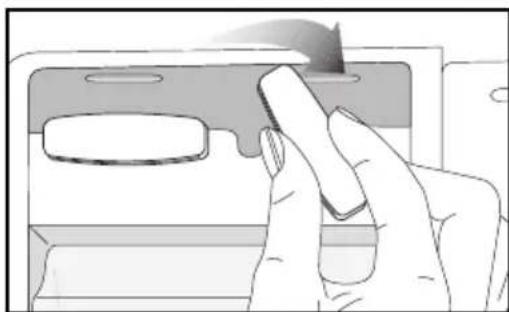

Humidity control in the

Humidity level can be adjusted by

sliding the humidity adjustment slider to

• If you want to maintain humidity in

this compartment, set the humidity

adjustment slider to the closed position.

• If you want to eliminate humidity in

this compartment, set the humidity

adjustment slider to the open position.

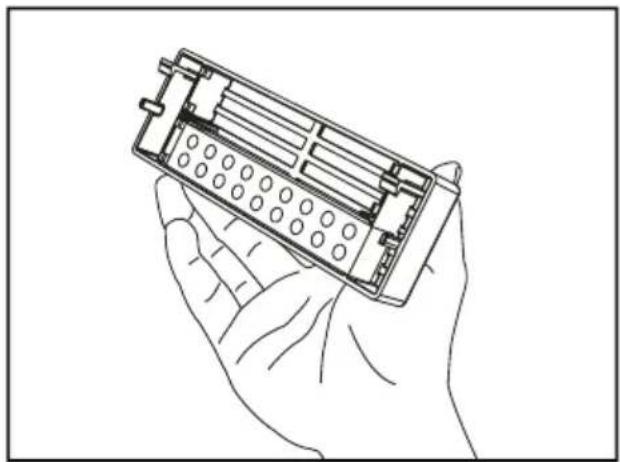

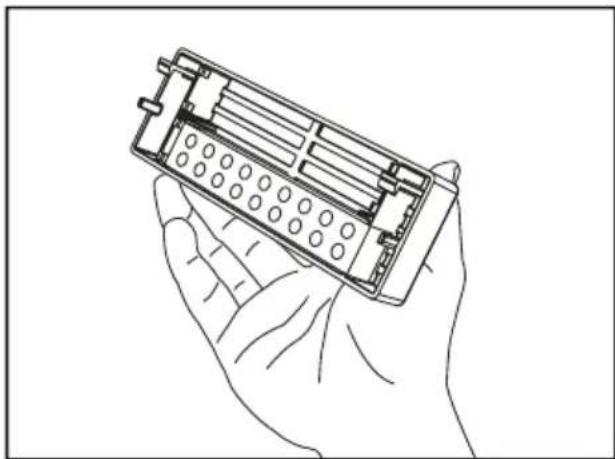

• You can install the egg holder to the

desired door or body shelf.

• Never store the egg holder in the

freezer compartment.EN

Chiller compartments enable the

foods to be frozen become ready

for freezing. You can also use these

compartments to store your food at a

temperature a few degrees below the

You can increase the inner volume of

your refrigerator by removing any of

the chiller compartments. To do this,

pull the compartment towards yourself;

the compartment will lean against the

stopper and stop. This compartment

will be released when you lift it about 1

cm and pull it towards yourself.

Foodstuff stored in the crispers that

are enlightened with a blue light

continue their photosynthesis by

means of the wavelength effect of blue

light and thus, preserve their freshness

and increase their vitamin content.

Description and cleaning of

Odor filter prevents unpleasant odor

build-up in your refrigerator.

Pull the cover, into which the odor

filter is installed, downwards and

remove as illustrated. Leave the filter

under sunlight for one day. Filter will

be cleaned during this time. Install the

filter back to its place.

Odor filter must be cleaned once in a

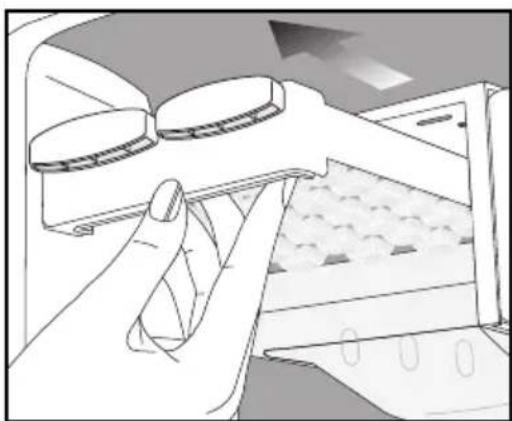

Icematic and ice storage

Fill the Icematic with water and place

it into its seat. Your ice will be ready

approximately in two hours. Do not

remove the Icematic from its seating to

Turn the knobs on it clockwise by 90

Ice cubes in the cells will fall down into

the ice storage container below.

You may take out the ice storage

container and serve the ice cubes.

If you wish, you may keep the ice

cubes in the ice storage container.

Ice storage container

Ice storage container is only intended

for accumulating the ice cubes. Do not

put water in it. Otherwise, it will break.

Making ice (OPTIONAL)

Fill the ice container with water and

place it into its seat. Your ice will be

ready approximately in two hours.

You can easily remove your ice by

slightly twisting the ice container.EN

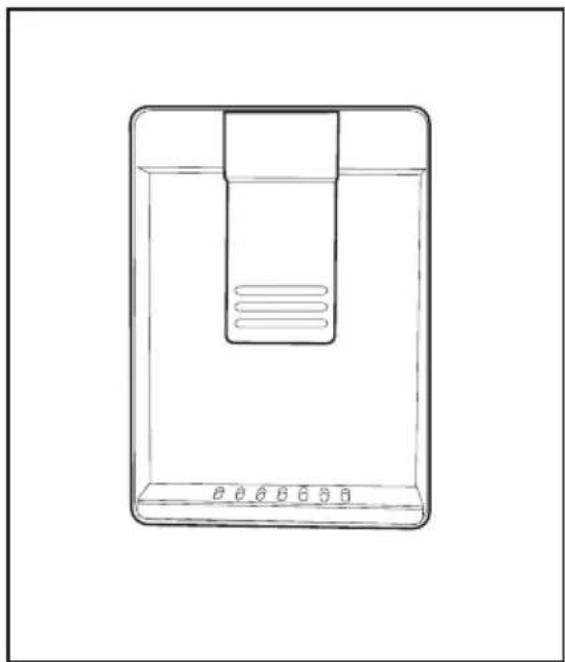

Water dispenser is a very useful feature

to obtain chilled water without opening

the door of your fridge. Since you do

not have to open the door of your

fridge frequently, you also save on

Using the water dispenser

Push in the lever of the water

dispenser with your glass. By releasing

the lever, you cut off the dispensing.

When operating the water dispenser,

flow is achieved by fully

depressing the lever. Please note, how

much water flows from the dispenser

depends on how far you depress the

lever. As the level of water in your

cup / glass rises, gently reduce the

amount of pressure on the lever to

avoid overflow. If you depress the lever

a small amount, then water will trickle;

this is perfectly normal and is not a

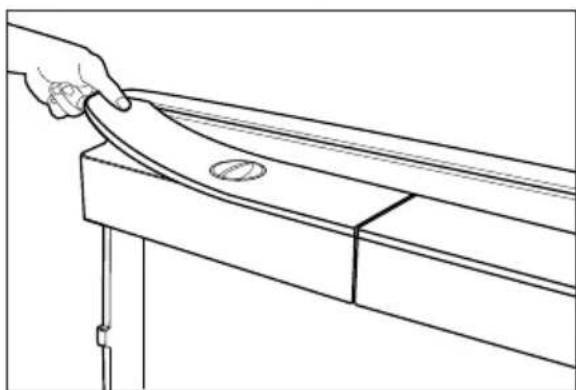

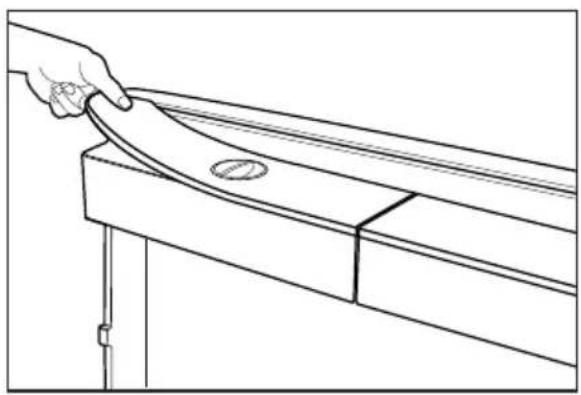

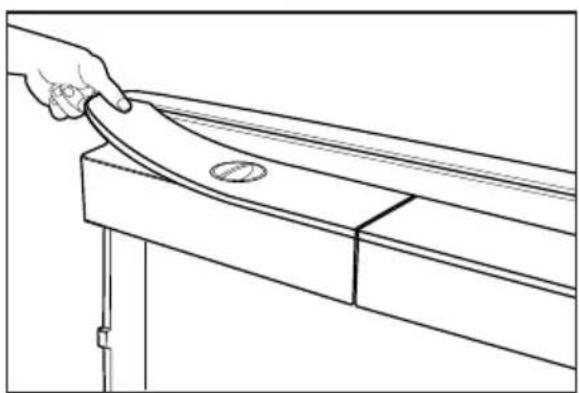

Filling in the water tank of water

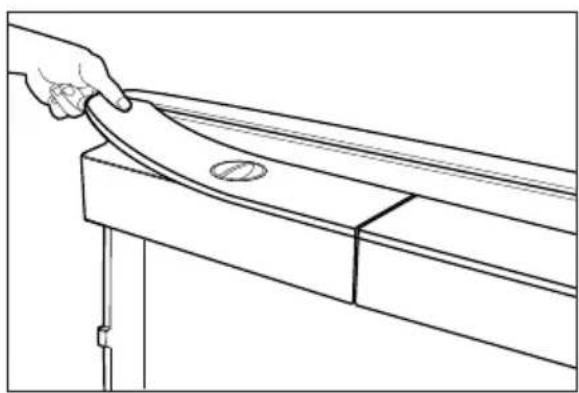

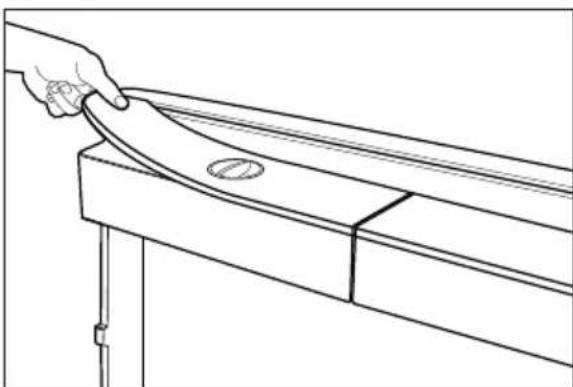

Open the cap of the water tank as

illustrated in the figure. Fill in with pure

and clean drinking water. Close the

• Do not fill water tank with any liquid

other than drinking water; beverages

such as fruit juice, carbonated fizzy

soda drinks, alcoholic drinks are not

suitable for use with water dispenser.

dispenser will malfunction and may

be damaged beyond repair. The

guarantee does not cover such uses.

Some chemical ingredients and

additives in such drinks / beverages

may also attack and damage water

• Only use clean pure drinking water.

• Capacity of water dispenser tank is 3

litres [6.4 pints], do not overfill.

• Push the water dispenser lever with

a rigid cup. If you are using a plastic

disposable cup, then push the lever

with your fingers from behind the cup.EN

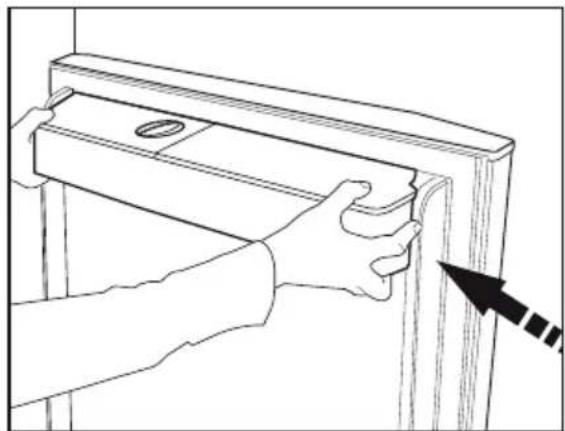

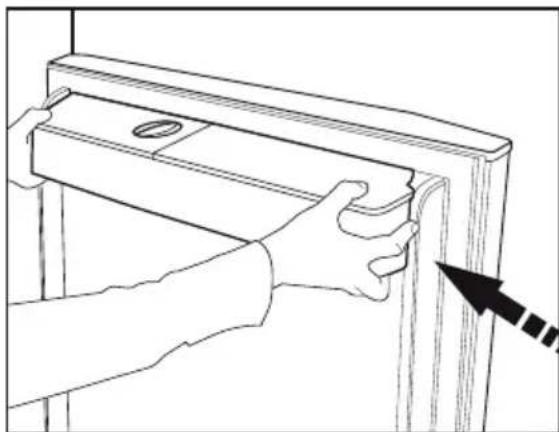

Cleaning the water tank

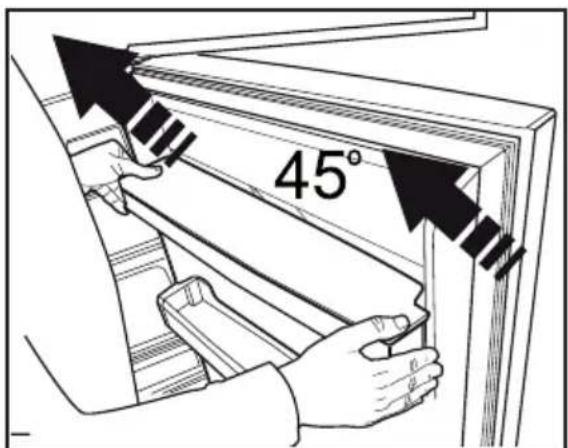

Remove the water tank,and detach the

top cover mechanism from the water

tank. Clean the water tank with warm

clean water, reinstall the top cover.

When installing the water tank, make

sure that hooks it fits securely into the

hangers on the door. Make sure that

parts removed during cleaning (if any)

are installed correctly into their original

locations. Otherwise, water may

Water tank and components of water

dispenser are not dishwasher-proof.

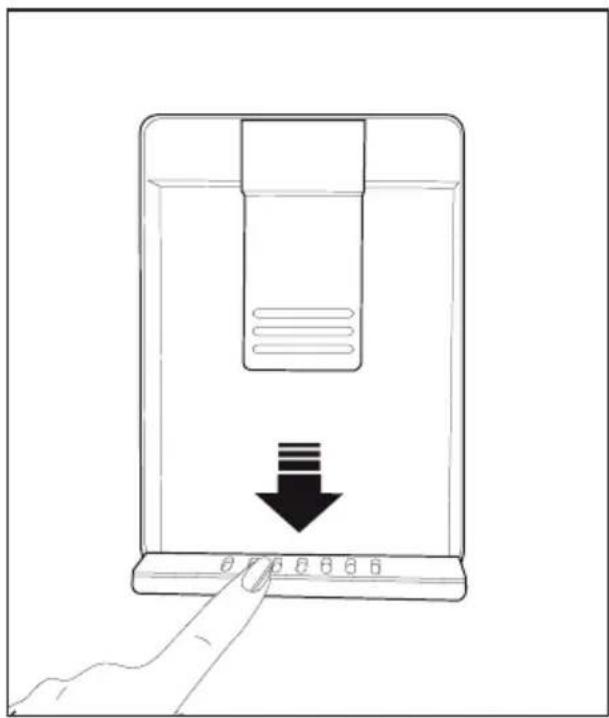

Water that drips while using the water

dispenser accumulates in the drip

tray. Remove the drip tray by pulling

it towards yourself and empty it from

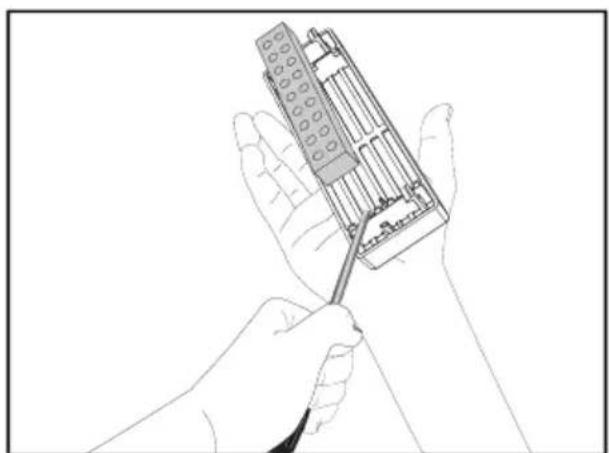

Remove the plastic drainer part as

shown in the diagram by pressing

6 Maintenance and cleaning

A Never use gasoline, benzene or

similar substances for cleaning

B We recommend that you unplug the

appliance before cleaning.

B Never use any sharp abrasive

instrument, soap, household

cleaner, detergent and wax polish for

C Use lukewarm water to clean the

cabinet of your refrigerator and wipe it

C Use a damp cloth wrung out in

a solution of one teaspoon of

bicarbonate of soda to one pint of

water to clean the interior and wipe it

B Make sure that no water enters the

lamp housing and other electrical

B If your refrigerator is not going to be

used for a long period of time, unplug

the power cable, remove all food,

clean it and leave the door ajar.

C Check door seals regularly to ensure

they are clean and free from food

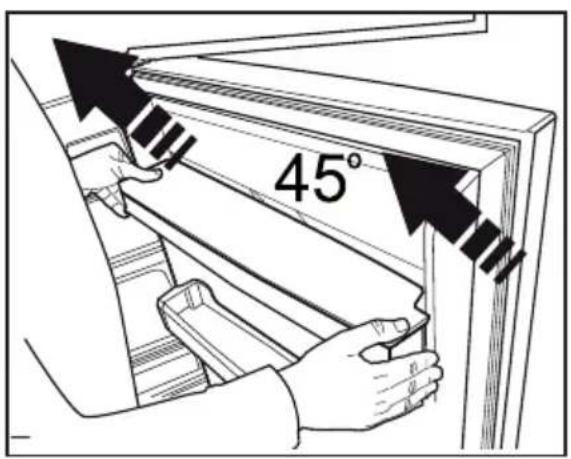

A To remove door racks, remove all the

contents and then simply push the

door rack upwards from the base.

Protection of plastic

C Do not put the liquid oils or oil-cooked

meals in your refrigerator in unsealed

containers as they damage the

plastic surfaces of your refrigerator. In

case of spilling or smearing oil on the

plastic surfaces, clean and rinse the

relevant part of the surface at once

7 Recommended solutions for the problems

Please review this list before calling the service. It might save you time and

money. This list includes frequent complaints that are not arising from defective

workmanship or material usage. Some of the features described here may not

exist in your product.

The refrigerator does not operate.

• Is the refrigerator properly plugged in? Insert the plug to the wall socket.

• Is the fuse of the socket which your refrigerator is connected to or the main fuse

blown out? Check the fuse.

Condensation on the side wall of the fridge compartment (MULTIZONE, COOL CONTROL and FLEXI ZONE).

• Very cold ambient conditions. Frequent opening and closing of the door. Highly

humid ambient conditions. Storage of food containing liquid in open containers.

Leaving the door ajar. Switching the thermostat to a colder degree.

• Decreasing the time the door left open or using it less frequently.

• Covering the food stored in open containers with a suitable material.

• Wipe the condensation using a dry cloth and check if it persists.

Compressor is not running

• Protective thermic of the compressor will blow out during sudden power

failures or plug-out plug-ins as the refrigerant pressure in the cooling system of

the refrigerator has not been balanced yet. Your refrigerator will start running

approximately after 6 minutes. Please call the service if the refrigerator does not

startup at the end of this period.

• The fridge is in defrost cycle. This is normal for a full-automatically defrosting

refrigerator. Defrosting cycle occurs periodically.

• Your refrigerator is not plugged into the socket. Make sure that the plug is

properly fit into the socket.

• Are the temperature adjustments correctly made?

• Power might be cut off.

The fridge is running frequently or for a long time.EN

• Your new product may be wider than the previous one. This is quite normal.

Large refrigerators operate for a longer period of time.

• The ambient room temperature may be high. This is quite normal.

• The refrigerator might have been plugged in recently or might have been loaded

with food. Cooling down of the refrigerator completely may last for a couple of

• Large amounts of hot food might have been put in the refrigerator recently. Hot

food causes longer running of the refrigerator until they reach the safe storage

• Doors might have been opened frequently or left ajar for a long time. The warm

air that has entered into the refrigerator causes the refrigerator to run for longer

periods. Open the doors less frequently.

• Freezer or fridge compartment door might have been left ajar. Check if the doors

• The refrigerator is adjusted to a very low temperature. Adjust the refrigerator

temperature to a warmer degree and wait until the temperature is achieved.

• Door seal of the fridge or freezer may be soiled, worn out, broken or not properly

seated. Clean or replace the seal. Damaged/broken seal causes the refrigerator

to run for a longer period of time in order to maintain the current temperature.

Freezer temperature is very low while the fridge temperature is sufficient.

• The freezer temperature is adjusted to a very low temperature. Adjust the freezer

temperature to a warmer degree and check.

Fridge temperature is very low while the freezer temperature is sufficient.

• The fridge temperature might have been adjusted to a very low temperature.

Adjust the fridge temperature to a warmer degree and check.

Food kept in the fridge compartment drawers are freezing.

• The fridge temperature might have been adjusted to a very low temperature.

Adjust the fridge temperature to a warmer degree and check.

Temperature in the fridge or freezer is very high.

• The fridge temperature might have been adjusted to a very high degree.

Fridge adjustment has an effect on the temperature of the freezer. Change

the temperature of the fridge or freezer until the fridge or freezer temperature

reaches to a sufficient level.

• Doors might have been opened frequently or left ajar for a long time; open them

• Door might have been left ajar; close the door completely.

• Large amount of hot food might have been put in the refrigerator recently. Wait

until the fridge or freezer reaches the desired temperature.

• The refrigerator might have been plugged in recently. Cooling down of the

refrigerator completely takes time.

The operation noise increases when the refrigerator is running.EN

• The operating performance of the refrigerator may change due to the changes in

the ambient temperature. It is normal and not a fault.

Vibrations or noise.

• The floor is not even or it is weak. The refrigerator rocks when moved slowly.

Make sure that the floor is strong enough to carry the refrigerator, and level.

• The noise may be caused by the items put onto the refrigerator. Items on top of

the refrigerator should be removed.

There are noises coming from the refrigerator like liquid spilling or spraying.

• Liquid and gas flows happen in accordance with the operating principles of your

refrigerator. It is normal and not a fault.

There is a noise like wind blowing.

• Fans are used in order to cool the refrigerator. It is normal and not a fault.

Condensation on the inner walls of refrigerator.

• Hot and humid weather increases icing and condensation. It is normal and not a

• Doors might have been left ajar; make sure that the doors are closed fully.

• Doors might have been opened frequently or left ajar for a long time; open them

Humidity occurs on the outside of the refrigerator or between the doors.

• There might be humidity in the air; this is quite normal in humid weather. When

the humidity is less, condensation will disappear.

Bad odour inside the refrigerator.

• Inside of the refrigerator must be cleaned. Clean the inside of the refrigerator with

a sponge, lukewarm water or carbonated water.

• Some containers or package materials might cause the smell. Use a different

container or different brand packaging material.

The door is not closing.

• Food packages may prevent the door's closing. Replace the packages that are

obstructing the door.

• The refrigerator is not completely upright on the floor and rocking when slightly

moved. Adjust the elevation screws.

• The floor is not level or strong. Make sure that the floor is level and capable to

carry the refrigerator.

• The food might be touching the ceiling of the drawer. Rearrange food in the

temperaturesensor food MILKjuiceetc.temperaturesensor

temperaturesensor food

MILK juice etc. temperaturesensorFR

potable pure. Fermez le couvercle.

temperaturesensor food MILKjuiceetc.temperaturesensor

temperaturesensor food

MILK juice etc. temperaturesensorRU

 

 

 





temperaturesensor food MILKjuiceetc.temperaturesensor

temperaturesensor food

MILK juice etc. temperaturesensorFA

temperaturesensorfood MILK juice etc. temperaturesensorIT

temperaturesensorfood MILK juice etc. temperaturesensorNL

temperaturesensorfood MILK juice etc. temperaturesensorDE

temperaturesensor food

temperaturesensor food

temperaturesensorfood MILK juice etc. temperaturesensorSL

1- Gumb "Fast Freeze" (hitro

3- Gumb "Eco-Ekstra" (posebno

temperaturesensor food MILKjuiceetc.temperaturesensor

temperaturesensor food

MILK juice etc. temperaturesensorEL

temperaturesensorfood MILK juice etc. temperaturesensorUK
