Introduction

Thanks for choosing Boston Acoustics and selecting the SoundWare XS Digital Cinema as your home theater speaker system. This manual includes important information on setting up and using your new system, as well as troubleshooting information in case you have any difficulties.

Key Features:

• Incredibly small speakers provide big, high performance sound
• Dolby Digital decoding and Boston's Digitally Optimized Virtual Surround for theater-like surround sound
  Dedicated music and movie playback settings - Sound is optimized for your content
• Included wall brackets can be positioned any almost any angle
• Bluetooth enabled for music streaming (no docking needed, keep your smartphone with you)
  BassTrac circuitry for deep, powerful bass

Additional Features:

Control Pod learns your existing TV remote control
- Unique SoundWare shape and ultra-compact size allow for maximum placement flexibility
- Durable high-gloss finish for a modern look
- Satellite speakers feature 1/2 -inch tweeter and 2- 1/2 -inch woofer
- Easy-guide wire channels for fast hook-up
- Front-firing subwoofer features 8-inch woofer
- Two AUX inputs for connection to iPod or other sources

Specifications

Total System Power: 250 watts

Frequency Range: 39Hz to 20kHz

Satellite Drivers: 212'' (64mm) woofers 112'' (13mm) tweeters

Subwoofer: 8^ (203mm) woofer

Crossover Frequencies: 4kHz Satellite, 180Hz Subwoofer

Wireless Technologies: supports Bluetooth v2.1 + EDR, A2DP v1.2

Dimensions: (H × W × D) Satellite 4

Weight:Satellite 1 lb (5kg)

Subwoofer

11 lbs (5kg)

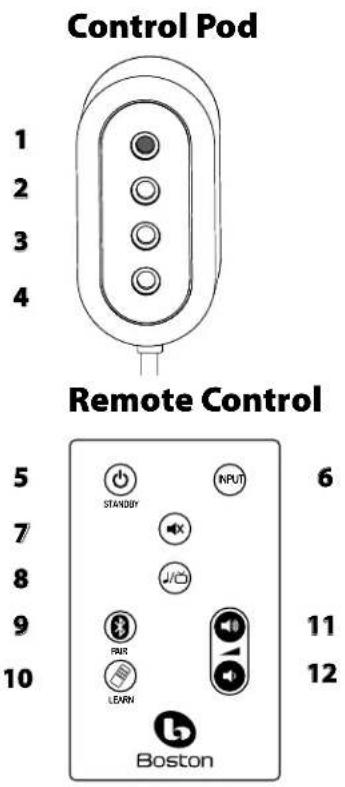

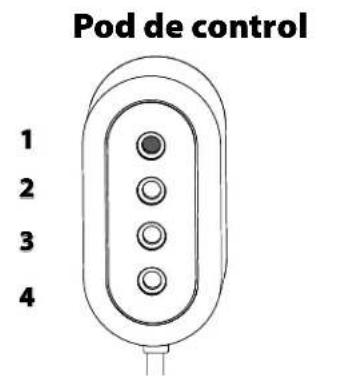

Control Pod

1 IR Sensor - Receives remote commands to control the system.
2 Input Mode - Lights in various colors to indicate which playing mode is operating.
3 Music/Movies-Lights in various colors to indicate operating status.
4 Power/Remote - Lights in various colors to indicate power status.
5 Standby Button - Switches the system from standby to active.
6 Input Button - Selects which input source is playing.
7 Mute Button - Lets you temporarily mute system.
Music/Movie Button - Selects the style of sound you want to hear. Music mode is for music and Movie mode is for movies and television.
9 Bluetooth Pairing Button - Use this button to pair with a Bluetooth source device.
10 Learn Button - Activates remote control learning mode.
11 Volume Up Button - Lets you adjust the volume of the system.
12 Volume Down Button - Lets you adjust the volume of the system.

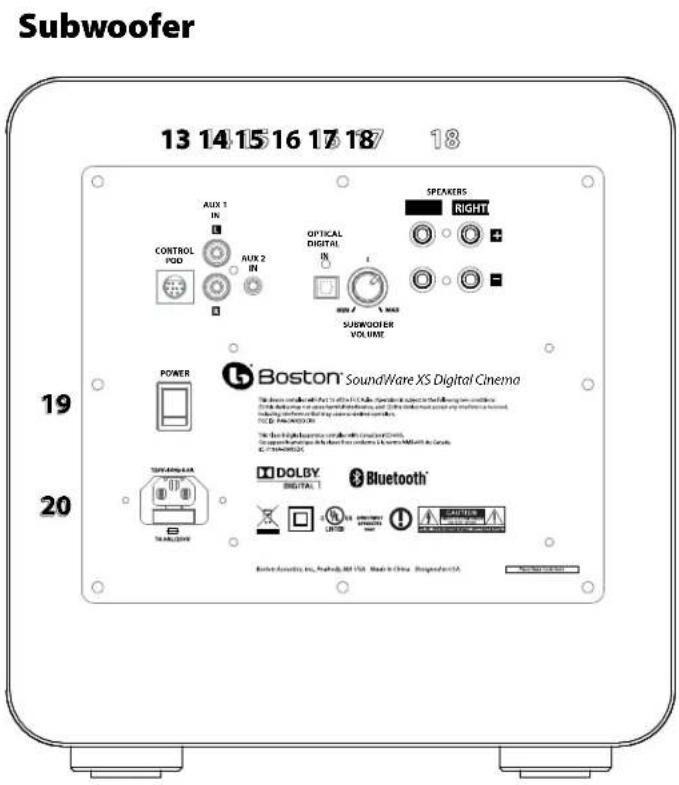

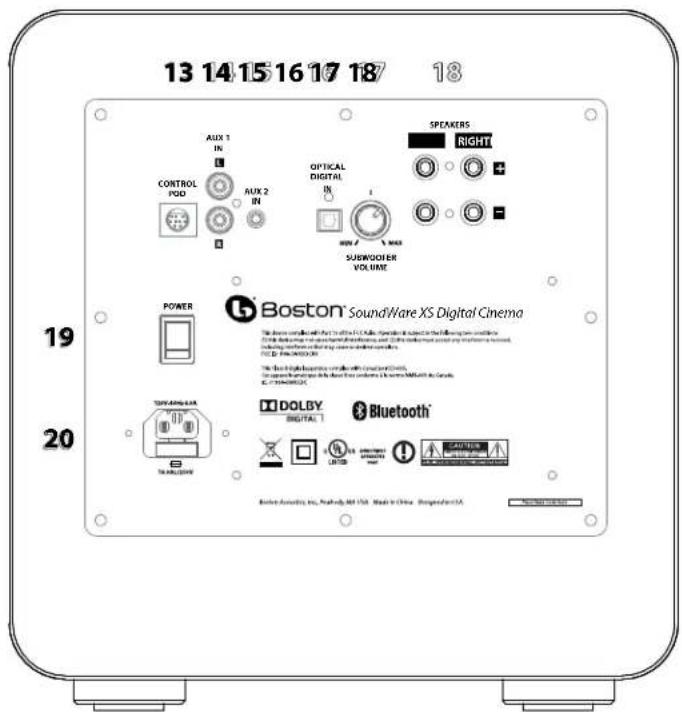

13 Control Pod Input Connects the Control Pod here.
14 AUX 1 (RCA Jacks) - Receives analog audio inputs through the included Audio Connection Cable 24.
15 AUX 2 (3.5mm Miniplug) - Receives analog audio inputs through a 3.5mm miniplug cable (not included).
Optical Digital In - The preferred input for the system using the supplied Optical cable 21.
17 Subwoofer Volume - Adjust volume of subwoofer for best balance with the satellites.
18 Speaker Terminals - Connect the satellites to the output speaker terminals on the subwoofer.
19 Power ON/OFF Switch - Turns the system on or off. Normally it is on all the time.
20 Power Input - Connect the power supply 23 here.

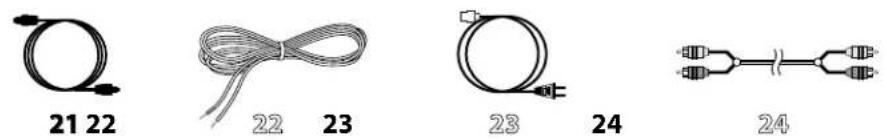

21 Optical Digital Cable - Best choice for connecting your TV to the system.
22 Speaker Wire (2) - For connecting satellites to subwoofer.
23 Power Cord - Plug it into the wall and connect it to the power input 20.
24 Stereo Audio Cable - Analog cable for connecting to the TV, or other source.

Place Your System

Decide on the location and position of the system before making any connections.

Speaker Location

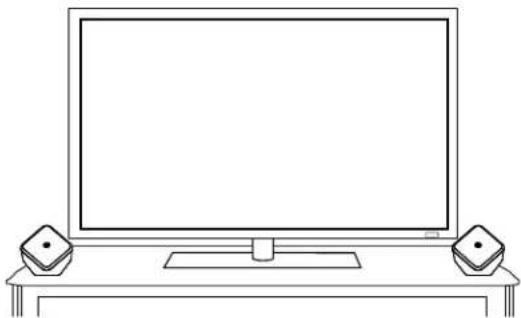

Place the speakers to the left and right of the television. For best performance, place each speaker no farther than 4 ft (1.2m) from side of the television.

On table, cabinet, or shelf On wall

Placement Options

The SoundWare speaker can be wall mounted using the supplied hardware or simply placed on a shelf. If it is being placed on a shelf you can simply attach the adhesive-backed rubber feet and connect the speaker wires.

Attaching the Pivoting Ball Mount

If you plan to use the mounting brackets you must attach the pivoting ball mount to the speaker. Use the four supplied flat-head machine screws as shown in the illustration.

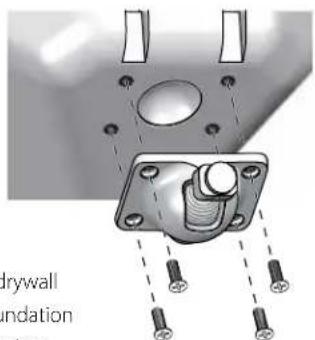

Mounting the Wall Bracket

Brackets for mounting the speakers on a flat wall or in a corner are supplied. One thing that is not supplied is hardware to attach the bracket to the wall. Why? Because there are so many different kinds of surfaces on which the speakers could be mounted. It could be basic drywall which may or may not have a stud behind it. It could be a wood panel or even a concrete foundation wall. There is no one type of fastener that we could supply that would work in all the possible situa

tions. So taking into account the surface the speaker is being mounted on, acquire the appropriate type of fasteners. You'll need four for each speaker. If you're not sure what type of fastener to use, take the mounting bracket to a friendly hardware store, tell them about the wall you're mounting the speaker on, and ask them to recommend an appropriate fastener. Keep in mind the weight of the speaker.

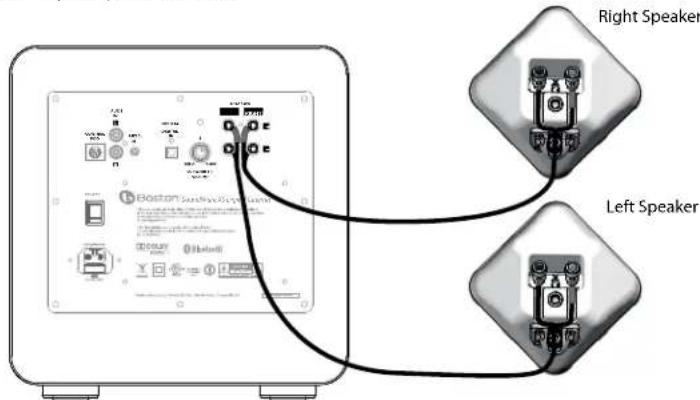

Connecting the Speakers (22)

Use the supplied speaker wire 22 to connect the speakers to the subwoofer. If you need longer wire – for example if you are running wires through the wall – use 18 gauge wire as it will simplify connection to the speaker terminals. All the speakers in a system must be hooked up with the same polarity or "in phase." The terminals on the SoundWare speakers and subwoofer are color coded to identify the "+" (red) and "-" (black) connections.

Connecting the Speakers (Continued)

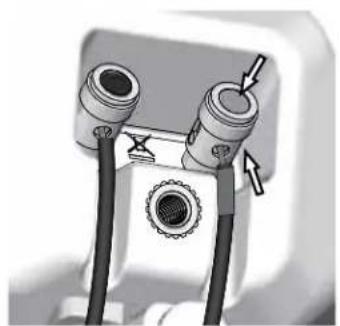

Push down on the top of the terminal to open the hole for the wire. Insert the wire and release the terminal to secure it. Be sure there are no loose strands of wire. Note: there is a channel in the back of the speaker for the wire (for wires up to 16 gauge), to keep it neat and out of sight.

Mounting the Speakers

Once you have the bracket mounted and the speaker connected the rest is easy.

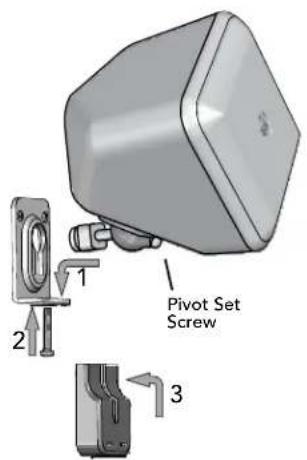

1. Put the rounded end of the speaker mount in the bracket and slide it down to lock it in place.
2. Optional - Insert and tighten the screw to secure everything.
3. Snap the cover over the bracket.

The SoundWare speakers pivot on their mounts. Vertically they can go from facing straight out to being tilted down 40 degrees. When the flat wall mounting bracket is used they can pivot side to side 20 degrees. (Note: Corner mounting will not allow the speaker to pivot side-to-side.) Loosen the pivot set screw on the front of the pivoting ball mount, pivot the speaker into position and retighten the screw.

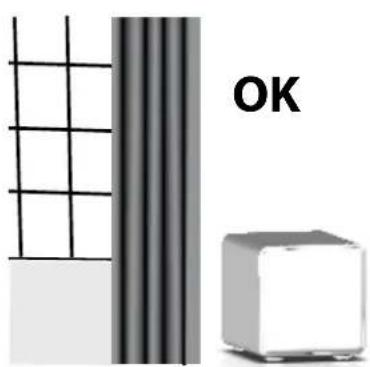

Subwoofer Location

Place the subwoofer on the floor near the television.

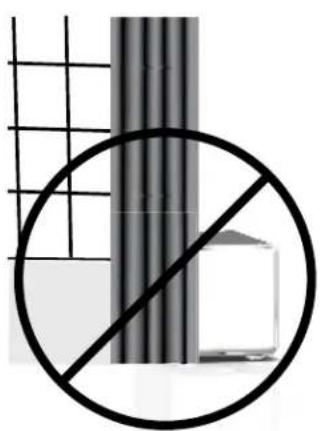

Be careful to avoid obstructing the grille, where the sound comes out. Also, avoid placing the subwoofer in a position where curtains or blankets obstruct airflow around the rear panel.

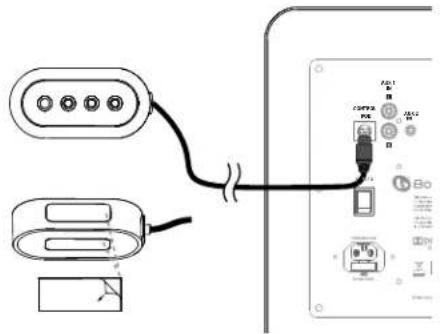

Placing the Control Pod

The Control Pod includes status lights and also the sensor for the remote control. Place the Control Pod above or below your television. If you wish, use the included double-sided tape to make the placement more secure. Make sure you can see the Control Pod clearly from your listening position. Plug the Control Pod into the back of the subwoofer.13

Connect your system

Next you need to connect the subwoofer to your television.

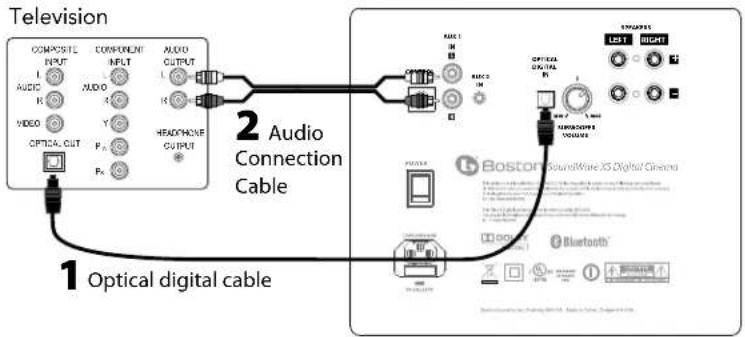

Option 1(For Best Results)

Optical digital cable (included). Note: The optical cable is a glass fiber; be careful to avoid kinking the cable.

-Or-

Option 2

Stereo audio cable (included).

Connect Power

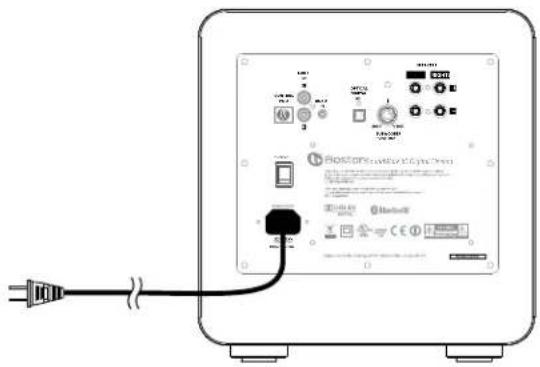

1. Connect the subwoofer power cord to the subwoofer. Plug into an AC power outlet.

2. Turn ON the rear panel power switch on the subwoofer. 19

Power/Remote Light 4

Green: Power on.

Note: The lights only illuminate temporarily to show a mode or function change.

Subwoofer

How do I watch TV?

Select an input (INPUT)

Use the supplied remote Input Button 6 to choose an input. Each time the button is pressed, the input changes in sequence from Optical Digital Input to analog audio Aux 1 input to analog audio Aux 2 input to Bluetooth input, back to optical digital. The color of the Input Mode Light indicates which input is selected.

Input Mode Light 2

Green: Optical Digital Input is selected.
Red: RCA Analog Input is selected.
Orange: 3.5mm Analog Input is selected.
Blue: Bluetooth Input is selected.

Control Pod

1 IR Sensor - Receives remote commands to control the system.
2 Input Mode - Lights in various colors to indicate which playing mode is operating.
3 Music/Movies—Lights in various colors to indicate operating status.
4 Power/Remote - Lights in various colors to indicate power status.

Adjust the Volume

Use the supplied remote volume up and down buttons to adjust the volume. Use the mute button to mute the audio. To cancel audio muting, push the mute, volume up, or volume down buttons.

Power/Remote Mode Light 4

Green Blinking: Mute mode is on.

Music / Movie selection

Use the music/movie button to choose the style of sound you want to hear. Movie mode is like a movie theater or surround sound system and has a wide, spacious sound. We recommend Movie Mode for both TV and movie playback. For enhanced playback of music, the Music mode is like a traditional stereo music system, optimized for pure audio accuracy. Either mode can be used for any type of input or audio. The system will remember whatever mode was last chosen for each input. This is convenient, because you can use Movie Mode for the digital audio input (television) and music mode for Bluetooth (music from a portable device).

Music/Movie Mode Light 3

Green: Playing in Movie Mode.

Orange: Playing in Music Mode.

Adjusting the subwoofer sound level

Use the volume knob on the rear of the subwoofer to adjust its sound output level. In most rooms, setting between 10 and 2 o'clock will sound good. Once set, you typically won't need to adjust this control.

Programming your TV Remote

Your system can learn to respond to your own television's remote control, or the remote for a cable box or DVR. However, please note that the learning process works best with the original television remote. Also the supplied remote will continue to work even after your system learns a new remote command.

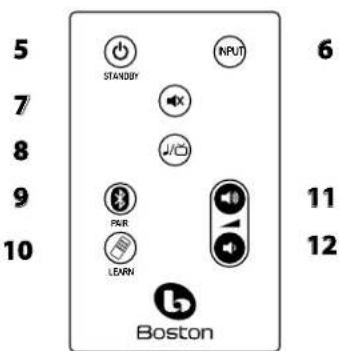

A Press and hold Learn button on the supplied remote for 3 seconds until the Power/Remote Mode light 4 light flashes orange.

B Press Volume Up button on the supplied remote until Power/Remote Mode light 4 turns solid orange.

C Hold your television remote 1 ft (30cm) pointing at the front of the Control Pod, Press Volume Up button on your television remote 4 times with a brief pause (about 1 - 2 seconds) until Power/Remote Mode light 4 flashes green.

Repeat Steps A to C to set up Volume Down, MUTE, Input, Music/Movie buttons, and Standby.

Attention cable/satellite users: If you have trouble programming, with a cable/satellite universal remote, you may have better results to initiate programming using your original television remote. After completing programming with your original television remote you can begin using your cable/satellite remote to control your system.

ABC

Using Bluetooth

Use the Bluetooth wireless input to receive music or any audio from a compatible Bluetooth device, such as a smartphone or computer. The device must be capable of transmitting audio with the Bluetooth A2DP (Advanced Audio Distribution Profile).

Pairing the system to a Compatible Bluetooth Device

Use the Input Button on the supplied remote to select the Bluetooth input, indicated by the Input Mode 2 light being blue. If no device has been previously paired, the SoundWare XS Digital Cinema will automatically enter the pairing mode, and the Input Mode light will blink blue.

Set the Bluetooth device to pairing or discovery mode (check device's user manual for instructions). On your Bluetooth device, SoundWare XS Digital Cinema will be listed as "XS Digital Cinema." If your device requests a pairing code, enter the number 0 0 0 0. Once paired, the Input Mode light will be solid blue for several seconds.

Your system can be paired to more than one device (although only one such device can play music via Bluetooth at a time).

To pair additional devices, first use the Input Button to select the Bluetooth input. Then press and hold Bluetooth Pairbutton for 3 seconds. Pairing mode will be started as above, indicated by a blinking blue light.

PAIR

Using Your Compatible Bluetooth Device with the system

After at least one device has been paired to the system, it will automatically search for available paired devices when you choose the Bluetooth input (indicated by a slow flashing blue light). Typically a smartphone or computer will need to be in a music-playing mode (like the iPod or iTunes mode) before your system will link and play the music. Once linked to one Bluetooth source, your system will stay linked to that device until the device is turned off, moved out of range, or Bluetooth is disabled on the device. If you want to change to another Bluetooth source device, you will need to stop the Bluetooth link (by changing to a non-Bluetooth input on your system AND disabling Bluetooth on the connected device). Then you can select the Bluetooth input on system again, and link to the second device.

Note: If the system loses its connection with a source Bluetooth device while in Bluetooth mode, the system will try to reconnect for 5 minutes, indicated by a slow flashing blue light. Typically this will allow a smartphone user to move out of range and then return, and have your system re-link and continue to play music.

The typical receiving range for Bluetooth is 40 ft. (12 meters) or less. This depends on the source Bluetooth device, as well as other devices that share the same broadcast frequencies such as Wi-Fi and microwave ovens.

Troubleshooting the SoundWare XS Digital Cinema

System does not power on.

Is the power cord plugged into a live wall outlet?
Is the power cord properly connected to the subwoofer?
- Is the rear panel power switch in the "on" position?

Note: The control Pod lights are normally off. Press Volume up to illuminate the lights and confirm the system is on.

No sound from the system.

Is the system connected to an audio source that is playing audio through its output?
Is the system set to the correct input source?
Is the system receiving power and turned on?
- Turn up the volume of the system.
- Turn up the volume of the television or cable box the system is connected to.
- Check Mute status - is the status indicator blinking green?
- For digital TVs or other digital sources, make sure the output format is set to "Dolby Digital." (See the source product's set-up menu)
- For digital sources, make sure the optical cable is not kinked or broken. (This stops the digital light signal)

Bass not loud enough.

• Turn up the subwoofer Volume control.

• Place the subwoofer closer to a wall or corner in the room.

• Some televisions and cable boxes have a mode that limits the bass. Check that product's audio set-up menu and set the audio mode to "wide" rather than "normal" or "narrow."

The system won't learn my remote control commands.

• Carefully follow the programming instructions (page 8).
• Hold the remote steady and 12 inches (30cm) from the front of the Control Pod.
• Press and release the remote control buttons slowly!
• Check the remote control's batteries.

Note: The system learns almost all IR commands, but some IR protocols cannot be programmed.

Volume of my television speakers gets louder than my SoundWare XS Digital Cinema over time.

• When the remote control volume button is held down your television may change volume levels faster than the system.
• If possible, use the television's set up menu to mute the television's own speakers.

Bluetooth input will not pair with a source Bluetooth device.

Make sure the SoundWare XS Digital Cinema is in Bluetooth pairing mode. (See instructions on the previous page.)
- Make sure your Bluetooth source device is in Bluetooth pairing mode. (See instructions for that product.)

• Make sure your Bluetooth source device supports A2DP (Advanced Audio Distribution Profile). Note that some products with Bluetooth only work with Bluetooth keyboards or headsets but may not have A2DP.

Make sure your Bluetooth source is within 10ft (3m) during the pairing process.
- Turn the Bluetooth device off and on (complete power off and reboot) and try to pair again.

Bluetooth input will not play a Bluetooth source that has already been paired.

Make sure the system is not linked to a different Bluetooth source device.
- Make sure your desired Bluetooth source device is playing music or some audio source.

Note that some programs and apps may not support Bluetooth audio broadcast out of your source device. (If you are unsure, consult the instructions for the program or app.)
- Move possible sources of interference, particularly those operating at 2.4 GHz (Wi-Fi, microwave ovens, cordless phones.)

Limited Warranty

Boston Acoustics warrants to the original purchaser of our SoundWare XS Digital System that it will be free of defects in materials and workmanship in its mechanical parts for a period of 5 years from the date of purchase. The warranty period for the electrical components of the system is 1 year.

Your responsibilities are to install and use them according to the instructions supplied, to provide safe and secure transportation to an authorized Boston Acoustics service representative, and to present proof of purchase in the form of your sales slip when requesting service.

Excluded from this warranty is damage that results from abuse, misuse, improper installation, accidents, shipping, or repairs/ modifications by anyone other than an authorized Boston Acoustics service representative.

This warranty is limited to the Boston Acoustics product and does not cover damage to any associated equipment.

This warranty does not cover the cost of removal or reinstallation. This warranty is void if the serial number has been removed or defaced. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

If Service Seems Necessary

United States

First, contact the dealer from whom you purchased the product. If that is not possible, send an email to: [e-mail] or write to:

Boston Acoustics, Inc.

100 Corporate Drive

Mahwah, NJ 07490 USA

Canada

First, contact the dealer from whom you purchased the product. If that is not possible, send an email to: [e-mail]

All Other Countries

Contact the dealer from whom you purchased the product or contact your local distributor.

For more information, please visitBostonacoustics.com/support

This symbol found on the product indicates that the product must not be disposed of with household waste. Instead, it may be placed in a separate collection facility for electronic waste or returned to a retailer when purchasing similar product. The producer paid to recycle this product. Doing this contributes to reuse and recycling, minimizes adverse effects on the environment and human health and avoids any fines for incorrect disposal.

Subwoofer 11 lbs. (5kg)

Controlremoto

Subwoofer

Pod de control

VOLUME NEL DEL SUBWOOFER

Boston Acoustics, Inc.

100 Corporate Drive

Mahwah, NJ 07490 USA

Canada

Boston Acoustics, Division of D&M Europe B.V.

Beemdstraat 11

5653 MA Eindhoven

Pays-Bas

Introduction

Boston Acoustics, Inc.

100 Corporate Drive

Mahwah, NJ 07490 USA

Canada

http://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf08792.html

Uenti eu

RLAN - Radio Local Area Network Equipment

AT	CZ	FI		S	LT	PT	SE	FR
BE	DK	DE	IE	MT		SK	CH	IT
EE	GR	LV	NL	SI		TR	LU	CY
HU	PL	ES	GB	NO

CY

A Anything, e necessary college is subwoofer al televisore.

Boston Acoustics, Inc.

100 Corporate Drive

Mahwah, NJ 07490 USA

Canada

http://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf08792.html

Europeiska anvandare:

RLAN - Radio Local Area Network Equipment

AT	CZ	FI	IS	LT	PT	SE	FR
BE	DK	DE	IE	MT	SK	CH	IT
EE	GR	LV	NL	SI	TR	LU	CY
HU	PL	ES	GB	NO

Denna utrusting far endast anvandas inomhus i FR.
Denna utrusting far endast anvandas i nagons enskilda lokaler i IT.
Denna utrusting ar endast for privat bruk i LU.
Anvandning ar inte tillaten inom en radié av 20 km fran Ny-Alesunds centrum i NO.

Boston Acoustics, Division of D&M Europe B.V.

Beemdstraat 11

5653 MA Eindhoven

Nederländerna

Introduktion

Total systemkraft: 250 watts

Frekvensomrade: 39Hz till 20kHz

Satellithogtalare: 212'' (64 mm) woofers 12'' (13 mm) tweeters

Subwoofer: 8" (203 mm) woofer

Overgangsfrekvenser: 4 kHz Satellit, 180 Hz Subwoofer

Boston Acoustics, Inc.

100 Corporate Drive

Mahwah, NJ 07490 USA

Kanada

Boston Acoustics, Division of D&M Europe B.V.

Beemdstraat 11

5653 MA Eindhoven

Niederlande

Einleitung

Boston Acoustics, Inc.

100 Corporate Drive

Mahwah, NJ 07490 USA

Kanada
