USER MANUAL HI 20.A (WH)1 INDESIT

Description of the appliance-Control Panel,8

7WARNING: The appliance and its

accessible parts become hot during

Care should be taken to avoid

touching heating elements.

Children less than 8 years of age shall

be kept away unless continuously

This appliance can be used by

children aged from 8 years and

above and persons with reduced

physical, sensory or mental

capabilities or lack of experience

and knowledge if they have been

given supervision or instruction

concerning use of the appliance in a

safe way and understand the hazards

involved. Children shall not play with

the appliance. Cleaning and user

maintenance shall not be made by

children without supervision.

WARNING: Unattended cooking on a

hob with fat or oil can be dangerous

and may result in fire.

NEVER try to extinguish a fire with

water, but switch off the appliance

and then cover flame e.g. with a lid or

WARNING: Danger of fire: do not

store items on the cooking surfaces.

WARNING: If the surface in glass-

ceramic is cracked, switch off the

appliance to avoid the possibility of

Do not use harsh abrasive cleaners

or sharp metal scrapers to clean

the oven door glass since they can

scratch the surface, which may result

in shattering of the glass.

The internal surfaces of the

compartment (where present) may

Never use steam cleaners or pressure

cleaners on the appliance.

Remove any liquid from

the lid before opening it.

Do not close the glass cover (if present)

when the gas burners or electric

hotplates are still hot.

WARNING: Ensure that the appliance is

switched off before replacing the lamp

to avoid the possibility of electric shock.

! When you place the rack inside,

make sure that the stop is directed

upwards and in the back of the cavity.FR Français

ATTENTION : cet appareil ainsi que ses

2..Sliding grill rack

4.GUIDE RAILS for the sliding racks

Description of the appliance

ES Description of the appliance

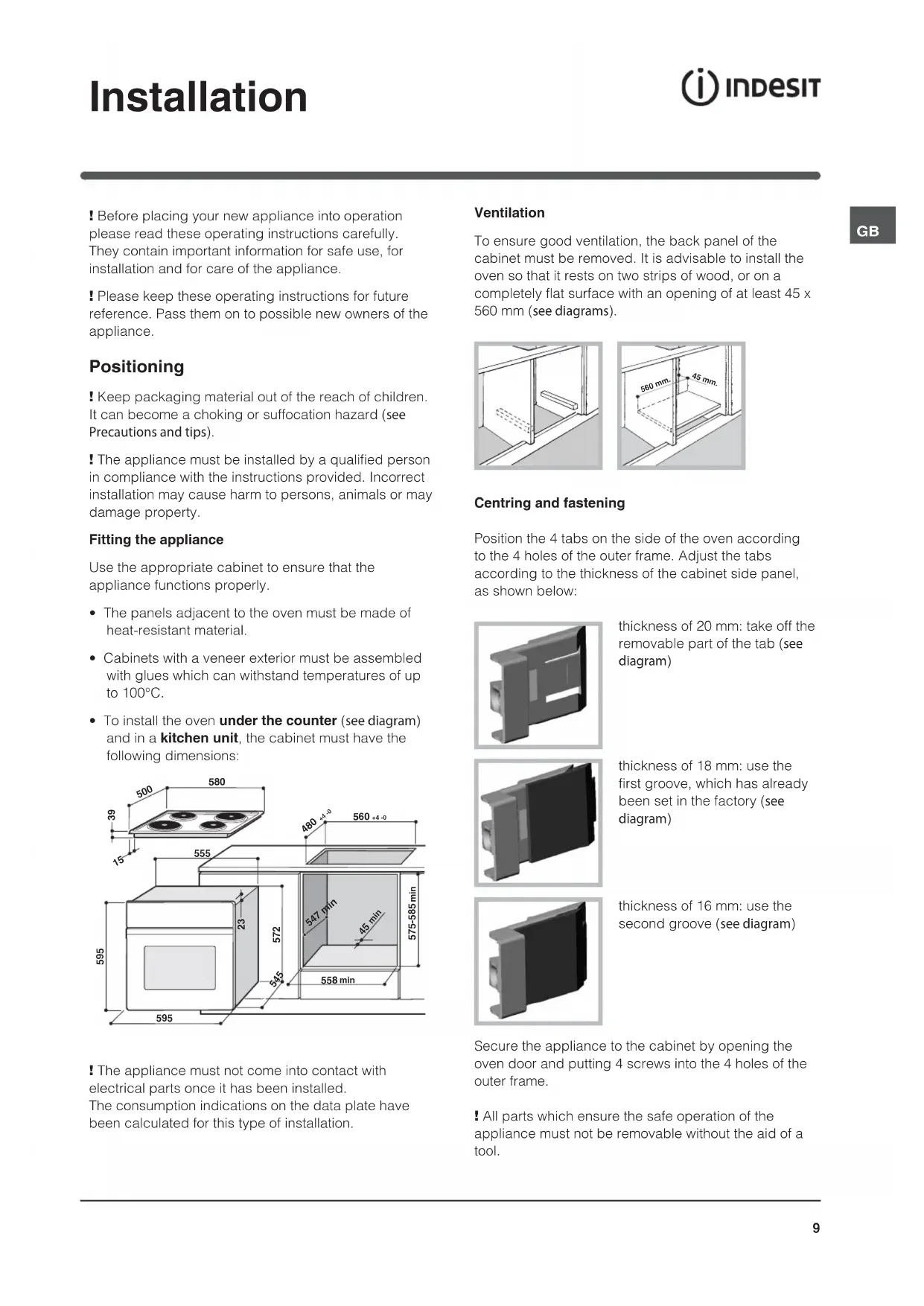

! Before placing your new appliance into operation

please read these operating instructions carefully.

They contain important information for safe use, for

installation and for care of the appliance.

! Please keep these operating instructions for future

reference. Pass them on to possible new owners of the

! Keep packaging material out of the reach of children.

It can become a choking or suffocation hazard (see

Precautions and tips).

! The appliance must be installed by a qualified person

in compliance with the instructions provided. Incorrect

installation may cause harm to persons, animals or may

Fitting the appliance

Use the appropriate cabinet to ensure that the

appliance functions properly.

• The panels adjacent to the oven must be made of

heat-resistant material.

• Cabinets with a veneer exterior must be assembled

with glues which can withstand temperatures of up

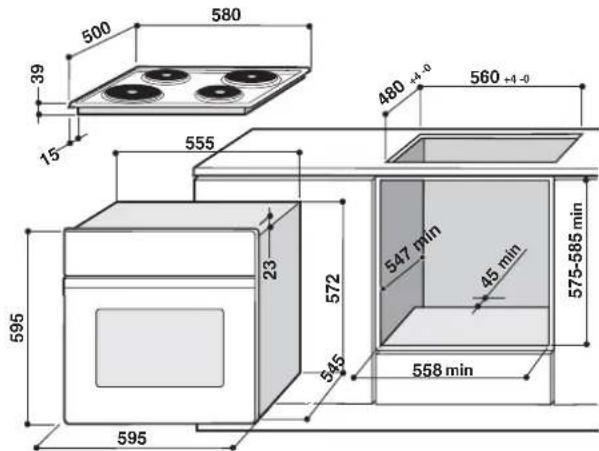

• To install the oven under the counter (see diagram)

and in a kitchen unit, the cabinet must have the

following dimensions:

! The appliance must not come into contact with

electrical parts once it has been installed.

The consumption indications on the data plate have

been calculated for this type of installation.

To ensure good ventilation, the back panel of the

cabinet must be removed. It is advisable to install the

oven so that it rests on two strips of wood, or on a

completely flat surface with an opening of at least 45 x

560 mm (see diagrams).

Centring and fastening

Position the 4 tabs on the side of the oven according

to the 4 holes of the outer frame. Adjust the tabs

according to the thickness of the cabinet side panel,

thickness of 20 mm: take off the

removable part of the tab (see

thickness of 18 mm: use the

first groove, which has already

been set in the factory (see

thickness of 16 mm: use the

second groove (see diagram)

Secure the appliance to the cabinet by opening the

oven door and putting 4 screws into the 4 holes of the

! All parts which ensure the safe operation of the

appliance must not be removable without the aid of a

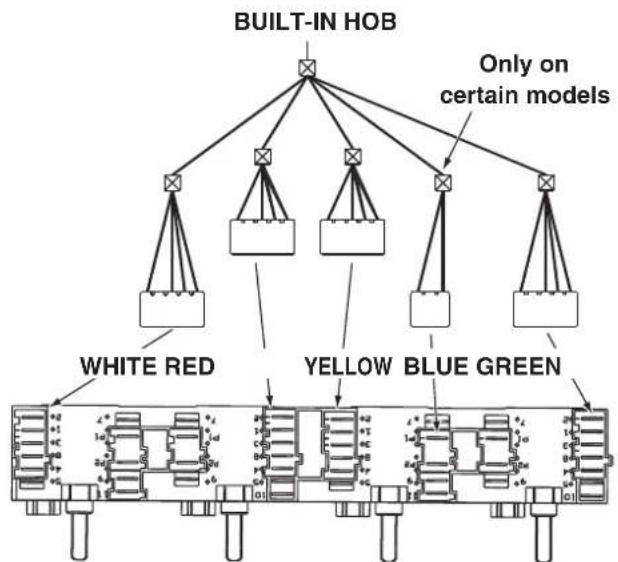

GB Electrical connections The cooker must be connected to the mains electricity supply. It is designed to operate with alternating current at the voltage and frequency indicated on the data plate (see the following page).The hob is connected to the cooker using a special connector.BUILT-IN HOBBUILT-IN COOKERWHITE REDYELLOWBLUE GREENOnly on certain modelsReplace the metal protection after performing all the necessary hob connections. If the hob is removed from its position, the red cap which was originally protecting the red connector must be replaced.Fitting the power supply cable1. Open the terminal board by inserting a screwdriver into the side tabs of the cover. Use the screwdriver as a lever by pushing it down to open the cover (see diagram).2. Install the power supply cable by loosening the cable clamp screw and the wire contact screws L-N-. Connect the wires to the corresponding terminals: the Blue wire to the terminal marked (N), the Brown wire to the terminal marked (L) and the Yellow Green wire to the terminal marked . The terminal board is designed for a 400 V three-phase connection (see diagrams below).If the electrical system has other characteristics (see diagrams below), carry out the electrical connection using the connection supports provided in the box P.3. Secure the power supply cable by fastening the clamp screw.4. Close the cover of the terminal board.

H05 VV-F4x4 CEI-UNEL 3574611

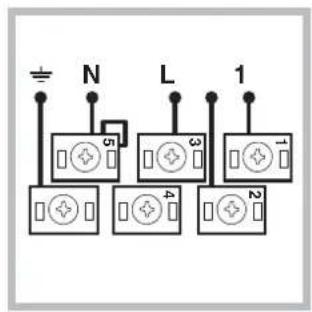

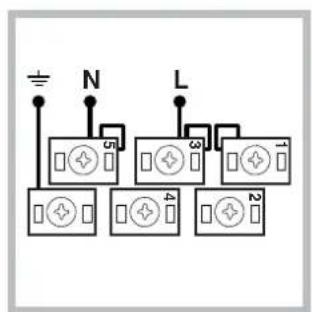

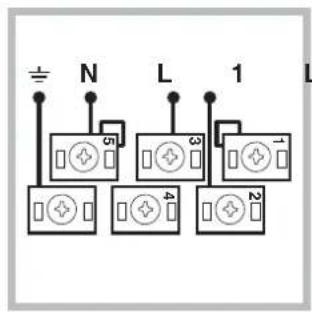

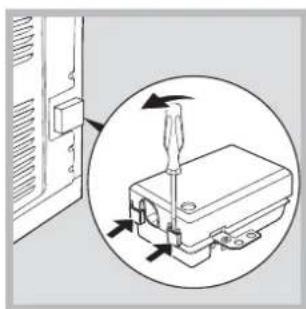

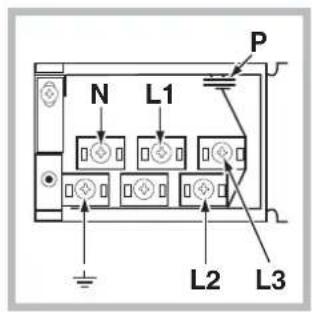

GB Connecting the supply cable to the mains

Install a standardised plug corresponding to the load

indicated on the data plate (see side).

The appliance must be directly connected to the

mains using an omnipolar circuit-breaker with a

minimum contact opening of 3 mm installed between

the appliance and the mains, suitable for the load

indicated and complying with current electrical

regulations (the earthing wire must not be interrupted

by the circuit-breaker). The supply cable must not

come into contact with surfaces with temperatures

! The installer must ensure that the correct electrical

connection has been made and that it is compliant with

Before connecting to the power supply, make sure that:

• The appliance is earthed and the plug is compliant

• The socket can withstand the maximum power of the

appliance, which is indicated on the data plate (see

• The voltage must be in the range between the

values indicated on the data plate (see below).

• The socket is compatible with the plug of the

appliance. If the socket is incompatible with the

plug, ask an authorised technician to replace it. Do

not use extension cords or multiple sockets.

! Once the appliance has been installed, the power

supply cable and the electrical socket must be easily

! The cable must not be bent or compressed.

! The cable must be checked regularly and replaced

by authorised technicians only (see Assistance).

! The manufacturer declines any liability should these

safety measures not be observed.

! The first time you use your appliance, heat the empty

oven with its door closed at its maximum temperature

for at least half an hour. Ensure that the room is well

ventilated before switching the oven off and opening

the oven door. The appliance may produce a slightly

unpleasant odour caused by the burning away of

protective substances used during the manufacturing

1. Select the desired cooking mode by turning the

2. See the Cooking advice table for cooking modes

and the suggested cooking temperatures (see Cooking

3. You may do the following during cooking:

- change the cooking mode by turning the SELECTOR

- stop cooking by turning the SELECTOR knob to the

! Never put objects directly on the oven bottom to

avoid damaging the enamel coating.

! Always place cookware on the rack(s) provided. DATA PLATEDimensionswidth 43.5 cmheight 32,4 cmdepth 43,5 cmVolumelt. 62Electricalconnectionsvoltage: 230V/400V~ 3N 50/60Hzmaximum power absorbed 8400WENERGY LABELEnergy consumption Classcertification Natural convectionheating mode: TRADITIONAL This appliance conforms to thefollowing European EconomicCommunity directives:73/23/EEC of 19/02/73 (LowVoltage) and subsequentamendments;- 89/336/EEC of 03/05/89(Electromagnetic Compatibility) andsubsequent amendments;- 93/68/EEC of 22/07/93 andsubsequent amendments.- 2002/96/ECRegulation (EU) No 65/2014 supplemen-ting Directive 2010/30/EU. Regulation (EU) No 66/2014 implementing Directive 2009/125/EC. Standard EN 60350-1Standard EN 50564.and ECODESIGN12

with the SELECTOR knob the oven

light goes on. It remains on when a cooking mode is

TRADITIONAL OVEN mode

Both the top and bottom heating elements will come

on. With this traditional cooking mode, it is best to use

one cooking rack only; if more than one rack is used,

the heat will be distributed unevenly.

The oven will automatically reach the temperature

set, and the thermostat, which is controlled by the

SELECTOR knob, will keep it constant.

The top heating element comes on. This mode can

be used to brown food at the end of cooking. Always

cook in this mode with the oven door closed.

Practical cooking advice

! In the GRILL cooking mode, place the dripping pan

in position 1 to collect cooking residues (fat and/or

• Insert the rack in position 3 or 4. Place the food in

the centre of the rack.

• The top heating element is regulated by a thermostat

and may not always be on.

• Use a light aluminium pizza pan. Place it on the rack

For a crispy crust, do not use the dripping pan

(prevents crust from forming by extending cooking

• If the pizza has a lot of toppings, we recommend

adding the mozzarella cheese on top of the pizza

halfway through the cooking process.

Cooking advice table FoodsWeight(in kg)Rack positionPre-heating time(min)RecommendedtemperatureCooking time(minutes)PastaLasagneCannelloniTagliatelle 2.5

Veal ChickenTurkey Duck Rabbit Pork

Type of hob The oven is combined with a hob that can be made up of two types of heating elements: cast-iron electric plates (see diagram 1) or glass ceramic hobs (see diagram 2). Switching on the glass ceramic hob

Traditional cooking zones Traditional cooking zones are made up of circular heating elements. They turn red approximately ten seconds after they have been turned on.Each cooking zone is fitted with a control knob allowing you to select from 6 different temperature settings from a minimum of 1 to a maximum of 6. Residual heat indicator lights* The indicator lights (C) indicate that the temperature of the corresponding cooking zones have exceeded 60°C, even after the heating element has been switched off. Recommended power levels for various types of

Practical advice on using the glass

ceramic hob ! The glue that is applied on the gaskets leaves some traces of grease on the glass. Before using the appliance, we recommend you eliminate these with a special non-abrasive cleaning product. During the first few hours of use there may be a smell of rubber which will disappear very quickly.To obtain the best results with your hob:• Use flat-bottomed pans to ensure that they adhere to the cooking zone perfectly.• Always use pans with a diameter that is large enough to cover the hotplate fully, in order to use all the available heat.• Make sure that the bottom of the cookware is always dry and clean to guarantee correct adherence and long life, not only for the cooking zones but also for the cookware itself.• Avoid using the same cookware that is used on gas burners: the heat concentration on gas burners may deform the base of the pan, causing it not to adhere correctly.• Never leave a cooking zone on without cookware on it because as it heats up and rapidly reaches the maximum level, it could damage the heating elements.diagram 2diagram 1

* Only on certain models

Cooking vegetables, fish

Cooking potatoes (using steam) soups,

Continuing the cooking of large quantities

For roasting (above average)

For browning and reaching a boil in a

WARNING! The oven is

provided with a stop sys-

tem to extract the racks

and prevent them from

coming out of the oven.(1)

As shown in the drawing,

to extract them comple-

tely, simply lift the racks,

holding them on the front

part, and pull (2).14

GB Precautions and tips

! The appliance was designed and manufactured in

compliance with international safety standards. The following

warnings are provided for safety reasons and must be read

• The appliance was designed for domestic use inside the

home and is not intended for commercial or industrial use.

• The appliance must not be installed outdoors, even in

covered areas. It is extremely dangerous to leave the

appliance exposed to rain and storms.

• When handling the appliance, always use the handles

provided on the sides of the oven.

• Do not touch the appliance with bare feet or with wet or

moist hands and feet.

• The appliance must be used to cook food by adults only

and according to the instructions in this manual.

• Do not touch the heating elements and parts of the

oven door when the appliance is in use; these parts

become extremely hot. Keep children well away from

• Ensure that the power supply cable of other electrical

appliances does not come into contact with the hot parts

• The openings used for ventilation and dispersion of heat

must never be covered.

• Always grip the oven door handle in the centre: the ends

• Always use oven gloves to place cookware in the oven or

• Do not use aluminium foil to line the bottom of the oven.

• Do not place flammable materials in the oven: if the

appliance is switched on by mistake, it could catch fire.

• Always make sure the knobs are in the “”/“

when the appliance is not in use.

• When unplugging the appliance always pull the plug from

the mains socket, do not pull on the cable.

• Never carry out any cleaning or maintenance work without

having unplugged the plug from the mains.

• In the case of a malfunction, under no circumstances

should you attempt to repair the appliance yourself.

Repairs carried out by inexperienced persons may cause

injury or further malfunctioning of the appliance. Contact a

Service Centre (see Assistance).

• Do not rest heavy objects on the open oven door.

• The glass ceramic hob is resistant to mechanical shocks,

but it may crack (or even break) if hit with a sharp object

such as a tool. If this happens, disconnect the appliance

from the electricity mains immediately and contact a

• Remember that the temperature of the cooking zones

remains relatively high for at least thirty minutes after they

have been switched off.

• Keep any object that could melt away from the hob, for

example plastic and aluminium objects, or products with

a high sugar content. Keep plastic or aluminium objects

away from the hob: if you forget them on surfaces that are

still hot, they may cause serious damage to the hob.

• The appliance should not be operated by people

(including children) with reduced physical, sensory

or mental capacities, by inexperienced individuals or

by anyone who is not familiar with the product. These

individuals should, at the very least, be supervised by

someone who assumes responsibility for their safety or

receive preliminary instructions relating to the operation of

• Do not let children play with the appliance.

• Observe local environmental standards when disposing

packaging material for recycling purposes. Observe

existing legislation when disposing of the old appliance.

• The European Directive 2002/96/EC on Waste Electrical

and Electronic Equipment (WEEE), requires that old

household electrical appliances must not be disposed

of in the normal unsorted municipal waste stream. Old

appliances must be collected separately in order to

optimise the recovery and recycling of the materials they

contain and reduce the impact on human health and the

environment. The crossed out “wheeled bin” symbol on

the product reminds you of your obligation, that when you

dispose of the appliance it must be separately collected.

Consumers should contact their local authority or retailer

for information concerning the correct disposal of their old

Respecting and conserving the environment

• Always keep the oven door closed when using the

GRILL mode to attain best results and to save energy

(approximately 10%).

• Whenever possible, avoid pre-heating the oven

and always try to fill it. Open the oven door as little

as possible because heat is lost every time it is

opened. To save a substantial amount of energy,

simply switch off the oven 5 to 10 minutes before the

end of your planned cooking time and use the heat

the oven continues to generate.

• Keep gaskets clean and tidy to prevent any door

• If you have a timed tariff electricity contract, the “delay

cooking” option will make it easier to save money by

moving operation to cheaper time periods.15

GB Switching the appliance off Disconnect your appliance from the electricity supply before carrying out any work on it. Cleaning the appliance • The stainless-steel or enamel-coated external parts as well as the rubber seals may be cleaned using a sponge that has been soaked in lukewarm water and neutral soap. If these stains are difficult to remove, use only specialised products. After cleaning, rinse and dry thoroughly. Do not use abrasive powders or corrosive substances.• Ideally, the inside of the oven should be cleaned after each use, when it is still lukewarm. Use hot water and detergent, rinse and dry with a soft cloth. Do not use abrasive products.• The accessories can be washed like everyday crockery (even in your dishwasher).! Never use steam cleaners or pressure cleaners on the appliance. Cleaning the oven door Clean the glass part of the oven door using a sponge and a non-abrasive cleaning product, then dry thoroughly with a soft cloth. Do not use rough abrasive material or sharp metal scrapers as these could scratch the surface and cause the glass to crack.To clean more thoroughly, you can remove the oven door.1. Open the oven door fully (see diagram).2. lift up and turn the small levers situated on the two hinges; (see diagram).3. Grip the door on the two external sides and close it approximately half way. Unlock the door by pressing on the clamps F, then pull the door towards you lifting it out of its seat (see diagram).To replace the door, reverse this sequence.Inspecting the sealsCheck the door seals around the oven periodically. If the seals are damaged, please contact your nearest After-sales Service Centre (see Assistance). We recommend not using the oven until the seals have been replaced. Replacing the light bulb To replace the oven light bulb:1. Remove the glass cover of the lamp-holder.2. Remove the light bulb and replace it with a similar one: Wattage 25 W, cap E 14.3. Replace the glass cover (see diagram). Assistance Communicating:• appliance model (Mod.)• serial number (S/N)This information is found on the data plate located on the appliance and/or on the packaging.

F F Maintenance and care ! Do not use the oven lamp as/for ambient lighting.• The base of your pot or pan should cover the hot plate. If it is smaller, precious energy will be wasted and pots that boil over leave encrusted remains that can be difficult to remove.• Cook your food in closed pots or pans with well-fitting lids and use as little water as possible. Cooking with the lid off will greatly increase energy consumption• Use purely flat pots and pans• If you are cooking something that takes a long time, it's worth using a pressure cooker, which is twice as fast and saves a third of the energy.16

modifications successives
