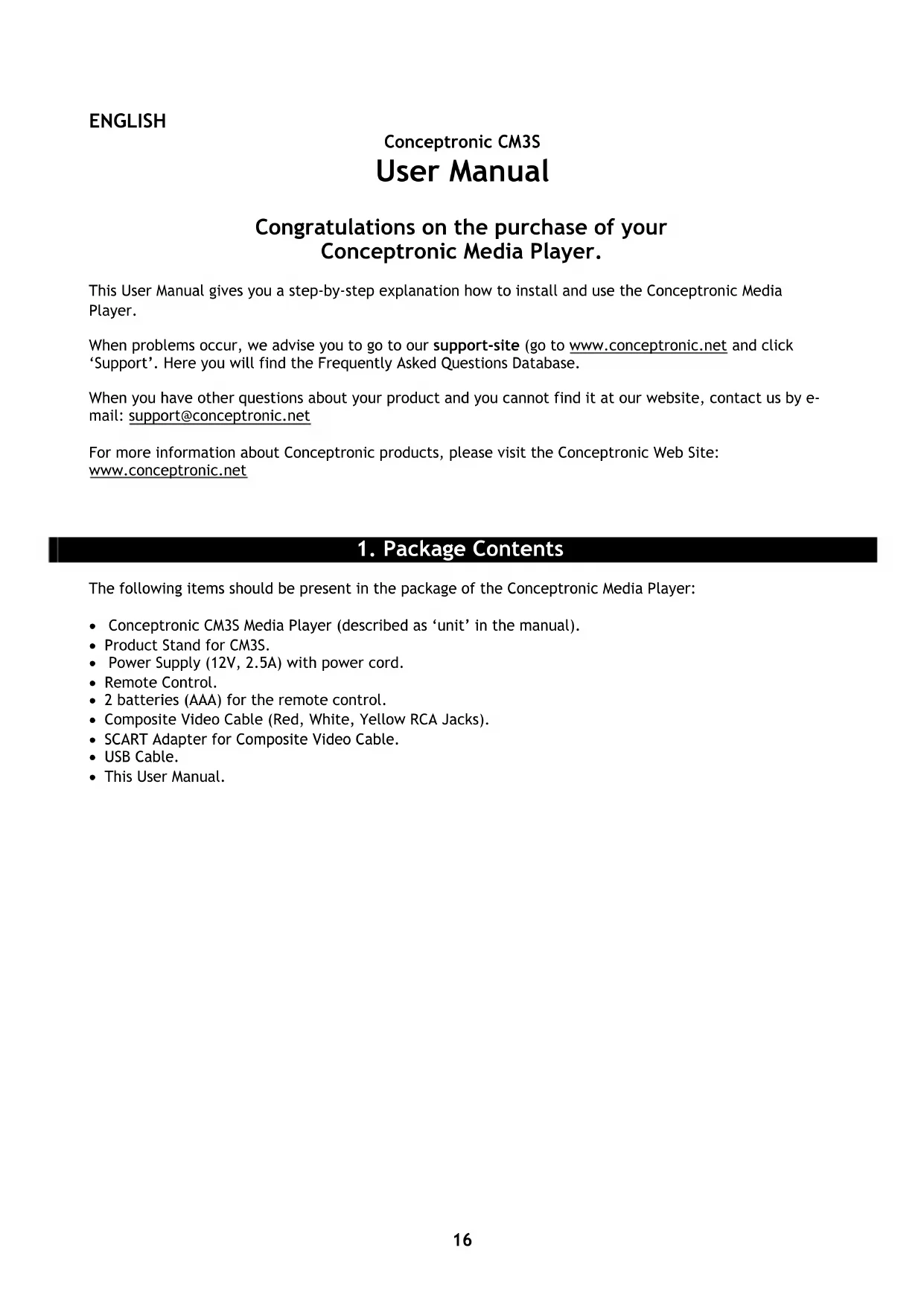

Conceptronic CM3S User Manual

Congratulations on the purchase of your

Conceptronic Media Player.

This User Manual gives you a step-by-step explanation how to install and use the Conceptronic Media

When problems occur, we advise you to go to our support-site (go to www.conceptronic.net

‘Support’. Here you will find the Frequently Asked Questions Database.

When you have other questions about your product and you cannot find it at our website, contact us by e-

mail: support@conceptronic.net

For more information about Conceptronic products, please visit the Conceptronic Web Site:

www.conceptronic.net

The following items should be present in the package of the Conceptronic Media Player:

• Conceptronic CM3S Media Player (described as ‘unit’ in the manual).

• Product Stand for CM3S.

• Power Supply (12V, 2.5A) with power cord.

• 2 batteries (AAA) for the remote control.

• Multi-language user interface: English, Dutch, Spanish, French, Italian, German, Portuguese

• Supports multiple HDD partitions.

• Media files previewing.

• Supports text subtitle (.SMI/.SRT/.SUB/.SSA) for MPEG4 (AVI), D1 resolution.

• Supports AVI (MPEG4), MPG (MPEG1, MPEG2), DAT (VCD), VOB (DVD), WAV, WMA, MP3, JPG.

• Various Codec’s supported. Check our website for a full list of supported Codecs.

• Outputs: Composite video/Component video/RCA audio/Optical audio.

• Compliant with PAL/NTSC.

• Various repeat modes.

• Viewing photos in various ways.

• Slide show (slide photo play back) with background music.

• 14 transition modes; display interval changeable.

• Zoom, rotation, move functions.

• Files can be sorted by name/size/time/type.

• Auto switch between PC-USB and Media Player Mode:

• When connected to the PC, the unit acts as an USB Storage Device.

• When not connected to the PC, the unit acts as a Media Player.

• Do not attempt to disassemble the included power adapter. This may cause high-voltage injuries. If the

adapter needs to be fixed, please contact your dealer or the helpdesk of Conceptronic.

• Keep the unit away from excessive moisture.

• Do not immerse or expose the unit to liquids.

• Disconnect the power adapter if you do not intend to use the unit for an extended period of time.

• Avoid using the unit in a location near combustibles.

• Change the battery of the remote control with the same kind when it is weak or dead. Recycle old

batteries where possible. To avoid corrosion, remove the battery when the remote will not be used for a

• Keep the remote away from excessive moisture; do not drop it.

• Do not operate the remote under intense sunlight.

• NEVER drop, shake or bump the unit.

• To prevent overheating, do not cover the unit.

• The unit only supports the FAT / FAT32 File system (NTFS is not supported).

When you format the Hard disk to NTFS, it only functions as removable harddisk for your

computer. Reformat the Harddisk to FAT32 to activate the Media Player functionality.

The data on the internal harddisk and/or the connected device(s) can be fragmented. This can

affect the playback of movies. It is recommended that you defragment the harddisk and/or the

connected device(s) on your computer once in a while.ENGLISH

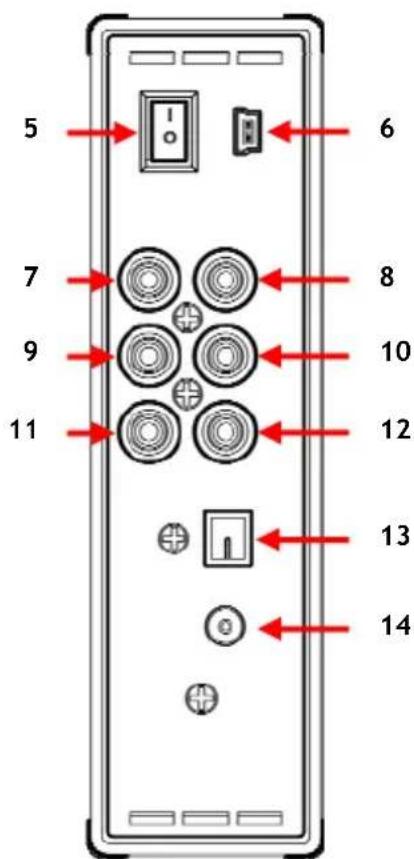

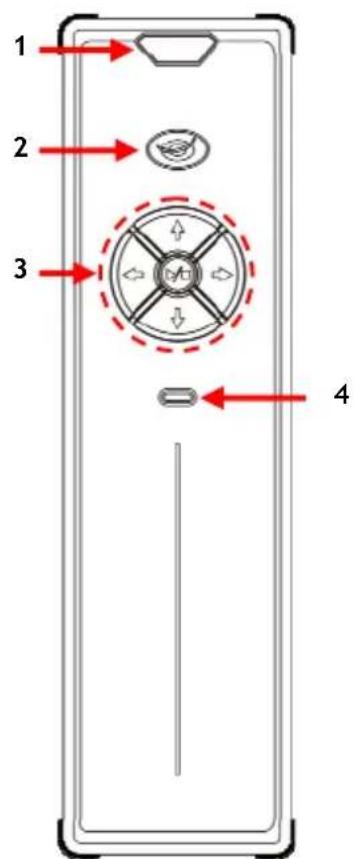

Front View Rear view

Description of the numbers:

1. Infrared Receiver 7. Component ‘Pb’ Output

2. Power / Standby LED 8. Component ‘Pr’ Output

3. Operation Buttons

(see below) 9. Component ‘Y’ Output

4. HDD Activity LED 10. Composite Video Output

11. Audio ‘R’(right) Output

12. Audio ‘L’(left) Output

5. Main Power Switch 13. Digital Optical Output

/ ) Short press: Start or stop the playback of a file, or to open a folder.

Switch between Player mode and Network mode.

5. Remote Control Explanation

The remote control is used to control the unit. On the inside cover of this manual you will find a picture of

the remote control. The numbers of the buttons correspond with the table below, to explain each function

of the remote control.

Nr Button Description

1 POWER ( ) Switch between Media Player Mode or Standby Mode

2 R / L Change the audio output (Stereo, Mono-L, Mono-R).

3 TOP Go to the top of the current file list.

4 MUSIC Start music playback mode with subdirectories.

5 FILE Show the ‘File Library’.

6 0 – 9 Numeric selection keys 0-9.

7 AUDIO Select or change the audio stream (DVD Playback).

8 SLIDE Start a Music-slide-show mode or start video step-play.

9 SLOW Play back slowly.

10 A – B Play a selected interval repeatedly.

11 REPEAT Select a repeat mode.

12 VOLUME Increase the volume.

14 BACK Back to the previous folder.

, , , Move the selection in the main menu.

) Switch to previous file or chapter.

17 PLAY/PAUSE Start the playback of a file or DVD-Folder or pause a playback.

) Fast Rewind during playback.

20 SETUP Open the Setup menu.

) Fast forward during playback.

) Switch to next file or chapter.

) Confirm selection or start playback.

25 DISPLAY Show file information during playback.

26 PAGE Show the next page with files.

27 PAGE Show the previous page with files.

28 MUTE Mute or cancel mute.

29 ROTATE Rotate photos.

30 DELAY Select the slide show (include music-slide-show) interval time.

31 ZOOM Zoom in or out (Photos & DVD Playback).

32 TRANS Select a mode of transition during a slideshow or a type of music

equalizer during music playback.

33 SUB-T Select or change movie Subtitle (MPEG4 & DVD Playback).

34 VIDEO Direct access button to your predefined Video folder.

35 PHOTO Direct access button to your predefined Photo folder.

36 FUNC Show the file operations menu.

37 P / N Select a video system. (PAL / NTSC)

38 MENU A. Show the ‘Device List’ or ‘File Library’

B. Return to the DVD Menu (DVD Playback).

39 Power LED The Power LED will blink when a button is pressed.ENGLISH

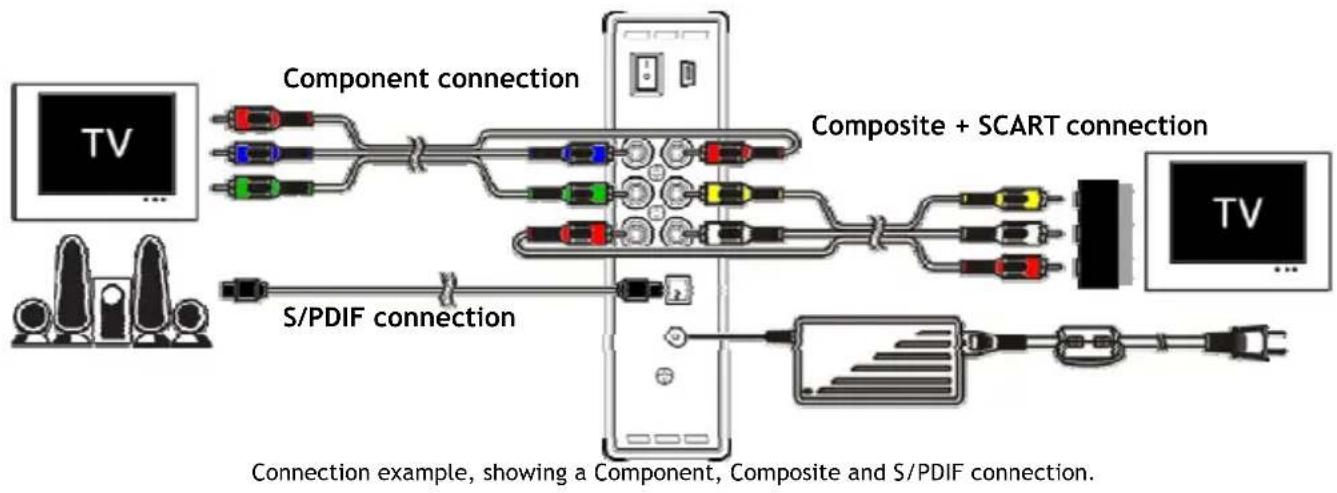

6. Connecting your CM3S Connection example, showing a Component, Composite and S/PDIF connection.

Connecting the Video Cable(s)

You can connect the unit in 3 different ways to your TV:

- SCART (by using the Composite cable & Scart adapter)

** When using Component, only the video signal is send to your TV or monitor.

For the audio signal, use the Audio RCA Jacks on the Composite cable (Red, White).

• Connect the Composite cable (Yellow, Red, and White) to the corresponding Composite jacks [10 , 11 ,

• Connect the other side of the Composite cable (Yellow, Red, and White) to your TV.

• Connect the Composite cable (Yellow, Red, and White) to the corresponding Composite jacks [10 , 11 ,

• Connect the other side of the Composite cable (Yellow, Red, and White) to the jacks on the SCART Adapter.

• Connect the SCART Adapter to the SCART Input of your TV.

• Connect the Component Cable (Red, Green, and Blue) to the Component jacks [7, 8, 9] of the unit.

• Connect the other end of the Component cable to the Component Jacks on your TV.

Component connection

S/PDIF connectionENGLISH

Connecting the Audio Cable(s)

You can connect the unit to your TV and/or your home cinema system in 2 different ways:

- Analog, through the RCA Audio Jacks of the unit.

- Digital, Through the Optical Digital S/PDIF output of the unit.

• Connect the Audio jacks (Red, White) of the Composite cable to the RCA Audio jacks [11 , 12] of the

• Connect the other end of the Composite cable to the RCA Audio Jacks of your TV or receiver.

• Connect the Digital optical cable to the S/PDIF output [13] of the unit.

• Connect the other end of the Digital optical cable to the Digital optical input of your receiver.

Connecting the Power Supply

When the unit is connected to your Audio/Video equipment, you can connect the power supply to the unit.

• Connect the included power supply to the DC input [14] of the unit and to a free wall socket.

• Set the main power switch on the back of the unit to ‘I’ to power the unit.

The unit will now turn on.

Preparing the Remote Control

The remote control is using 2x AAA batteries (provided with the package).

You need to use the remote control to turn on/off the unit.

- The best operational range of the remote control is about 5 meters.

- Point the remote control to the IR receiver which is embedded in the front panel of the unit.

- The receiving angle of the IR receiver is ±30 degrees.

- Change the batteries (2x AAA) when they are weak or empty.ENGLISH

7. Basic CM3S operation

• Select the correct input channel on your TV where the unit is connected to. (Composite, SCART or

From this point, the manual is based on the fact that your TV is set to the input channel of the

unit. All steps described are related to the operation of the unit.

• Check if the main power switch on the back of the unit is set to ‘I’.

• Turn on the unit with the power button on the front of the unit, or with the ‘Power’ button (1

The unit will turn on and display the menu on your screen.

The default output signal of the unit is Composite Video. If the unit is turned on and nothing is

shown on your screen, you can press the OUTPUT button on the remote control to switch between

the various outputs of the CM3S (Composite, Component).

The unit needs to initialize the harddisk when it is turned on. This can take a little while. During

initializing, the message ‘Wait...’ is shown on your screen.

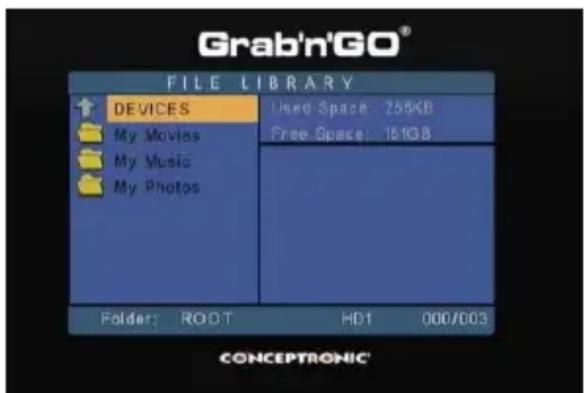

When the harddisk is formatted with 1 partition, it will show the ‘File Library’ on your screen, displaying

the contents of your harddisk.

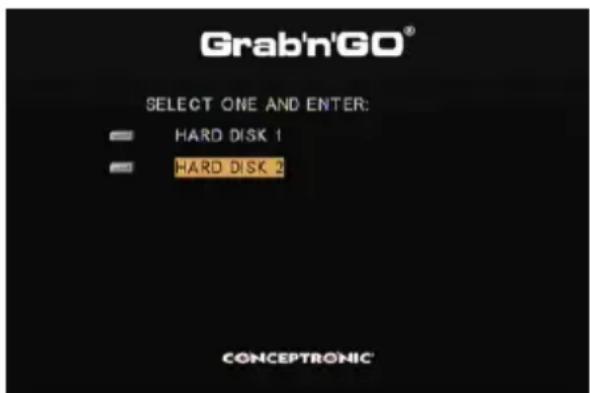

When the harddisk is formatted with multiple partitions, the unit will show the ‘Device List’ on your

screen with all the present partitions. Use

/ buttons (15) to move the selection, and press the

/Enter’ (24) button to go to the ‘File Library’, showing the contents of the selected partition.

[ Device List ] [ File Library ]

Change the partition:

When the harddisk is formatted with multiple partitions, you can press the ‘Menu’ (38

remote control to go to back to the ‘Device List’ and select a different partition.ENGLISH

8. Media Playback options

8.1 Playback of your movies

The CM3S is supporting various video formats: MPEG2/1, MPEG 4 including (XVID, VOB format) including

support for playing MP3, AC3, AAC and MPG1/2 audio tracks within video).

• Select the file you would like to play with the navigation buttons on the remote control.

• Press the ‘Enter’ (24

) button or the ‘Play/Pause’ (17) button on the remote control to start the

playback of the selected file.

During playback, you can use the following playback options on the remote control:

- Play/Pause (17) Play the selected file or pause the playback.

- Stop (22) Stop the playback.

- Rewind (18) Rewind the playback.

- Fast Forward (21) Fast Forward the playback.

- Previous (16) Play the previous file in the current folder.

- Next (23) Play the next file in the current folder.

- Repeat (11) Change the Repeat option of the current file/folder.

- Display (25) Display the playback details.

Most Video Codec’s are supported on the CM3S (Like XviD, AVI, MPEG2, etc.) but it is possible that

you have files that require a Codec, which is not included with the CM3S.

If you try to playback a file with a not supported Codec, you will see the message “CODEC NOT SUPPORTED”. When this happens, we suggest you to use a different codec for your movie.

Subtitle Playback functionality

Support for playing MPEG4 video with text subtitles.

The Conceptronic CM3S can support .SMI, .SRT, .SUB or .SSA subtitle files.

If the subtitle file has the same name as the selected video file (only extension is different) the subtitle

file will be loaded automatically when the MPEG4 file is played, for example:

Movie name: My_Movie_With_Sub.AVI Subtitle name: My_Movie_With_Sub.SRT When the subtitle file has a different name than you need to select the subtitle file manually. Select the

subtitle file and press the ‘Sub-t’ (33

) button on the remote control to select the subtitle. Select the

movie and press the ‘

/Enter’ (24) button to play the movie.

DVD Playback functionality

The CM3S plays DVD’s from the hard disk as if they are a normal DVD. You can navigate through the DVD Menu, choose subtitles or change audio languages.

The CM3S only supports the playback of unprotected DVD copies. CSS protection is not supported

The CM3S only supports Region 2 or Region free DVD copies.ENGLISH

• Connect the CM3S to your computer. See chapter ‘10. Computer USB Connectivity’.

• Create a folder on the CM3S hard disk with the name of your DVD movie (for example: 'Movie1').

• Copy the 'AUDIO_TS' and 'VIDEO_TS' (including content) from your DVD to the created folder (for

example: ‘Movie1’) on the CM3S.

After copying, the structure should be:

|-> AUDIO_TS (optional, not available for every DVD)

|-> VIDEO_TS (with all the DVD files inside)

• Disconnect the CM3S from your computer and connect it to your TV. Turn on the CM3S.

• Select the DVD you want to play with the ‘

, , , ’ buttons (15) on the remote control.

• Press the ‘Play/Pause’ (17

) button on the remote control to start the playback of the selected DVD.

Do not use the ‘Enter’ (24) button to start. This will only show the files/subfolders and does not

During DVD playback, you can use the following playback options on the remote control:

- Play/Pause (17) Play the selected DVD folder or pause the playback.

- Stop (22) Stop the playback of the DVD and return to the Movie browser.

- Navigation keys (15) Navigate through the DVD Menu.

- Enter (24) Confirm DVD Menu selection(s).

- Rewind (18) Fast Rewind.

- Fast Forward (21) Fast Forward.

- Previous (16) Previous Chapter.

- Next (23) Next Chapter.

- Sub-t (33) Change or turn off the subtitle of the DVD.

- Audio (7) Change the audio track of the DVD (when the DVD contains multiple

- Menu (38) Return to the DVD Menu.

Direct access button to your video folder

You can create 1 video folder, which can be directly accessed by pressing the ‘Video’ (34

remote control. Create a folder called ‘VIDEO xx’ (Where ‘xx’ can be changed to whatever you want) on

the root of the hard disk and place your video files in this folder. When the media player is started and you

press the ‘Video’ (34

) button, the media player will automatically open the folder.

If you create more than 1 folder beginning with ‘VIDEO’, the unit will only open the first folder.

Some MPEG2/VOB files contain two or more audio streams. By pressing the ‘Audio’ (7

remote control, you can cycle between the audio streams. You can use the ‘Audio’ (7

video file you are playing does not have sound, so you can locate the proper audio stream.

If you switch from MPEG2/VOB file, you can loose the audio if it is not on the default stream. To prevent

this, press the ‘Setup’ (20

) button during playback to “lock” the current audio stream. This option will

keep the selected audio stream for all files.ENGLISH

8.2 Playback of your Music

The Conceptronic CM3S has various modes in which you can play music (WAV, MP3 and WMA is supported).

• Select the file you would like to play with the navigation buttons on the remote control.

• Press the ‘Enter’ (24

) button or the ‘Play/Pause’ (17) button on the remote control to start the

playback of the selected file.

During playback, you can use the following playback options on the remote control:

- Play/Pause (17) Play the selected file or pause the playback.

- Stop (22) Stop the playback.

- Rewind (18) Rewind the playback.

- Fast Forward (21) Fast Forward the playback.

- Previous (16) Play the previous file in the current folder.

- Next (23) Play the next file in the current folder.

- Repeat (11) Change the Repeat option of the current file/folder.

- Trans (32) Select a type of Equalizer.

Music playback with subfolders

You can play music files including subfolders with the ‘Music’ (4

) button on the remote control.

Use the navigation keys on the remote control to select the folder which contains the music you want to

play. Press the ‘Music’ (4

) button on the remote control to make a list of all music files in the selected

folder and subfolders.

If you press the ‘ /Enter’ (24) button instead of the ‘Music’ (4) button, the folder will be

opened instead of played including subfolders.

Setting up the folder “MUSICDIR” for quick access

To prepare your CM3S to play music automatically you have to create a special folder when you have

connected your CM3S to your computer.

• Create the folder ‘MUSICDIR’ on the root of the first partition.

• Create sub-folders named by three digital numbers, for example, ‘001’, ‘002’, ‘003’, etc. (You can

create folders up to ‘999’).

• Copy music files into these folders

To play the created music folders, follow the next steps when the unit is in use:

• Press the first digit of the folder and wait for the following message in your screen:

‘AUTO PLAY: MP3 -> ___’

• Press the other 2 digits of the subfolder you want to play.

The time between entering the first digit and the message on your screen will increase when you

have more data on your harddisk.ENGLISH

8.3 Playback of your Photos & Picture

With the CM3S, you can view your photos and pictures, which can be stored on the HDD of the unit.

• Select the file you would like to play with the navigation buttons on the remote control.

• Press the ‘Enter’ (24

) button or the ‘Play/Pause’ (17) button on the remote control to start the

playback of the selected file.

During playback, you can use the following playback options on the remote control:

- Play/Pause (17) Start a slideshow starting with the selected file, or pause the

- Stop (22) Stop the slideshow.

- Navigation keys (11) Rotate the shown photo.

- Previous (16) Play the previous file in the current folder.

- Next (23) Play the next file in the current folder.

- Repeat (11) Change the Repeat option of the current file/folder.

- Display (25) Display the slideshow details.

- Delay (30) Change the slideshow interval time.

- Trans (32) Change the transition between 2 photos.

- Rotate (29) Rotate the current photo.

- Zoom (31) Zoom on the current photo.

(viewing photos with background music)

Select a photo and press the ‘Slide’ (8

) button to start the music slideshow.

When you do not press the ‘Slide’ (8

) button, the music is not played and the images will be displayed in a

non-music slideshow. When there is no music in the folder available the music slideshow functionality does

not work. You need to press the ‘

/Enter’ (24) button to have a slideshow of images without sound.

In this mode, the Rotate and Zoom function are not accessible.

You can pause viewing the slideshow by pressing the ‘Play/Pause’ (17

) button once (the music will

continue playing). Press the ‘Play/Pause’ (17

) button again to stop the music too. Press the ‘Play/ Pause’

) button again time to resume the music slideshow.

Direct access button to your Photo folder

You can create 1 photo folder, which can be directly accessed by pressing the ‘Photo’ (35

remote control. Create a folder called ‘PHOTO xx’ (Where ‘xx’ can be changed to whatever you want) on

the root of the hard disk and place your photo files in this folder. When the media player is started and you

press the ‘Photo’ (35

) button, the media player will automatically open the folder.

If you create more than 1 folder beginning with ‘PHOTO’, the unit will only open the first folder.ENGLISH

9. System Configuration

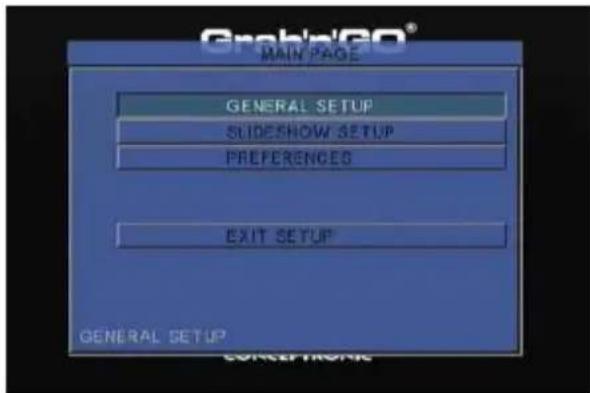

You can press the ‘Setup’ button on your remote control to open the Setup Menu of the unit.

/ / / buttons to move the selection in the Setup Menu, and press the / ENTER button to

confirm the selection. When you are finished with configuring your unit, press the Setup button again to

close the Setup Menu, or select the option ‘Exit Setup’ in the Setup Menu.

The Setup Menu contains the following options:

Preview : Turn on or off the file preview mode.

TV Display : Change the TV Display setting.

TV SYS : Select a video system for your TV.

Slideshow Mode : Configure the Slideshow mode.

Interval time : Select the interval time between two photos.

Trans speed : Select the transition speed between 2 photos.

Transition : Select the default transition used between 2 photos.

Video Output : Set the video output signal for the unit.

OSD Message : Enable or disable OSD messages during playback.

Default : Reset the unit to the factory default settings.

Auto Start : Automatically play all media files on the CM3S when the unit is turned on.

File Sort : Select how to sort the files on the CM3S.

When selecting ‘Firmware Version’, the firmware version of your CM3S is shown in the lower left corner of

10. Computer USB Connectivity

The unit can be connected to your computer to copy data (movies, music, pictures, records, etc.) from and

to the internal HDD.

In our example below, we are using a computer running Windows XP, but the unit can be used on

all computers with USB support and the capability of reading & writing FAT32 file systems.

Connect the unit to your computer

• Connect the delivered USB to Mini-USB cable to the backside of the unit and to a free USB port on your

• Turn the unit on with the main power switch on the backside of the unit. The unit will be recognized

and installed automatically and will be shown as an extra drive on your computer.

By default, the internal HDD of the unit will be initialized as an USB storage device.

Disconnect the unit from your computer

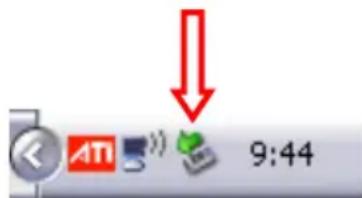

• Single-click the ‘Safe Removal’ icon on the system tray.

• Select ‘Stop USB Mass Storage Device’ when prompted.

11. Tips & Troubleshooting

Use the tips below for troubleshooting when your CM3S is not working properly:

The Power LED doesn’t light up:

• The power supply is not connected to the CM3S. Reconnect the power supply to the CM3S.

There is no activity on the display:

• The CM3S is in standby state. Press the ‘

’ (1) button on the remote control to activate it.

• The Wrong input source on your TV is selected. Change the input source.

• The Wrong video system is selected. Press the ‘Output’ (19

) button on your remote control to switch

• The Video cable is not connected properly. Check if the Video Cable is connected correctly.

When the unit is turned on, only a ‘bling’ sound can be heard, but no menu is shown:

• The Wrong video system is selected. Press the ‘Output’ (19

) button on your remote control to switch

• The Video cable is not connected properly. Check if the Video Cable is connected correctly.

• The Audio cable is not connected properly. Make sure the cable is connected correctly to your TV or

• The CM3S is connected with an amplifier, but the amplifier is turned off. Turn on the amplifier.

• The audio stream of the MPEG2 or VOB file is invalid. Press the ‘Audio’ (7

) button on the remote control

to adjust to the proper audio stream.

• The Mute function is on. Press the ‘Mute’ (28

) button on the remote control again to cancel mute.

• The CM3S is functioning in Fast Forward or Fast Rewind mode. Press the ‘Play/Pause’ (17

remote control to return to normal playback.

The display is distorted:

• The CM3S is functioning in Fast Forward or Fast Rewind mode. Press the ‘Play/Pause’ (17

remote control to return to normal playback.

• A PAL movie is played at NTSC mode or vice versa. Press the ‘P/N’ (37

) button on the remote to change

the display settings.

When pressing the ‘Slide’ button, the system freezes:

• There are too many photos or music in the current folder. It will take a long time to start Music-Slide-

Show. Please wait for playback.

The Remote control doesn’t work:

• Point the remote control to the CM3S receiver in about ±30 degrees and directly.

• Use the remote control in the range of 5 meters.

• The remote control batteries (AAA) should be replaced.

The subtitles of the played movie are not displayed:

• An AVI file is played, but the subtitle file contains a different filename. See chapter 8.1 how to display

When trying to play video, the message “CODEC NOT SUPPORTED” is displayed;

• The movie file is created with a not-supported codec for the CM3S.

Refer to the website, www.conceptronic.net

for a list of supported codecs for the CM3S.ENGLISH

The CM3S does not display all HDD partitions / content:

• The partition on the HDD is not primary. Re-partition the HDD again and make sure all partitions are set

• The partition is not FAT32 formatted. Re-format the partition with FAT32 File system.

• There are no media files on the selected partition.

The DVD playback does not start when the Play/Pause button is pressed:

• Make sure you use the correct folder structure. The folder structure is described in chapter 8.1.

The DVD Files are incomplete, corrupt or damaged. When this happens, the CM3S does not start DVD

During the intro-movies of the DVD, the screen goes blank:

• The current chapter ends with a blank screen or is too short to playback. Press the ‘Next’ (23

switch to the next chapter.

My TV shows a black/white picture instead of color:

• Your TV cannot handle the "Multi" TV-System of the CM3S. Use the Setup menu to change the TV System

to PAL. (See chapter 9). After changing the TV System, turn off and on the CM3S.ESPAÑOL

“AUTO PLAY: MP3 -> ___”

Conceptronic Media Players.

When the harddisk is formatted with multiple partitions, you can press the ‘Menu’ (38

remote control to go to back to the ‘Device List’ and select a different partition.DEUTSCH

(‘Lecture/Pause’) (17

(‘Lecture/Pause’) (17

L’affichage est déformé:

(‘Lecture/Pause’) (17

Pulsante Play/stop (

|-> VIDEO_TS (with all the DVD files inside)

“AUTO PLAY: MP3 -> ___”

) gombot olyankor is

Conceptronic Media Player
