USER MANUAL EF 200mm f2.8L II USM CANON

Thank you for purchasing a Canon product.

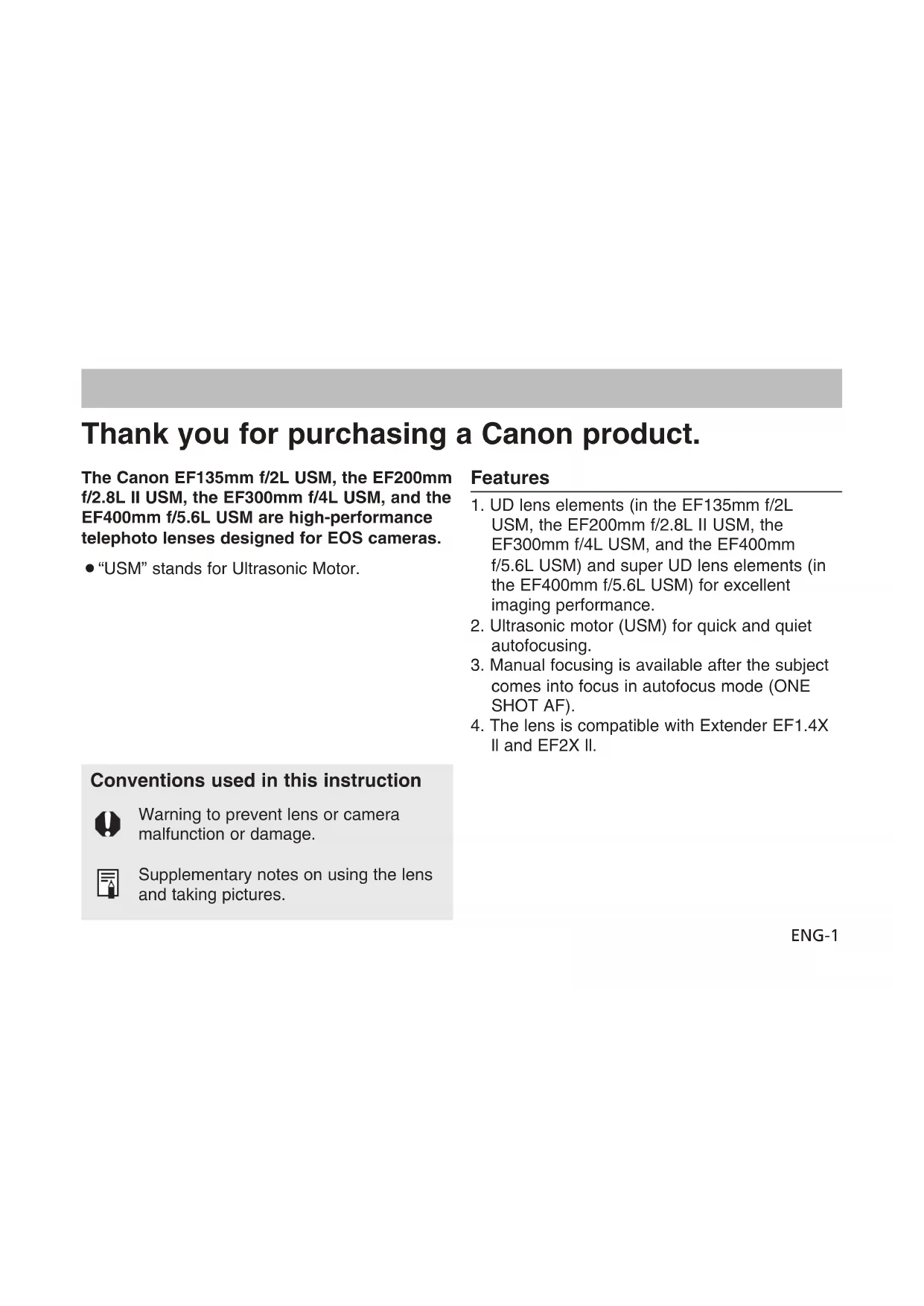

The Canon EF135mm f/2L USM, the EF200mm

f/2.8L II USM, the EF300mm f/4L USM, and the

EF400mm f/5.6L USM are high-performance

telephoto lenses designed for EOS cameras.

¡“USM” stands for Ultrasonic Motor.

1. UD lens elements (in the EF135mm f/2L USM, the EF200mm f/2.8L II USM, the

EF300mm f/4L USM, and the EF400mm

f/5.6L USM) and super UD lens elements (in

the EF400mm f/5.6L USM) for excellent

imaging performance.

2. Ultrasonic motor (USM) for quick and quiet

3. Manual focusing is available after the subject

comes into focus in autofocus mode (ONE SHOT AF).

4. The lens is compatible with Extender EF1.4X

Conventions used in this instruction

Warning to prevent lens or camera

malfunction or damage.

Supplementary notes on using the lens

and taking pictures.ENG-2

a Safety Precautions

a Safety Precautions

• Do not look at the sun or a bright light source

through the lens or camera. Doing so could result

in loss of vision. Looking at the sun directly through

the lens is especially hazardous.

• Whether it is attached to the camera or not, do

not leave the lens under the sun without the

lens cap attached. This is to prevent the lens from

concentrating the sun’s rays, which could cause a

• If the lens is taken from a cold environment into

a warm one, condensation may develop on the

lens surface and internal parts. To prevent

condensation in this case, first put the lens into an

airtight plastic bag before taking it from a cold to

warm environment. Then take out the lens after it

has warmed gradually. Do the same when taking

the lens from a warm environment into a cold one.

• Do not leave the lens in excessive heat such as in

a car in direct sunlight. High temperatures can

cause the lens to malfunction.

This device complies with Part 15 of the FCC Rules. Operation is

subject to the following two conditions: (1) This device may not

cause harmful interference, and (2) this device must accept any

interference received, including interference that may cause

undesired operation.

Do not make any changes or modifications to the equipment

unless otherwise specified in the instructions. If such changes or

modifications should be made, you could be required to stop

operation of the equipment.

This equipment has been tested and found to comply with the

limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency

energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio

However, there is no guarantee that interference will not occur in

a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of

the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Consult the dealer or an experienced radio/TV technician for

This Class B digital apparatus complies with Canadian ICES-003.ENG-3

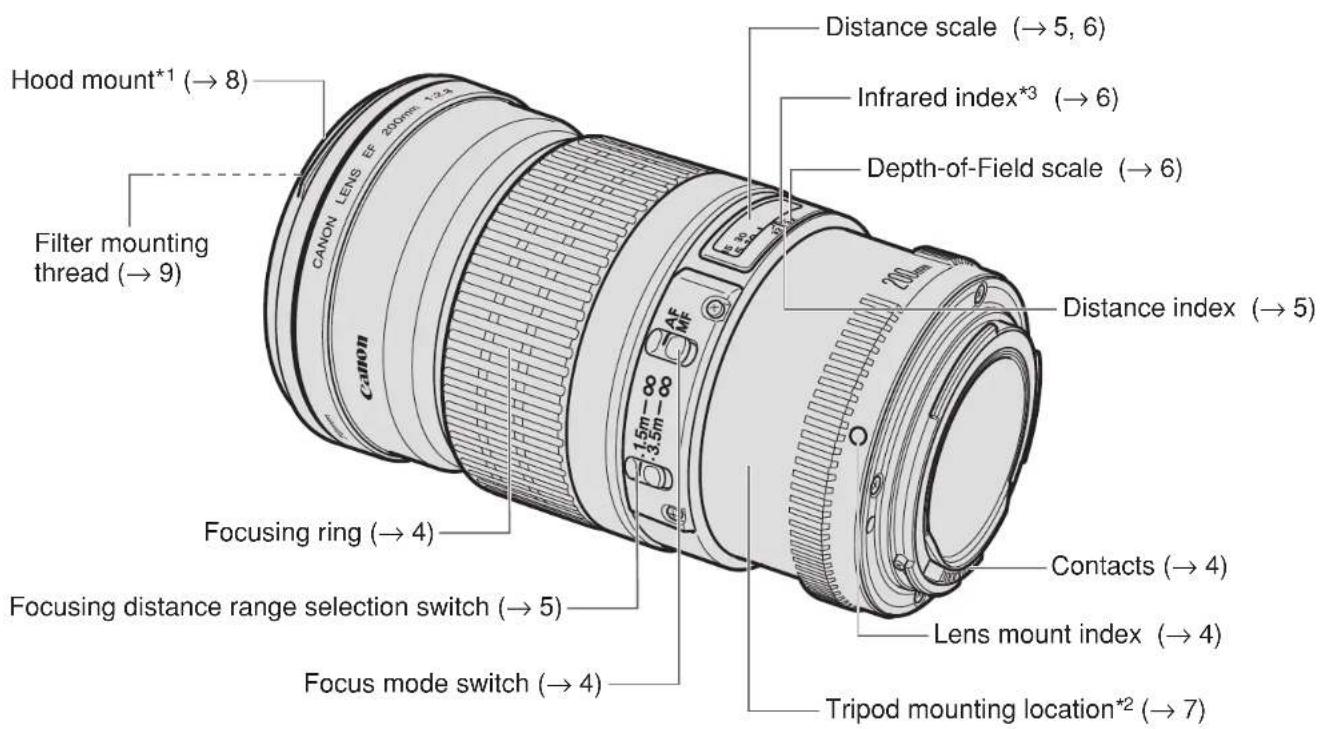

Distance scale (→ 5, 6)

Depth-of-Field scale (→ 6)

Focus mode switch (→ 4)

Lens mount index (→ 4)

Distance index (→ 5)

Focusing distance range selection switch (→ 5)

Tripod mounting location*

*2,3) EF200mm f/2.8L II USM • EF300mm f/4L USM • EF400mm f/5.6L USM For detailed information, reference page numbers are provided in parentheses (→ **).ENG-4

See your camera’s instructions for details on

mounting and detaching the lens.

¡After detaching the lens, place the lens with the

rear end up to prevent the lens surface and

electrical contacts from getting scratched.

¡If the contacts get soiled, scratched, or have

fingerprints on them, corrosion or faulty

connections can result. The camera and lens

may not operate properly.

the contacts get soiled or have fingerprints on

them, clean them with a soft cloth.

¡If you remove the lens, cover it with the dust

cap. To attach it properly, align the lens mount

index of the dust cap as shown

in the diagram, and turn clockwise. To remove it,

Mounting and Detaching the Lens

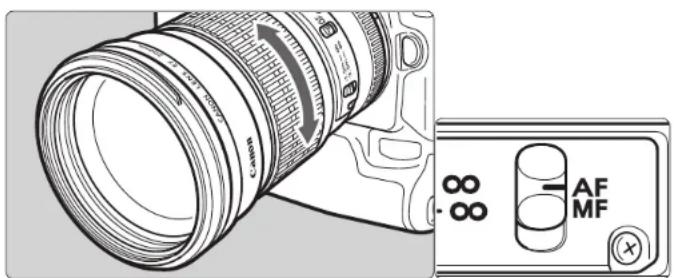

Setting the Focus Mode

After autofocusing in ONE SHOT AF mode, focus

manually by pressing the shutter button halfway

and turning the focusing ring. (Full-time manual

To shoot in autofocus (AF) mode, set the focus

To use only manual focusing (MF), set the focus

mode switch to MF, and focus by turning the

focusing ring. The focusing ring always works,

regardless of the focus mode.ENG-5

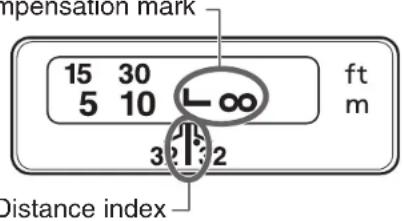

Infinity Compensation Mark

To compensate for shifting of the infinity focus

point that results from changes in temperature.

The infinity position at normal temperature is the

point at which the vertical line of the L mark is

aligned with the distance indicator on the

For accurate manual focusing on subjects at

infinity distance, look through the viewfinder while

rotating the focusing ring.

Infinity compensation mark

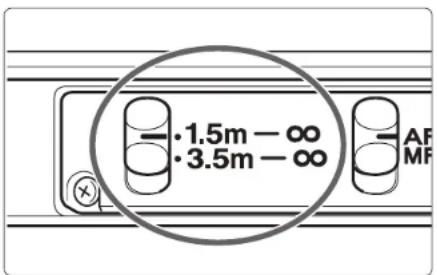

Switching the Focusing Distance Range

You can choose the focusing distance range with

a switch. By setting a suitable focusing distance

range, actual autofocusing time can be shorter.

q 3.5 m / 11.5 ft.– ∞ w 8.5 m / 27.9 ft.– ∞

If you autofocus outside the set focusing distance

range, the lens may stop focusing at the start of

the focusing range; however, this is not a

malfunction.Press the shutter release button

6. Depth-of-Field Scale

The depth of field is the distance in front of and

behind the plane of focus on the subject that

appears sharp. The depth of field is indicated by

the area between the depth-of-field scale lines

below the distance scale.

The number on the scale is the F value.

The depth-of-field scale is an approximate

The infrared index corrects the focus setting

when using monochrome infrared film. Focus on

the subject manually, then adjust the distance

setting by moving the focusing ring to the

corresponding infrared index mark.

(EF200mm f/2.8L II USM • EF300mm f/4L USM • EF400mm f/5.6L USM)

Some EOS cameras cannot use infrared film.See

the instructions for your EOS camera.

¡The infrared index position is based on a

wavelength of 800 nm.

¡Be sure to observe the manufacturer’s

instructions when using infrared film.

¡Use a red filter also when you take the picture.ENG-7

Adjusting the Revolving Mount

You can loosen the or ientation lock-knob on the tripod mount to allow it to rotate as needed to fit a

particular camera model for switching between vertical and horizontal positions.

The EF200mm f/2.8L II USM lens can be used with the A II (B) tripod mount

r ing, sold separately.

Use the following procedures to remove and attach the tripod mount.

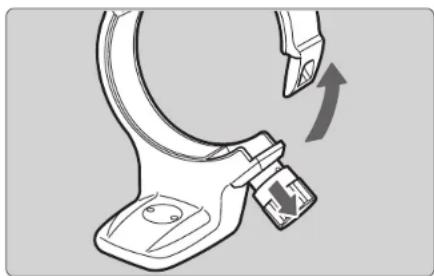

Tu r n the locking knob

counterclockwise until it

becomes loose (about 3 turns),

and pull the knob in the direction

of the arrow to release the collar.

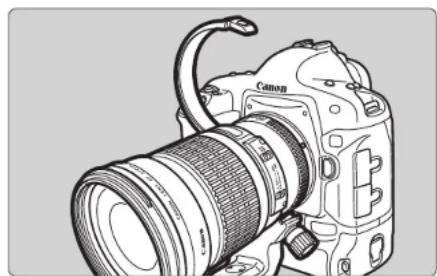

With the collar open,

remove the tripod mount.

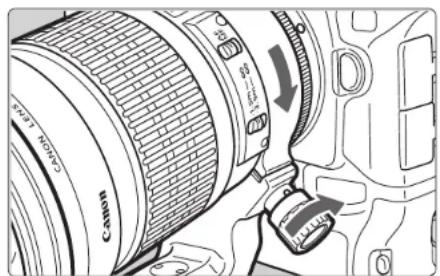

To install, while pulling the

locking knob, bring the collar

to the or iginal position, and

tighten the locking knob

If the foot of the tripod mount overlaps the switch, loosen the orientation locking knob on the tripod mount to

The tripod mount can be attached to or detached from the lens while the lens is attached to the camera.ENG-8

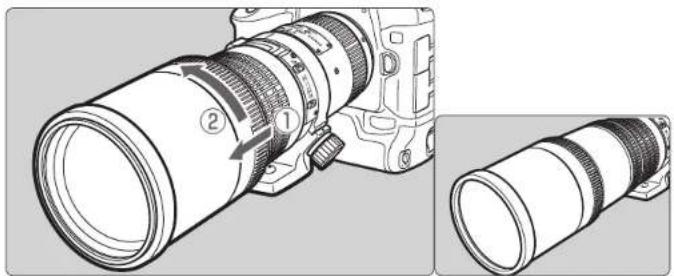

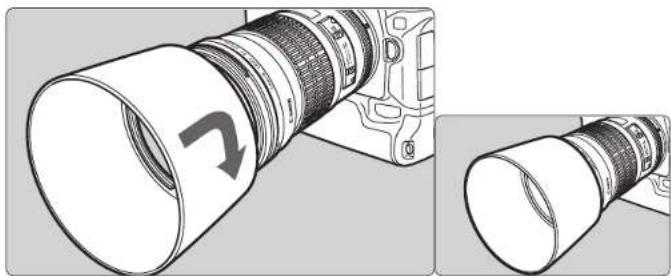

EF135mm f/2L USM • EF200mm f/2.8L II USM Attach and align the hood to the hood mount on

the front of the lens, and turn the hood as shown

by the arrow to secure it.

The hood can be reverse-mounted on the lens

EF300mm f/4L USM Bring the hood out from the end of the lens until

For storage, reverse the procedure.

EF400mm f/5.6L USM Bring the hood out from the end of the lens until

it stops and turn in the direction of the arrow. For

storage, reverse the procedure.

EF135mm f/2L USM • EF200mm f/2.8L II USM

¡Part of the picture may be blocked if the hood is not attached properly.

¡When attaching or detaching the hood, grasp the base of the hood to turn it. To prevent deformation, do not

grasp the rim of the hood to turn it.

The lens hood can reduce unwanted reflections and also protects the front of the lens from rain,

snow, dust, and other substances.ENG-9

9. Filters (Sold separately)

You can attach filters to the filter mounting thread

on the front of the lens.

¡If you need a polarizing filter, use the Canon

Circular Polarizing Filter.

store the lens hood.

The magnification will be as follows:

¡Close-up Lens 250D cannot be attached

because there is no size that fits the lens.

¡Manual focusing is recommended for accurate

11. Extension Tubes (Sold separately)

You can attach Extension Tu be EF12 II or EF25 II for magnified shots. The shooting distance and

magnification are shown below.

Manual focusing is recommended for accurate focusing.

EF400mm f/5.6L USMENG-11

12. Extenders (Sold separately)

With Extender EF1.4X ll or EF2X ll attached, the lens specifications will change as follows:

EF135mm f/2L USM Focal length

Maximum magnification (×)

EF200mm f/2.8L II USM Focal length

Maximum magnification (×)

Maximum magnification (×)

Maximum magnification (×)

EF2X II 800 f/11-64 3° 5' 1° 40' 2° 35'0.25ENG-12

Extenders (Sold separately)

When an Extender is attached, the AF speed will become slower by design to retain proper AF control.

¡With Extender EF2X II attached to the lens, only manual focus is possible. However, with the EOS-1Ds

Mark III, EOS-1Ds Mark ll, EOS-1Ds, EOS-1D Mark lll, EOS-1D Mark ll N, EOS-1D Mark ll, EOS-1D, EOS-

1V/HS, EOS-3 camera, autofocusing with the center focusing point is possi

¡With Extender EF1.4X II attached to the lens, only manual focus is possible. However, with the EOS-1Ds

Mark III, EOS-1Ds Mark ll, EOS-1Ds, EOS-1D Mark lll, EOS-1D Mark ll N, EOS-1D Mark ll, EOS-1D, EOS-

1V/HS, EOS-3 camera, autofocusing with the center focusing

¡With Extender EF2X II attached to the lens, only manual focus is possible.

¡First attach the Extender to the lens, then attach the lens to the camera. Detach it from the camera in the

reverse order. If you attach the lens to the

camera first, misoperation may occur.

¡Only one Extender can be attached to the lens and camera.

¡If you use an Extender on the lens mounted on a EOS A2/A2E/5, set the exposure compensation to -1/2

stop for the EF1.4X II or -1 stop for the EF2X II

¡The lens length is measured from the mount surface to the front end of the lens. Add 21.5 mm to include the

E-72U/E-77U lens cap and dust cap, and 24.2 mm for the E-72 II/E-77 II.

¡The size and weight listed

are for the lens only, except as indicated.

¡Aperture settings are specified on the camera.

¡All data listed is measured according to Canon standards.

¡Product specifications and appearance are subject to change without not

Focal Length/Aperture

4.9 × 7.3 inch (at 0.9 m)

EF200mm f/2.8L II USM

6.0 × 8.9 inch (at 1.5 m)

ET-83B II E-72U/E-72 II LP1222

Ring-type tripod mounting

socket A II (B) (Sold separately)

7.3 × 10.8 inch (at 2.5 m)

mounting socket A II (W)

7.6 × 11.5 inch (at 3.5 m)

mounting socket A II (W)© CANON INC. 2002CT1-8504-004 0812NiCanon CT17600002 ENG EF LENS Quick Guide

Thank you for purchasing a Canon product. • This guide shows the basic tips on how

to use the Canon EF lens. Make sure you read this guide in order to operate the lens correctly and safely. •

For further details on

to use the product you purchased, see the instruction (PDF format) stored in the CD-ROM provided. Using the "EF Lens Instructions" CD-ROM 0 Adobe Reader 6.0 or higher must be installed in the your computer. 1. Insert the EF Lens Instructions CD-ROM into your personal computer. Lt Never insert the CD-ROM into any drive incompatible with CO-ROMs. If you insert the CD-ROM into a CD player and try

to play it, it may damage your speakers. The loud noise can also damage your ears if you are using headphones, earphones, etc

2. Select the drive containing the CD-ROM. 3. Select and open the "START. pdf" file. 4.

the language menu, click on the desired language.

on the name of your lens to

a bright light source through the lens or

camera. Doing so could result in loss

of vision. Looking at the sun directly through

the lens is especially hazardous. • Whether it is attached to the camera

or not, do not leave the lens under the sun without the lens cap attached. This is

to prevent the lens from concentrating the sun's rays, which could cause a fire. Handling Cautions •

taken from a cold environment into a warm

, condensation may develop on

the lens surface and internal parts. To prevent condensation in this case, first put the lens into an

airtight plastic bag before taking it from a cold to warm environment. Then take out the lens after it

has warmed gradually. Do the same when taking the lens from a

warm environment into a cold one.

not leave the lens in excessive heat such as in a car

in direct sunlight. High temperatures can cause the lens to malfunction. This device complies with Part 15

FCC Rules. Operation is subject

FCC Rules. Operation is subject

conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Do not make any changes or modifications to the equipment unless otherwise specified in the instructions.

If such changes or modifications should be made, you could be required to stop operation

of the equipment. This equipment has been tested and found

to comply with the limits for a class B digital device, pursuant to part 15

the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if

not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If

this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off

and on, the user is encouraged to

try to correct the interference by one

the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver.

• Consult the dealer

or an experienced radio/TV technician for help. This Class B digital apparatus complies with Canadian ICES-003 .

1. Attaching the Lens to the Camera

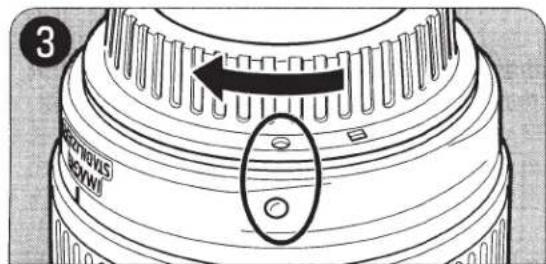

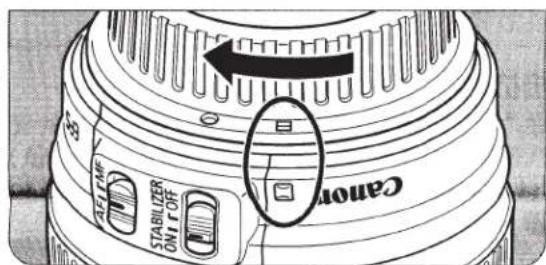

Align the lens mount index (white "D " or red "e") and the mount index on the camera, indicated with the same color,

and turn the lens clockwise until it clicks. (Fig.

After detaching the lens, place the lens with the rear end up to

prevent the lens surface and electrical contacts from getting scratched. (Fig. •) • If the contacts get soiled, scratched,

or have fingerprints on them, corrosion or faulty connections can result. The camera

and lens may not operate properly. • If the contacts get soiled or

have fingerprints on them, clean

them with a soft cloth. • If you remove the lens, cover it with the dust cap. To attach it

properly, align the lens mount index and the "0 " or "0" index of

the dust cap, and turn clockwise. (Fig.

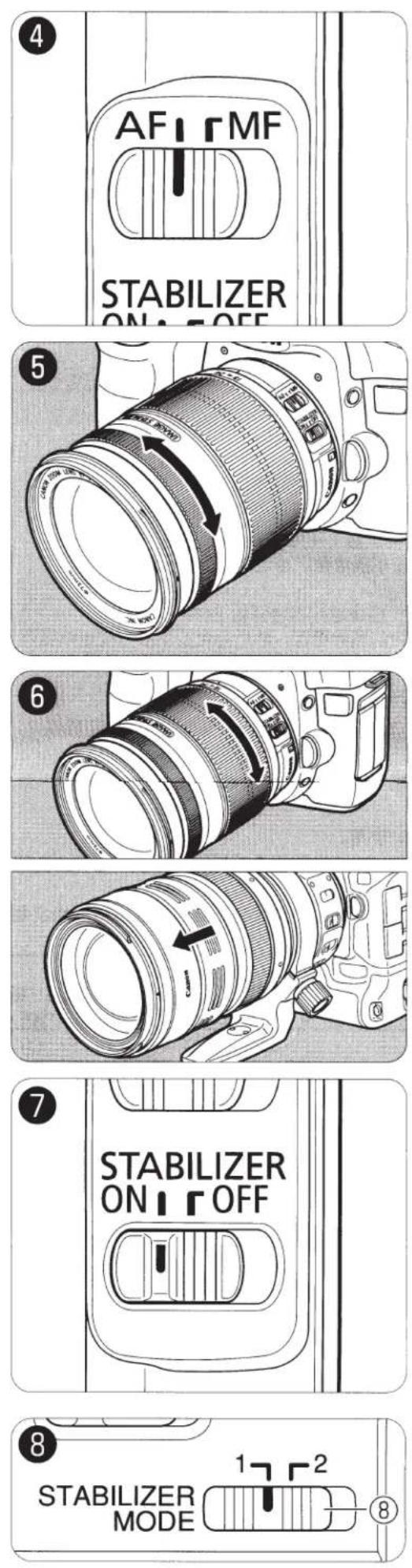

To remove it, reverse the above order. 2.Setting the Focus Mode For a lens that has a focus mode switch, it is possible to switch

between autofocus (AF) mode and manual focusing (MF). (Fig.

autofocus mode, set the focus mode switch

use only manual focusing, set the focus mode switch to MF,

and focus by turning the focusing ring. (Fig.

e ) 3.Zooming The zoom lens enables zooming out

in by turning the zoom ring

or moving it back and forth. (Fig.

0 Be sure to finish zoom·ing ~

zoom ring after focusing

s. 4. Setting the Image Stabilizer A lens with an image stabilizer can compensate for camera shake

by switching the function on.

can use the image stabilizer in AF

• If you are not going

use the image stabilizer function set the switch to "OFF". 2.

When you press the shutter button halfway, the Image Stabilizer will start operating. • Make sure the image in the viewfinder is stabl

e, then press the shutter button the rest

the way down to take the picture. 5.Selecting the Image Stabilizer Mode (Fig. (!))

You can select the ima_ge stabilizer mode with the image stabilizer mode selector switch ®

Corrects vibrations in

all directions. It is mainly e ff

ec tive for shooting still subj ec

ts. MODE2: It is used when panning subjects

compensates for vertical camera shake during following shots in a horizontal direction, and compensates for horizontal camera

shake during following shots in a vertical direction. During following shots in a diagonal direction, you may not obtain

age stabilizer effect

For all inquires concerning this product, call toll free in the U.S.

Dixie Road, Mississauga, Ontario

2828, 16th Street, N.

Calgary, Alberta T2E 7K7, Canada

For all inquiries concerning this product, call toll free in

Woodhatch, Reigate, Surrey, RH2 8BF, United Kingdom

Waterford Way, Suite

15F Jinbao Building No.89 Jinbao Street, Dongcheng District,

19/F., The Metropolis Tower,

1 HarbourFront Avenue,

Keppel Bay Tower, Singapore

Building #5, DLF Cyber Terraces, DLF Phase

Akoranga Business Park, Akoranga Drive, Northcote,

PRESENT OWNERSHIP AND PRODUCTS INTERESTED IN Art

- Retain for your Records

CANONe EF Lens and Accessories Limited Warranty-

limited warranty set forth below is given by Canon U.S.A., Inc. (Canon U.

.) in the United States or Canon Canada, Inc. (Canon Canada) in Canada with respect to the Canon brand

EF Lens, as well as with respect to the accessories packaged with this limited warranty (collectively the "Products"), when purchased and used

in the United St ates or Canada. The Products are the only Products to which this limited warranty applies. Your Products, when deli ve

condition in its original container, are warranted against defects

materials or workmanship as follows:

for a period of one (1) year from the date of

original purchase, defective parts or defective Products returned to Canon U.S.A.

Canon Canada, or their authorized Products service providers, as appNcable, and proven to be defective upon inspection, will be repaired with oew

or comparable rebuilt parts or e)(changed for refurbished Products, as determined

by Canon U.S.A. or Canon Canada, or the authorized Products service provider. THIS WARRANTY DOES NOT COVER ANY ACCESSORIES NOT MENTIONED ABOVE . This limited warranty shall only apply if the Products are used in conjunction with

compatible computer equipment and compatible software, as

to which items Canon U.S. A. or Canon Canada shall have no responsibility. Non-canon brand equipment and software that may

distributed with the Products are sold "as Is

.. and wlthout warranty of

any kind by Canon U.S.A.

or Canon Canada, Including any Implied warranty regarding merchantability or fltness for a parUcular purpose, and all such warrantiH are disclaimed. The sole warranty, If any, wlth the respect to such non-Canon brand items Is given by the manufacturer

or producer thereof. This limited warranty covers all defects encountered

the Products, and does not apply in the following cases:

(a) Loss or damage due to neglect andfor abuse causing deterioration, mishandling, accident or failure to follow operating Instructions.

a Product Is delective as

a result of leaking batteries or damage due

to water or other liquid .

) Defective materials or workmanship where the defect is due

a Product having been serviced or modifi ed

of accessories. attachments, supplies, parts or devices (including, without limitation, baHeries, film, flash attachments and other accessories) that do

not conform to Canon specifications. (e) Damage resulting during shipment. (Claim must be presented and examined by

(f) Damage or service resulting from modifications or alterations to a Product in

way (including any alteration or removal of

its serial number or identification marks) .

NO IMPLIED WARRANTY ,

SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU)

CANON SHALL NOT BE LIABLE FOR LOSS OF REVENUES OR PROFITS , INCONVENIENCE , EXPENSE FOR SUBSTmJTE EQUIPMENT OR SERVICE, STORAGE CHARGES . LOSS OR CORRUPTION OF DATA,

OR ANY OTHER SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES (INCLUDING, WITHOUT LIMITATION ,

ANY LOSS OF FILM) CAUSED BY THE USE OR MISUSE OF.

OR INABILITY TO USE, A PRODUCT ,

REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM IS BASED,

DAMAGE OR INJURY TO YOU AND YOUR PROPERTY AND TO OTHERS AND THEIR PROPERTY ARISING OUT OF USE OR MISUSE OF,

SO THE ABOVE EXCLUSION OR LIMITATION MAY NOT APPLY TO YOU)

THIS LIMITED WARRANTY SHAU NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL PURCHASER OF A PRODUCT ,

OR THE PERSON FOR WHOM IT WAS PURCHASED AS A GIFT. AND STATES YOUR EXCLUSIVE REMEDY . This limited "Warranty gives you specifiC legal rights, and

may also have other rights, which vary from state to state (or province to province in Canada). Canon U.S.

• Telephone support*

• Product protection*

• Receive information on new products and promotions*

NE S'APPLIOUE AU PAODUIT APRES

DU PAODUIT OU LA PERSONNE QUI A RE<;U LEDIT PRODUIT EN CADEAU,

may obtain technical support

your Products as tallows:

.com/support (E-mail support also available)

• Telephone assistance lrom a Canon U.S.

Customer Care representative free of charge during regular business hours at 1-8QO-OK-CANON

may obtain technical support for your Products as follows:

support for English at

.ca/engllsh/cs (E-mail support also available)

support for French at

.ca/lrancals/cs (E-mail support also available)

• Telephone assistance from a Canon Canada Customer Care representative free of charge during regular business hours at 1-800-0K-CANON

Technical support program terms are subject to change without notice.
