Product Type	PC Power Supply
Brand	Be Quiet!
Model	Efficient Power F1 500W
Nominal Power	500W
Efficiency Certification	80PLUS Gold
Safety Certification	TÜV (EN60950)
Input Voltage	100-240V~ (universal)
Main Connector	24-pin
CPU Connector	4/8-pin
PCIe Connector	Yes (number depends on configuration)
Compatibility	ATX12V 2.3, ATX 2.2, BTX 1.0a, C6 state support
Integrated Protections	OCP, UVP, SCP, OPP, OTP, OVP
Manufacturer Warranty	2 years (proof of purchase required)
Included Accessories	Power cable, manual, cable ties, mounting screws
Cleaning	Dry cloth, unplug before cleaning
Cooling	Integrated fan
Usage	Indoor use only
Voltage Stability	Excellent thanks to high-quality components
Technical Support	0800 469 209 (Mon-Fri 9am-5:30pm) or [e-mail]

Frequently Asked Questions - Efficient Power F1 500W Be Quiet!

How to install the Be Quiet! Efficient Power F1 500W power supply?

Before installation, read the safety warnings. Unplug the PC, remove the old power supply by disconnecting all cables. Place the new power supply in the case and secure it with the provided screws. Connect the 24-pin connector to the motherboard, the 4/8-pin connector for the CPU, and the PCIe connector(s) for the graphics card if necessary. Refer to the manual for more details.

What safety instructions should be followed?

Never open the power supply (risk of electric shock). Use only indoors. Do not plug in with wet hands. Do not insert objects into the fan. In case of smoke or damage, unplug immediately. Only qualified personnel may open the device, otherwise the warranty is void.

What is the warranty for the Be Quiet! Efficient Power F1 500W?

The manufacturer warranty is 2 years from the date of initial purchase from an authorized dealer. To claim warranty, present your proof of purchase. Opening by unauthorized personnel voids the warranty.

How to clean the power supply?

Unplug the power supply completely from the mains. Clean only the exterior with a dry cloth. Do not use a damp cloth or detergent.

What connectors are included with the power supply?

The unit comes with a mains power cable, cable ties, mounting screws, and user manual. The main connectors are: a 24-pin for the motherboard, a 4/8-pin for the CPU, and one or more PCIe for the graphics card (as needed).

Is my power supply compatible with my motherboard?

The Efficient Power F1 500W is compatible with ATX12V 2.3, ATX 2.2, and BTX 1.0a standards. It supports C6 sleep states of modern processors. Verify that your motherboard has the required connectors (24-pin for board, 4/8-pin for CPU).

What safety protections does this power supply have?

It integrates several protections: OCP (overcurrent), UVP (undervoltage), SCP (short circuit), OPP (overpower), OTP (overtemperature), and OVP (overvoltage). In case of exceeding limits, the unit shuts off automatically.

What is the energy efficiency of this power supply?

It is certified 80PLUS Gold, ensuring high efficiency (up to 87-90% depending on load), which reduces power consumption and heat dissipation.

What to do if the power supply does not turn on after installation?

First check that the mains cable is properly plugged in and the rear switch is set to 'I'. Ensure that the case power switch connector is correctly attached to the motherboard. If the problem persists, disconnect all non-essential peripherals and try again. Wait 5 minutes after a protection trip. Contact customer service if necessary.

Where to get help if needed?

You can contact Be Quiet! support by phone at 0800 469 209 (Monday to Friday, 9am-5:30pm) or by email at [e-mail]. Also visit www.be-quiet.fr for warranty conditions and FAQs.

USER MANUAL Efficient Power F1 500W Be Quiet!

be quiet!

EFFICIENT POWER

THE POWER SUPPLY UNIT

USeR MAnUAL

BQT F1-600W

BQT F1-500W

BQT F1-400W

BQT F1-350W

INDEX

DEUTSCH

1. Introduction....10
2. Warnings and safety instructions....10
3. Compatibility....11
4. Benefits and special features of your new power supply....11
5. Installing your new power supply 12
6. Troubleshooting 12
7. Attachements....13
8. Disposal Instructions 14
9. Warranty, manufacturer's data 14
10. Legal notice, Copyright 15

FRANÇAISE

1.Label 35
2. Voltage regulation....36
3. Operating conditions.... 36
4. Minimal load 36
5. Power Supply Dimensions....36
6. Distribution and pin assignment .... 37
7. Connectivity and cable lengths....38

1. EINLEITUNG

We are delighted that you have chosen to use a be quiet! power supply of the EFFICIENT POWER Series in your PC. Please read and follow all the information contained in these instructions carefully prior to installation. The power supply is only guaranteed to function properly if the instructions are followed thus providing you with maximum satisfaction with this product. Should you have any further question, please contact our customer service. See contact information under item 9.

2. WARNINGS AND SAFETY INSTRUCTIONS

Never unscrew the power supply. It may hold elements containing high voltages after long periods of disuse and which could cause serious injury.

A power supply must only be opened by an authorised technician!

The warranty shall lapse if opened by an unauthorised technician and if the warranty seal is broken.

Never handle the power supply with wet or damp hands when in operation.

Never insert objects into the openings/fans of the power supply.

Operation is only permitted indoors! Outdoor use may lead to severe damage.

Do not carry out works on the power supply if it is connected to the mains. Always turn the mains switch to „0“ and pull out the mains plug.

In the event of a short circuit in the device, remove the mains cable and do not use the device.

If there are traces of smoke, damaged cables or exposure to liquids, the power supply must immediately be disconnected from the mains and must not be used.

This power supply is covered for a voltage range between 100 - 240 V\~ and can be used universally.

Do not operate the PC directly next to a heater or another source of heat, as this reduces the lifespan of all components and may lead to failures. Ensure that there is sufficient ventilation in the PC case, for example by adding additional fans.

Should you want to clean your power supply, disconnect it completely from the mains and do not use damp cloths or cleaning detergent. Clean the power supply from the outside using a dry cloth.

Only use the power supply after one hour in an ambient air environment, as otherwise condensation water could accumulate in the power supply.

3. COMPATIBILITY

be quiet! EFFICIENT POWER power supplies are compatible with current power supply and motherboard specification, such as: Intel ATX12V Power Supply Design Guide Version 2.3 (and downward compatible to V 2.01 / V 2.0). ATX System Design Guide Version 2.2 und Version 2.1, BTX Version 1.0a and the Intel C6 status of the current CPU generation.

4. BENEFITS AND SPECIAL FEATURES OF YOUR NEW POWER SUPPLY

TÜV tested safety:

be quiet! EFFICIENT POWER power supplies are TÜV certified. They fulfill the demands made on electrical safety pursuant to the Equipment and Product Safety Act (EN60950). Documents can be viewed on www.tuv.com and by entering the 10 digit ID No.

Economical through high efficiency:

The power supplies of the EFFICIENT POWER Series are highly efficient (80plus Gold certification). This helps reduce electricity costs.

Voltage stability:

The EFFICIENT POWER Series has first class stability in its voltage supply. This is guaranteed by the high quality of its component parts. Output voltages are therefore maintained at the optimal set value, which is particularly important with high performance specifications.

Fuse functions:

be quiet! EFFICIENT POWER power supplies offer high safety with many fuse functions. The power supply automatically switches off if limits are exceeded or not reached.

OCP (over-current protection), UVP (under-voltage protection), SCP (short circuit protection), OPP (over power protection), OTP (over temperature protection), OVP (overvoltage protection). If the power supply is operated at an excessively high temperature, it will automatically switch off. It can then be switched on after cooling off. Please ensure that the PC is equipped with sufficient cooling.

5. INSTALLING YOUR NEW POWER SUPPLY

You must read the item „Warnings/safety instructions“ before beginning installation.

You will need a screwdriver to fit the power supply in your PC.

Only use the screws supplied with the power supply, as these have the suitable thread.

First remove your old power supply. To do this, proceed as follows:

1. Carefully disconnect your PC from any power sources and pull out all cables connected to the PC.
2. Open the PC case also following the manufacturer's instructions.
3. Disconnect all plugs from the motherboard and all other components, such as FDD, HDD or optical drives. Ensure that there are no plugs from the old power supply connected to any of the components.
4. Now remove the screws on the rear of the power supply and take it out carefully. Make especially sure that no cables get caught in the components and damage them.

Installing your new be quiet! EFFICIENT POWER power supply:

1. Place the new power supply in the space provided in the case and screw it to the rear with the four screws provided. Do not use excessive force.
2. Plug the 24 pin connector into the socket provided on the motherboard.
3. If required, connect the 4 pin / 8 pin connector, into the socket provided on the motherboard.
   This connector is going to supply your PC with additional power.
4. If required, plug the PCIe connector into your graphic card.

6. TROUBLESHOOTING

Please note:

In ATX systems, the power supply receives a signal from the motherboard when switched on, without which it cannot run. For this reason, please ensure that the power switch connector (usually located on the front panel) is correctly connected to the motherboard using either the motherboard or case manual. If this is the case, check the power (on/off) switch, as it may be faulty which means the power supply cannot be started. You can use the reset switch instead of the power switch in order to avoid such faults.

Careful!

Working on power sources could lead to serious injury. You must read item 2 – „Warnings and safety instructions“ carefully. Repairs must only be carried out by authorized technicians!

If the system does not function properly with the power supply installed, first check the following possible sources of faults:

1. Check that the power supply cable is correctly and firmly connected to the power supply and to the socket. Ideally, use a separate power outlet for the computer power supply.
2. Check whether all connections are correctly connected and make any adjustments required, such as incorrect polarity.
3. Examine the connection of the on/off switch from the case to the motherboard. Have the motherboard manual on hand if needed! Switch the power supply on by turning the switch to position „I“ and press the on/off switch on the case. If the power supply still does not turn on, continue to the next item.
4. Check your system for possible short circuits or faulty hardware, making sure you switch off the computer and disconnect all devices not required for the computer to start. Switch it on again. Repeat this process and switch on one of the devices you have found likely to be faulty upon each restart. If the power supply does not react due to a short circuit, wait at least 5 minutes after the restart as the device is equipped with over power protection.

Important:

If the power supply does not work, check that you have read these instruction thoroughly and have excluded the problems mentioned. If the problem persists, contact our customer service department immediately.

All returns are examined by our RMA service. If a power supply is found to be faultless, it shall be returned to the customer. A testing fee may be charged for the expense incurred.

7. ATTACHEMENTS

This item is delivered with: Power cables, operating instructions, cable ties, and screws to attach power supply.

8. DISPOSAL INSTRUCTIONS

Used electronic equipment may no longer be disposed of in unsorted household waste pursuant to European guidelines*. It must be disposed of separately. Waste electronic and electric equipment must be transferred to a special collection point (e.g. recycling centre). This is usually free.

* Directive 2002/96/EC of the European Parliament the European Council of 27 January 2003 on Waste Electronic and Electric Equipment (WEEE). Act Governing the Sale, Return and Environmentally Sound Disposal of Electronic and Electrical Equipment (Electrical and Electronic Equipment Act - ElektroG) of 16 March 2005.

9. WARRANTY, MANUFACTURER'S DATA

2 year manufacturer's warranty for end consumers (only first purchase from authorised Listan dealers), from date of purchase receipt.

Your original purchase receipt will be required before warranty performance is rendered. Please keep it in a safe place.

Listan GmbH & Co.KG. Biedenkamp 3a. 21509 Glinde. Germany

For further information, you can contact us in Germany

Mon - Fri 09:00 - 17:30

Phone [phone] Fax [phone]

e-mail: [e-mail] www.be-quiet.com

Our General Warranty Conditions apply, which can be viewed on the Internet on www.be-quiet.net/service/en/warranty. The following numbers will have to be provided in the event of service. You will find them on the power supply name plate:

Model description Article Number Serial Number
BQT F1-350W BN185	S/N (see nameplate for number)
BQT F1-400W BN186	S/N (see nameplate for number)
BQT F1-500W BN187	S/N (see nameplate for number)
BQT F1-600W BN188	S/N (see nameplate for number)

10. LEGAL NOTICE, COPYRIGHT

Copyright © Listan GmbH & Co. KG 2011. All rights reserved.

Please note the following:

1. The content of this documentation may not be copied, transmitted, distributed or stored in any form, whether in whole or in part, without the prior written approval of Listan.
2. be quiet! is a registered trademark of Listan GmbH & Co. KG. Other product and company names mentioned in this documentation may be trademarks or trade names of their respective owners.
3. In accordance with its policy, Listan continually develops its products further. Listan therefore reserves the right to make changes and improvements to any of the products described in this documentation without prior notice.
4. Listan is under no circumstances responsible for the loss of data and income or for any specific, incidental, indirect or direct damage, however this may be incurred.
5. The content of this documentation is presented in its most updated form. Listan neither expressly nor implicitly assumes any liability for the accuracy or completeness of the content of this documentation, including, but not limited to the implicit guarantee of market suitability and the appropriateness for a certain purpose, unless applicable laws or case law prescribe such liability. Listan reserves the right to make changes to this documentation or to withdraw the documentation at any time without prior notice.

1. INTRODUCTION

Environment	Temperature	Rel. Humidity
Operation	0 - 40°C	up to 85% (non-condensing)
Storage	-40 ~ 70°C	up to 95% (non-condensing)

1. MINIMAL LOAD

	3,3V 5V	12V1	12V2	12V3	12V4 - 1	12V 5VSB
350W	0,1	0,2	0,1	0	0	0	0	0
400W	0,1	0,2	0,1	0	0	0	0	0
500W	0,1	0,2	0,1	0	0	0	0	0
600W	0,1	0,2	0,1	0	0	0	0	0

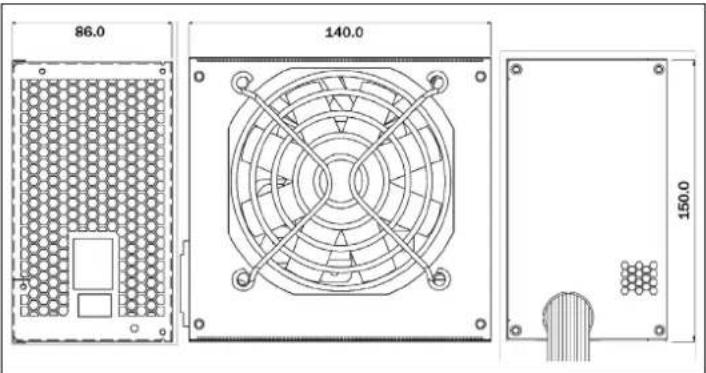

1. POWER SUPPLY DIMENSIONS


86.0 140.0 150.0

1. DISTRIBUTION AND PIN ASSIGNMENT

Pin	Color	Signal	Pin	Color	Signal
1	Orange	+3.3VDC	13	Orange Brown	+3.3VDC +3.3V def. sense
2	Orange	+3.3VDC	14	Blue	-12VDC
3	Black	COM	15	Black	COM
4	Red	+5VDC	16	Green	PS_ON/OFF
5	Black	COM	17	Black	COM
6	Red	+5VDC	18	Black	COM
7	Black	COM	19	Black	COM
8	Grey	PWR_OK	20
9	Violet	+5VSB	21	Red	+5VDC
10	Yellow	+1.2VDC	22	Red	+5VDC
11	Yellow	+1.2VDC	23	Red	+5VDC
12	Orange	+3.3VDC	24	Black	COM

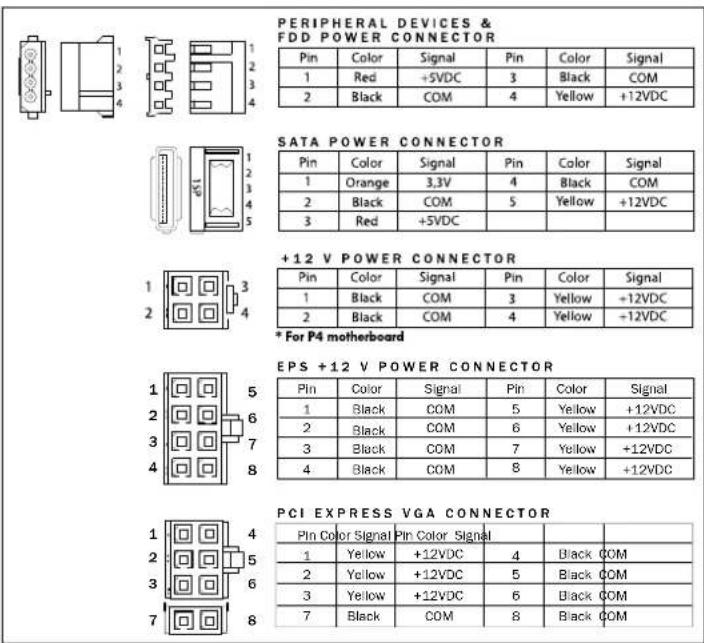

PERIPHERAL DEVICES & FDD POWER CONNECTOR Pin Color Signal Pin Color Signal 1 Red +5VDC 3 Black COM 2 Black COM 4 Yellow +12VDC SATA POWER CONNECTOR Pin Color Signal Pin Color Signal 1 Orange 3.3V 4 Black COM 2 Black COM 5 Yellow +12VDC 3 Red +5VDC +12 V POWER CONNECTOR Pin Color Signal Pin Color Signal 1 Black COM 3 Yellow +12VDC 2 Black COM 4 Yellow +12VDC * For P4 motherboard EPS +12 V POWER CONNECTOR Pin Color Signal Pin Color Signal 1 Black COM 5 Yellow +12VDC 2 Black COM 6 Yellow +12VDC 3 Black COM 7 Yellow +12VDC 4 Black COM 8 Yellow +12VDC PCI EXPRESS VGA CONNECTOR Pin Color Signal Pin Color Signal 1 Yellow +12VDC 4 Black COM 2 Yellow +12VDC 5 Black COM 3 Yellow +12VDC 6 Black COM 7 Black COM 8 Black COM

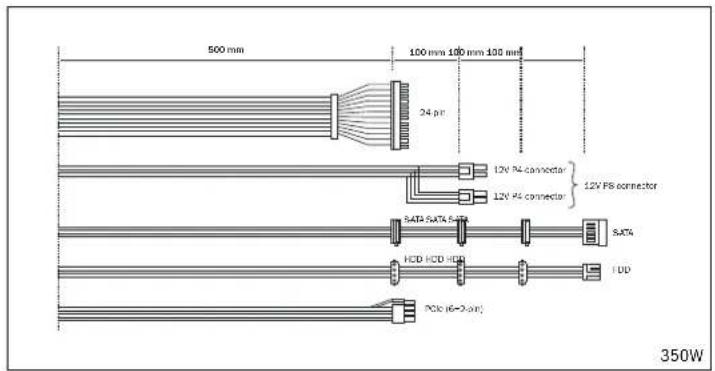

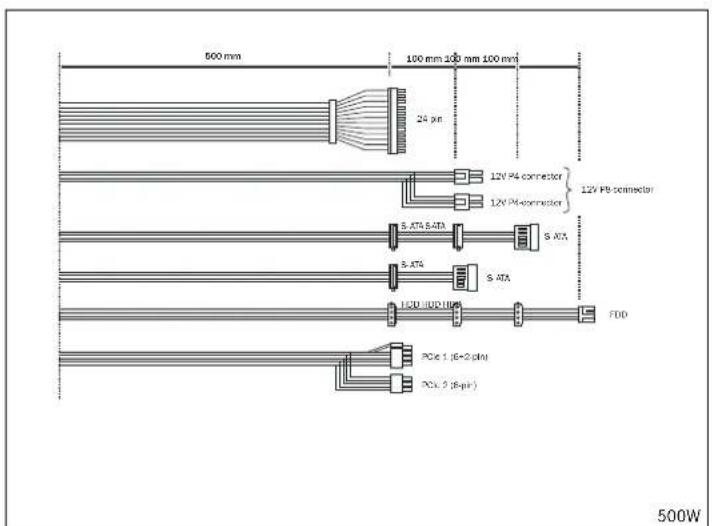

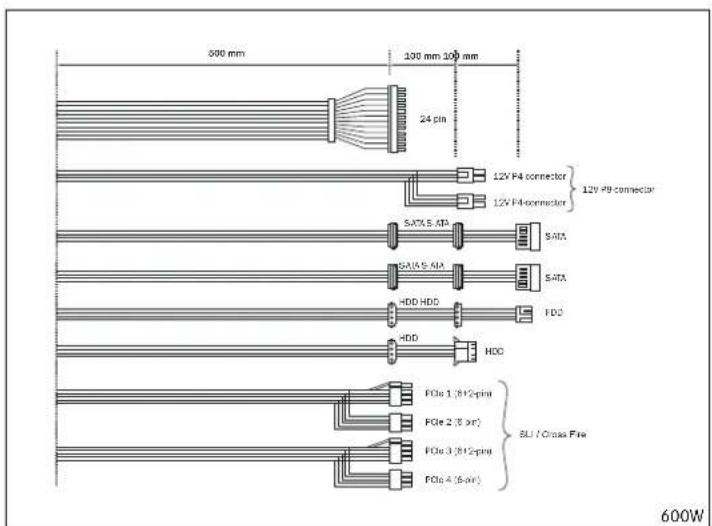

1. CONNECTIVITY AND CABLE LENGTHS


500 mm 100 mm 100 mm 100 mm 24 pt 12V PA connector 12V PS connector SATA SATA 5-6 HCD HCD HDD FDD PCIe (6-2 pt) 350W

500 mm 100 mm 100 mm 100 mm 24-pin 12V P4 connector 12V P4 connector 12V PB connector 5AT4 5ATA 5AT4 5ATA HDD-HDC HDS 1DC PCo (6+2 pin) 400W

500 mm 100 mm 100 mm 100 mm 24 pm 12V P4 connector 12V P4 connector 12V PB connector S.47A S.47A S.47A S.47A 12D IUD 18P FDD PCx 1 (6-2 pin) PCx 2 (6-pt) 500W

500 mm 100 mm 100 mm 24 pins 12V F4 connector 12V F4-connector SATA 5.4A SATA SATA 5.4A HDD HDD HDD HDD F0u 1 (812-pms) F0u 2 (8 xm) F0u 3 (812-pms) F0u 4 (8-pms) 12V P9 connector SATA SATA F0o SUI / Cross Flow 600W
