Product TypePC Power Supply
BrandBe Quiet!
ModelPure Power 13 M 1000W
Rated Power1000 W
Form FactorATX
Dimensions150 x 86 x 160 mm
Weight2.3 kg
Cooling120 mm Silent Fan
Efficiency80 PLUS Gold
ModularityModular (cable set included)
CompatibilityATX12V 3.1, PCIe 5.1, EPS12V 2.92, BTX 1.0a, Energy Star 8.0, ErP
Safety SystemsOCP, OVP, UVP, SCP, OTP, OPP
Manufacturer Warranty10 years

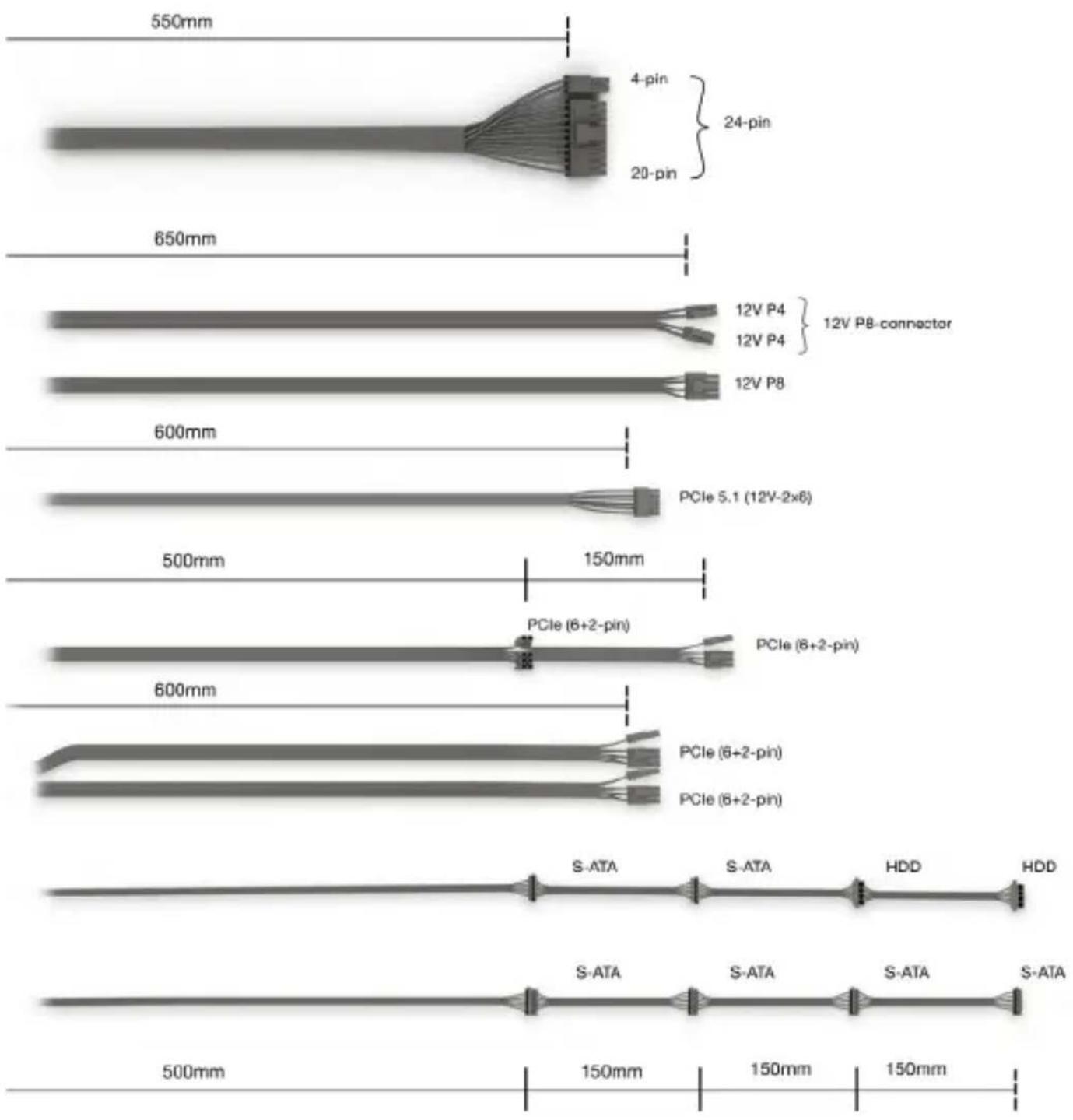

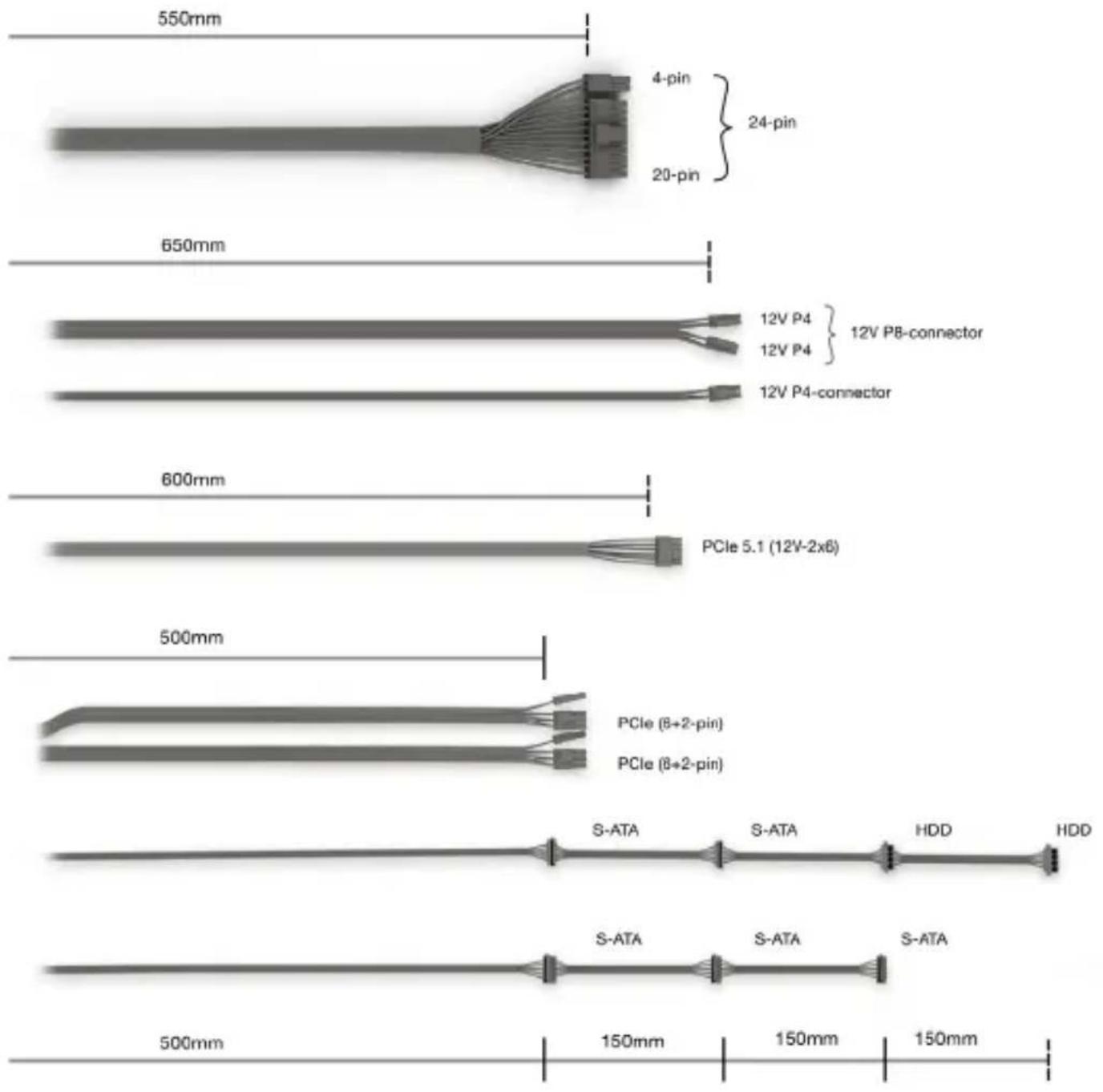

Main Connectors1x 24-pin, 1x 8-pin (EPS), 4x 6+2-pin PCIe, SATA, Molex
MaintenanceExternal cleaning with dry cloth; do not open
PrecautionsUse only supplied cables; do not handle with wet hands
InstallationRequires a screwdriver; wait 1 hour at room temperature before first use
Included AccessoriesPower cable, cable ties, mounting screws, manual
UsageIndoor, dry environment

Frequently Asked Questions - Pure Power 13 M 1000W Be Quiet!

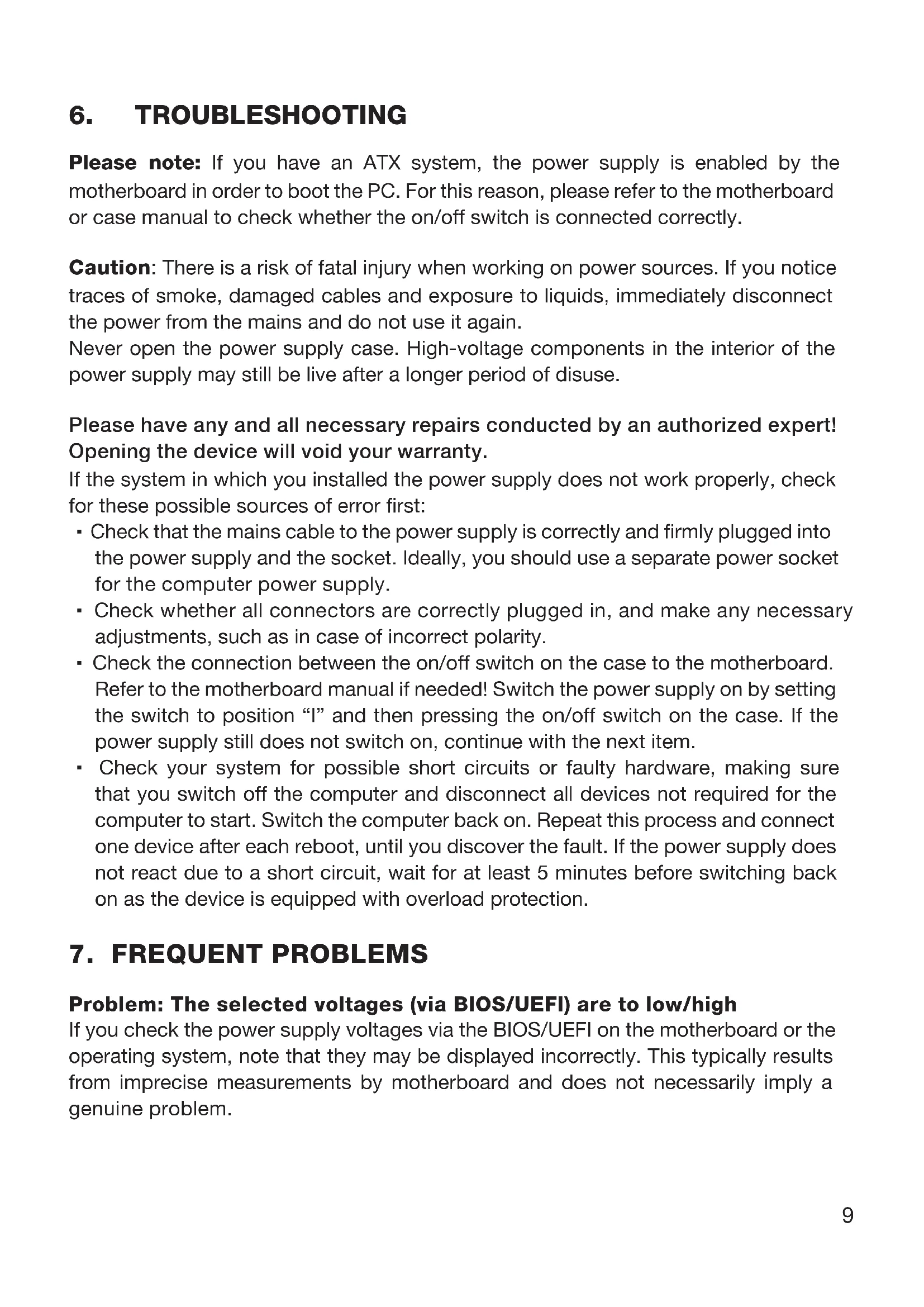

What to do if my power supply doesn't turn on?
Check that the power cord is properly plugged in, that the switch is set to 'I', and that the motherboard activates the power supply. Consult your motherboard manual. In case of a short circuit, wait at least 5 minutes before restarting.
Why are the voltages measured in the BIOS inaccurate?
Measurements via the motherboard's BIOS/UEFI are often inaccurate. This does not necessarily reflect a defect in the power supply.
Can I use cables other than those supplied?
No, only the cable set supplied with the power supply should be used. Using other cables can be dangerous and cause failures.
What to do in case of a short circuit?
In case of a short circuit, do not restart the power supply. Immediately disconnect from mains and check components. The power supply is protected by OCP and SCP.
How to clean my power supply?
Disconnect the power supply before cleaning. Use a dry cloth to clean only the exterior. Do not use a damp cloth or cleaning products.
Can I open the power supply to repair it?
No, never open your power supply. Internal components may remain live even after disconnecting. Opening voids the warranty.
What are the safety features of this power supply?
It features protection against overcurrent (OCP), undervoltage (UVP), overvoltage (OVP), short circuit (SCP), over temperature (OTP), and overload (OPP).
What is the warranty of this product?
The manufacturer's warranty is 10 years for the end consumer, within the scope of an initial purchase from an authorized distributor. Opening the unit voids the warranty.
How to install the power supply?
Follow the steps: disconnect the old one, open the case, secure the new one with the provided screws, connect the connectors (24-pin, CPU, PCIe, etc.) respecting polarity.
What to do if the computer crashes after installing a new graphics card?
The power supply is likely undersized. Check the bequiet.com configurator for the recommended wattage.
