USER MANUAL Dark Power PRO 450W Be Quiet!

FIRST CLASS POWER SUPPLY be quiet!

BQT-P7-PRO

450W/550W/650W

1. Introduction....22
2. Warnings and safety notes .... 22
3. Advantages and specifics 23
   3.1 Compatibility 26
4. Installation instructions .... 26
5. Specifications....28
6. Safeguard function....33

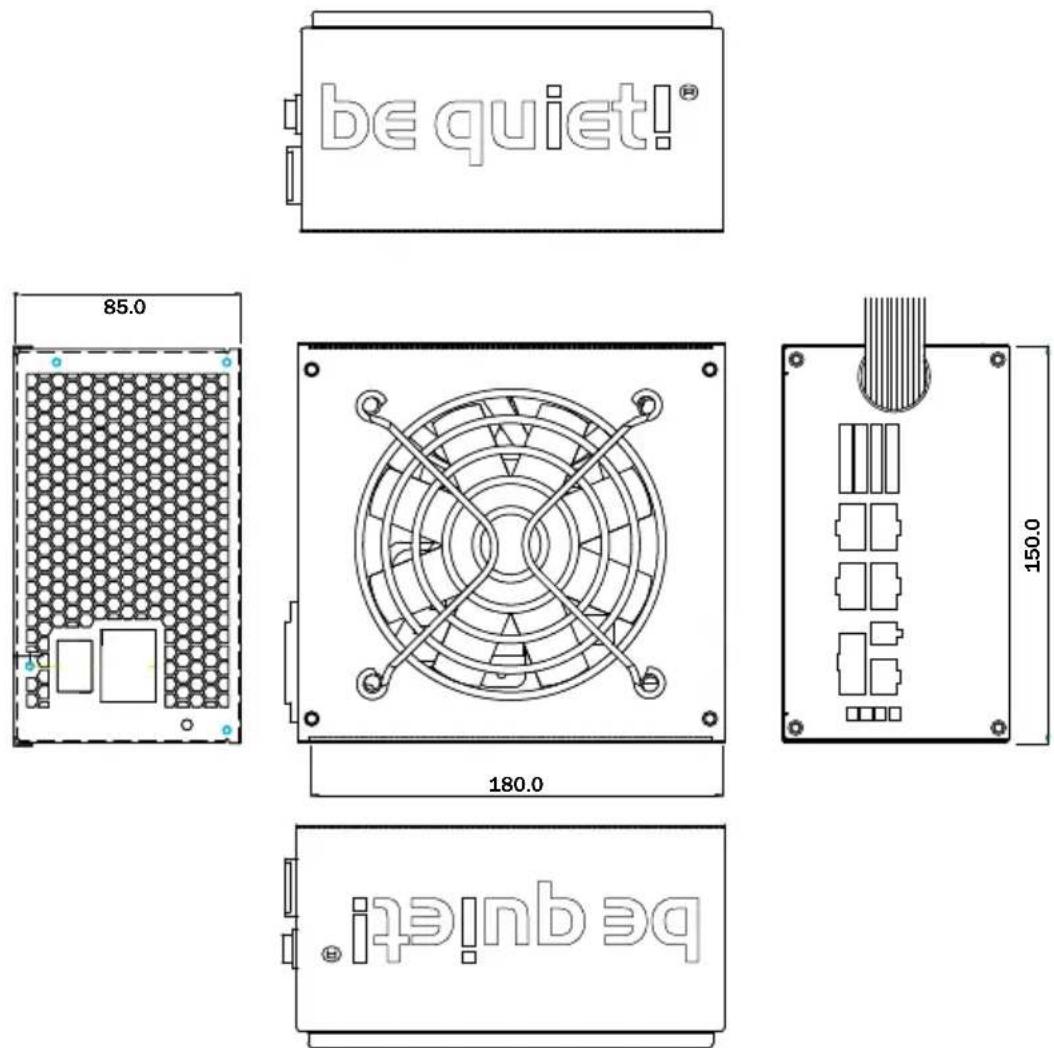

7. Dimensions of the Power Supply....34
8. Trouble shooting 34
9. Accessories 36
10. Article numbers & barcodes....36
11. Notes on disposal 36
12. Warranty, manufacturer specifications and copyright 37

SOMMAIRE

FRANÇAISE

Web: www.be-quiet.de

From outside of Germany: [phone]

Service E-Mail: [e-mail]

ÖKONOMISCH:

Operating conditions	Environment Temperature rel. Humidity
	Operation	0 ~ 40°C 20 ~ 80%
	Storage -25 ~ 85°C 10 ~ 90%

3. LABEL

450 W

550 W

12V splitting ( for the 450, 550 and 650W model ): 12V splitting ( for the 750, 850 and 1000W +1200W model ):

12V1 = 24pin (mainboard) 12V1 = 24pin (mainboard))

12V2 = 4pin for CPU1 + P8 12V2 = 4pin for CPU1 + P8

12V3 = peripherals like HDD, FDD, SATA) 12V3 = peripherals like HDD, FDD, SATA) + 4pin MOLEX for mainboard (MB)

+ 4pin MOLEX for mainboard ( MB ) 12V4 = peripherals like HDD, FDD, SATA

12V4 = PCIe1 + PCIe2 12V5 = PCIe1 (6+2pin) + PCIe3 (6pin)

12V6 = PCIe2 (6+2pin) + PCIe4 (6pin) + PCIe5

( only for the 1000W+1200W model )

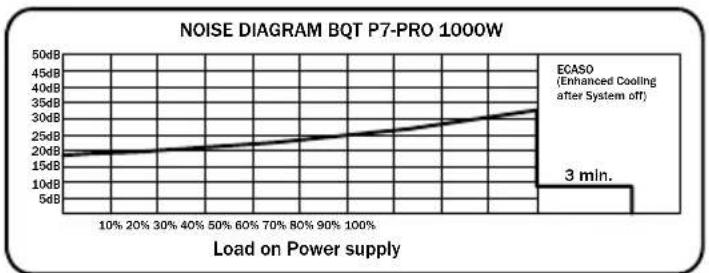

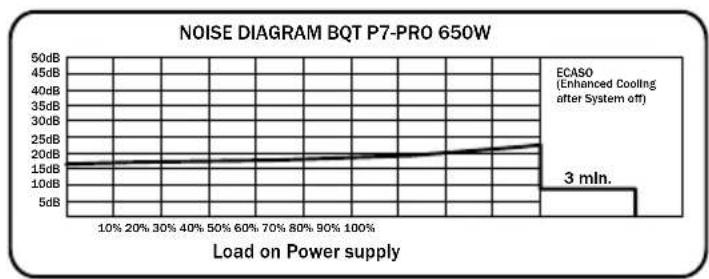

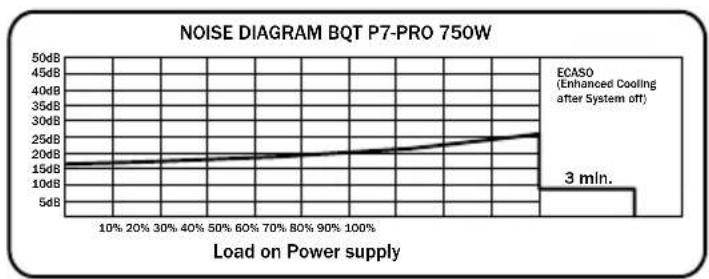

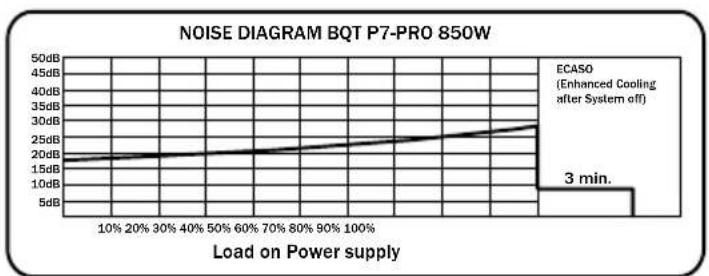

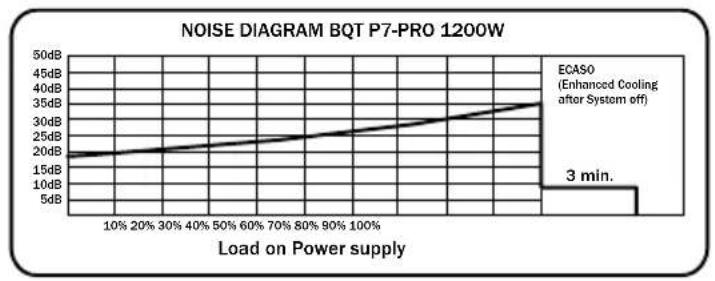

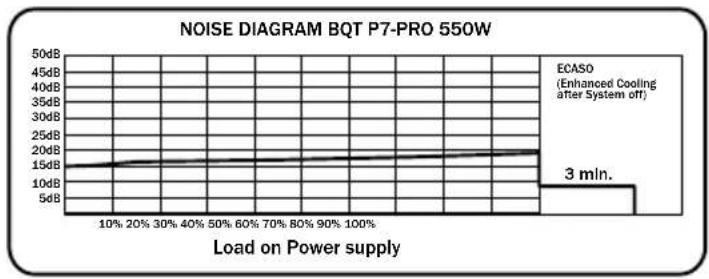

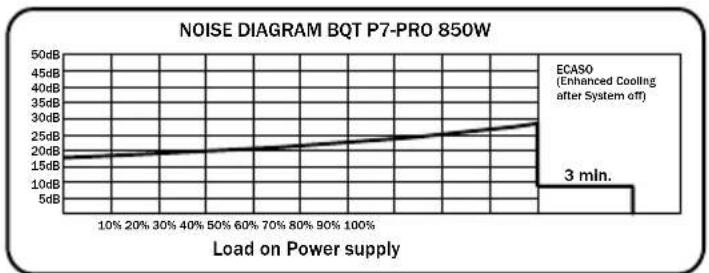

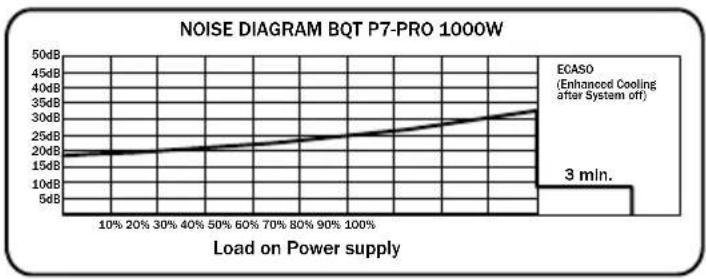

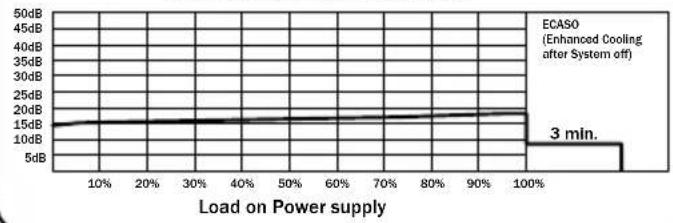

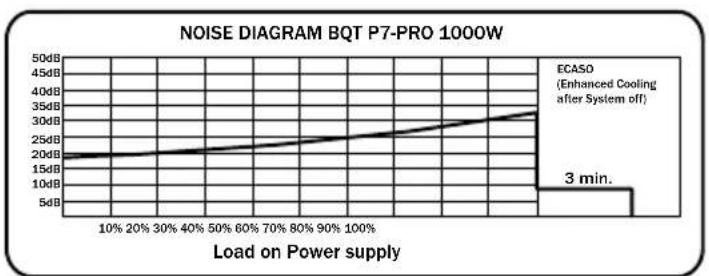

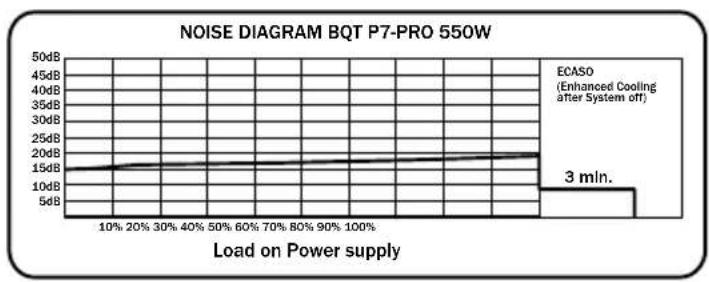

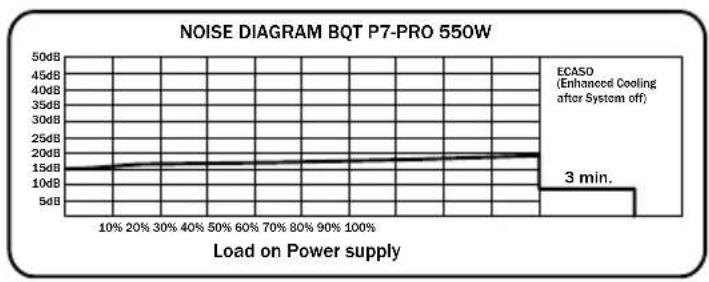

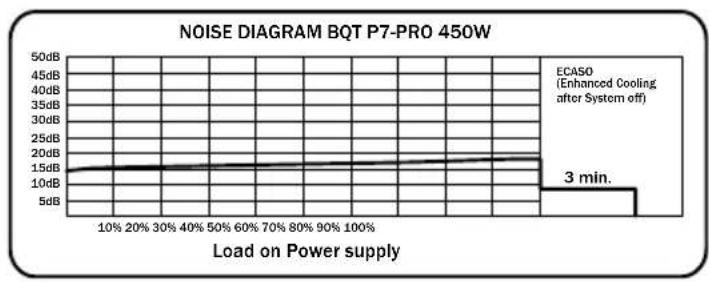

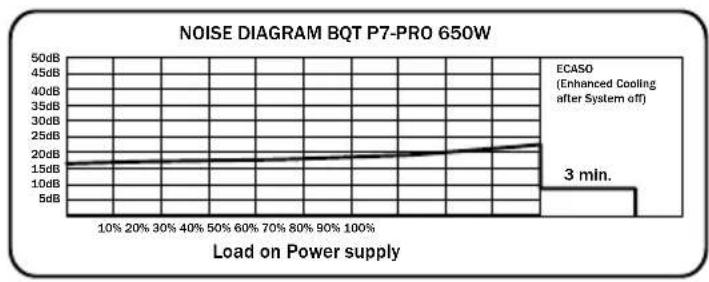

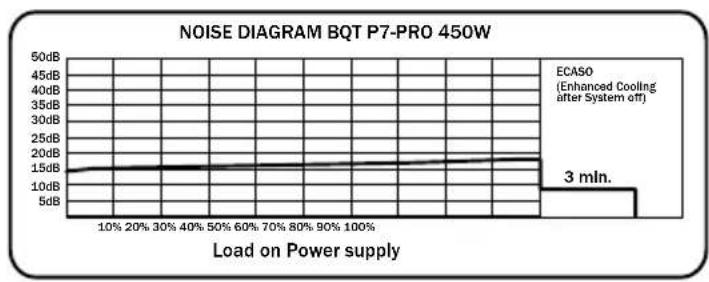

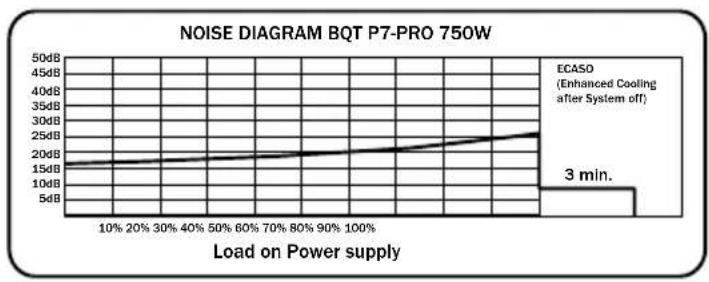

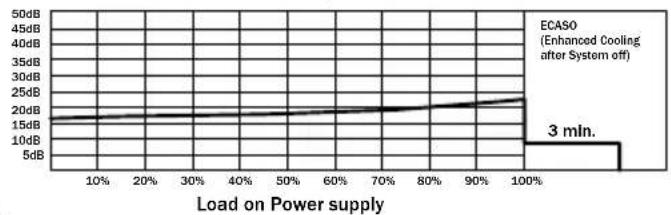

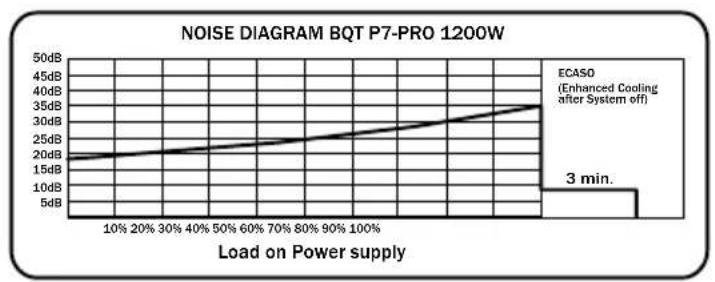

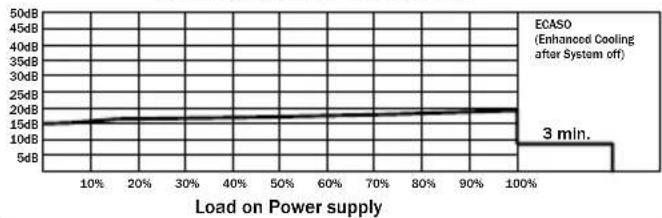

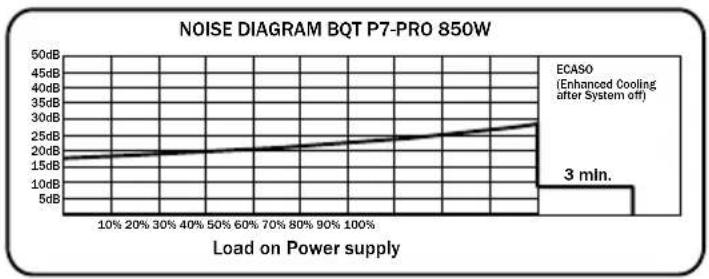

1. BETRIEBSGERÄUSCHDIAGRAMME

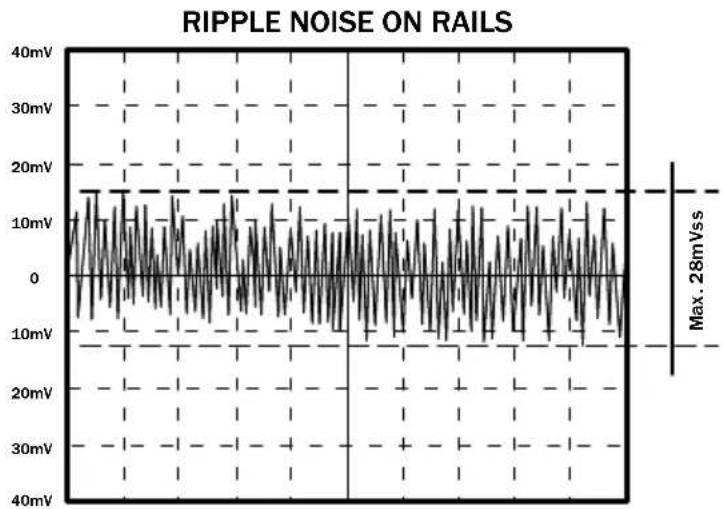

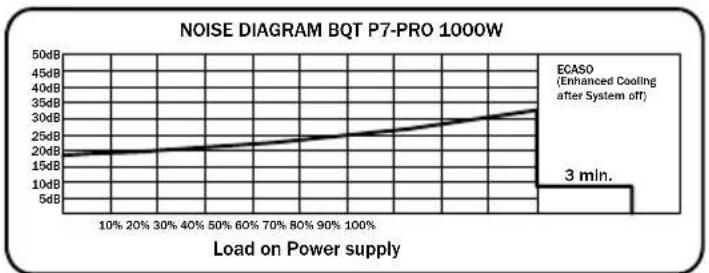

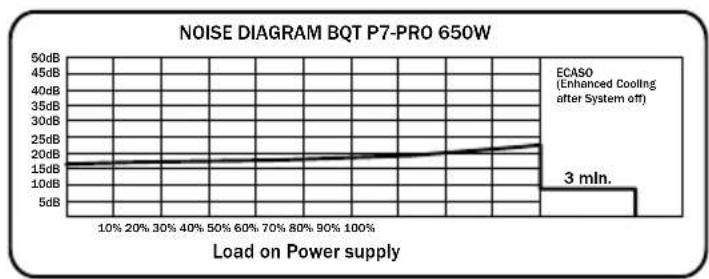

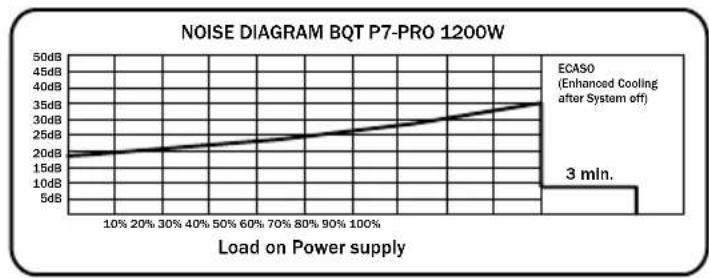

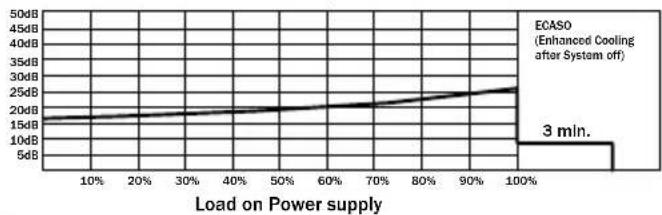

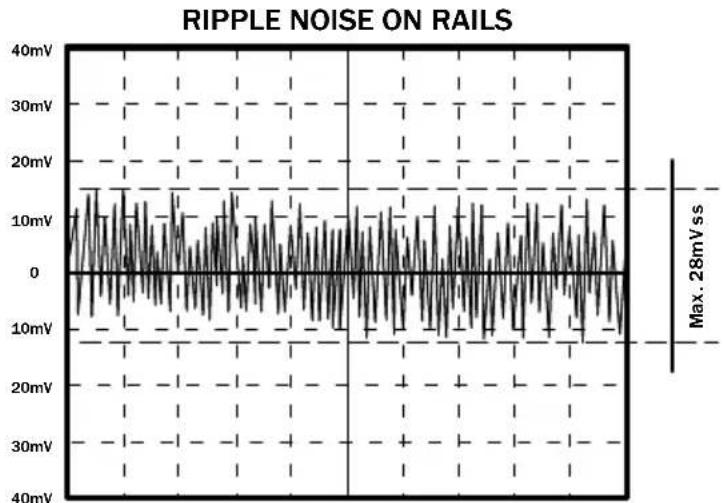

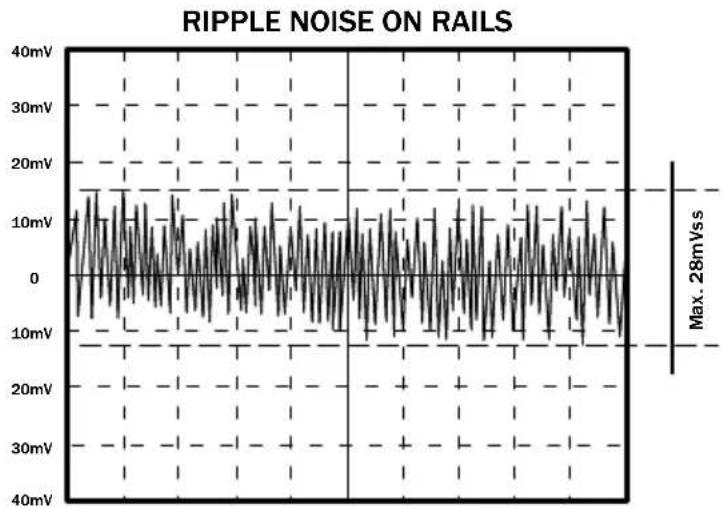

1. RIPPLE UND NOISE DIAGRAMME

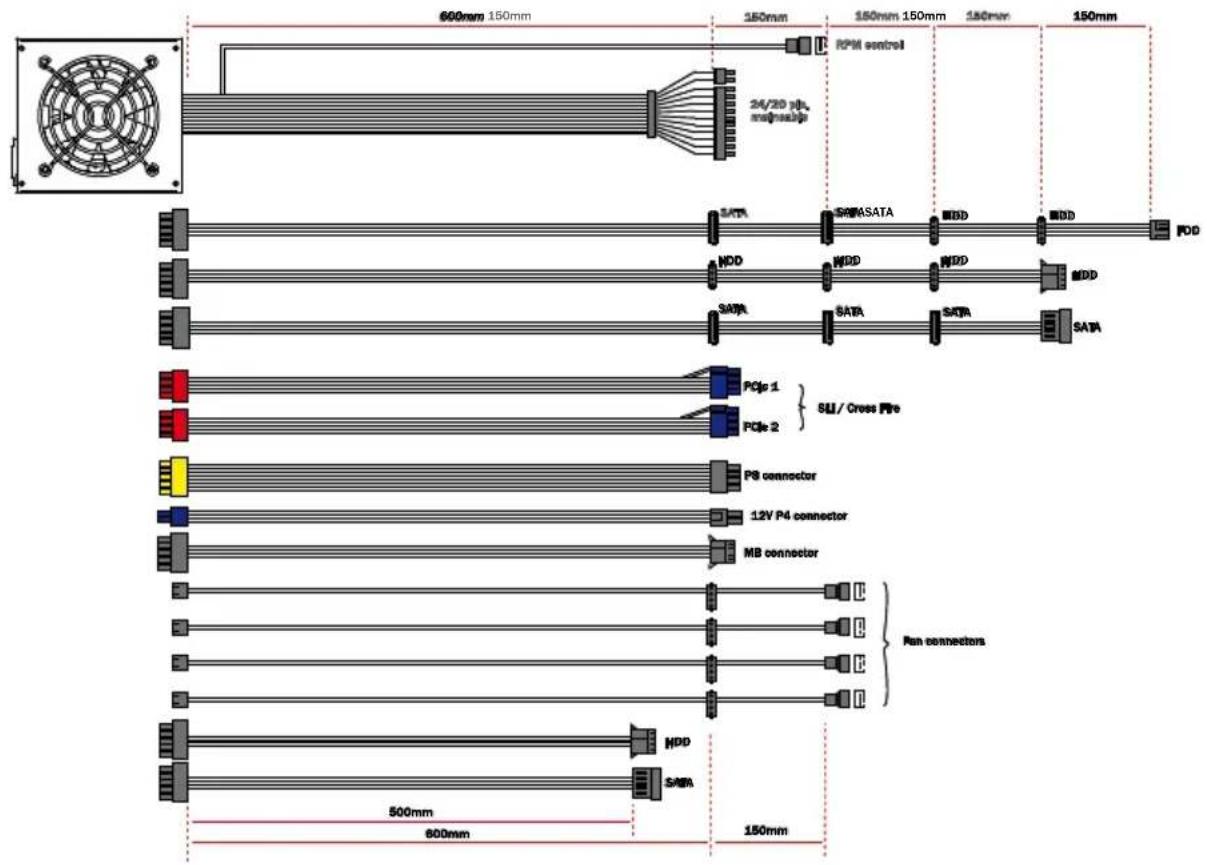

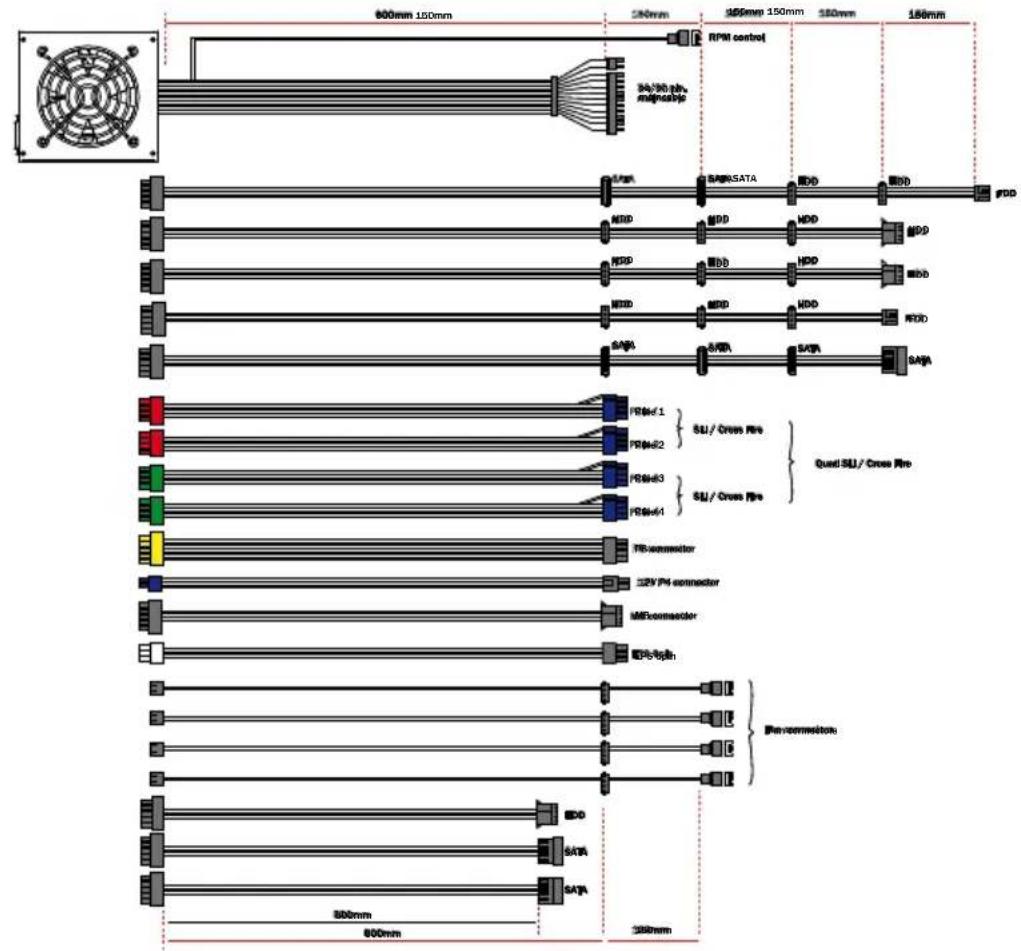

600mm 150mm 150mm 150mm 150mm 150mm RPM control 24/20 μF. microcontroller SATA SRA/SATA MDD MDD FDD NDD NDD NDD MDD SATA SATA SATA SATA PCIe 1 PCIe 2 SII / Cross Fire P8 connector 12V P4 connector MB connector Pan connectors HDD SABA 500mm 600mm 150mm

650W

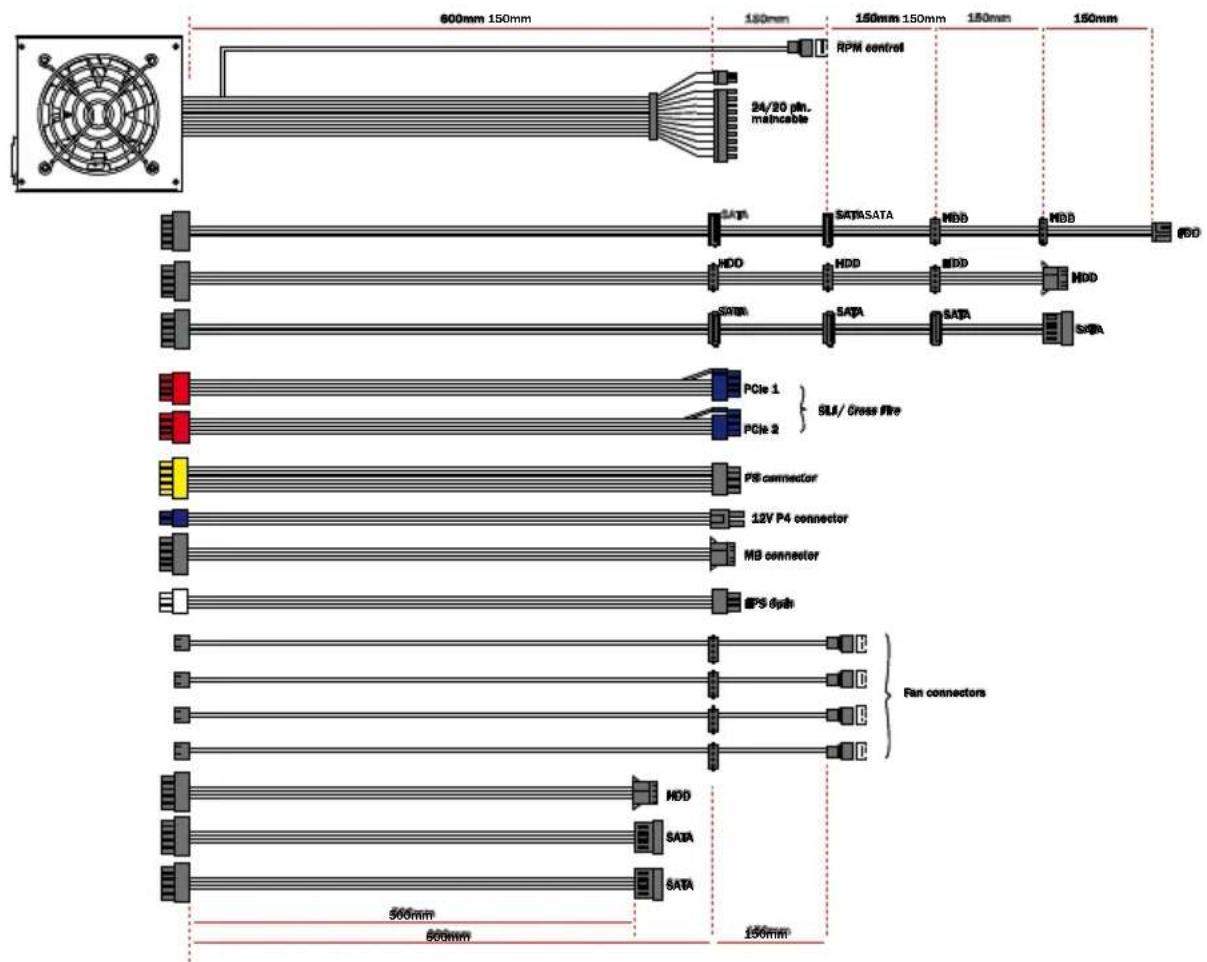

600mm 150mm 150mm 150mm 150mm 150mm RPM control 24/20 pin. maincable PCIe 1 PCIe 2 SUA/SATA HDD HDD HDD SUA/SATA SUA/SATA SU/Gress Fire PS connector 12V P4 connector MB connector EPS 6pin Fan connectors HDD SATA SATA 500mm 600mm 150mm

850 W

800mm 150mm 250mm 160mm 150mm 150mm 150mm RPM control 34/90 nPs mipristrip UppA SAPR/SATA HDD HDD FDD NDD MDD HDD MDD NDD MDD HDD HDD SAPA AVRA SAPA SAPA PBref-1 5L1/Cross Fire Quad 5L1/Cross Fire PBref-2 5L1/Cross Fire PBref-3 5L1/Cross Fire PBref-4 PBconnector 32V PM connector MFCconnector EPC-Rpln Per connection EDD SATA SATA 800mm 600mm 350mm

500mm 150mm 150mm 150mm 150mm 150mm 24/25 pH. modulabip RPM control SAPLA DATA MDD MDD PDD HD0 HDD HDD HDD HDD HDD HDD HDD SAPLA DATA SAPLA DATA SAPLA DATA SAPLA DATA PCB 1 PU / Cross Fire PCB 2 PU / Cross Fire PCB 3 PU / Cross Fire PCB 4 PS connector 120/14 connector MII connector DPS d68 Bus connectors M20 VBA SAPLA 500mm 600mm 250mm

Technical schematic diagram of a multi-layered electronic component with labeled parts and dimensions in millimeters.

RoHS 2005/95/EC

12. GARANTIE, HERSTELLERANGABEN UND COPYRIGHT

21509 Glinde Germany

From outside of Germany: [phone]

Service E-Mail: [e-mail]

We're happy and excited that you have decided to use a be quiet! power supply from the Dark Power PRO series in your computer. In order to be able to answer your initial questions in advance, we have summarized the advantages and specifics of the Dark Power PRO series in this comprehensive manual.

The latest generation of the Dark Power PRO series offers you many experiences and is a consequent further development of the very successful pilot production.

Should you have any questions during the initial start-up procedure, please carefully read through this instruction manual. Should you then have any additional questions, please call us at our customer service hotline:

service hotline: [phone]

E-mail: [e-mail]

Website: www.be-quiet.com

PC Systems are always becoming more and more capable and require more electricity as a result of the high performance graphic cards and quicker processors, especially on the +12V cables. The power supplies provided in the Dark Power PRO series are an ideal supplement in reference to the reserve capacities, even for the operation of PCI Express graphic cards in the SLI or Crossfire networks. In addition, intelligent cable management contributes to a tidy PC and to a better air circulation when being used in space-saving Media Centre PCs or mini-format computers.

The power supplys featured in the Dark Power PRO series dispose of an extremely high rate of efficiency of up to 87%, which makes it peerless on the market. For a permanent usage intensity of your computer, the lower consumption of electricity can possibly be noticed in the next electricity bill.

2. WARNINGS AND SAFETY NOTE

Before conducting the start-up procedure, please carefully read and observe all of the points in this instruction manual. Only then can a correct operation of the power supply be ensured and as a result, you'll be able to enjoy this product for a long period of time.

Never open the cover of the power supply. The electronic components sheeted there create a high voltage that is dangerous to humans. After the separation from the network, the construction parts are often continue to harness a high voltage. As such, a power supply may only be opened by authorized personnel.

In addition, the guarantee is deemed null and void once the power supply has been opened, thus damaging the official guarantee seal.

Never operate the device with wet or moist hands.

Never place items in the openings/fanner of the power supply.

Please observe that the start-up procedure is only intended for interiors. The exterior usage can lead to heavy damages.

Do not conduct any work on the power supply when it is in a phase of line voltage. (In this situation, always place the power switch to „0“ and if necessary, pull out the power plug).

Should there be a short circuit in the device, remove the power cable and do not bring the device back into operation.

Power supplys without a universal alternating current (AC) cannot be used in the countries where, for example, there's a line voltage of 110V. The power supply can be destroyed if used with an incorrect or false AC voltage portal.

This power supply is designed for a voltage range between 100 - 240V\~ and thus, universally versatile.

Make sure that your PC is not situated directly next to a heater or another heat source because this can cause a decrease in the lifespan of all components and thus, lead to failures/casualties.

Make sure that there is a sufficient amount of ventilation in your computer case, for example, with an additional fan, because a current ATX power supply is not solely responsible for the evacuation of the complete warmth produced in the PC case.

Should you want to clean your power supply, separate it completely from the power supply system and do not use damp towels or cleaning agents. Only clean the power supply from the exterior using a dry towel.

Only start the operation of the power supply after an hour within the room air environment, because otherwise, condensation can build up in the power supply.

3. ADVANTAGES AND SPECIFICS OF YOUR NEW POWER SUPPLY

HIGH EFFICIENCY:

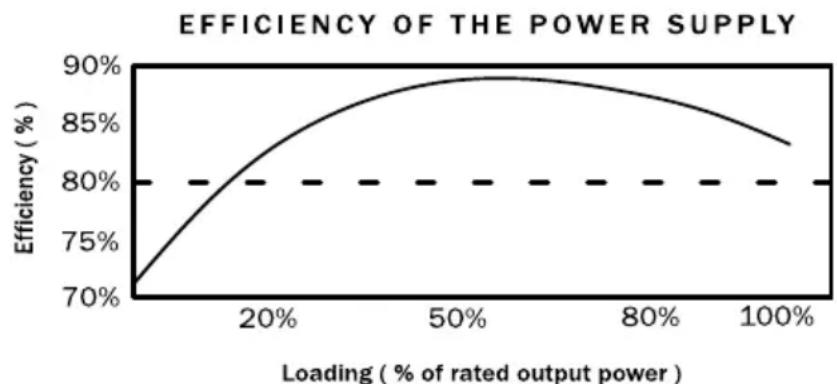

The power supply series from Dark Power PRO dispose of a very high degree of efficiency. This helps them to reduce the costs of electricity that accumulate within a year when there's a high rate of operation.

A high efficiency means that the power supply can convert the incoming alternative current into direct current with a lower level of losses. This leads to a lower amount of warmth loss, which then has a positive effect on cooling the power supply. Power supplies that feature as high a rate of efficiency as is exhibited by the Dark Power PRO series, can thus be operated with an extremely slow moving and thus, very quiet fan. An extremely low development of noise is the result of this continually technical advancement.

ECONOMICAL:

The power supplys of the Dark Power PRO series corresponds to the current guidelines 2002/95/EG (RoHs and WEEE directives) issued by the European Union.

An environmentally conscious manner of production and the usage of materials that do not include harmful substances that are dangerous for the environment are guaranteed with be quiet! products. In this way, both we the manufacturer and you the consumer actively help in making an important contribution to the protection of our environment.

VOLTAGE STABILITY:

The power supplys from the Dark Power PRO series dispose of a first-class stability in supplying your valuable components with electricity. This is also created by the usage of high quality components. As such, output voltages are kept very close to the optimal nominal value, which is very important for a higher demand on performance.

WARMTH-DEPENDENT AIR VELOCITY CONTROL:

be quiet! power supplys from the Dark Power PRO series make use of a very precise air velocity control. This automatic control not only controls the fan in the power supply, but can also control the case fan that can be connected to the power supply. The application is rather simple: only the case fans that are usually equipped with a 3 pole and/or 4 pole connector must be connected with the respective connections onto the power supply.

The speed of the fan is regulated depending on the warmth development in the power supply. If the temperature increases, the fans automatically begin to turn faster in order to ensure a quick and effective cooling within the case. The cooling that is quickly created then contributes to the longer lifespan of its components and the power supply.

When connecting individual fans to the power supply, please ensure that these fans do not have their own thermal sensors or potentiometers.

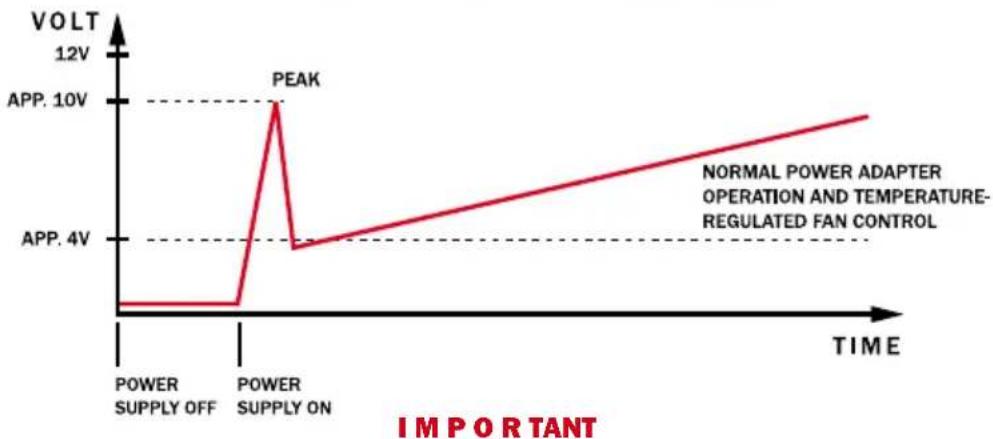

The air velocity control disposes of an gear-up impulse. This ensures that all connected case fans are brought into gear in that a short impulse with a high level of voltage starts the fan.

FAN CONTROL WITH A GEAR-UP IMPULSE

Only connect one fan with every cable.

SILENT WING:

The fans built into the be quiet! Dark Power PRO are very dependable. As a result of the high efficiency of the power supply, you only require a very low amount of component cooling, which then precipitates in the special running smoothness of the fan. The 120 mm large fan is located on the underside of the power supply and ensures an optimal cooling of the components.

CONTROLLING FAN ROTATIONAL SPEED (POWER SUPPLY FANS) VIA THE MAINBOARD:

A cable on the power supply makes the connection of the power supply fan to your mainboard possible. You can read the speed indicator signal of your power supply fan via the mainboard (BIOS). The cable is to be connected to the intended slot on the mainboard and can then read the speed of the fan in the BIOS and/or operational system. Consult the manual of your mainboard as to whether this function is available.

ECASO (FAN FOLLOW-UP CONTROL):

ECASO stands for Enhanced Cooling After System Off and is to be indicated as a fan follow-up control. If the PC is turned off, all fans normally stop although it is still very warm in the interior case. With the ECASO control, this problem is solved by be quiet!. The power supply fan and all case fans attached to the power supply re-run after the system has been turned off for 3 minutes. The warmth is quickly and efficiently removed from the case after operation and does not damage its hardware.

YOUR SERVICE FOR THE NEW POWER SUPPLY:

3 YEAR WARRANTY:

With every newly purchased be quiet! Dark Power PRO power supply, you receive a three year warranty, one entire year longer than required by the law.

1 YEAR ON-SITE EXCHANGE:

Starting on the actual day of purchase, you receive the established on-site exchange service for one full year. This service will exchange your power supply with a new one on-site within for 48 hours of your call to the be quiet! hotline. (This only applies for final consumers and within Germany.)

TECHNICAL ADVANTAGES

ATX12V VERSION 2.2:

With the Dark Power PRO series, be quiet! offers a power supply that corresponds to the latest ATX 12V specifications. It offers separate 12V circuits that have an advantageous effect on the dependable function of the system. The 450, 550 and 650W models dispose of four separate 12V circuits and the 750, 850, 1000 and 1200W models dispose of six separate 12V circuits.

PCI EXPRESS CONNECTORS:

The power supplies from the Dark Power PRO series dispose of up to five 6 or 8 pin connectors that are necessary for the usage of PCI express graphic cards. In its basic form, every connector is a 6 pole connector that can be converted into an 8 pole connector by adding two additional pins. The 1000 and 1200W version additionally offer a fifth 6 pole connector with which the operation of a PhysX® graphic card is guaranteed.

20/24 PIN MAINBOARD CONNECTORS:

With an expandable main connector that features from 20 to 24 pins, the Dark Power PRO series is also downward compatible with all current specifications. The following standards are supported:

• ATX Specification V2.2 and older
• BTX V1.0a
  • E-ATX Server mainboards with additional 8 and 6 pin connectors

VARIABLE CABLE MANAGEMENT:

The power supply disposes of numerous, variable connection possibilities. This ensures that users can comfortably enhance their PC with many components. The various cable strands can be varied and non-used cable strands are simply stowed and do not disrupt the flow of air in the case.

EPS CONNECTORS:

With the two additional 6 pin and 8 pin connectors, the server and workstation mainboards can be respectively operated.

SERIAL ATA (SATA) CONNECTORS:

Power supplies from the Dark Power PRO series are equipped with a sufficient amount of SATA connectors. The 450 and 550W models dispose of up to 7 SATA electrical connectors, the 650 and 750W models dispose of 8 SATA electrical connectors and the 850, 1000 & 1200W models dispose of 12 SATA electrical connectors.

ELECTROMAGNETIC COMPATIBILITY (EMC):

The be quiet! power supplies featured Dark Power PRO series are compatible with current popular power supplies and mainboard specifications such as:

• Intel ATX12V Power Supply Design Guide Version 2.2 (as well as downwards compatible for V 2.01 / V 2.0 / V 1.3)
• ATX System Design Guide Version 2.2 and Version 2.1
• BTX Version 1.0a
• E-ATX Server Dual Mainboards via 8-Pin Connector
• EPS12V Version 2.91 (as of 650W)

4. INSTALLATION OF YOUR NEW POWER SUPPLY

Please read the point „Warnings and safety notes“ before you begin the installation.

Remarks: To install the power supply in your PC, you will require a screwdriver. Only use the screws delivered with the adapter because they have the provide the correct thread

You must first remove you old power supply. For this, proceed as follows:

1. Separate your PC from all available sources of electricity and carefully remove all cables attached to the PC.
2. Open the PC case and if necessary, observe the manufacturer instructions.
3. Remove all connectors from the mainboard and all additional components such as FDD, HDD or optical drives. Please make sure that no connectors from the old power supply are connected to a component.
4. Now unscrew the screws on the backside of the power supply and carefully remove them. When doing this, make sure that no cables get caught on components and thus, become damaged.

The installation of your new be quiet! Dark Power PRO power supply:

1. Place the new power supply in the space provided in the case and screw it into the backside with the four screws included with the delivery. Do not use excessive force to do this.
2. Place the 20/24 pin into the intended connector on the mainboard. If you have a 24 pin connection, then place the remaining 4 pins in the correct position before you stick the connector in the socket. When using a 20 pin connector, fit the additional 4 pins right into the side.
3. Now stick the 4 pin connector, also called the P4 connector, into the provided socket on the mainboard. This connector is will provide your CP in the future with additional electricity.
4. If you have a mainboard with several processors, you will require the additional 8 pin EPS connectors (available as of 650W). You connect these into the socket on the mainboard. Some mainboards also require an additional 6 pin EPS connector. If this is the case, also connect this connector.

Remarks: Please observe the your mainboard manufacturer instructions when connecting the EPS connector. Not all mainboards dispose of these connections.

CABLE MANAGEMENT:

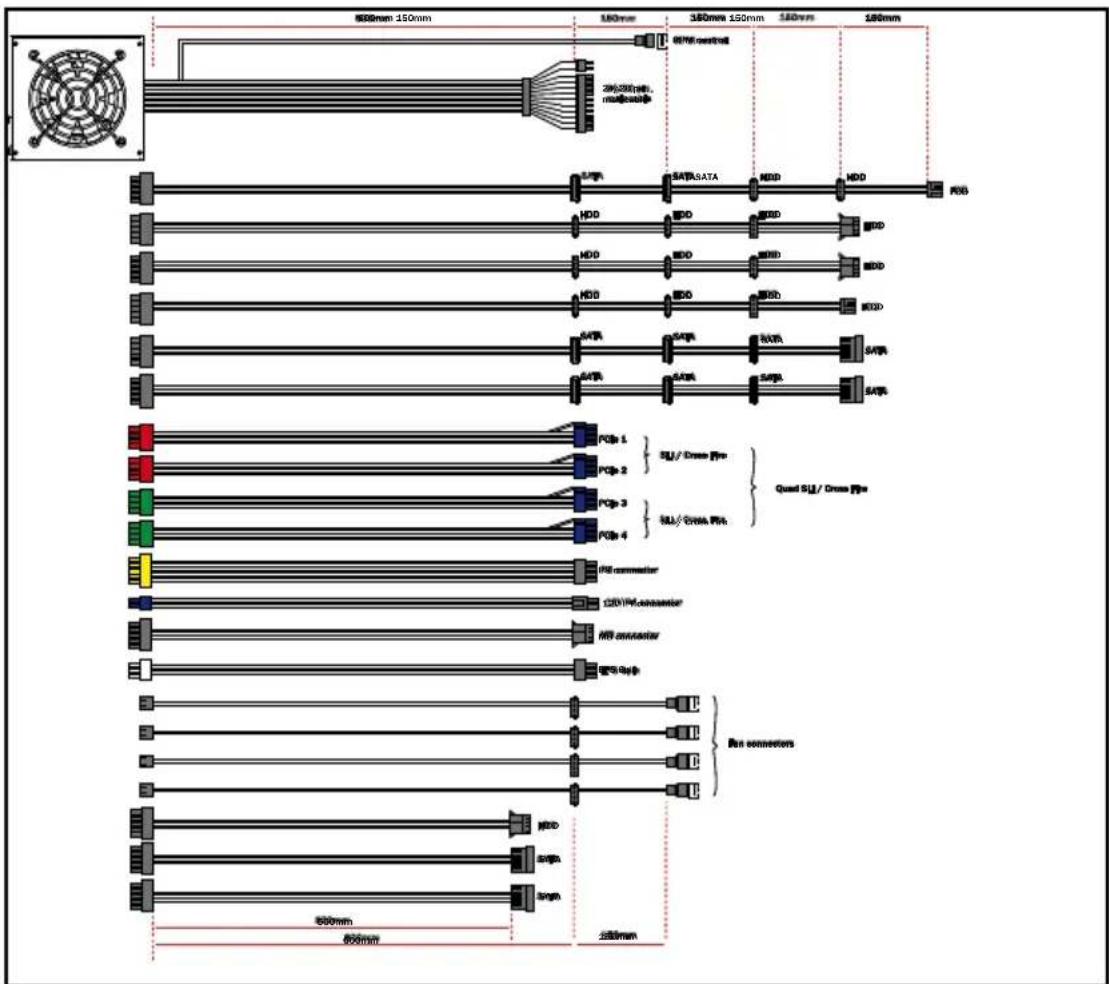

A specific attribute for the connection of the peripheral devices is the so-called cable management. With this cable management, you can simply remove non-used cable from or, if necessary, attach it to the power supply. With that, a cable salad is avoided and the case is kept tidy.

A special advantage is the now unchecked draft through the case. Disruptive cables prevent the air from traversing through the case, whereby the cooling is negatively influenced. This can be effectively avoided with this cable management.

Note: All cables are designed such that a mix-up of the cable directions and an interchanging of the connections is disqualified. All connectors can be easily stuck into the sockets, yet are then very tightly situated such that there is only a very low resistance. Should problems however arise, never alter the connectors and cable connections yourself. This can possibly cause permanent damage to the power supply and the other components as well as being grounds for a loss of warranty.

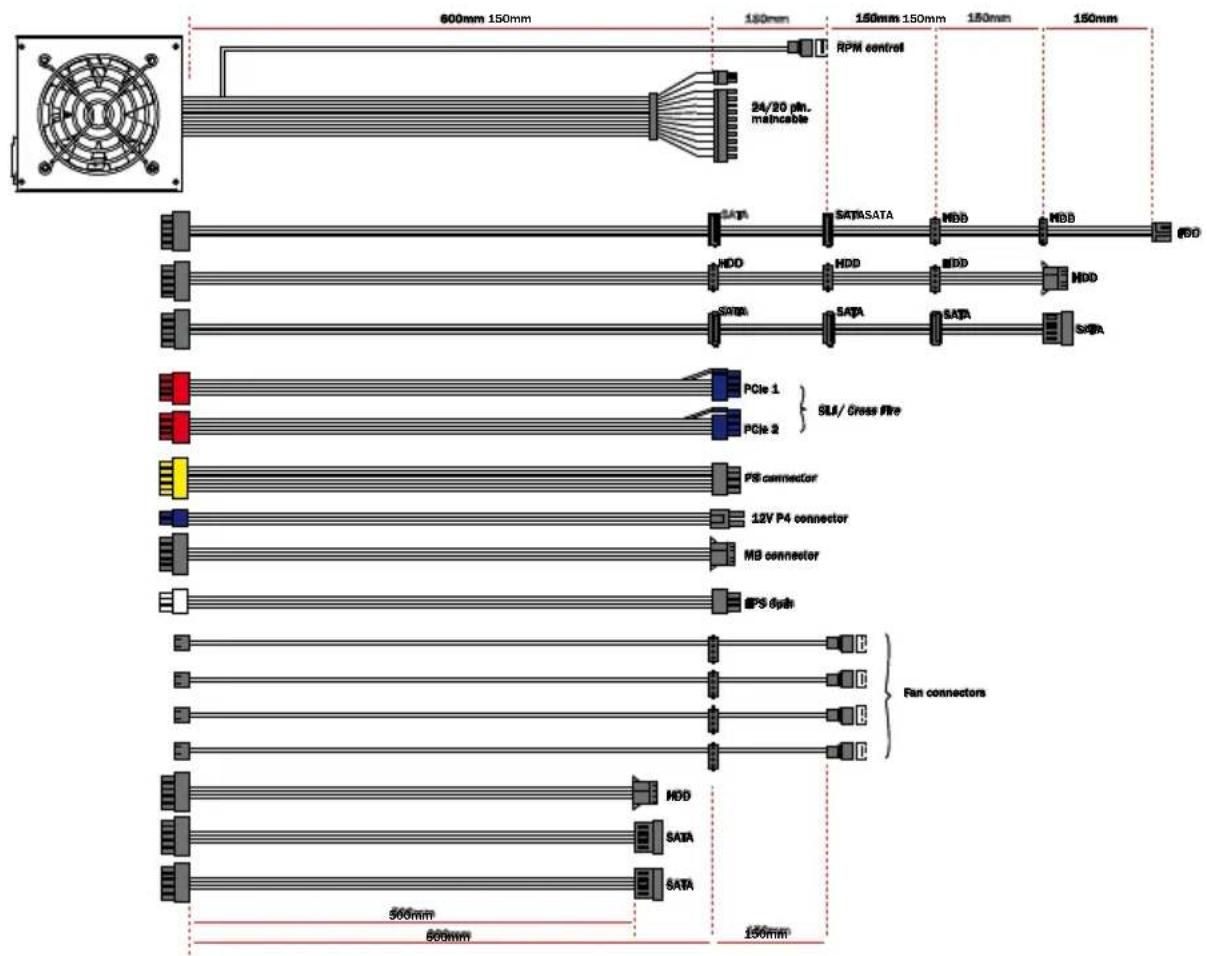

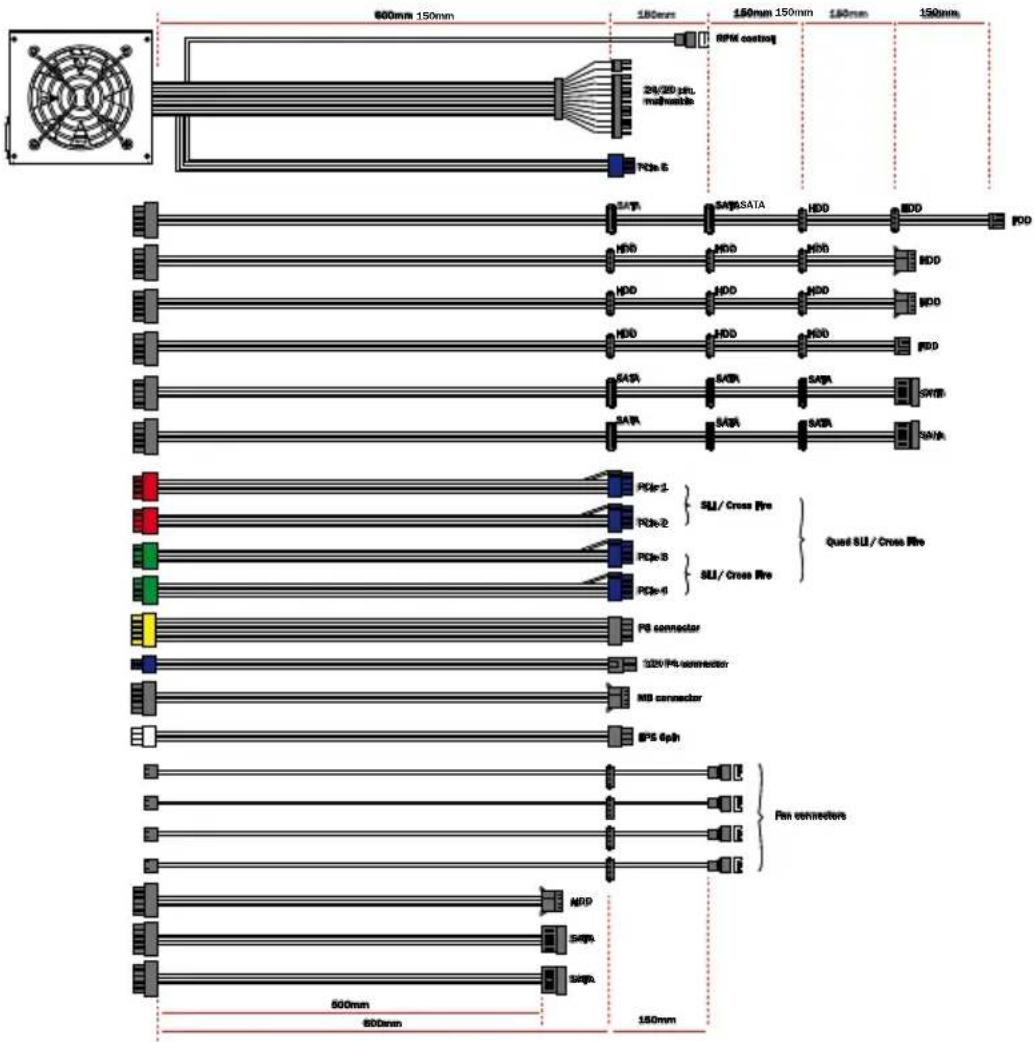

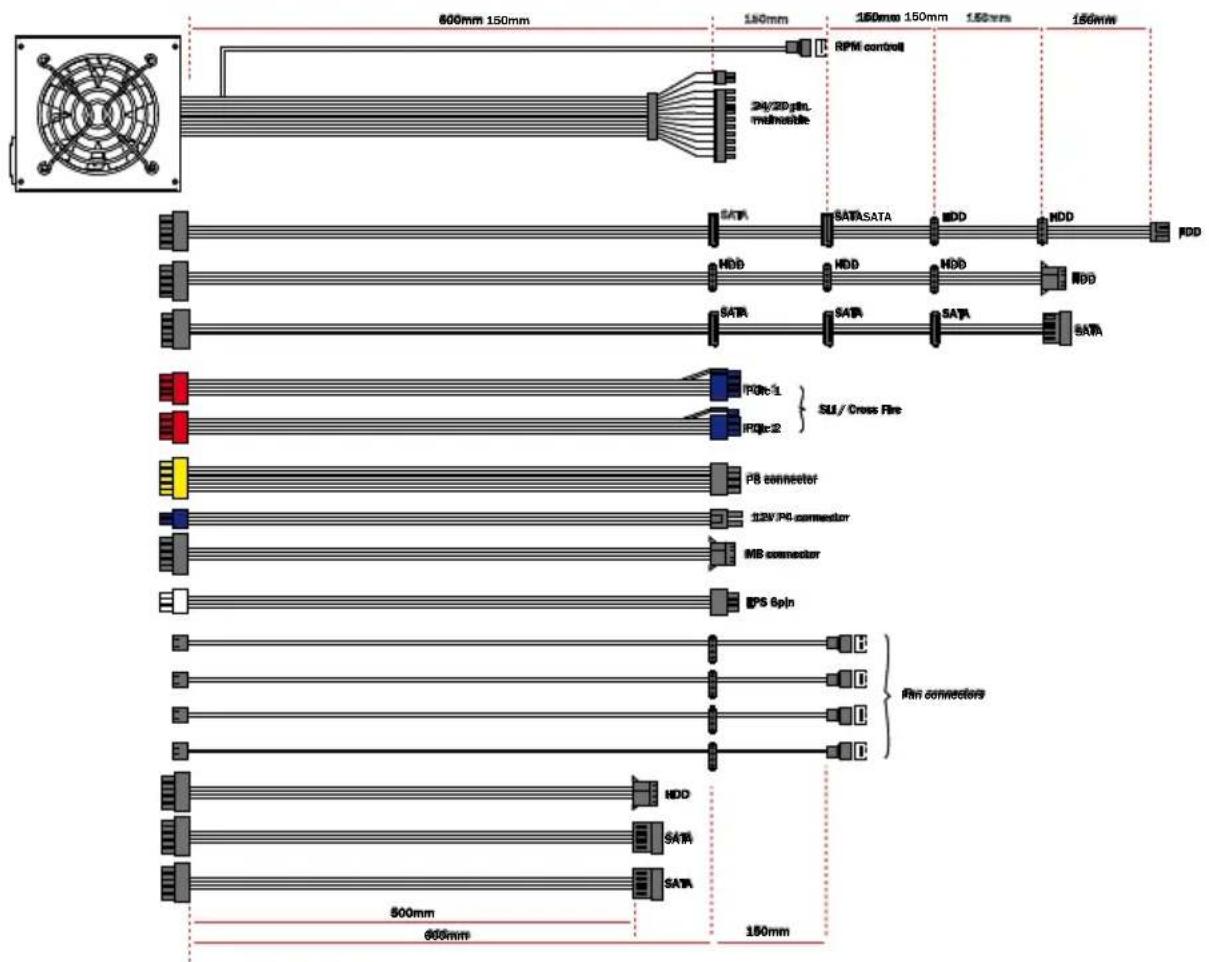

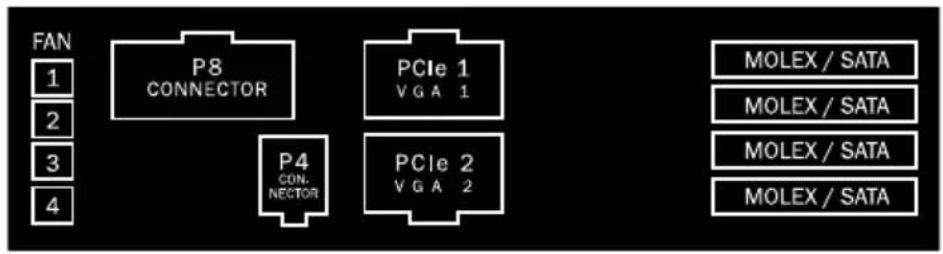

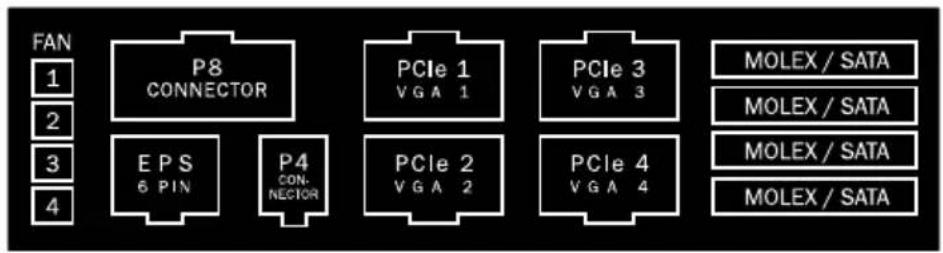

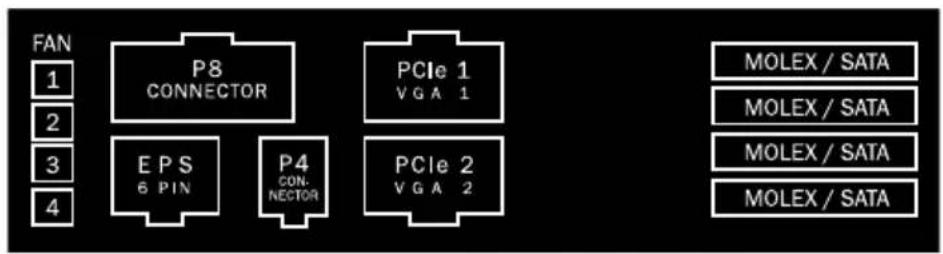

The allocation of the sockets on the power supply is as follows:

450W & 550W MODELS

650W MODEL

750W, 850W, 1000W & 1200W MODEL

FAN

The four fan connections are indicated with FAN. The fan connections are to be attached at these junctions. The attached fans are later controlled by the internal automatic controls.

Attention: only one fan per connection cable!

Maximum load for all connections in sum 1.2A/14.4W!

P8 CONNECTOR

The P8 connector is required for mainboards with several processors. These provide the processors with an extra 12V circuit that is required for a stable operation.

EPS (AS OF 650W)

The additional 6 Pin EPS connector is, for special mainboards, required in the server and workstation area. This connector is available to you as of the 650W model

MB

The connector with the MB indicator helps the additional supply of a 12V and 5V circuit for a more stable system.

PCIE1 AND PCIE2

The first two graphic card connectors are indicated in red. These serve to supply the high performance graphic cards with electricity. There is, in each case, a 6 pin connector on each end of the cable. These can then convert into 8 pin connectors by applying the pluggable pins.

PCIE3 AND PCIE4 (AB 750W)

The second two graphic card connectors are indicated in green. These also serve to supply the high performance graphic cards with electricity. There is, in each case, a 6 pin connector on each end of the cable. These can then convert into 8 pin connectors by applying the pluggable pins.

MOLEX AND SATA

The four sockets on the right side serve to connect the cable for the peripheral devices. In this case, it doesn't matter whether you use the HDD or SATA cables on the connections. You can connect this variation to each of the four sockets. There are no incompatibilities.

5. SPECIFICATIONS

1. VOLTAGE REGULATION

Technical Data	ATX Form Factor	ATX 12V Version 2.2
	AC Voltage	100 - 240Vac
	Frequency	50 - 60Hz
	PFC type	Active PFC
	PF value	0,99 @ 100% load
DC Output Regulation voltage	DC output	Tolerance	Control ranges
	+3,3V	+/- 5%	3,14V ~ 3,47V
	+5V	+/- 5%	4,75V ~ 5,25V
	+12V1	+/- 5%	11,4V ~ 12,6V
	+12V2	+/- 5%	11,4V ~ 12,6V
	+12V3	+/- 5%	11,4V ~ 12,6V
	+12V4	+/- 5%	11,4V ~ 12,6V
	+12V5	+/- 5%	11,4V ~ 12,6V
	+12V6	+/- 5%	11,4V ~ 12,6V
	-12V	+/- 10%	10,8V ~ 13,2V
	+5VSB	+/- 5%	4,75V ~ 5,25V

2. OPERATIONAL CONDITIONS

Operating conditions	Environment Temperature rel. Humidity
	Operation	0 ~ 40°C 20 ~ 80%
	Storage -25 ~ 85°C 10 ~ 90%

3. LABEL

450 W

550 W

* For P4 motherboard

PCI EXPRESS VGA CONNECTOR

Pin	Color	Signal	Pin	Color	Signal
1	Yellow	+12VDC	4	Black	COM
2	Yellow	+12VDC	5	Black	COM
3	Yellow	+12VDC	6	Black	COM

SSI WORKSTATION 6-PIN (AGP PRO)

Pin	Color	Signal	Pin	Color	Signal
1	Orange	3.3VDC	4	Black	GND
2	Orange	3.3VDC	5	Black	GND
3	Yellow	+12V2	6	Yellow	+12V2

12V splitting ( for the 450, 550 and 650W model ): 12V splitting ( for the 750, 850 and 1000W +1200W model ):

12V1 = 24pin (mainboard) 12V1 = 24pin (mainboard)

12V2 = 4pin for CPU1 + P8 12V2 = 4pin for CPU1 + P8

12V3 = peripherals like HDD, FDD, SATA) 12V3 = peripherals like HDD, FDD, SATA) + 4pin MOLEX for mainboard (MB)

+ 4pin MOLEX for mainboard ( MB ) 12V4 = peripherals like HDD, FDD, SATA

12V4 = PCIe1 + PCIe2 12V5 = PCIe1 (6+2pin) + PCIe3 (6pin)

12V6 = PCIe2 (6+2pin) + PCIe4 (6pin) + PCIe5

( only for the 1000W+1200W model )

1. OPERATIONS NOISE DIAGRAM


1. RIPPLE UND NOISE DIAGRAM


7. CONNECTION OPTIONS AND CABLE LENGTHS

450W & 550W

600mm 150mm 150mm 150mm 150mm 150mm RPM control 24/20 μF. microcontroller SATA SRA/SATA MDD MDD FDD NDD NDD NDD MDD SATA SATA SATA SATA PCIe 1 PCIe 2 SII / Cross Fire P8 connector 12V P4 connector MB connector Pan connectors HDD SABA 500mm 600mm 150mm

650W

600mm 150mm 150mm 150mm 150mm 150mm 24/20 pin. maincable RPM control PCIe 1 PCIe 2 SATA SATA/SATA HDD HDD HDD HDD SATA SATA SATA PU/Gross Fire PS connector 12V P4 connector MB connector EPS 6pin Fan connectors HDD SATA SATA 500mm 600mm 150mm

850 W

800mm 150mm 250mm 100mm 150mm 100mm 150mm RPM control 34/90 p/b m/p/m/m/p/p/p/p/p/p/p/p/p/p/p/p/p/p/p/p/p/p/p/p/p/p/p/p/p/p/p/p/p/p/p/p/p/p/p/p/p/p/p/p/p/p/p/p/p/p/p/p/p/p/p/p/p/p/p/p/p/p/p/p/p/p/p/p/p/p/p/p/p/p/p/p/p/p/p/p/p/p/p/p/p/p/p/p/p/p/p/p/p/p/p/p/p/p/p/p/p/p/p/p-p SAA/SATA RDD RDD NDD NDD NDD NDD NDD NDD NDD SAA SAA SAA FDD PBB+1 PU/B+2 PU/B+3 PU/B+4 PU/benemeter 12V PM connector MFCbencemeter EDB+6/n Per connection EDO SATA SATA 800mm 600mm 350mm

500mm 150mm 180mm 150mm 150mm 180mm 160mm RPM control 24/25-bit. resignable SAPA SAPASATA HDD HDD HDD HDD HDD HDD HDD HDD HDD HDD HDD HDD HDD HDD HDD HDD HDD HDD HDD PCB 1 PU/Cross Fire Quad SUI/Cross Fire PCB 2 PU/Cross Fire PU/Cross Fire PCB 3 PU/Cross Fire PCB 4 PU connector 120/14C connector MII connector dPS dB DPS dSB DOS connectors DOS DOS DOS DOS DOS DOS DOS DOS DOS DOS DOS DOS DOS DOS DOS DOS DOS DOS DOS DOS DOS DOS DOS DOS DOS DOS DOS DOS DOS DOS DOS DOS DOS DOS

Technical schematic diagram of a multi-layered electronic component with labeled parts and dimensions in millimeters.

6. SAFEGUARD FUNCTION

All be quiet! power supplies are equipped with numerous safeguard functions. They protect the user as well as the power supply and the connected components. When one of these safeguards is triggered, then a rebooting or deactivation of the system is the consequential result. Should this happen, the PC should be immediately checked for possible errors. In order to systematically detect such errors, please read the chapter „Troubleshooting“ on the following pages. The Dark Power PRO series disposes of the following safety functions:

OVER CURRENT PROTECTION

When the load on the individual circuits consists of more than the specified limit, the power supply automatically deactivates

UVP (UNDER VOLTAGE PROTECTION)

This safeguard triggers when the voltage in the circuits falls below a certain limit. In this case, the power supply is then automatically deactivated.

OVP (OVER VOLTAGE PROTECTION)

The over voltage safeguard is triggered when the voltage in the circuits is too high and the power supply deactivates.

SCP (SHORT CIRCUIT FUSE)

The safeguard during a short circuit in the secondary section of the power supply prevents a defect to the power supply and its components.

OTP (TEMPERATURE SAFEGUARD)

This safeguard is triggered when the entire performance demanded of the power supply is higher than the specified peak load. This can happen if the power supply doesn't dispose of enough performance ability.

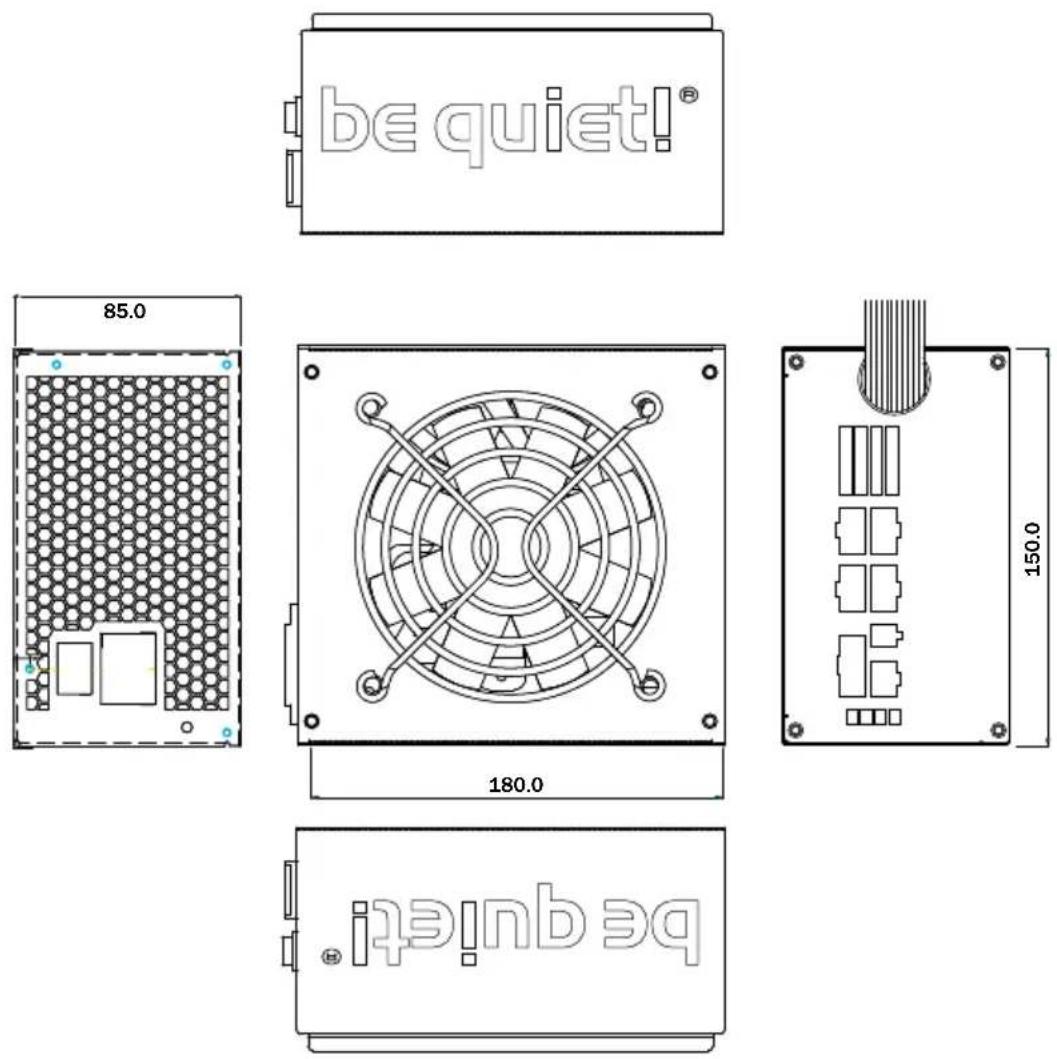

7. DIMENSIONS OF THE POWER SUPPLY

8. TROUBLESHOOTING

please observe!

In ATX systems, the power supply receives the signal from the connected mainboard in order to be started up. For this reason, please check whether – with the help of the mainboard or the case manual – the activation/deactivation is connected correctly.

ATTENTION:

AWork with the electrical sources can lead to life-threatening injuries. In cases of trails of smoke, damaged cables and the effects of fluids, the power supply is to be immediately unplugged from its source of electricity and after that, no longer brought into operation.

Never unscrew the power supply. The are components in the interior that can contain high amounts of voltage when not used for a long period of time. Please have any and all necessary repairs be conducted by an authorized expert!

If the system for an installed power supply does not function properly, you must first check for these possible sources of error:

A. Make sure the electrical cable is plugged into both the socket and the power supply correctly and tightly. Ideally, you use a separate can only for the computer power supply.

B. Check to make sure that all connections are correctly connected to each other and correct them if necessary, for example, in the case of polarity.

C. Inspect the connection of the on and off switch from the case to the mainboard. If necessary, consult your mainboard instruction manual! Switch on the power supply by placing the switch on position „I“ and activating the on/off switch on the case. If the power supply doesn't allow itself to be turned on, continue with the next point.

D. Check your system for possible short circuits or defective hardware in that you turn off your computer and separate all of the devices from the system that are not required for starting your computer. Turn the computer back on. Repeat this step and after each re-start, close one of the devices until you have found the supposed defect. If the power supply does not react due to a short circuit, wait at least 5 minutes until you re-start your computer because the device is equipped with overload protection.

FREQUENT PROBLEMS:

Problem: The selected voltages (via BIOS) are to low/high

When you check the voltage of the power supply in the BIOS of the mainboard or in the operating system, it is possible that these are displayed incorrectly. This results from the non-precise dimension of the mainboard and does not necessarily have to correspond to reality.

With a multimeter (voltage measurement device), the voltage can be determined directly from the power supply cable. This provides more precise measurement. If the circuits should still lie outside of the tolerance, please contact our customer service

Problem: After installing a new graphics card, the PC can no longer be turned on or crashes with practically every opportunity:

You have installed a new higher performance graphics card in your system and now your PC no longer starts or it seems to crash immediately with the first workload. The power supply is too weakly dimensioned for your graphics card. Before making a purchase, please take a look at our watt configurator at www.be-quiet.net. Here you'll find the right be quiet! power supply from our assortment

Important note:

Should the power supply not work, please ensure that you have thoroughly read this instruction manual and can preclude the problem causes listed here. Should the problems continue to exist, please contact our customer service immediately.

All incoming returns are checked by our RMA service. Should we determine that a power supply is indeed free of error, it will be sent back to the customer. In addition, an all-included inspection for the occurring expense is levied. The process for the on-site exchange service in the first year after the purchase is conducted as follows:

As a first step, call the be quiet! hotline for clarifying technical questions and details. A permission for the exchange will then be granted and initiated thereafter.

What we need from you in this case:

We need a copy of your purchase invoice, and a precise description of the malfunction, both of which can be sent to us per fax, e-mail or post. After this, you will receive a new power supply from us. When your new power supply is delivered to your doorstep by a DHL employee, please exchange the defective power supply to be returned to Listan. Please make sure that the power supply is packaged completely in the cardboard box, including all accessories.

9. ACCESSORIES

As part of the scope of delivery for the power supply, the following accessories are contained in addition to the cable management:

• Cooling device cable
• Operating handbook
• Wire ties
• Screws for mounting the power supply

10. ARTICLE NUMBERS AND BARCODES

BN071 - BQT P7-Pro 450W

4260052180747

BN072 - BQT P7-Pro 550W

4260052180754

BN073 - BQT P7-Pro 650W

4260052180761

BN074 - BQT P7-Pro 750W

4260052180778

BN075 - BQT P7-Pro 850W

4260052180785

BN076 - BQT P7-Pro 1000W

4260052180792

BN077 - BQT P7-Pro 1200W

4260052180808

11. NOTES ON DISPOSAL

Used electrical and electronic devices may, in accordance with European specifications*, no longer be placed in unsorted municipal solid waste. The must be collected separately. The symbol for garbage barrels on wheels implicates the necessity of the separated collection.

Please help in protecting the environment and make sure that once you've decided to no longer make use of this device, that it is placed in the systems of separate collection that are intended for it.

In Germany, you are legally** required to take an old device to such a place of separate collection instead of placing it in unsorted municipal solid waste. The responsible waste management parties (communities) subject to public law have set-up collection stations at which old device from private households in your area can be turned in free of cost. It is possible that the legal responsible waste management parties pick up the old devices themselves, even from private households.

Please read your local household refuse collection calendar or visit your city or community administration in order to inform yourself about the opportunities for turning in or collecting old devices in your area.

* Guideline 2002/96/EG of the European Parliaments and the Council from January 27th, 2003 on used electrical and electronic devices.
** Law on market introduction, withdrawal and the environmentally compatible disposal of Electrical and Electronic Equipment Act (electrical and electronic device law – The German ElektroG) from March 16th, 2005.

RoHS 2005/95/EC

12. GUARANTEE, MANUFACTURER SPECIFICATIONS AND COPYRIGHT

• 3 years guarantee

Should you have any other questions on our products, please call us at our toll-free service hotline number:

[phone]

MO - FR 09:00 am - 5:30 pm

21509 Glinde, Germany

Service E-Mail: [e-mail]

Copyright © Listan GmbH & Co. KG 2007. All rights reserved.

Please observe the following:

1. The contents of this documentation may not – partially, in whole or copied – be passed along, propagated or saved in any form without the prior expressed written consent of Listan.
2. be quiet! is a registered trademark of the company Listan GmbH & Co. KG. Other products and company names mentioned in this documentation can be the brands or trademarks of their respective owners.
3. Listan continually develops its products in correspondence with its policies. Listan reserves the right to make changes and improvements to every product described in this documentation without prior announcement.
4. Listan is under no circumstances responsible for the loss of data and receipts or for any special, random, direct or indirect damages, however they may arise.
5. The contents of this documentation are presented as they hereby appear. Listan does not assume, expressed or implied, any guarantee for the correctness or completeness of the contents of this documentation, including, but not limited to the tacit guarantee of market suitability and the aptitude for a special purpose, unless applicable laws or jurisdiction stringently stipulate a liability. Listan retains the right to make changes to this documentation or to retract the documentation at any time without prior announcement.

1. INTRODUCTION

ÉCONOMIE :

2. CONDITIONS D'EXPLOITATION

Operating conditions	Environment Temperature rel. Humidity
	Operation	0 ~ 40°C 20 ~ 80%
	Storage -25 ~ 85°C 10 ~ 90%

3. ÉTIQUETTE

450 W

550 W

* For P4 motherboard

PCI EXPRESS VGA CONNECTOR

Pin	Color	Signal	Pin	Color	Signal
1	Yellow	+12VDC	4	Black	COM
2	Yellow	+12VDC	5	Black	COM
3	Yellow	+12VDC	6	Black	COM

SSI WORKSTATION 6-PIN (AGP PRO)

Pin	Color	Signal	Pin	Color	Signal
1	Orange	3.3VDC	4	Black	GND
2	Orange	3.3VDC	5	Black	GND
3	Yellow	+12V2	6	Yellow	+12V2

12V splitting (for the 450, 550 and 650W model): 12V splitting (for the 750, 850 and 1000W +1200W model):

12V1 = 24pin (mainboard) 12V1 = 24pin (mainboard))

12V2 = 4pin for CPU1 + P8 12V2 = 4pin for CPU1 + P8

12V3 = peripherals like HDD, FDD, SATA) 12V3 = peripherals like HDD, FDD, SATA) + 4pin MOLEX for mainboard (MB)

+ 4pin MOLEX for mainboard ( MB ) 12V4 = peripherals like HDD, FDD, SATA

12V4 = PCIe1 + PCIe2 12V5 = PCIe1 (6+2pin) + PCIe3 (6pin)

12V6 = PCIe2 (6+2pin) + PCIe4 (6pin) + PCIe5

( only for the 1000W+1200W model )

1. DIAGRAMMES ACOUSTIQUES D'EXPLOITATION


1. DIAGRAMMES D'ONDULATION ET DE NIVEAU SONORE


7. POSSIBILITÉS DE CONNEXIONS ET LONGUEURS DE CÂBLES

450W & 550W

600mm 150mm 150mm 150mm 150mm 150mm 24/20 μA. magnosig RPM control FDD SATA SATA MDD MDD FOD NDD NDD NDD MDD SATA SATA SATA SATA PCIe 1 PCIe 2 SI1/Cross Pfe P8 connector 12V P4 connector MB connector Pan connectors HDD SMA 500mm 600mm 150mm

650W

600mm 150mm 150mm 150mm 150mm 150mm 24/20 pin. matchable RPM control SATA SATASATA HDD HDD HDD NDD HDD HDD SATA SATA SATA PCIe 1 PCIe 2 SLA/ Cross Fire PS connector 12V P4 connector MB connector EPS 6pah Fan connectors HDD SATA SATA 500mm 600mm 150mm

800mm 150mm 250mm 100mm 150mm 150mm RPM control 34/90 ph. miposalpin FDD SAP/SATA HDD HDD HDD HDD HDD HDD HDD HDD HDD HDD HDD HDD HDD HDD HDD HDD HDD HDD HDD HDD HDD HDD HDD HDD HDD HDD HDD HDD HDD HDD HDD HDD HDD HDD / Cross Wire 6U / Cross Wire Quad SU / Cross Wire PRBd1 PRBd2 PRBd3 PRBd4 PRBd5 12V PH connector MFE connector EPC-RpAin Per connection

850 W

600mm 130mm 180mm 150mm 150mm 140mm 100mm 24V/25 pH. reusable SAPR SAPR/SATA MDD MDD HDD HDD HDD HDD HDD HDD HDD HDD HDD HDD HDD HDD HDD HDD HDD HDD HDD HDD HDD HDD HDD HDD HDD HDD HDD HDD HDD HDD HDD HDD HDD HDD HDD HDO HDO HDO HDO HDO HDO HDO HDO HDO HDO HDO HDO HDO HDO HDO HDO HDO HDO HDO HDO HDO HDO HDO HDO HDO HDO HDO HDO HDO HDO HDO HDO HDO HDO

Technical schematic diagram of a multi-layered electronic component with labeled parts and dimensions in millimeters.

6. FONCTIONS DE SÉCURITÉ

4260052180754

BN073 - BQT P7-Pro 650W

4260052180761

BN074 - BQT P7-Pro 750W

4260052180778

BN075 - BQT P7-Pro 850W

4260052180785

BN076 - BQT P7-Pro 1000W

4260052180792

BN077 - BQT P7-Pro 1200W

4260052180808

11. CONSIGNES POUR LA GESTION DES DÉCHETS

RoHS 2005/95/EC

12. GARANTIE, FABRICANT ET COPYRIGHT

Email :[e-mail]

Web: www.be-quiet.com

ECONÓMICO:

Operating conditions	Environment Temperature rel. Humidity
	Operation	0 ~ 40°C 20 ~ 80%
	Storage -25 ~ 85°C 10 ~ 90%

3. ETIQUETA

450 W

550 W

* For P4 motherboard

PCI EXPRESS VGA CONNECTOR

Pin	Color	Signal	Pin	Color	Signal
1	Yellow	+12VDC	4	Black	COM
2	Yellow	+12VDC	5	Black	COM
3	Yellow	+12VDC	6	Black	COM

EPS +12 V POWER CONNECTOR

Pin	Color	Signal	Pin	Color	Signal
1	Black	COM	5	Yellow	+12VDC
2	Black	COM	6	Yellow	+12VDC
3	Black	COM	7	Yellow	+12VDC
4	Black	COM	8	Yellow	+12VDC

TACHOSIGNAL

Pin Color	Signal
1	Black	COM
2	-	-
3	Yellow	RPM

SSI WORKSTATION 6-PIN (AGP PRO)

Pin	Color	Signal	Pin	Color	Signal
1	Orange	3.3VDC	4	Black	GND
2	Orange	3.3VDC	5	Black	GND
3	Yellow	+12V2	6	Yellow	+12V2

12V splitting ( for the 450, 550 and 650W model ): 12V splitting ( for the 750, 850 and 1000W +1200W model ):

12V1 = 24pin (mainboard) 12V1 = 24pin (mainboard)

12V2 = 4pin for CPU1 + P8 12V2 = 4pin for CPU1 + P8

12V3 = peripherals like HDD, FDD, SATA) 12V3 = peripherals like HDD, FDD, SATA) + 4pin MOLEX for mainboard (MB)

+ 4pin MOLEX for mainboard ( MB ) 12V4 = peripherals like HDD, FDD, SATA

12V4 = PCIe1 + PCIe2 12V5 = PCIe1 (6+2pin) + PCIe3 (6pin)

12V6 = PCIe2 (6+2pin) + PCIe4 (6pin) + PCIe5

( only for the 1000W+1200W model )

1. DIAGRAMAS DE RUIDO


1. DIAGRAMAS RIPPLE Y NOISE

600mm 150mm 150mm 150mm 150mm 150mm 24/20 μA. magnoside RPM control FDD SATA SATA MDD MDD FOD NDD NDD NDD MDD SATA SATA SATA SATA PCIe 1 PCIe 2 SI1/Cross Pfe P8 connector 12V P4 connector MB connector Pan connectors HDD SABA 500mm 600mm 150mm

650W

600mm 150mm 150mm 150mm 150mm 150mm 24/20 pin. matchable RPM control SATA SATASATA HDD HDD HDD NDD HDD HDD SATA SATA SATA PCIe 1 PCIe 2 SLA/ Cross Fire PS connector 12V P4 connector MB connector EPS 6pin Fan connectors HDD SATA SATA 500mm 600mm 150mm

850 W

800mm 150mm 250mm 160mm 150mm 150mm 150mm RPM control 34/90 nPs mipristrip UppA SAPR/SATA HDD HDD FDD NDD MDD HDD MDD NDD MDD HDD HDD SAPA AVRA SAPA SAPA PBref-1 5L1/Cross Fire Quad 5L1/Cross Fire PBref-2 5L1/Cross Fire PBref-3 5L1/Cross Fire PBref-4 PBconnector 32V PM connector MFCconnector EPC-Rpln Per connection EDD SATA SATA 800mm 600mm 350mm

500mm 150mm 180mm 150mm 150mm 160mm 100mm 24/25 pH. modulabip SAPR SAPR/SATA MDD MDD PDD HD0 HDD HDD HDD HDD HDD HDD HDD SAPR SAPR SAPR SAPR PDP-1 PDP-2 PDP-3 PDP-4 PU connector 120/14 connector MII connector DPS-dip Pin connectors MDD VBA SAPR 500mm 600mm 250mm

Technical schematic diagram of a multi-layered electronic component with labeled parts and dimensions in millimeters.

4260052180754

BN073 - BQT P7-Pro 650W

4260052180761

BN074 - BQT P7-Pro 750W

4260052180778

BN075 - BQT P7-Pro 850W

4260052180785

BN076 - BQT P7-Pro 1000W

4260052180792

BN077 - BQT P7-Pro 1200W

4260052180808

RoHS 2005/95/EC

12. GARANTÍA, DATOS DEL FABRICANTE Y COPYRIGHT

21509 Glinde Germany

Web: www.be-quiet.com

ECONOMICO:

Operating conditions	Environment Temperature rel. Humidity
	Operation	0 ~ 40°C 20 ~ 80%
	Storage -25 ~ 85°C 10 ~ 90%

3. MARCHIO

450 W

550 W

12V splitting ( for the 450, 550 and 650W model ): 12V splitting ( for the 750, 850 and 1000W +1200W model ):

12V1 = 24pin (mainboard) 12V1 = 24pin (mainboard)

12V2 = 4pin for CPU1 + P8 12V2 = 4pin for CPU1 + P8

12V3 = peripherals like HDD, FDD, SATA) 12V3 = peripherals like HDD, FDD, SATA) + 4pin MOLEX for mainboard (MB)

+ 4pin MOLEX for mainboard ( MB ) 12V4 = peripherals like HDD, FDD, SATA

12V4 = PCIe1 + PCIe2 12V5 = PCIe1 (6+2pin) + PCIe3 (6pin)

12V6 = PCIe2 (6+2pin) + PCIe4 (6pin) + PCIe5

( only for the 1000W+1200W model )

1. DIAGRAMMI RIPPLE E NOISE


7. POSSIBILITÀ DI COLLEGAMENTO E LUNGHEZZE DEI CAVI

450W & 550W

600mm 150mm 150mm 150mm 150mm 150mm 24/20 μA. magnosig RPM control FDD SATA SMA SATA MDD MDD FDD NDD MDD MDD MDD SATA SATA SATA SATA SATA PCIe 1 PCIe 2 SI1/Cross Pfe P8 connector 12V P4 connector MB connector Pan connectors HDD SRA 500mm 600mm 150mm

650W

600mm 150mm 150mm 150mm 150mm 150mm 24/20 pin. matchable RPM control SATA SATASATA HDD HDD HDD NDD HDD HDD SATA SATA SATA PCIe 1 PCIe 2 SLA/ Cross Fire PS connector 12V P4 connector MB connector EPS 6pin Fan connectors HDD SATA SATA 500mm 600mm 150mm

850 W

800mm 150mm 250mm 150mm 150mm 100mm 150mm S4/36 ph. modicslip RPM control LED SAP/SATA HDD HDD FDD NDD NDD NDD NDD NDD NDD NDD SAP SRA SAR SAR PBI-1 PUB-2 PUB-3 PUB-4 PUB-connector 32V PM connector MFC-connector EDb-epin Per connection EDO SATA SATA 800mm 600mm 300mm

500mm 150mm 150mm 150mm 150mm 150mm 24/25 pH. modulabip RPM control SAPLA DATA MDD MDD PDD HD0 HDD HDD HDD HDD HDD HDD HDD HDD HDD HDD HDD HDD HDD HDD HDD HDD HDD PCB 1 PU / Cross Fire PCB 2 PU / Cross Fire PCB 3 PU / Cross Fire PCB 4 PS connector 125/14 connector MII connector DPS d68 Bus connectors M20 VBA SMA 500mm 600mm 250mm

Technical schematic diagram of a multi-layered electronic component with labeled parts and dimensions in millimeters.

4260052180754

BN073 - BQT P7-Pro 650W

4260052180761

BN074 - BQT P7-Pro 750W

4260052180778

BN075 - BQT P7-Pro 850W

4260052180785

BN076 - BQT P7-Pro 1000W

4260052180792

BN077 - BQT P7-Pro 1200W

4260052180808

11. INDICAZIONI PER LO SMALTIMENTO

RoHS 2005/95/EC

12. GARANZIA, DATI DEL PRODUTTORE E COPYRIGHT

EKONOMICZNIE:

WAŻNE

Operating conditions	Environment Temperature rel. Humidity
	Operation	0 ~ 40°C 20 ~ 80%
	Storage -25 ~ 85°C 10 ~ 90%

3. ETYKIETA

450 W

550 W

* For P4 motherboard

PCI EXPRESS VGA CONNECTOR

Pin	Color	Signal	Pin	Color	Signal
1	Yellow	+12VDC	4	Black	COM
2	Yellow	+12VDC	5	Black	COM
3	Yellow	+12VDC	6	Black	COM

SSI WORKSTATION 6-PIN (AGP PRO)

Pin	Color	Signal	Pin	Color	Signal
1	Orange	3.3VDC	4	Black	GND
2	Orange	3.3VDC	5	Black	GND
3	Yellow	+12V2	6	Yellow	+12V2

12V splitting ( for the 450, 550 and 650W model ): 12V splitting ( for the 750, 850 and 1000W +1200W model ):

12V1 = 24pin (mainboard) 12V1 = 24pin (mainboard)

12V2 = 4pin for CPU1 + P8 12V2 = 4pin for CPU1 + P8

12V3 = peripherals like HDD, FDD, SATA) 12V3 = peripherals like HDD, FDD, SATA) + 4pin MOLEX for mainboard (MB)

+ 4pin MOLEX for mainboard ( MB ) 12V4 = peripherals like HDD, FDD, SATA

12V4 = PCIe1 + PCIe2 12V5 = PCIe1 (6+2pin) + PCIe3 (6pin)

12V6 = PCIe2 (6+2pin) + PCIe4 (6pin) + PCIe5

( only for the 1000W+1200W model )

1. DIAGRAMY POZIOMU HAŁASU W TRAKCIE PRACY


1. DIAGRAMY RIPPLE I NOISE


7. MOŻLIWOŚCI PODŁĄCZENIA I DŁUGOŚCI KABLI

450W & 550W

600mm 150mm 150mm 150mm 150mm 150mm 24/20 μA. magnoside RPM control FDD SATA SATA MDD MDD FOD NDD NDD NDD MDD SATA SATA SATA SATA PCIe 1 PCIe 2 SI1/Cross Pfe P8 connector 12V P4 connector MB connector Pan connectors HDD SMA 500mm 600mm 150mm

650W

600mm 150mm 150mm 150mm 150mm 150mm 24/20 pin. maincable RPM control SATA SATASATA HDD HDB FDD NDD HDD HDD HDD SATA SATA SATA PCIe 1 PCIe 2 SLI/ Cross Fire PS connector 12V P4 connector M3 connector EPS 6pin Fan connectors HDD SATA SATA 500mm 600mm 150mm

800mm 150mm 250mm 100mm 150mm 180mm 160mm RPM control 34/30 ph. mip/satip SAPA SAPASATA ADD ADD FDD ADD ADD ADD ADD ADD ADD ADD ADD SAPA SAPA SAPA SAPA PB#d-1 5U / Cross Fire Quad 5U / Cross Fire PB#d-2 5U / Cross Fire PB#d-3 5U / Cross Fire PB#d-4 PB#connector 12V 5H connector MIFconnector EPb-4/n Per connection EDD DATA DATA 800mm 600mm 350mm

850 W

800mm 150mm 180mm 360mm 150mm 180mm 180mm 29/200mm modular SATA/SATA HDD HDD HDD HDD HDD HDD HDD HDD HDD HDD HDD HDD HDD HDD HDD HDD HDD HDD HDD HDD HDD HDD HDD HDD HDD HDD HDD HDD HDD HDD HDD HDD HDD HDD 1 PUo 2 PUo 3 PUo 4 PUo connector 120PM connector MIF connector MFS GpF PUo connectors 200mm 800mm 200mm

Technical schematic diagram of a multi-layered electronic component with labeled parts and dimensions in millimeters.

6. FUNKCJE BEZPIECZEŃSTWA

7. P O M I A R Y Z A S I L A C Z A

8. USUWANIE USTEREK

UWAGA

4260052180754

BN073 - BQT P7-Pro 650W

4260052180761

BN074 - BQT P7-Pro 750W

4260052180778

BN075 - BQT P7-Pro 850W

4260052180785

BN076 - BQT P7-Pro 1000W

4260052180792

BN077 - BQT P7-Pro 1200W

4260052180808

11. WSKAZÓWKI DOTYCZĄCE RECYCLINGU

RoHS 2005/95/EC

12. GWARANCJA, INFORMACJE DOTYCZĄCE PRODUCENTA ORAZ PRAWA AUTORSKIE

Listan Poland sp. z o.o.

Połczyńska 65

01-361 Warszawa

Polska

Spoza Polski: [phone]

Service E-Mail: [e-mail]

Loading (% of rated output power)

Operating conditions	Environment Temperature rel. Humidity
	Operation	0 ~ 40°C 20 ~ 80%
	Storage -25 ~ 85°C 10 ~ 90%

1. ОБОЗНАЧЕНИЕ 450 W

* For P4 motherboard

PCI EXPRESS VGA CONNECTOR

Pin Color Signal Pin Color			Signal
1	Yellow	+12VDC	4	Black COM
2	Yellow	+12VDC	5	Black COM
3	Yellow	+12VDC	6	Black COM

EPS +12 V POWER CONNECTOR

Pin Color Signal Pin		Color	Signal
1	Black	COM	5	Yellow	+12VDC
2	Black	COM	6	Yellow	+12VDC
3	Black	COM	7	Yellow	+12VDC
4	Black	COM	8	Yellow	+12VDC

TACHOSIGNAL

Pin Color Signal
1	Black	COM
2	-	-
3	Yellow	RPM

SSI WORKSTATION 6-PIN (AGP PRO)

Pin Color Signal Pin Color			Signal
1	Orange	3.3VDC	4	Black	GND
2	Orange	3.3VDC	5	Black	GND
3	Yellow	+12V2	6	Yellow	+12V2

12V splitting ( for the 450, 550 and 650W model ): 12V splitting ( for the 750, 850 and 1000W +1200W model ):

12V1 = 24pin (mainboard) 12V1 = 24pin (mainboard))

12V2 = 4pin for CPU1 + P8 12V2 = 4pin for CPU1 + P8

12V3 = peripherals like HDD, FDD, SATA) 12V3 = peripherals like HDD, FDD, SATA) + 4pin MOLEX for mainboard (MB)

+ 4pin MOLEX for mainboard ( MB ) 12V4 = peripherals like HDD, FDD, SATA

12V4 = PCIe1 + PCIe2 12V5 = PCIe1 (6+2pin) + PCIe3 (6pin)

12V6 = PCIe2 (6+2pin) + PCIe4 (6pin) + PCIe5

( only for the 1000W+1200W model )

5. ГРАФИК РАБОЧИХ ПОМЕХ

NOISE DIAGRAM BQT P7-PRO 450W

NOISE DIAGRAM BQT P7-PRO 550W

NOISE DIAGRAM BQT P7-PRO 650W

NOISE DIAGRAM BQT P7-PRO 750W

1. ДИАГРАММЫ ПУЛЬСАЦИИ И ШУМОВ


600mm 150mm 150mm 260mm 150mm 150mm 150mm S/N/20 x h, max janes b fr RPN control SATA SATA/SATA HDD HDD FDD HDD HDD HDD SATA SATA SATA SATA IFQlc1 IFQlc2 SL/ Cross Fire P8 connector 12V/PI4 connector MB connector Pan connectors HDD SATA 500mm 600mm 150mm

650W

600mm 150mm 150mm 150mm 150mm 150mm 24/20 ptn mable RPM control SATA SATA/SATA HDD HDD HDD HDD FDD HDD HDD HDD HDD SATA SATA SATA SATA IPQrc-1 SU / Cross Fire IPQrc-2 P8 connector 12V PS connector MB connector BPS 6pin Fan connectors NDD NDD NDD NDD NDD NDD NDD NDD NDD NDD NDD NDD NDD NDD NDD NDD NDD NDD NDD NDD NDD NDD NDD NDD NDD NDD NDD NDD NDD NDD NDD NDD NDD NDD

850 W

600min 150mm 180mm 190mm 150mm 180mm 180mm 34/36 inch mA/HD/HP RPM control SATA BPG/SATA HDD MDD FDD ADD ADD MDD MDD ADD MDD MDD ADD MDD MDD SATA SATA SATA PDS-1 SLL/Cross Pte Gout/LL/Cross Pte PDS-2 SLL/Cross Pte PDS-3 SLL/Cross Pte PDS-4 PDS connector 12X/P4 connector MS connector EPS Eph Pan connection HDD SAA SAA 600mm 600mm 180mm

800mm 150mm 150mm 360mm 150mm 150mm RPM control 24/26 pH. max@coo SATA SATA/SATA MDD MDD FDD ADD ADD ADD ADD ADD ADD ADD ADD ADD ADD ADD ADD ADD ADD ADD ADD ADD ADD ADD ADD ADD ADD ADD ADD ADD ADD ADD ADD ADD ADD ADD ADD ADD ADD ADD ADD ADD ADD ADD ADD ADD ADD ADD ADD ADD ADD ADD ADD ADD ADD PEN 1 PCIe 2 PCIe 3 PCIe 4 PE connector SAP P4 connector MB connector GPS App Pin connectors MDD SAPs SAPs 500mm 600mm 250mm

Technical schematic diagram of a multi-layered electronic component with labeled parts and dimensions in millimeters.

4260052180754

BN073 - BQT P7-Pro 650W

4260052180761

BN074 - BQT P7-Pro 750W

4260052180778

BN075 - BQT P7-Pro 850W

4260052180785

BN076 - BQT P7-Pro 1000W

4260052180792

BN077 - BQT P7-Pro 1200W

4260052180808

RoHS 2005/95/EC
