USER MANUAL MI7700R TRUST

MI-7700R Wireless Laser MediaPlayer Mouse

User's manual

Version 2.0

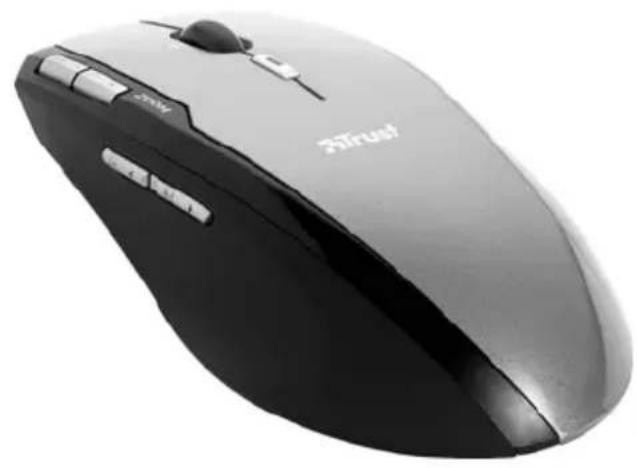

Close-up of a sleek, silver and black computer mouse with visible control buttons (no text or symbols on the mouse body)

UK

DE

FR

IT

ES

PL

NL

PT

GR

DK

SE

HU

CZ

SK

FI

NO

TR

RU

RO

BU

CN

H G E F ZOOM A B C D i

Installation

1

Close-up of a remote control device showing battery pack and warning symbol (no text or labels)

2

PC I

3

Illustration of a hand holding a CD or DVD with 'SIRUST' branding, no text or symbols present

Trust ■ Install software

Product information

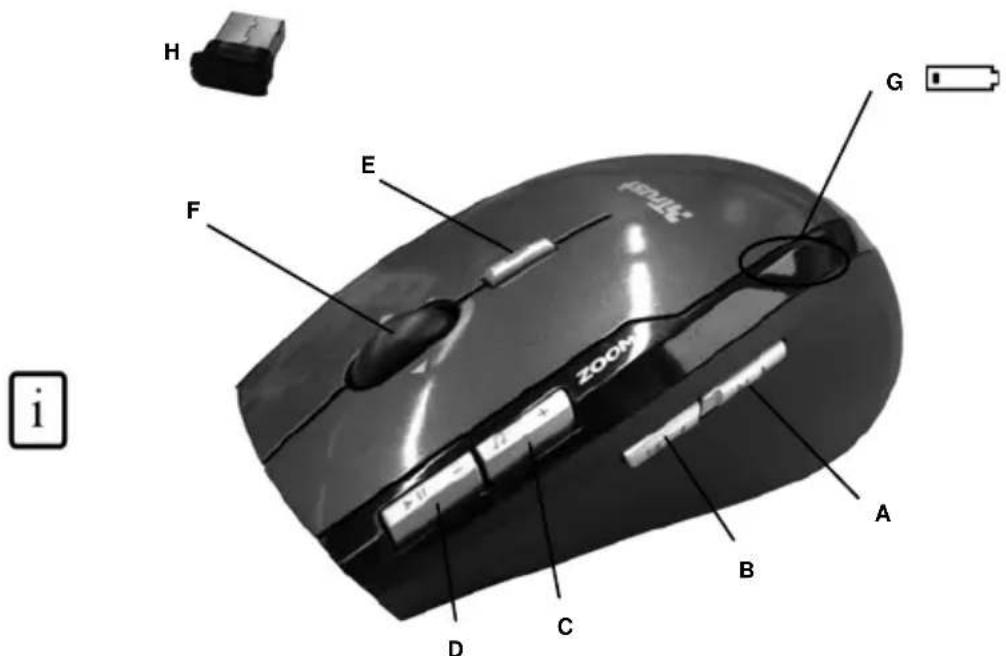

Mouse functions
Normal mode

A		Browser Backward
B		Browser Forward
C		Zoom in
D		Zoom out
E		DPI setting/ Mode select
F		Vertical scrollHorizontal scroll

G: Battery empty LED
H: USB Receiver

Media Control mode

A Next
B Previous
C		Launch Media Player
D Playback
E	DPI setting/Mode select
F		Volume controlHorizontal scrollVolume mute
	Push Down

Installation

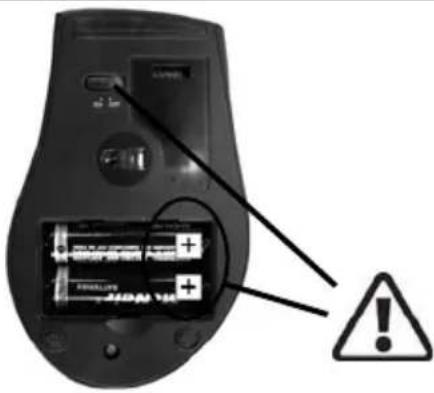

1	Open battery compartments on bottom side mouse to insert batteries.Turn on mouse
2	Connect USB Transmitter (H) to PC; wait until automatic installation has completed → Ready to use.

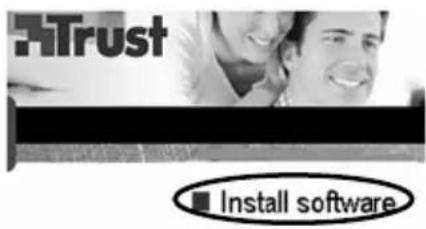

3	Insert CD-ROM and install software

Mouse

• Hold down DPI switch (E) for 1 sec will change DPI setting between 800 DPI and 1600 DPI.
• Hold down DPI switch (E) for 5 sec to change mouse modes (Normal/Media Control). Low Battery LED will flash for 3 sec.
  • Could also work on just 1 battery. Use 2 for extra long life-time.
• Tilt scroll is supported in MS Office, Internet Explorer, and Windows Explorer, but may also work in other applications.
• Zoom function is supported in MS Office and Internet Explorer 7 and up, but may also work in other applications.

Note

⚠ Multimedia and Office keys

• The multimedia buttons also work with other media player software like iTunes.
- 4th and 5^th Mouse button only work in games that support standard 5 button mice (normal mode).

UK

USER'S MANUAL

Trust

Performance

• Maximum Wireless working distance is around 8 meter.

• Reduced wireless performance can be caused by:
• (Metal) objects close to or between transmitter and mouse → Remove objects.
• Other wireless devices close by → Remove devices or reconnect USB transmitter to
  get different communication ID.
• Empty batteries → Replace batteries.

• Mouse will have reduced tracking performance on very shiny or transparent surfaces.

- Do not place USB dongle next to Bluetooth dongle.

Energy

• Never recharge the batteries provided and never throw them onto a fire.

- Observe local regulations when disposing of batteries.

- Insert batteries in keyboard or mouse: low battery LED (G) will flash for 3 sec.

Safety instructions

• LASER CLASS I device. Never look directly at the laser beam!

- Do not open or repair this device

- Do not use the device in a damp environment. Clean the device with a dry cloth.

See www.trust.com/15206 for up-to-date FAQs, driver and instruction manuals. For extensive service, register at www.trust.com/register.

This device meets the essential requirements and other relevant conditions of the applicable European directives. The Declaration of Conformity (DoC) is available at www.trust.com/15206/ce.

- If possible, dispose of the device at a recycling centre. Do not dispose of the device with the household waste.

Wireless

• This class 1 wireless device works at a frequency of 2.4 GHz. It meets the essential requirements and other relevant conditions of R&TTE Directive 1999/5/EC.
• Be careful when using wireless devices if you have a pacemaker or are dependent on other life-saving, sensitive electronic equipment, because this device transmits radio signals.

Warranty & copyright

• This device has a two-year product warranty which is valid from the date of purchase. See www.trust.com/warranty for more information.
• It is forbidden to reproduce any part of this instruction manual without the permission of Trust International B.V.

UK
