USER MANUAL 5877 Contour BRAUN

oil on • off start• stop 5000 SeriesContour 100%

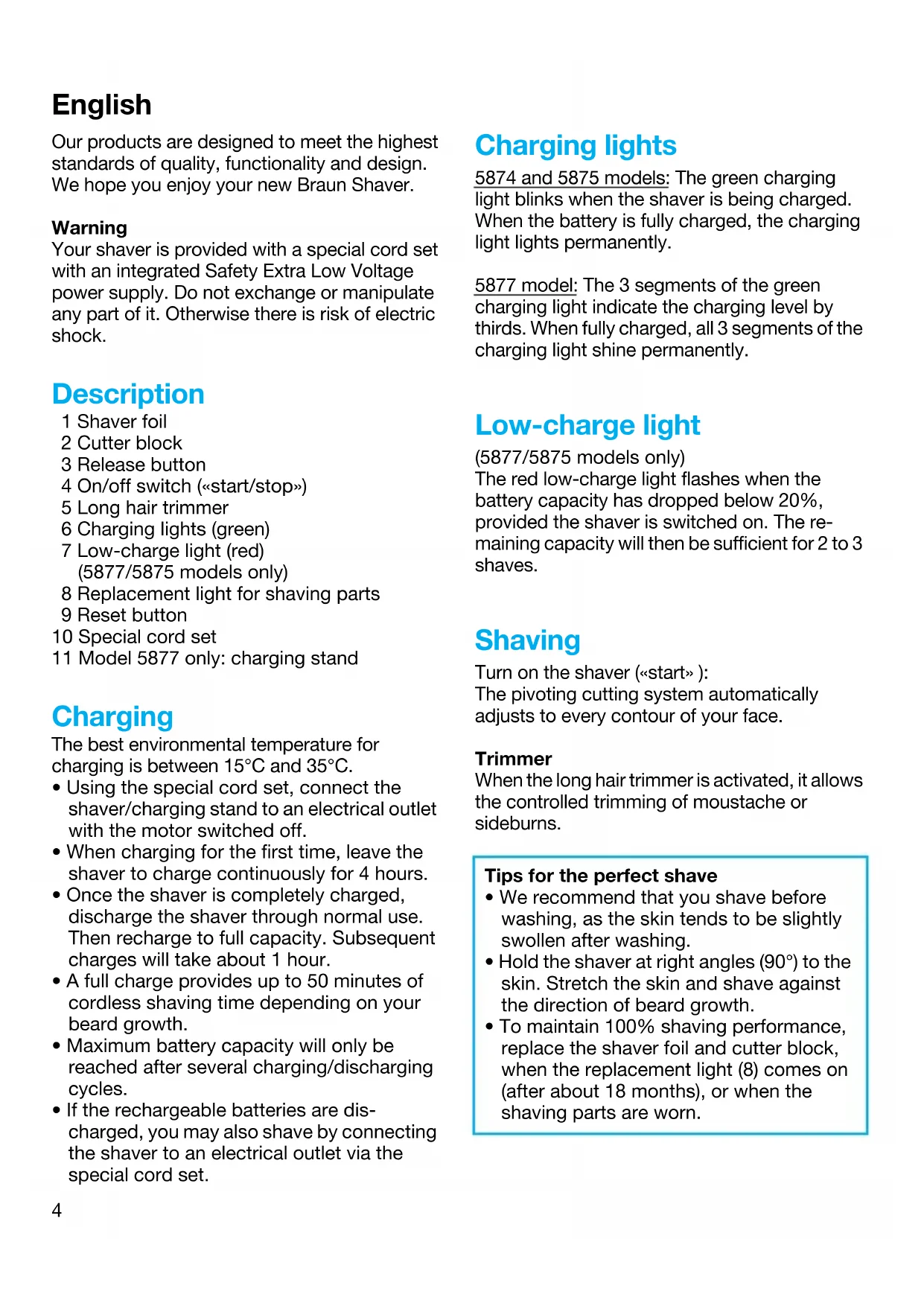

Our products are designed to meet the highest

standards of quality, functionality and design.

We hope you enjoy your new Braun Shaver.

Your shaver is provided with a special cord set

with an integrated Safety Extra Low Voltage

power supply. Do not exchange or manipulate

any part of it. Otherwise there is risk of electric

6 Charging lights (green)

7 Low-charge light (red)

(5877/5875 models only)

8 Replacement light for shaving parts

The best environmental temperature for

charging is between 15°C and 35°C.

• Using the special cord set, connect the

shaver/charging stand to an electrical outlet

with the motor switched off.

• When charging for the first time, leave the

shaver to charge continuously for 4 hours.

• Once the shaver is completely charged,

discharge the shaver through normal use.

Then recharge to full capacity. Subsequent

charges will take about 1 hour.

• A full charge provides up to 50 minutes of

cordless shaving time depending on your

• Maximum battery capacity will only be

reached after several charging/discharging

• If the rechargeable batteries are dis-

charged, you may also shave by connecting

the shaver to an electrical outlet via the

5874 and 5875 models: The green charging

light blinks when the shaver is being charged.

When the battery is fully charged, the charging

light lights permanently.

5877 model: The 3 segments of the green

charging light indicate the charging level by

thirds. When fully charged, all 3 segments of the

charging light shine permanently.

(5877/5875 models only)

The red low-charge light flashes when the

battery capacity has dropped below 20%,

provided the shaver is switched on. The re-

maining capacity will then be sufficient for 2 to 3

adjusts to every contour of your face.

When the long hair trimmer is activated, it allows

the controlled trimming of moustache or

Tips for the perfect shave

• We recommend that you shave before

washing, as the skin tends to be slightly

swollen after washing.

• Hold the shaver at right angles (90°) to the

skin. Stretch the skin and shave against

the direction of beard growth.

• To maintain 100% shaving performance,

replace the shaver foil and cutter block,

when the replacement light (8) comes on

(after about 18 months), or when the

shaving parts are worn.

Flex800solo_AMEE Seite 4 Donnerstag, 23. März 2006 8:30 085

This appliance is suitable for cleaning

under an open water tap.

Warning: Detach the hand-held part

from the power supply before cleaning it in

Regular cleaning ensures better shaving

performance. Rinsing the shaving head after

each shave under running water is an easy and

fast way to keep it clean:

• Switch the shaver on (cordless) and rinse

the shaving head under hot running water.

A natural based soap may also be used

provided it contains no particles or abrasive

substances. Rinse off all foam and let the

shaver run for a few more seconds.

• Next, switch off the shaver, remove the

shaver foil and the cutter block. Then leave

the disassembled shaving parts to dry.

• If you regularly clean the shaver under

water, then once a week apply a drop of

light machine oil onto the long hair trimmer

Alternatively, you may clean the shaver using

• Switch off the shaver. Remove the shaver

• Using the brush, clean the cutter block and

the inner area of the shaver head. However,

do not clean the shaver foil with the brush as

this may damage the foil.

Keeping your shaver in top

About every four weeks, clean the cutter block

with Braun cleaning agents.

Replacement light for shaving parts / Reset

To maintain 100% shaving performance,

replace your foil and cutter block, when the

replacement light for shaving parts (8) comes on

(after about 18 months) or when worn.

Change both parts at the same time for a closer

shave with less skin irritation.

(Shaver foil and cutter block: 5000 series)

The replacement light will remind you during the

next 7 shaves to replace the shaving parts. Then

the shaver will automatically reset the display.

After you have replaced the shaving parts (foil

and cutter block), use a ball-pen to push the

reset button (9) for at least 3 seconds to reset

While doing so, the replacement light blinks

and goes off when the reset is complete. The

manual reset can be done at any time.

Preserving the batteries

In order to maintain the optimum capacity of the

rechargeable batteries, the shaver has to be

fully discharged (by shaving) every 6 months

approximately. Then recharge the shaver to full

capacity. Do not expose the shaver to tempe-

ratures higher than 50°C for extended periods

Environmental notice

This product contains rechargeable

batteries. In the interest of protecting

the environment, please do not dispose

of the product in the household waste

at the end of its useful life. Disposal can

take place at a Braun Service Centre or at

appropriate collection points provided in

Subject to change without notice.

This product conforms to the European

Directives EMC 89/336/EEC and Low

For electric specifications, see printing on the

Flex800solo_AMEE Seite 5 Donnerstag, 23. März 2006 8:30 086

We grant 2 years guarantee on the product

commencing on the date of purchase. Within

the guarantee period we will eliminate, free of

charge, any defects in the appliance resulting

from faults in materials or workmanship, either

by repairing or replacing the complete appli-

ance as we may choose.

This guarantee extends to every country

where this appliance is supplied by Braun or

its appointed distributor.

This guarantee does not cover: damage due

to improper use, normal wear and tear (e.g.

shaver foil or cutter block) as well as defects

that have a negligible effect on the value or

operation of the appliance. The guarantee

becomes void if repairs are undertaken by

unauthorised persons and if original Braun

To obtain service within the guarantee period,

hand in or send the complete appliance with

your sales receipt to an authorised Braun

Customer Service Centre.

This guarantee in no way affects your rights

under statutory law.

Flex800solo_AMEE Seite 6 Donnerstag, 23. März 2006 8:30 087

(Iba modely 5877/5875)
