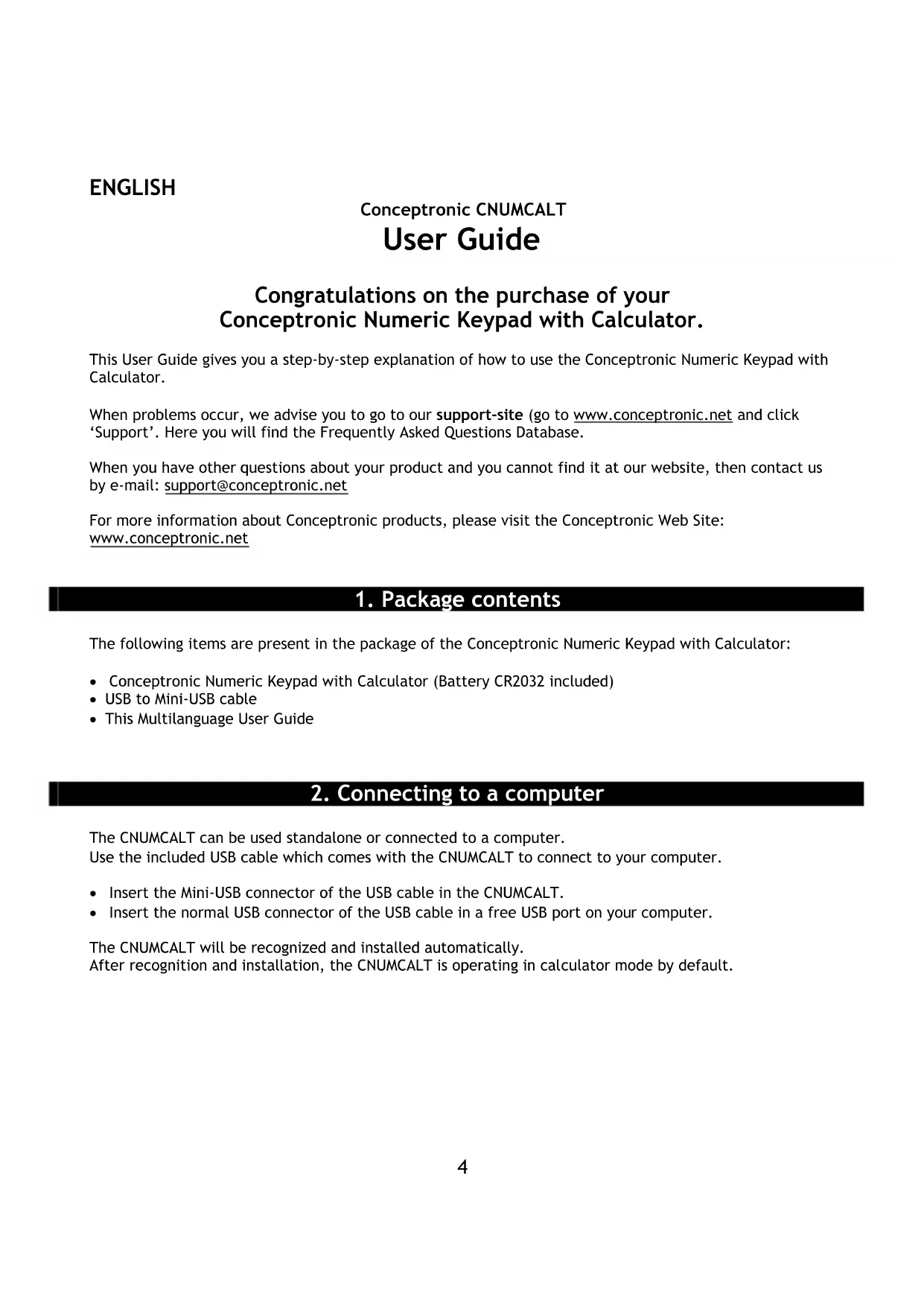

USER MANUAL Thumb Keypad CONCEPTRONIC

Congratulations on the purchase of your Conceptronic Numeric Keypad with Calculator.

This User Guide gives you a step-by-step explanation of how to use the Conceptronic Numeric Keypad with Calculator.

When problems occur, we advise you to go to our support-site (go to www.conceptronic.net and click 'Support'. Here you will find the Frequently Asked Questions Database.

When you have other questions about your product and you cannot find it at our website, then contact us by e-mail: [e-mail]

For more information about Conceptronic products, please visit the Conceptronic Web Site: www.conceptronic.net

1. Package contents

The following items are present in the package of the Conceptronic Numeric Keypad with Calculator:

• Conceptronic Numeric Keypad with Calculator (Battery CR2032 included)
• USB to Mini-USB cable
• This Multilanguage User Guide

2. Connecting to a computer

The CNUMCALT can be used standalone or connected to a computer. Use the included USB cable which comes with the CNUMCALT to connect to your computer.

• Insert the Mini-USB connector of the USB cable in the CNUMCALT.
• Insert the normal USB connector of the USB cable in a free USB port on your computer.

The CNUMALT will be recognized and installed automatically. After recognition and installation, the CNUMALT is operating in calculator mode by default.

ENGLISH

3. User modes and layouts

When the CNUMCALT is connected to your computer, the device provides 3 different operation modes. The operation modes are indicated on the display of the CNUMCALT:

Operation Mode Indicated on the display as:

Calculator Mode CAL

Numeric Keypad Mode LOCK PC

Shortcut Keypad Mode PC

You can switch between the different operation modes with the "Num/Lock PC/Cal" button on the CNUMCALT. Each operation mode has a different layout for the keypad, which are shown below:

Calculator mode Alternative calculator mode

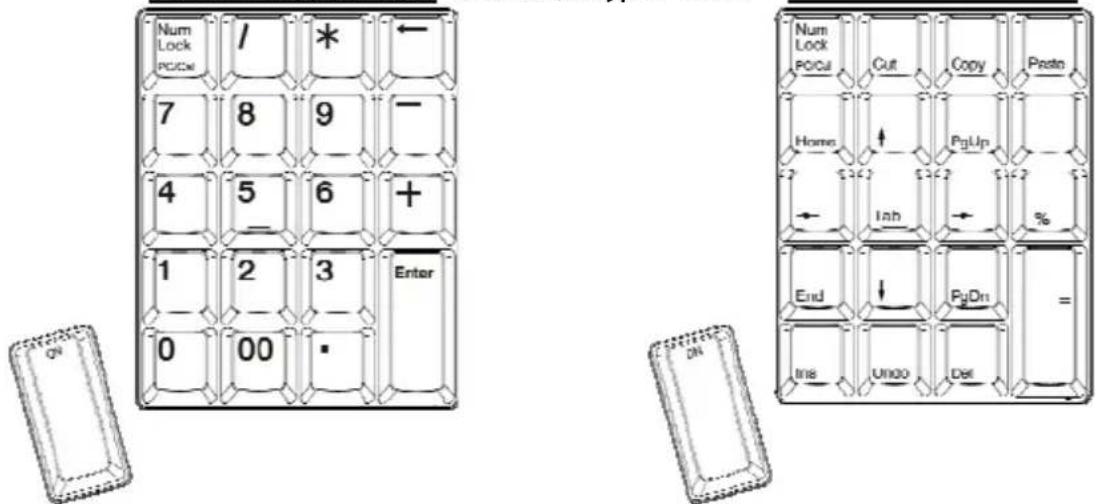

NumericKeypad mode Shortcut Keypad mode

4. Using the CNUMCALT

4.1 Using the CNUMCALT in calculator mode

When the CNUMCALT is set to calculator mode (CAL), you can use the CNUMCALT as a regular calculator. If you press and hold the orange "On" / thumb key on the CNUMCALT, you can access the following special functions:

Use the square root function of the calculator.

Use the percentage function of the calculator.

Send the value on your calculator screen to your computer.

When using the "Send" function, you can send the value on the display to your computer, for example to your Excell sheet which is active on your screen.

Tip : The calculator mode can also be used standalone, without a computer connection. When using the calculator mode standalone, all features except the 'send' function will work.

When the CNUMCALT is used standalone, the battery in the device will provide the power.

If the CNUMCALT is active and not used for about 6:30 minutes, it will automatically turn off.

4.2 Using the CNUMALT in numeric keypad mode

When the CNUMCALT is set to numeric keypad mode (LOCK PC), you can use the CNUMCALT as a numeric keypad on your computer, with the numeric layout shown in chapter 3.

If you press and hold the orange "On" / thumb key on the CNUMCALT, you can access the shortcut layout of the CNUMCALT, which is printed in orange on the keys of the CNUMCALT. The shortcut layout can be found in chapter 3.

4.3 Using the CNUMCALT in shortcut keypad mode

When the CNUMCALT is set to shortcut keypad mode (PC), you can use the CNUMCALT as a shortcut keypad on your computer, with the shortcut layout shown in chapter 3.

If you press and hold the orange "On" /thumb key on the CNUMCALT, you can access the numeric layout of the CNUMCALT, which is printed in white on the keys of the CNUMCALT. The numeric layout can be found in chapter 3.

Enjoy the use of your Numeric Keypad with Calculator!
