USER MANUAL DO9071KR DOMO

Modern kitchen mixer with a side panel and control knob (no visible text or symbols)

DO9071KR

Piet Huysenfzwyt by DOMO

GARANTIEVOORWAARDEN

CONDITIONS DE GARANTIE

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures which are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The warranty will only be valid if the warranty application has been completed by the dealer at the time of purchase. All parts, which are subject to wear, are excluded from the warranty.

Type nr. Apparaat

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

RECYCLING INFORMATIONEN

RECYCLING INFORMATION

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

INFORMACE O RECYKLACI ODPADU

If the supply cord is damaged, it must be replaced by manufacturer of its service agent or a similarly qualified person in order to avoid a hazard.

This appliance is only for household use or environments of a similar character such as :

• kitchens that are used by personnel of shops, office or other similar professional environments.
• Farms
• Hotel rooms and motel rooms and other similar environments with a residential character.
• Bed and breakfast or similar.

Attention : this appliance may not be used with an external timer or separate remote control.

This devise is not for use by persons, including children, with any kind of impairment, such as, physical, sensorial or mental incapacity. These persons are also not permitted to use the devise if they have limited experience or insufficient knowledge, unless they have received the necessary instructions for use or are otherwise being supervised by people ensuring their safety. Make sure that children cannot play with the device.

Collection of industrial kitchen components including a cutter, meshing, and washers (no text or symbols visible)

Two mechanical components with textured surfaces, one shown in black and the other in gray, labeled '13' below (no text or symbols on components)

Three metallic cylindrical containers with perforated lids, arranged horizontally (no visible text or symbols)

Two metallic mechanical components with cylindrical ends and mounting brackets, labeled with number 14 (no text or symbols on the components themselves)

Zie verder:

MONTAGE ACCESSOIRES VOOR HET EERSTE GEBRUIK

Close-up of a mechanical component with a metallic handle and circular base (no visible text or symbols)

Close-up of a mechanical press or clamping device with metallic components and a central shaft (no visible text or symbols)

Close-up of a mechanical device with metallic components and tubing (no visible text or symbols)

Close-up of a metallic mechanical component with a circular feature labeled 'C' (no visible text or symbols)

Close-up of a modern, sleek mechanical device with a metallic top and control panel (no visible text or symbols)

Close-up of a mechanical device with a central circular component and a rectangular housing (no visible text or symbols)

Close-up of a mechanical component with a metallic shaft and circular housing (no visible text or symbols)

Black plastic mechanical component with a circular top and cylindrical shaft, labeled with number 11 (no text or symbols on the object itself)

Close-up of a stainless steel robotic arm with food being processed (no visible text or symbols)

Close-up of metallic mechanical components including a threaded rod, screw, and conical part (no text or symbols visible)

Collection of industrial mechanical components including a T-shaped tool, threaded screw, flange, and circular components (no visible text or symbols)

Three metallic mechanical components with threaded ends, arranged side by side on a plain background (no text or symbols visible)

BEREIDING

Close-up of a mechanical device with a circular lens and transparent frame (no visible text or symbols)

KOKEN

1. Basis

Collection of industrial kitchen components including a cutter, meshing, and mechanical parts (no text or symbols visible)

Product photos of mechanical components, including a brush tool and three cylindrical bins with textured surfaces (no text or symbols)

MONTAGE & USAGE

Pétrir/hacher/battre

Three-panel image showing a device with a sensor and internal components, no visible text or symbols.

Close-up of a metallic mechanical component with threaded shaft and flanged end (no visible text or symbols)

Metal four-petal cross-shaped tool or impeller component (no text or symbols visible)

Three metallic pipe fittings and a mechanical component, shown from different angles (no text or symbols visible)

Close-up of metallic circular components with perforated surfaces, including a cross-sectional view (no text or symbols)

Black plastic mechanical component with a circular top and tapered shaft, labeled '11' in the corner (no other text or symbols)

Modern kitchen stand mixer with stainless steel feeder and bowl (no visible text or symbols)

pièces suivantes:

Close-up of metallic industrial pipe fittings and a conical connector (no text or symbols visible)

Collection of mechanical parts including a T-shaped tool, threaded screw, and various circular components (no text or symbols visible)

Three metallic cylindrical mechanical components with threaded ends, displayed against a plain white background (no text or symbols visible)

PRÉPARATION

Close-up of a mechanical component with a circular aperture and metallic frame (no visible text or symbols)

CUISSON DES PÂTES

1. Base

DO9071KR

• 500 g de farine

• 4 œufs

- une pincée de sel

• 2,5 ml d'huile

Collection of industrial kitchen components including a cutter, meshing, and mechanical parts (no text or symbols visible)

13

Two metallic mechanical components with no visible text or symbols on the parts themselves

VOR DEM ERSTEN GEBRAUCH

Close-up of a metallic mechanical component with a circular feature, possibly part of a tool or assembly (no visible text or symbols)

Close-up of a metallic mechanical component with a cylindrical shaft and flange (no visible text or symbols)

Close-up of a kitchen sink with a faucet and water pump (no visible text or symbols)

Close-up of a metallic mechanical component with no visible text or symbols

4.

Close-up of a metallic mechanical component with threaded shaft and flanged end (no visible text or symbols)

Metal four-petal cross-shaped tool with a central hole, no visible text or symbols

Close-up of two metallic pipe fittings and a mechanical component (no text or symbols visible)

Close-up of metallic circular components with perforated surfaces, including a cross-sectional view (no text or symbols)

Black plastic mechanical component with a circular cap and tapered shaft, labeled '11' in the top right corner (no other text or symbols)

Modern kitchen stand mixer with stainless steel bowl and metal handle (no visible text or symbols)

Collection of metallic industrial pipe fittings and a conical connector (no text or symbols visible)

Collection of mechanical components including a knitted tool, threaded screw, and various circular components (no text or symbols visible)

Three metallic mechanical components with threaded ends, displayed against a plain background (no text or symbols visible)

Zubereitung

Close-up of a mechanical device with a circular lens and rectangular frame (no visible text or symbols)

Kochen

1. Basis

- 500g Mehl

• 4 Eier

- eine Prise Salz

• 2,5ml Öl

• eventuell Wasser

1 - 8: speed control (min - max)

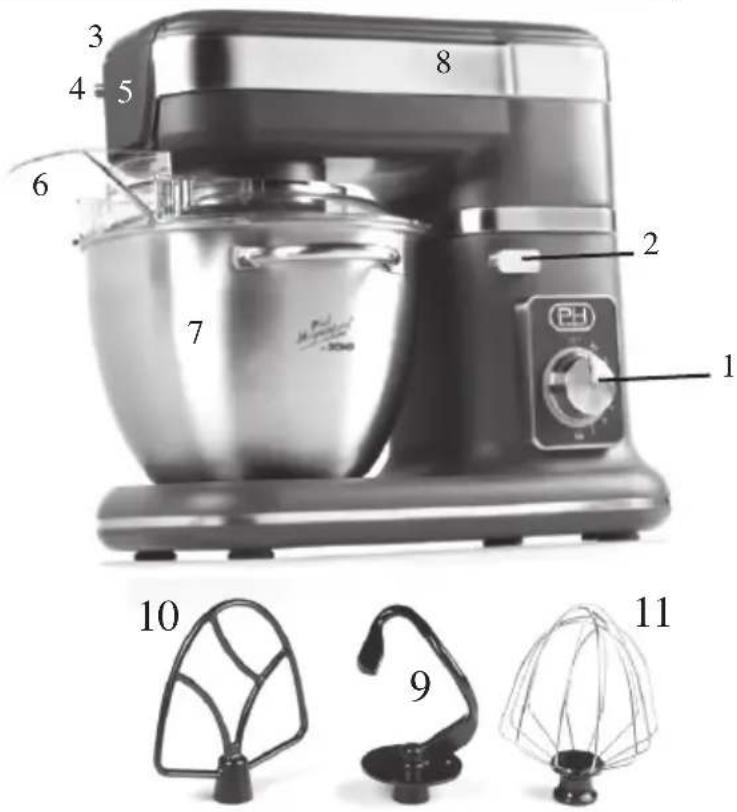

COMPONENTS

1. speed control
2. release button for multifunctional head
3. connection accessories lid
4. release button for lid accessories
5. connection accessories (under lid)
6. mixing bowl lid
7. stainless steel mixing bowl
8. multifunctional head
9. dough hook
10. beater
11. whisk

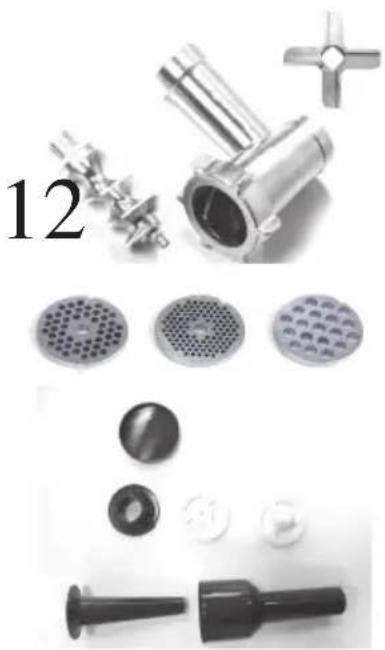

12. meat grinder with components (l)

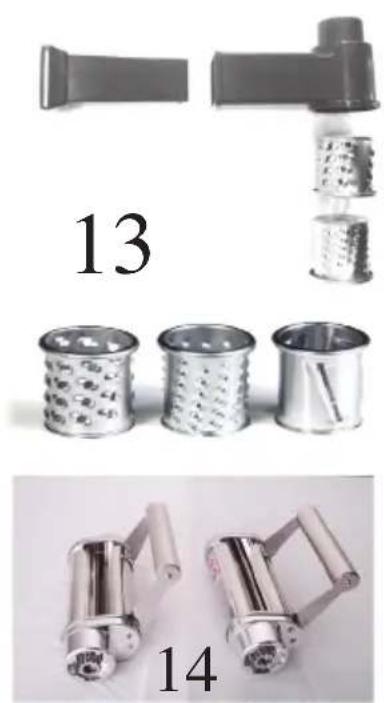

13. vegetable cutter with components (r)

1 2 3 4 5 6 7 8 9 10 11

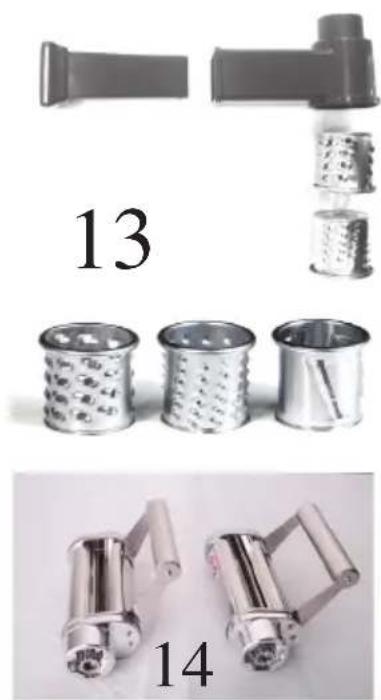

OPTIONAL

ACCESSORIES

1. Pasta set

See below:

INSTALLATION

ACCESSORIES

FIRST USE

INSTRUCTIONS

Remove the unit and accessories from the packaging.

Wash all components with soap in warm water and dry carefully. Never immerse the engine unit in water, in order to prevent electrocution.

Collection of industrial kitchen components including a cutter, meshing, and washers (no text or symbols visible)

Two sets of metallic mechanical components, labeled 13 and 14, shown from different angles (no text or symbols on parts)

INSTALLATION AND USAGE

Kneading / grinding / beating

Depending on the nature of the ingredients, the mixing bowl and lid allow for the

making of 2 kg of dough.

1. Make a quarter turn on the release button (2) to release the head, then push the head upward until you hear a click.

2. Put the bowl (7) on the base and turn it clockwise to tighten it. Place the ingredients in the bowl.

3. Select the preferred accessory: dough hook, beater or whisk.

a. Attach the hook to the head by moving it up and sliding round the shaft.

b. Turn the hook by a quarter in an anti-clockwise direction.

c. Position the hook so that it falls into the lock position.

Close-up of a metallic mechanical component with a cylindrical shaft and flange (no visible text or symbols)

Close-up of a metallic mechanical device with a lever and adjustment knob (no visible text or symbols)

Close-up of a mechanical device with metallic components and tubing (no visible text or symbols)

Close-up of a mechanical component with no visible text or symbols

1. Make a quarter turn back on the release button so that the head falls downwards. Push the head back into its original position until you hear a click.

2. Put the lid on the bowl with the opening at the front of the unit.

3. While it is operating, you can add ingredients through the opening on the lid.

4. In order to make the device stop, you turn the speed control to OFF.

5. Place the device on a clean and dry surface. Place the plug in the socket and select the desired speed by turning the speed control.

DISASSEMBLING

1. Remove the plug from the socket.

2. Remove the lid from the bowl.

3. Make a quarter turn on the release button, then push the head upwards until you hear a click.

4. Remove the hook from the lock position and turn it a quarter in a clockwise direction. Then slide the hook off the drive shaft and remove the hook. Remove the hook gently as accidents with sharp edges may occur.

5. Turn the bowl in an anti-clockwise direction from the lock position and remove the bowl.

6. Make a quarter turn backwards on the release button so that the head falls downwards. Then push the head back into its original position until you hear a click.

CLEANING

1. Always remove the plug from the socket before cleaning the device.

2. Never immerse the engine unit in a bowl of water or under running water. Clean the engine unit with a soft damp cloth.

3. Disassemble all accessories according to the user instructions in the section "Disassembling".

4. For quick cleaning, rinse the accessories under running water.

5. For thorough cleaning, wash, rinse and dry the accessories.

TIPS

Activity Ingredient Maximum Time Speed
BEATING	Cream (incl. 38% fat)	250 ml 10 min Min - Max
	Egg white 12 Stück 3 min Min - Max
KNEADING	Flour 1350 g		2-3 min Min - Max
	Salt 15 g
	Yeast 20g
	Sugar 10g
	Water	936g
	Lard/fat	20g
MIXING	Flour	100g	5 min	Min -Max
	Caster sugar	100g
	Margarine	100g
	Eggs	2 Stück

OPTIONAL ACCESSORIES

Fitting Vegetable Cutter

Turn the device off, and take the plug out of the socket before you add, remove or clean any accessories.

1. Open the lid by pressing the release button and push it upwards.
2. The connecting point for accessories can be seen.
3. Place the vegetable cutter at an angle of 25^ to the connection point and tighten it by making a quarter turn clockwise. You hear a click when this is securely fastened. Your vegetable cutter is now in a perfect vertical position.

Close-up of a modern, sleek, metallic robot head with a transparent top and control panel (no visible text or symbols)

Close-up of a mechanical device with a circular aperture and metallic casing (no visible text or symbols)

Close-up of a mechanical component with a metallic shaft and white circular component (no visible text or symbols)

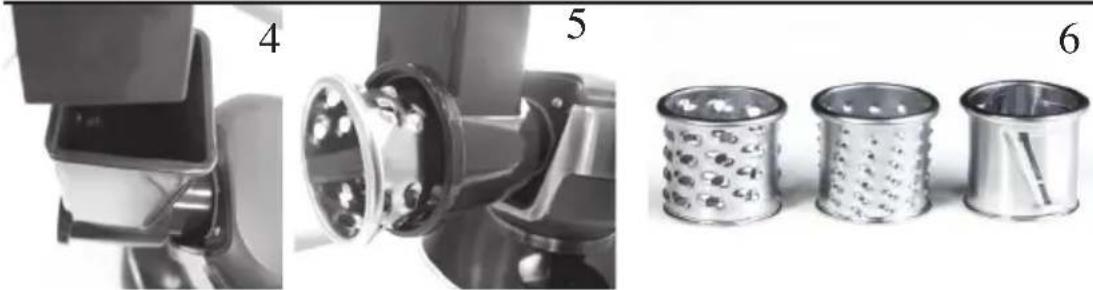

1. With the push rod you can safely place vegetables in the vegetable cutter.
2. Push the grater fully into the opening of the vegetable cutter.
3. You can choose between a cutter and two types of graters.

Close-up of kitchen utensils and three cylindrical food containers (no text or symbols visible)

To remove the vegetable cutter, press on the release button. Make a quarter turn clockwise

on the vegetable cutter. Clean all parts thoroughly and dry carefully before using it again.

Fitting meat grinder

Turn the device off, and take the plug out of the socket before you add, remove or clean any accessories.

Three views of a mechanical device showing internal components and a close-up view (no text or symbols visible)

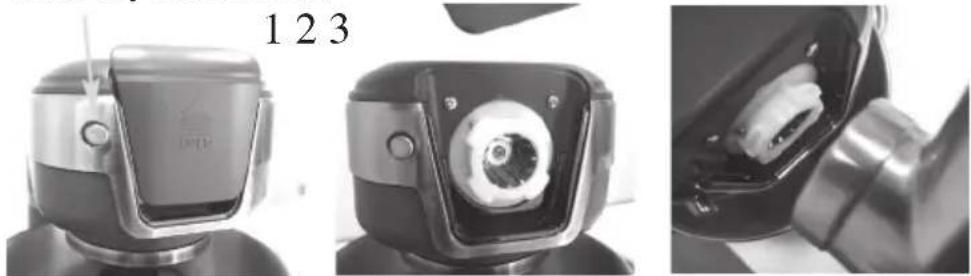

Open the lid by pressing the release button and pushing it upwards (1).

The connecting point for accessories can be seen (2).

Place the meat grinder at an angle of 25^ to the connection point and tighten it by making a quarter turn clockwise. You hear a click when this is securely fastened. Your meat grinder is now in a perfect vertical position (3).

Three views of a mechanical component: external gear, cross-shaped tool, and threaded shaft (no text or symbols visible)

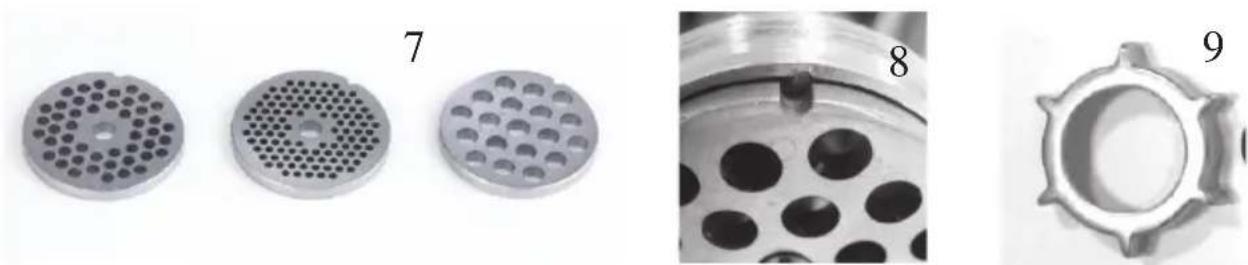

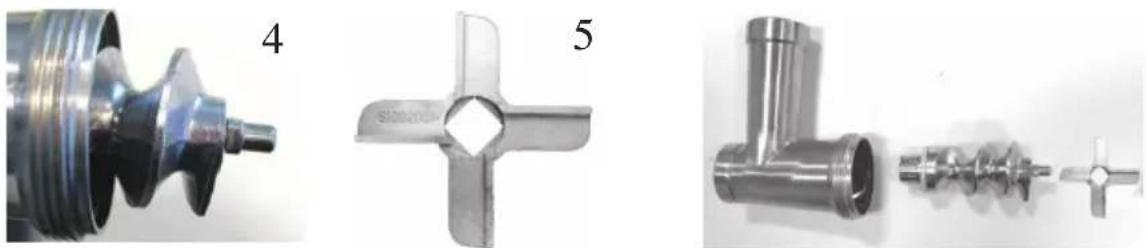

For grinding meat insert in succession: the worm wheel (4) and the cutting knife (5). Then make a selection from the grinding discs, fine, medium or coarse (7).

Close-up of metallic circular components with perforated surfaces, including a cross-sectional view (no text or symbols)

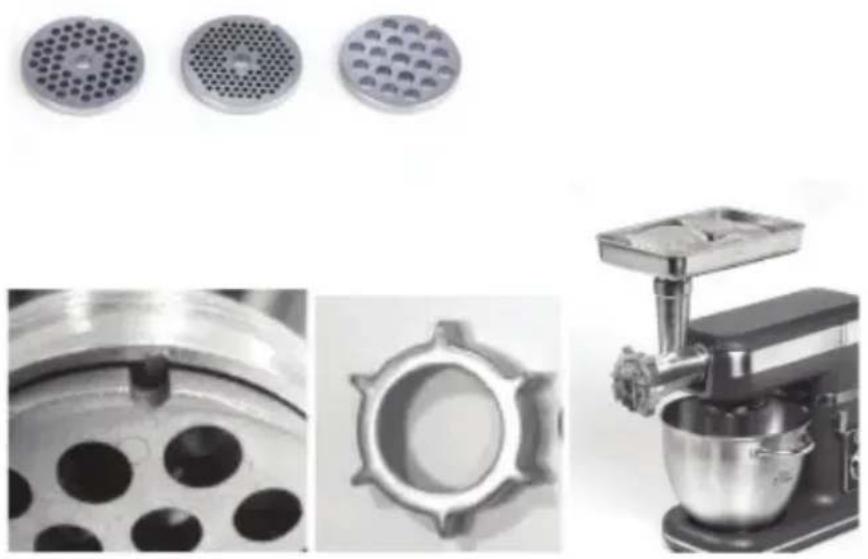

Position the notch on the disc at the height of the projecting catch (8).

Connect it altogether with the screw ring (9).

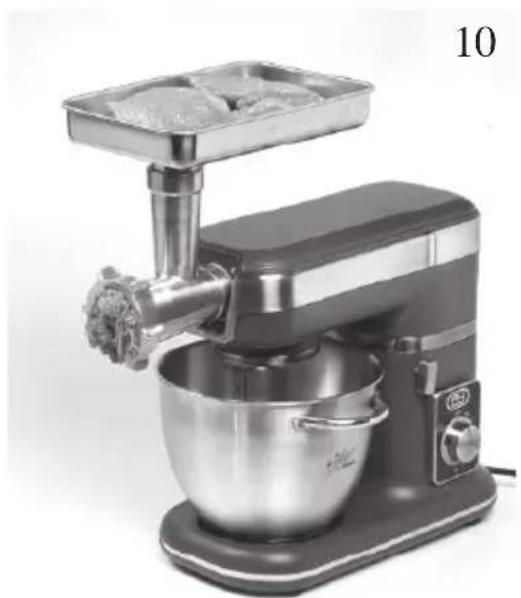

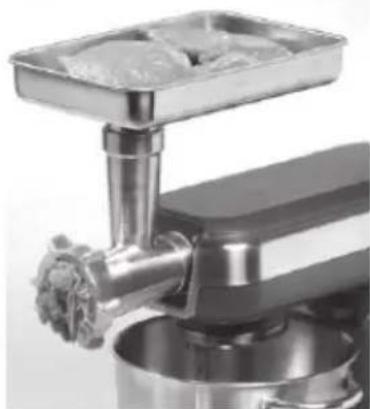

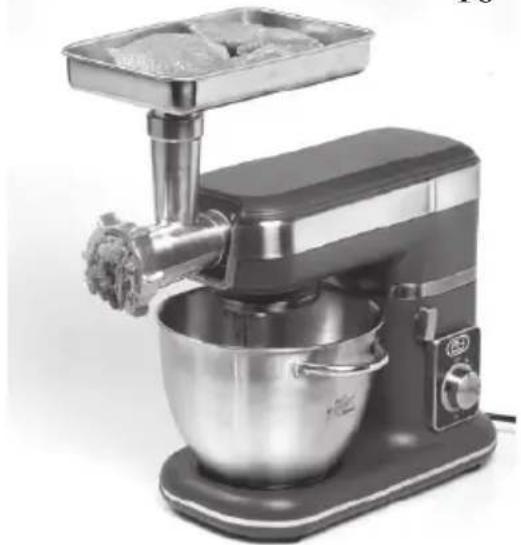

Position the bowl in the best way possible so as to put your meat in it (10).

You can use the push rod to put the meat firmly inside (11).

10

Black plastic mechanical component with a circular top and tapered shaft, labeled '11' in the corner (no other text or symbols)

Modern kitchen stand mixer with stainless steel bowl and metal handle (no visible text or symbols)

For sausage making, insert the following components:

Close-up of metallic mechanical components including a conical tool, threaded fastener, and flange (no text or symbols visible)

For making stuffed meatballs, insert the following components:

Collection of industrial kitchen components including a knitzer, screwdriver, and meshing (no text or symbols visible)

To remove the meat grinder, press on the release button. Make a quarter turn clockwise on the meat grinder. Clean all parts thoroughly and dry carefully before using it again.

PASTA

There are three accessories: a roller for lasagna, a tagliatelle cutter and spaghetti cutter.

To make spaghetti or tagliatelle, you must first use the lasagna roller to make flat sheets of pasta.

Three metallic mechanical components with cylindrical and angular features, displayed against a plain background (no text or symbols visible)

PREPARATION

Put the ingredients (see recipes) in the bowl.

Mix with the dough hook n speed 1-2 for 2 to 3 minutes. Add water if the dough is

too dry.

Stop your food processor and knead the dough by hand until it is smooth.

Let it rest in a kitchen towel for 15 minutes.

Put the pasta roller into the connector for accessories.

First, use the pasta roller to make flat sheets of pasta as for lasagna making.

Close-up of a mechanical device with a circular aperture and control buttons (no visible text or symbols)

Enter these pasta sheets through the pasta cutter for spaghetti or tagliatelle.

COOKING

Normal recipe

• 500 grams of flour
• 4 eggs
• a pinch of salt
• 2.5 ml. oil
• optionally water

For whole-wheat pasta replace the regular flour with whole-wheat flour.

For pasta rossa replace one egg with 75g tomato paste.

• Fill a large pan full of water with a pinch of salt.
• Add some olive oil in order to prevent the pasta stick together
• Bring water to boil and add the pasta. Let simmer for 2 to 4 minutes depending on your personal preference.

CLEANING

Clean the pasta accessories with a damp cloth and wipe dry. Do not immerse in water or use dishwasher cleaning.

Three types of kitchen utensils: a fan-shaped blade, a curved hook, and a wire-wrapped basket (no text or symbols visible)

Collection of industrial kitchen components including a knitzer, perforated circular components, and a bolted tool (no text or symbols visible)

Two mechanical components with textured surfaces, one shown in a separate view (no text or symbols)

Three metallic cylindrical containers with different patterns and designs, no visible text or symbols

Close-up of a hand holding a metallic tool or component (no visible text or symbols)

Close-up of a mechanical press or clamping device with metallic components and a central shaft (no visible text or symbols)

Close-up of a kitchen mixer with water spools and a stand mixer (no visible text or symbols)

Close-up of a metallic mechanical component with no visible text or symbols

náhonu

Close-up collage of a robotic device showing front, side, and top views with no visible text or symbols

Three views of industrial mechanical components: a impeller, a cross-shaped tool, and a threaded pipe assembly (no text or symbols visible)

Product photos showing kitchen utensils, a perforated plate, and a mounted motor (no visible text or symbols)

Close-up of mechanical components including a threaded fastener, screw, and conical tip (no text or symbols visible)

Close-up of various kitchen utensils including a knuckle, screwdriver, and meshing tool (no text or symbols visible)
