UHZ35 - Video projector OPTOMA - Free user manual and instructions

Brand	Optoma
Model	UHZ35
Product type	DLP Laser Projector 4K UHD
Display technology	Texas Instruments DMD 0.65" HSSI
Native resolution	2160p (4K)
Number of colors	1073.4 million
Light source	Laser (Class 1, Risk Group 2)
Lens	Optical zoom 1.3x or 1.6x depending on version
Geometric correction	Vertical/horizontal keystone ±30°, 4-corner correction, 5x3 warping
Image formats	4:3, 16:9, 16:10, 21:9
Connectivity	2x HDMI 2.0, USB-A (5V/1.5A), 3.5mm audio output, RS-232, RJ-45
Built-in speaker	15 W
3D functions	DLP-Link, 3D ready
Game mode	Yes (reduced latency up to 4.4 ms at 1080p@240Hz)
Network management	LAN, control via Crestron, Extron, PJLink, AMX, Telnet, HTTP
Power supply	DC, standby <0.5 W, eco <0.5 W, bright 187 W typ.

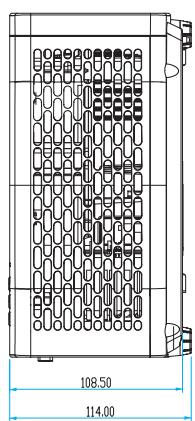

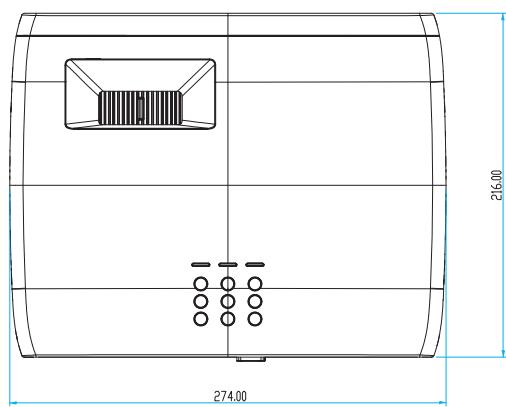

Dimensions (L x W x H)	274 x 216 x 108.5 mm (without feet) / 114 mm (with feet)
Weight	3.2 ±0.2 kg
Operating temperature	0 to 40°C
Maintenance and cleaning	Clean the lens with compressed air and a soft cloth; unplug before cleaning. Do not use solvents.
Safety	Do not look directly into the beam; install >1 m above children's heads; repair by authorized personnel only.
Spare parts and repairability	Repairs must be carried out by an Optoma authorized center; use parts specified by the manufacturer.
General information	4K laser projector with HDR/HLG support, 360° free orientation, numerous image adjustment options.

Frequently Asked Questions - UHZ35 OPTOMA

How to clean the projector lens?

Before cleaning, turn off the projector and unplug the power cord. Use compressed air to remove dust, then gently wipe with a special lens cloth. Never use acidic detergents or volatile solvents like alcohol.

What to do if the projected image is blurry?

Turn the focus ring one way or the other until the image is sharp. Also check that the distance between the projector and screen matches the distances indicated in the manual (pages 55-56).

How to activate 3D mode?

Make sure you have DLP-Link compatible 3D glasses. In the OSD menu, go to Image > 3D and set 3D Mode to On. The input signal must be at 60 Hz (no 4K in 3D).

Can I install the projector on the ceiling?

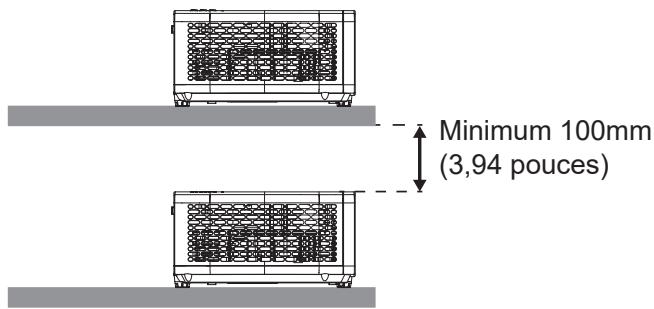

Yes, the projector supports ceiling installation. Use an Optoma mounting kit or a compatible bracket with M4 screws (min. 10 mm length). Leave at least 10 cm between the ceiling and the bottom of the projector for ventilation.

How to use the HDMI CEC function?

Connect your HDMI CEC compatible devices (Blu-ray player, console...) via the HDMI ports. In the OSD menu, go to Input > HDMI CEC Settings and enable HDMI Link. You can then turn devices on/off simultaneously.

What do the LED indicators on the projector mean?

The Power indicator solid red indicates standby mode. During operation, it is solid green/blue. In case of a problem, the Lamp indicator solid red signals a lamp failure, and the Temp indicator solid red or flashing indicates overheating. Consult the manual for more details.

How to reduce latency for gaming?

Enable Game Mode in the Display menu. This disables geometric corrections and reduces response time down to 4.4 ms at 1080p@240Hz for a more responsive gaming experience.

The projector does not turn on, what to check?

Check that the power cord is properly connected and that the wall outlet works. If the power indicator is solid red, press the power button. If nothing happens, wait 20 seconds then unplug/replug. If the problem persists, contact customer service.

How to adjust the image size?

Use the optical zoom lever located around the lens. Turn it one way to enlarge the image, the other way to reduce it. You can also move the projector closer to or farther from the screen (see distance table on pages 55-56).

What is the power-off procedure?

Press the power button on the projector or remote. A message will ask you to confirm; press the button again. The projector starts a cooling cycle of about 10 seconds. Wait until the power indicator turns solid red before unplugging the cord.

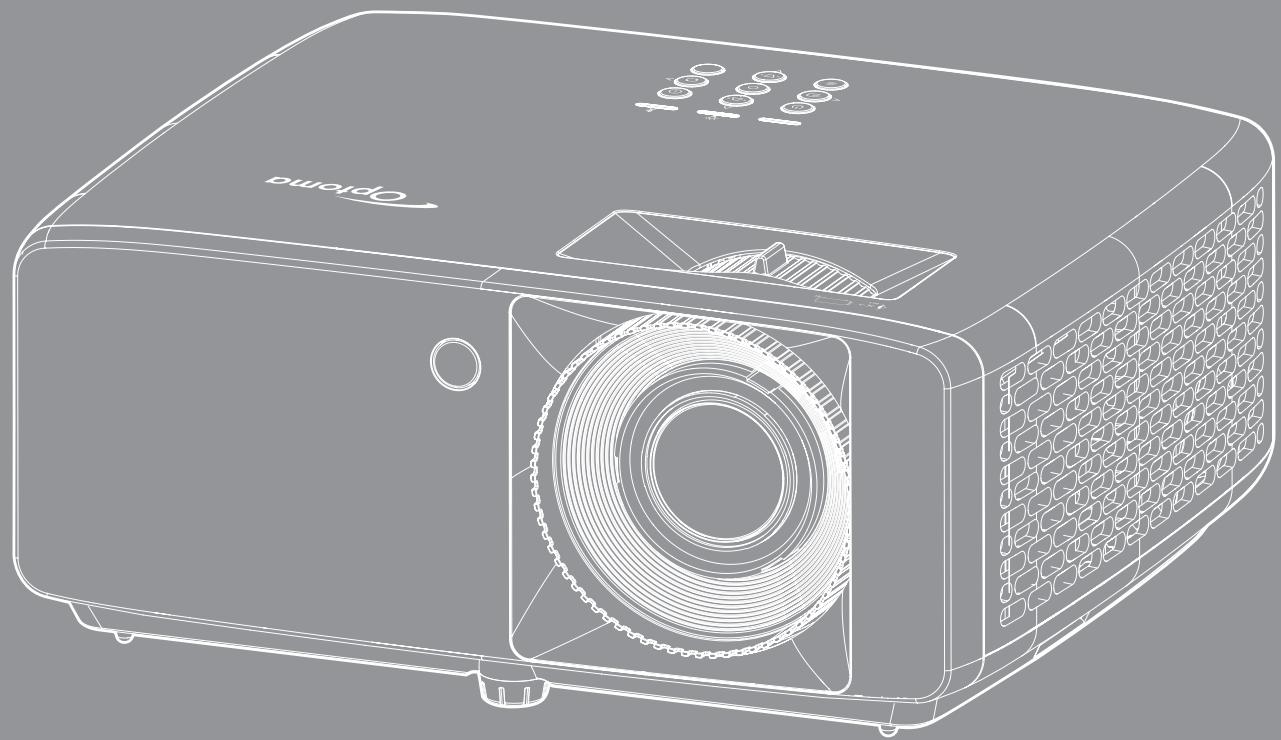

USER MANUAL UHZ35 OPTOMA

Line drawing of a projector with front panel and side vent (no text or symbols)

Line drawing of a projector with visible internal components and ventilation slots (no text or symbols)

TABLE DES MATIÈRES

SÉCURITÉ .... 4

IEC 60825-1:2014, EN 60825-1:2014+A11:2021, EN 50689:2021 CLASS 1 CONSUMER LASER PRODUCT RISK GROUP 2, Complies with 21 CFR 1040.10 and 1040.11 except for conformance as a Risk Group 2 LIP as defined in IEC 62471-5:Ed.1.0. For more information see Laser Notice No. 57, dated May 8, 2019. IEC 60825-1:2014 等級1雷射產品RG2危險等級 IEC 60825-1:2014 1类激光产品RG2危险等级

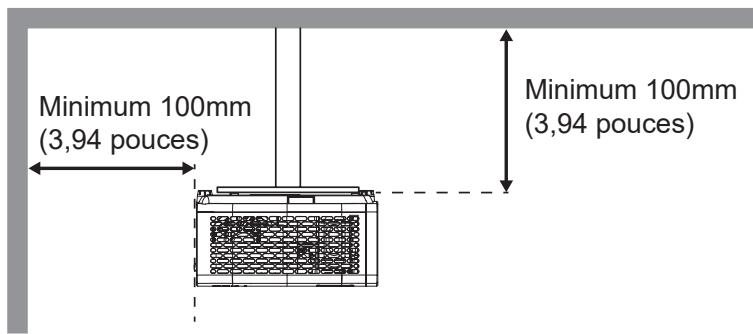

"WARNING: MOUNT ABOVE THE HEADS OF CHILDREN." Additional warning against eye exposure for close exposures less than 1 m.

This Class B digital apparatus complies with Canadian ICES-003.

Line drawing of a person sitting in a chair watching a small screen on a desk (no text or symbols)

Line drawing of a person sitting in a chair facing a wall-mounted device, no text or symbols present

Line drawing of a person sitting in a chair watching a projector screen (no text or symbols)

Line drawing of a person sitting in a chair watching a wall-mounted device mounted on a platform (no text or symbols)

Exterior view of a multi-level industrial machine with red X-shaped prohibition symbol (no text or labels)

CONFIGURATION ET INSTALLATION

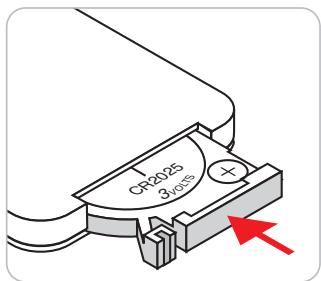

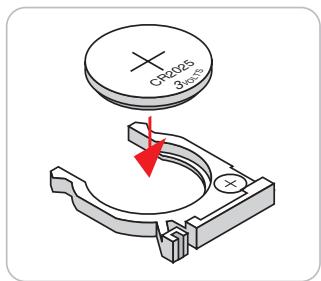

Illustration of a hand using a tool to adjust eyeglasses with red arrows indicating motion (no text or symbols)

CONFIGURATION ET INSTALLATION

CONFIGURATION ET INSTALLATION

CONFIGURATION ET INSTALLATION

Technical line drawing of a mechanical component with symmetrical slots and mounting brackets (no text or symbols)

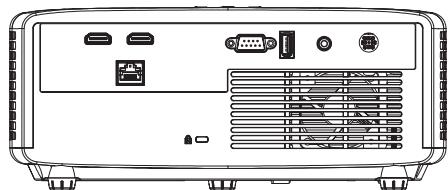

Front view of a projector case with ports and connectors (no visible text or labels)

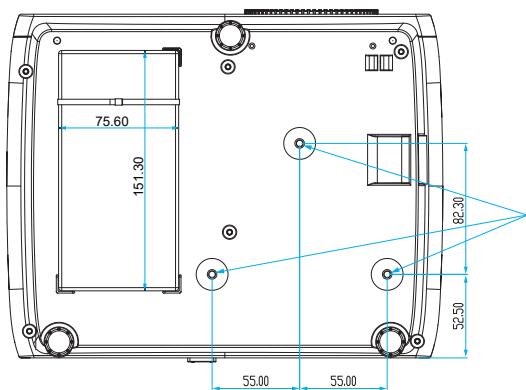

M4*10 mm
