HZ39HDR - Video projector OPTOMA - Free user manual and instructions

Product Type	Video projector
Brand	Optoma
Model	HZ39HDR
Native Resolution	1080p (1920 x 1080) or WXGA (1280 x 800)
Light Source	Laser (Class 1, RG2)
Brightness Mode	DynamicBlack, Eco, Power (50-100%)
Projection Distance	1.0 m to 10 m (1080p model)
Image Size (Diagonal)	28.3" to 374" (1080p model)
Lens	Manual zoom and focus, 1.3x zoom ratio
Keystone Correction	Vertical ±40°, Auto Keystone available
Inputs	HDMI 1.4a/2.0b/MHL, VGA In, Audio In (3.5mm), USB Type-A (power)
Outputs	Audio Out (3.5mm)
Control Interfaces	Micro USB, RS-232, RJ-45 (web control), IR remote
Built-in Speaker	10W
Power Requirement	100-240V ±10%, AC 50/60Hz, 3.0A
Dimensions (W x D x H)	337 x 265 x 108 mm (without feet)
Weight	< 5.0 kg
Operating Temperature	5°C to 40°C
Dust Filter Cleaning	Every 3 months (or more in dusty environments)
Safety Classification	Class 1 Laser Product / Risk Group 2 (RG2)
Standard Accessories	Remote control (with battery), power cord, documentation, warranty card (region dependent)
Optional Accessories	Dust filter, ceiling mount, VGA cable, MHL cable, etc.

Frequently Asked Questions - HZ39HDR OPTOMA

How do I turn on the Optoma HZ39HDR projector?

Connect the power lead and signal cables. The Power LED will turn red. Press the Power button on the keypad or remote control. A startup screen appears in about 10 seconds, and the Power LED flashes blue. For first-time use, you will be prompted to select language and projection orientation.

What should I do if the image is out of focus?

Rotate the Focus Ring clockwise or counterclockwise until the image is sharp. Also ensure the projector is within the correct projection distance (1.0 m to 10 m for 1080p model).

How do I clean the lens?

Turn off the projector and unplug the power cord. Allow it to cool completely. Use a compressed air tank to remove dust, then gently wipe with a special lens cleaning cloth. Do not use alkaline/acid detergents or volatile solvents like alcohol.

Can I use 3D with this projector?

Yes, the HZ39HDR supports DLP-Link 3D via HDMI1/HDMI2/VGA ports. You need 3D glasses compatible with DLP-Link. Input frame rate must be 60Hz; 4K resolution is not supported in 3D mode. Go to OSD menu Display → 3D to enable.

How do I replace the remote control batteries?

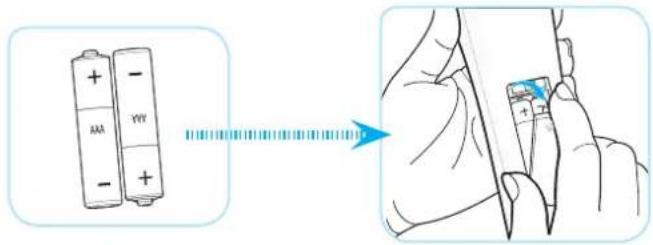

Remove the battery cover on the back of the remote. Insert two AAA batteries as illustrated. Replace the cover. Do not mix old and new batteries or different types.

What does the 'Lamp' or 'Temp' LED warning indicate?

If the Lamp LED is solid red and Power LED flashes red, it indicates lamp failure. If Temp LED is solid red, the projector has overheated. Turn off, unplug, wait 30 seconds, and try again. If the warning persists, contact service.

How do I adjust the keystone distortion?

Press the Keystone key on the remote or use OSD menu Display → Keystone. You can adjust vertical keystone from -40 to +40 degrees. The Auto Keystone function can correct it automatically.

What is the recommended distance for a 100-inch screen?

For the 1080p model, to get a 100-inch (diagonal) 16:9 image, the projection distance is approximately 2.7 m (wide) to 3.5 m (tele). Refer to the distance table in the manual for exact values.

How do I connect the projector to my home network?

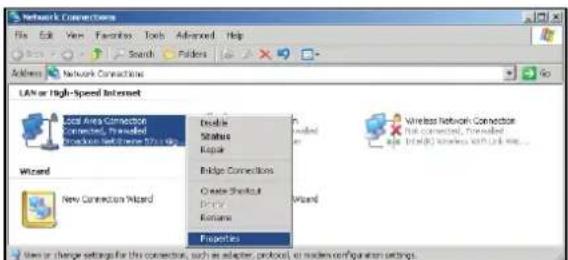

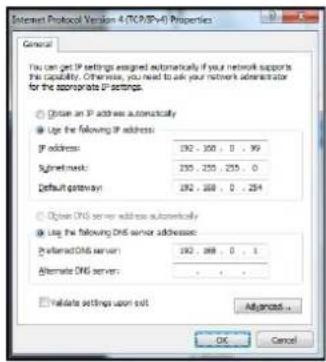

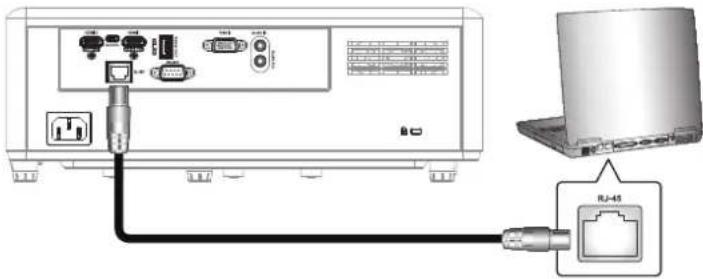

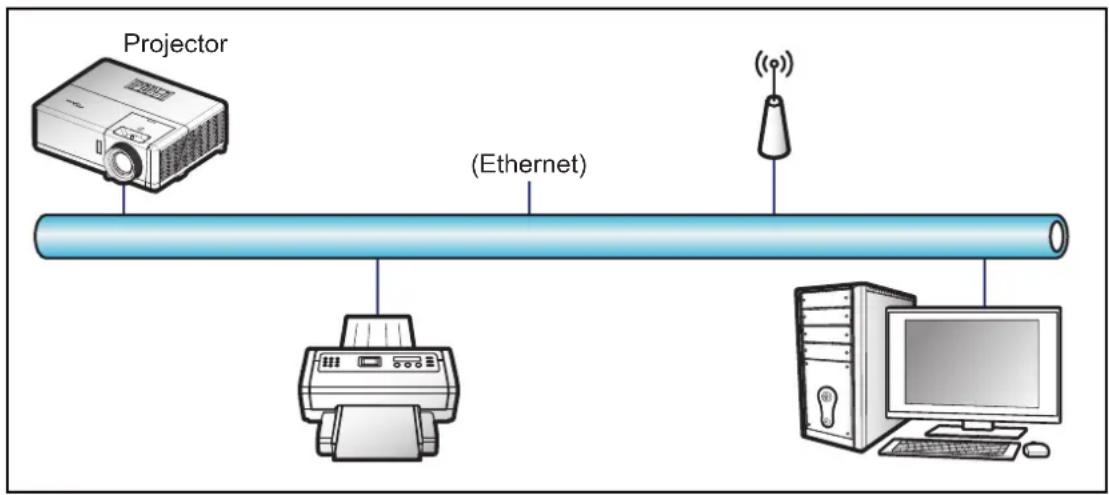

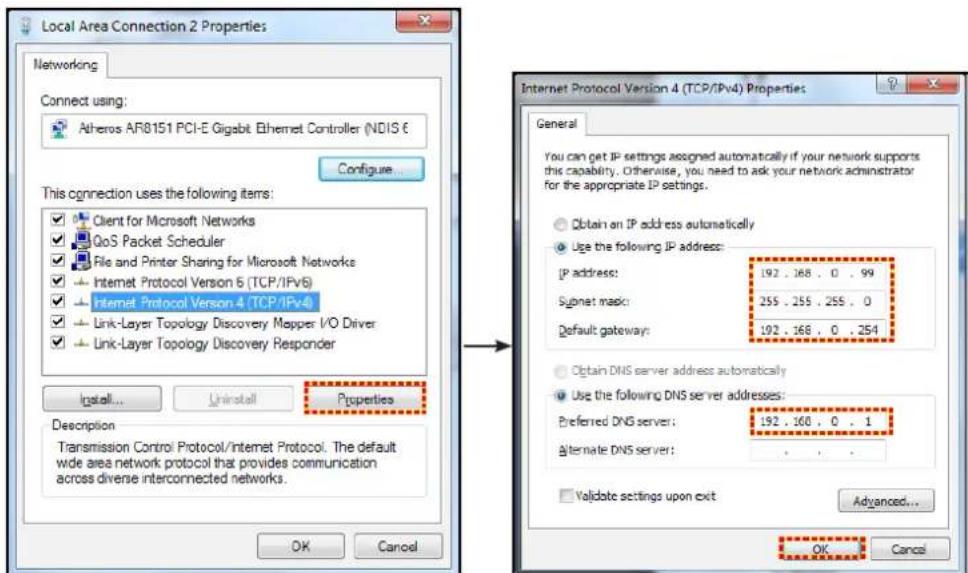

Use an RJ-45 cable to connect the projector to your router. In the OSD, go to Network → LAN and set DHCP to On for automatic IP assignment, or configure manually. Then you can control the projector via a web browser using the IP address.

What should I do if the projector does not respond to the remote control?

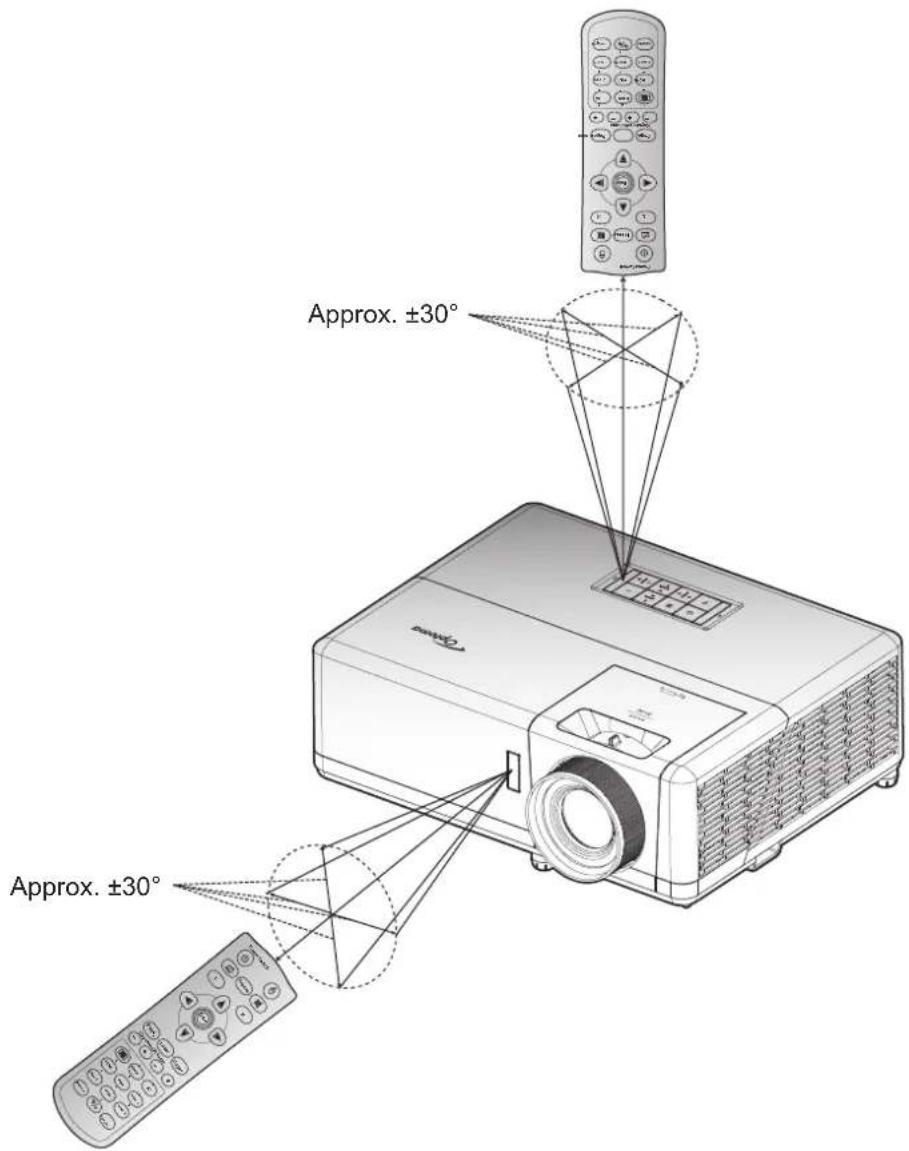

Ensure the remote is within 12 meters (39.4 ft) and within ±30° of the IR receiver. Remove obstacles, check batteries are inserted correctly, and replace if weak. Fluorescent lamps nearby may interfere; move the remote away.

USER MANUAL HZ39HDR OPTOMA

Line drawing of a projector with a circular lens and control panel (no text or symbols)

TABLE OF CONTENTS

SAFETY 4

Important Safety Instruction.... 4

Laser Radiation Safety Information 5

Copyright 6

Disclaimer....6

Trademark Recognition 6

FCC 6

Declaration of Conformity for EU countries 7

WEEE 7

INTRODUCTION 8

Package Overview....8

Standard accessories....8

Optional accessories 8

Product Overview 9

Connections.... 10

Keypad 11

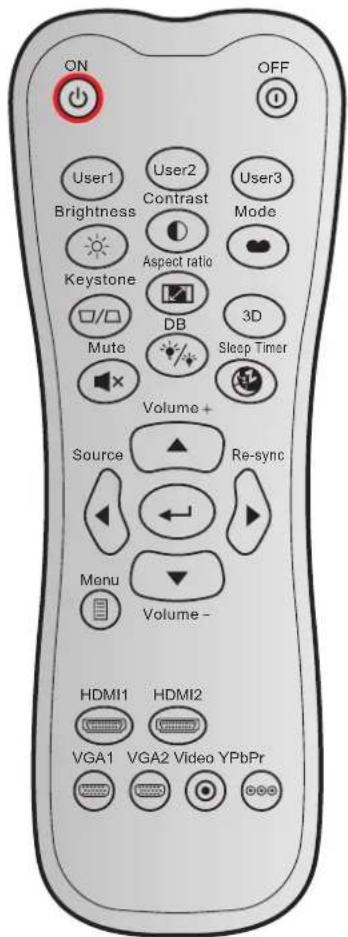

Remote control 1 12

Remote control 2....13

SETUP AND INSTALLATION 14

Installing the projector 14

Connecting sources to the projector.... 17

Adjusting the projector image.... 18

Remote setup 19

USING THE PROJECTOR....21

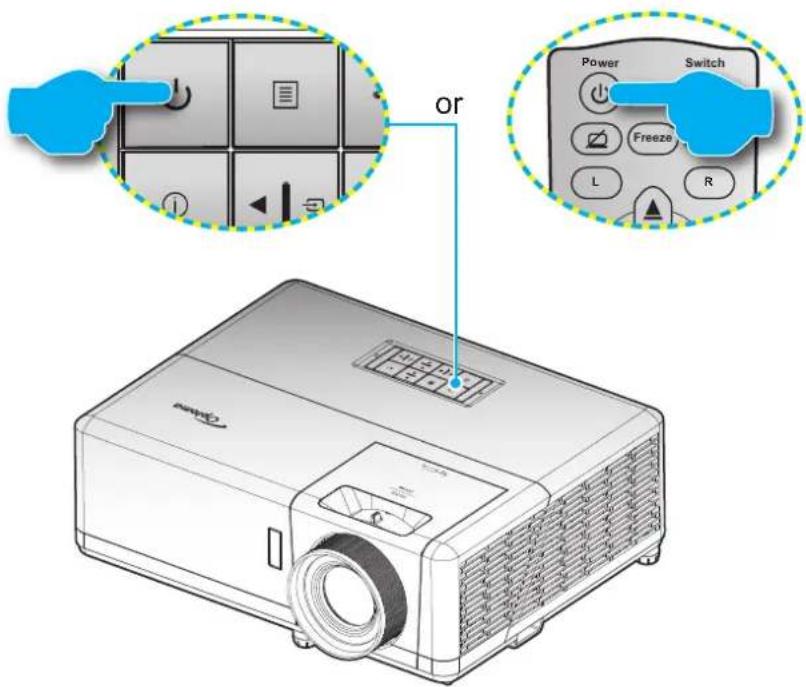

Powering on / off the projector.... 21

Selecting an input source 22

Menu navigation and features 23

OSD Menu tree....24

Display image settings menu.... 32

Display 3D menu 35

Display aspect ratio menu 36

Display edge mask menu 39

Display zoom menu 39

Display image shift menu 39

Display auto keystone menu 39

Display keystone menu 39

Audio mute menu 40

Audio volume menu....40

Setup projection menu.... 40

Setup screen type menu.... 40

Setup power settings menu.... 40

Setup security menu.... 41

Setup HDMI link settings menu 42

Setup test pattern menu 42

Setup remote settings menu.... 43

Setup projector ID menu.... 43

Setup options menu.... 43

Setup reset OSD menu 44

Network LAN menu 45

Network control menu 46

Setup network control settings menu 47

Info menu....52

MAINTENANCE 53

Installing and cleaning the dust filter 53

ADDITIONAL INFORMATION 54

Compatible resolutions....54

Image size and projection distance 57

Projector dimensions and ceiling mount installation.... 59

IR remote control 1 codes 61

IR remote control 2 codes 63

Troubleshooting....65

Warning indicators....67

Specifications 68

Optoma global offices....69

	The lightning flash with arrow head within an equilateral triangle is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
	The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

Please follow all warnings, precautions and maintenance as recommended in this user's guide.

Important Safety Instruction

- Do not stare into the beam, RG2.

As with any bright source, do not stare into the direct beam, RG2 IEC 62471-5:2015.

• Do not block any ventilation openings. To ensure reliable operation of the projector and to protect from over heating, it is recommended to install the projector in a location that does not block ventilation. As an example, do not place the projector on a crowded coffee table, sofa, bed, etc. Do not put the projector in an enclosure such as a book case or a cabinet that restricts air flow.
  • To reduce the risk of fire and/or electric shock, do not expose the projector to rain or moisture. Do not install near heat sources such as radiators, heaters, stoves or any other apparatus such as amplifiers that emits heat.
• Do not let objects or liquids enter the projector. They may touch dangerous voltage points and short out parts that could result in fire or electric shock.

- Do not use under the following conditions:

– In extremely hot, cold or humid environments.

(i) Ensure that the ambient room temperature is within 5^ C \~ 40^ C
(ii) Relative humidity is 10% \~ 85%
– In areas susceptible to excessive dust and dirt.
– Near any appliance generating a strong magnetic field.
- In direct sunlight.

- Do not use the unit if it has been physically damaged or abused. Physical damage/abuse would be (but not limited to):

• Unit has been dropped.
  – Power supply cord or plug has been damaged.
  – Liquid has been spilled on to the projector.
  – Projector has been exposed to rain or moisture.
• Something has fallen in the projector or something is loose inside.

- Do not place the projector on an unstable surface. The projector may fall over resulting in injury or the projector may become damaged.

- Do not block the light coming out of the projector lens when in operation. The light will heat the object and may melt, cause burns or start a fire.

- Please do not open or disassemble the projector as this may cause electric shock.

- Do not attempt to service the unit yourself. Opening or removing covers may expose you to dangerous voltages or other hazards. Please call Optoma before you send the unit for repair.

• See projector enclosure for safety related markings.

• The unit should only be repaired by authorized service personnel.
• Only use attachments/accessories specified by the manufacturer.
  • Do not look into straight into the projector lens during operation. The bright light may harm your eyes.

- This projector will detect the life of the light source itself.

- When switching the projector off, please ensure the cooling cycle has been completed before disconnecting power. Allow 90 seconds for the projector to cool down.

- Turn off and unplug the power plug from the AC outlet before cleaning the product.

• Use a soft dry cloth with mild detergent to clean the display housing. Do not use abrasive cleaners, waxes or solvents to clean the unit.
- Disconnect the power plug from AC outlet if the product is not being used for a long period of time.

- Do not setup the projector in places where it might be subjected to vibration or shock.

- Do not touch the lens with bare hands.

• Remove battery/batteries from remote control before storage. If the battery/batteries are left in the remote for long periods, they may leak.
• Do not use or store the projector in places where smoke from oil or cigarettes may be present, as it can adversely affect the quality of the projector performance.

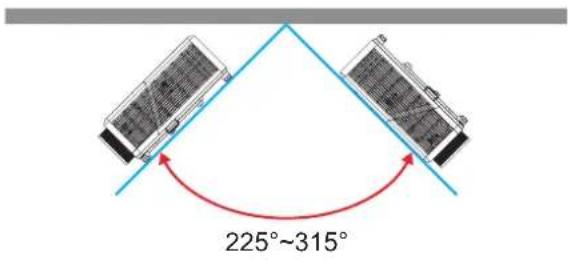

• Please follow the correct projector orientation installation as non standard installation may affect the projector performance.

- Use a power strip and or surge protector. As power outages and brown-outs can KILL devices.

Laser Radiation Safety Information

• This product is classified as CLASS 1 LASER PRODUCT - RISK GROUP 2 of IEC 60825-1 : 2014

• This product is classified as Class 3R of IEC 60825-1:2007 and also complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No.50, dated June 24, 2007.

- As with any bright source, do not stare into the direct beam, RG2 IEC 62471-5:2015

- CLASS 3R LASER PRODUCT-AVOID DIRECT EYE EXPOSURE

• When turning on the projector, make sure no one within projection range is looking at the lens.
• Keep any items (magnifying glass etc.) out of the light path of the projector. The light path being projected from the lens is extensive, therefore any kind of abnormal objects that can redirect light coming out of the lens, can cause an unpredictable outcome such as a fire or injury to the eyes.
• Any operation or adjustment not specifically instructed by the user's guide creates the risk of hazardous laser radiation exposure.
• Do not open or disassemble the projector as this may cause damage by the exposure of laser radiation.
  • Do not stare into beam when the projector is on. The bright light may result in permanent eye damage.

Without following the control, adjustment or operation procedure may cause damage by the exposure of laser radiation

Copyright

This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. Neither this manual, nor any of the material contained herein, may be reproduced without written consent of the author.

© Copyright 2019

Disclaimer

The information in this document is subject to change without notice. The manufacturer makes no representations or warranties with respect to the contents hereof and specifically disclaims any implied warranties of merchantability or fitness for any particular purpose. The manufacturer reserves the right to revise this publication and to make changes from time to time in the content hereof without obligation of the manufacturer to notify any person of such revision or changes.

Trademark Recognition

Kensington is a U.S. registered trademark of ACCO Brand Corporation with issued registrations and pending applications in other countries throughout the world.

HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

DLP ^® , DLP Link and the DLP logo are registered trademarks of Texas Instruments and BrilliantColor ^™ is a trademark of Texas Instruments.

MHL, Mobile High-Definition Link and the MHL Logo are trademarks or registered trademarks of MHL Licensing, LLC.

All other product names used in this manual are the properties of their respective owners and are Acknowledged.

FCC

This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this device does cause harmful interference to radio or television reception, which can be determined by turning the device off and on is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the device and receiver.
• Connect the device into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/television technician for help.

Notice: Shielded cables

All connections to other computing devices must be made using shielded cables to maintain compliance with FCC regulations.

Caution

Changes or modifications not expressly approved by the manufacturer could void the user's authority, which is granted by the Federal Communications Commission, to operate this projector.

Operation Conditions

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference and
2. This device must accept any interference received, including interference that may cause undesired operation.

Notice: Canadian users

This Class B digital apparatus complies with Canadian ICES-003.

Declaration of Conformity for EU countries

• EMC Directive 2014/30/EU (including amendments)
• Low Voltage Directive 2014/35/EU
- RED 2014/53/EU (if product has RF function)

WEEE

Disposal instructions

Do not throw this electronic device into the trash when discarding. To minimize pollution and ensure utmost protection of the global environment, please recycle it.

Cleaning the Lens

• Before cleaning the lens, be sure to turn off the projector and unplug the power cord to allow it to completely cool down.
• Use a compressed air tank to remove the dust.
  • Use a special cloth for cleaning lens and gently wipe the lens. Do not touch the lens with your fingers.
• Do not use alkaline/acid detergents or volatile solvents such as alcohol for cleaning lens. If the lens is damaged due to the cleaning process, it is not covered by the warranty.

Warning: Do not use a spray containing flammable gases to remove dust or dirt from the lens. This may cause a fire due to excessive heat inside the projector.

Warning: Do not clean the lens if the projector is warming up as this may cause the lens' surface film to peel off.

Warning: Do not wipe or tap the lens with a hard object.

To avoid electric shock, the unit and its peripherals must be properly grounded (earthed).

INTRODUCTION

Package Overview

Carefully unpack and verify that you have the items listed below under standard accessories. Some of the items under optional accessories may not be available depending on the model, specification and your region of purchase. Please check with your place of purchase. Some accessories may vary from region to region.

The warranty card is only supplied in some specific regions. Please consult your dealer for detailed information.

Standard accessories

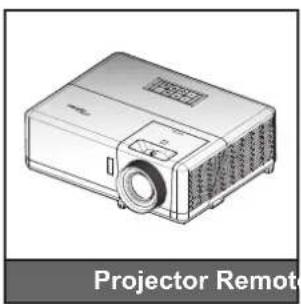

Illustration of a projector remote with label 'Projector Remote' (no other text or symbols)

Coiled cable with connectors, no text or symbols visible

Note:

• The remote control is shipped with the battery.

• *(1) For European warranty Information, please visit www.optoma.com.

• *(2) Available only for Asian region.

Optional accessories

Diagram of a VGA cable connector with multiple connectors and cables (no text or symbols on the diagram itself)

Note: Optional accessories vary depending on model, specification and region.

INTRODUCTION

Product Overview

1080p model

WXGA model

Note:

- Do not block projector intake and exhaust vents.

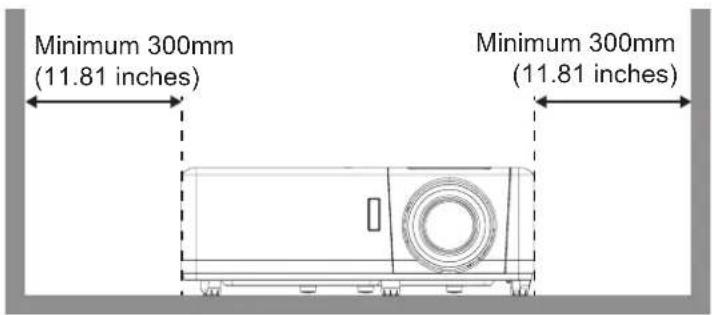

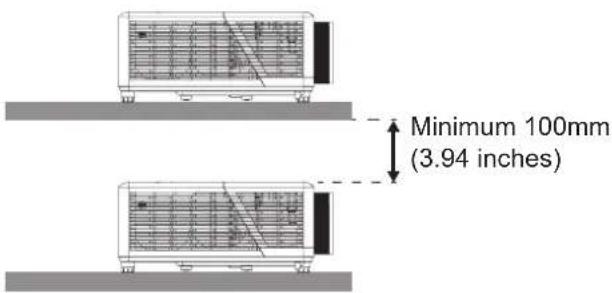

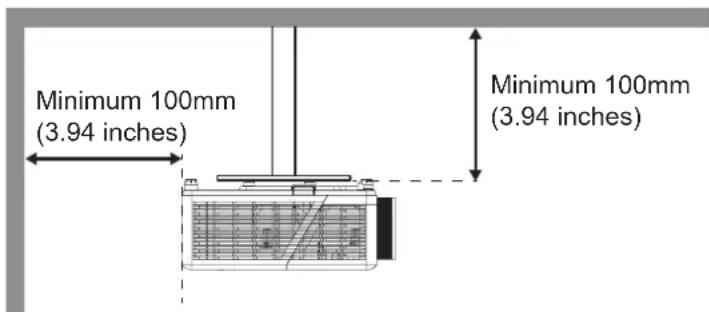

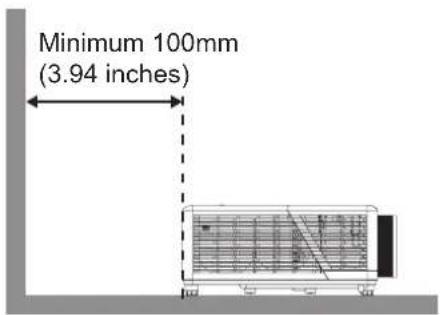

- When operating the projector in an enclosed space, allow at least 30 cm clearance around the intake and exhaust vents.

No Item No Item

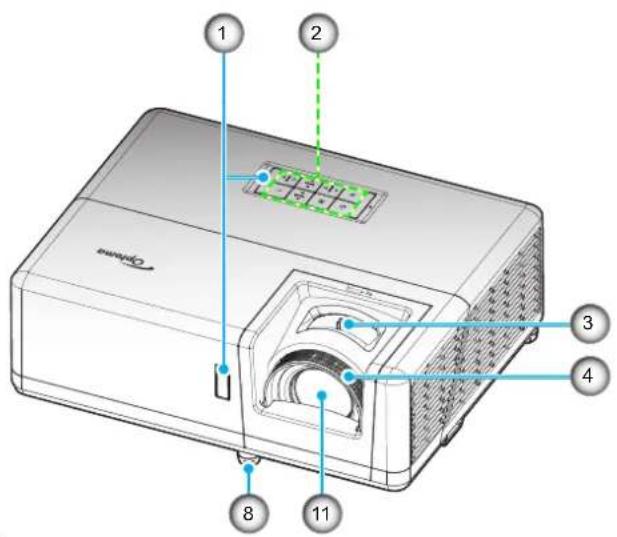

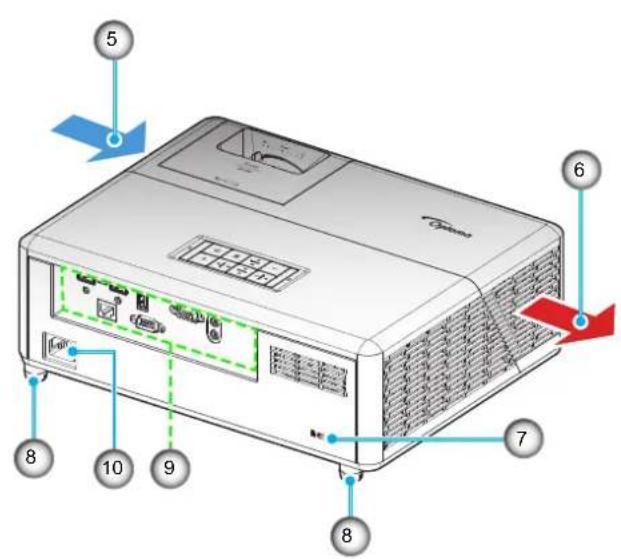

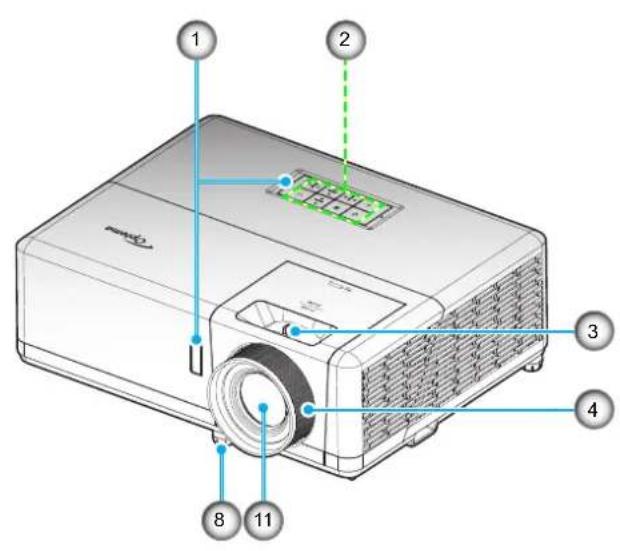

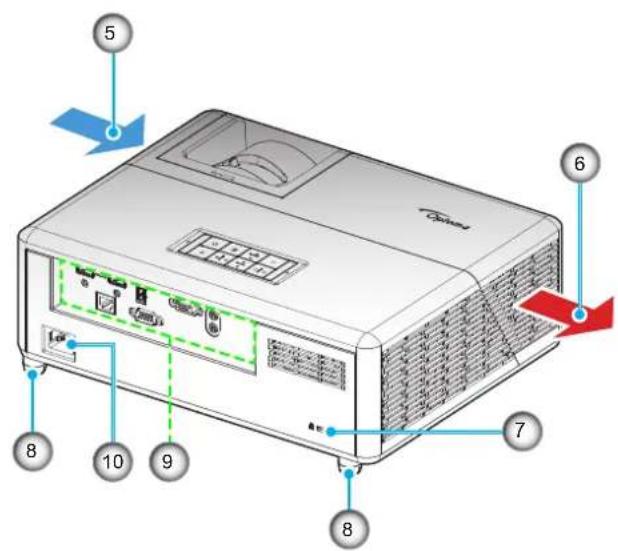

1. IR Receivers 7. KensingtonTM Lock Port

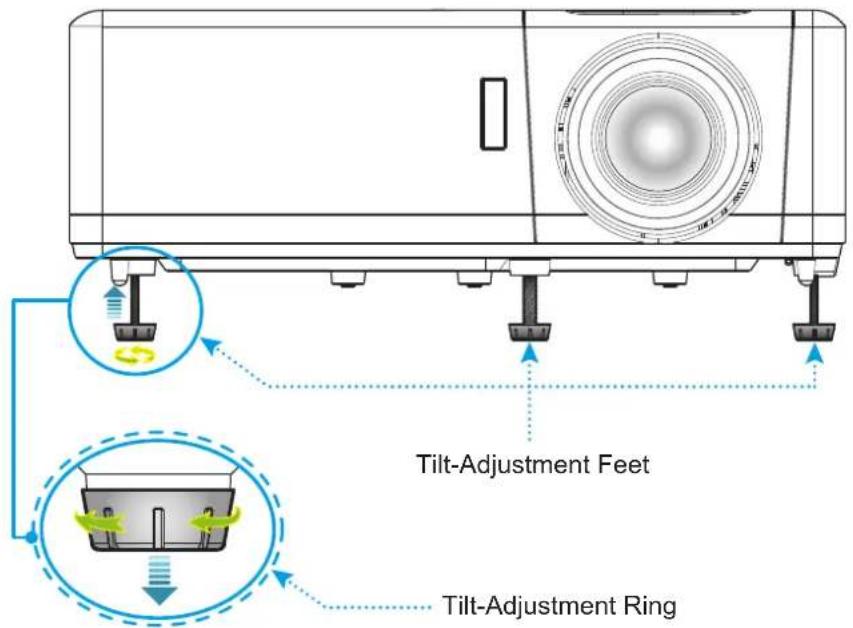

2. Keypad	8.	Tilt-Adjustment Feet
3. Zoom Lever 9. Input / Output

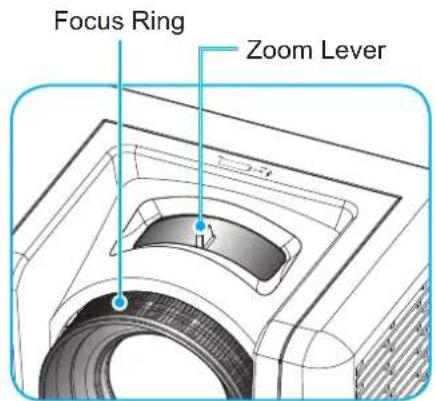

4. Focus Ring 10. Power Socket
5. Ventilation (inlet) 11. Lens
6. Ventilation (outlet)

INTRODUCTION

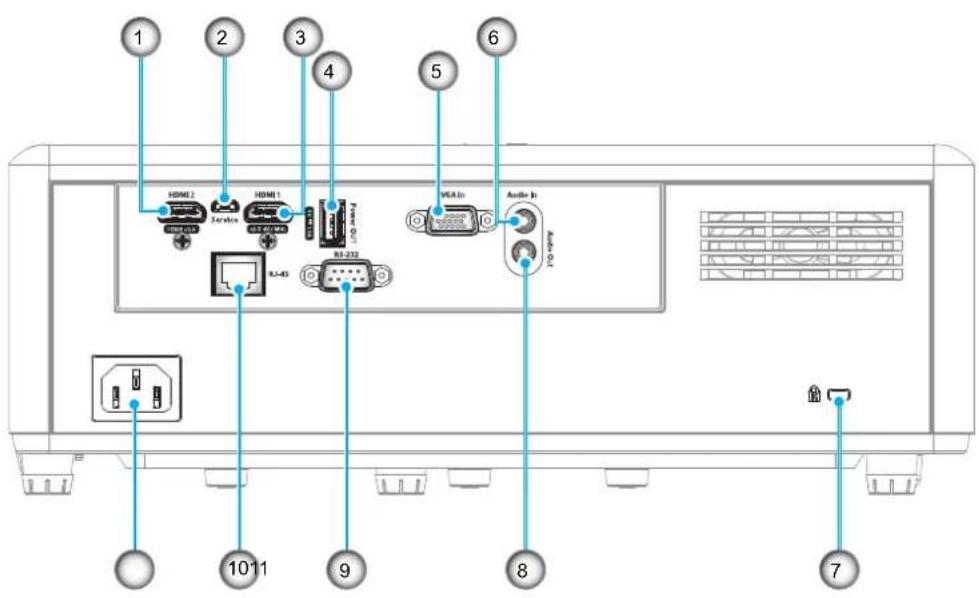

Connections

No Item No Item

1. HDMI 2 Connector 7. Kensington
2.	Micro USB Connector
3. HDMI 1 / MHL Connector 9. RS-232 Co
4.	USB Power Out (5V-1.5A) Connector
5. VGA In Connector 11. Power Socket
6. Audio In Connector

	TM Lock Port
8.	Audio Out Connector
n n c t o r
10.	RJ-45 Connector

INTRODUCTION

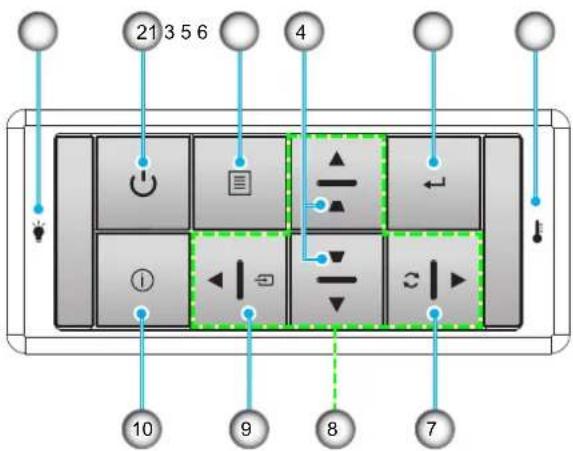

Keypad

No Item No Item

1. Lamp LED 6. Temp LED
2. Power and Power LED
3. Menu 8. Four Directional Select Keys
4. Keystone Correction 9. Source

5. Enter 10. Information

6. Re-Sync

INTRODUCTION

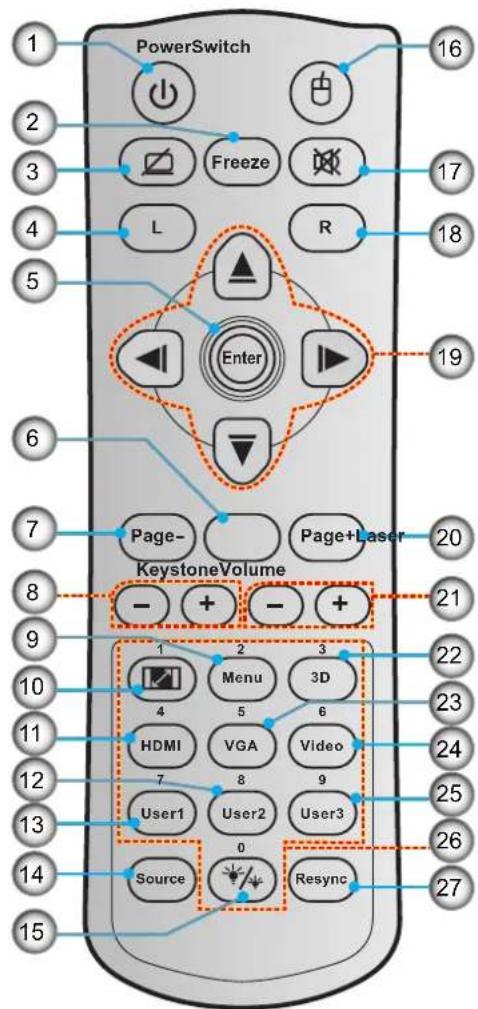

Remote control 1

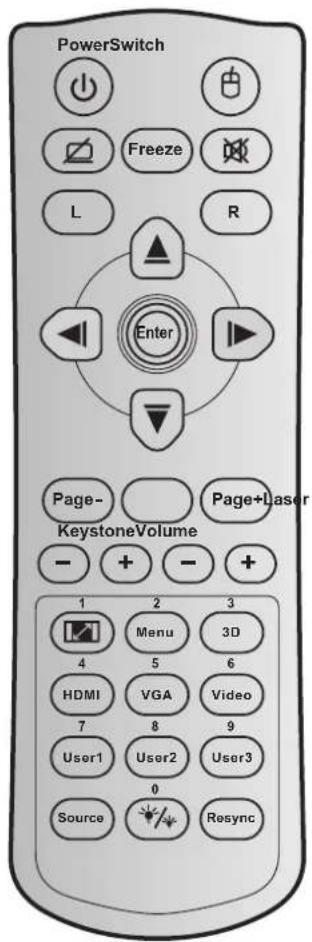

No Item No Item
1. Power On / Off 15. Brightness Mode
2. Freeze 16. Mouse On / Off
3. Display Blank / Audio Mute 17. Mute
4. Mouse Left Click 18. Mouse Right Click
5. Enter 19. Four Directional Select Keys
6. Laser 20. Page +
7. Page -		21. Volume - / +
8. Keystone - / +		22. 3D Menu On / Off
9. Menu 23. VGA
10. Aspect Ratio		24. Video (not supported)
11. HDMI		25. User 3 (Assignable)
12. User 2 (Assignable)		26. Numeric Keypad (0-9)
13. User 1 (Assignable)		27. Resync
14. Source

Note:

• The actual remote control may vary depending on the region.
• Some keys may have no function for models that do not support these features.

INTRODUCTION

Remote control 2

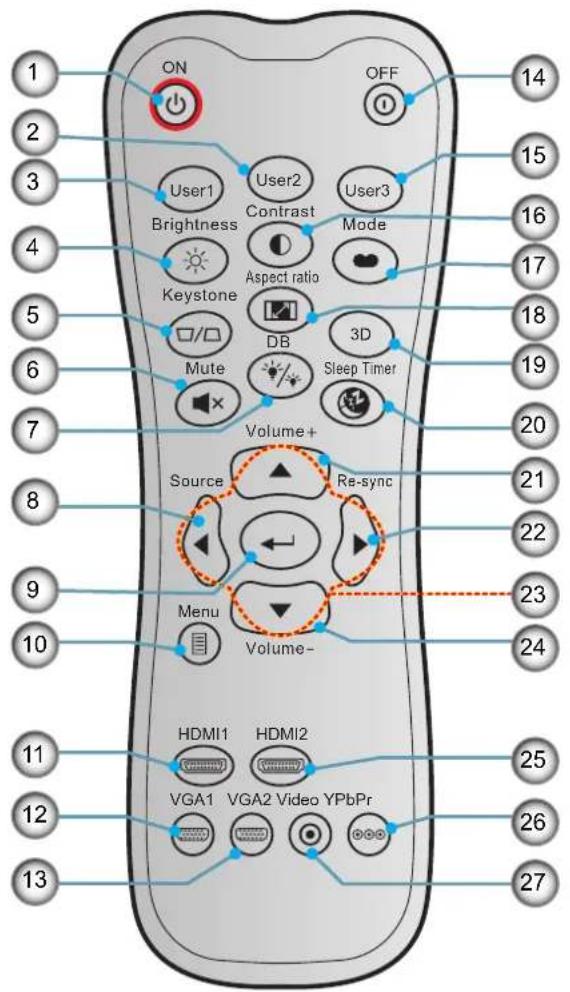

No Item No Item

1. Power On 15. User 3 (Assignable)

2. User 2 (Assignable) 16. Contrast

3. User 1 (Assignable) 17. Display Mode

4. Brightness 18. Aspect Ratio

5. Keystone 19. 3D Menu On / Off

6. Mute 20. Sleep Timer

7. DB (Dynamic Black) 21. Volume +

8. Source 22. Re-Sync

9. Enter

10. Menu

11. HDMI1

12. VGA1

13. VGA2 (not supported)

14. Power Off

1. Four Directional Select Keys

24. Volume -

25. HDMI2

26. YPbPr (not supported)

27. Video (not supported)

Note:

• The actual remote control may vary depending on the region.
• Some keys may have no function for models that do not support these features.

SETUP AND INSTALLATION

Installing the projector

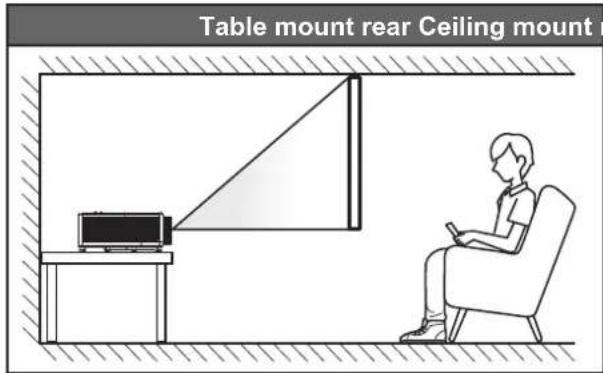

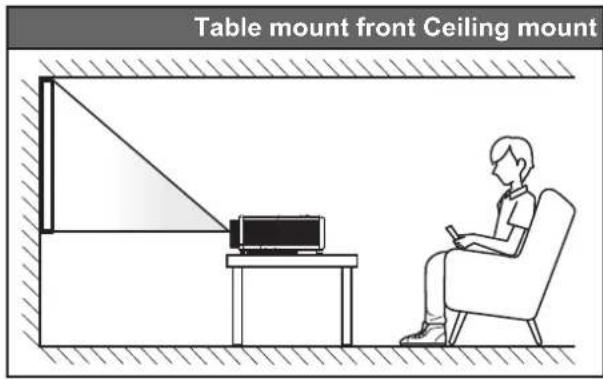

Your projector is designed to be installed in one of four possible positions.

Your room layout or personal preference will dictate which installation location you select. Take into consideration the size and position of your screen, the location of a suitable power outlet, as well as the location and distance between the projector and the rest of your equipment.

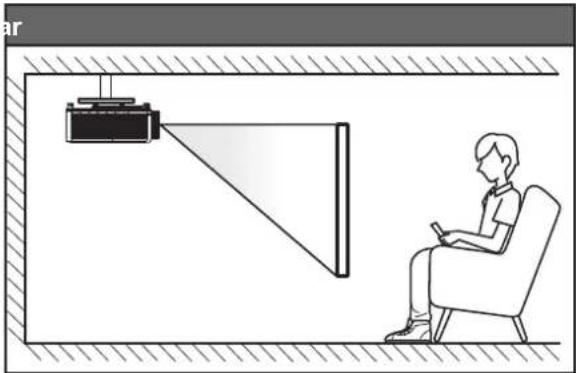

Line drawing of a person sitting in a chair facing a projector mounted on a wall, with no text or symbols present.

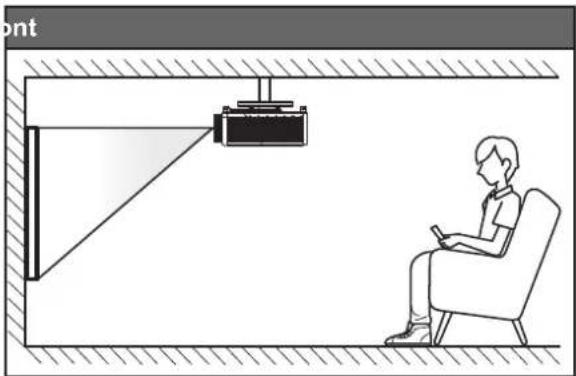

Illustration of a person sitting in a chair viewing a projector mounted on a wall, with no visible text or symbols.

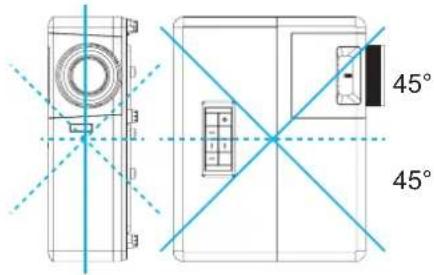

Projector should be placed flat on a surface and 90 degrees / perpendicular to the screen.

• How to determine projector location for a given screen size, please refer to distance table on pages 57-58.

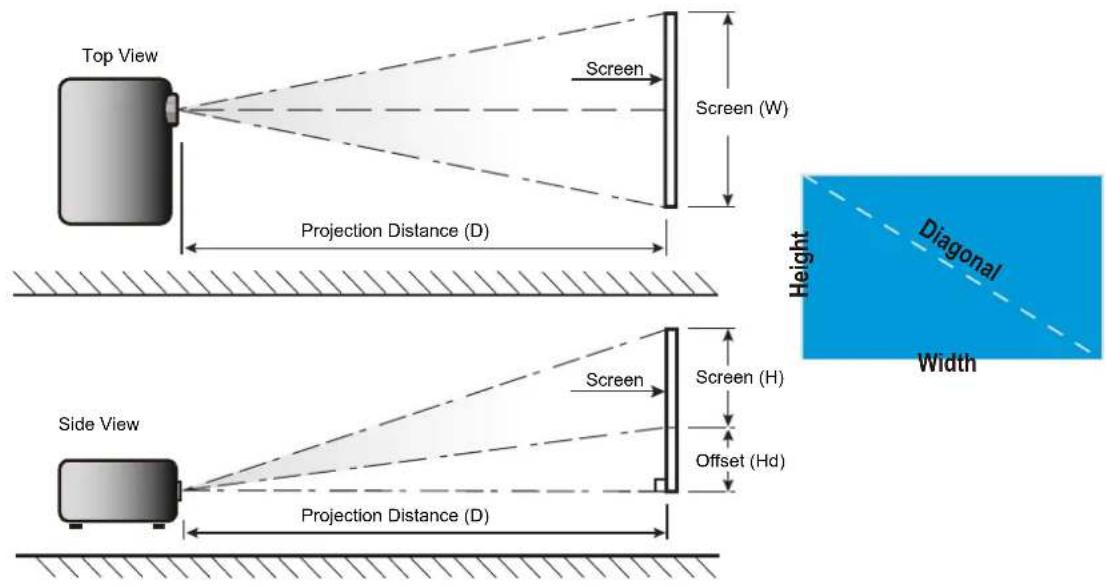

• How to determine screen size for a given distance, please refer to distance table on pages 57-58.

Note: The further away the projector is placed from the screen the projected image size increases and vertical offset also increases proportionally.

SETUP AND INSTALLATION

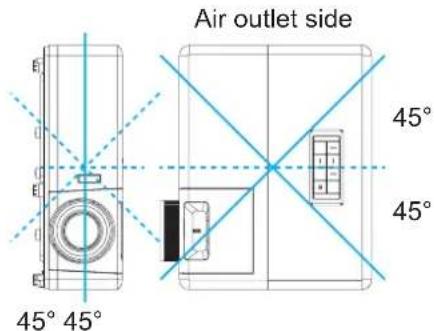

Projector installation notice

Note: The fan will default to "High altitude mode" when the projector is installed within the range highlighted.

• Portrait mode


• Allow at least 30 cm clearance around the exhaust vent.

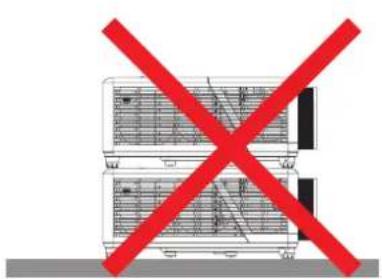

Illustration of two stacked kitchen appliances with a red X symbol crossed out (no text or symbols present)

SETUP AND INSTALLATION

- Ensure that the intake vents do not recycle hot air from the exhaust vent.

• When operating the projector in an enclosed space, ensure that the surrounding air temperature within the enclosure does not exceed operation temperature while the projector is running, and the air intake and exhaust vents are unobstructed.
• All enclosures should pass a certified thermal evaluation to ensure that the projector does not recycle exhaust air, as this may cause the device to shutdown even if the enclosure temperature is with the acceptable operation temperature range.

SETUP AND INSTALLATION

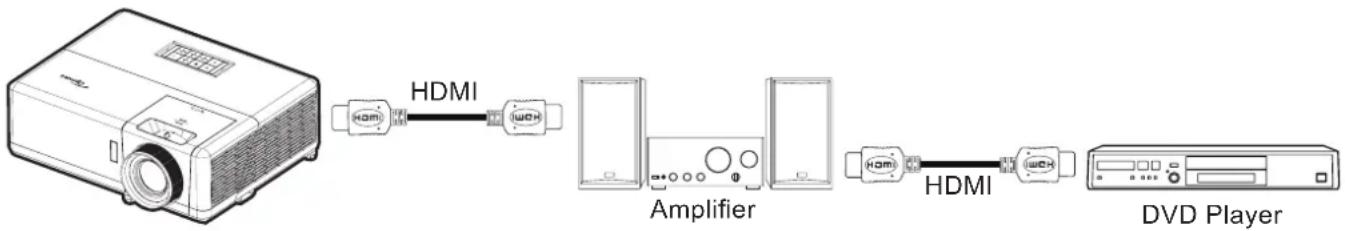

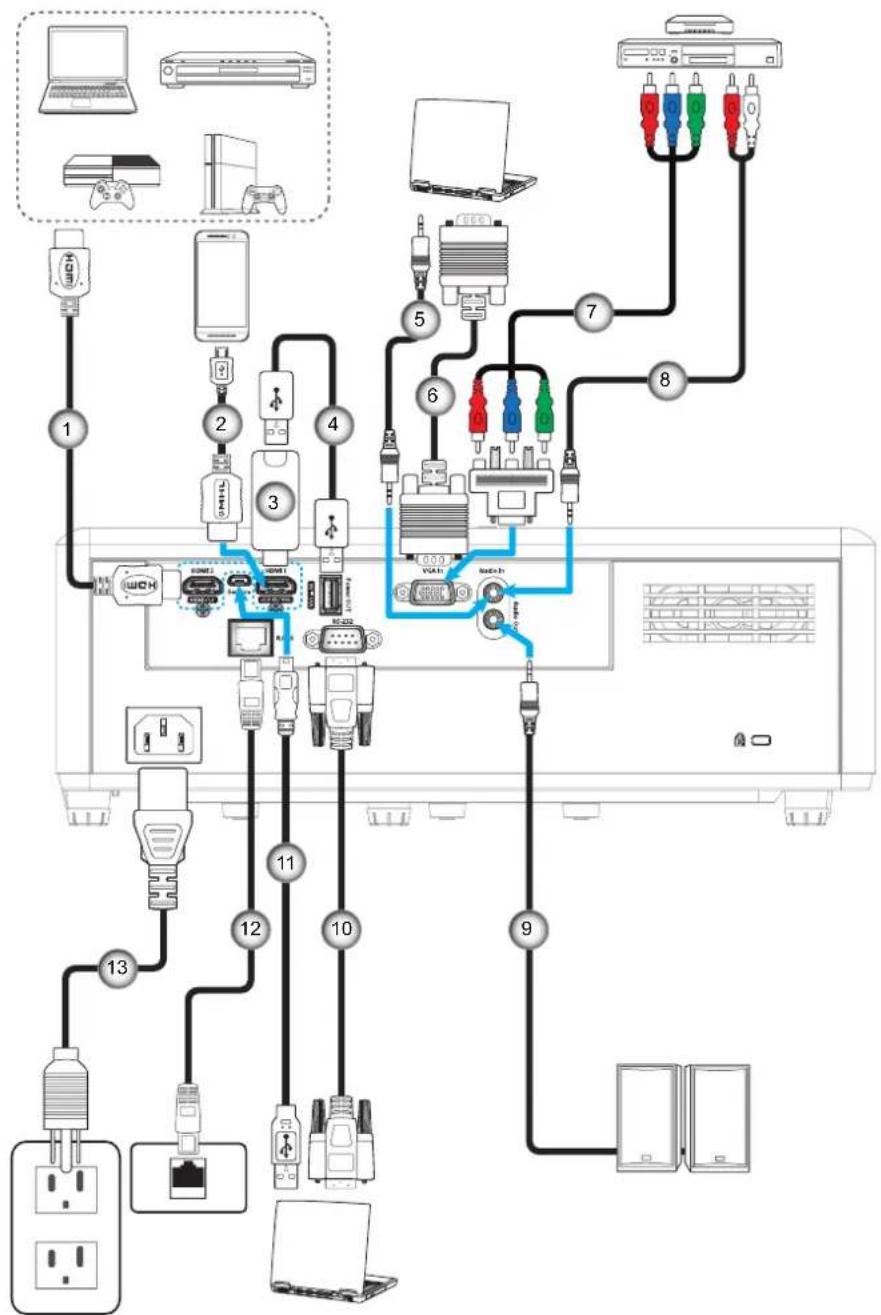

Connecting sources to the projector

No Item No Item

1. HDMI Cable 8. Audio In Cable
2. MHL Cable
3. HDMI Dongle 10. RS232 Cable
4. USB Power Cable 11. USB Cable
5. Audio In Cable 12. RJ-45 Cable
6. VGA In Cable 13. Power Cord

7. RCA Component Cable

8. Audio Out Cable

SETUP AND INSTALLATION

Adjusting the projector image

Image height

The projector is equipped with elevator feet for adjusting the image height.

1. Locate the adjustable foot you wish to adjust on the underside of the projector.
2. Rotate the adjustable foot clockwise or counterclockwise to raise or lower the projector.

Zoom and focus

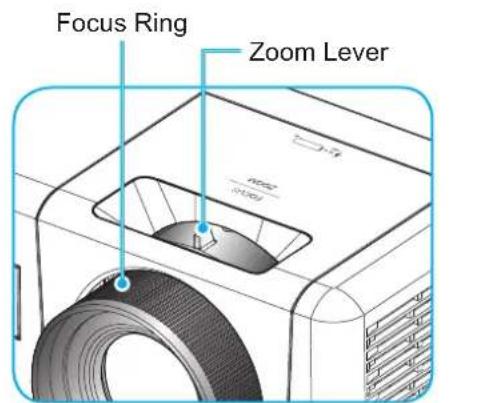

• To adjust the image size, turn the zoom lever clockwise or counterclockwise to increase or decrease the projected image size.
• To adjust the focus, turn the focus ring clockwise or counterclockwise until the image is sharp and legible.

1080p model WXGA model

SETUP AND INSTALLATION

Remote setup

Installing / replacing the batteries

Two AAA size batteries are supplied for the remote control.

1. Remove the battery cover on the back of the remote control.
2. Insert AAA batteries in the battery compartment as illustrated.
3. Replace back cover on remote control.

Note: Replace only with the same or equivalent type batteries.

CAUTION

Improper use of batteries can result in chemical leakage or explosion. Be sure to follow the instructions below.

• Do not mix batteries of different types. Different types of batteries have different characteristics.
- Do not mix old and new batteries. Mixing old and new batteries can shorten the life of new batteries or cause chemical leakage in old batteries.
- Remove batteries as soon as the are depleted. Chemicals that leak from batteries that come in contact with skin can cause a rash. If you find any chemical leakage, wipe thoroughly with a cloth.
• The batteries supplied with this product may have a shorter life expectancy due to storage conditions.
• If you will not be using the remote control for an extended period of time, remove the batteries.

- When you dispose of the batteries, you must obey the law in the relative area or country.

SETUP AND INSTALLATION

Effective range

Infra-Red (IR) remote control sensor is located on the top and front sides of the projector. Ensure to hold the remote control at an angle within 60 degrees perpendicular to the projector's IR remote control sensor to function correctly. The distance between the remote control and the sensor should not be longer than 12 meters (39.4 feet).

• Make sure that there are no obstacles between the remote control and the IR sensor on the projector that might obstruct the infra-red beam.
• Make sure the IR transmitter of the remote control is not being shined by sunlight or fluorescent lamps directly.
- Please keep the remote controller away from fluorescent lamps for over 2 m or the remote controller might become malfunction.
• If the remote control is close to Inverter-Type fluorescent lamps, it might become ineffective from time to time.
• If the remote control and the projector are within a very short distance, the remote control might become ineffective.
- When you aim at the screen, the effective distance is less than 5 m from the remote control to the screen and reflecting the IR beams back to the projector. However, the effective range might change according to screens.

USING THE PROJECTOR

Powering on / off the projector

Powering on

1. Securely connect the power lead and signal/source cable. When connected, the Power LED will turn red.

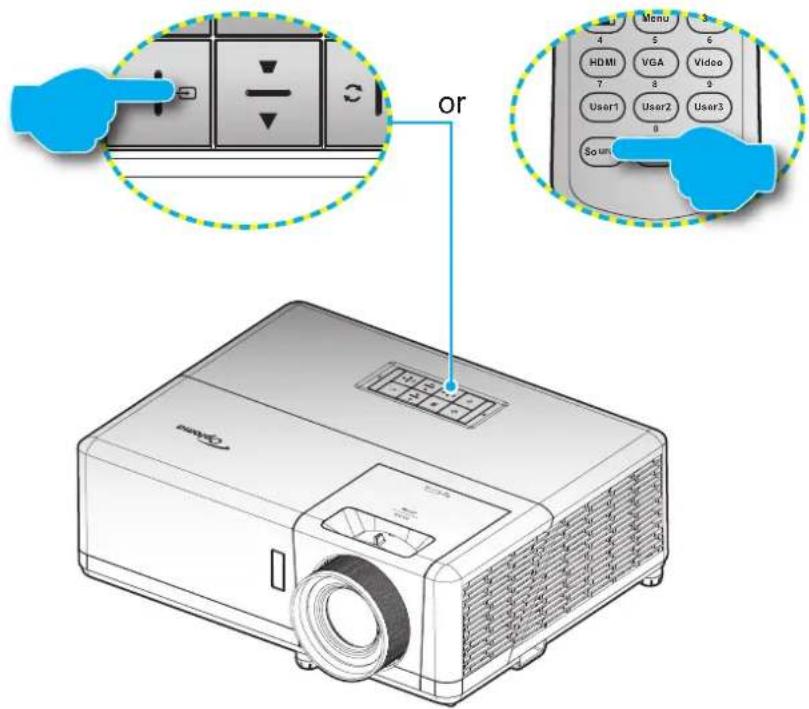

2. Turn on the projector by pressing the button on the projector keypad or remote control.
3. A start up screen will display in approximately 10 seconds and the Power LED will be flashing blue.

Note: The first time the projector is turned on, you will be prompted to select the preferred language, projection orientation, and other settings.

Powering off

1. Turn off the projector by pressing the button on the projector keypad or remote control.
2. The following message will be displayed:

1. Press the button again to confirm, otherwise the message will disappear after 15 seconds. When you press the button for the second time, the projector will shut down.
2. The cooling fans will continue to operate for about 10 seconds for the cooling cycle and the Power LED will flash blue. When the Power LED turns solid red, this indicates the projector has entered standby mode. If you wish to turn the projector back on, you must wait until the cooling cycle has finished and the projector has entered standby mode. When the projector is in standby mode, simply press the button again to turn on the projector.
3. Disconnect the power lead from the electrical outlet and the projector.

Note: It is not recommended that the projector is turned on immediately, right after a power off procedure.

USING THE PROJECTOR

Selecting an input source

Turn on the connected source that you want to display on the screen, such as computer, notebook, video player, etc. The projector will automatically detect the source. If multiple sources are connected, press the button on the projector keypad or the Source button on the remote control to select the desired input.

USING THE PROJECTOR

Menu navigation and features

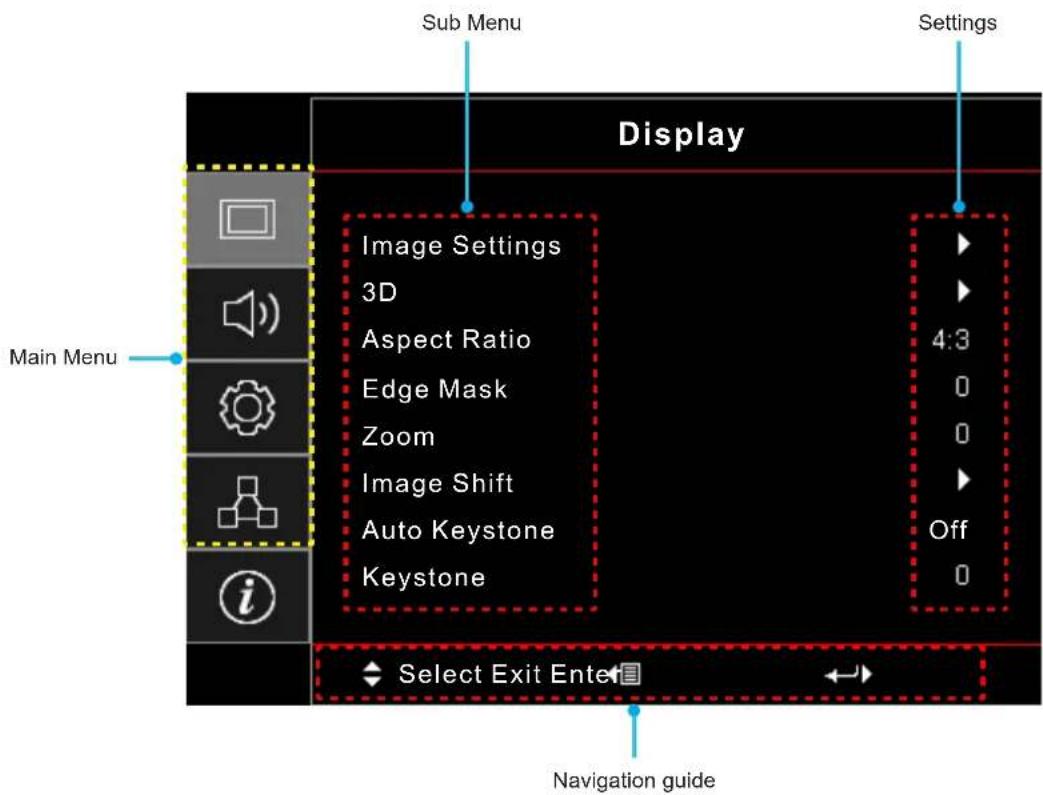

The projector has multilingual on-screen display menus that allow you to make image adjustments and change a variety of settings. The projector will automatically detect the source.

1. To open the OSD menu, press the ☐ button on the projector keypad or the Menu button on the remote control.
2. When OSD is displayed, use ▲▼ keys to select any item in the main menu. While making a selection on a particular page, press the ← button on the projector keypad or the Enter button on the remote control to enter sub menu.
3. Use ◀▶ keys to select the desired item in the sub menu and then press the ← or Enter button to view further settings. Adjust the settings by using ◀▶ keys.
4. Select the next item to be adjusted in the sub menu and adjust as described above.
5. Press press the ← or Enter button to confirm, and the screen will return to the main menu.
6. To exit, press the ☐ or Menu button again. The OSD menu will close and the projector will automatically save the new settings.

USING THE PROJECTOR

OSD Menu tree

Main Menu	Sub Menu Sub	Menu 2 Sub	Menu 3 Sub	Menu 4 Values
Display Image Settings		Display Mode			Presentation
					Bright
					HDR
					HLG
					Cinema
					Game
					sRGB
					DICOM SIM.
					User
					3D
		Wall Color			Off [Default]
					Blackboard
					Light Yellow
					Light Green
					Light Blue
					Pink
					Gray
		Dynamic Range	HDR/HLG		Off
					Auto [Default]
			HDR Picture Mode		Bright
					Standard [Default]
					Film
					Detail
			HLG Picture Mode		Bright
					Standard [Default]
					Film
					Detail
		Brightness -50 ~ 50
		Contrast -50 ~ 50
		Sharpness 1 ~ 15
		Color -50 ~ 50
		Tint -50 ~ 50
		Gamma	Film
			Video
			Graphics
			Standard(2.2)
			1.8
			2.0
			2.4
			2.6
			HDR
			HLG
Display Image Settings	Color Settings	Gamma	3D
			Blackboard
			DICOM SIM.
		BrilliantColorTM			1 ~ 10
		Color Temperature			Warm
					Standard
					Cool
					Cold
		Color Matching		Color	Red [Default]
					Green
					Blue
					Cyan
					Yellow
					Magenta
					White(*)
				Hue / R(*) -50 ~ 50 [Default: 0]
				Saturation / G(*) -50 ~ 50 [Default: 0]
				Gain / B(*) -50 ~ 50 [Default: 0]
				Reset	Cancel [Default]
					Yes
				Exit
		RGB Gain/Bias		Red Gain -50 ~ 50
				Green Gain -50 ~ 50
				Blue Gain -50 ~ 50
				Red Bias -50 ~ 50
				Green Bias	-50 ~ 50
				Blue Bias -50 ~ 50
				Reset	Cancel [Default]
					Yes
				Exit
		Color Space [Not HDMI Input]			Auto [Default]
					RGB
					YUV
		Color Space [HDMI Input]			Auto [Default]
					RGB(0~255)
					RGB(16~235)
					YUV
	Signal	Automatic			Off
					On [Default]
		Frequency			-10 ~ 10 (depends on signal) [Default: 0]
		Phase			0~31 (depends on signal) [Default: 0]
		H. Position			-5 ~ 5 (depends on signal) [Default: 0]

USING THE PROJECTOR

Main Menu	Sub Menu Sub	Menu 2 Sub	Menu 3 Sub	Menu 4 Values
Display	Image Settings	Signal V. Position			-5 ~ 5 (depends on signal) [Default: 0]
		Brightness Mode			DynamicBlack
					Eco.
					Power (Power = 100%/ 95%/ 90%/ 85%/ 80%/ 75%/ 70%/ 65%/ 60%/ 55%/ 50%)
		Reset
	3D	3D Mode			Off
					On [Default]
		3D Tech			DLP-Link [Default]
					3D Sync
		3D → 2D			3D [Default]
					L
					R
		3D Format			Auto [Default]
					SBS
					Top and Bottom
					Frame Sequential
					Frame Packing
		3D Sync Invert			On
					Off [Default]
		Reset			Cancel
					Yes
	Aspect Ratio				4:3
					16:9
					16:10 [Only for WXGA model]
					LBX
					Native
					Auto
	Edge Mask 0 ~ 10 [Default: 0]
	Zoom -5 ~ 25 [Default: 0]
	Image Shift	H			-100 ~ 100 [Default: 0]
		V			-100 ~ 100 [Default: 0]
	Auto Keystone				Off
					On [Default]
	Keystone -40 ~ 40 [Default: 0]
Audio	Mute				Off [Default]
					On
	Volume 0 ~ 10 [Default: 5]

USING THE PROJECTOR

Main Menu	Sub Menu Sub	Menu 2 Sub	Menu 3 Sub	Menu 4 Values
Setup	Projection				Front [Default]
					Rear [IMAGE]
					Ceiling-top [IMAGE]
					Rear-top [IMAGE]
	Screen Type[Only for WXGA model]				16:9
					16:10 [Default]
	Power Settings	Direct Power On			Off [Default]
					On
		Signal Power On			Off [Default]
					On
		Auto Power Off (min.)			0 ~ 180 (5 min increments)[Default: 20]
		Sleep Timer (min.)			0 ~ 990 (30 min increments)[Default: 0]
			Always On		No [Default]
					Yes
		Power Mode (Standby)			Active
					Eco [Default]
		USB Power (Standby)			Off [Default]
					On
	Security	Security			Off
					On
		Security Timer	Month
			Day
			Hour
		Change Password			[Default: 1234]
	HDMI Link Settings	HDMI Link			Off [Default]
					On
		Inclusive of TV			No [Default]
					Yes
		Power On Link			Mutual [Default]
					PJ → Device
					Device → PJ
		Power Off Link			Off [Default]
					On
	Test Pattern				Green Grid
					Magenta Grid
					White Grid
					White
					Off
	Remote Settings [depends on remote]	IR Function			On [Default]
					Off
		Remote Code 00~99

USING THE PROJECTOR

Main Menu	Sub Menu Sub	Menu 2 Sub	Menu 3 Sub	Menu 4 Values
Setup	Remote Settings [depends on remote]	F1			Test Pattern
					Brightness
					Contrast
					Sleep Timer [Default]
					Color Matching
					Color Temp
					Gamma
					Projection
					MHL
		F2			Test Pattern
					Brightness
					Contrast
					Sleep Timer
					Color Matching [Default]
					Color Temp
					Gamma
					Projection
					MHL
		F3			Test Pattern
					Brightness
					Contrast
					Sleep Timer
					Color Matching
					Color Temp
					Gamma
					Projection
					MHL [Default]
	Projector ID 00 ~	99
	Options Language				English [Default]
					Deutsch
					Français
					Italiano
					Español
					Português
					Polski
					Nederlands
					Svenska
					Norsk/Dansk
					Suomi
					ελληνικά
					繁體中文
					簡体中文
					日本語
					한국어

USING THE PROJECTOR

Main Menu	Sub Menu Sub	Menu 2 Sub	Menu 3 Sub	Menu 4 Values
Setup Options		Language			Русский
					Magyar
					Čeština
					عربي
					'ɪnu
					Türkçe
					فارسى
					Tiếng Việt
					Bahasa Indonesia
					Română
					Slovenčina
		Closed Captioning			CC1
					CC2
					Off [Default]
		Menu Settings	Menu Location		Top left ■
					Top right ■
					Center [Default]
					Bottom left ■
					Bottom right ■
			Menu Timer		Off
					5sec
					10sec [Default]
		Auto Source			Off [Default]
					On
		Input Source			HDMI1/MHL
					HDMI2
					VGA
		Input Name	HDMI1/MHL		Default [Default]
					Custom
			HDMI2		Default [Default]
					Custom
			VGA		Default [Default]
					Custom
		High Altitude			Off [Default]
					On
		Display Mode Lock			Off [Default]
					On
		Keypad Lock			Off [Default]
					On
		Information Hide			Off [Default]
					On

USING THE PROJECTOR

Main Menu	Sub Menu Sub	Menu 2 Sub	Menu 3 Sub	Menu 4 Values
Setup	Options	Logo			Default [Default]
					Neutral
					User
		Background Color			None
					Blue [Default]
					Red
					Green
					Gray
					Logo
	Reset	Reset OSD			Cancel [Default]
					Yes
		Reset to Default			Cancel [Default]
					Yes
Network	LAN	Network Status (read only)
		MAC Address (read only)
		DHCP			Off [Default]
					On
		IP Address 192.168.0.100 [Default]
		Subnet Mask 255.255.0 [Default]
		Gateway 192.168.0.254 [Default]
		DNS 192.168.0.51 [Default]
		Reset
	Control	Crestron			Off
					On [Default]Note: Port 41794
		Extron			Off
					On [Default]Note: Port 2023
		PJ Link			Off
					On [Default]Note: Port 4352
		AMX Device Discovery			Off
					On [Default]Note: Port 9131
		Telnet			Off
					On [Default]Note: Port 23
		HTTP			Off
					On [Default]Note: Port 80

USING THE PROJECTOR

Main Menu	Sub Menu Sub	Menu 2 Sub	Menu 3 Sub	Menu 4 Values
Info	Regulatory
	Serial Number
	Source
	Resolution 00x00
	Refresh Rate 0.0	0Hz
	Display Mode
	Remote Code 00~99
	Remote Code(Active)				00~99
	Power Mode (Standby)
	Light Source Hours				0 hr
	Network Status
	IP Address
	Projector ID 00 ~	99
	Brightness Mode
	FW Version	System
		LAN
		MCU

USING THE PROJECTOR

Display menu

Display image settings menu

Display Mode

There are many factory presets optimized for various types of images.

• Presentation: This mode is suitable for showing in front of public in connection to the PC.

- Bright: Maximum brightness from PC input.

- HDR / HLG: Decodes and displays High Dynamic Range (HDR) / Hybrid Log Gamma (HLG) content for the deepest blacks, brightest whites, and vivid cinematic color using REC.2020 color gamut. This mode will be automatically enabled if HDR/HLG is set to Auto (and HDR/HLG Content is sent to projector – 4K UHD Blu-ray, 1080p/4K UHD HDR/HLG Games, 4K UHD Streaming Video). While HDR/HLG mode is active, other display modes (Cinema, Reference, etc.) cannot be selected as HDR/HLG delivers color that is highly accurate, exceeding the color performance of the other display modes.

• Cinema: Provides the best colors for watching movies.

• Game: Select this mode to increase the brightness and response time level for enjoying video games.

- sRGB: Standardized accurate color.

• DICOM SIM.: This mode can project a monochrome medical image such as an X ray radiography, MRI, etc.

- User: Memorize user's settings.

• 3D: To experience the 3D effect, you need to have 3D glasses, make sure your PC/portable device has a 120 Hz signal output quad buffered graphics card and have a 3D Player installed.

Wall Color

Use this function to obtain an optimized screen image according to the wall color. Select between off, blackboard, light yellow, light green, light blue, pink, and gray.

Dynamic Range

Configure the High Dynamic Range (HDR) / Hybrid Log Gamma(HLG) setting and its effect when displaying video from 4K Blu-ray players and streaming devices.

Note: HDMI1 and VGA do not support Dynamic Range.

▶ HDR/HLG

- Off: Turn off HDR/HLG Processing. When set to Off, the projector will NOT decode HDR/HLG content.

• Auto: Auto detect HDR/HLG signal.

▶ HDR Picture Mode / HLG Picture Mode

- Bright: Choose this mode for brighter more saturated colors.

• Standard: Choose this mode for natural looking colors with a balance of warm and cool tones.

- Film: Choose this mode for improved detail and image sharpness.

• Details: The signal comes from OETF conversion to achieve the best color matching.

Note:

• The HDR Picture Mode adjusts the HDR rendering effect when the input signal is HDR. Similarly, the HLG Picture Mode adjusts the HLG rendering effect when the input signal is HLG.

• HDR Picture Mode option is only available when the input signal is HDR, and HLG Picture Mode option will be grayed out and vice versa.

USING THE PROJECTOR

Brightness

Adjust the brightness of the image.

Contrast

The contrast controls the degree of difference between the lightest and darkest parts of the picture.

Sharpness

Adjust the sharpness of the image.

Color

Adjust a video image from black and white to fully saturated color.

Tint

Adjust the color balance of red and green.

Gamma

Set up gamma curve type. After the initial setup and fine tuning is completed, utilize the Gamma Adjustment steps to optimize your image output.

• Film: For home theater.
• Video: For video or TV source.
• Graphics: For PC / Photo source.
- Standard(2.2): For standardized setting.
• 1.8 / 2.0 / 2.4 / 2.6: For specific PC / Photo source.

Note:

• These options are only available if the 3D mode function is disabled, the Wall Color setting is not set to Blackboard, and the Display Mode setting is not set to DICOM SIM. or HDR.
• If the Display Mode setting is set to HDR, user can only select HDR for Gamma setting.
• If the Display Mode setting is set to HLG, user can only select HLG for Gamma setting.
• In 3D mode, user can only select 3D for Gamma setting.
• If the Wall Color setting is set to Blackboard, user can only select Blackboard for Gamma setting.
• If the Display Mode setting is set to DICOM SIM., user can only select DICOM SIM. for Gamma setting.

Color Settings

Configure the color settings.

- BrilliantColor ^TM : This adjustable item utilizes a new color-processing algorithm and enhancements to enable higher brightness while providing true, more vibrant colors in picture.

• Color Temperature: Select a color temperature from Warm, Standard, Cool, or Cold.

• Color Matching: Select the following options:

– Color: Adjust the red, green, black, cyan, yellow, magenta, and white level of the image.

– Hue / R(red)*: Adjust the color balance of red and green.

Note: *If the Color setting is set to White, you can adjust the red color setting.

- Saturation / G(green)*: Adjust a video image from black and white to fully saturated color.

Note: *If the Color setting is set to White, you can adjust the green color setting.

- Gain / B(blue)*: Adjust the image brightness.

Note: *If the Color setting is set to White, you can adjust the blue color setting.

- Reset: Return the factory default settings for color matching.

- Exit: Exit the "Color Matching" menu.

USING THE PROJECTOR

- RGB Gain/Bias: This settings allows to configure the brightness (gain) and contrast (bias) of an image.

• Reset: Return the factory default settings for RGB gain/bias.
• Exit: Exit the "RGB Gain/Bias" menu.

• Color Space (non-HDMI input only): Select an appropriate color matrix type from the following: Auto, RGB, or YUV.

• Color Space (HDMI input only): select an appropriate color matrix type from the following: Auto, RGB(0-255), RGB(16-235), and YUV.

Signal

Adjust the signal options.

• Automatic: Configure automatically the signal (the frequency and phase items are grayed out). If automatic is disabled, the frequency and phase items will appear for tuning and saving the settings.
- Frequency: Change the display data frequency to match the frequency of your computer's graphic card. Use this function only if the image appears to flicker vertically.
- Phase: Synchronize the signal timing of the display with the graphic card. If the image appears to be unstable or flickers, use this function to correct it.

• H. Position: Adjust the horizontal positioning of the image.

• V. Position: Adjust the vertical positioning of the image.

Note: This menu is only available if the input source is RGB/Component.

Brightness Mode

Adjust the brightness mode settings.

• DynamicBlack: Use to automatically adjust the picture brightness in order to give optimum contrast performance.
- Eco.: Choose "Eco." to dim the projector laser diode which will lower power consumption and extend the laser diode life.
- Power: Choose the power percentage for brightness mode.

Reset

Return the factory default settings for color settings.

USING THE PROJECTOR

Display 3D menu

Note:

• This projector is a 3D ready projector with DLP-Link 3D solution.
  • Please make sure your 3D glasses are use for DLP-Link 3D before enjoy your video.
  • This projector supports frame sequential (page-flip) 3D via HDMI1/HDMI2/VGA ports.
  • To enable 3D mode, the input frame rate should be set to 60Hz only, lower or higher frame rate is not supported.
  • To reach the best performance, resolution 1920x1080 is recommended, please be noted that 4K (3840x2160) resolution is not supported in 3D mode.

3D Mode

Use this option to disable or enable the 3D function.

• Off: Select "Off" to turn off 3D mode.
• On: Select "On" to turn on 3D mode.

3D Tech

Use this option to select 3D technology.

• DLP-Link: Select to use optimized settings for DLP 3D Glasses.
  • 3D Sync: Select to use optimized settings for IR, RF or polarized 3D Glasses.

3D → 2D

Use this option to specify how the 3D content should appear on the screen.

• 3D: Display 3D signal.
- L (Left): Display the left frame of 3D content.
- R (Right): Display the right frame of 3D content.

3D Format

Use this option to select the appropriate 3D format content.

• Auto: When a 3D identification signal is detected, the 3D format is selected automatically.
- SBS: Display 3D signal in "Side-by-Side" format.
• Top and Bottom: Display 3D signal in "Top and Bottom" format.
- Frame Sequential: Display 3D signal in "Frame Sequential" format.
- Frame Packing: Display 3D signal in "Frame Packing" format.

3D Sync Invert

Use this option to enable/disable the 3D sync invert function.

Reset

Return the factory default setting for 3D settings.

• Cancel: Select to cancel Reset.
• Yes: Select to return the factory default settings for 3D.

USING THE PROJECTOR

Display aspect ratio menu

Aspect Ratio

Select the aspect ratio of the displayed image between the following options:

• 4:3: This format is for 4:3 input sources.

• 16:9: This format is for 16:9 input sources, like HDTV and DVD enhanced for Wide screen TV.
• 16:10 (for WXGA model only): This format is for 16:10 input sources, like widescreen laptops.
- LBX: This format is for non-16x9, letterbox source and if you use external 16x9 lens to display 2.35:1 aspect ratio in full resolution.
• Native: This format displays the original image without any scaling.

- Auto: Automatically selects the appropriate display format.

Note:

• Detailed informations about LBX mode:

• Some Letter-Box Format DVDs are not enhanced for 16x9 TVs. In this situation, the image will not look right when displaying image in 16:9 mode. In this situation, please try to use the 4:3 mode to view the DVD. If the content is not 4:3, there will be black bars around the image in 16:9 display. For this type of content, you can use LBX mode to fill the image on the 16:9 display.
• If you use an external anamorphic lens, this LBX mode also allows you to watch a 2.35:1 content (include Anamorphic DVD and HDTV film source) that supports anamorphic wide is enhanced for 16x9 Display in a wide 2.35:1 image. In this case, there are no black bars. Light source power and vertical resolution are fully utilized.

- To use the superwide format, do the following:

a) Set the screen aspect ratio to 2.0:1.
b) Select "Superwide" format.
c) Align the projector image correctly on the screen.

1080p scaling table:

16:9 screen 480i/p 576i/p 1080i/p 720p PC
4x3 Scale to 1440x1080.
16x9 Scale to 1920x1080.
LBX	Scale to 1920x1440, then get the central 1920x1080 image to display.
Native mode - 1:1 mapping centered.- No scaling will be made; the image is displayed with the resolution based on input source.
Auto	- If auto format is selected, the screen type will automatically become16:9 (1920x1080).- If source is 4:3, the screen type will be scaled to 1440 x1080.- If source is 16:9, the screen type will be scaled to 1920x1080.- If source is 16:10, the screen type will be scaled to 1920x1200 and cut 1920x1080 area to display.

USING THE PROJECTOR

1080p auto mapping rule:

Auto	Input resolution Auto/Scale
	H-resolution V-resolution 1920 1080
4:3	640 480 1440	1080
	800 600 1440	1080
	1024 768 1440	1080
	1280 1024 1440	1080
	1400 1050 1440	1080
	1600 1200 1440	1080
Wide Laptop	1280 720 1920	1080
	1280 768 1800	1080
	1280 800 1728	1080
SDTV	720 576 1350	1080
	720 480 1620	1080
HDTV	1280 720 1920	1080
	1920 1080 1920	1080

WXGA scaling table (screen type 16x10):

Note:

• Supported screen type 16:9 (1280x720), 16:10 (1280x800).
- When screen type is 16:9, the 16x10 format becomes unavailable.
- When screen type is 16:10, the 16x9 format becomes unavailable.
If you select auto option then the display mode will be also automatically changed.

16 : 10 screen 480i/p 576i/p 1080i/p 720p PC
4x3 Scale to 1066x800.
16x10	Scale to 1280x800.
LBX	Scale to 1280x960, then get the central 1280x800 image to display.
Native mode	1:1 mapping centered.	1:1 mapping display 1280x800.	1280x720 centered.	1:1 mapping centered.
Auto	-Input source will be fit into 1280x800 display area and be kept its original aspect ratio.-If source is 4:3, the screen type will be scaled to 1066x800.-If source is 16:9, the screen type will be scaled to 1280x720.-If source is 15:9, the screen type will be scaled to 1280x768.-If source is 16:10, the screen type will be scaled to 1280x800.

USING THE PROJECTOR

WXGA auto mapping rule (screen type 16x10):

Auto	Input resolution Auto/Scale
	H-resolution V-resolution 1280 800
4:3	640 480 1066	800
	800 600 1066	800
	1024 768 1066	800
	1280 1024 1066	800
	1400 1050 1066	800
	1600 1200 1066	800
Wide Laptop	1280 720 1280	720
	1280 768 1280	768
	1280 800 1280	800
SDTV	720 576 1280	720
	720 480 1280	720
HDTV	1280 720 1280	720
	1920 1080 1280	720

WXGA scaling table (screen type 16x9):

16:9 screen 480i/p 576i/p 1080i/p 720p PC
4x3 Scale to 960x720.
16x9 Scale to 1280x720.
LBX Scale to 1280x960, then get the central 1280x720 image to display.
Native mode	1:1 mapping centered.	1:1 mapping display 1280x720.	1280x720 centered.	1:1 mapping centred.
Auto	-If this format is select, screen type will automatically become 16:9 (1280x720).-If source is 4:3, the screen type will be scaled to 960x720.-If source is 16:9, the screen type will be scaled to 1280x720.-If source is 15:9, the screen type will be scaled to 1200x720.-If source is 16:10, the screen type will be scaled to 1152x720.

USING THE PROJECTOR

WXGA auto mapping rule (screen type 16x9):

Auto	Input resolution Auto/Scale
	H-resolution V-resolution 1280 720
4:3	640 480 960 720
	800 600 960 720
	1024 768 960 720
	1280 1024 960 720
	1400 1050 960 720
	1600 1200 960 720
Wide Laptop	1280 720 1280 720
	1280 768 1200 720
	1280 800 1152 720
SDTV	720 576 1280 720
	720 480 1280 720
HDTV	1280 720 1280 720
	1920 1080 1280 720

Display edge mask menu

Edge Mask

Use this function to remove the video encoding noise on the edge of video source.

Display zoom menu

Zoom

Use to reduce or magnify an image on the projection screen.

Display image shift menu

Image Shift

Adjust the projected image position horizontally (H) or vertically (V).

Display auto keystone menu

Auto Keystone

Automatically adjust image distortion caused by tilting the projector.

Display keystone menu

Keystone

Adjust image distortion caused by tilting the projector ( ±40 degrees).

USING THE PROJECTOR

Audio menu

Audio mute menu

Mute

Use this option to temporarily turn off the sound.

• On: Choose "On" to turn mute on.
• Off: Choose "Off" to turn mute off.

Note: "Mute" function affects both internal and external speaker volume.

Audio volume menu

Volume

Adjust the volume level.

Setup menu

Setup projection menu

Projection

Select the preferred projection between front, rear, ceiling-top, and rear-top.

Setup screen type menu

Screen Type (for WXGA model only)

Choose the screen type from 16:9 and 16:10.

Setup power settings menu

Direct Power On

Choose “On” to activate Direct Power mode. The projector will automatically power on when AC power is supplied, without pressing the “Power” key on the projector keypad or on the remote control.

Signal Power On

Choose “On” to activate Signal Power mode. The projector will automatically power on when a signal is detected, without pressing the “Power” key on the projector Keypad or on the remote control.

Note:

• If the "Signal Power On" option is turned "On", the power consumption of the projector in standby mode will be over 3W.
• This function is applicable with VGA and HDMI sources.

Auto Power Off (min.)

Sets the countdown timer interval. The countdown timer will start, when there is no signal being sent to the projector. The projector will automatically power off when the countdown has finished (in minutes).

USING THE PROJECTOR

Sleep Timer (min.)

Configure the sleep timer.

- Sleep Timer (min.): Sets the countdown timer interval. The countdown timer will start, with or without a signal being sent to the projector. The projector will automatically power off when the countdown has finished (in minutes).

Note: The Sleep Timer is reset every time when the projector is powered off.

- Always On: Check to set the sleep timer always on.

Power Mode (Standby)

Set the power mode setting.

• Active: Choose "Active" to return to normal standby.
• Eco: Choose "Eco." to save power dissipation further < 0.5W .

USB Power (Standby)

Enable or disable the USB power function when the projector is in standby mode.

Note: The USB is not able to supply power with MHL sources.

Setup security menu

Security

Enable this function to prompt for a password before using the projector.

• On: Choose "On" to use security verification when the turning on the projector.
• Off: Choose "Off" to be able to switch on the projector without password verification.

Security Timer

Can be select the time (Month/Day/Hour) function to set the number of hours the projector can be used. Once this time has elapsed you will be requested to enter your password again.

Change Password

Use to set or modify the password that is prompted when turning the projector on.

USING THE PROJECTOR

Setup HDMI link settings menu

Note:

- When you connect HDMI CEC-compatible devices to the projector with HDMI cables, you can control them on the same power on or power off status using the HDMI Link control feature in the projector's OSD. This lets one device or multiple devices in a group power on or power off via HDMI Link Feature in a typical configuration, your DVD player may be connected to the projector through an amplifier or home theater system.

HDMI Link

Enable/disable the HDMI Link function. The inclusive TV, power on link, and power off link options will only available if the setting is set to "On".

Inclusive of TV

Set to "Yes" if you prefer both TV and projector to be automatically turned off at the same time. To prevent both devices to be turned off at the same time, set the setting to "No".

Power On Link

CEC power on command.

• Mutual: Both projector and CEC device will be turned on simultaneously.
- PJ → Device: The CEC device will be turned on only after the projector is switched on.
• Device → PJ: The projector will be switched on only after the CEC device is turned on.

Power Off Link

Enable this function to let both HDMI Link and projector to be automatically turned off at the same time.

Setup test pattern menu

Test Pattern

Select the test pattern from green grid, magenta grid, white grid, white, or disable this function (off).

USING THE PROJECTOR

Setup remote settings menu

IR Function

Set the IR function setting.

• On: Choose "On", the projector can be operated by the remote control from the top and front IR receivers.
• Off: Choose "Off", the projector can't be operated by the remote control. By selecting "Off", you will be able to use the Keypad keys.

Remote Code

Set the remote custom code by pressing the remote ID button for 3 seconds and you will notice the remote indicator (above the Off button) starts blinking. Then, input a number between 00-99 using the keyboard numbered keys. After inserting the number, the remote indicator blinks twice quickly indicating that the remote code has changed.

F1/F2/F3

Assign the default function for F1, F2, or F3 between Test Pattern, Brightness, Contrast, Sleep Timer, Color Matching, Color Temp, Gamma, Projection, or MHL.

Setup projector ID menu

Projector ID

ID definition can be set up by menu (range 0-99), and allow user control an individual projector by using RS232 command.

Setup options menu

Language

Select the multilingual OSD menu between English, German, French, Italian, Spanish, Portuguese, Polish, Dutch, Swedish, Norwegian/Danish, Finnish, Greek, traditional Chinese, simplified Chinese, Japanese, Korean, Russian, Hungarian, Czechoslovak, Arabic, Thai, Turkish, Farsi, Vietnamese, Indonesian, Romanian, and Slovakian.

Closed Captioning

Closed Captioning is a text version of the program sound or other information displayed on the screen. If the input signal contains closed captions, you can turn on the feature and watch the channels. The available options include "Off", "CC1", and "CC2".

Menu Settings

Set the menu location on the screen and configure menu timer settings.

• Menu Location: Select the menu location on the display screen.
• Menu Timer: Set the duration where the OSD menu stays visible on the screen.

Auto Source

Choose this option to let the projector automatically find an available input source.

Input Source

Select the input source between HDMI1/MHL, HDMI2, and VGA.

Input Name

Use to rename the input function for easier identification. The available options include HDMI1/MHL, HDMI2, and VGA.

USING THE PROJECTOR

High Altitude

When "On" is selected, the fans will spin faster. This feature is useful in high altitude areas where the air is thin.

Display Mode Lock

Choose "On" or "Off" to lock or unlock adjusting display mode settings.

Keypad Lock

When the keypad lock function is "On", the Keypad will be locked. However, the projector can be operated by the remote control. By selecting "Off", you will be able to reuse the Keypad.

Information Hide

Enable this function to hide the information message.

• Off: Choose "Off" to show the "searching" message.
• On: Choose "On" to hide the info message.

Logo

Use this function to set the desired startup screen. If changes are made, they will take effect the next time the projector is powered on.

• Default: The default startup screen.
• Neutral: Logo is not displayed on startup screen.
• User: Logo capture tool required.

Background Color

Use this function to display a blue, red, green, gray color, none, or logo screen when no signal is available.

Note: If the background color is set to "None", then the background color is black.

Setup reset OSD menu

Reset OSD

Return the factory default settings for OSD menu settings.

Reset to Default

Return the factory default settings for all settings.

USING THE PROJECTOR

Network menu

Network LAN menu

Network Status

Display the network connection status (read-only).

MAC Address

Display the MAC address (read-only).

DHCP

Use this option to enable or disable the DHCP function.

• Off: To assign IP, subnet mask, gateway, and DNS configuration manually.
• On: Projector will obtain an IP address automatically from your network.

Note: Exiting OSD will automatically apply the entered values.

IP Address

Display the IP address.

Subnet Mask

Display subnet mask number.

Gateway

Display the default gateway of the network connected to the projector.

DNS

Display the DNS number.

How to use web browser to control your projector

1. Turn "On" the DHCP option on projector to allow a DHCP server to automatically assign an IP address.
2. Open the web browser in your PC and type in the projector's IP address ("Network > LAN > IP Address").
3. Enter the user name and password, and click "Login". The projector's configuration web interface opens.

Note:

• The default user name and password is "admin".
• The steps in this section is based on Windows 7 operating system.

USING THE PROJECTOR

Making a direct connection from your computer to the projector\*

1. Turn "Off" the DHCP option on the projector.

2. Configure the IP address, Subnet Mask, Gateway, and DNS on projector ("Network > LAN").

3. Open Network and Sharing Center page on your PC, and assign the identical network parameters to your PC as set on projector. Click "OK" to save the parameters.

1. Open the web browser on your PC and type in to the URL field the IP address, assigned in step 3. Then press "Enter" key.

Reset

Reset all values for LAN parameters.

Network control menu

Crestron

Use this function to select the network function (port: 41794).

For more information, please visit http://www.crestron.com and www.crestron.com/getroomview.

Extron

Use this function to select the network function (port: 2023).

PJ Link

Use this function to select the network function (port: 4352).

AMX Device Discovery

Use this function to select the network function (port: 9131).

Telnet

Use this function to select the network function (port: 23).

HTTP

Use this function to select the network function (port: 80).

USING THE PROJECTOR

Setup network control settings menu

LAN RJ45 function

For simplicity and ease of operation, the projector provides diverse networking and remote management features. The LAN / RJ45 function of the projector through a network, such as remotely manage: Power On / Off, brightness, and contrast settings. Also, you can view the projector status information, such as: Video- Source, Sound-Mute, etc.

Wired LAN terminal functionalities

This projector can be controlled by using a PC (laptop) or other external device via LAN / RJ45 port and compatible with Crestron / Extron / AMX (Device -Discovery) / PJLink.

• Crestron is a registered trademark of Crestron Electronics, Inc. of the United States.
• Extron is a registered trademark of Extron Electronics, Inc. of the United States.
• AMX is a registered trademark of AMX LLC of the United States.
  • PJLink applied for trademark and logo registration in Japan, the United States of America, and other countries by JBMIA.

The projector is supported by the specified commands of the Crestron Electronics controller and related software, for example RoomView ^® .

http://www.crestron.com/

This projector is compliant to support Extron device(s) for reference.

http://www.extron.com/

This projector is supported by AMX (Device Discovery).

http://www.amx.com/

This projector supports all commands of PJLink Class1 (Version 1.00).

http://pjlink.jbmia.or.jp/english/

For more detailed information about the various types of external devices which can be connected to the LAN / RJ45 port and remote control the projector, as well as the supported commands for these external devices, please contact the Support-Service directly.

USING THE PROJECTOR

LAN RJ45

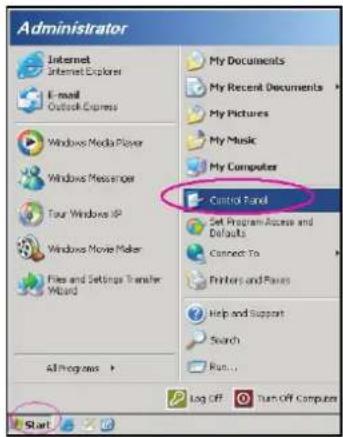

1. Connect an RJ45 cable to RJ45 ports on the projector and the PC (laptop).

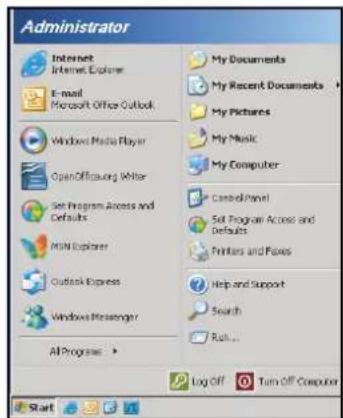

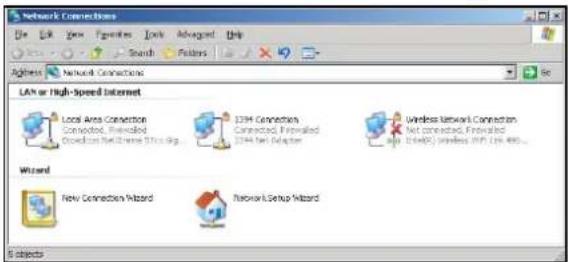

1. On the PC (Laptop), select Start > Control Panel > Network Connections.

1. Right-click on the Local Area Connection, and select Property.

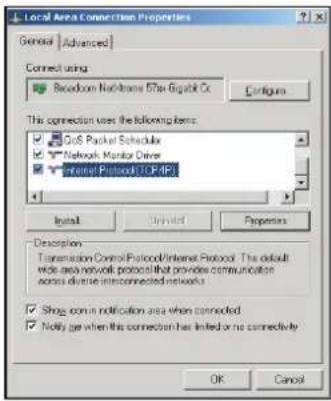

1. In the Properties window, select the General tab, and select Internet Protocol (TCP / IP).

USING THE PROJECTOR

1. Click "Properties".

1. Type in the IP address and Subnet mask, then press "OK".

1. Press the "Menu" button on the projector.
2. Open on projector Network > LAN.

3. Enter the following connection parameters:

4. DHCP: Off

5. IP Address: 192.168.0.100
6. Subnet Mask: 255.255.255.0
7. Gateway: 192.168.0.254

8. DNS: 192.168.0.51

9. Press "Enter" to confirm settings.

10. Open a web browser, for example Microsoft Internet Explorer with Adobe Flash Player 9.0 or higher installed.
11. In the Address bar, input the projector's IP address: 192.168.0.100.

1. Press "Enter".

USING THE PROJECTOR

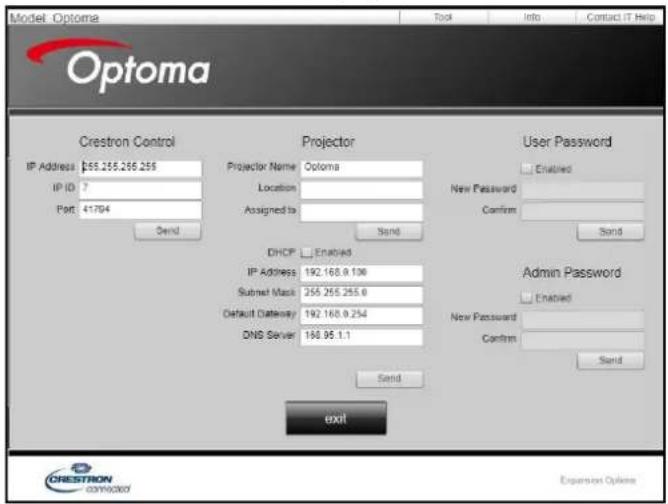

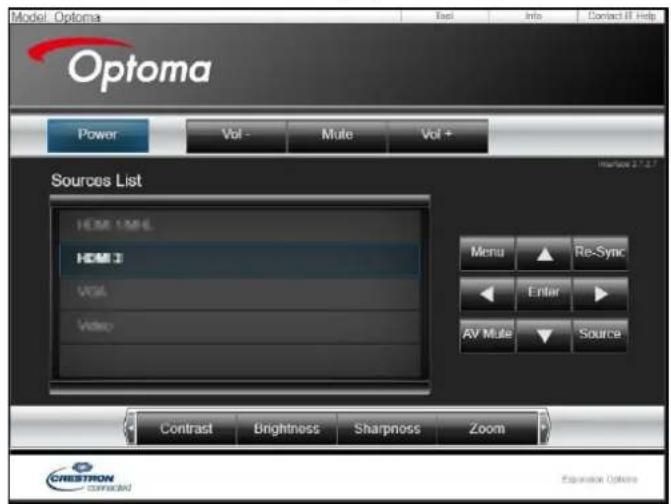

The projector is setup for remote management. The LAN / RJ45 function displays as follows:

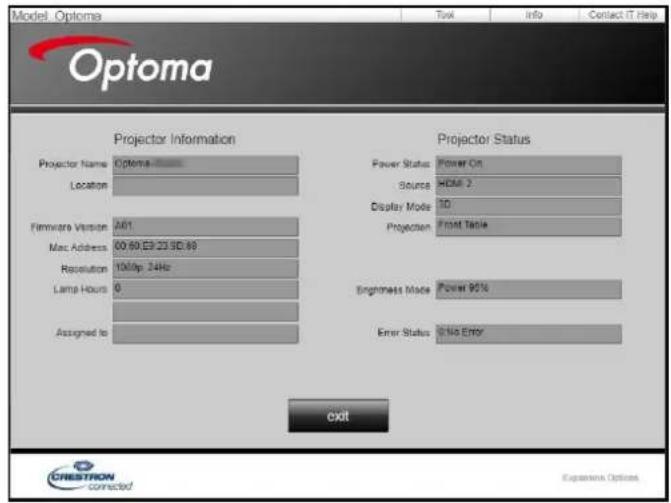

Information page

Main page

Tool page

Contact IT helpdesk

USING THE PROJECTOR

RS232 by Telnet Function

There is alternative RS232 command control way, in projector so called "RS232 by TELNET" for LAN / RJ45 interface.

Quick Start-Guide for "RS232 by Telnet"

• Check and get the IP address on OSD of the projector.
• Make sure that the PC / laptop can access the web-page of the projector.

• Make sure that "Windows Firewall" setting is set disabled in case of "TELNET" function filtering out by PC / laptop.

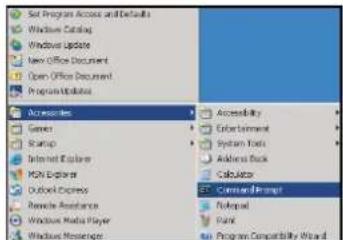

1. Select Start > All Programs.> Accessories > Command Prompt.

1. Input the command format as follows:

2. telnet ttt.xxx.yyy.zzz 23 ("Enter" key pressed)

3. (ttt.xxx.yyy.zzz: IP-Address of the projector)

4. If Telnet-Connection ready, and user can have RS232 command input, then "Enter" key pressed, the RS232 command will be workable.

Specification for "RS232 by TELNET":

1. Telnet: TCP.
2. Telnet port: 23 (for more detail, kindly please get contact with the service agent or team).
3. Telnet utility: Windows "TELNET.exe" (console mode).

4. Disconnection for RS232-by-Telnet control normally: Close

5. Windows Telnet utility directly after TELNET connection ready.

6. Limitation 1 for Telnet-Control: there is less than 50 bytes for successive network payload for Telnet-Control application.

7. Limitation 2 for Telnet-Control: there is less than 26 bytes for one complete RS232 command for Telnet-Control.
8. Limitation 3 for Telnet-Control: Minimum delay for next RS232 command must be more than 200 (ms).

USING THE PROJECTOR

Info menu

Info menu

View the projector information as listed below:

• Regulatory
• Serial Number
• Source
• Resolution
• Refresh Rate
• Display Mode
• Remote Code
• Remote Code(Active)
  • Power Mode (Standby)
  • Light Source Hours
• Network Status
• IP Address
• Projector ID
• Brightness Mode
• FW Version

MAINTENANCE

Installing and cleaning the dust filter

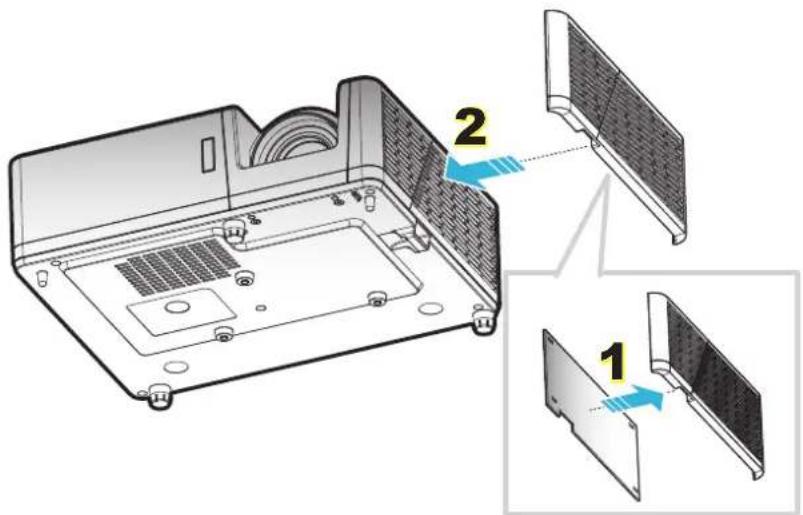

Installing the dust filter

Note: Dust filters are only required/supplied in the selected regions with excessive dust.

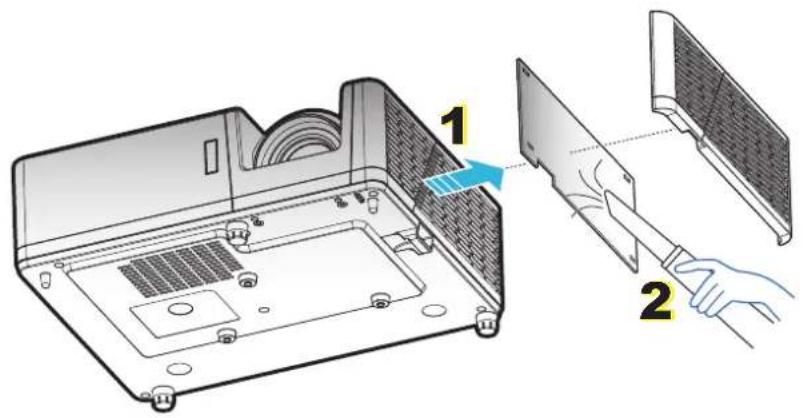

Cleaning the dust filter

We recommend you to clean the dust filter every three months. Clean it more often if the projector is used in a dusty environment.

Procedure:

1. Switch off the power to the projector by pressing the ⏻ button on the projector keypad or remote control.
2. Disconnect the power cord.
3. Pull the dust filter compartment downwards to remove it out from the bottom of the projector. 1
4. Carefully remove the air filter. Then clean or replace the dust filter. 2
5. To install the dust filter, reverse the previous steps.

ADDITIONAL INFORMATION

Compatible resolutions

Digital

B0 / Established Timing	B0 / Standard Timing	B0 / Detail Timing B1	/ Video Mode B1 / Detail Timing)
720 x 400 @ 70Hz SVGA: Native timing: 640 x 480p @ 60Hz 1366 x 768 @ 60Hz
640 x 480 @ 60Hz 800 x 600 @ 120Hz XGA: 1024 x 768 @ 60Hz			720 x 480p @ 60Hz 1920 x 1080p @ 60Hz
640 x 480 @ 67Hz 1024 x 768 @ 120Hz WXGA: 1280 x 800 @ 60Hz			1280 x 720p @ 60Hz 1920 x 1200 @ 60Hz (support for HDMI 1.4 and HDMI 2.0 NOT support)
640 x 480 @ 72Hz 1280 x 800 @ 60Hz 1080P: 1920 x 1080 @ 60Hz			1920 x 1080i @ 60Hz 1920 x 1080i @ 50Hz
640 x 480 @ 75Hz 1280 x 1024 @ 60Hz WUXGA: 1920 x 1200 @ 60Hz			720(1440) x 480i @ 60Hz 1920 x 1080p @ 60Hz
800 x 600 @ 56Hz 1280 x 720 @ 60Hz 1920 x 1080p @ 60Hz
800 x 600 @ 60Hz 640 x 480 @ 120Hz 720 x 576p @ 50Hz
800 x 600 @ 72Hz 1280 x 800 @ 120Hz 1280 x 720p @ 50Hz
800 x 600 @ 75Hz 1920 x 1080i @ 50Hz
832 x 624 @ 75Hz XGA/WXGA:		720(1440) x 576i @ 50Hz
1024 x 768 @ 60Hz	800 x 600 @ 120Hz 1920 x 1080p @ 50Hz
1024 x 768 @ 70Hz	1024 x 768@ 120Hz	1920 x 1080p @ 24Hz
1024 x 768 @ 75Hz	1280 x 800 @ 60Hz 1920 x 1080p @ 30Hz
1280 x 1024 @ 75Hz	1280 x 1024 @ 60Hz 3840 x 2160p @ 24Hz
1152 x 870 @ 75Hz	1280 x 720 @ 60Hz	3840 x 2160p @ 25Hz
	640 x 480 @ 120Hz 3840 x 2160p @ 30Hz
	1280 x 800 @ 120Hz 4096 x 2160p @ 24Hz
		4096 x 2160p @ 25Hz
	1080P/WUXGA:	4096 x 2160p @ 30Hz
	1280 x 720 @ 60Hz 3840 x 2160p @ 50Hz	(support for HDMI 2.0 and HDMI 1.4 NOT support)
	1280 x 800 @ 60Hz 3840 x 2160p @ 60Hz	(support for HDMI 2.0 and HDMI 1.4 NOT support)
	1280 x1024 @ 60Hz	4096 x 2160p @ 50Hz (support for HDMI 2.0 and HDMI 1.4 NOT support)
	640 x 480 @ 120Hz 4096 x 2160p @ 60Hz	(support for HDMI 2.0 and HDMI 1.4 NOT support)
	800 x 600 @ 120Hz
	1024 x 768 @ 120Hz
	1280 x 800 @ 120Hz

ADDITIONAL INFORMATION

Analog

B0 / Established Timing B0 / Standard Timing B0 / Detail Timing B1 / Detail Timing
720 x 400 @ 70Hz SVGA: Native timing: 1366 x 768 @ 60Hz
640 x 480 @ 60Hz 800 x 600 @ 120Hz XGA: 1024 x 768 @ 60Hz 1280 x 800 @ 120Hz
640 x 480 @ 67Hz 1024 x 768 @ 120Hz WXGA: 1280 x 800 @ 60Hz 1920 x 1200 @ 60Hz
640 x 480 @ 72Hz 1280 x 800 @ 60Hz 1080P: 1920 x 1080 @ 60Hz
640 x 480 @ 75Hz 1280 x 1024 @ 60Hz WUXGA: 1920 x 1200 @ 60Hz
800 x 600 @ 56Hz 1280 x 720 @ 60Hz
800 x 600 @ 60Hz 640 x 480 @ 120Hz
800 x 600 @ 72Hz
800 x 600 @ 75Hz XGA/WXGA
832 x 624 @ 75Hz 800 x 600 @ 120Hz
1024 x 768 @ 60Hz 1024 x 768@ 120Hz
1024 x 768 @ 70Hz 1280 x 800 @ 60Hz
1024 x 768 @ 75Hz 1280 x 1024 @ 60Hz
1280 x 1024 @ 75Hz 1280 x 720 @ 60Hz
1152 x 870 @ 75Hz 640 x 480 @ 120Hz
	1080P/WUXGA:
	1280 x 720 @ 60Hz
	1280 x 800 @ 60Hz
	1280 x1024 @ 60Hz
	640 x 480 @ 120Hz
	800 x 600 @ 120Hz
	1024 x 768 @ 120Hz

ADDITIONAL INFORMATION

True 3D video compatibility

Input resolutions	HDMI 1.4a3D Input	Input timing
		1280 x 720P @ 50Hz Top-and-Bottom
		1280 x 720P @ 60Hz Top-and-Bottom
		1280 x 720P @ 50Hz Frame packing
		1280 x 720P @ 60Hz Frame packing
		1920 x 1080i @ 50Hz Side-by-Side(Half)
		1920 x 1080i @ 60Hz Side-by-Side(Half)
		1920 x 1080P @ 24Hz Top-and-Bottom
		1920 x 1080P @ 24Hz Frame packing
	HDMI 1.3	1920 x 1080i @ 50Hz	Side-by-Side(Half) SBS mode is on
		1920 x 1080i @ 60Hz
		1280 x 720P @ 50Hz
		1280 x 720P @ 60Hz
		800 x 600 @ 60Hz
		1024 x 768 @ 60Hz
		1280 x 800 @ 60Hz
		1920 x 1080i @ 50Hz	Top-and-Bottom TAB mode is on
		1920 x 1080i @ 60Hz
		1280 x 720P @ 50Hz
		1280 x 720P @60Hz
		800 x 600 @ 60Hz
		1024 x 768 @ 60Hz
		1280 x 800 @ 60Hz
		480i HQFS 3D format is Frame sequential

Note:

• If 3D input is 1080p@24Hz, the DMD should replay with integral multiple with 3D mode.
- Support NVIDIA 3DTV Play if there is no patent fee from Optoma.
• 1080i@25Hz and 720p@50Hz will run in 100Hz; 1080p@24Hz will run in 144Hz; other 3D timing will run in 120Hz.

ADDITIONAL INFORMATION

Image size and projection distance

1080p model

Diagonal Length Size of (16:9) Screen	Screen Size (W x H) Projection				Distance ( D )				Offset (Hd)
	(m) (inch) (m) (feet)
	Width	Height Width	Height Wide	Tele Wide	Tele (m) (inch)
28.3	0.63	0.35	24.67	13.87	NA	1.0	NA	3.28	0.04	1.57
40	0.89	0.5	34.86	19.6	1.1	1.4	3.61	4.59	0.05	1.97
50	1.11	0.62	43.58	24.5	1.3	1.8	4.27	5.91	0.06	2.36
60	1.33	0.75	52.29	29.4	1.6	2.1	5.25	6.89	0.07	2.76
70	1.55	0.87	61.01	34.3	1.9	2.5	6.23	8.20	0.09	3.54
80	1.77	1	69.73	39.2	2.1	2.8	6.89	9.19	0.10	3.94
90	1.99	1.12	78.44	44.1	2.4	3.2	7.87	10.50	0.11	4.33
100	2.21	1.25	87.16	49	2.7	3.5	8.86	11.48	0.12	4.72
120	2.66	1.49	104.59	58.8	3.2	4.2	10.50	13.78	0.15	5.91
150	3.32	1.87	130.74	73.5	4.0	5.3	13.12	17.39	0.18	7.09
180	3.98	2.24	156.88	88.2	4.8	6.3	15.75	20.67	0.23	9.06
200	4.43	2.49	174.32	98.1	5.4	7.0	17.72	22.97	0.25	9.84
250	5.53	3.11	217.89	122.6	6.7	8.8	21.98	28.87	0.31	12.20
300	6.64	3.74	261.47	147.1	8.0	NA	26.25	NA	0.37	14.57
374	8.28	4.66	325.97	183.4	10.0	NA	32.81	NA	0.46	18.11

Note: Zoom Ratio: 1.3x

WXGA model

Diagonal Length Size of (16:9) Screen	Screen Size (W x H) Projection				Distance ( D )				Offset (Hd)
	(m) (inch) (m) (feet)
	Width	Height	Width	Wide Tele	Wide Tele (m) (inch)
30.1	0.65	0.41	25.52	15.95	NA	1.0	NA	3.28	0.05	1.97
40	0.86	0.54	33.92	21.2	1.0	1.3	3.28	4.27	0.07	2.76
50	1.08	0.67	42.40	26.5	1.3	1.7	4.27	5.58	0.09	3.54
60	1.29	0.81	50.88	31.8	1.5	2.0	4.92	6.56	0.10	3.94
70	1.51	0.94	59.36	37.1	1.8	2.3	5.91	7.55	0.12	4.72
80	1.72	1.08	67.84	42.4	2.0	2.7	6.56	8.86	0.13	5.12
90	1.94	1.21	76.32	47.7	2.3	3.0	7.55	9.84	0.15	5.91
100	2.15	1.35	84.80	53	2.5	3.3	8.20	10.83	0.16	6.30
120	2.58	1.62	101.76	63.6	3.0	4.0	9.84	13.12	0.20	7.87
150	3.23	2.02	127.20	79.5	3.8	5.0	12.47	16.40	0.25	9.84
180	3.88	2.42	152.64	95.4	4.6	6.0	15.09	19.69	0.30	11.81
200	4.31	2.69	169.60	106	5.1	6.6	16.73	21.65	0.34	13.39
250	5.38	3.37	212.00	132.5	6.4	NA	21.00	NA	0.41	16.14
300	6.46	4.04	254.40	159	7.6	NA	24.93	NA	0.50	19.69

Note: Zoom Ratio: 1.3x

ADDITIONAL INFORMATION

ADDITIONAL INFORMATION

Projector dimensions and ceiling mount installation

1. To prevent damage to your projector, please use the Optoma ceiling mount.
2. If you wish to use a third party ceiling mount kit, please ensure the screws used to attach a mount to the projector meet the following specifications:

- Screw type: M4*10

• Minimum screw length: 10mm

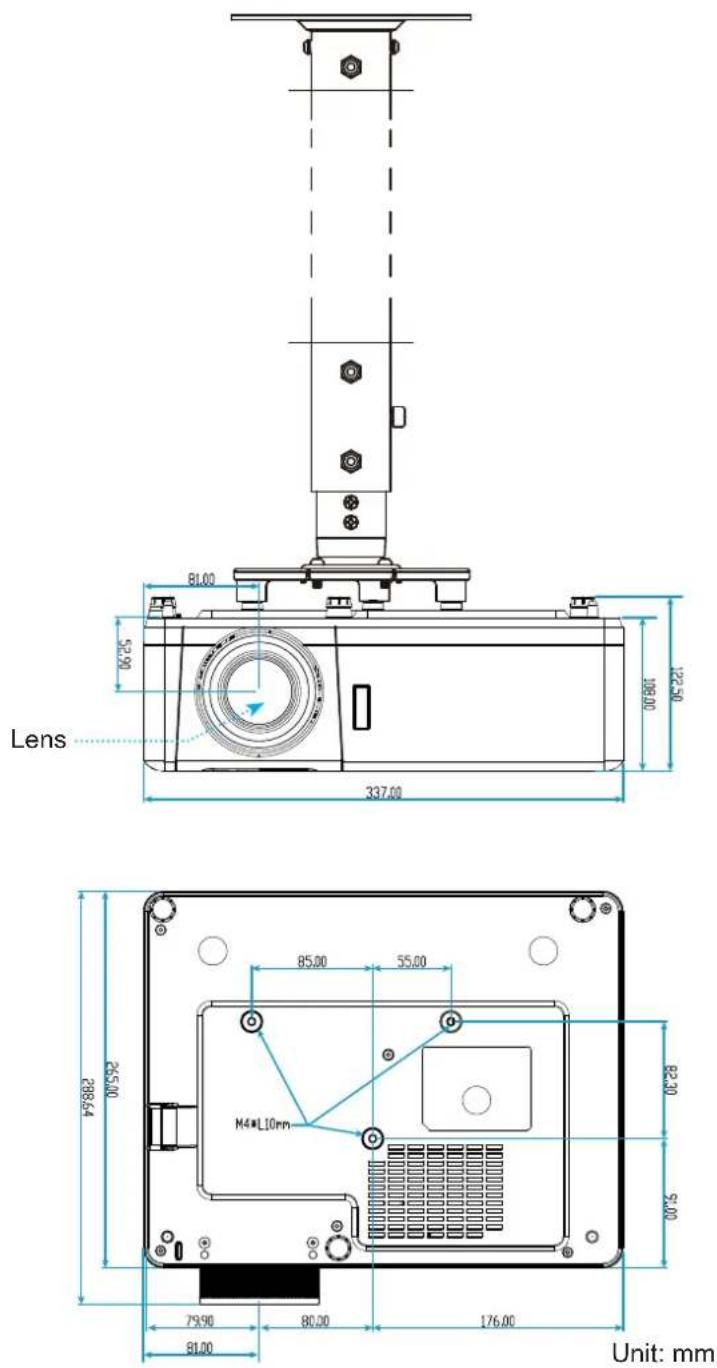

1080p model

ADDITIONAL INFORMATION

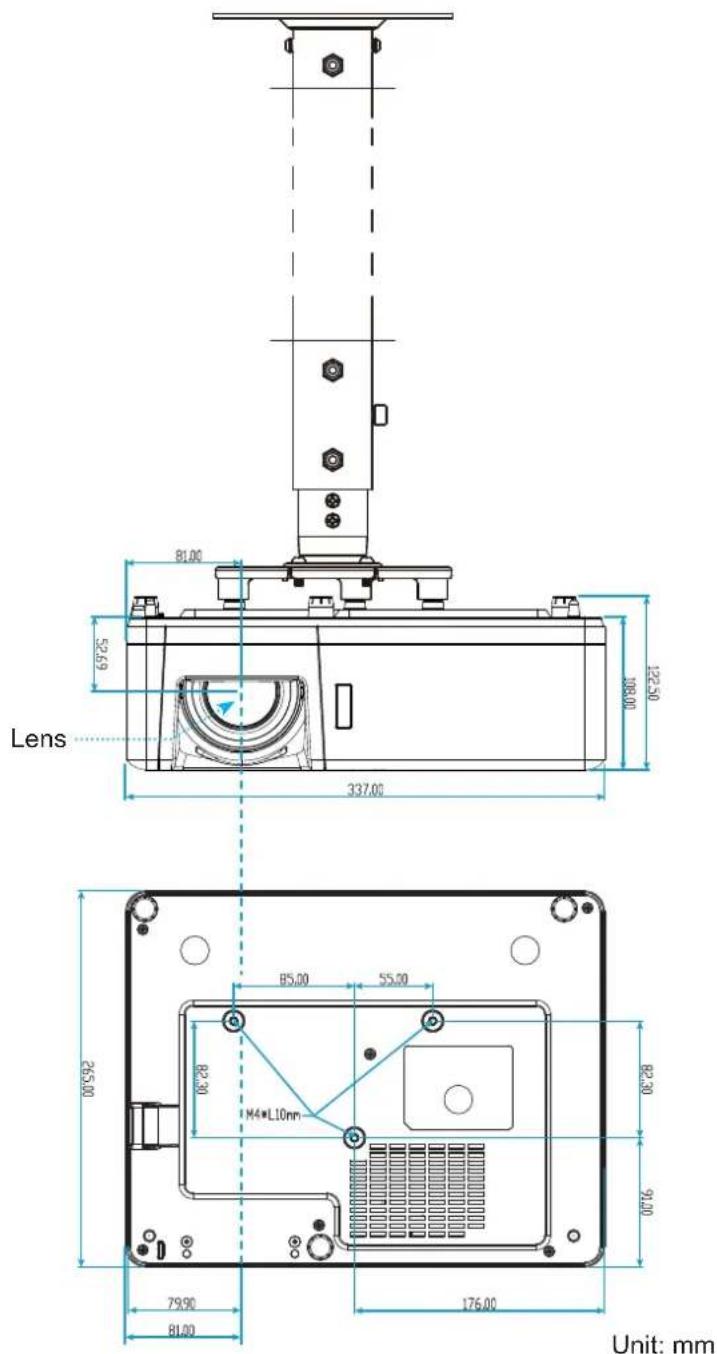

WXGA model

Note: Please note that damage resulting from incorrect installation will void the warranty.

Warning:

• If you buy a ceiling mount from another company, please be sure to use the correct screw size. Screw size will vary depending on the thickness of the mounting plate.
- Be sure to keep at least 10 cm gap between the ceiling and the bottom of the projector.
- Avoid installing the projector near a heat source.

ADDITIONAL INFORMATION

IR remote control 1 codes

Key		Key code	Printing-key definition	Description
Power 81 Power on/off Press to turn on / off the projector.
Switch 3E Switch Press to switch the USB mouse on / off.
Display blank / audio mute		8A		Press to hide / unhide the screen picture and turn off / on audio.
Freeze 8B Freeze Press to freeze the projector image.
Mute		92		Press to momentarily turn off / on the audio.
Mouse left click	L	CB	L	Use as mouse left click.
Mouse right click	R	CC	R	Use as mouse right click.
Four directional select keys		C6	Up arrow	Use ▲ ▼ ◀ ▶ to select items or make adjustments to your selection.
		C8	Left arrow
		C9	Right arrow
		C7 Down arrow
Enter		C5	Enter	Confirm your item selection.
		CA	Enter

ADDITIONAL INFORMATION

Key		Key code	Printing-key definition	Description
Page - C2 Page- Press to page down.
Laser N/A Laser Use as laser pointer.
Page + C1 Page+ Press to page up.
Keystone		85 Keystone+		Press to adjust image distortion caused by tilting the projector.
		84 Keystone-
Volume		8C Volume +		Press to adjust to increase / decrease the volume.
		8F Volume -
Aspect ratio / 1 98	[24A7]			• Press to change aspect ratio of a displayed image.• Use as numeric keypad number "1".
Menu / 2		88		• Press to display or exit the on-screen display menus for projector.• Use as numeric keypad number "2".
3D / 3		93	3D/3	• Press to manually select a 3D mode that matches your 3D content.• Use as numeric keypad number "3".
HDMI / 4		86		• Press to choose HDMI source.• Use as numeric keypad number "4".
VGA / 5		D0 VGA/5		• Press to choose VGA source.• Use as numeric keypad number "5".
Video / 6		D1	[H768]	Use as numeric keypad number "6".
User1 / 7; User2 / 8;User3 / 9		D2	User 1/7
		D3	User 2/8
		D4	[XX68]
Source		C3	Source	Press to select an input signal.
Brightness mode / 0	###	96
Re-sync		C4 Re-Sync

ADDITIONAL INFORMATION

IR remote control 2 codes

Key		Custom code		Data code	Printing-key definition	Description
		Byte 1	Byte 2 Byte 3
Power on	[52W7]	32	CD	02	ON	Press to turn on the projector.
Power off		32	CD	2E	OFF	Press to turn off the projector.
User 1 32 CD 36 User1						User defined keys. Please see page 43 to setup.
User 2 32 CD 65 User2
User 3 32 CD 66 User3
Brightness	[1=7]	32	CD	41	Brightness	Adjust the brightness of the image.
Contrast	[6×4]	32 CD	42	Contrast		Control the degree of difference between the lightest and darkest parts of the picture.
Display mode	[2×6]	32 CD	05	Mode		Select a display mode for optimized settings for different applications. Please see page 32.
Keystone	[2×6]	32 CD	07	Keystone		Adjust image distortion caused by tilting the projector.
Aspect ratio	[8×4]	32 CD	64		Aspect ratio	Press to change aspect ratio of a displayed image.

ADDITIONAL INFORMATION

Key		Custom code		Data code	Printing-key definition	Description
		Byte 1	Byte 2 Byte 3
3D 32 CD 89 3D						Manually select a 3D mode that matches your 3D content.
Volume + 32 CD 09 Volume + Adjust to increase volume.
Four direction keys		32 CD	11▲			Use ▲, ◀, ▶, or ▼ to select items or make adjustments to your selection.
		32 CD	10◀
		32 CD	12▶
		32 CD	14▼
Source 32 CD 18 Source Press "Source" to select an input signal.
Enter key 32 CD 0F ←		Confirm your item selection.
Re-sync	bend	32 CD	04	Re-sync		Automatically synchronizes the projector to the input source.
Volume -		32	CD	0C	Volume -	Adjust to decrease volume.
Menu		32 CD	0E	Menu		Display or exit the on-screen display menus for projector.
HDMI 1		32 CD	16	HDMI1		Press "HDMI1" to choose source from HDMI 1 / MHL connector.
HDMI 2		32 CD	30	HDMI2		Press "HDMI2" to choose source from HDMI 2 connector.
VGA 1		32 CD	1B	VGA1		Press "VGA1" to choose source from VGA In connector.
VGA 2		32	CD	1E	VGA2	No function
Video		32	CD	1C	Video	No function
YPbPr		32 CD	17 YPbPr	No function

ADDITIONAL INFORMATION

Troubleshooting

If you experience a problem with your projector, please refer to the following information. If a problem persists, please contact your local reseller or service center.

Image problems

No image appears on-screen

• Ensure all the cables and power connections are correctly and securely connected as described in the "Installation" section.
• Ensure the pins of connectors are not crooked or broken.
• Ensure that the "Mute" feature is not turned on.

? Image is out of focus

• Turn the focus ring clockwise or counterclockwise until the image is sharp and legible. (Please see page 18).
  • Make sure the projection screen is between the required distance from the projector. (Please refer to pages 57-58).

The image is stretched when displaying 16:9 DVD title

• When you play anamorphic DVD or 16:9 DVD, the projector will show the best image in 16: 9 format on projector side.
• If you play the LBX format DVD title, please change the format as LBX in projector OSD.
• If you play 4:3 format DVD title, please change the format as 4:3 in projector OSD.
• Please setup the display format as 16:9 (wide) aspect ratio type on your DVD player.

? Image is too small or too large

• Turn the zoom lever clockwise or counterclockwise to increase or decrease the projected image size. (Please see page 18).
• Move the projector closer to or further from the screen.
• Press "Menu" on the projector panel, go to "Display → Aspect Ratio". Try the different settings.

? Image has slanted sides:

• If possible, reposition the projector so that it is centered on the screen and below the bottom of the screen.

? Image is reversed

- Select "Setup → Projection" from the OSD and adjust the projection direction.

ADDITIONAL INFORMATION

Other problems

The projector stops responding to all controls

• If possible, turn off the projector, then unplug the power cord and wait at least 20 seconds before reconnecting power.

Remote control problems

If the remote control does not work

• Check the operating angle of the remote control is pointed within ± 30^ to the IR receiver on the projector.
  • Make sure there are not any obstructions between the remote control and the projector. Move to within 12 m (39.4 ft) of the projector.

• Make sure batteries are inserted correctly.

• Replace batteries if they are exhausted.

ADDITIONAL INFORMATION

Warning indicators

When the warning indicators (see below) light up or flash, the projector will automatically shutdown:

- "Lamp" LED indicator is lit red and if "Power" indicator flashes red.

- "Temp" LED indicator is lit red and if "Power" indicator flashes red. This indicates the projector has overheated. Under normal conditions, the project can be switched back on.

- "Temp" LED indicator flashes red and if "Power" indicator flashes red.

Unplug the power cord from the projector, wait for 30 seconds and try again. If the warning indicator light up or flash, please contact your nearest service center for assistance.

LED lightning messages

Message	Power LED Temp LED Lamp LED
	(Red) (Blue) (Red) (Red)
Standby state (Input power cord)	Steady light
Power on (Warming)		Flashing(0.5 sec off / 0.5 sec on)
Power on and Lamp lighting Steady light
Power off (Cooling)		Flashing(0.5 sec off / 0.5 sec on). Back to red steady light when cooling fan turns off.
Quick Resume(100 secs)		Flashing(0.25 sec off / 0.25 sec on)
Error (Lamp failure) Flashing Steady light
Error (Fan failure) Flashing Flashing
Error (Over temp.) Flashing Steady light

- Power off:

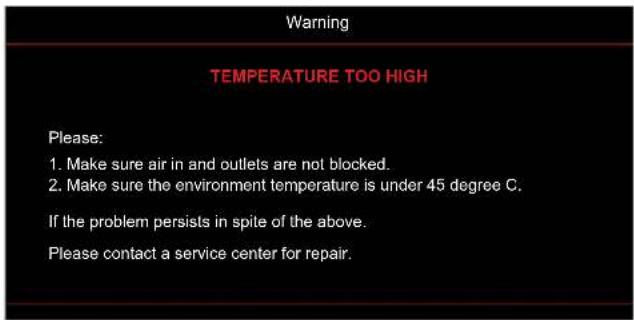

- Temperature warning:

ADDITIONAL INFORMATION

Specifications

Optical Description
Maximum resolution 1080p
Native resolution	• 1080p• WXGA
Lens Manual zoom and manual focus
Image size (diagonal)	• 1080p : 28.3" ~ 374" (optimized @82")• WXGA: 30.1" ~ 301" (optimized @60")
Projection distance	• 1080p: 1.0m ~ 10m (optimized @2.14m)• WXGA: 1.0m ~ 7.7m (optimized @2.14m)

Electrical Description
Inputs	HDMI 1.4aHDMI 2.0b / MHL 2.2VGA InAudio In 3.5mmUSB Type-A for power USB 5V/1.5A
Outputs • Audio Out 3.5mm
Control	Micro USBRS-232RJ-45 (support web control)
Color reproduction 1073.4 Million color
Scan rate	Horizontal scan rate: 15.375~91.146 KHzVertical scan rate: 50~85 Hz (120Hz for 3D feature projector)
Built-in speaker Yes, 10W
Power requirement 100 - 240V ±10%, AC 50/60Hz
Input current 3.0A

Mechanical Description
Installation orientation Front,	Rear, Ceiling, Rear-top
Dimensions	337mm (W) x 265mm (D) x 108mm (H) (without feet)337mm (W) x 265mm (D) x 122.5mm( H) (with feet)
Weight < 5.0kg
Environmental conditions	Operating in 5~40°C, 10% to 85% humidity (non-condensing)

Note: All specifications are subject to change without notice.

ADDITIONAL INFORMATION

Optoma global offices

For service or support, please contact your local office.

USA

47697 Westinghouse Drive, 888-289-6786

Fremont, CA 94539, USA 510-897-8601

www.optomausa.com [e-mail]

Canada

47697 Westinghouse Drive, 888-289-6786

Fremont, CA 94539, USA 510-897-8601

www.optomausa.com [e-mail]

Latin America

47697 Westinghouse Drive, 888-289-6786

Fremont, CA 94539, USA 510-897-8601

www.optomausa.com [e-mail]

Europe

Unit 1, Network 41, Bourne End Mills

Hemel Hempstead, Herts,

HP1 2UJ, United Kingdom [phone]

www.optoma.eu [phone]

Service Tel : [phone] [e-mail]

Benelux BV

Randstad 22-123 [phone]

1316 BW Almere [phone]

The Netherlands

www.optoma.nl

France

[e-mail]

www.os-worldwide.com

Taiwan

12F., No.213, Sec. 3, Beixin Rd.,

Xindian Dist., New Taipei City 231,

Taiwan, R.O.C.

www.optoma.com.tw

[phone]

[phone]

[e-mail]

asia.optoma.com

Hong Kong

Unit A, 27/F Dragon Centre,

79 Wing Hong Street,

Cheung Sha Wan,

Kowloon, Hong Kong

[phone]

[phone]

www.optoma.com.hk

China

5F, No. 1205, Kaixuan Rd.,

Changning District

Shanghai, 200052, China

[phone]

[phone]

www.optoma.com.cn
