Product Type	Video Projector
Brand	Optoma
Model	ZU610T
Display Technology	DLP
Native Resolution	WUXGA (1920 x 1200)
Light Source	Laser (Class 2 Laser Product, built-in Class 4 laser module)
SSI Power Modes	Normal, ECO
Projection Distance	1.3 m - 7.8 m (4.27 ft - 25.59 ft)
Image Size (Diagonal)	36" - 300" (0.91 m - 7.62 m)
Lens Shift	Vertical and Horizontal
Keystone Correction	Vertical and Horizontal, 4 Corners
Inputs	VGA, HDMI-1, HDMI-2, HDMI-3/MHL, HDBaseT, USB-B mini, USB Power Out, RS232, RJ45, Audio In, Microphone
Outputs	VGA Out, Audio Out, 3D Sync Out (5V), Wired Remote, 12V Trigger
Audio	Built-in speaker, Audio In/Out, Microphone input
3D Support	Yes, DLP Link, compatible with HDMI 1.4a 3D formats
Network Control	Crestron RoomView, PJLink, AMX Device Discovery, Web browser
Security	Kensington lock, Password protection (OSD)
High Altitude Mode	On/Off (for altitudes >2500 ft / 762 m)
Optional Dust Filter	Yes, cleanable/replaceable

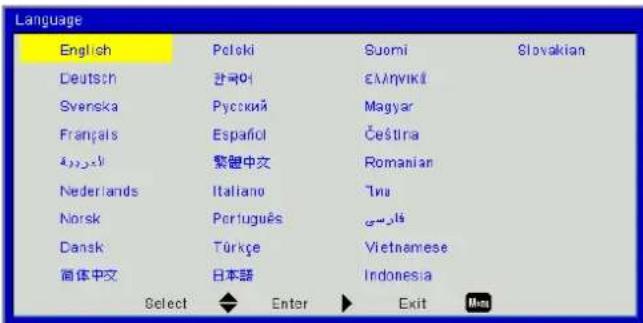

OSD Languages	English, German, French, Italian, Spanish, Polish, Swedish, Dutch, Portuguese, Japanese, Chinese (Traditional/Simplified), Korean, Russian, Arabic, Turkish, Danish, Finnish, Greek, Hungarian, Czech, Romanian, Thai, Farsi, Vietnamese, Indonesian, Slovakian
Projection Modes	Front, Rear, Ceiling (Front/Rear)
Aspect Ratios	Auto, 4:3, 16:9, 16:10
Direct Power On	Yes (configurable)
Compliance	FCC Class B, CE, EMC, Low Voltage Directive, IEC 60825-1:2007 (Class 2 Laser)

Frequently Asked Questions - ZU610T OPTOMA

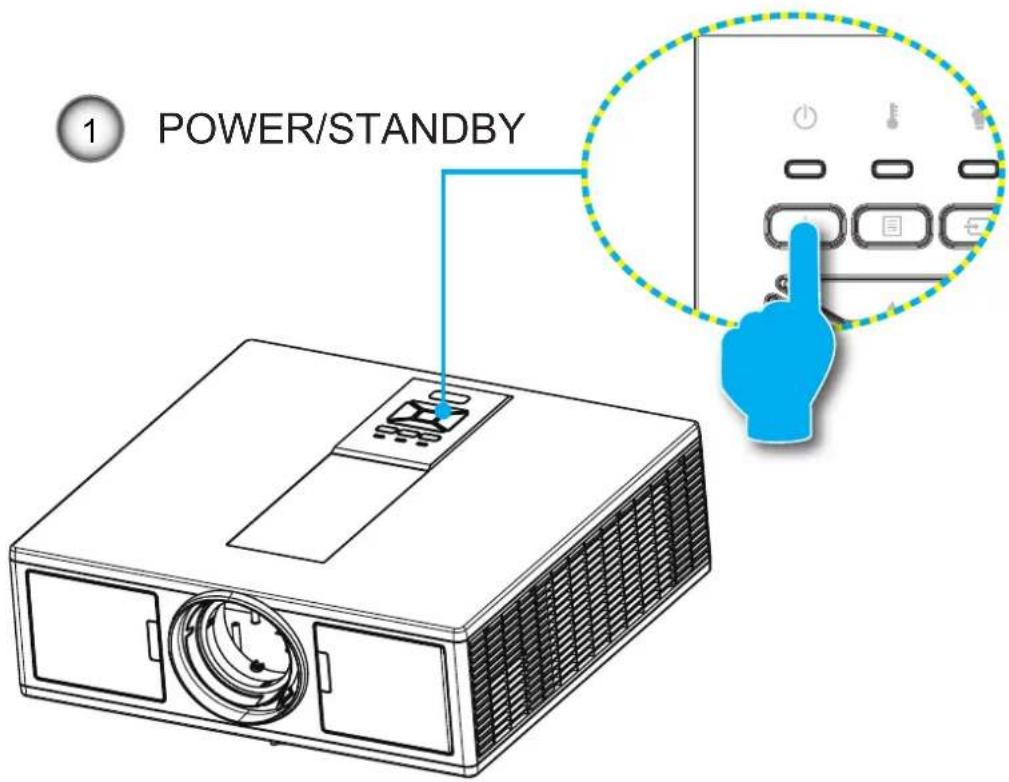

How do I turn on the Optoma ZU610T projector?

Securely connect the power cord and signal cable. The POWER/STANDBY LED will turn red. Press the Power On button on the projector or remote control. The LED will turn blue and the startup screen appears in about 6 seconds. Then select the input source.

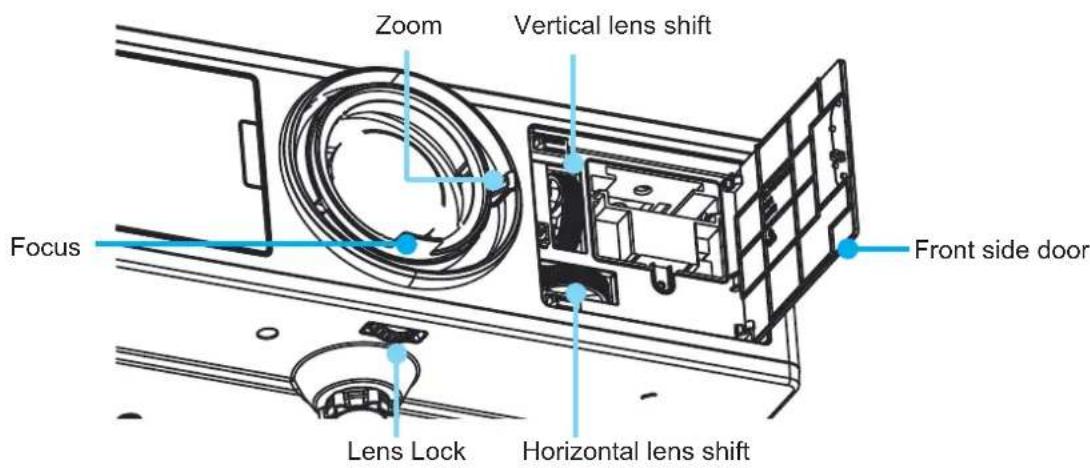

How do I adjust the projected image size and focus?

Use the Zoom Ring to adjust image size (rotate clockwise to increase, counterclockwise to decrease). Use the Focus Ring to sharpen the image. The projector focuses at distances from 4.27 to 25.59 feet (1.3–7.8 m).

How do I correct a trapezoidal (keystone) image?

Go to the Screen menu in OSD. Select Geometric Correction. Use V. Keystone for vertical adjustment and H. Keystone for horizontal. You can also fine-tune each corner using 4 Corners correction.

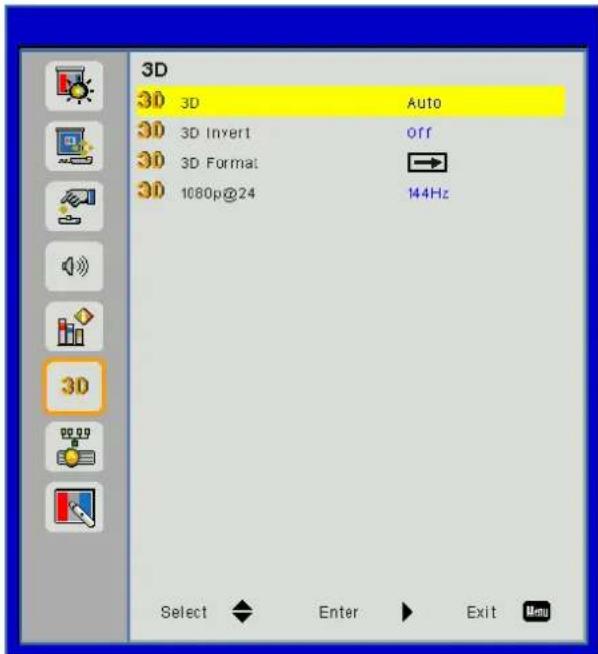

How do I enable 3D projection on this projector?

Ensure you have a 3D source and compatible DLP Link glasses. In the OSD, go to the 3D menu. Set 3D to Auto or On. You can adjust 3D Invert if overlapping occurs. Select the appropriate 3D Format (Frame Packing, Side-by-Side, etc.).

What should I do if the projector overheats?

The TEMP LED will light red. The projector will automatically shut down. Check that ventilation openings are not blocked. Ensure the fan is working. If the problem persists, unplug the power cord, wait 60 seconds, and restart. Contact service if the warning reappears.

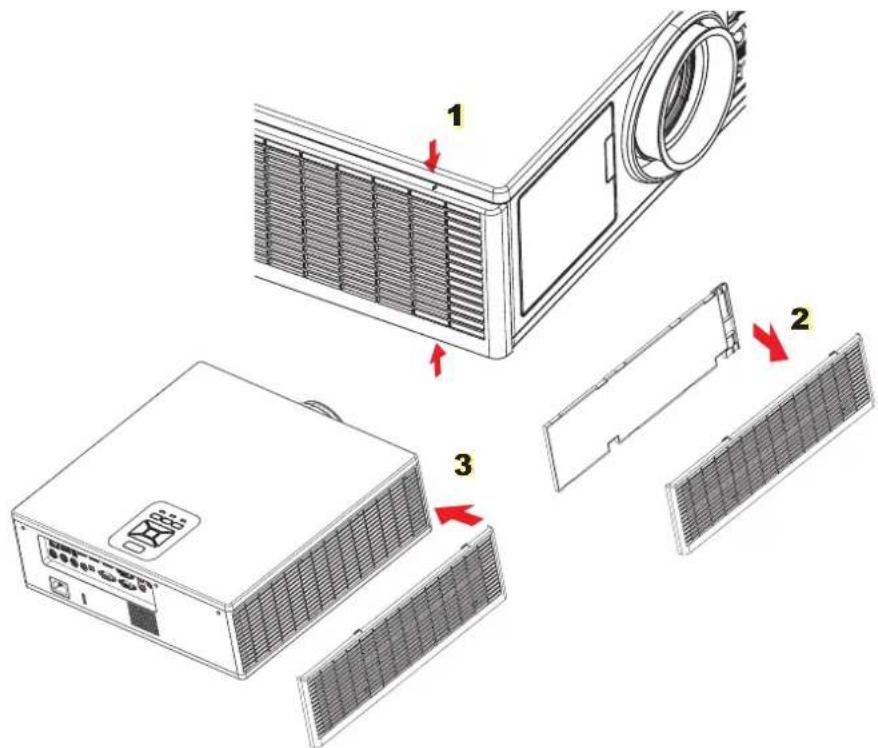

How do I clean or replace the dust filter?

Switch off the projector and disconnect power. Locate the dust filter on the side (see manual diagram). Pull it out and clean with a soft brush or replace if necessary. Reinstall and reset the filter usage counter in OSD under Options > Optional Filters Remind.

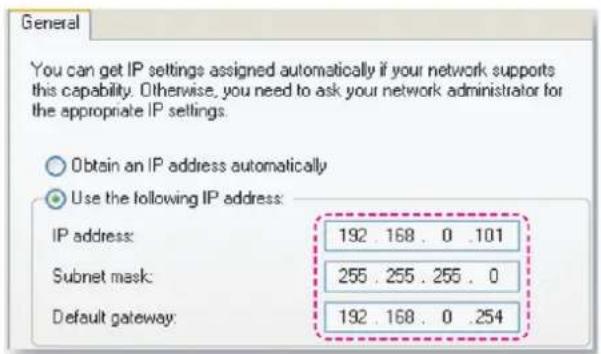

Can I control the projector via my network?

Yes. Connect the projector to your network via the RJ45 port. In OSD under LAN, configure DHCP or static IP. Then use a web browser to access the IP address shown on the OSD LAN screen. You can also use Crestron RoomView or PJLink for remote control.

How do I set a password to prevent unauthorized use?

Go to Options > Security. Set Security to On. You will be prompted to enter a 6-digit password. Default password is 000000. Use the numeric keypad on the remote to enter and confirm. You can also set a Security Timer for timed access.

What is the native resolution and supported aspect ratios?

The native resolution is WUXGA (1920 x 1200). Supported aspect ratios include Auto, 4:3, 16:9, and 16:10. These can be selected in the Screen menu.

How do I use Picture-in-Picture (PIP) or Picture-by-Picture (PBP)?

Go to Screen > PIP-PBP Settings. Set Function to PIP or PBP. Choose Main Source and Sub Source from available inputs. You can adjust Location and Size of the PIP window. Use Swap to exchange main and sub sources.

USER MANUAL ZU610T OPTOMA

Line drawing of a rectangular electronic device with ventilation slots and a circular vent (no text or symbols)

TABLE OF CONTENTS

SAFETY 3

Regulation & Safety Notices....5

INTRODUCTION 8

Package Overview 8

Product Overview....9

Main Unit 9

Control Panel....10

Connections 11

Remote Control 12

SETUP AND INSTALLATION ....14

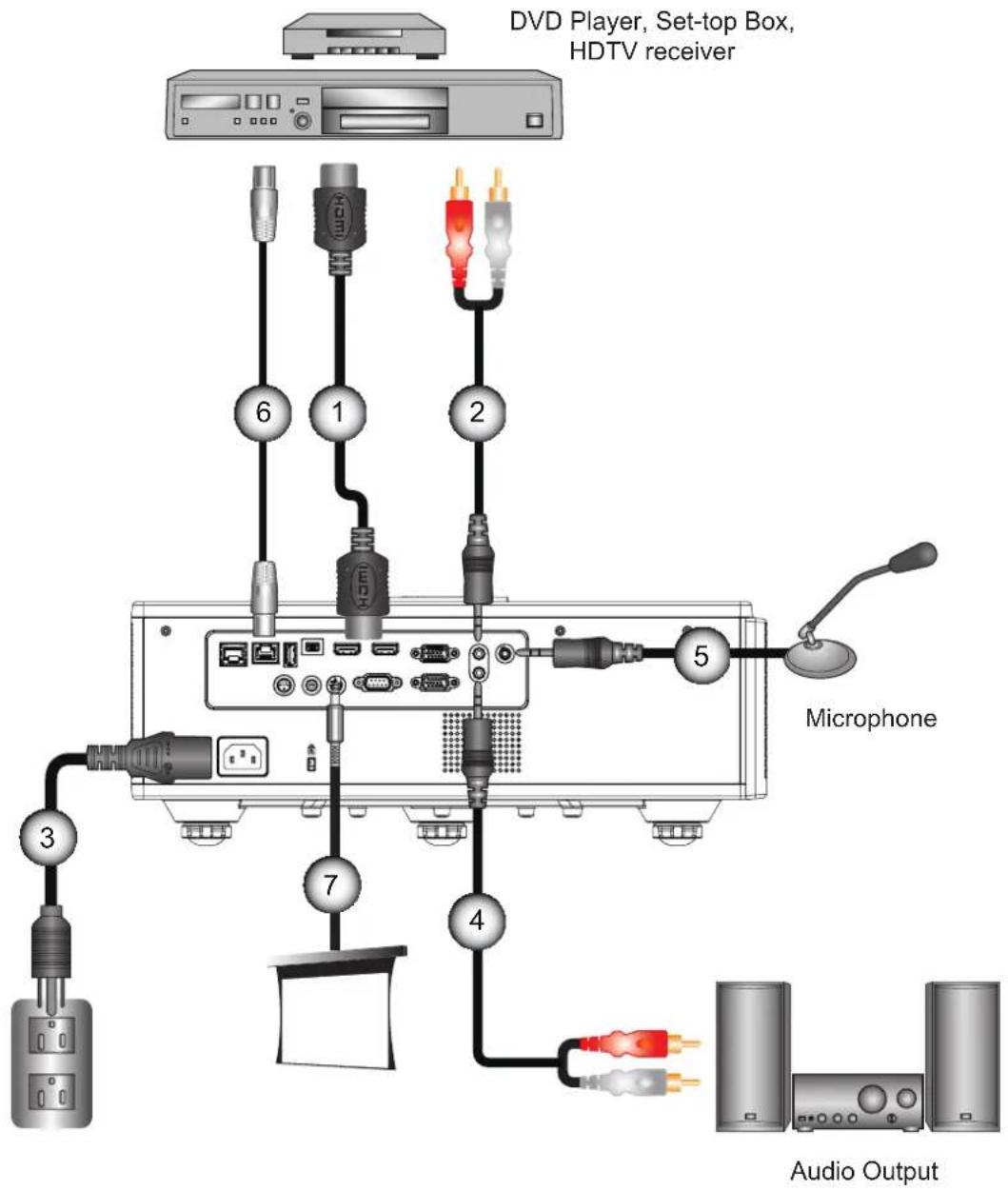

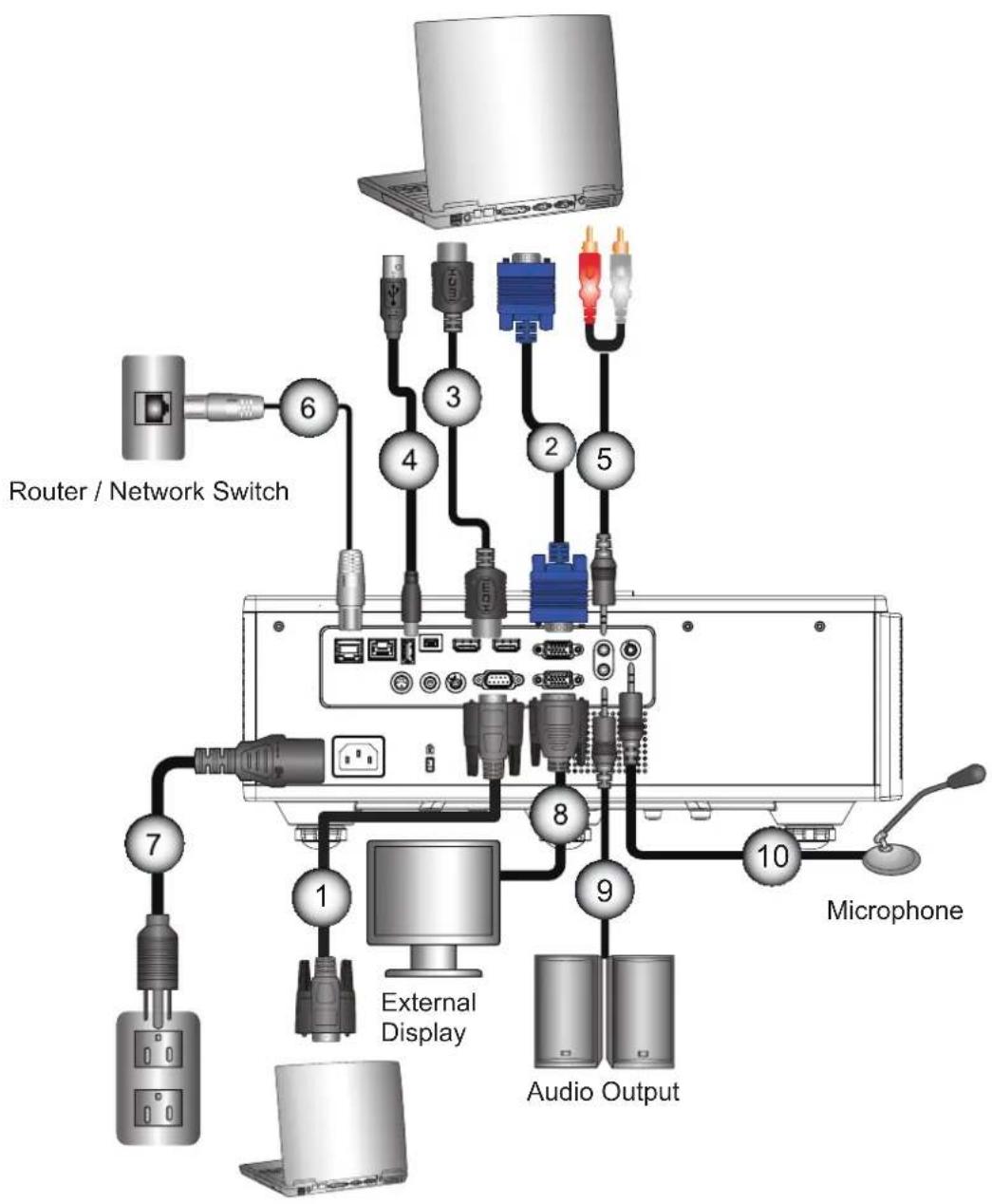

Connecting Source to the Projector 14

Powering the Projector On/Off 16

Warning Indicator 17

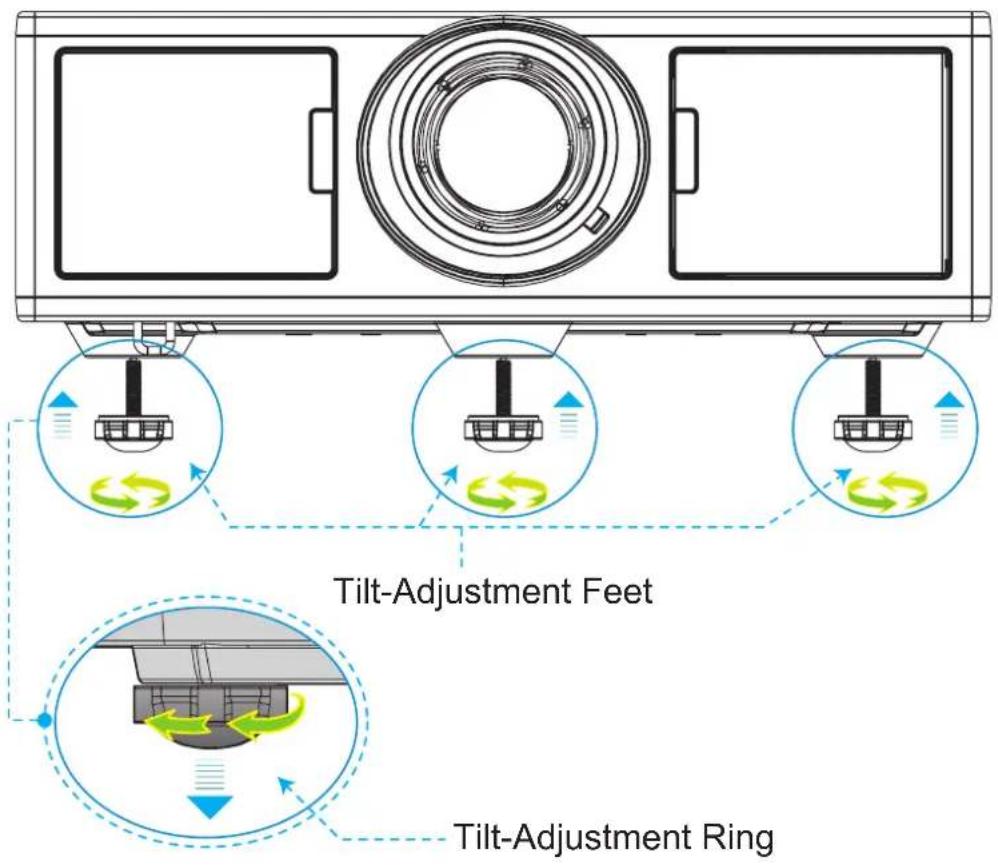

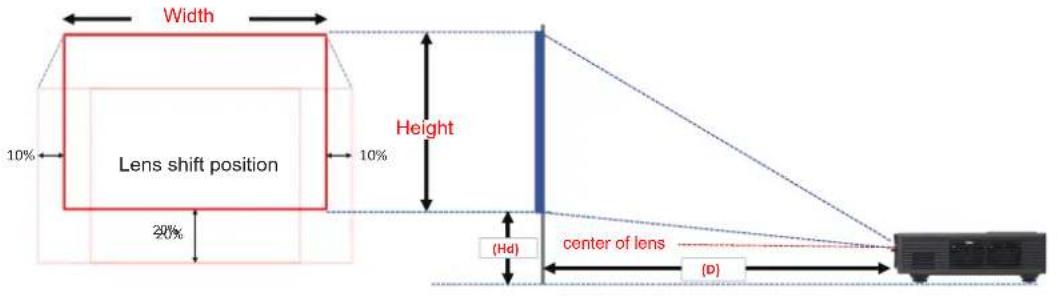

Adjusting the Projected Image 18

USER CONTROLS ....21

Using the Control Panel 21

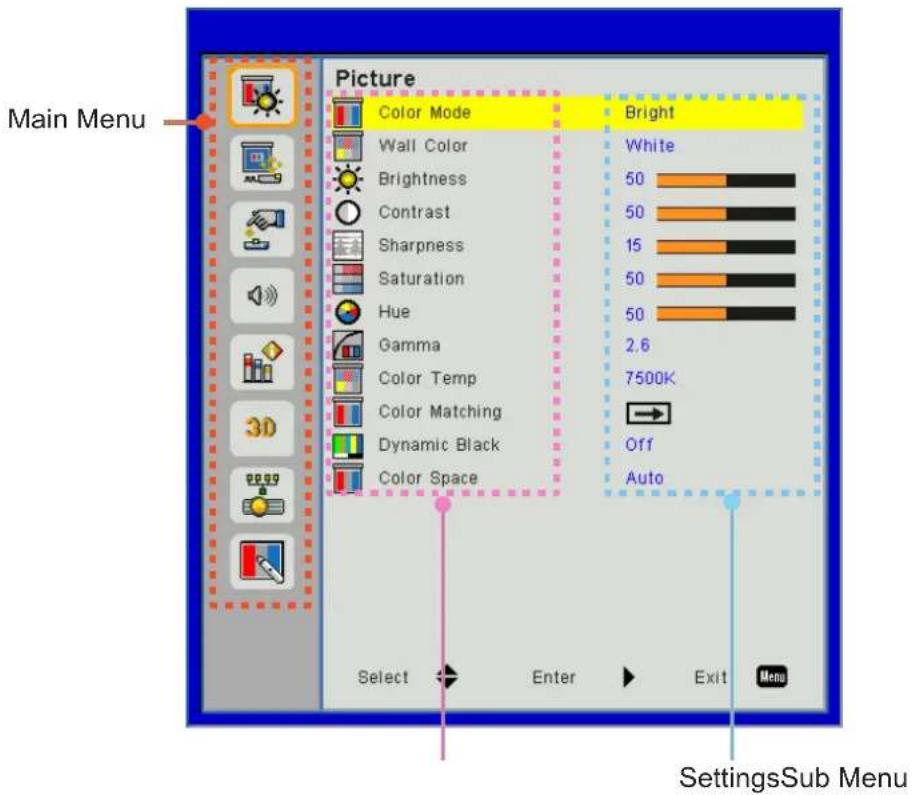

On-screen Display Menus....22

How to operate 22

Structure....23

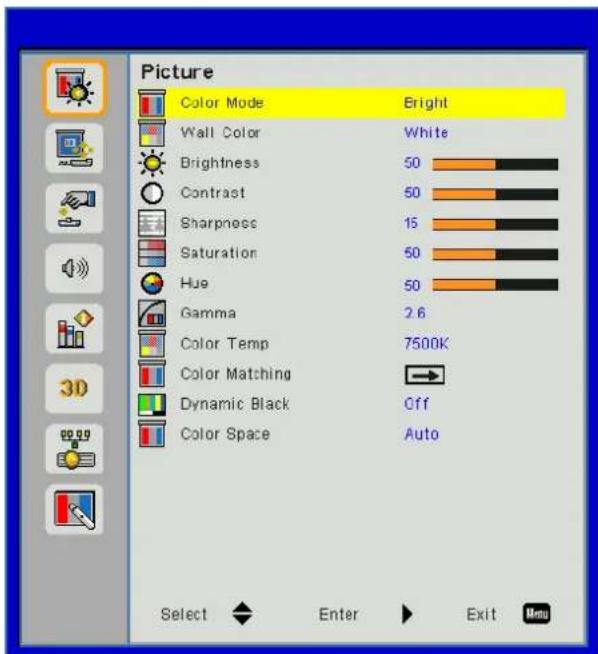

Picture 27

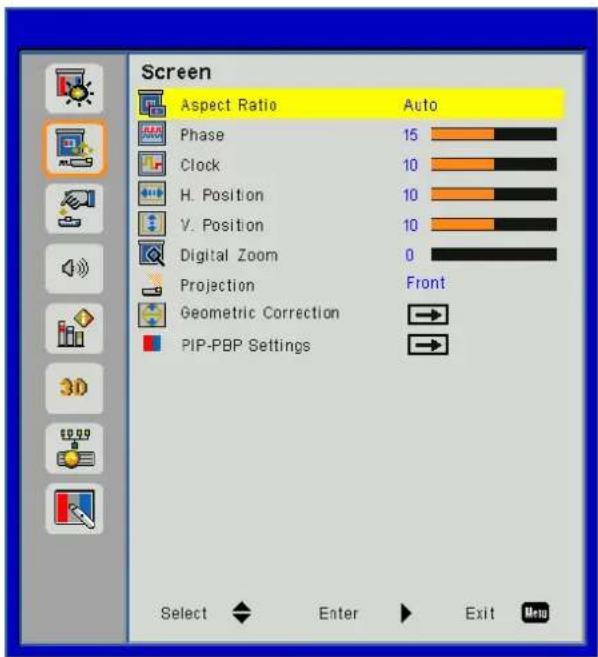

Screen 29

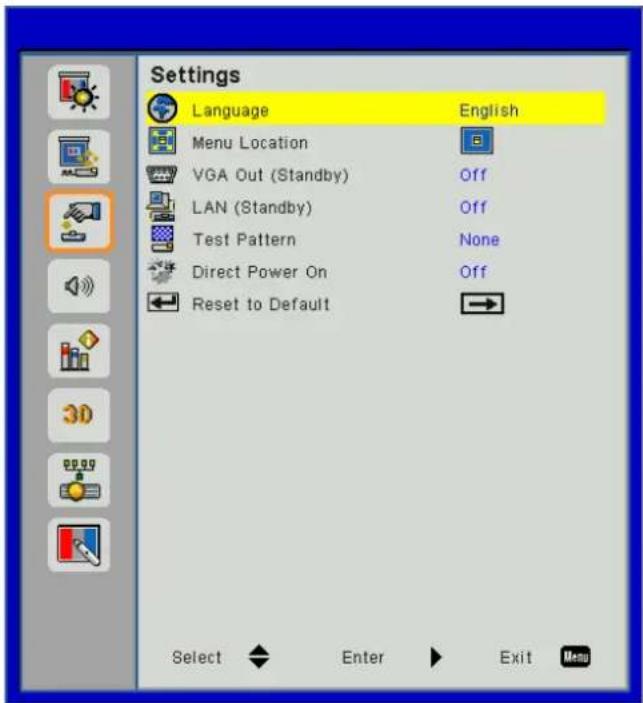

Settings 31

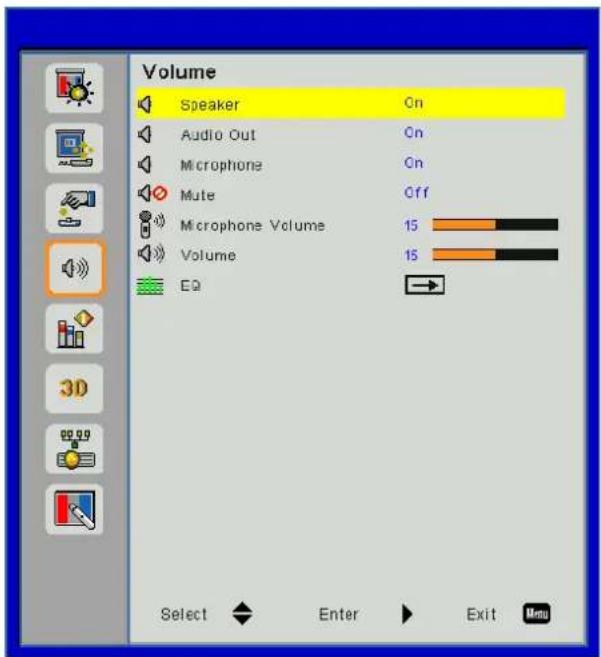

Volume 32

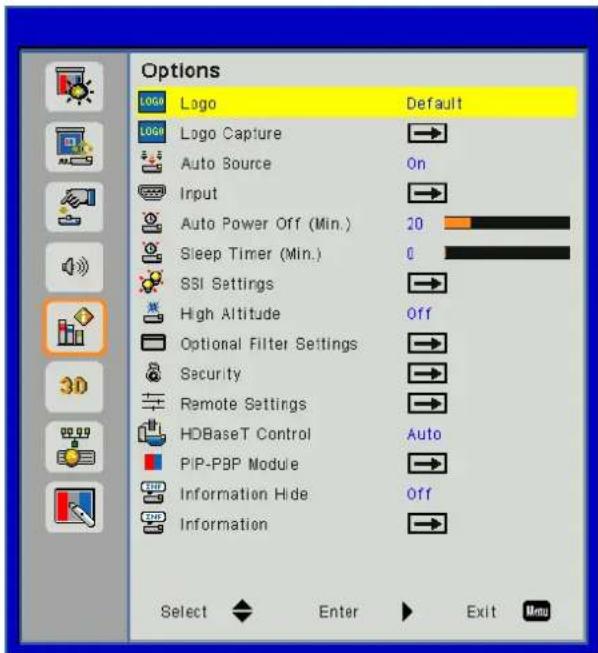

Options 33

3D....36

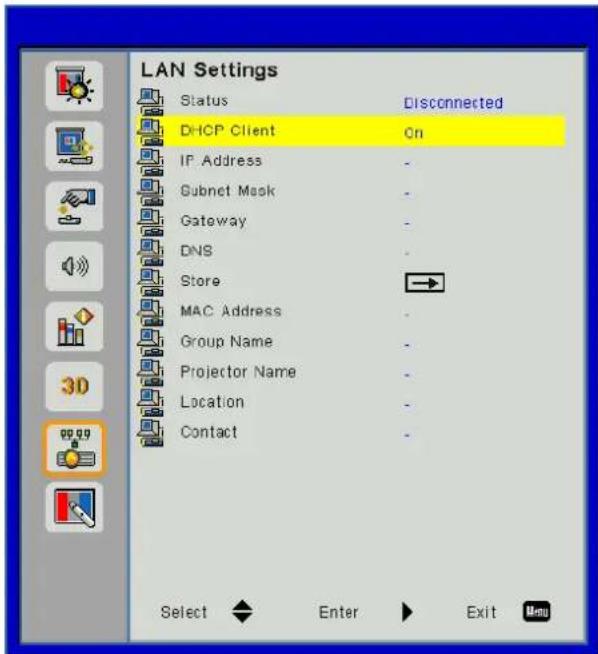

LAN 37

APPENDICES 38

Projector Problems....38

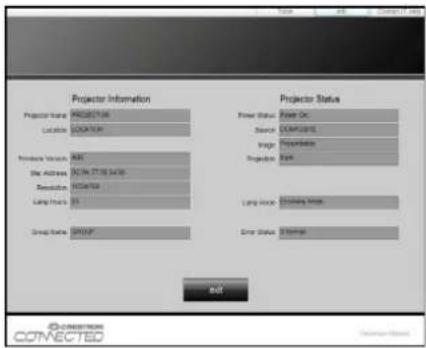

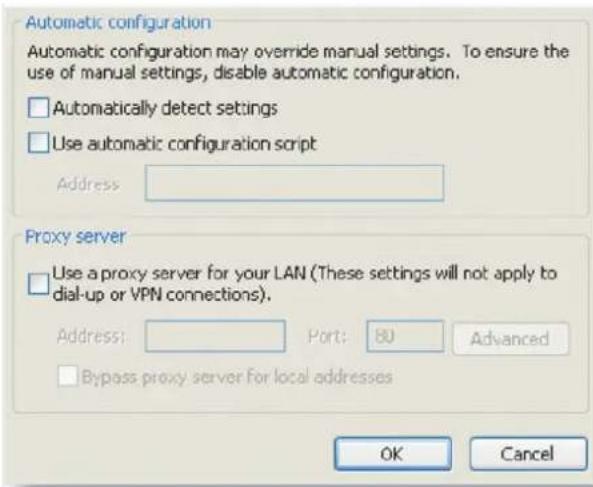

How to use web browser to control your projector ....40

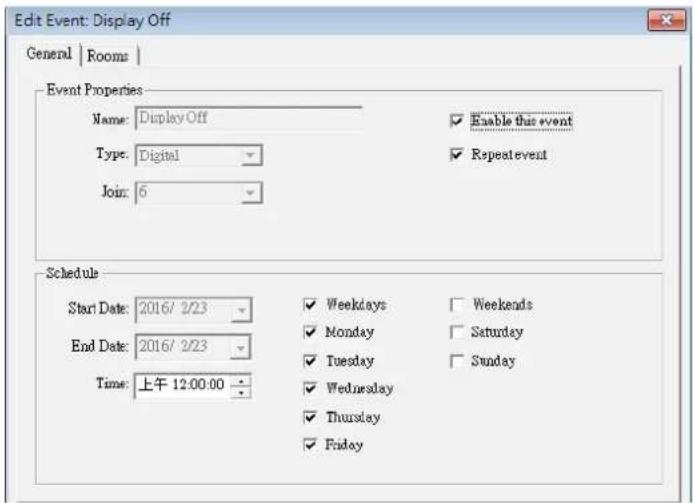

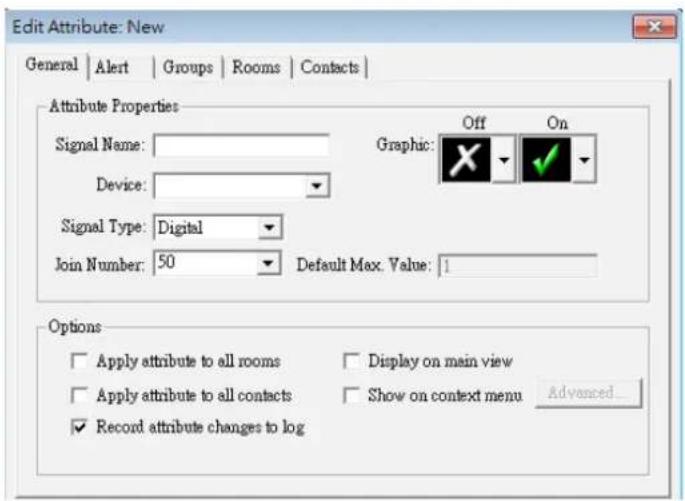

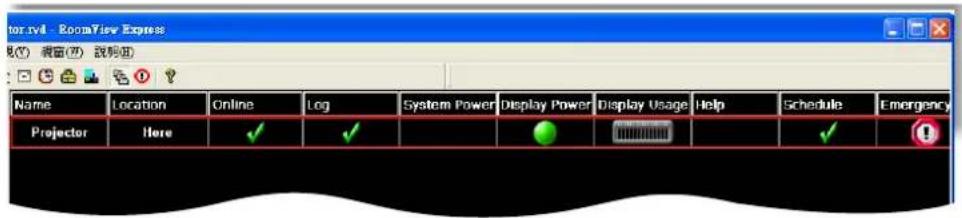

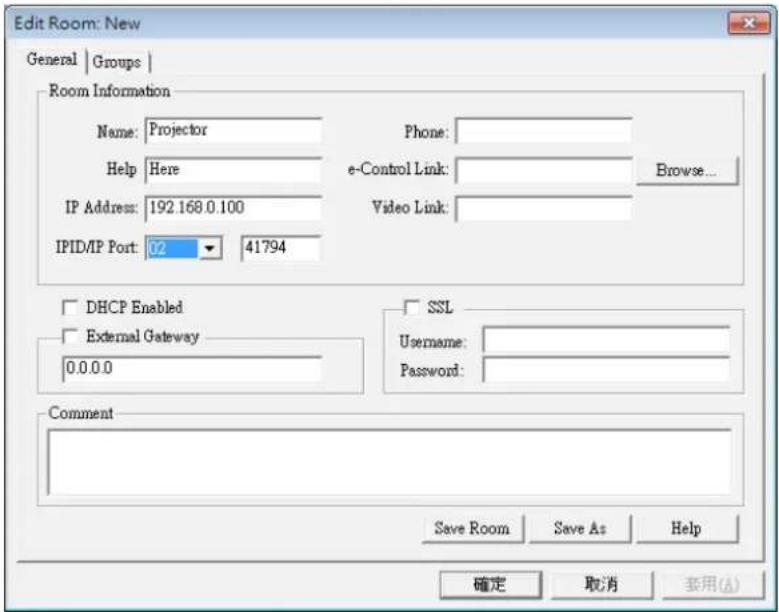

Crestron RoomView Control Tool 41

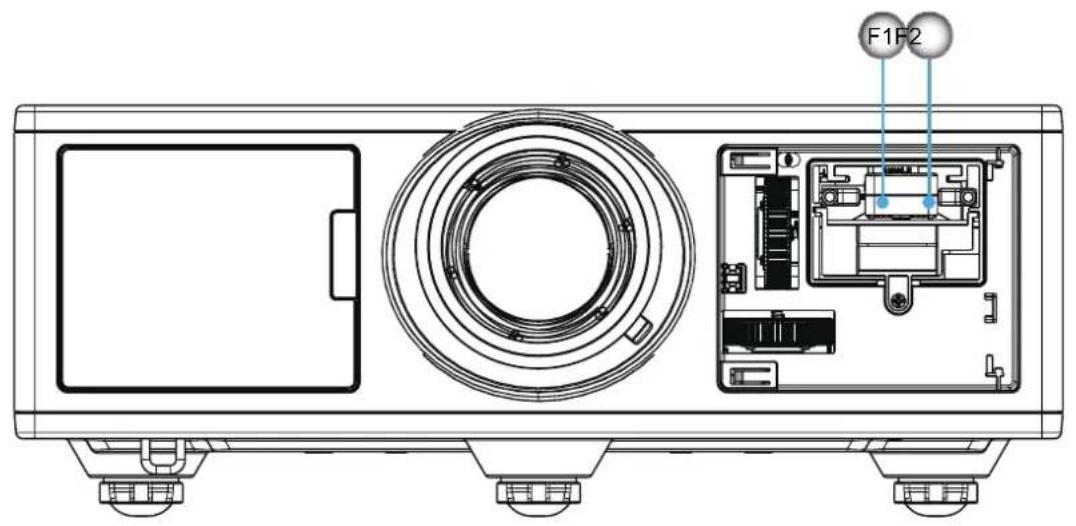

Installing and Cleaning the Optional Dust Filter 43

Compatibility Modes....44

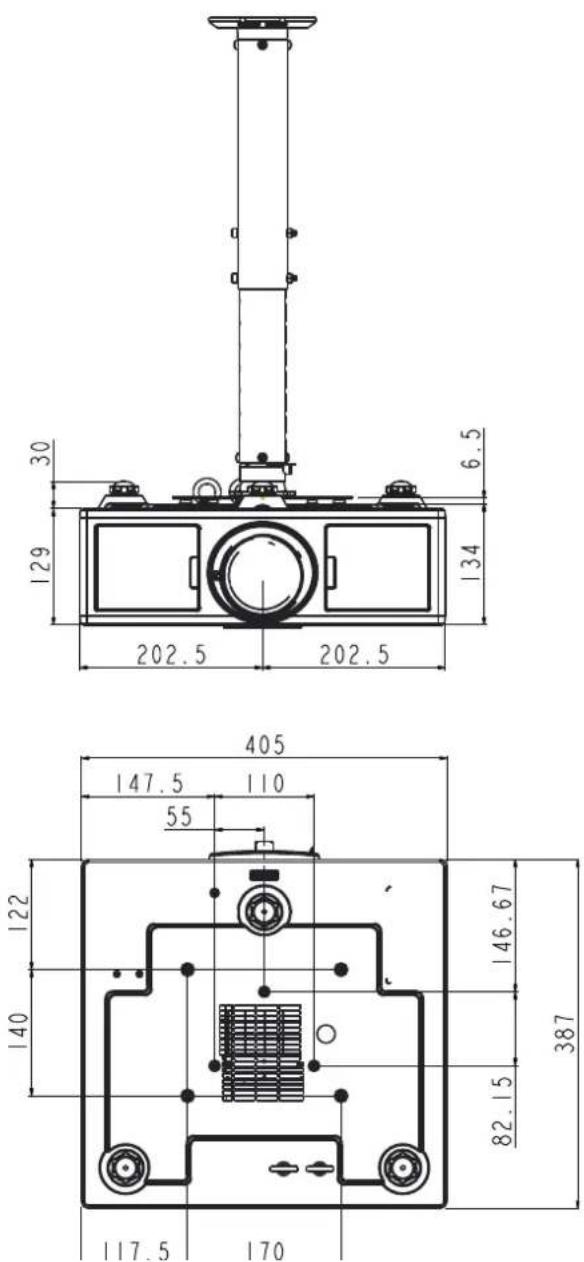

Ceiling Mount Installation 47

Optoma global offices....48

SAFETY

The lightning flash with arrow head within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. DANGEROUS HIGH VOLTAGES ARE PRESENT INSIDE THE ENCLOSURE. DO NOT OPEN THE CABINET. REFER SERVICING TO QUALIFIED PERSONNEL ONLY.

Class B emissions limits

This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.

Important Safety Instruction

1. Do not block any ventilation openings. To ensure reliable operation of the projector and to protect from over heating, it is recommended to install the projector in a location that does not block ventilation. As an example, do not place the projector on a crowded coffee table, sofa, bed, etc. Do not put the projector in an enclosure such as a book case or a cabinet that restricts air flow.
2. Do not use the projector near water or moisture. To reduce the risk of fire and/or electric shock, do not expose the projector to rain or moisture.
3. Do not install near heat sources such as radiators, heaters, stoves or any other apparatus such as amplifiers that emits heat.
4. Clean only with dry cloth.
5. Only use attachments/accessories specified by the manufacturer.
6. Do not use the unit if it has been physically damaged or abused.
   Physical damage/abuse would be (but not limited to):

Unit has been dropped.
☐ Power supply cord or plug has been damaged.
☐ Liquid has been spilled on to the projector.
☐ Projector has been exposed to rain or moisture.
Something has fallen in the projector or something is loose inside.

Do not attempt to service the unit yourself. Opening or removing covers may expose you to dangerous voltages or other hazards.

1. Do not let objects or liquids enter the projector. They may touch dangerous voltage points and short out parts that could result in fire or electric shock.

2. See projector enclosure for safety related markings.

3. The unit should only be repaired by appropriate service personnel.

Precautions

Please follow all warnings, precautions and maintenance as recommended in this user's guide.

Warning- Do not look into the projector's lens when the light source is on. The bright light may hurt and damage your eyes.
Warning- To reduce the risk of fire or electric shock, do not expose this projector to rain or moisture.
Warning- Please do not open or disassemble the projector as this may cause electric shock.
Warning- Please do not open or disassemble the projector as this may cause electric shock.

Do:

Turn off and unplug the power plug from the AC outlet before cleaning the product.

Use a soft dry cloth with mild detergent to clean the display housing.

Disconnect the power plug from AC outlet if the product is not being used for a long period of time.

Do not:

Block the slots and openings on the unit provided for ventilation.

Use abrasive cleaners, waxes or solvents to clean the unit.

Use under the following conditions:

- In extremely hot, cold or humid environments.

Sea level to 6000 feet Extremely hot: >35°C Extremely cool: <5°C

6000 feet above Extremely hot: >30°C Extremely cool: <5°C Extremely humid: >70% R.H. (Relative Humidity)

• In areas susceptible to excessive dust and dirt.
• Near any appliance generating a strong magnetic field.
• In direct sunlight.

3D Safety Information

Please follow all warnings and precautions as recommended before you or your child use the 3D function.

Warning

Children and teenagers may be more susceptible to health issues associated with viewing in 3D and should be closely supervised when viewing these images.

Photosensitive Seizure Warning and Other Health Risks

• Some viewers may experience an epileptic seizure or stroke when exposed to certain flashing images or lights contained in certain Projector pictures or video games. If you suffer from, or have a family history of epilepsy or strokes, please consult with a medical specialist before using the 3D function.
• Even those without a personal or family history of epilepsy or stroke may have an undiagnosed condition that can cause photosensitive epileptic seizures.
• Pregnant women, the elderly, sufferers of serious medical conditions, those who are sleep deprived or under the influence of alcohol should avoid utilizing the unit's 3D functionality.

• If you experience any of the following symptoms, stop viewing 3D pictures immediately and consult a medical specialist: (1) altered vision; (2) light-headedness; (3) dizziness; (4) involuntary movements such as eye or muscle twitching; (5) confusion; (6) nausea; (7) loss of awareness; (8) convulsions; (9) cramps; and/or (10) disorientation. Children and teenagers may be more likely than adults to experience these symptoms. Parents should monitor their children and ask whether they are experiencing these symptoms.

• Watching 3D projection may also cause motion sickness, perceptual after effects, disorientation, eye strain and decreased postural stability. It is recommended that users take frequent breaks to lessen the potential of these effects. If your eyes show signs of fatigue or dryness or if you have any of the above symptoms, immediately discontinue use of this device and do not resume using it for at least thirty minutes after the symptoms have subsided.

• Watching 3D projection while sitting too close to the screen for an extended period of time may damage your eyesight. The ideal viewing distance should be at least three times the screen height. It is recommended that the viewer's eyes are level with the screen.
• Watching 3D projection while wearing 3D glasses for an extended period of time may cause a headache or fatigue. If you experience a headache, fatigue or dizziness, stop viewing the 3D projection and rest.
• Do not use the 3D glasses for any other purpose than for watching 3D projection.
• Wearing the 3D glasses for any other purpose (as general spectacles, sunglasses, protective goggles, etc.) may be physically harmful to you and may weaken your eyesight.
• Viewing in 3D projection may cause disorientation for some viewers. Accordingly, DO NOT place your 3D PROJECTOR near open stairwells, cables, balconies, or other objects that can be tripped over, run into, knocked down, broken or fallen over.

Copyright

This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. Neither this manual, nor any of the material contained herein, may be reproduced without written consent of the author.

© Copyright 2015

Disclaimer

The information in this document is subject to change without notice. The manufacturer makes no representations or warranties with respect to the contents hereof and specifically disclaims any implied warranties of merchantability or fitness for any particular purpose. The manufacturer reserves the right to revise this publication and to make changes from time to time in the content hereof without obligation of the manufacturer to notify any person of such revision or changes.

Trademark Recognition

Kensington is a U.S. registered trademark of ACCO Brand Corporation with issued registrations and pending applications in other countries throughout the world.

HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

IBM is a trademark or registered trademark of International Business Machines, Inc. Microsoft, PowerPoint, and Windows are trademarks or registered trademarks of Microsoft Corporation.

Adobe and Acrobat are trademarks or registered trademarks of Adobe Systems Incorporated.

DLP, DLP Link and the DLP logo are registered trademarks of Texas Instruments and BrilliantColorTM is a trademark of Texas Instruments.

All other product names used in this manual are the properties of their respective owners and are Acknowledged.

Regulation & Safety Notices

This appendix lists the general notices of your projector.

FCC notice

This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this device does cause harmful interference to radio or television reception, which can be determined by turning the device off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the device and receiver.
• Connect the device into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/television technician for help.

Notice: Shielded cables

All connections to other computing devices must be made using shielded cables to maintain compliance with FCC regulations.

Caution

Changes or modifications not expressly approved by the manufacturer could void the user's authority, which is granted by the Federal Communications Commission, to operate this projector.

Operation conditions

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference and
2. This device must accept any interference received, including interference that may cause undesired operation.

Notice: Canadian users

This Class B digital apparatus complies with Canadian ICES-003.

Declaration of Conformity for EU countries

• EMC Directive 2004/108/EC (including amendments)
• Low Voltage Directive 2006/95/EC
• R & TTE Directive 1999/5/EC (if product has RF function)

Disposal instructions

Do not throw this electronic device into the trash when discarding. To minimize pollution and ensure utmost protection of the global environment, please recycle it.

Safety notice

WARNING

• This product is classified as Class 2 of IEC 60825-1:2007 and also complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007. IEC 60825-1:2014: CLASS 1 LA-SER PRODUCT - RISK GROUP 2
• Explanatory label is shown all information of laser power.
• This projector has built-in Class 4 laser module. Disassembly or modification is very dangerous and should never be attempted.
• Any operation or adjustment not specifically instructed by the user's guide creates the risk of hazardous laser radiation exposure.
• Do not open or disassemble the projector as this may cause damage by the exposure of laser radiation.
• Do not stare into beam when the projector is on. The bright light may result in permanent eye damage.
• When turning on the projector, make sure no one within projection range is looking at the lens.
• Without following the control, adjustment or operation procedure may cause damage by the exposure of laser radiation.
• Adequate instructions for assembly, operation, and maintenance, including clear warnings concerning precautions to avoid possible exposure to laser and collateral radiation in excess of the accessible emission limits in Class 2.
• This projector is a Class 2 laser device that conforms with IEC 60825-1:2007 and CFR 1040.10 and 1040.11.
• Class 2 laser product, Do Not Stare Into Beam.
• This projector has built-in Class 4 laser module. Disassembly or modification is very dangerous and should never be attempted.
• Any operation or adjustment not specifically instructed by the user's guide cre- ates the risk of hazardous laser radiation exposure.
• Do not open or disassemble the projector as this may cause damage by the exposure of laser radiation.
• Do not stare into beam when the projector is on. The bright light may result in permanent eye damage.
• Without following the control, adjustment or operation procedure may cause damage by the exposure of laser radiation.
• Adequate instructions for assembly, operation, and maintenance, including clear warnings concerning precautions to avoid possible exposure to laser and collateral radiation in excess of the accessible emission limits in Class 2.

INTRODUCTION

Package Overview

Unpack and inspect the box contents to ensure all parts listed below are in the box. If something is missing, please contact your nearest customer service center.

Illustration of a projector with a labeled component, shown in 3D perspective (no text or symbols on the diagram itself)

Line drawing of a cable with two connectors and a connector, labeled 'Power Cord VGA Cap' below (no other text or symbols)

Diagram of a mechanical or electrical component with coiled wires and connectors (no text or symbols)

Note: * For European warranty Information, please visit www.optomaeurope.com Due to different applications in each country, some regions may have edifferent accessories.

INTRODUCTION

Product Overview

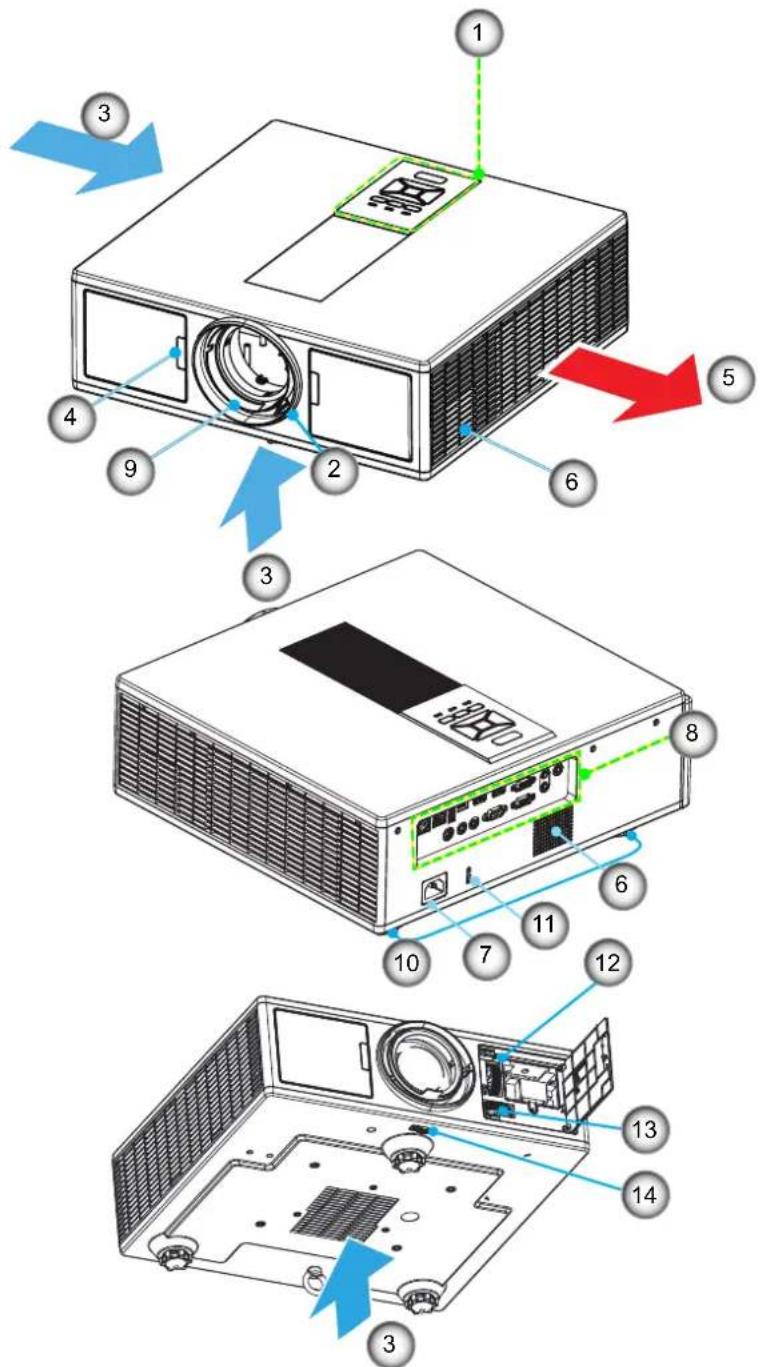

Main Unit

Note: Do not block projector inlet or outlet air vents.

No Item

1. Keypad

2. Focus Ring

3. Ventilation (inlet)

4. IR Receiver

5. Ventilation (outlet)

6. Speakers

7. Power Socket

No Item

8. Input / Output Connections

9. Lens

10. Tilt-Adjustment Foot

11. Kensington Lock

12. Lens Shift (vertical)

13. Lens Shift (Horizontal)

14. Lens lock

INTRODUCTION

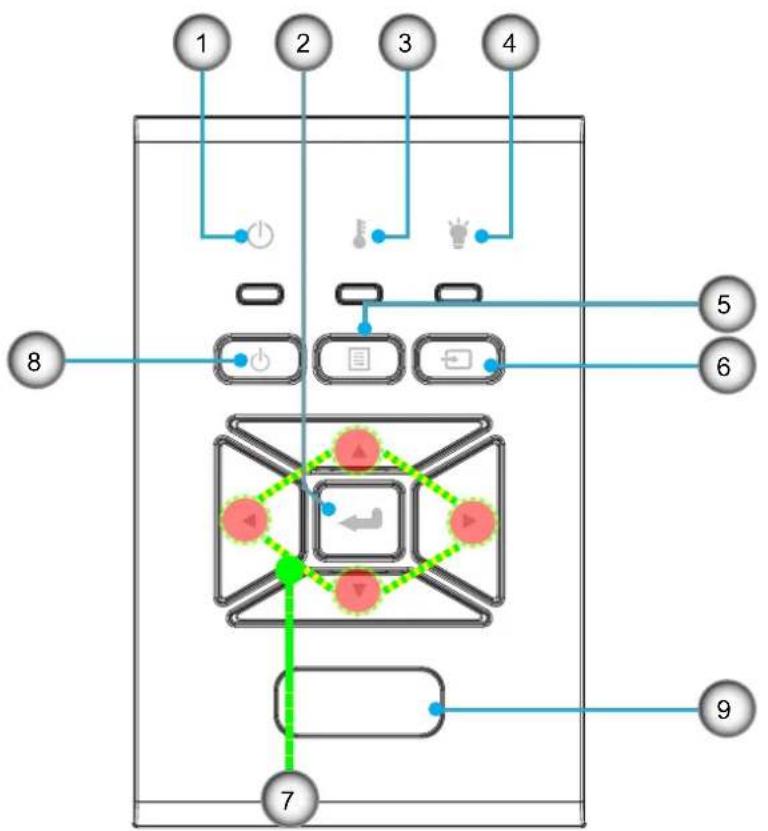

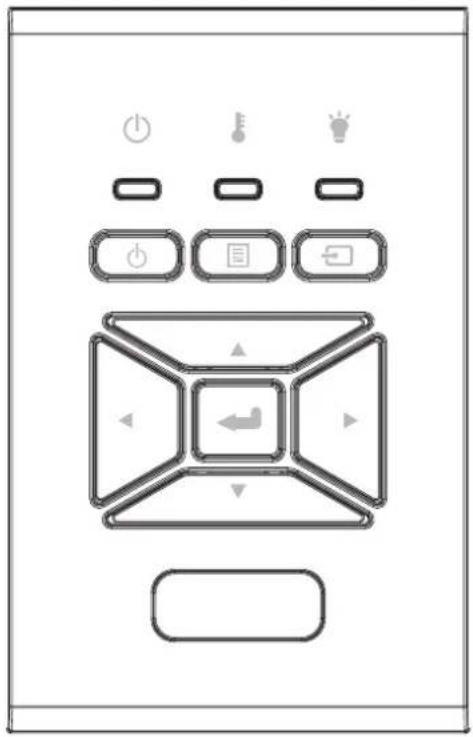

Control Panel

No Item

1. On/Standby LED
2. Enter
3. Temp LED
4. Lamp LED
5. Menu

No Item

1. Source
2. Four Directional Select Keys
3. Power/Standby button
4. IR Receiver

INTRODUCTION

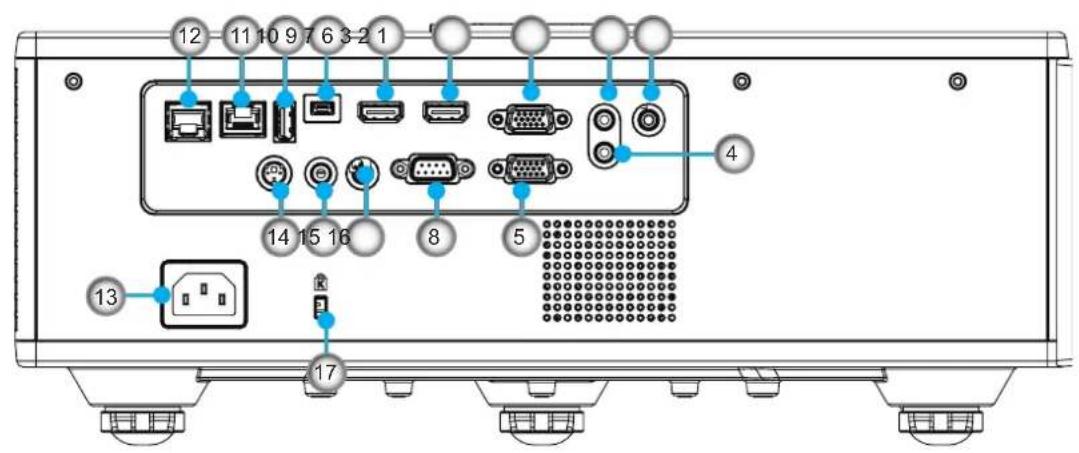

Connections

No Item

1. Microphone connector
2. Audio In connector
3. VGA In/ YPbPr connector
4. Audio Out connector
5. VGA Out connector
6. HDMI 1connector
7. HDMI 2/MHL connector
8. RS232C connector
9. USB-B mini connector
10. USB Power Out (5V ---1.5A) Connector

No Item

1. HDBaseT connector (Depending on Model)
   12.RJ45
2. Power Socket
3. 3D Sync Out (5V) connector
4. Wired Remote connector
5. 12V Trigger connector
6. Kensington Lock
   F1 HDMI3/MHL Connector
   F2 USB Power

INTRODUCTION

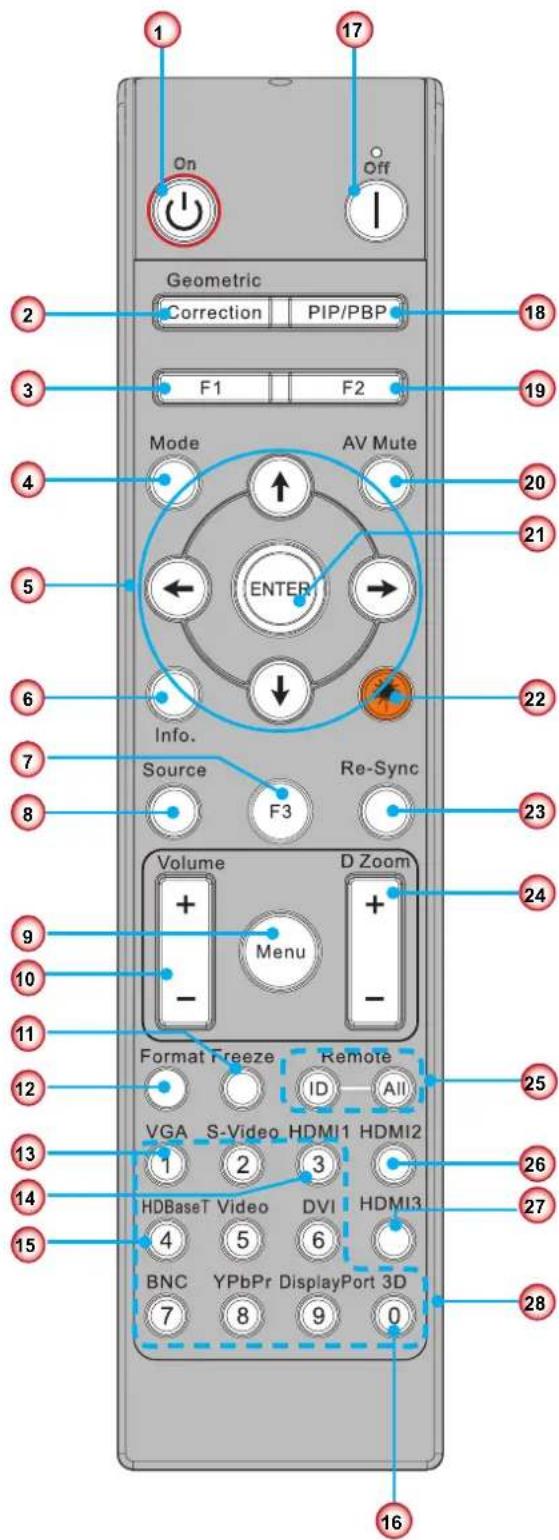

Remote Control

No Item

1. Power On Power on the projector.

2. Geometric Correction Launch the Geometric Correction menu.

3. F1: Test pattern Display a test pattern.

4. Display Mode Select the display mode.

5. Four directional select keys To select items or make adjustments.

6. Information Display the projector information.

7. F3:Color Matching Launch the Color Matching setting menu.

8. Input source selection Select an input signal.

9. Menu Launch the OSD menu. To exit OSD, Press "Menu" again.

10. Volume Control -/+ Increase/decrease the volume.

11. Freeze Freeze the projected image.

12. Format Choose the projector format.

13. VGA Switch to VGA source.

14. HDMI1 Switch to HDMI1 source.

15. HDBaseT (Depending on Model) Switch to HDBaseT source.

16. 3D Switch to 3D source.

17. Power Off Power off the projector.

18. PIP/PBP Menu Launch the PIP/PBP menu.

19. F2:LAN Settings Launch the LAN Setting Menu.

Note: Some keys may have no function for models that do not support these features. I/O availability will vary depending upon model and or SKU purchased.

INTRODUCTION

No Item

1. AV Mute Momentarily turns off/on the audio and video.
2. Enter Confirm your item selection.
3. Laser Use as laser pointer.
4. Re-Sync Automatically synchronize the projector to the input source.
5. Digital Room -/+ Zoom in/out the projected image.
6. Remote ID / Remote all Set the remote control ID.
7. HDMI2 Switch to HDMI2 source.
8. HDMI3 (Dongle) Switch to HDMI3(Dongle) source.
9. Number Keypad (0\~9) Use as numeric keypad number "0\~9".

SETUP AND INSTALLATION

Connecting Source to the Projector Connect to Computer/Notebook

Note:

Due to the difference in applications for each country, some regions may have different accessories. (*) Optional accessory

No Item

1. RS232 Cable
2. VGA Cable
3. HDMI Cable
4. USB Cable
5. Audio In Cable

No Item

1. RJ45 Cable
2. Power Code
3. VGA Out Cable
4. Audio Out Cable
5. Microphone cable

SETUP AND INSTALLATION

Connect to Video Sources

No Item

1. HDMI Cable
2. Audio In Cable
3. Power Code
4. Audio Out Cable

No Item

1. Microphone cable
2. RJ-45 cable (Cat5 cable)
3. 12V DC Jack
4. HDMI3/MHL cable

Note:

Due to the difference in applications for each country, some regions may have different accessories. (*) Optional accessory

SETUP AND INSTALLATION

Powering the Projector On/Off

Powering On the Projector

1. Securely connect the power cord and signal cable. When connected, the POWER/STANDBY LED will turn Red.

2. Turn on the lamp by pressing the “⏻” button either on the projector or on the remote. At this moment, the POWER/ STANDBY LED will now turn Blue. ①

The startup screen will display in approximately 6 seconds.

1. Turn on and connect the source that you want to display on the screen (computer, notebook, video player, etc). The projector will detect the source automatically.

If you connect multiple sources at the same time, press the "INPUT" button on the control panel to switch between inputs.

Note: When the power mode is in standby mode (power consumption < 0.5W), the VGA output/Wire remote/LAN will be deactivated when the projector is in standby. Audio out loop-through is always active in standby mode. HDBaseT control is always deactivated in standby mode.

Note: Turn on the projector first and then select the signal sources.

SETUP AND INSTALLATION

Powering Off the Projector

1. Press the "button on the remote control or on the control panel to turn off the projector. The following message will be displayed on the screen.

Press the "button again to confirm otherwise the message will disappear after 10 seconds. When you press the "button for the second time, the fan will start cooling the system and will shut down.

1. The cooling fans continue to operate for about 4 seconds for cooling cycle and the POWER/STANDBY LED will flash Red. When the POWER/STANDBY LED lights solid Red, the projector has entered standby mode. If you wish to turn the projector back on, you must wait until the projector has completed the cooling cycle and has entered standby mode. Once in standby mode, simply press "button to restart the projector.
2. Disconnect the power cord from the electrical outlet and the projector.

Warning Indicator

LED lightning messages

When the warning indicators (see below) come on, the projector will automatically shutdown:

“LAMP” LED indicator is lit red and/or if “TEMP” LED indicator is lit red.
“TEMP” LED indicator is lit red, this indicates the projector has overheated. Under normal conditions, the projector can be switched back on.
“TEMP” LED indicator flashes red.

Unplug the power cord from the projector, wait for 30 seconds and try again. If the warning indicator light up again, please contact your nearest service center for assistance.

Message	Power LED		Temp LED	Lamp LED
	Red Blue	Red Red
Standby State (LAN Off)	On
Standby State (LAN On)	On On
Power On		On
Warning Up	Flashing
Error(PowerGood NG)			On On
Error (Fan fail)			Flashing
Error (Over Temp)			On
Error (LD fail)				On

SETUP AND INSTALLATION

Adjusting the Projected Image

Adjusting the Projector's Height

The projector is equipped with elevator feet for adjusting the image height.

1. Locate the adjustable foot you wish to modify on the underside of the projector.

2. Rotate the adjustable ring clockwise to raise the projector or counter clockwise to lower it. Repeat with the remaining feet as needed.

SETUP AND INSTALLATION

Adjusting Projector Focus and Zoom

1. To adjust the image size, turn the zoom ring clockwise or anticlockwise to increase or decrease the projected image size.
2. To adjust the focus, turn the focus ring clockwise or anticlockwise until the image is sharp and legible.

The projector will focus at distances (lens to wall) from 4.27 \~ 25.59 feet (1.3-7.8 meters).

Adjusting Projection Image Size (Diagonal)

Projection Image Size from 36" to 300" (1.09\~9.09 meters).

Open the front side door of the projector.1.

Unlock the lens lock, before adjust the lens shift.2.

Turn the vertical/horizontal lens shift knob to shift the lens3.

Turn the lens lock clockwise to lock the lens in place 4.

( Lens shift knob still can be rotated.)

Close the front side door of the projector.5.

Note: The stroke for lens shift is designed to be regular triangle, when lens are adjusted to central position horizontally, lens can be vertically shifted to the highest point

SETUP AND INSTALLATION

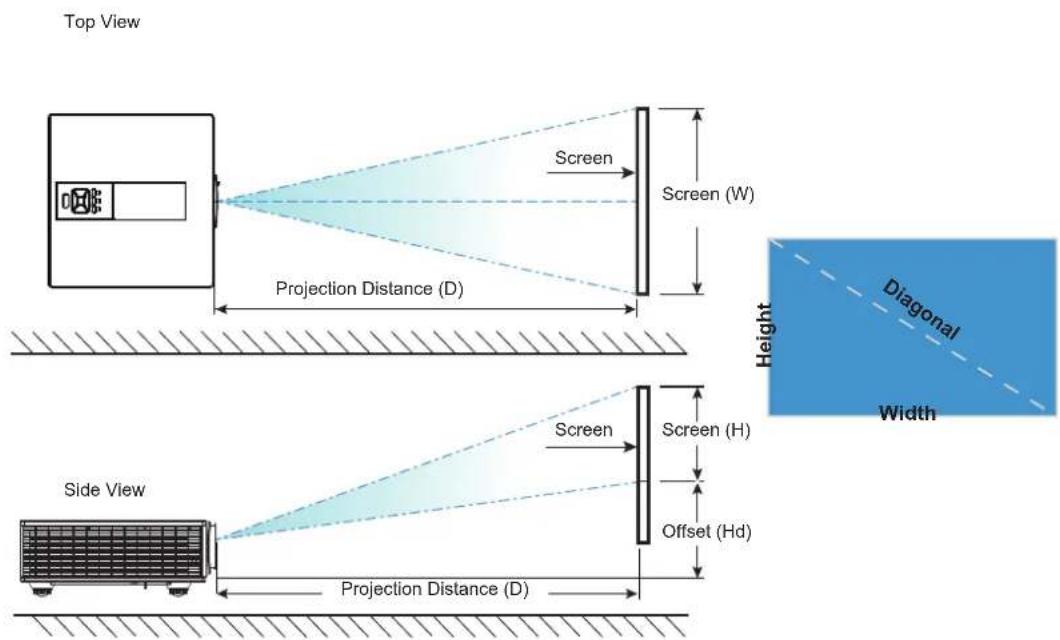

Image Offset
	image size Screen Size WxH Projection Distance (D) Offset (Hd)
	inch cm inch cm inch cm			inch
	Diagonal	Width	Height	Width	Height	Wide	Tele	Wide	Tele	Wide	Tele	Wide	Tele
WUXGA 16:10	36"	78.0	49.0	30.7	19.3	NA	170.0	NA	66.9	20.1	20.1	7.9	7.9
	100"	215.0	135.0	84.6	53.1	260.0	460.0	102.4	181.1	37.4	37.4	14.7	14.7
	150"	323.0	202.0	127.2	79.5	390.0	690.0	153.5	271.7	50.8	50.8	20.0	20.0
	200"	431.0	269.0	169.7	105.9	520.0	920.0	204.7	362.2	64.3	64.3	25.3	25.3
	250"	539.0	337.0	212.2	132.7	640.0	NA	252.0	NA	77.8	77.8	30.6	30.6
	300"	646.0	404.0	254.3	159.1	770.0	NA	303.1	NA	91.2	91.2	35.9	35.9

This table is for user's reference only.

USER CONTROLS

Using the Control Panel

Name	Description
POWER ⏻	Refer to the “Power On/Off the Projector” section on pages 16-17.
Enter Confirm a selected item.
INPUT ➕	Select an input signal
MENU ➖	Launch the on-screen display (OSD) menu. To exit OSD, press “MENU” again.
Four Directional Select Keys	Use ▲▼◀▶ to select items or make adjustments to your selection.
LAMP LED ➕	Refer to the LED indicator of the projector light source status.
TEMP LED ➖	Refer to the LED indicator of the projector temperature status.
ON/STANDBY LED ➕	Refer to the LED indicator of the projector power status.

USER CONTROLS

On-screen Display Menus

The Projector has multilingual On-screen Display menus that allow you to make image adjustments and change a variety of settings.

How to operate

To open the OSD menu, press "Menu" on the Remote Control or Projector Keypad.1.

When OSD is displayed, use ▲▼ 2. keys to select any item in the main menu. While making a selection on a particular page, press the ▶ or "Enter" key to enter sub menu.

Use the 3. ▲▼ keys to select the desired item and adjust the settings using the ◀▶ key.

Select the next item to be adjusted in the sub menu and adjust as described above.4.

Press "Enter" to confirm.5.

To exit, press "Menu" again. The OSD menu will close and the projector will automatically save the new settings.6.

USER CONTROLS

Structure

Note: Please note that the on-screen display (OSD) menus vary according to the signal type selected and the projector model you are using.

Main Menu	Sub Menu Setting
Picture	Color Mode		Bright/Presentation/Movie/sRGB/Blending/DICOM SIM./User (Change Color Mode to User Mode if customer changes the settings)
	Wall Color White/Light Yellow/Light Blue/Pink/Dark Green
	Brightness
	Contrast
	Sharpness
	Saturation		(For VGA component signal only)
	Hue		(VGA component signal only)
	Gamma Film/Graphics/1.8/2.0/2.2/2.6/Blackboard/DICOM SIM
	Color Temp 5500K/6500K/7500K/8500K/9500K
	Color Matching	White/Red/Green/Blue/Cyan/Magenta/Yellow	Hue/Saturation /Gain
	Dynamic Black On/Off
	Color Space		Not HDMI Input: Auto/RGB/YUV
			HDMI Input: Auto/RGB(0~255)/RGB(16~235)/YUV
Screen	Aspect Ratio Auto/4:3/16:9/16:10
	Phase
	Clock
	H.Position
	V.Position
	Digital Zoom
	Projection Front/Front Ceiling/Rear/Rear Ceiling
	Geometric Correction	V. Keystone
		H. Keystone
		4 Corners On/Off
		Grid Color Purple/Green
		Reset Yes/No
	PIP-PBP Settings	Function PBP/PIP/Off
		Main Source	VGA/HDMI-1/HDMI-2/Dongle/HDBaseT
		Sub Source	VGA/HDMI-1/HDMI-2/Dongle/HDBaseT
		Location	Top Left/Top Right/Bottom Left/Bottom Right
		Size	Small/Medium/Large
		Swap

USER CONTROLS

Main Menu	Sub Menu Setting
Settings	Language		English/German/French/Italian/Spanish/Polish/Swedish/Dutch/Portugese/Japanese/Traditional Chinese/ Simplified Chinese /Korean/Russian/Arabic/Norsk/Turkish/Danish/Finnish/Greek/Hungarian/Czech/Romania/Thai/Farsi/Vietnam/Indonesian/Slovakian
	Menu Location Left	Top, Right Top, Center, Left Bottom, Right Bottom
	VGA OUT(Standby)		Off/On
	LAN (Standby) Off/On
	Test Pattern None /	Grid / White
	Direct Power On On	/Off
	Reset to Default Yes/No
Volume	Speaker On/Off
	Audio Out On/Off
	Microphone On/Off
	Mute On/Off
	Volume
	Microphone Volume
	EQ

USER CONTROLS

Main Menu	Sub Menu Setting
Options	Logo Default/User
	Logo Capture
	Auto Source On/Off

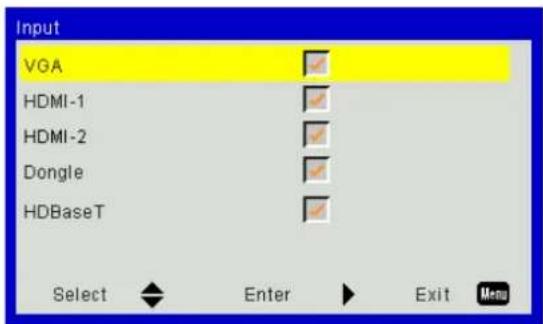

	Input VGA, HDMI-1,	HDMI-2, Dongle,	HDBaseT
	Auto Power Off (Min.)
	Sleep Timer (Min.)
	SSI Settings		SSI Hours Used (Normal)
			SSI Hours Used (ECO)
		SSI Power Mode	Normal, ECO
	High Altitude On/Off	[Default Off]
	Optional Filter Settings	Optional Filter Installed	Yes/No
		Filter Usage Hours	Read-Only
		Filter Reminder
		Cleaning Up Reminder	Yes/No
	Security	Security On /	Off
		Security Timer Month / Day / Hour
		Change Password
	Remote Settings	IR Function On	/ Off
		Remote Code 00 ~ 99
	HDBaseT Control	Auto
		HDBaseT
	PIP-PBP Module		Version
			HDMI EQ
			Reset
			USB Upgrade
	Information Hide On	/ Off
	Information		Model Name
			SNID
			Source (Main Source / Sub Source)
			Main Source Resolution
			Sub Source Resolution
			SW Version (DDP/MCU/LAN)
			Aspect Ratio
			SSI Hours (Normal/Eco)
			IP Address
			Network Status
			Remote Code
			Remote Code (Active)

USER CONTROLS

Main Menu	Sub Menu Setting
3D	3D Auto/On
	3D Invert On/Off
	3D Format		Frame Packing
			Side-by-Side (Half)
			Top amd Bottom
			Frame Sequential
			Field Sequential
	1080p @ 24 96Hz/1	44Hz
Network	Status
	DHCP Client On/Off
	IP Address
	Subnet Mask
	Gateway
	DNS
	Store
	MAC Address
	Group Name
	Projector Name
	Location
	Contact

USER CONTROLS


Color Mode

There are many factory presets optimized for various types of images. Use the ◀ or ▶ button to select the item.

Bright: For brightness optimization.

Presentation: For meeting presentation.

Movie: For playing video content.

sRGB: For game content.

Blending: For blending application.

DICOM Sim:•

User: Memorize user's settings.

Wall Color

Use this function to obtain an optimized screen image according to the wall color. You can select from "White", "Light Yellow", "Light Blue", "Pink", and "Dark Green".

Brightness

Adjust the brightness of the image.

Press the ◀ button to darken image.

Press the ▶ button to brighten image.

Contrast

The Contrast controls the difference between the lightest and darkest parts of the picture. Adjusting the contrast changes the amount of black and white in the image.

Press the ◀ button to decrease the contrast.

Press the ▶ button to increase the contrast.

Sharpness

Adjust the sharpness of the image.

Press the ◀ button to decrease the sharpness.

Press the ▶ button to increase the sharpness.

Note: "Sharpness", "Sat-uration" and "Hue" functions are only supported under video mode.

USER CONTROLS

Saturation

Adjust a video image from black and white to fully saturated color.

Press the ◀ button to decrease the amount of saturation in the image.

Press the ▶ button to increase the amount of saturation in the image.

Hue

Adjust the color balance of red and green.

Press the ◀ button to increase the amount of green in the image.

Press the ▶ button to increase the amount of red in the image.

Gamma

This allows you to adjust the gamma value to obtain the better image contrast for the input.

Color Temp

This allows you to adjust the color temperature. At higher temperature, the screen looks colder; at lower temperature, the screen looks warmer.

Color Maching

Use these settings for advanced adjustment of the individual Red, Green, Blue, Cyan, Magenta and Yellow and White Colors.

Dynamic Black

Use this function to increase the contrast ratio.

Color Space

Select an appropriate color matrix type from AUTO, RGB, RGB(0-255), RGB(16-235) or YUV.

Note: "RGB (0-255)" and "RGB (16-235)" are only supported for HDMI source.

USER CONTROLS

Screen

Aspect Ratio

• Auto: Keep the image with original width-height ratio and maximize the image to fit native horizontal or vertical pixels.
  4:3: The image will be scaled to fit the screen and displayed using a 4:3 ratio.
• 16:9: The image will be scaled to fit the width of the screen and the height adjusted to display the image using a 16:9 ratio.
• 16:10: The image will be scaled to fit the width of the screen and the height adjusted to display the image using a 16:10 ratio.

Phase

Synchronize the signal timing of the display with the graphic card. If the image appears to be unstable or flickers, use this function to correct it.

Note: Phase, Clock, H. Position, V. Position adjustment only support VGA Graphic.

Clock

Adjust to achieve an optimal image when there is a vertical flicker in the image.

H. Position

Press the ◀ button to move the image left.

Press the ▶ button to move the image right.

V. Position

Press the ◀ button to move the image down.

Press the ▶ button to move the image up.

Digital Zoom

Press the ◀ button to reduce the size of an image.

Press the ▶ button to magnify an image on the projection screen.

USER CONTROLS

Projection

Front: The image is projected straight on the screen.

Front Ceiling: This is the default selection. When selected, the image will turn upside down.

Rear: When selected, the image will appear reversed.

Rear Ceiling: When selected, the image will appear reversed in upside down position.

Geometric Correction

• H Keystone
Press the ◀ or ▶ button to adjust image distortion horizontal. If the image looks trapezoidal, this option can help make the image rectangular.
• V Keystone
Press the ◀ or ▶ button to adjust image distortion vertically. If the image looks trapezoidal, this option can help make the image rectangular.
- 4 Corners
Adjust the image 4 corners pixel by pixel to make the image rectangular.
- Grid Color
Set 4 corners correction function grid color.
- Reset
Set H/V Keystone, 4 corners parameters to default values.

PIP-PBP Settings

Function: To enable/disable PIP/PBP function.

Main Source: To set PIP/PBP main source.

SUB Source: To set PIP/PBP sub source.

Location: To set PIP sub source location.

Size: To set PIP sub source size.

Swap: To swap PIP/PBP main/sub source.

Some source/signal combinations may not be compatible with PIP/PBP function. Please refer to the table below:

Matrix	HDMI-1	HDMI-2	Dongle	HDBaseT	VGA
HDMI-1	-	V		V	-	V
HDMI-2	V	-		-	V	V
Dongle	V	-		-	V	V
HDBaseT	-	V		V	-	V
VGA	V	V		V	V	-

1. Flashing lines may occur if the bandwidth of both inputs are too high, please try to reduce the resolution.
2. Frame tearing may occur due to a difference in frame rate between the Main and the Sub picture, please try to match the frame rate for each input.

USER CONTROLS

Settings

Language

Choose the multilingual OSD menu. Press the ◀ or ▶ button into the sub menu and then use the ▲ or ▼ button to select your preferred language. Press ▶ on the remote control to finalize the selection.

Menu Location

Choose the menu location on the display screen.

VGA Output (Standby)

Choose "On" to enable VGA OUT connection.

LAN (Standby)

Choose "On" to enable LAN connection. Choose "Off" to disable LAN connection.

Test Pattern

Display a test pattern.

Direct Power On

Choose "On" to activate Direct Power mode. The projector will automatically power on when AC power is supplied, without pressing the ⏻ key on the projector control panel or on the remote control.

Reset

Choose "Yes" to return the parameters on all menus to the factory default settings.

USER CONTROLS

Volume

Speaker

Choose "On" to enable the speaker.

Choose "Off" to disable the speaker.

Line Out

Choose "On" to enable the line out function.

Choose "Off" to disable the line out function.

Microphone

Choose "On" to enable the microphone.

Choose "Off" to disable the microphone.

Mute

Choose "On" to turn mute on.

Choose "Off" to turn mute off.

Volume

Press the ◀ button to decrease the volume.

Press the ▶ button to increase the volume.

Microphone Volume

Press the ◀ button to decrease the microphone volume.

Press the ▶ button to increase the microphone volume.

EQ

Set audio EQ values.

USER CONTROLS

Options

Logo

Use this function to set the desired startup screen. If changes are made they will take effect the next time the projector is powered on.

Default: The default startup screen.

User: Use stored picture from "Logo Capture" function.

Logo Capture

Press ▶ button to capture an image of the picture currently displayed on screen.

Note:

For successful logo capture, please ensure that the on-screen image does not exceed the projector's native resolution.

"Logo Capture" is not available when 3D is enabled.

Before active this function, it is recommended that "Aspect Ratio" is set to the "Auto".

Auto Source

On: The projector will search for other signals if the current input signal is lost.

Off: The projector will only search current input connection.

Input

Press ▶ button to enable/disable input sources. The projector will not search for inputs that are not selected.

Auto Power Off (Min)

Sets the countdown timer interval. The countdown timer will start, when there is no signal being sent to the projector. The projector will automatically power off when the countdown has finished (in minutes).

USER CONTROLS

Sleep Timer

Sets the countdown timer. The countdown timer will start, with or without a signal being sent to the projector. The projector will automatically power off when the countdown has finished (in minutes).

SSI Settings

• SSI Hours Used (Normal)
Display the projection time of normal mode.

• SSI Hours Used (ECO)

Display the projection time of ECO mode.

- SSI Power Mode

Normal: Normal mode.

ECO: Use this function to dim the projector SSI which will lower power consumption and extend the SSI life.

High Altitude

On: The built-in fans run at high speed. Select this option when using the projector at altitudes above 2500 feet/762 meters or higher.

Off: The built-in fans automatically run at a variable speed according to the internal temperature.

Optional Filters Remind (Hour)

Optional Filter Installed: Filter is installed or not.

Filter Usage Hours: Hours of filter had been used.

Filters Remind (Hour): Set the filter reminder time.

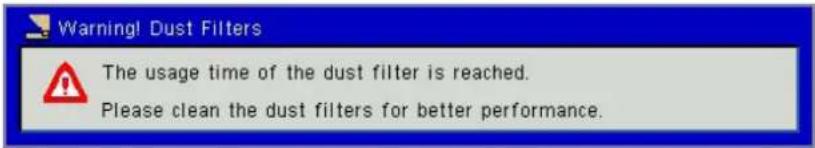

- Cleaning Up Remind: Select "Yes" to reset the dust filter hour counter after replacing or cleaning the dust filter.

Security

Security: Choose "On" to use security verification when turning on projector. Choose "Off" to be able to switch on the projector without password verification.

- Security Timer

Use this function to set the how long (Month/Day/Hour) the projector can be used. Once this time has elapsed you will be requested to enter your password again.

Change Password•

First time:

1. "Roeset"the password.

The password has to be 6 digits.2.

Use number button on the remote to enter your new password and then press "3.1" key to confirm your password.

Change Password:

1. "Read input old password."

Use number button to enter current password and then press "2!" to confirm.

1. Enter new password (6 digits in length) using the number buttons on the remote, then press “←” to confirm.

2. Enter new password again and press "←" to confirm.

- If the incorrect password is entered 3 times, the projector will automatically shut down.

- If you have forgotten your password, please contact the dealer for support.

USER CONTROLS

Note:

Password default value is "000000" (first time).

Always keep the password in your files. If the password is forgotten or lost, please contact your local authorized service center.

Remote Setting

• IR function: When this function is "Off", the projector cannot be operated by the remote control.
• Remote code: 00\~99, default code (common code): 00

HDBaseT Control

• The projector will automatically detect the signal from HDBaseT transmitter supplied. Choose "HDBaseT" to activate Direct Power mode.
• When HDBaseT control is ON, 12v trigger output signal will always be ON, even if the projector is on Standby mode.

PIP-PBP Module

Version: Show PIP-PBP module software version.*
Reset: Reset the PIP-PBP module.
USB Upgrade: Upgrade the PIP-PBP module software.
HDMI EQ: Set PIP-PBP module HDMI port EQ value.

Information Hide

On: Choose "On" to hide the info message.
Off: Choose "Off" to show the "info" message.

Information

Display the projector information for model name, SNID, source, resolution, software version, aspect ratio, SSI Hours, IP Address and Network Status on the screen.

Signal Power On & HDBaseT Standby

To access Signal Power On and HDBaseT Standby menu -- with projector on press the following buttons (in order): Power > Up >Down> Menu.

Signal Power On

On: Choose "On" to enable Signal Power On.
Off: Choose "Off" to disable Signal Power On.

HDBaseT Standby

On: Choose "On" to enable HDBaseT Standby.
Off: Choose "Off" to disable HDBaseT Standby.

USER CONTROLS

3D

3D

Auto: When a HDMI 1.4a 3D timing identification signal is detected, the 3D image is selected automatically.

Choose "On" to enable 3D function.

Choose"Auto" to detected 3D signal automatically.

3D Invert

If you see a discrete or overlapping image while wearing DLP 3D glasses, you may need to execute "Invert" to get best match of left/right image sequence to get the correct image.

3D Format

Use this feature to select the 3D format. Options are: "Frame Packing", "Side-by-Side (Half)", "Top and Bottom", "Frame Sequential".

1080p@24

Use this feature to select 96 or 144Hz refresh rate as using 3D glasses in the1080p @ 24 frame packing.

USER CONTROLS

LAN

Status

Display the network connection status.

DHCP

Configure the DHCP settings.

On: Choose "On" to let the projector to obtain an IP address automatically from your network.

Off: Choose "Off" to assign IP, Subnet Mask, Gateway, and DNS configuration manually.

IP Address

Display an IP address.

Subnet Mask

Display the subnet mask number.

Gateway

Display the default gateway of the network connected to the projector.

DNS

Display the DNS number.

MAC Address

Display the MAC address.

Group Name

Display the group name.

Projector Name

Display the projector name.

Location

Display the projector location.

Contact

Display the contact information.

APPENDICES

Projector Problems

The projector stops responding to all controls

If possible, turn off the projector, then unplug the power cord and wait at least 60 seconds before reconnecting power.
▶ Check that "Keypad Lock" is not activated by trying to control the projector with the remote control.

? If the remote control does not work

▶ Check if the operating angle of the remote control is within ±30^ both horizontally and vertically on one of the IR receivers on the projector.
▶ Make sure the batteries are inserted correctly.
▶Replace batteries if they are exhausted.
▶ Ensure that you have set your remote to the correct IR code setting.

▶ Make sure there is no obstruction between the remote control and the projector. Move to within 12 m ( ±0^ ) of the projector.

When making a direct connection from your computer to the projector

If you have network connection problem from your computer to the projector, please refer to the computer setting as below or contact with web administrator.

Step 1: Find an IP Address (192.168.0.100) from LAN function of projector.

Step 2: Select "Apply" and push the "Enter" button. Once the setting is saved, exit the OSD by pushing "Menu" button.

Step 3: To open Network Connections, click Start, click Control Panel, click Network and Internet Connections, and then click Network Connections. Click the connection you want to configure, and then, under Network Tasks , click Change settings of this connection.

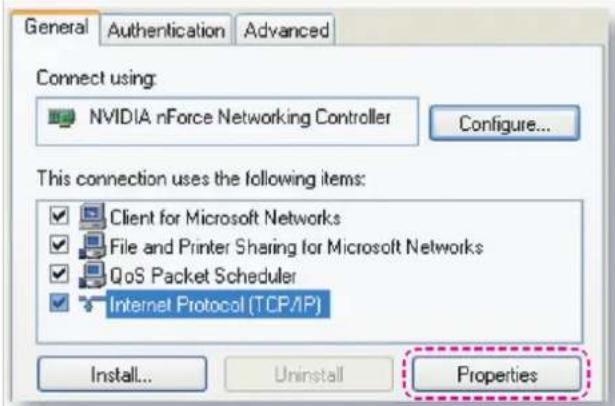

Step 4: On the General tab, under This connection use the following items, click Internet Protocol(TCP/IP), and then click "Properties".

APPENDICES

Step 5: Click Use the following IP address, and type in as below:

1) IP address: 192.168.0.101
2) Subnet mask: 255.255.255.0
3) Default gateway: 192.168.0.254

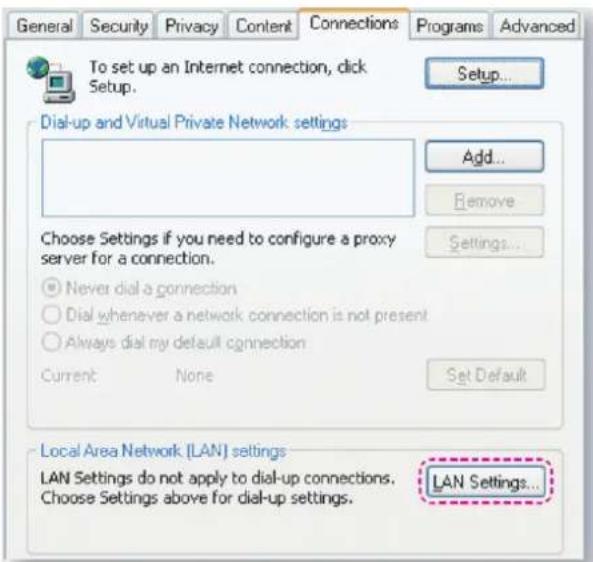

Step 6: To open Internet Options, click IE web browser, click Internet Options, click the Connections tab and click "LAN Setting...".

Step 7: All items in the Local Area Network (LAN) Setting window must unchecked. Then click "OK" button twice.

Step 8: Open your IE and type in the IP address of 192.168.0.100 in the URL then press "Enter" key.

APPENDICES

How to use web browser to control your projector

1. Turn on DHCP to allow a DHCP server to automatically assign an IP, or manually enter the required network information.

1. Then choose apply and press button to complete the configuration process.

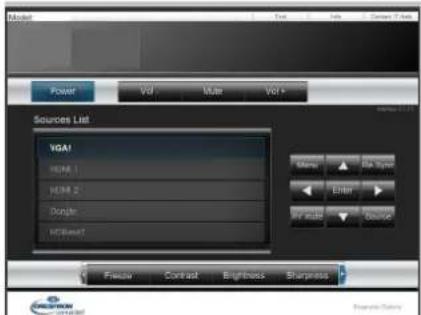

2. Open your web browser and type in IP Address from the OSD LAN screen then the web page will display as below:

Note: When you used the projector IP address, you will can not link to your service server.

1. Based on network web-page for the input-string in [tools] tab, the limitation for Input-Length is in the below list ("space" and the other punctuation key included):

Category Item		Input-Length (characters)
Crestron Control	IP Address 15
	IP ID 2
	Port 5
Projector	Projector Name 10
	Location 9
	Assigned To 9
Network Configuration	DHCP (Enabled) (N/A)
	IP Address 15
	Subnet Mask 15
	Default Gateway 15
	DNS Server 15
User Password	Enabled	(N/A)
	New Password	15
	Confirm	15
Admin Password	Enabled	(N/A)
	New Password	15
	Confirm	15

APPENDICES

Crestron RoomView Control Tool

Crestron RoomView™ provides a central monitoring station for 250+ control systems on a single Ethernet network (more are possible, the number depends on the combination of IP ID and IP address). Crestron RoomView monitors each projector, including projector's online status, system power, lamp life, network setting and hardware faults, plus any custom attribute as defined by the Administrator.

The Administrator can add, delete, or edit room information, contact information and events, which are logged automatically by the software for all users. (Operation UI as following image)

Note: Crestron RoomView function support is dependent on models.

When using RS232 or LAN control commands to power on the projector, there will be a feedback delay of 6 to 10 seconds.

Main Screen1.

Edit Room2.

On the "Edit Room" page, enter the IP Address (or hostname) as shown on the projector's on-screen display (OSD) menu, and "02" for IPID, "41794" for the reserved Crestron control port.

About Crestron RoomView™ setting and command method, please access below website to get RoomView™ User Guide and more information:

http://www.crestron.com

APPENDICES

Edit Attribute3.

Edit Event4.

For more information, please visit

http://www.crestron.com & www.crestron.com/getroomview.

Network supports Crestron (Room View), AMX (Device Discovery), PJLink and RS232 control.

APPENDICES

Installing and Cleaning the Optional Dust Filter

We recommend you clean the dust filter every 500 hours of operation, or more often if you are using the projector in a dusty environment.

When the warning message appears on the screen, do the following to clean the air filter:

Note:

The optional dust filter should be used in dusty environments.

If the dust filter is installed, a proper maintenance will prevent overheat- ing and projector malfunction.

The dust filter is optional.

The specific inter- faces are selected in terms of the specifications of types.

Air Filter Cleaning Procedure:

1. Switch off the power to the projector by pressing the "button."
2. Disconnect the power cord.
3. Pull out the dust filter, as shown in the illustration.①
4. Carefully remove the dust filter. Then clean or change the filter. ②

To install the filter, reverse the previous steps.

1. Turn on the projector and reset the filter usage counter after the dust filter is replaced.

APPENDICES

Compatibility Modes

		A. VGA Analog
		(1) PC Signal
Modes Resolution		V.Frequency [Hz]	H.Frequency [KHz]	Pixel CLK [MHz]	EDID Description
VGA 640x480	60 31.5			25,2	Established Timings 1
	640x480 67 35.0	26.8 Established Timings 1
	640x480 72 37.9			31.5	Established Timings 1
	640x480 75 37.5			31.5	Established Timings 1
	640x480 85 43.3			36.0
IBM 720x400	70 31.5	28.3 Established Timings 1
SVGA 800x600	56 35.1			36.0	Established Timings 1
	800x600 60 37.9			40.0	Established Timings 1
	800x600 72 48.1	50.0 Established Timings 2
	800x600 75 46.9	49.5 Established Timings 2
	800x600 85 53.7	56.3
Apple, Mac II 832	x624 75 49.1	57.3 Established Timings 2
XGA 1024x768	60 48.4	65.0			WXGA: Established Timings 2XGA: Established Timings 2and (Native)Detailed Timing / Descriptor Block 1
	1024x768 70 56.5	75.0 Established Timings 2
	1024x768 75 60.0	78.8 Established Timings 2
	1024x768 85 68.7	94.5
	1024x768 120	99.0	Standard Timing Identification
Apple, Mac II 1152	x870	75	68.7	100.0 Manufacturer's Reserved Timing
SXGA	1280x1024 60	64.0	108.0
	1280x1024 72	77.0	133.0
	1280x1024 75	80.0	135.0 Established Timings 2
QuadVGA	1280x960 60	60.0	101.3 Standard Timing Identification
	1280x960 75	75.2	130.0
SXGA+ 1400x1050	60 65.3	121.8
UXGA	1600x1200 60	75.0	161.0	Standard Timing Identification
Full HD 1920x1080	60 67.5	148.5
WUXGA	1920x1200	60	74	154	Reduced Blanking
		(2) Extended Wide timing
WXGA 1280x720	60 44.8	74.2 Standard Timing Identification
	1280x800 60	49.6	83.5		WXGA: (Native)Detailed Timing / Descriptor Block 1XGA: Standard Timing Identification
	1366x768 60	47.7	84.8
	1440x900 60	59.9	106.5	Standard Timing Identification
WSXGA+	1680x1050 60	65.3	146.3		WXGA: Standard Timing IdentificationXGA: N/A
	1920x720 60	44.35	92.25
		(3) Component Signal
480i	720x480(1440x480)	59.94(29.97)	15.7	13.5

APPENDICES

576i	720x576(1440x576)	50(25) 15.6	13.5
480p 720x480	59.94 31.5 27.0
576p 720x576	50 31.3 27.0
720p 1280x7	20 60 45.0 74.25
720p 1280x7	20 50 37.5 74.25
1080i 1920x	1080 60(30) 33.8 74.25
1080i 1920x	1080 50(25) 28.1 74.25
1080p 1920x	1080 23.98/24 27.0 74.25
1080p 1920x	1080 60 67.5 148.5
1080p 1920x	1080 50 56.3 148.5
		B. HDMI Digital
		(1) PC Signal
Modes Resolution		V.Frequency[Hz]	H.Frequency[KHz]	Pixel CLK[MHz]	EDID Description
VGA 640x480	60 31.5			25,2	Established Timings 1
	640x480 67 35.0 26.8	Established Timings 1
	640x480 72 37.9			31.5	Established Timings 1
	640x480 75 37.5			31.5	Established Timings 1
	640x480 85 43.3			36.0
IBM	720x400	70	31.5	28.3	Established Timings 1
SVGA 800x600	56 35.1			36.0	Established Timings 1
	800x600	60	37.9	40.0	Established Timings 1
	800x600	72	48.1	50.0	Established Timings 2
	800x600	75	46.9	49.5	Established Timings 2
	800x600	85	53.7 56.3
Apple, Mac II	832x624	75	49.1	57.3	Established Timings 2
XGA	1024x768 60 48.4 65.0				WXGA: Established Timings 2XGA: Established Timings 2and (Native)Detailed Timing / Descriptor Block 1
	1024x768 70 56.5 75.0	Established Timings 2
	1024x768 75 60.0 78.8	Established Timings 2
	1024x768 85 68.7 94.5
	1024x768 120	99.0 137.8	Standard Timing Identification
Apple, Mac II	1152x870	75	68.7	100.0	Manufacturer's Reserved Timing
SXGA 1280x	1024 60 64.0 108.0
	1280x1024 72 77.0 133.0
	1280x1024 75 80.0 135.0	Established Timings 2
QuadVGA	1280x960 60 60.0 101.3	Standard Timing Identification
	1280x960 75 75.2 130.0
SXGA+ 1400x	1050 60 65.3 121.8
UXGA	1600x1200 60 75.0 161.0	Standard Timing Identification
Full HD	1920x1080 60 67.5 148.5
WUXGA	1920x1200	60	74	154	Reduced Blanking
		(2) Extended Wide timing

APPENDICES

WXGA 1280x720 60 44.8 74.2 Standard Timing Identification
	1280x800 60 49.6 83.5			WXGA: (Native)Detailed Timing / Descriptor Block 1XGA: Standard Timing Identification
	1366x768 60 47.7 84.8
	1440x900 60 59.9 106.5 Standard Timing Identification
WSXGA+ 1680x1050 60 65.3 146.3				WXGA: Standard Timing IdentificationXGA: N/A
	1920x720 60 44.35 92.25
		(3) HDMI - Video Signal
640x480p 640x480 59.94/60 31.5	25.2			Short Video Descriptor of CEA EDID Timing
480i	720x480(1440x480)	59.94(29.97) 15.7 13.5		Short Video Descriptor of CEA EDID Timing
576i	720x576(1440x576)	50(25) 15.6 13.5		Short Video Descriptor of CEA EDID Timing
480p 720x480 59.94 31.5 27.0				Short Video Descriptor of CEA EDID Timing
576p 720x576 50 31.3 27.0				Short Video Descriptor of CEA EDID Timing
720p	1280x720 60 45.0 74.25			(Native)Short Video Descriptor of CEA EDID Timing
720p	1280x720 50 37.5 74.25			(Native)Short Video Descriptor of CEA EDID Timing
1080i	1920x1080 60(30) 33.8 74.25			Short Video Descriptor of CEA EDID Timing
1080i	1920x1080 50(25) 28.1 74.25			Short Video Descriptor of CEA EDID Timing
1080p	1920x1080	23.98/24 27.0 74.25		Short Video Descriptor of CEA EDID Timing
1080p	1920x1080 60 67.5 148.5			Short Video Descriptor of CEA EDID Timing
1080p	1920x1080 50 56.3 148.5			Short Video Descriptor of CEA EDID Timing
		(4) HDMI 1.4a mandatory 3D timing- Video Signal
Frame Packing	720p	50	75 148.5
	720p 59.94/60 90	148.5		Short Video Descriptor of CEA EDID Timing
	1080p	23.98/24	54 148.5
Top-and-Bottom	720p	50 37.5 74.25		Short Video Descriptor of CEA EDID Timing
	720p 59.94/60 45.0	74.25		Short Video Descriptor of CEA EDID Timing
	1080p	23.98/24 27.0 74.25		Short Video Descriptor of CEA EDID Timing
		(5) Input signal frequency rangeAnalog: fh=15kHz~100kHz, fv=24Hz~120Hz, Max. pixel rate: 162.5MHzDigital (HDMI): fh=15kHz~100kHz, fv=24Hz~120Hz, Max. pixel rate: 200MHz

APPENDICES

Ceiling Mount Installation

1. To prevent damage to your projector, please use the Optoma ceiling mount.

2. If you wish to use a third party ceiling mount kit, please ensure the screws used to attach a mount to the projector meet the following specifications:

- Screw type: M4*4

Minimum screw length: 14mm•

Note: Please note that damage resulting from incorrect installation will void the warranty.

Warning:

1. If you buy a ceiling mount from another company, please be sure to use the correct screw size. Screw size will vary depending on the thickness of the mounting plate.
2. Be sure to keep at least 10 cm gap between the ceiling and the bottom of the projector.
3. Avoid installing the projector near a heat source.

APPENDICES

Optoma global offices

For service or support, please contact your local office.

USA

3178 Laurelview Ct. 888-289-6786

Fremont, CA 94538, USA 510-897-8601

www.optomausa.com [e-mail]

Canada

3178 Laurelview Ct. 888-289-6786

Fremont, CA 94538, USA 510-897-8601

www.optomausa.com [e-mail]

Latin America

3178 Laurelview Ct. 888-289-6786

Fremont, CA 94538, USA 510-897-8601

www.optomausa.com [e-mail]

Europe

42 Caxton Way, The Watford Business Park

Watford, Hertfordshire,

WD18 8QZ, UK [phone]

www.optoma.eu [phone]

Service Tel : [phone] [e-mail]

Benelux BV

Randstad 22-123 [phone]

1316 BW Almere [phone]

The Netherlands

www.optoma.nl

France

Germany [e-mail]

Scandinavia

Lerpeveien 25 [phone]

3040 Drammen [phone]

Norway [e-mail]

PO.BOX 9515

3038 Drammen

Norway

Korea

WOOMI TECH.CO.,LTD.

4F, Minu Bldg.33-14, Kangnam-Ku, +82+2+34430004

seoul,135-815, KOREA +82+2+34430005

Japan

東京都足立区綾瀬3-25-18

株式会社オーエス

[e-mail]

www.os-worldwide.com

Taiwan

12F., No. 213, Sec. 3, Beixin Rd., [phone]

Xindian Dist., New Taipei City 231, [phone]

Taiwan, R.O.C. [e-mail]

www.optoma.com.tw asia.optoma.com

Hong Kong

Unit A, 27/F Dragon Centre,

79 Wing Hong Street, [phone]

Cheung Sha Wan, [phone]

Kowloon, Hong Kong www.optoma.com.hk

China

5F, No. 1205, Kaixuan Rd., [phone]

Changning District [phone]

Shanghai, 200052, China www.optoma.com.cn
